2018-2021 Hyundai Kona Ac Heater Climate Control OEM 97250-J9401

$ 149.95

Genuine Hyundai OEM automatic temperature-control panel for select 2018–2021 Hyundai Kona gasoline models equipped with the factory auxiliary/PTC heater.

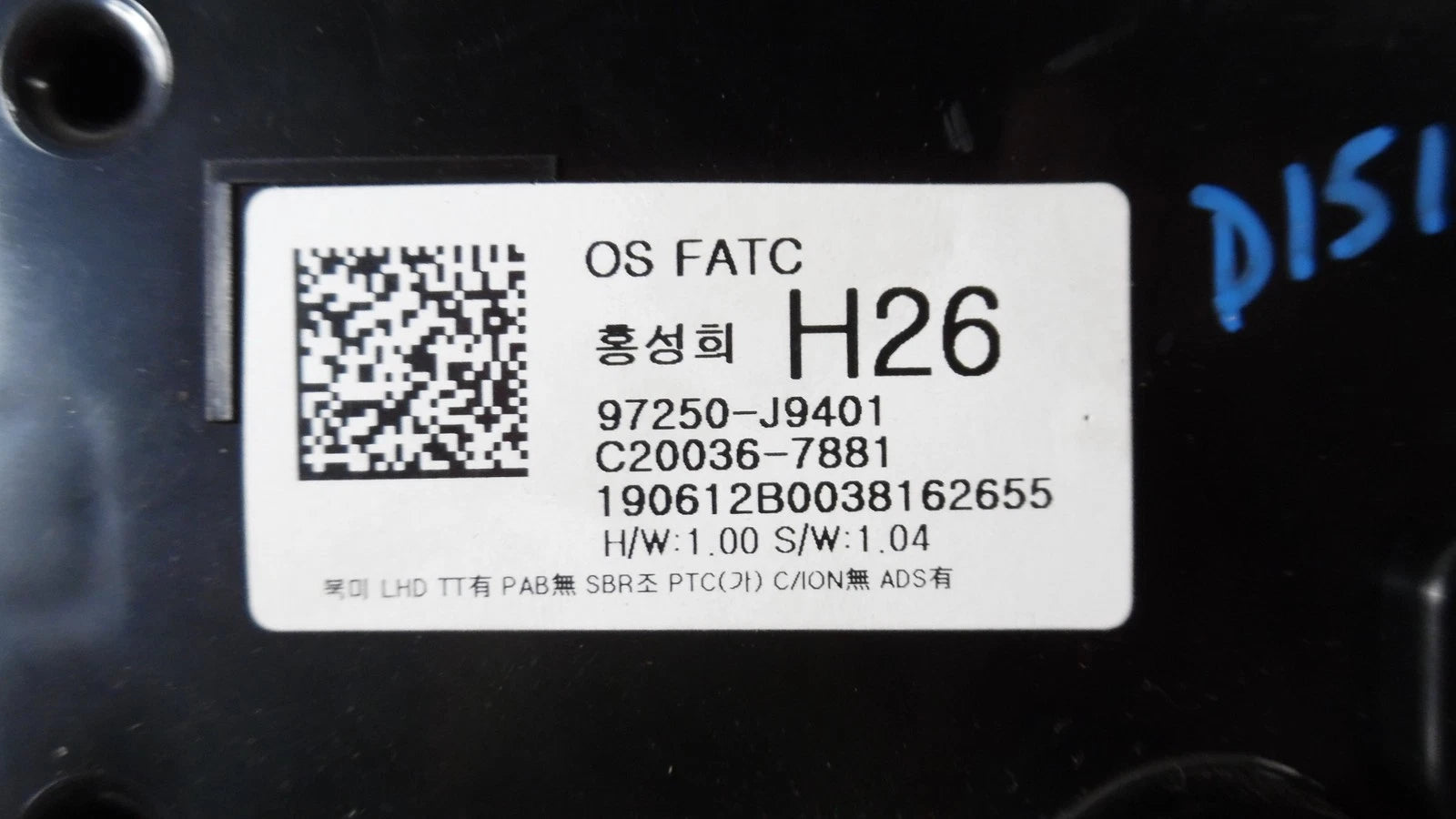

This dashboard control assembly operates the vehicle’s factory heating, ventilation and air-conditioning system. The photographed label confirms Hyundai part number 97250-J9401.

product details

Genuine Hyundai OEM component
Factory automatic temperature control—FATC
Hyundai part number: 97250-J9401
Service part number: 97250-J9401-TMT
Compact number: 97250J9401
Earlier related number: 97250-J9400-TMT
Part description: HVAC temperature-control panel
Label model designation: H26
Hardware version: 1.00
Software version: 1.04
Label manufacturing date: June 12, 2019
Left-hand-drive configuration
Black factory finish with silver control-ring trim
Used OEM direct-replacement component

control functions

Automatic temperature regulation
Temperature adjustment
Blower-speed control
Air-conditioning control
Air-distribution mode selection
Front windshield defrost
Rear-window defrost
Cabin-air recirculation
System OFF control
Passenger-airbag status display
Automatic-defog-system integration when factory equipped
Auxiliary/PTC-heater integration

compatibility

Designed for select US-market gasoline models:

2018 Hyundai Kona
2019 Hyundai Kona
2020 Hyundai Kona
2021 Hyundai Kona

The vehicle must have:

Factory automatic temperature control
Auxiliary/PTC electric heater
Gasoline engine
Left-hand-drive configuration
Matching connectors and control layout

Potential applications include vehicles equipped with the 2.0L MPI or 1.6L turbocharged GDI gasoline engine. Front-wheel-drive and all-wheel-drive applications may use this control when the required factory equipment is present.

Potential trims include SE, SEL, SEL Plus, Limited, Ultimate, Iron Man Edition and Night when equipped with the matching automatic climate and auxiliary-heater configuration.

The pictured unit was removed from a 2020 Hyundai Kona Limited with the 1.6L turbocharged gasoline engine.

important heater configuration

Hyundai used different automatic climate-control panels depending on whether the vehicle had an auxiliary/PTC heater.

This 97250-J9401 version is cataloged for vehicles with:

Automatic temperature control
Auxiliary/PTC heater

Visually similar J9410 and J9411 versions can be assigned to vehicles without the auxiliary-heater configuration. Do not substitute those numbers solely because the panels look alike.

related part numbers

Potential compatible or superseded numbers include:

97250-J9401
97250-J9401-TMT
97250-J9400
97250-J9400-TMT

The listing also references Hollander interchange 655-12332. Some interchange databases categorize J9400/J9401 under 655-10517 instead. Because interchange numbering can vary between database revisions, the Hyundai OEM number and factory equipment should be used as the primary fitment identifiers.

not compatible with

Hyundai Kona Electric
Vehicles with manual climate controls
Vehicles without the auxiliary/PTC heater
Units requiring 97250-J9410 or 97250-J9411
2022 or newer redesigned Kona controls
Right-hand-drive vehicles
Other Hyundai models with similar-looking panels
Automatic-climate-control conversions on vehicles originally equipped with manual controls

condition

Used genuine OEM component in good working condition. Normal cosmetic wear, light scratches, blemishes, dust or installation marks may be present.

The seller provides a 90-day parts-only warranty. Labor, installation, programming and diagnostic expenses are not covered.

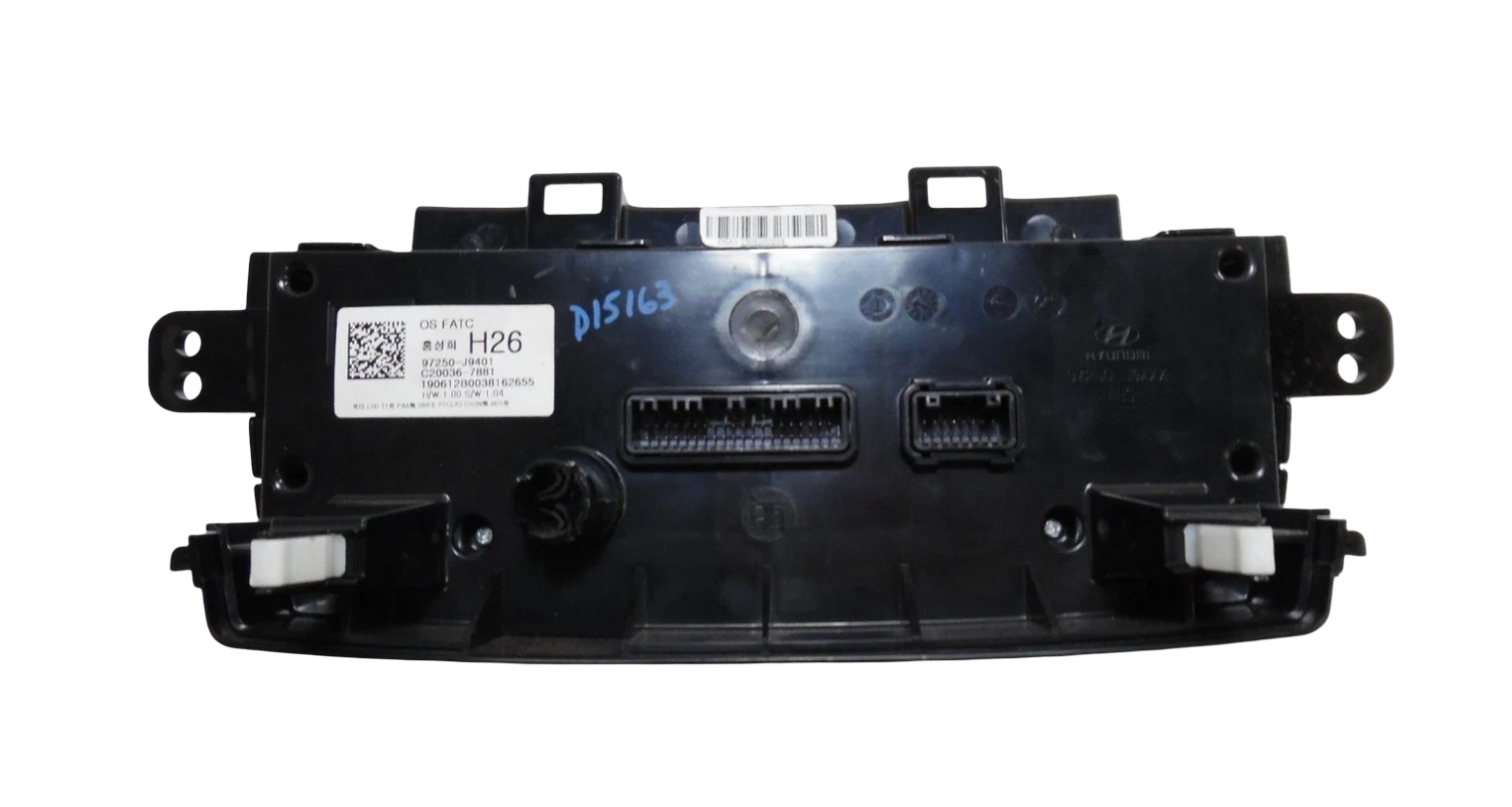

Please examine the photographs for the exact cosmetic condition, connectors, mounting points and identification label.

included

One Hyundai Kona automatic climate-control assembly as pictured.

Wiring, connectors, dashboard trim, vents, sensors, mounting hardware and other HVAC components are not included unless specifically pictured.

installation

Designed as a direct replacement for a vehicle with matching equipment and part-number compatibility. Professional installation is recommended.

Programming, calibration or initialization with Hyundai-compatible diagnostic equipment may be required. Installation of this control will not add automatic climate control or an auxiliary heater to a vehicle that was not originally equipped with those features.

A replacement panel will not correct faults caused by the blower motor, resistor, actuator, compressor, sensors, wiring, refrigerant system or PTC-heater assembly.

buyer verification

Before ordering, compare:

Complete Hyundai part number
Automatic versus manual climate control
Auxiliary/PTC-heater equipment
Gasoline versus electric powertrain
Front control layout
Rear connectors
Left-hand-drive configuration
Vehicle production date
VIN equipment information

Matching only the model and year is not sufficient.
