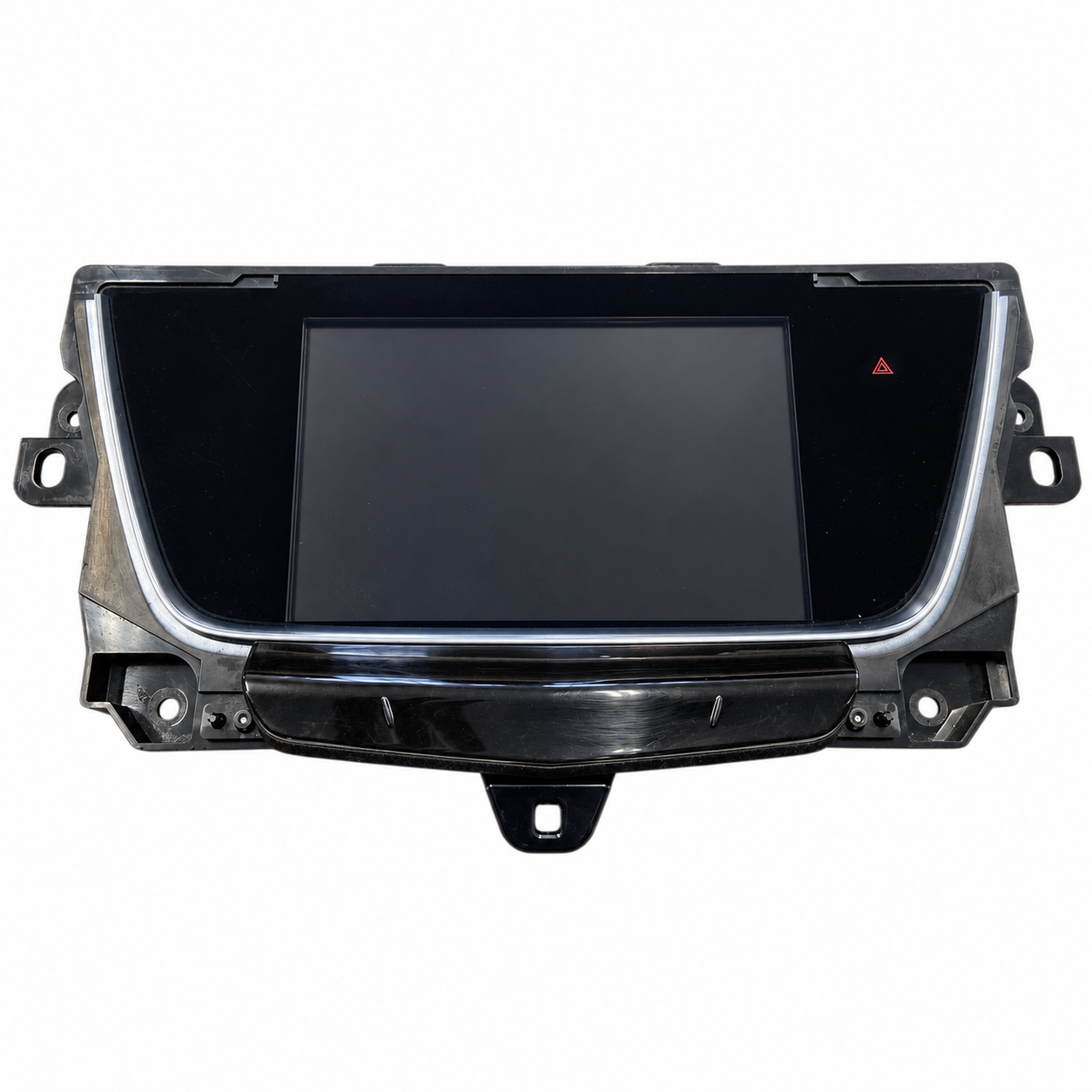

Cadillac XT5 CUE OEM 84129302 display screen and radio control panel front view

2017 Cadillac XT5 CUE Display Screen & Radio Control Panel | OEM 84129302

$ 199.95

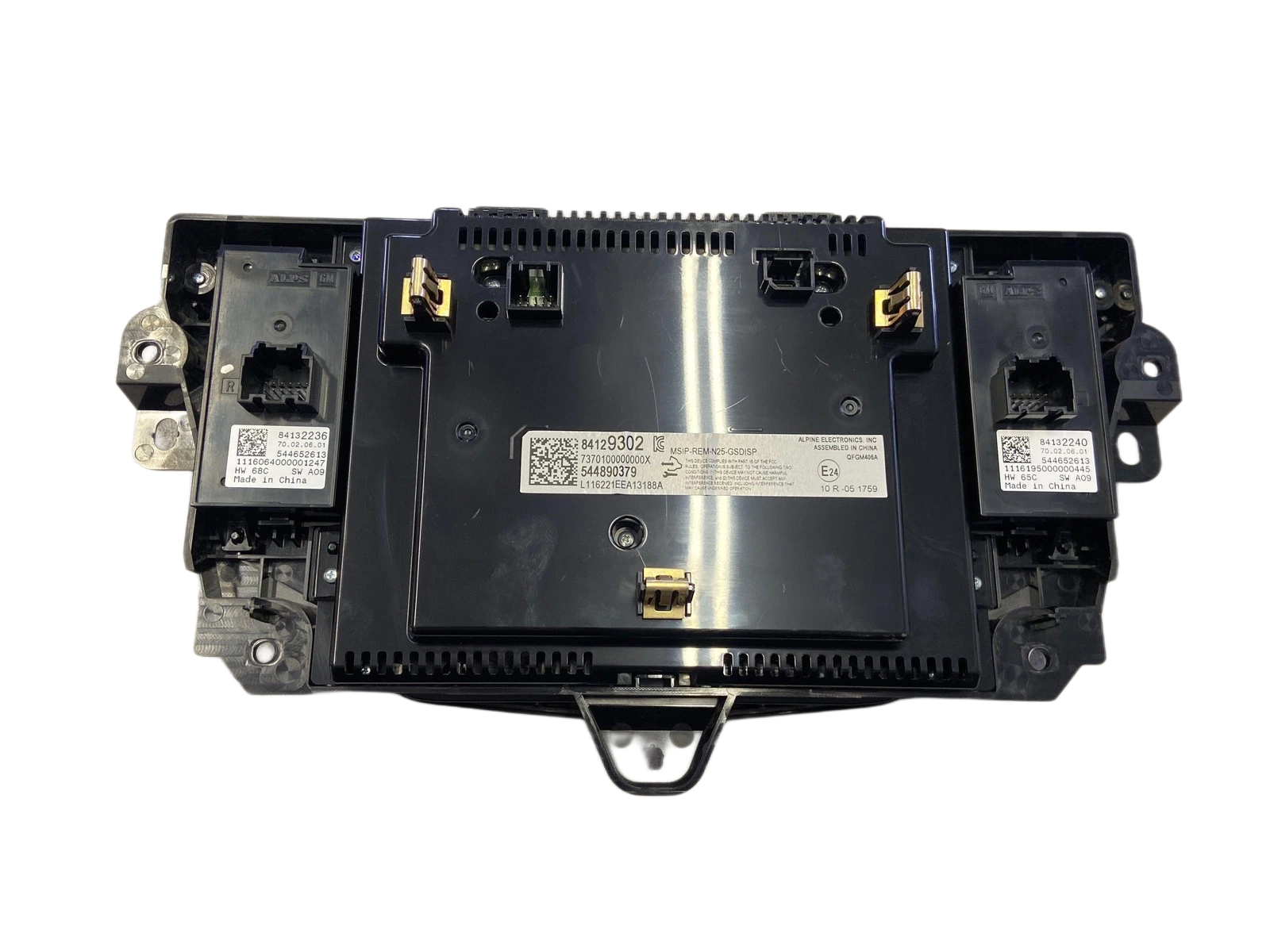

Replace the original center-dash display and control interface with this OEM Cadillac XT5 CUE display screen and radio control panel assembly, identified by GM part number 84129302. The photos show the front panel, rear connections and identification labels so you can compare the assembly with your original before ordering.

Product details

Main assembly number: 84129302.
Manufacturer identification: GM / Alpine; ALPS side control modules.
Interchange reference: 638-10947.
Included: One display/control-panel assembly as pictured.
Appearance: Black face with silver perimeter trim. Please review the product photos for visible cosmetic wear.

Compatible applications

2017 Cadillac XT5 with the matching factory display/control-panel configuration. Catalog coverage includes base, Luxury, Premium and Platinum configurations, subject to the correct vehicle equipment and part number.

Some specialist suppliers advertise this display family for 2017–2020 XT5. Fitment for 2018, 2019 and 2020 must be confirmed by VIN, original assembly number, connectors and infotainment options before purchase; it is not guaranteed by model year alone. This listing does not establish compatibility with XT4, XT6, SRX, CTS, ATS, XTS or Escalade.

Part-number cross-references

84129302: Main assembly number shown on this unit.
84295774: Catalog-listed replacement for 84129302.
84181102 and 84033772: Also listed in the 84295774 replacement family; verify the applicable replacement path for your VIN.
84062172: Cross-listed by specialist radio suppliers and the comparable 2017 XT5 listing under interchange 638-10947.

Additional supplier-listed display-family references: 84303686, 84446584, 84181100 and 84101501. These are comparison references requiring individual verification, not a promise that this older assembly replaces every later part number.

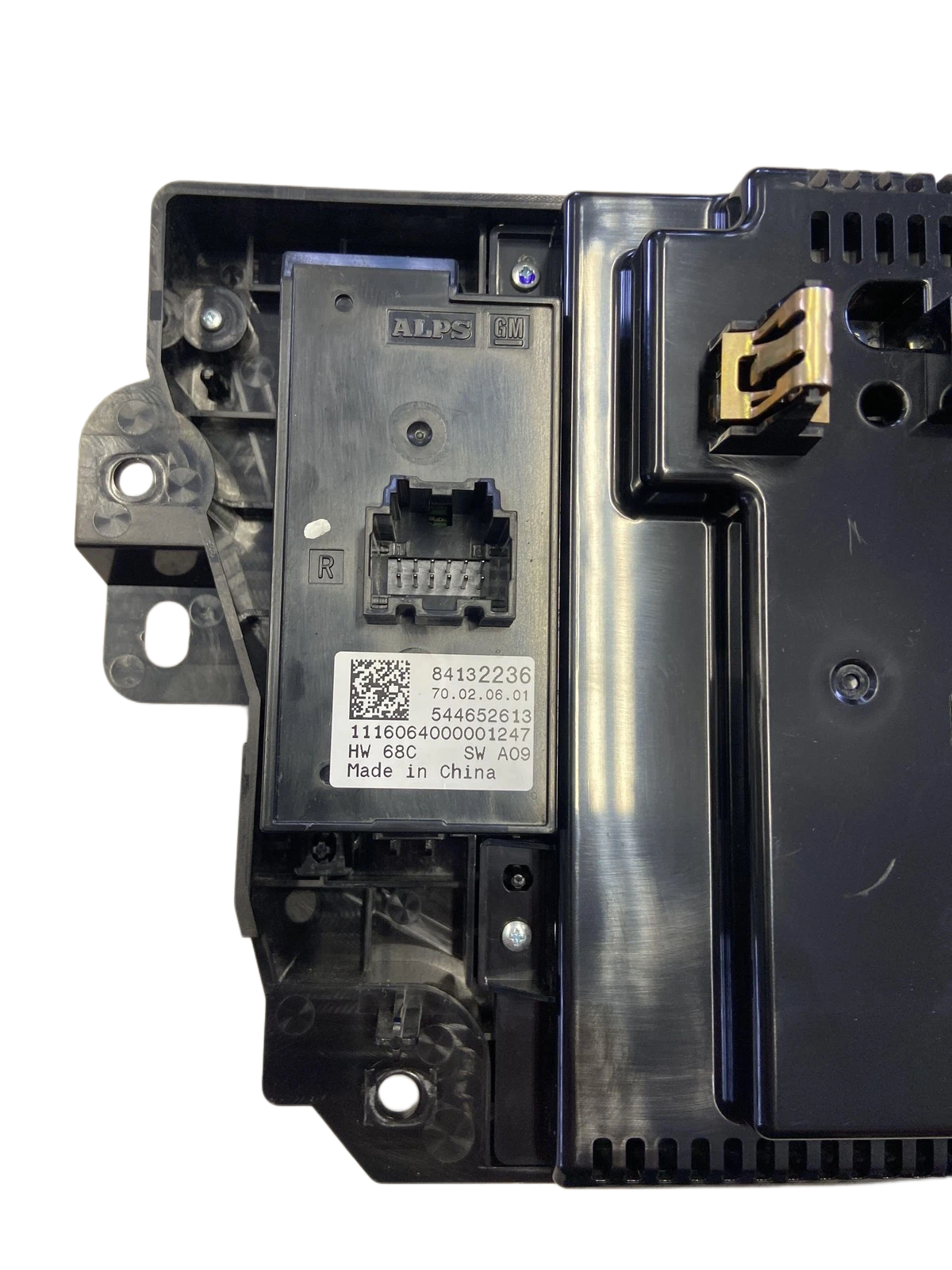

The rear side-module labels 84132236 and 84132240 identify components fitted to the photographed assembly. They are not equivalent numbers for the complete 84129302 display assembly.

Before ordering and installation

Match the number on the main rear label and compare the connector layout, mounting points, control functions and original vehicle equipment. A supersession to a newer number does not automatically establish interchangeability in the reverse direction. Contact us with your VIN and clear photos of your original labels and connections if you need help checking the match.

Dealer or qualified GM specialist setup, configuration or activation may be required depending on the vehicle and components being replaced. Programming is not included. This assembly does not add navigation or other features that the vehicle's existing infotainment system does not support.

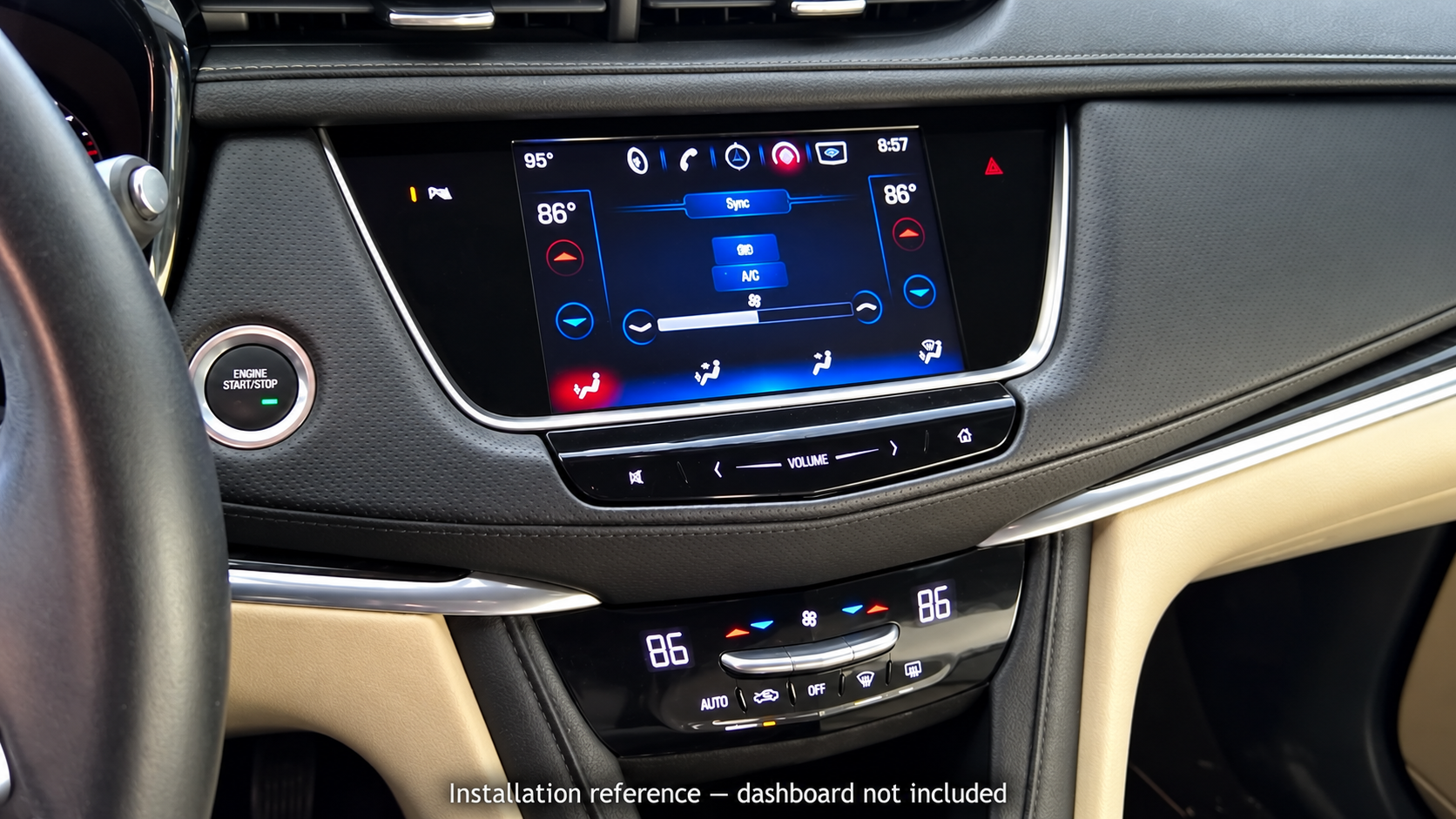

The in-vehicle dashboard photo is an installation reference only, not a powered-on test of the specific loose unit. Dashboard trim, lower climate-control panel, radio/HMI modules, wiring and other vehicle parts are not included unless shown as part of the loose assembly.
