2017-2022 Toyota Prius Prime 11.6" Touchscreen Digitizer E7051 E7057 / Non-JBL

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

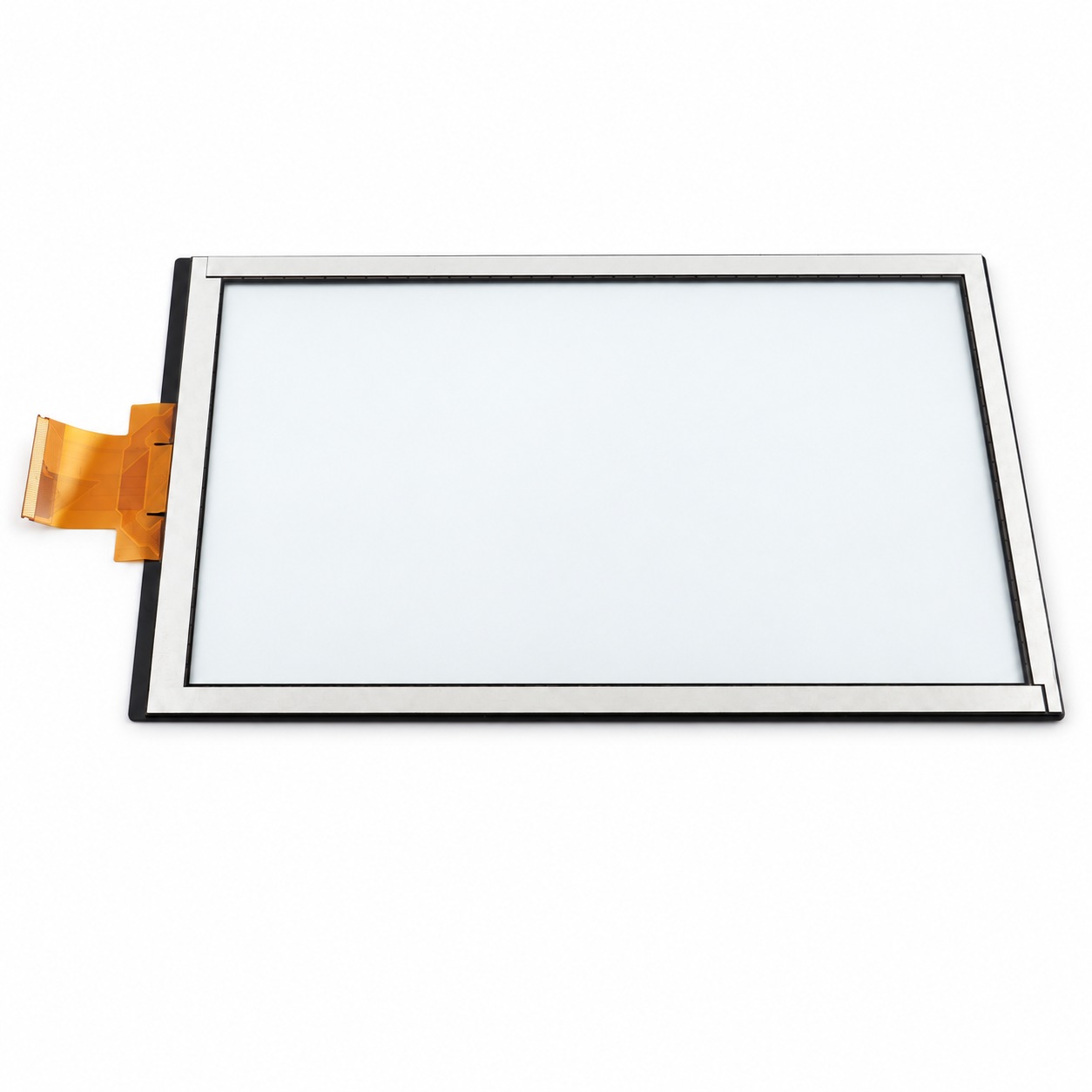

Brand-new replacement touch screen digitizer for the factory 11.6-inch vertical navigation display installed in selected Toyota Prius Prime models without the JBL premium audio system.

This component replaces the exterior touch-sensitive glass panel when the original screen is cracked, scratched, unresponsive or registering incorrect touch commands. It allows the original navigation and multimedia unit to be repaired without replacing the complete radio assembly.

This is the touchscreen digitizer only. It is not the LCD image display, radio receiver, navigation computer or complete multimedia head unit.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

• Screen format: Vertical factory multimedia display
• Factory screen size: 11.6 inches diagonal
• Product type: Touch-sensitive digitizer glass
• Audio-system application: Standard non-JBL system
• Navigation: For factory navigation-equipped units
• Brand: Unbranded replacement component
• Condition: New
• Country of origin: China
• Manufacturer warranty: One year

The screen is sometimes advertised as a 12-inch display, but Toyota identifies the original system as an 11.6-inch multimedia display.

𝗙𝗮𝗰𝗲𝗽𝗹𝗮𝘁𝗲 𝗜𝗗𝘀

Designed for compatible non-JBL units marked:

• E7051
• E7057

The faceplate ID is printed in small characters near the lower portion of the original radio face. Match this number before ordering.

𝗥𝗮𝗱𝗶𝗼 𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

Compatible radio assemblies may carry reference numbers including:

• 86100-47580
• 86100-47581
• 86100-47720
• 86100-47721
• 86100-47722
• 86100-47723
• 86804-47490

These numbers identify complete Toyota multimedia assemblies and are provided for reference only. They are not the manufacturer number of the replacement digitizer.

Always match the faceplate ID, original digitizer shape, flex-cable location and connector before installation.

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Confirmed primary applications:

• 2017 Toyota Prius Prime Premium with 11.6-inch non-JBL navigation
• 2018 Toyota Prius Prime Premium with 11.6-inch non-JBL navigation
• 2019 Toyota Prius Prime Premium with 11.6-inch non-JBL navigation
• 2020 Toyota Prius Prime XLE with 11.6-inch non-JBL navigation
• 2021 Toyota Prius Prime XLE with 11.6-inch non-JBL navigation
• 2022 Toyota Prius Prime XLE with 11.6-inch non-JBL navigation

Vehicle trim names may differ outside the United States. International vehicles must be verified using the original radio face ID and digitizer configuration.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗡𝗼𝘁𝗶𝗰𝗲

This is not a universal-fit touchscreen.

The replacement is intended for non-JBL E7051 and E7057 units. It is not intended for JBL-equipped radios such as:

• E7052 JBL units used in selected 2017–2019 Prius Prime models
• E7058 JBL units used in selected 2020–2022 Prius Prime models

It is also not intended for:

• Prius Prime models equipped with the smaller 7-inch display
• Standard Prius units with a different faceplate ID
• Prius Limited models with JBL premium audio
• Prius Prime Advanced or Limited models when equipped with a different JBL faceplate
• Prius, Prius V or Prius C radios with different screen dimensions
• Aftermarket Android or replacement multimedia systems

JBL and non-JBL complete radios use different audio-system configurations. Although the digitizer may appear similar, purchase should be based on the exact face ID and original screen design.

𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Cracked exterior touchscreen glass
• Touch commands not responding
• Incorrect or intermittent touch response
• Ghost-touch operation
• Dead areas on the touch surface
• Scratched or damaged front glass
• Delaminated digitizer surface

𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Dead pixels in the LCD image
• Vertical or horizontal image lines
• Black or blank LCD image
• Failed display backlighting
• Radio rebooting or freezing
• No audio output
• Navigation-computer failure
• Water-damaged circuit boards

Image defects require diagnosis of the underlying LCD or electronic components. A digitizer replacement only repairs the touch-sensitive front panel.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Installation requires removal and disassembly of the factory multimedia unit. The damaged digitizer must be separated from the display assembly without damaging the LCD, frame, ribbon connections or control electronics.

Professional installation by an automotive-electronics or display-repair technician is strongly recommended.

Test all touch functions before removing protective film or permanently reassembling the radio. Avoid bending the flex cable, applying excessive pressure to the glass or allowing dust between the digitizer and LCD.

Replacing the digitizer does not normally require programming because the original radio electronics remain in the vehicle.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

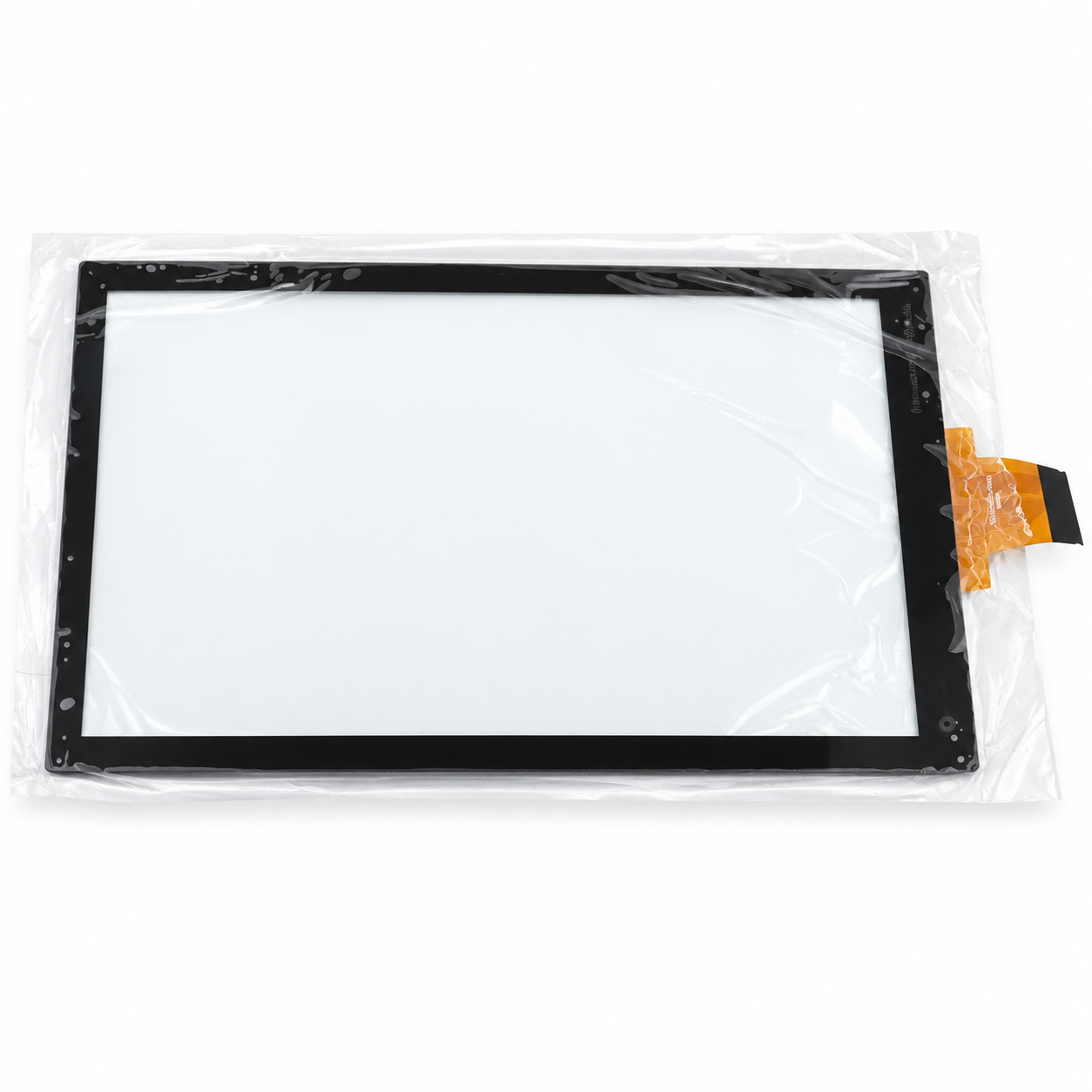

Brand-new aftermarket replacement digitizer. Protective film and installation adhesive may be present as shown in the product photographs. Minor marks on removable protective film are normal and do not indicate damage to the finished glass.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

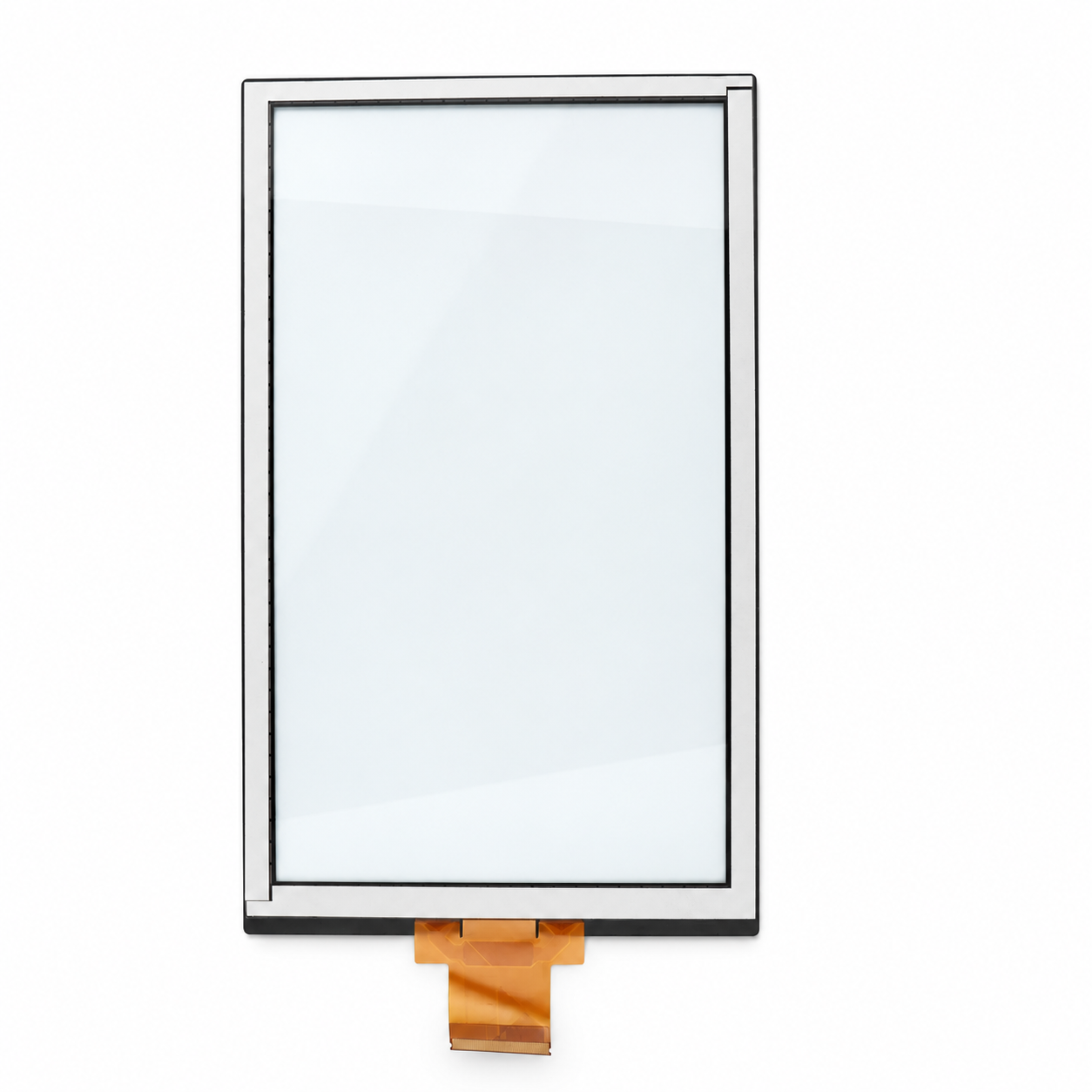

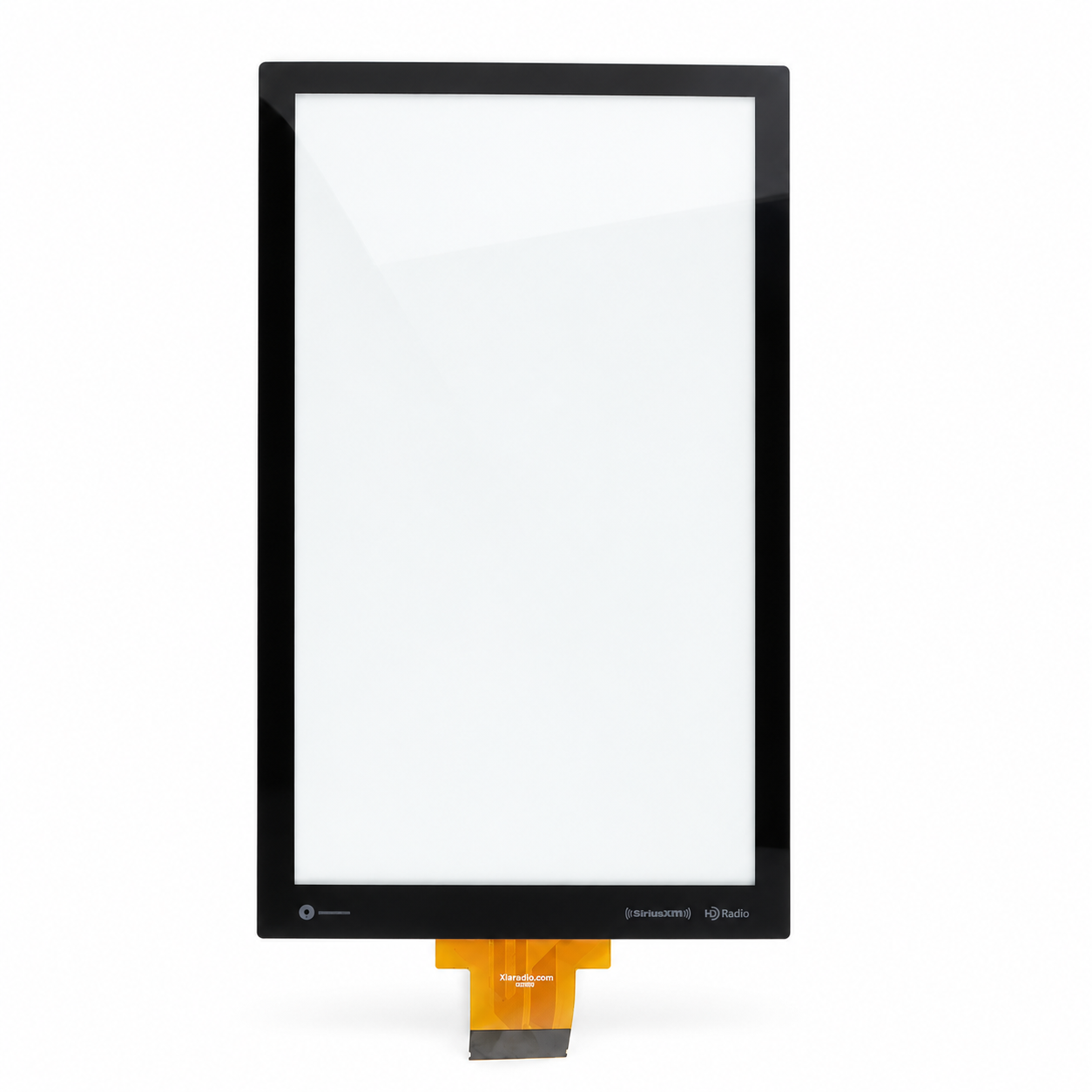

• One replacement 11.6-inch touchscreen digitizer
• Attached flex cable and connector as pictured

LCD panel, radio receiver, navigation computer, dashboard trim, installation tools and complete multimedia assembly are not included.
