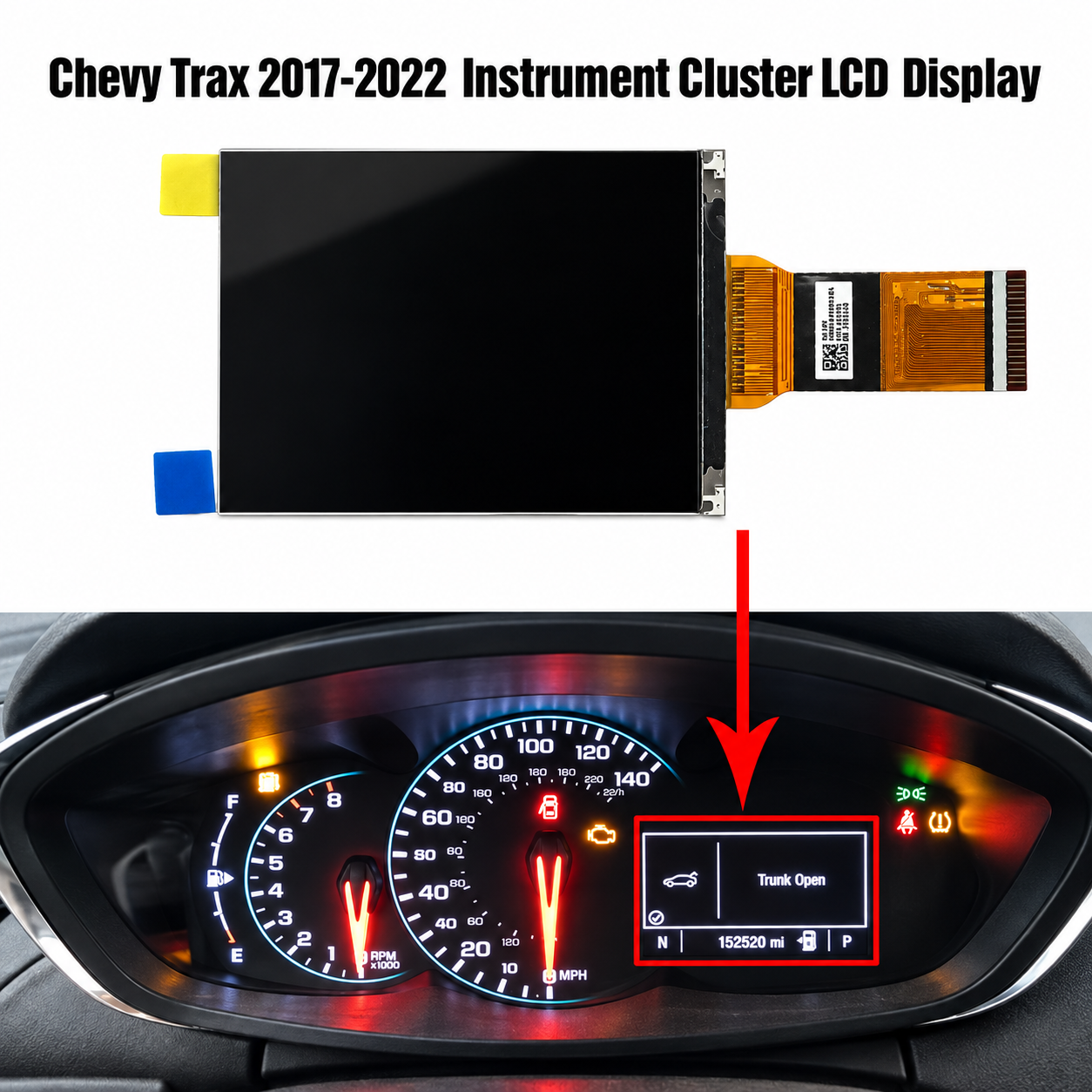

2017-2022 Chevy Trax 2017-2020 Sonic 3.5" Cluster LCD Screen 42574330
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐

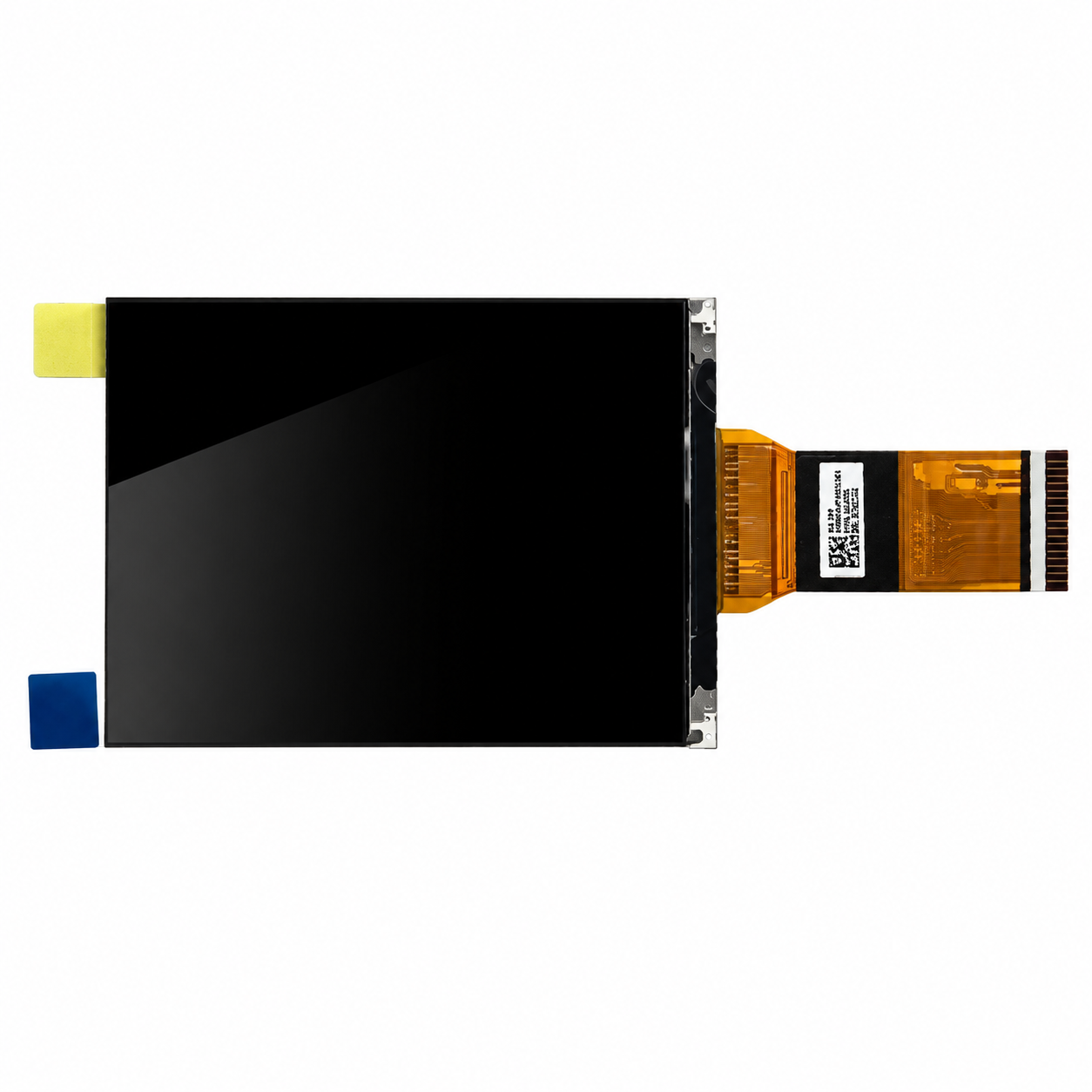

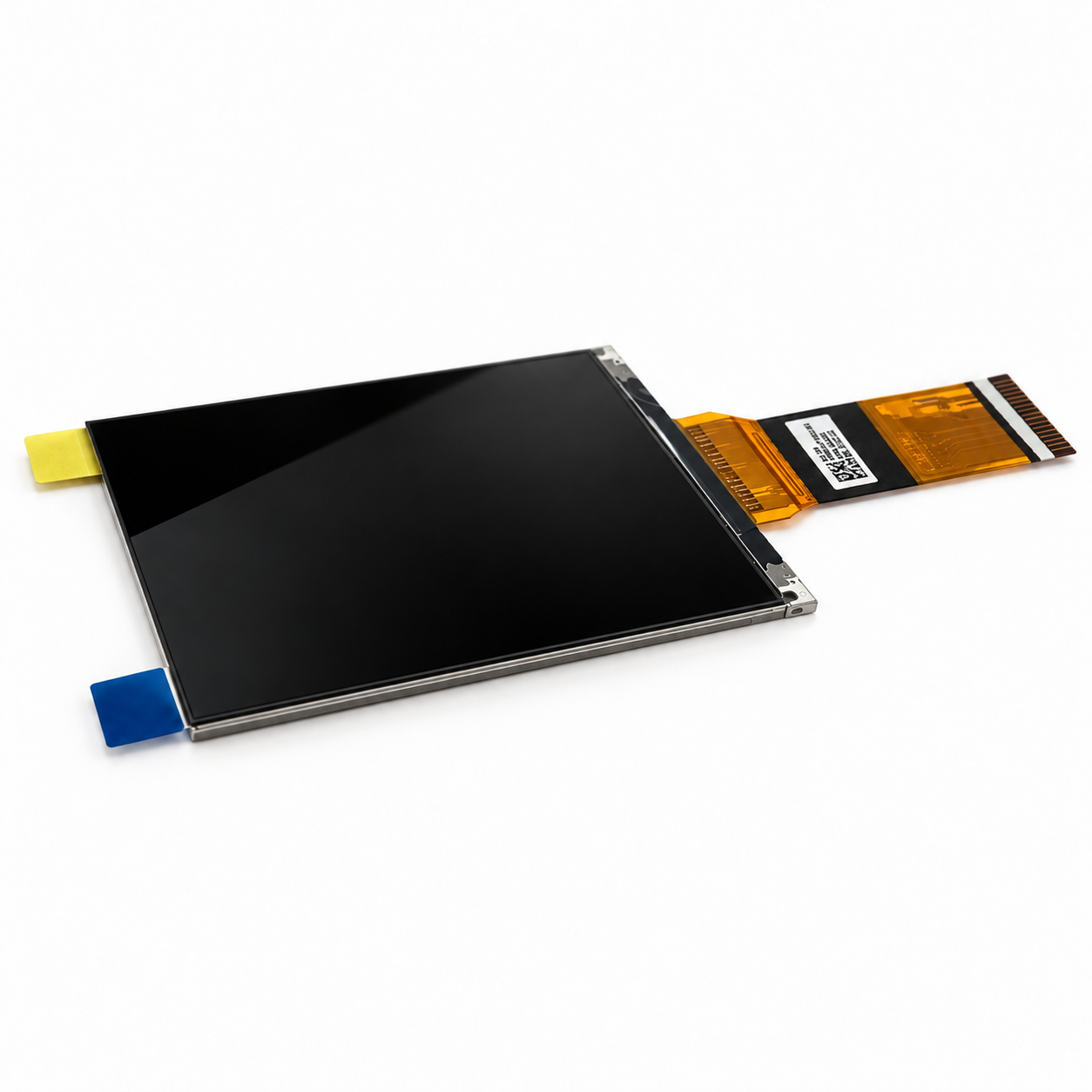

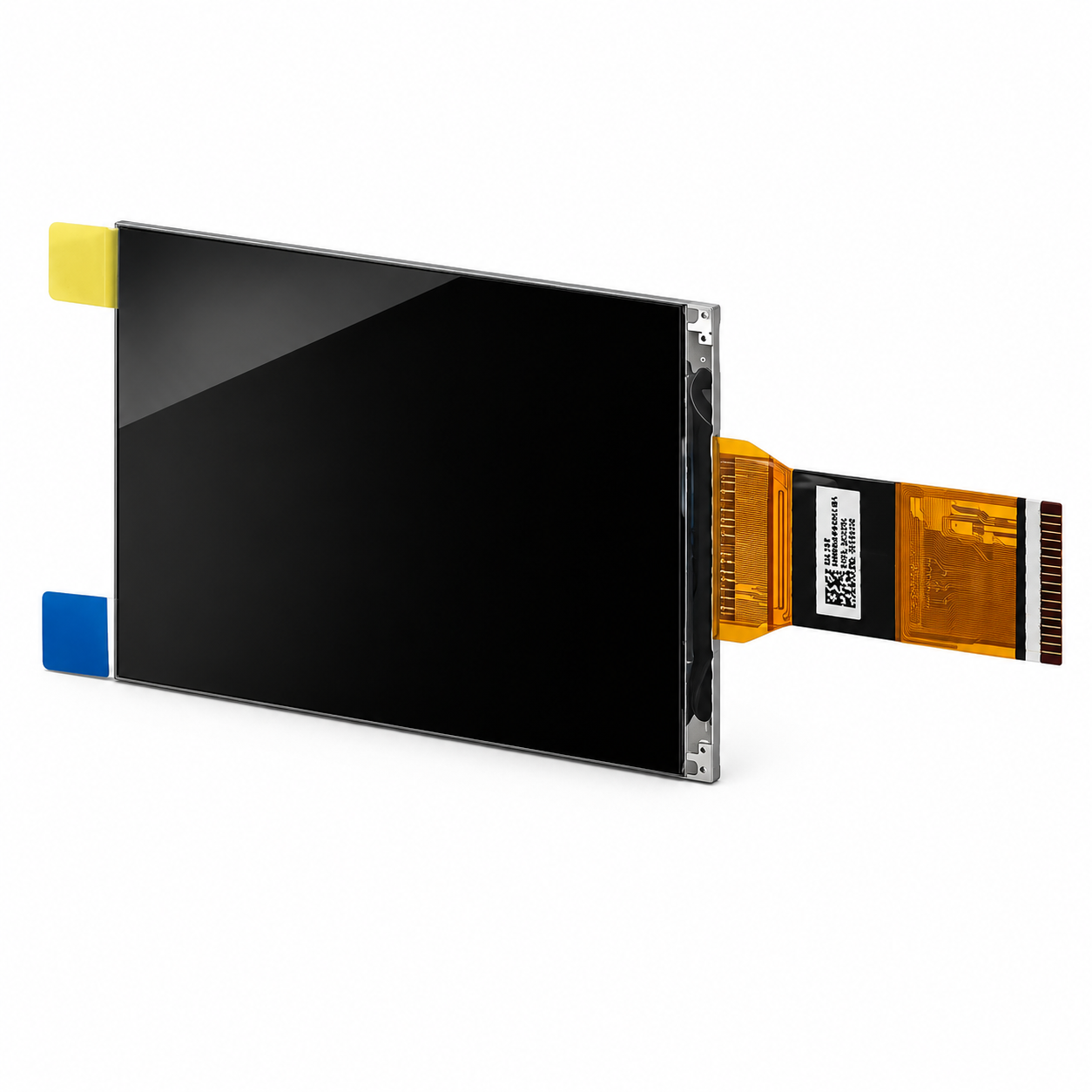

Replacement 3.5-inch LCD information display for selected Chevrolet Trax and Sonic instrument clusters.
This internal screen replaces a dim, blank, flickering or damaged Driver Information Center display while retaining the vehicleโs original instrument-cluster housing, circuit board, gauges, programming and stored mileage information.
This listing is for the internal LCD screen only. It is not a complete instrument cluster.
๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
โข Screen size: 3.5 inches ย
โข Approximate dimensions: 80 ร 58 mm ย
โข Installation location: Instrument cluster Driver Information Center ย
โข Touchscreen: No ย
โข Condition: New replacement component ย
โข Display onlyโcluster housing and electronics are not included ย
๐ฃ๐ฟ๐ถ๐บ๐ฎ๐ฟ๐ ๐ฉ๐ฒ๐ต๐ถ๐ฐ๐น๐ฒ ๐๐ถ๐๐บ๐ฒ๐ป๐
Chevrolet Trax equipped with the matching 3.5-inch instrument-cluster display:
โข 2017 Chevrolet Trax ย
โข 2018 Chevrolet Trax ย
โข 2019 Chevrolet Trax ย
โข 2020 Chevrolet Trax ย
โข 2021 Chevrolet Trax ย
โข 2022 Chevrolet Trax ย
Applicable trims may include LS, LT, LTZ and Premier, depending on model year and instrument-cluster configuration.
๐๐ฑ๐ฑ๐ถ๐๐ถ๐ผ๐ป๐ฎ๐น ๐ฃ๐ผ๐๐ฒ๐ป๐๐ถ๐ฎ๐น ๐๐ถ๐๐บ๐ฒ๐ป๐
โข 2017โ2020 Chevrolet Sonic sedan ย
โข 2017โ2020 Chevrolet Sonic hatchback ย
Sonic fitment requires comparison with the original 3.5-inch LCD. Chevrolet used multiple Sonic clusters according to trim, ignition type, market and equipment. Do not order by model and year alone.
The Chevrolet Sonic was discontinued in the United States after the 2020 model year. Claims of 2021โ2022 Sonic compatibility should therefore be removed from the listing.
๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ ๐๐น๐๐๐๐ฒ๐ฟ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ๐
Trax instrument-cluster references may include:
โข 42574330 ย
โข 42527230 ย
โข 42502430 ย
โข 42687204 ย
โข 42752783 ย
Selected Sonic cluster references may include:
โข 42574339 ย
โข 42574340 ย
โข 42527220 ย
โข 42527221 ย
โข 42650672 ย
โข 42693977 ย
Important: These numbers identify complete GM instrument-cluster assemblies or labeled cluster variations. They are not necessarily manufacturer numbers for the internal LCD panel.
GM part 42574330 is documented as replacing 42527230 and 42502430. Later service assemblies may also be described as clusters labeled 42574330.
๐๐ถ๐๐บ๐ฒ๐ป๐ ๐ฉ๐ฒ๐ฟ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป
Before ordering, remove or inspect the original instrument cluster and confirm:
โข The original display measures 3.5 inches ย
โข The visible LCD area and overall dimensions match ย
โข The electrical contacts or ribbon connection match ย
โข The mounting location and orientation match ย
โข The instrument-cluster label corresponds with a compatible reference ย
โข The original cluster has the same display layout shown in the listing photos ย
Matching the original LCD and cluster label is more reliable than relying exclusively on model and year.
๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฆ๐ฐ๐ฟ๐ฒ๐ฒ๐ป ๐ ๐ฎ๐ ๐๐ผ๐ฟ๐ฟ๐ฒ๐ฐ๐
โข Blank Driver Information Center ย
โข Dim or fading display ย
โข Intermittent or flickering image ย
โข Missing pixels or display segments ย
โข Vertical or horizontal lines ย
โข Distorted or unreadable information ย
โข Physical damage to the LCD ย
โข Display that disappears as the cluster warms up ย
๐ง๐ต๐ถ๐ ๐ฆ๐ฐ๐ฟ๐ฒ๐ฒ๐ป ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐๐ผ๐ฟ๐ฟ๐ฒ๐ฐ๐
โข Failed instrument-cluster circuit board ย
โข Defective power supply or voltage regulator ย
โข Vehicle fuse, wiring or ground problems ย
โข CAN-bus communication faults ย
โข Inoperative analog gauges ย
โข Software, VIN or configuration problems ย
โข Damage to the housing, clear lens or electrical connector ย
โข Backlight-driver faults located outside the LCD panel ย
Correct diagnosis is recommended before replacing the screen.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Professional instrument-cluster repair experience is strongly recommended. Installation requires removal and disassembly of the cluster. Depending on the cluster construction, delicate connector, ribbon-cable or soldering work may be required.
This part should not be considered a simple exterior plug-in component.
When the original cluster circuit board is retained, replacing only the LCD normally preserves the vehicleโs VIN, odometer information and configuration. Instrument-cluster programming is generally associated with replacing the complete cluster rather than replacing its internal screen.
Disconnect vehicle power according to the manufacturerโs service procedure. Observe electrostatic-discharge precautions and test the display before completing final reassembly.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
โข New replacement LCD screen ย
โข Aftermarket replacement component ย
โข Inspect and test before final installation ย
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐
โข One 3.5-inch instrument-cluster LCD screen ย
Complete instrument cluster, housing, clear lens, circuit board, gauges, wiring, installation tools and repair service are not included.
