2017-2019 Toyota Prius Prius Prime 11.6" JBL Touch Screen Digitizer E7052 E7056
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐

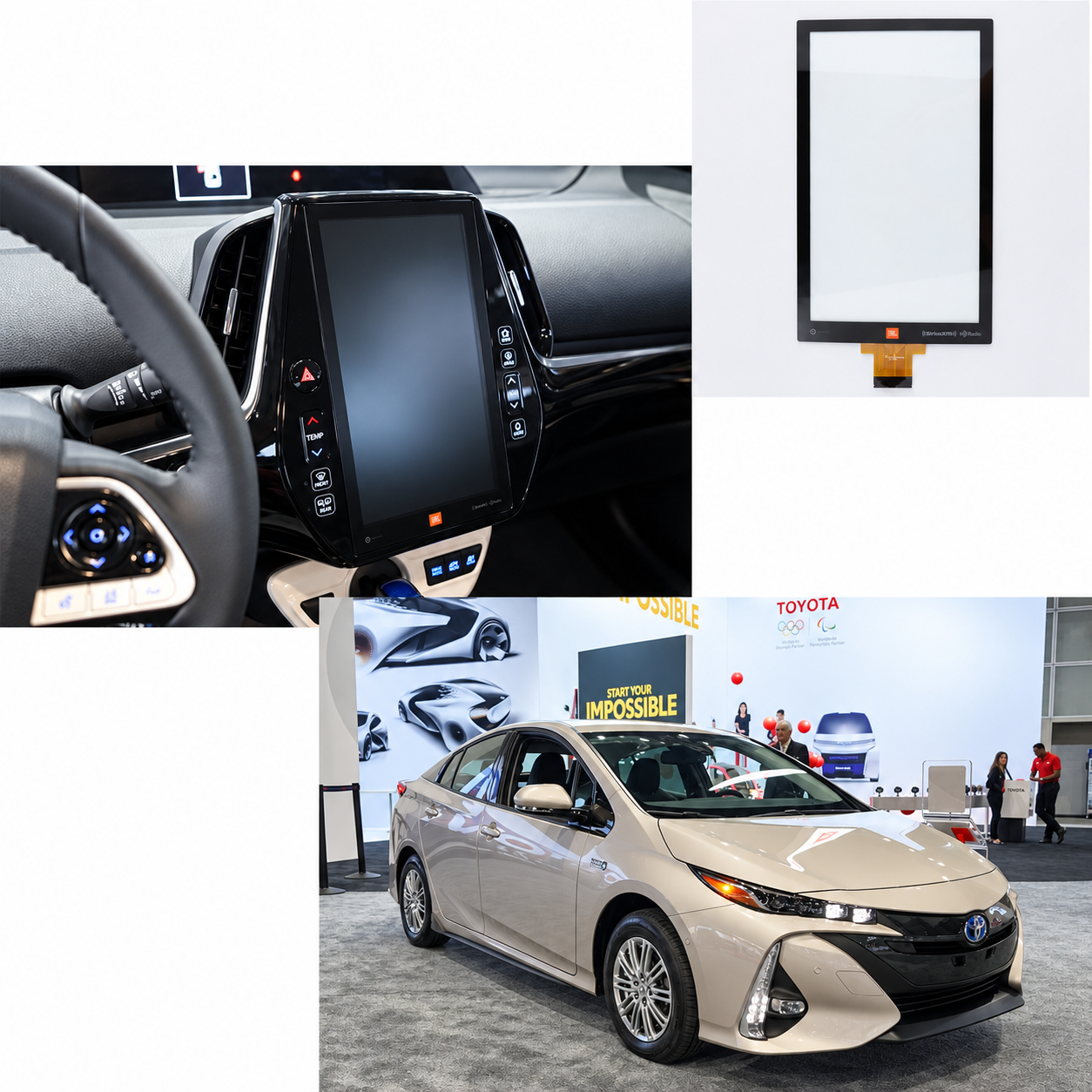

Brand-new replacement touchscreen digitizer for selected Toyota Prius and Prius Prime factory 11.6-inch navigation systems equipped with JBL premium audio.
This component replaces the exterior touch-sensitive glass when the original digitizer is cracked, scratched, unresponsive or registering incorrect commands. It allows the original multimedia unit to be repaired without replacing the complete radio and navigation assembly.
This is the touchscreen digitizer only. It is not the LCD image panel, radio receiver, navigation computer, JBL amplifier or complete multimedia head unit.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
โข Product type: Touch-sensitive digitizer glass ย
โข Factory display size: 11.6 inches diagonal ย
โข Display orientation: Vertical ย
โข Audio-system application: JBL premium audio ย
โข Navigation: For compatible factory navigation units ย
โข Face IDs: E7052 and E7056 ย
โข Brand: Unbranded replacement component ย
โข Condition: New ย
โข Country of origin: China ย
โข Manufacturer warranty: One year
The display is frequently advertised as a 12-inch screen, but Toyota identifies the original system as an 11.6-inch multimedia display.
๐๐ฎ๐ฐ๐ฒ๐ฝ๐น๐ฎ๐๐ฒ ๐๐๐
Designed for compatible factory radios marked:
โข E7052 ย
โข E7056
The face ID is printed in small characters near the lower edge of the original radio. Confirm this identification before ordering.
E7052 and E7056 are identification codes for complete radio assembliesโnot Toyota part numbers for the replacement digitizer.
๐ฅ๐ฎ๐ฑ๐ถ๐ผ ๐ฃ๐ฎ๐ฟ๐ ๐ก๐๐ฏ๐ฒ๐ฟ ๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ๐
Compatible factory radio assemblies may carry numbers including:
E7052 applications:
โข 86100-47590 ย
โข 86100-47591 ย
โข 86100-47592 ย
โข 86100-47593 ย
โข 86804-47430 ย
โข 86804-47431
E7056 applications:
โข 86100-47770 ย
โข 86804-47540
These numbers identify complete Toyota/Denso multimedia assemblies and are provided only as fitment references. Always compare the original digitizer, flex cable, connector and face ID.
๐ฉ๐ฒ๐ต๐ถ๐ฐ๐น๐ฒ ๐๐ถ๐๐บ๐ฒ๐ป๐
Toyota Prius Prime:
โข 2017 Prius Prime Advanced with 11.6-inch JBL system and face ID E7052 ย
โข 2018 Prius Prime Advanced with 11.6-inch JBL system and face ID E7052 ย
โข 2019 Prius Prime Advanced with 11.6-inch JBL system and face ID E7052
Toyota Prius liftback:
โข Selected 2017โ2019 Prius models with the 11.6-inch JBL navigation system ย
โข Confirm face ID E7056 on the original radio ย
โข Commonly associated with highly equipped Prius Four, Four Touring or equivalent market-specific grades
Production options and trim names vary by market. The original radioโs face ID is the controlling fitment requirement.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐ ๐ก๐ผ๐๐ถ๐ฐ๐ฒ
This product is not universally compatible with every 2017โ2022 Prius or Prius Prime.
It is specifically advertised for E7052 and E7056 JBL-equipped units. Do not order based only on the vehicleโs year or exterior model designation.
Not intended for:
โข E7051 non-JBL radios ย
โข E7057 non-JBL radios ย
โข E7058 JBL radios unless the original digitizer is independently confirmed to match ย
โข E7060 JBL radios unless the original digitizer is independently confirmed to match ย
โข E7053 or E7055 non-JBL units ย
โข Seven-inch Toyota multimedia systems ย
โข Aftermarket Android radios ย
โข Prius C or Prius V radio systems ย
โข Vehicles without the factory vertical 11.6-inch display
JBL and non-JBL complete radio assemblies use different audio-system electronics. Even when the screens appear similar, the printed bezel, flex cable and connector configuration must be compared before purchase.
๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ ๐ฎ๐ ๐๐ผ๐ฟ๐ฟ๐ฒ๐ฐ๐
โข Cracked touchscreen glass ย
โข Touch controls not responding ย
โข Ghost-touch operation ย
โข Incorrect touch-point registration ย
โข Intermittent touch response ย
โข Dead areas on the touch surface ย
โข Scratched or damaged exterior glass ย
โข Digitizer delamination
๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐๐ผ๐ฟ๐ฟ๐ฒ๐ฐ๐
โข Dead LCD pixels ย
โข Vertical or horizontal image lines ย
โข Black or blank display image ย
โข Failed backlighting ย
โข Radio rebooting or freezing ย
โข No sound from the JBL system ย
โข Failed navigation functions ย
โข Damaged radio circuit boards ย
โข Defective external JBL amplifier
A digitizer repairs the touch-sensitive surface only. Image, software and audio problems require separate diagnosis.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Installation requires removal and internal disassembly of the factory multimedia unit. The damaged digitizer must be separated from the LCD assembly without damaging the display, frame, ribbon cables or circuit boards.
Professional installation by an experienced automotive-electronics or display-repair technician is strongly recommended.
Test all areas of the touchscreen before permanently reassembling the unit or removing the exterior protective film. Avoid excessive pressure on the glass and do not sharply bend the attached flex cable.
Digitizer replacement normally does not require vehicle programming because the original radio electronics remain installed.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
Brand-new aftermarket replacement digitizer. Protective film, adhesive or handling marks on the removable film may be present. These do not indicate damage to the finished touchscreen surface.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐๐

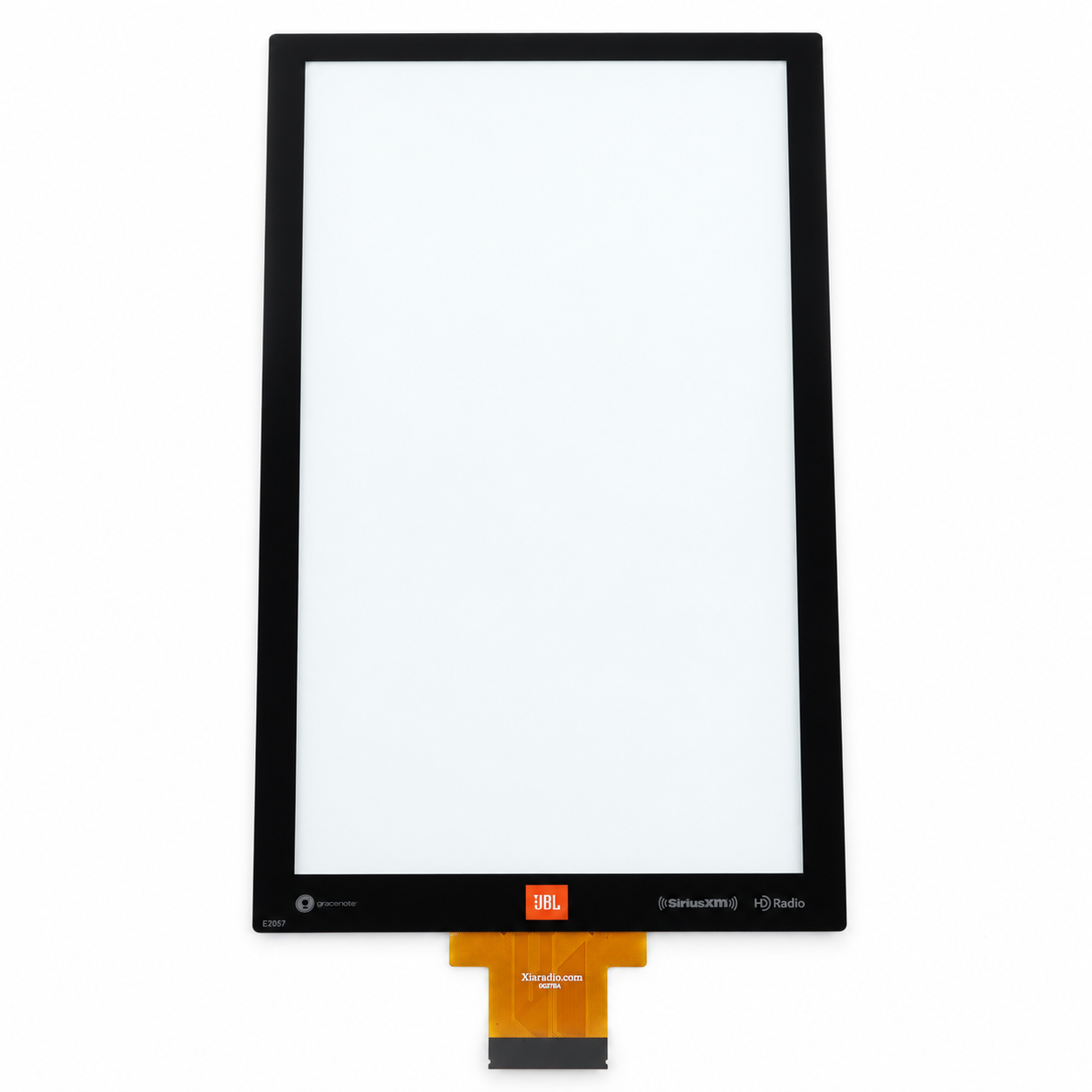

โข One replacement 11.6-inch touchscreen digitizer ย
โข Attached flex cable and connector as pictured
LCD image panel, complete radio, navigation computer, JBL amplifier, dashboard trim and installation tools are not included.
