2017-19 Kia Sportage OEM Auto A/C Climate Control Fascia 97250-D9341 84745-D9300

Genuine OEM center fascia and automatic climate-control assembly for select 2017–2019 Kia Sportage vehicles. This assembly combines the center dashboard fascia with the factory dual-zone automatic heater and air-conditioning controls shown in the photographs.

Product Details

• Genuine OEM Kia component

• Automatic dual-zone temperature control

• Factory center dashboard fascia

• Direct-replacement used assembly

• Designed for vehicles originally equipped with automatic climate control

• Factory-style connectors and mounting points

• Color/finish: Black with silver-finish trim

• Installation location: Center dashboard

Part Numbers

• HVAC control assembly: 97250-D9341

• Complete OEM number: 97250-D9341AK5

• Center fascia number: 84745-D9300

• Complete fascia number: 84745-D9300AK5

• Hollander interchange: 655-10030

The number 84745-D9300 identifies the center fascia portion of the assembly. The primary number for identifying the automatic climate-control module is 97250-D9341 or 97250-D9341AK5.

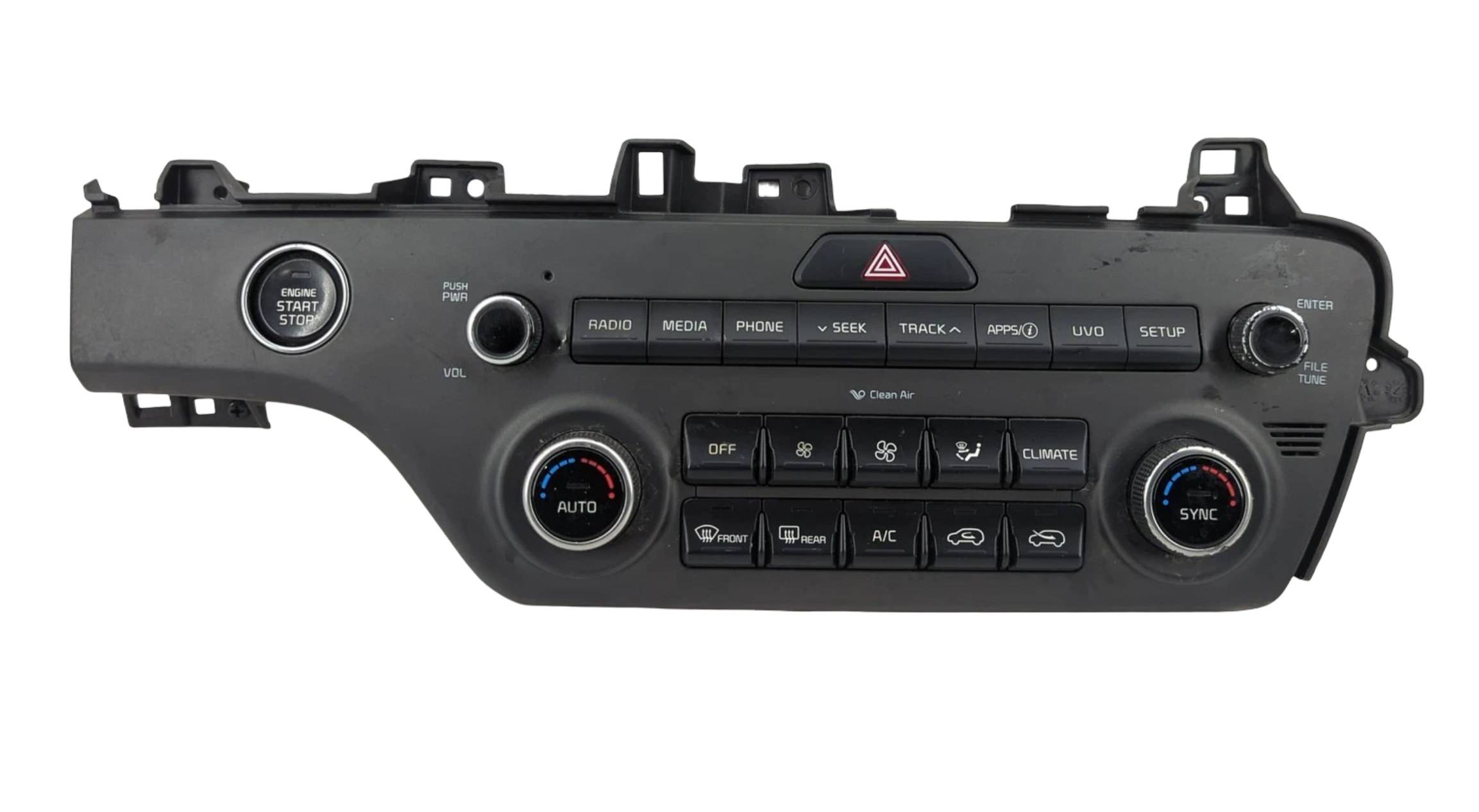

Control Functions

Depending on the vehicle’s original equipment, the assembly provides controls for:

• Driver and passenger temperature adjustment

• Automatic climate-control operation

• Dual-zone synchronization

• Fan-speed adjustment

• Airflow mode selection

• Air-conditioning activation

• Fresh-air and recirculation selection

• Front windshield defrost

• Rear-window defrost

• System on/off control

Compatibility

Designed for select:

• 2017 Kia Sportage

• 2018 Kia Sportage

• 2019 Kia Sportage

Compatible vehicles must have:

• Factory automatic temperature control

• Dual-zone climate-control system

• Matching electrical connectors

• Matching button and fascia configuration

• HVAC control identification number 97250-D9341 or 97250-D9341AK5

Fitment may include EX, SX, SX Turbo and other equipment packages, but trim level alone does not confirm compatibility. Some LX and other trim levels were available with different manual or automatic HVAC systems.

2017 Model-Year Note

Some 2017 Sportage vehicles are cataloged with HVAC identification number 97250-D9340, while others use 97250-D9341. These numbers may appear within the same recycler interchange family, but buyers should compare the complete number, connectors, controls and fascia configuration before purchasing.

Fascia Configuration

The 84745-D9300AK5 center fascia is cataloged for certain Sportage vehicles equipped with an audio display and without factory navigation. Because dashboard equipment varies, compare every opening, switch position, mounting tab and connector with the original assembly.

Not Compatible With

• Sportage models with manual heater and A/C controls

• Vehicles with a different single-zone control panel

• Conversion from manual to automatic climate control

• Assemblies requiring a different audio or navigation fascia

• Units numbered 97250-D9021, 97250-D9440 or 97250-D9441 unless interchange is independently confirmed

• Vehicles with different connectors, switches or dashboard trim

Condition

Pre-owned genuine OEM component. Normal cosmetic wear, marks and blemishes may be present from previous use. Please review all photographs closely for the exact condition of the knobs, buttons, display, vents, trim, mounting tabs and connectors.

What Is Included

• Center dashboard fascia

• Automatic HVAC control module

• Vents, switches and attached components shown in the photographs

Only the photographed assembly is included. Radio, navigation display, wiring harnesses, sensors, mounting hardware and unrelated dashboard components are not included unless visibly attached in the listing photographs.

Installation

This is a replacement component for vehicles already equipped with the same system. It is not a manual-to-automatic climate-control conversion kit. Professional installation is recommended. HVAC initialization, actuator calibration or vehicle-specific programming may be required after installation.

Buyer Verification

Before ordering, compare all of the following with the original component:

1. Complete OEM part number

2. Front button and knob layout

3. Rear electrical connectors

4. Fascia openings and finish

5. Mounting tabs and attachment points

6. Automatic versus manual climate control

7. Audio and navigation configuration

For the most reliable confirmation, verify compatibility using the vehicle’s VIN through a Kia dealer or qualified parts specialist.
