2016-2019 VW MIB2 Navigation Radio 5C0035684 Jetta Passat Tiguan OEM

$ 599.95

Product description

Genuine OEM Volkswagen Discover Media MIB2 PQ navigation radio and touchscreen head unit.

This complete infotainment assembly carries part number 5C0 035 684 and features the integrated color touchscreen, navigation, radio, Bluetooth capability, CD player and SD-card slots. Volkswagen documentation identifies this hardware as a TechniSat MIB2 Information Electronics control unit. Volkswagen technical bulletin

Part information

Volkswagen part number: 5C0 035 684
Alternate format: 5C0035684
System: Discover Media MIB2 PQ
Module designation: Information Electronics Control Module J794
Display size: Approximately 6.33 inches
Hardware shown: 5C0035684B
Software shown in the listing: 0357
Installation location: Center dashboard
Genuine Volkswagen OEM used component
Not a universal-fit aftermarket radio

Features

Color capacitive touchscreen
Factory GPS navigation
AM/FM radio
Satellite-radio capability when supported by the vehicle and an active subscription
Bluetooth telephone and audio capability
CD and MP3 playback
Dual SD-card slots
Media and vehicle-information menus
App-Connect interface capability
Fender Audio System is programmed into device

Volkswagen’s MIB II documentation describes compatible systems as offering a 6.33- or 6.5-inch capacitive touchscreen, CD and SD inputs, smartphone USB connectivity and App-Connect support. Feature availability depends on the vehicle, installed hardware, coding and active Volkswagen licenses. Volkswagen MIB II system guide

Compatibility

Part number 5C0035684 was used primarily in North American PQ-platform Volkswagen vehicles, including appropriately equipped:

2016–2019 Volkswagen Beetle
2016–2019 Volkswagen Golf
2016–2019 Volkswagen CC
2016–2019 Volkswagen GTi, Jetta and Jetta GLI
2016–2019 Volkswagen Passat
2016–2019 Volkswagen Tiguan

Volkswagen service documentation identifies the MIB2 PQ system across 2016 Beetle, Beetle Convertible, Jetta, CC, Tiguan and Passat applications. Volkswagen MIB2 PQ bulletin

Compatibility depends on the vehicle’s factory infotainment configuration and PR code—not simply the model and year. This unit is associated with the factory navigation configuration, commonly identified by PR code 7UQ. Match 5C0035684B, the connectors, faceplate, installed options and original radio before ordering.

Part numbers 5C0035684, 5C0035684A, 5C0035684C and 5C0035684E may appear in related catalog applications, but they should not be treated as automatically interchangeable without checking production date, software, coding and vehicle equipment.

Component protection and programming

This radio remains electronically associated with its original vehicle.

After installation in another vehicle, Volkswagen Component Protection Active may appear and limit audio, Bluetooth, navigation or other functions. Component protection must be removed and the unit adapted to the receiving vehicle using Volkswagen’s online ODIS/FAZIT system by a Volkswagen dealer or properly equipped independent specialist. Volkswagen confirms that protected modules require ODIS with FAZIT/GeKo authorization. Volkswagen erWin security information

Additional coding may be necessary for:

Fender or standard audio system
Backup camera
Steering-wheel controls
Bluetooth microphone
Satellite radio
App-Connect
USB media interface
Vehicle configuration menus

App-Connect, Apple CarPlay, Android Auto and navigation operation are not guaranteed merely by installing this radio. These functions can require the proper USB interface, antennas, wiring, activation licenses and vehicle coding.

Condition

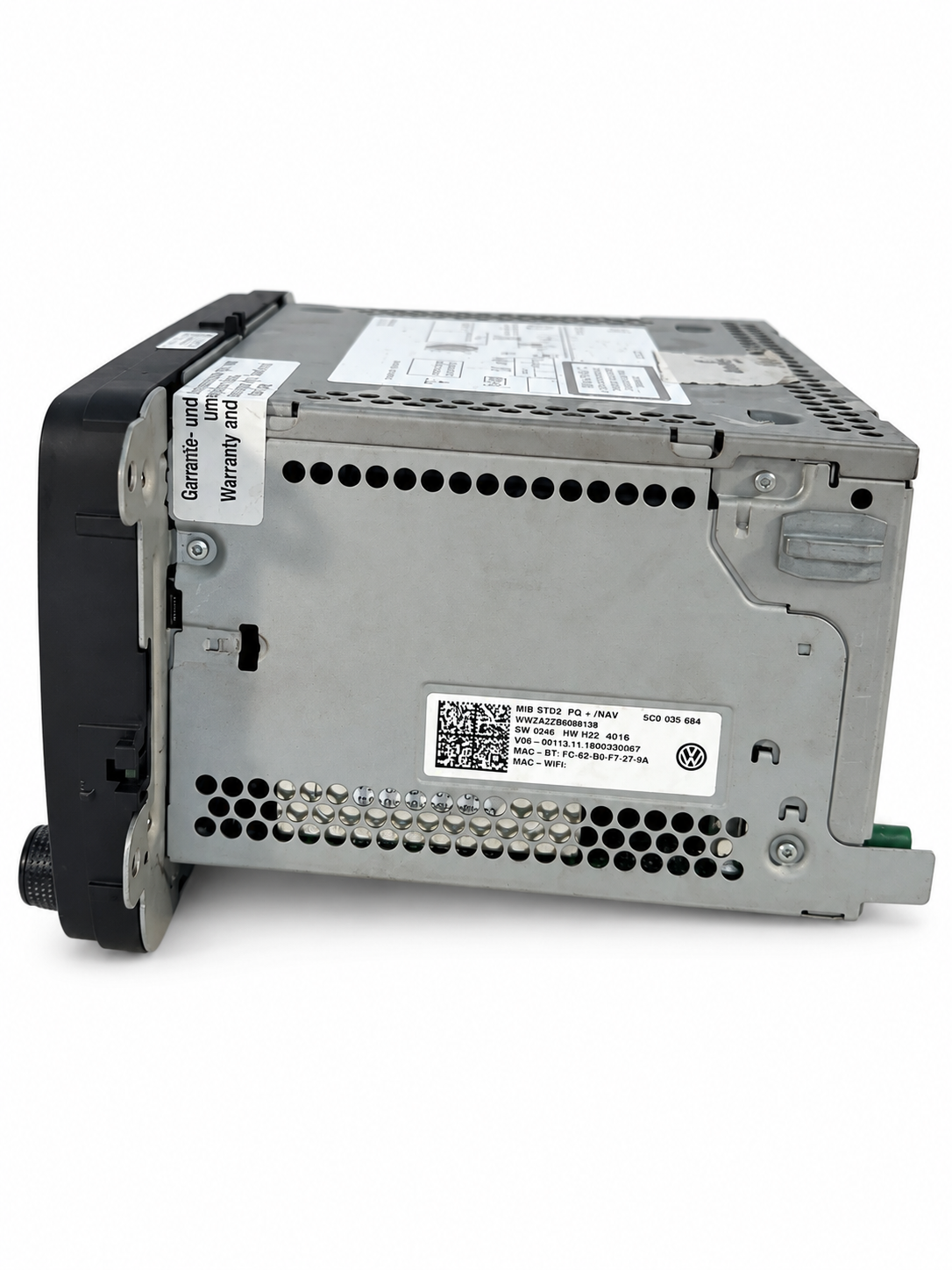

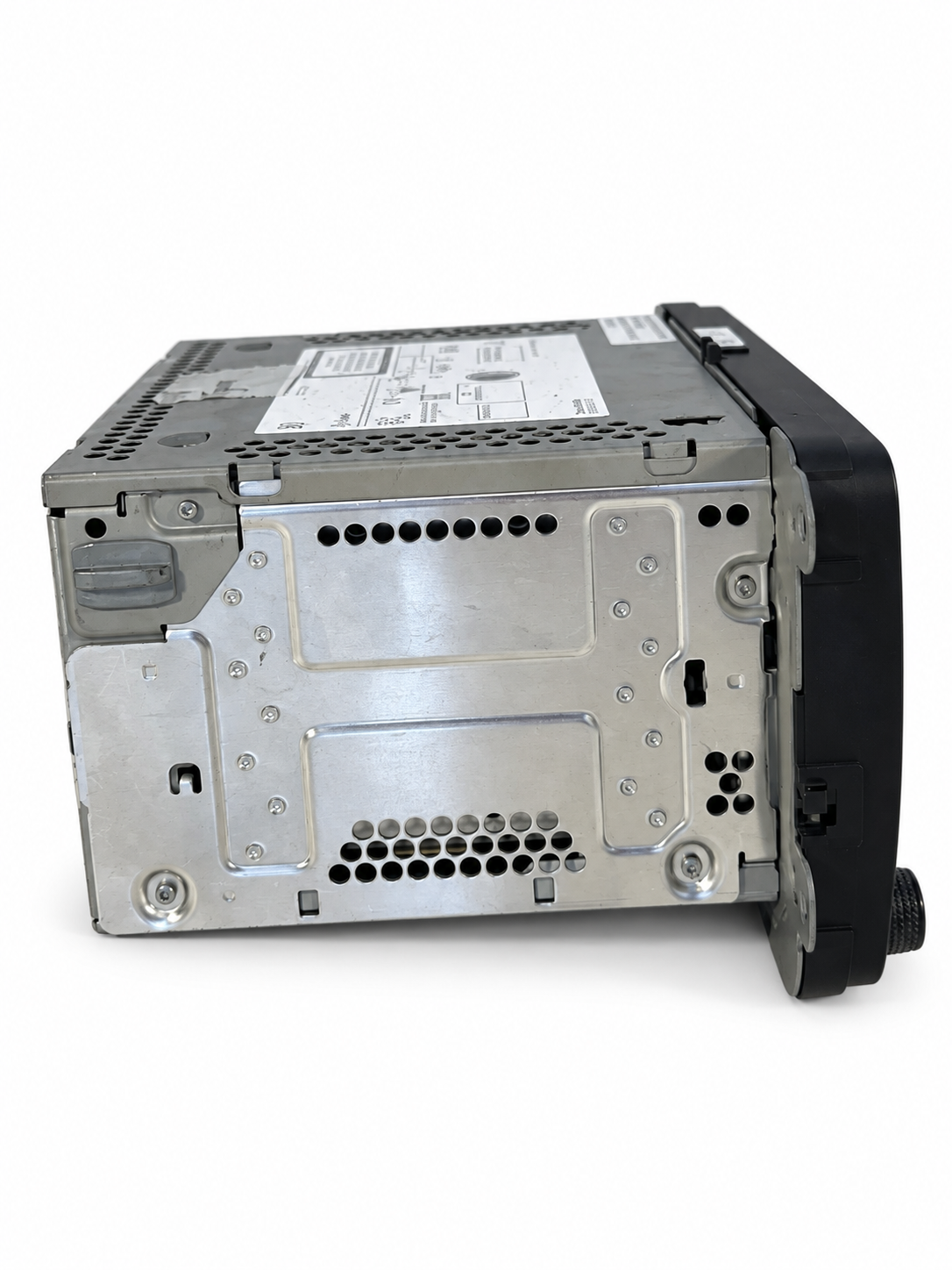

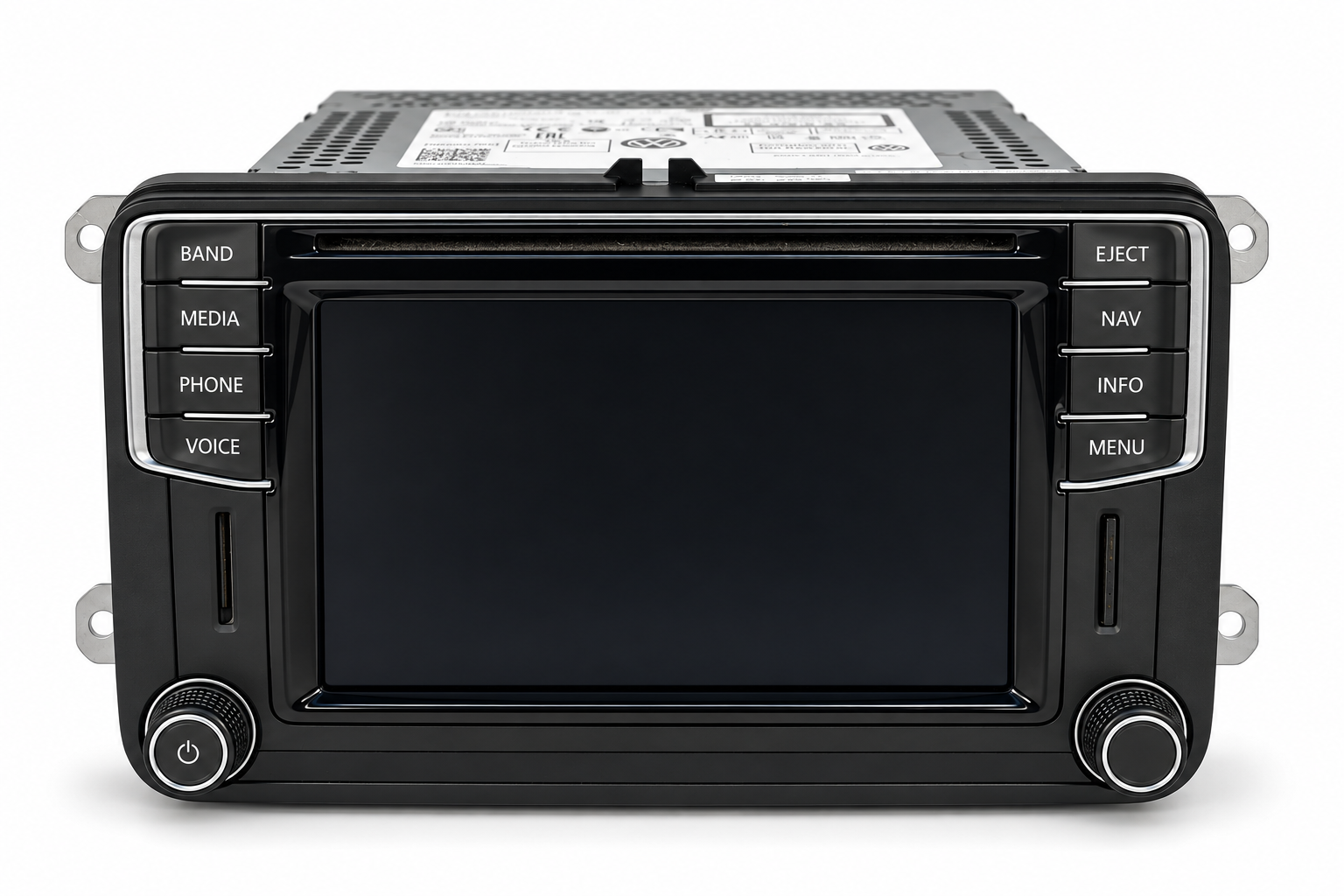

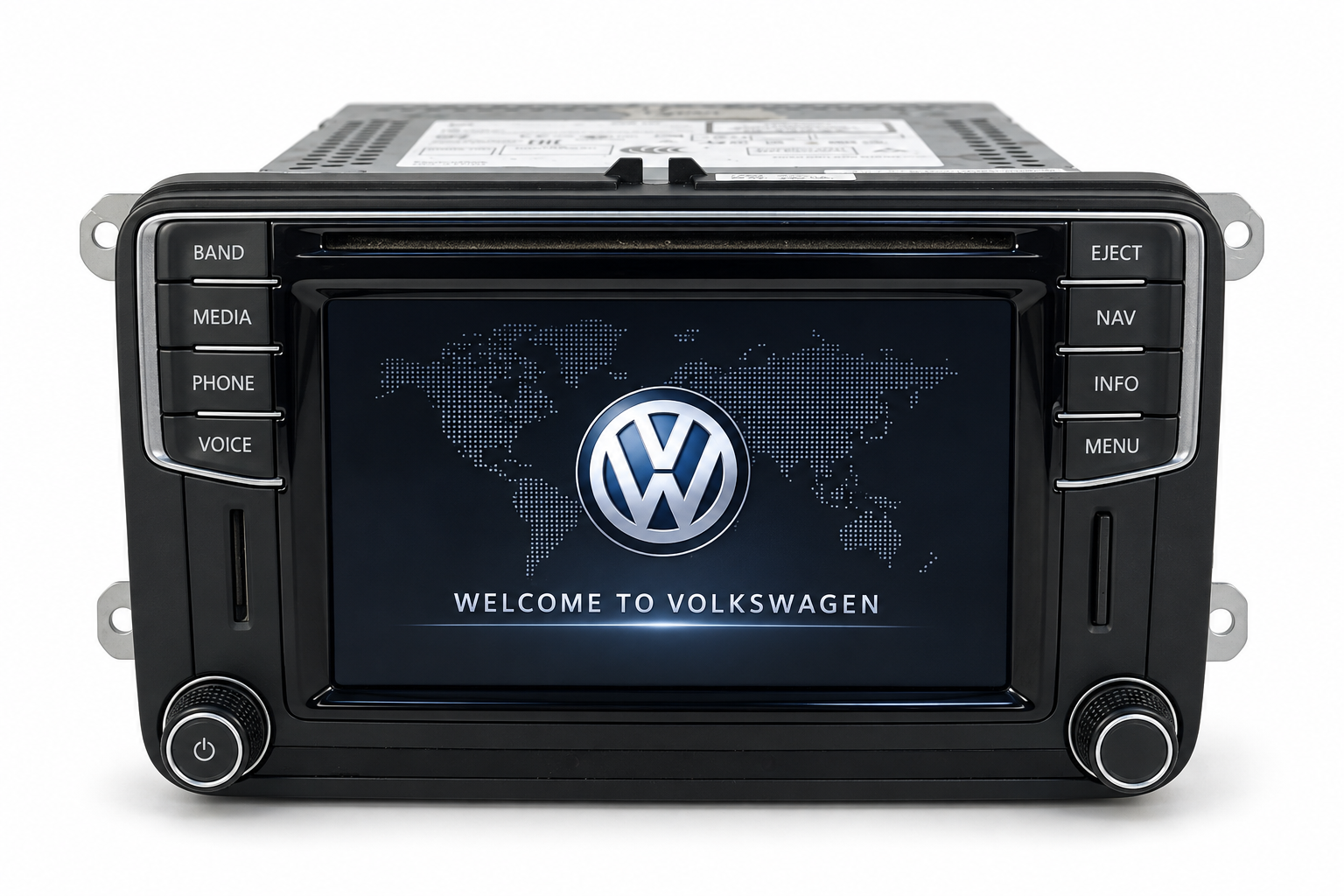

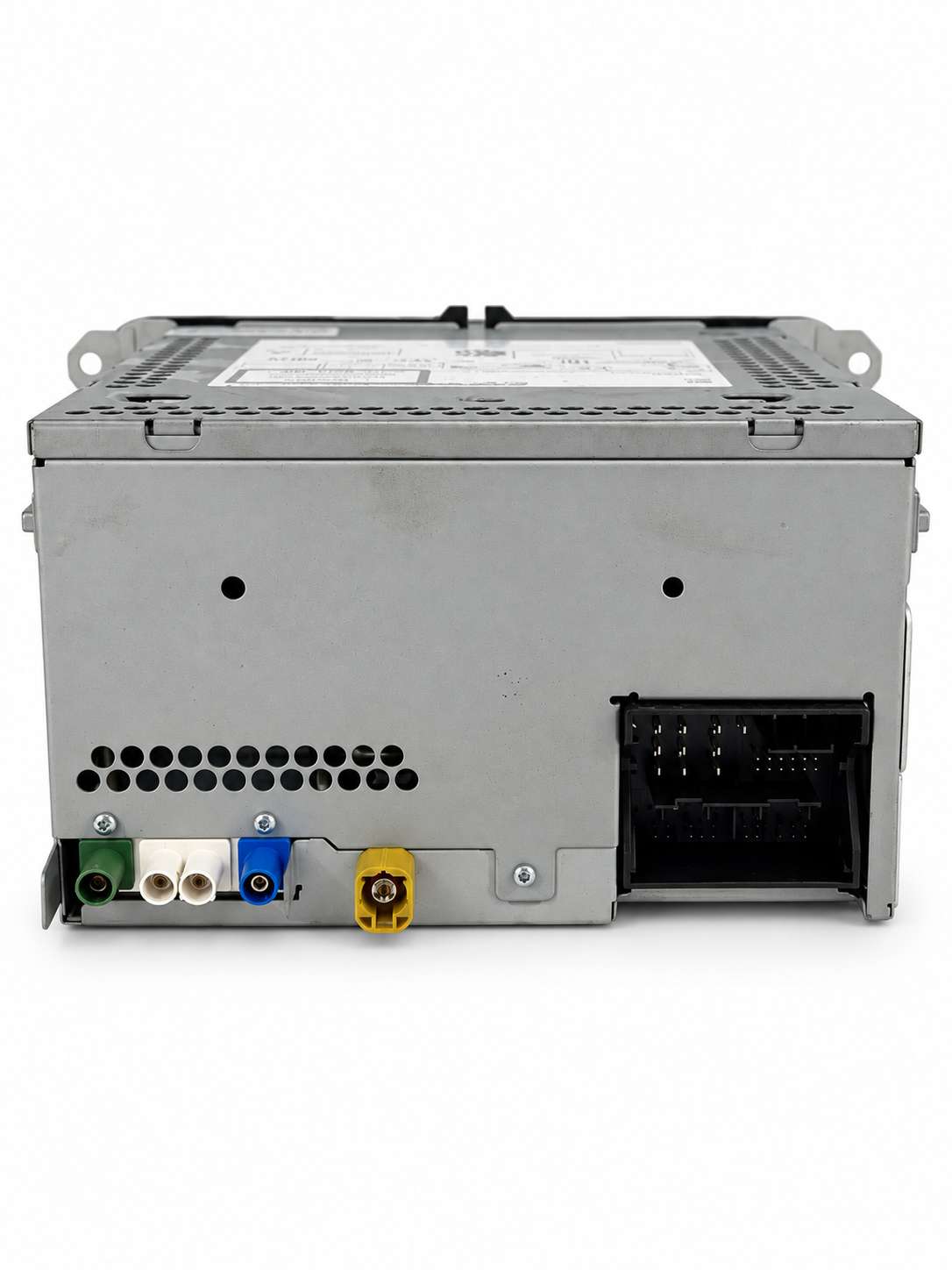

Used OEM unit. According to the original listing, the radio was tested and the touchscreen is clear and responsive, without known dead areas or moisture-like marks. Review the supplied photographs and operating video because they show the actual item offered.

Normal cosmetic wear from previous installation may be present.

Package contents

One Volkswagen Discover Media MIB2 PQ navigation radio
Part number 5C0035684

Unless explicitly pictured and stated as included, the sale does not include:

Navigation-map SD card
GPS or satellite antenna
USB/App-Connect wiring
Radio harness or adapter
Microphone
Security or activation licenses
Mounting hardware
ODIS programming or component-protection removal
