2016-2018 Honda Pilot EX EX-L 8" Touchscreen Radio 39540-TG7-A12 OEM

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘀𝗰𝗿𝗶𝗽𝘁𝗶𝗼𝗻

Genuine Honda OEM 8-inch touchscreen display-audio receiver for select 2016–2018 Honda Pilot EX and EX-L models.

This Clarion-manufactured assembly combines the factory touchscreen, AM/FM receiver and audio-system controls in one center-dash unit. It is intended as a replacement for a Pilot originally equipped with the matching non-navigation audio system.

This is not the correct receiver for vehicles equipped with factory navigation, a rear entertainment system or a different Honda identification number.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Brand: Genuine Honda OEM
• Manufacturer: Clarion
• Product type: Touchscreen display-audio receiver
• Screen size: 8 inches
• Honda part number: 39540-TG7-A12
• Number without hyphens: 39540TG7A12
• Clarion model number: PH-3700
• FCC ID: AX2QY5092
• Interchange number: 638-73398
• Placement: Center dashboard
• Color: Black with silver vent trim
• Vehicle market: United States
• Condition: Used

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

Designed for the following factory configurations:

• 2016 Honda Pilot EX
• 2017 Honda Pilot EX
• 2018 Honda Pilot EX
• 2016 Honda Pilot EX-L without factory navigation and without rear entertainment
• 2017 Honda Pilot EX-L without factory navigation and without rear entertainment
• 2018 Honda Pilot EX-L without factory navigation and without rear entertainment

Compatible with front-wheel-drive and all-wheel-drive vehicles when the original audio configuration and complete part number match.

𝗣𝗼𝘀𝘀𝗶𝗯𝗹𝗲 𝟮𝟬𝟭𝟵 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻

Certain salvage-industry interchange catalogs also list this number for some 2019 Honda Pilot EX-L models without navigation and without rear entertainment.

The 2019 Pilot used multiple infotainment configurations. A 2019 buyer must have 39540-TG7-A12 on the original receiver label or obtain professional VIN-based confirmation before purchasing.

𝗔𝘂𝗱𝗶𝗼 𝗦𝘆𝘀𝘁𝗲𝗺 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀

This receiver is associated with the factory:

• 8-inch touchscreen display-audio system
• 225-watt audio system
• Seven-speaker configuration
• Factory subwoofer
• Non-navigation equipment package
• Non-rear-entertainment configuration

𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻𝘀 𝗔𝗻𝗱 𝗙𝗲𝗮𝘁𝘂𝗿𝗲𝘀

When installed in the correct factory-equipped vehicle, the unit supports applicable original features such as:

• AM/FM radio
• SiriusXM capability with the required equipment and subscription
• Bluetooth hands-free calling and audio streaming
• USB audio integration
• Touchscreen audio controls
• Factory steering-wheel controls
• Factory rearview-camera display
• HondaLink functions supported by the vehicle
• Smartphone-integration features supported by the vehicle’s model year and software

Apple CarPlay and Android Auto availability can vary by model year, factory software and supporting vehicle equipment. These features should not be assumed solely from the receiver’s appearance.

𝗡𝗼𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝗪𝗶𝘁𝗵

• Pilot LX models with the basic audio system
• Pilot Touring models with factory navigation
• Pilot Elite models
• Black Edition models
• Vehicles equipped with factory navigation
• Vehicles equipped with a rear entertainment system
• Vehicles with a different connector layout or complete OEM number
• Other Honda or Acura models

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗪𝗮𝗿𝗻𝗶𝗻𝗴

Vehicle year and trim alone do not guarantee compatibility. Honda used several similar-looking receivers with different internal hardware and equipment support.

Before purchasing, compare:

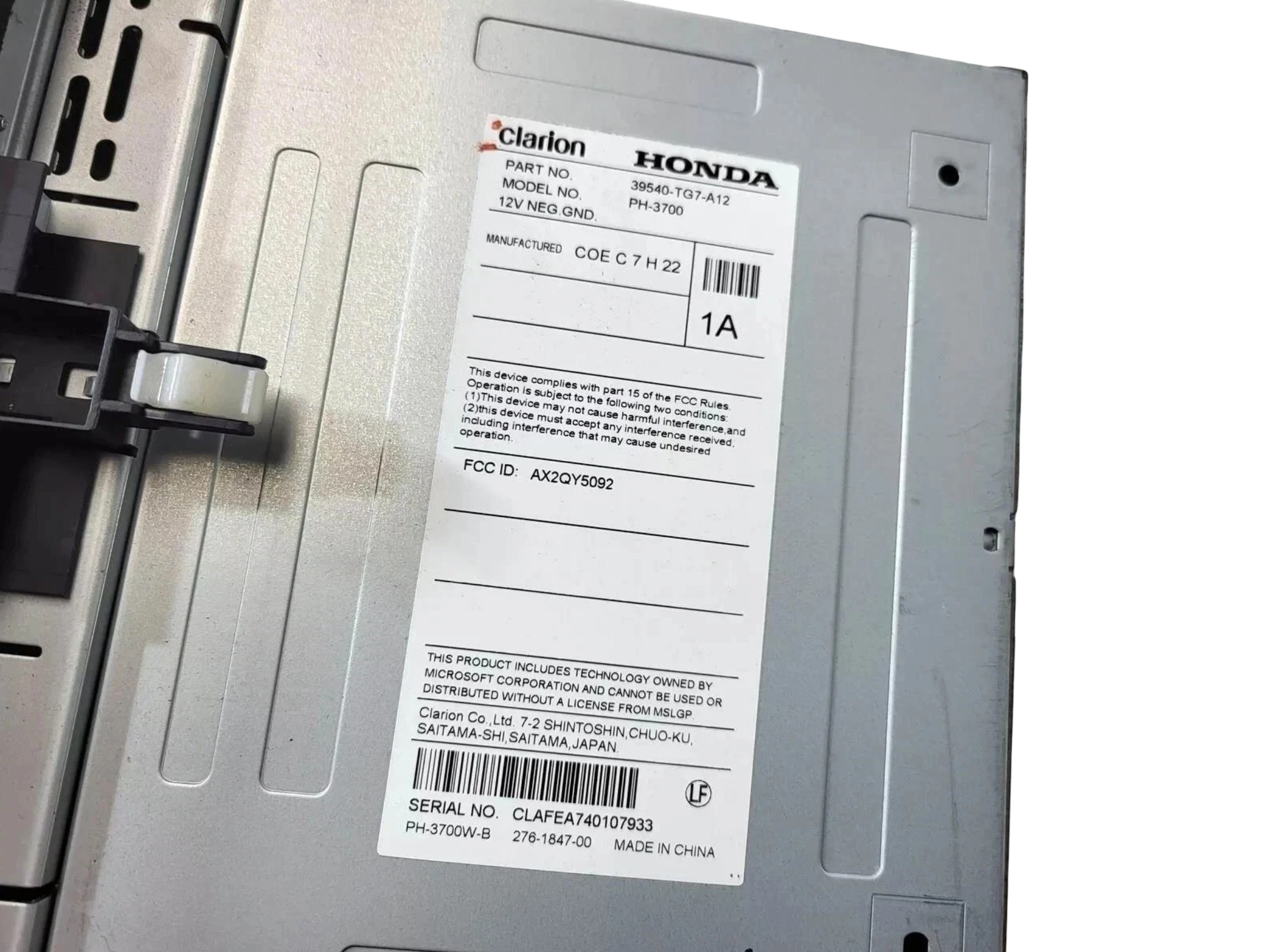

• Complete part number: 39540-TG7-A12
• Clarion model number: PH-3700

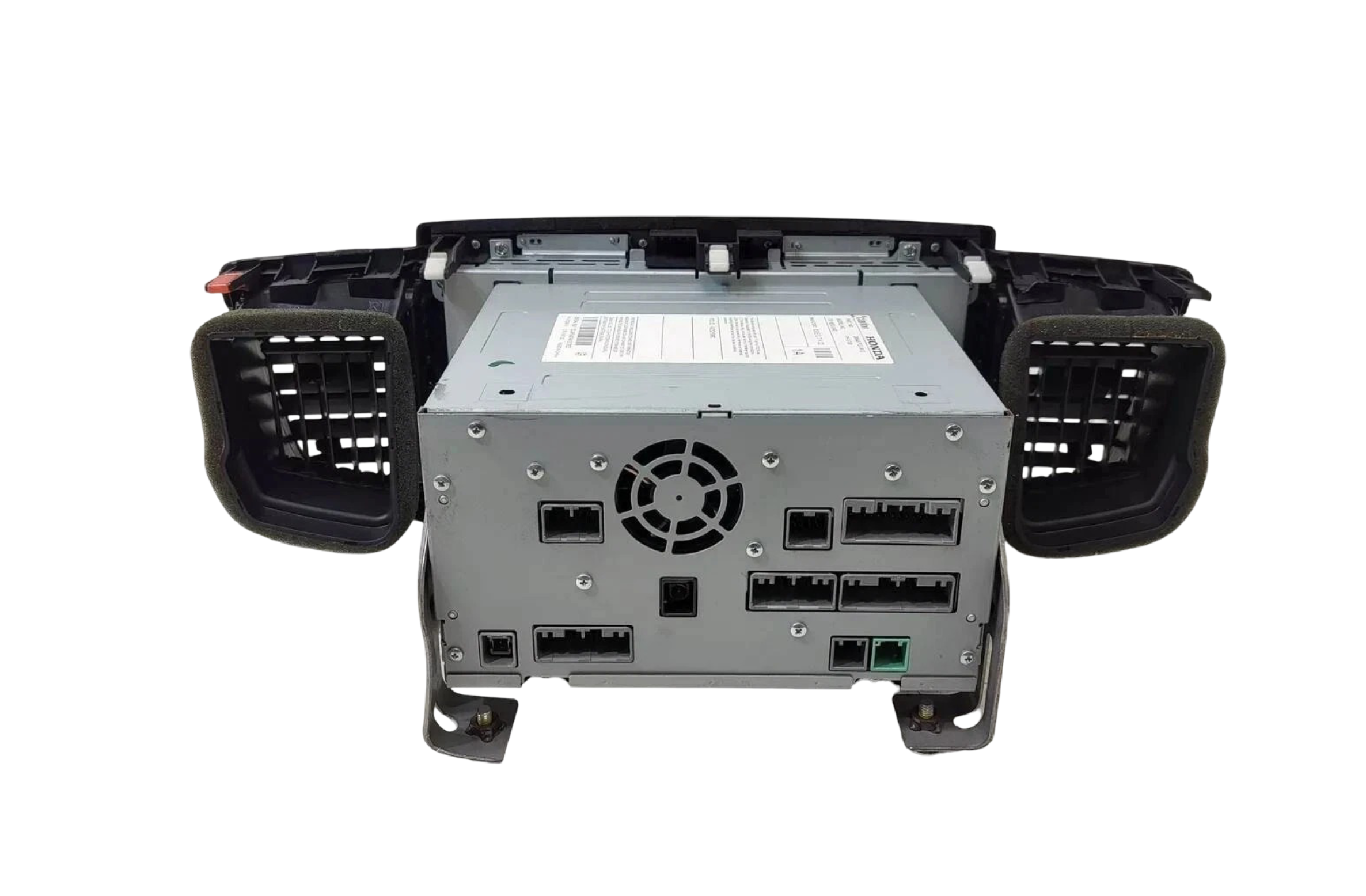

• Rear electrical connectors
• Screen and vent design
• Navigation or non-navigation configuration
• Rear entertainment equipment
• Speaker and amplifier configuration

Matching the complete number from the original unit is the safest method of confirming fitment.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗔𝗻𝗱 𝗦𝗲𝘁𝘂𝗽

Installation should be completed by a qualified automotive-electronics technician.

Depending on the vehicle and replacement procedure, the unit may require anti-theft initialization, vehicle pairing, software setup or diagnostic programming after installation. Installation and programming charges are not included.

This receiver is not intended as an upgrade or conversion kit for a Pilot originally equipped with another audio-system configuration.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

Used genuine OEM component in good working condition. Normal cosmetic wear, light marks or minor surface imperfections may be present from previous installation and use.

Please review the listing photographs carefully. If multiple units are available, cosmetic condition and serial numbers may vary. Every unit supplied under this description must carry part number 39540-TG7-A12.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

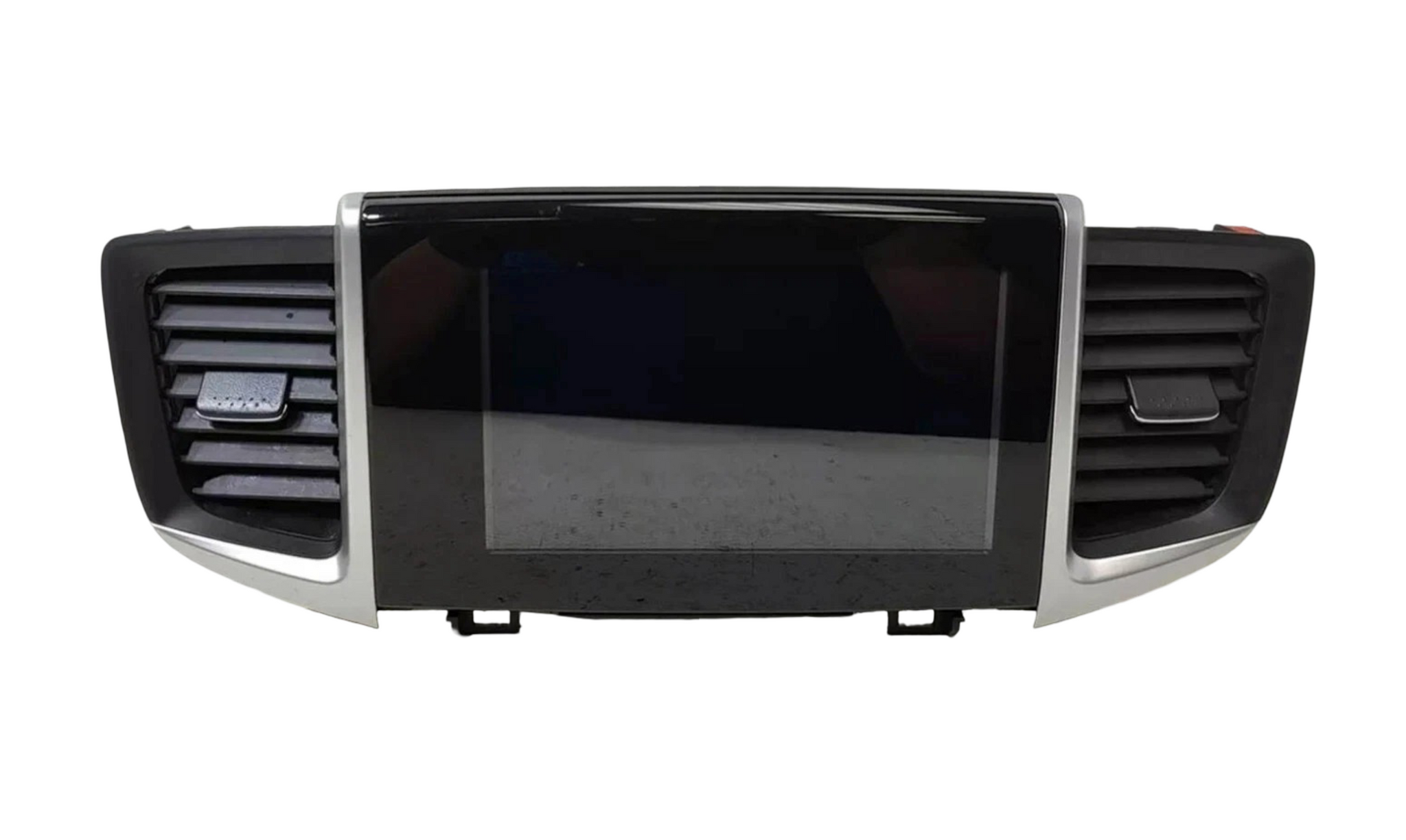

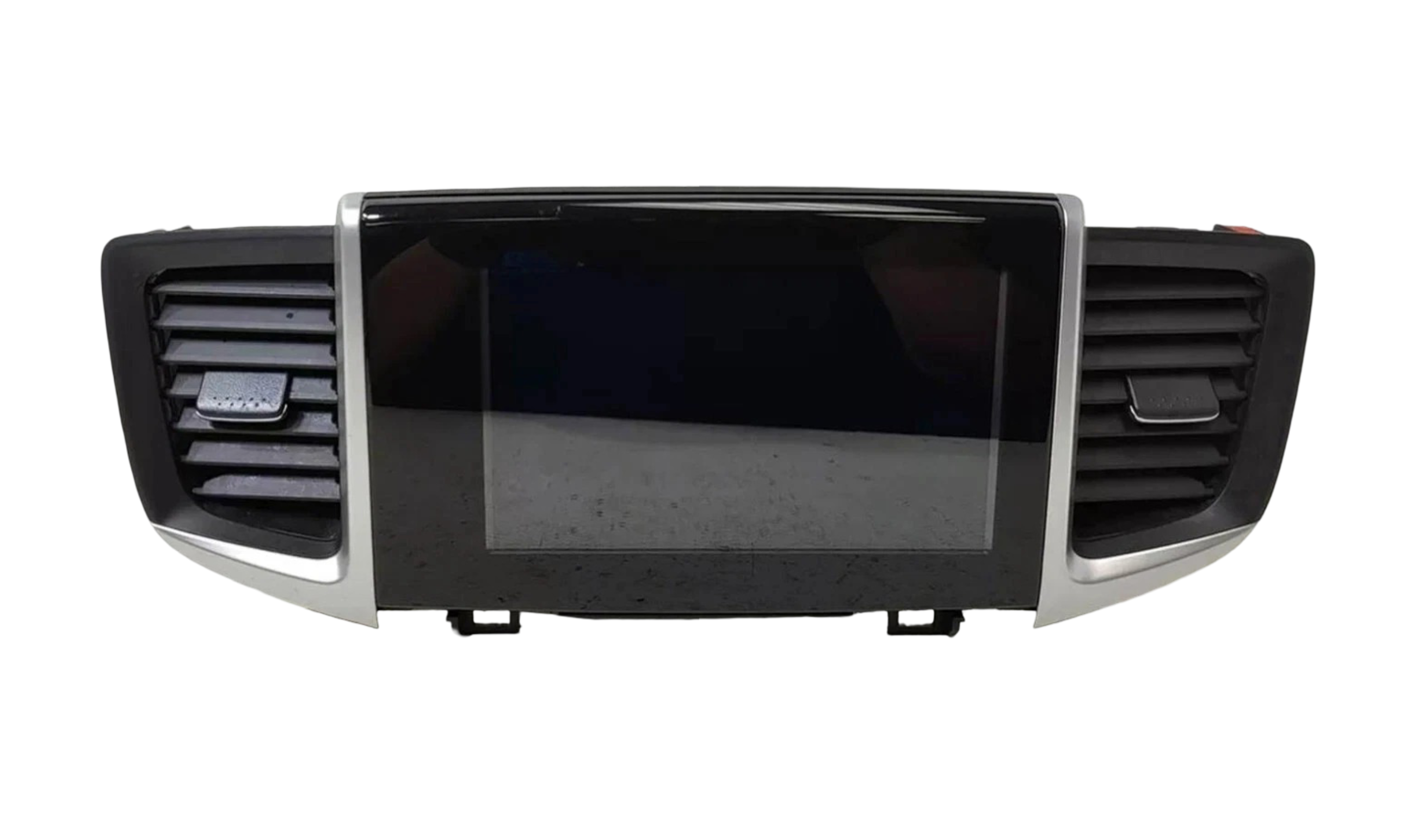

• One Honda OEM 8-inch display-audio receiver
• Attached center vent and trim assembly when shown
• Part number 39540-TG7-A12
• Only the components pictured or specifically stated

Wiring harnesses, antennas, mounting hardware, security information and other dashboard components are not included unless shown.
