2013-14 Cadillac ATS XTS ELR OEM 5-Button Smart Key 22856930 NBG009768T
Product Description

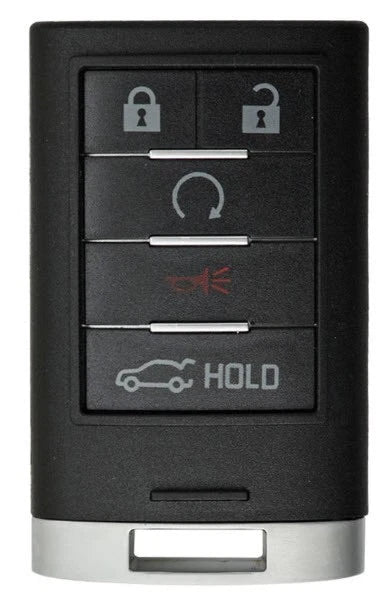

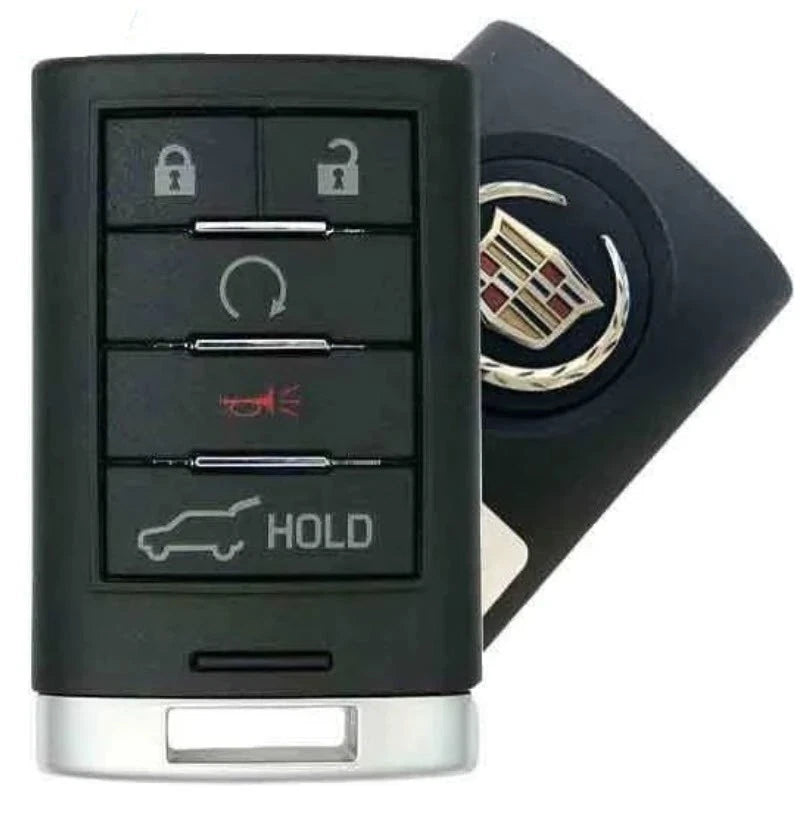

Genuine Cadillac OEM five-button smart proximity remote for select ATS, XTS and ELR models equipped with push-button start and factory remote start. This remote is new and unused but is not supplied in its original retail packaging.
It features lock, unlock, trunk release, remote start and panic functions. A CR2032 battery is already installed. Programming is required before the remote will operate the vehicle.
Product Details
- Condition: New other
- Condition note: New OEM; not in original packaging
- Brand: Cadillac
- Type: OEM smart proximity key remote
- GM part number: 22856930
- Additional number: 5931856
- FCC ID: NBG009768T
- IC number: 2694A-009768T
- Frequency: 315 MHz
- Transponder: Philips ID46
- Buttons: Five
- Functions: Lock, unlock, trunk hold, remote start and panic
- Two-way paging: Listed as supported
- Color: Black with Cadillac emblem
- Battery: CR2032 installed
- Programming: Dealer or qualified automotive locksmith required
Researched Compatibility
Part number 22856930 with FCC ID NBG009768T is commonly cataloged for:
- 2013–2014 Cadillac ATS
- 2013–2015 Cadillac XTS
- 2014 Cadillac ELR
Compatible configurations must have:
- Push-button start
- Factory remote-start capability
- Matching five-button arrangement
- 315 MHz keyless-entry system
- Original remote matching FCC ID NBG009768T
- Matching GM part number 22856930 or approved replacement number 5931856
A professional key supplier confirms the ATS, XTS and ELR applications above for this exact five-button configuration. Compatibility reference
Package Includes
- 1 × genuine Cadillac five-button smart key remote
- 1 × installed CR2032 battery

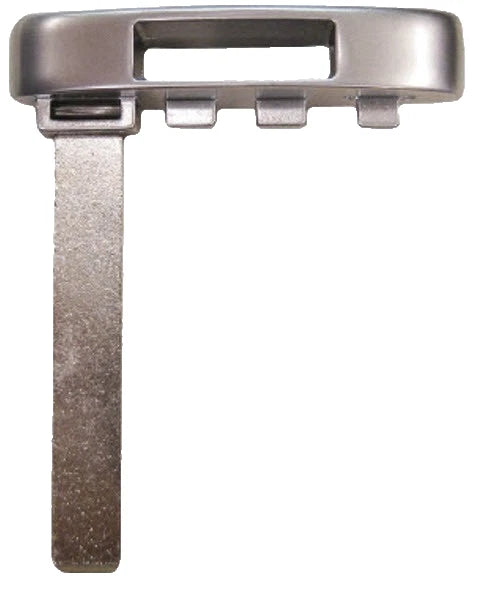

An emergency key blade, cutting service and programming service should not be assumed unless specifically shown or selected in the listing.
Important Compatibility Notice
FCC ID NBG009768T was also used on Cadillac remotes with different part numbers and button arrangements, including SRX and four-button ATS/XTS versions. Matching the FCC ID alone is therefore insufficient.
Before purchasing, confirm:
- GM part number 22856930
- FCC ID NBG009768T
- IC number 2694A-009768T
- Five-button configuration
- Presence of factory remote start
- 315 MHz frequency
- Vehicle year, model and VIN
Programming Notice
The seller recommends programming through a Cadillac dealer or qualified automotive locksmith. Some compatible vehicles may provide an onboard learning procedure under specific conditions, but the available method can vary by model, market and whether working remotes are present. Confirm the programming procedure and cost before ordering.
