2012-17 Jaguar Land Rover Meridian Premium Surround Amplifier DX23-19C164-BA OEM
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐

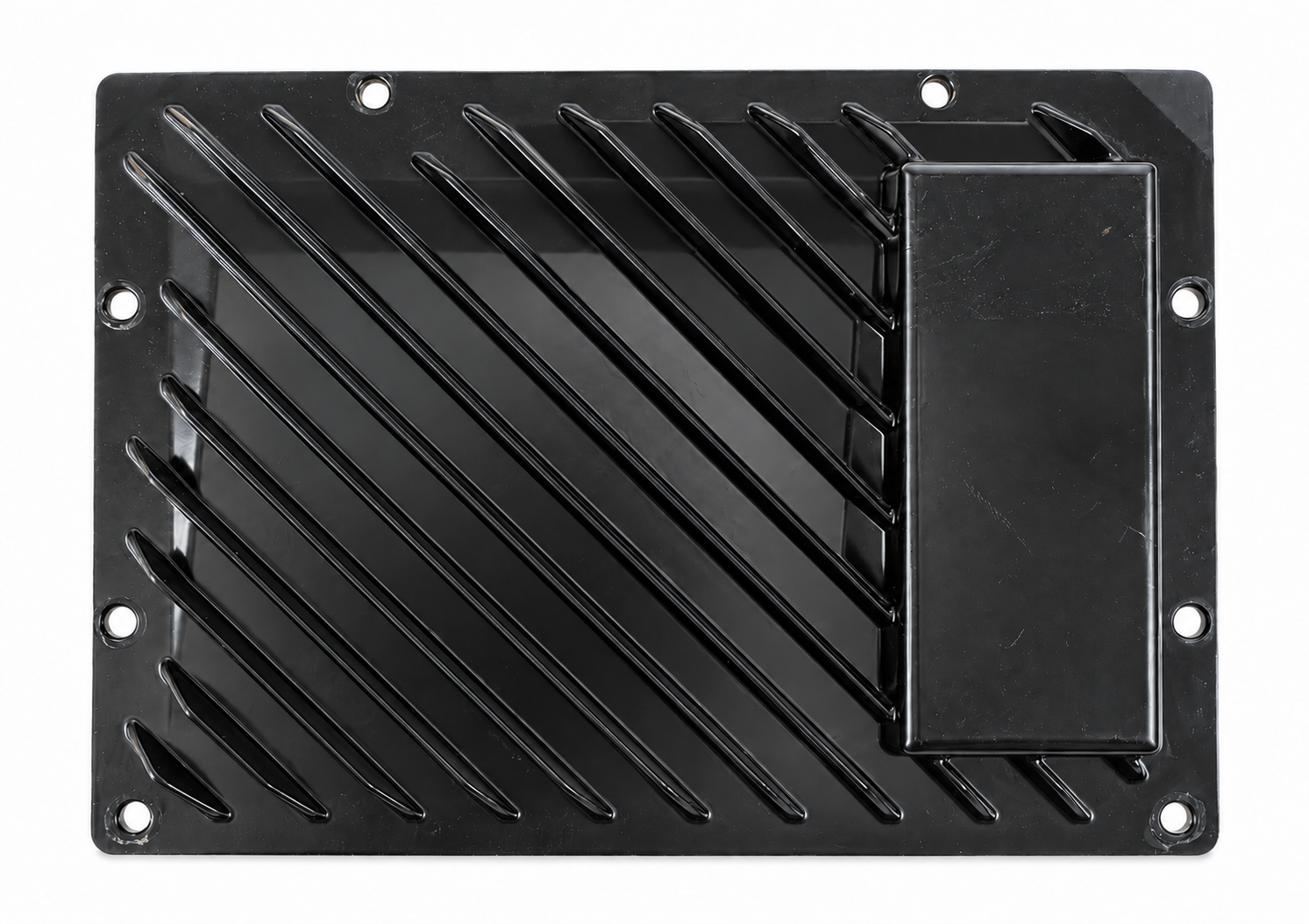

Genuine OEM Jaguar Land Rover premium audio amplifier bearing engineering number DX23-19C164-BA.
This module is used in select Jaguar and Land Rover vehicles equipped with a factory premium or surround-sound system. It processes and distributes audio through the vehicleโs fiber-optic MOST network and powers the applicable speakers, center channel and subwoofer configuration.
This is a configuration-specific factory amplifierโnot a universal aftermarket amplifier.
๐ฃ๐ฎ๐ฟ๐ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ๐
โข Engineering number: DX23-19C164-BA ย
โข Alternate format: DX2319C164BA ย
โข Jaguar service reference: T2R24114 ย
โข Land Rover service references: LR026011, LR045327, LR059385 and LR093599 ย
โข Additional family references may include C2D18304, C2D30272, C2Z23282 and C2Z29300 ย
โข Jaguar interchange reference: 638-52334 ย
โข Land Rover interchange reference: 638-59444
Supersession and interchange numbers are provided for research purposes. They do not guarantee plug-and-play compatibility because software calibration and speaker configuration can differ.
๐๐๐ฑ๐ถ๐ผ ๐ฆ๐๐๐๐ฒ๐บ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐
Designed for applicable factory premium or surround-sound systems, commonly identified as:
โข Meridian Premium Sound ย
โข Meridian Surround Sound ย
โข Jaguar Premium or Surround Audio ย
โข Land Rover Premium Surround Audio ย
โข Prem16 factory audio configuration ย
โข Applicable Bowers & Wilkins premium systems
System power ratings vary by vehicle and market. Jaguar applications may be advertised using a different wattage than Land Rover applications even when the amplifier belongs to the same hardware family.
This amplifier does not fit vehicles with the basic audio system or a different amplifier architecture.
๐ฅ๐ฒ๐ฝ๐ผ๐ฟ๐๐ฒ๐ฑ ๐๐ฎ๐ด๐๐ฎ๐ฟ ๐๐ฝ๐ฝ๐น๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Depending on the original sound system and production date:
โข 2012โ2015 Jaguar XF X250 ย
โข 2012โ2015 Jaguar XFR ย
โข 2013โ2015 Jaguar XFR-S ย
โข 2012โ2017 Jaguar XJ X351 ย
โข 2012โ2017 Jaguar XJL ย
โข 2014โ2017 Jaguar XJR ย
โข 2014โ2017 Jaguar F-Type X152 with the applicable premium system
Later F-Type, XE and XF applications may use service number T2R24114 or another superseding version. Software and connector verification remain necessary.
๐ฅ๐ฒ๐ฝ๐ผ๐ฟ๐๐ฒ๐ฑ ๐๐ฎ๐ป๐ฑ ๐ฅ๐ผ๐๐ฒ๐ฟ ๐๐ฝ๐ฝ๐น๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
Depending on the original sound system and production date:
โข 2012โ2017 Range Rover Evoque L538 ย
โข 2013โ2015 Land Rover LR2 or Freelander 2 L359 ย
โข 2014โ2016 Land Rover LR4 or Discovery 4 L319 ย
โข 2015โ2016 Discovery Sport L550 ย
โข 2013โ2017 Range Rover L405 ย
โข 2014โ2017 Range Rover Sport L494
For Land Rover applications, this amplifier family is commonly associated with the high-output premium Meridian Surround system. Certain catalogs identify option code 025LN.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ถ๐๐บ๐ฒ๐ป๐ ๐ฅ๐ฒ๐พ๐๐ถ๐ฟ๐ฒ๐บ๐ฒ๐ป๐๐
Before ordering, verify:
โข DX23-19C164-BA is printed on the original amplifier or confirmed as its correct supersession ย
โข Vehicle has the corresponding factory premium or surround-sound package ย
โข Electrical and fiber-optic connectors match ย
โข Speaker count and channel configuration match ย
โข Compatibility is confirmed using the VIN and factory option list ย
โข A qualified technician is available if programming is required
Do not purchase based only on vehicle year, model or connector appearance. Jaguar Land Rover used multiple amplifiers with similar housings and plugs for base, premium and surround-sound systems.
๐ฃ๐ฟ๐ผ๐ด๐ฟ๐ฎ๐บ๐บ๐ถ๐ป๐ด ๐ก๐ผ๐๐ถ๐ฐ๐ฒ
Installation may require Jaguar Land Rover diagnostic software such as SDD or Pathfinder to:
โข Configure the amplifier to the vehicle ย
โข Load the correct calibration ย
โข Update the Car Configuration File ย
โข Assign the correct speaker channels ย
โข Clear communication or MOST-network faults
An amplifier removed from a different model may power on and produce sound while still having incorrect speaker-channel assignments or missing surround functions. Professional programming is strongly recommended.
This module should not be assumed to provide a plug-and-play upgrade from a base or lower-output audio system. Such a conversion may also require additional speakers, wiring, configuration changes and compatible infotainment hardware.
๐๐ผ๐บ๐บ๐ผ๐ป ๐๐ฎ๐ถ๐น๐๐ฟ๐ฒ ๐ฆ๐๐บ๐ฝ๐๐ผ๐บ๐
Replacement may be appropriate after proper diagnosis of:
โข No sound from any speakers ย
โข Intermittent audio ย
โข Popping, distortion or channel loss ย
โข Amplifier communication faults ย
โข Broken MOST fiber-optic network communication ย
โข Infotainment functions becoming unavailable because of an open MOST ring ย
โข Water-damaged or internally failed amplifier
These symptoms can also be caused by wiring, speakers, moisture, another MOST-network module or vehicle configuration. Diagnosis should be completed before purchasing.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
Pre-owned genuine OEM amplifier. Normal cosmetic wear, scratches and marks may be present from removal, storage and previous use.
Please review all photographs carefully because they show the actual item and identification label. The original listing provides a 60-day warranty but does not clearly state the testing procedure.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Disconnect the vehicle battery following the manufacturerโs procedure before removing or installing electronic modules. Inspect the amplifier location for moisture or corrosion and correct any water leak before installing the replacement.
Connect the electrical plugs and MOST fiber-optic connector carefully. Do not bend, contaminate or look directly into the fiber-optic cable.
Professional installation, configuration and diagnostic scanning are recommended.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐๐
โข One OEM audio amplifier, DX23-19C164-BA ย
โข Mounting brackets, wiring, fiber-optic cables, speakers and programming service are not included unless pictured
