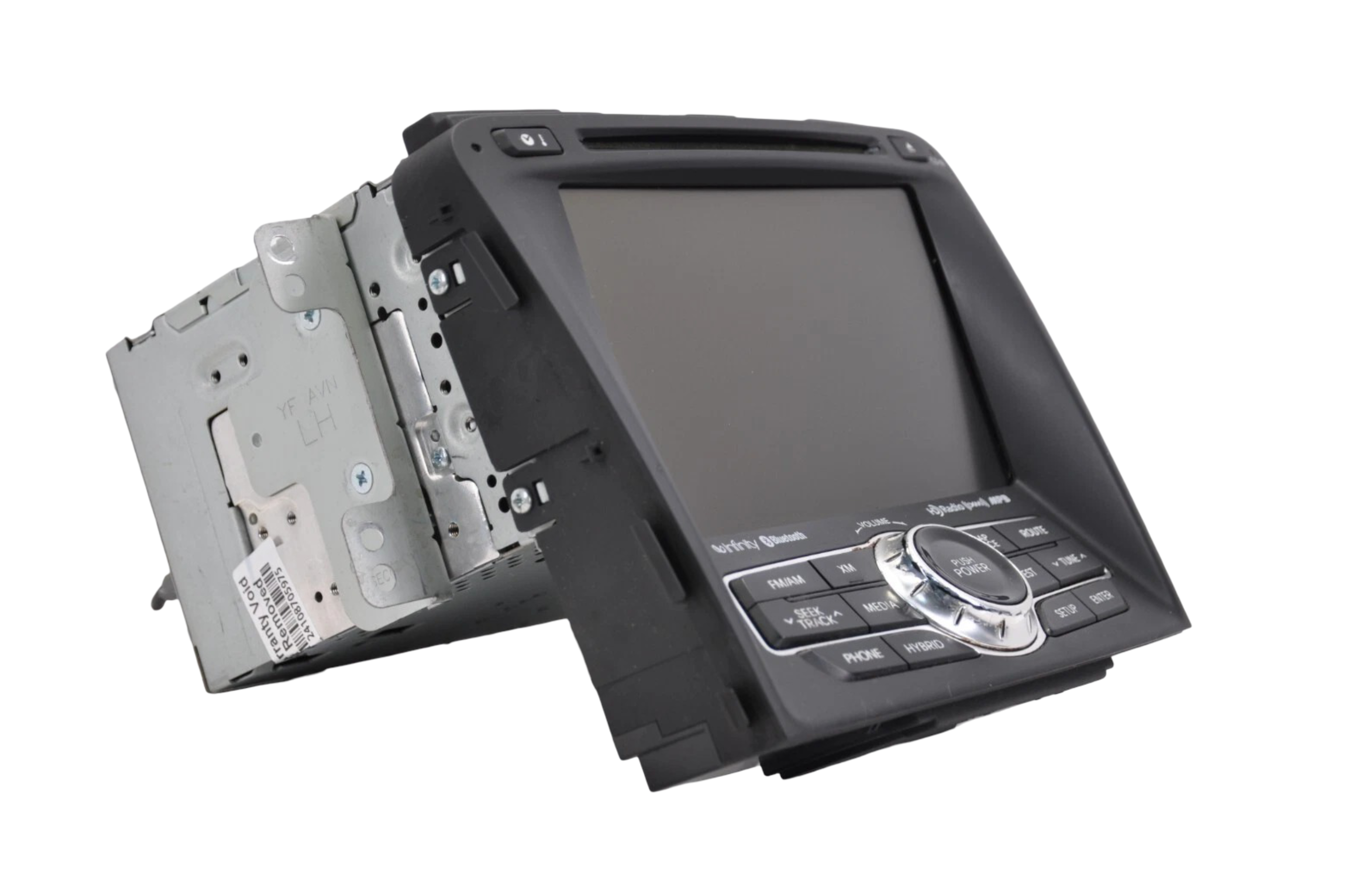

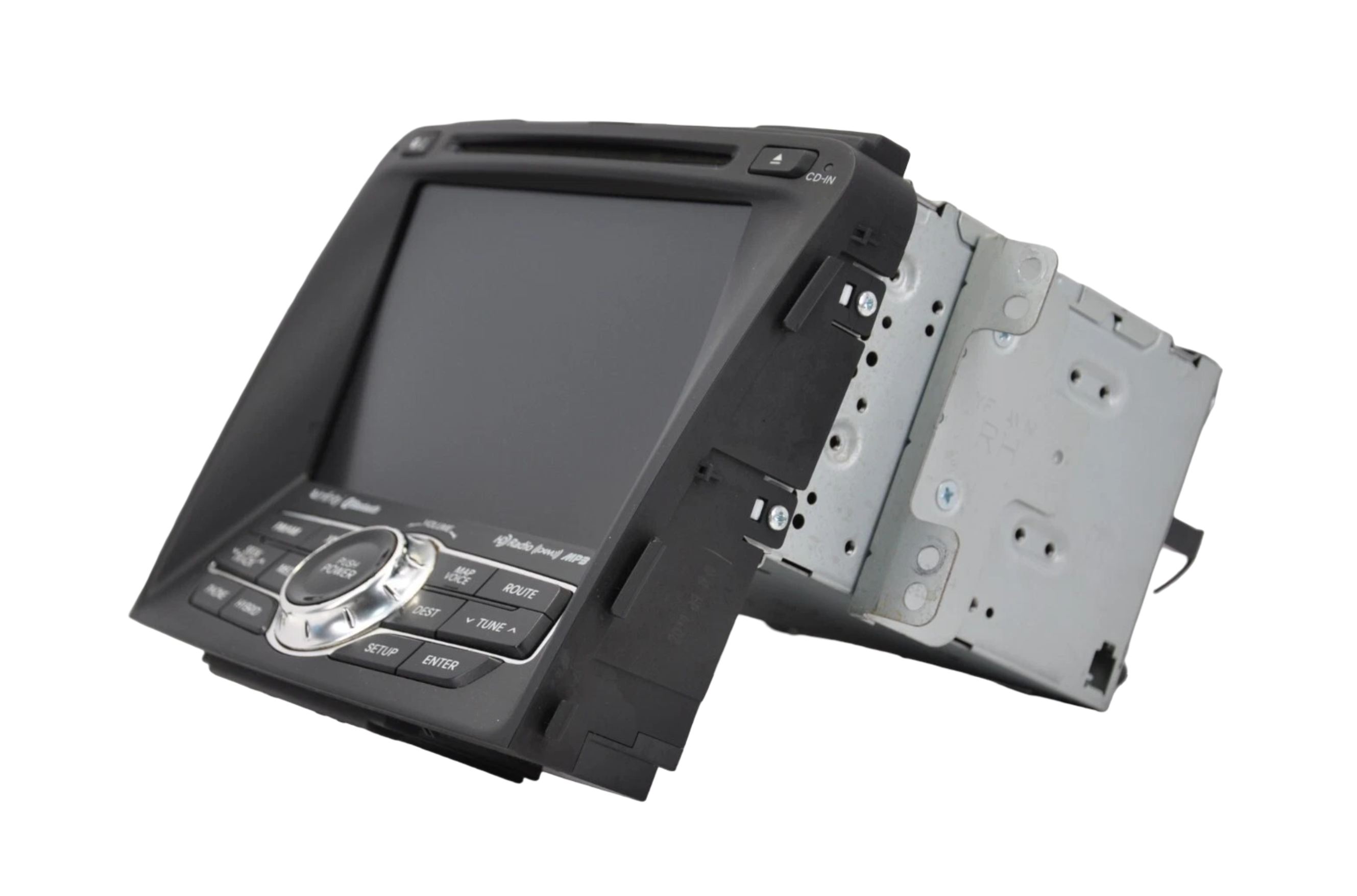

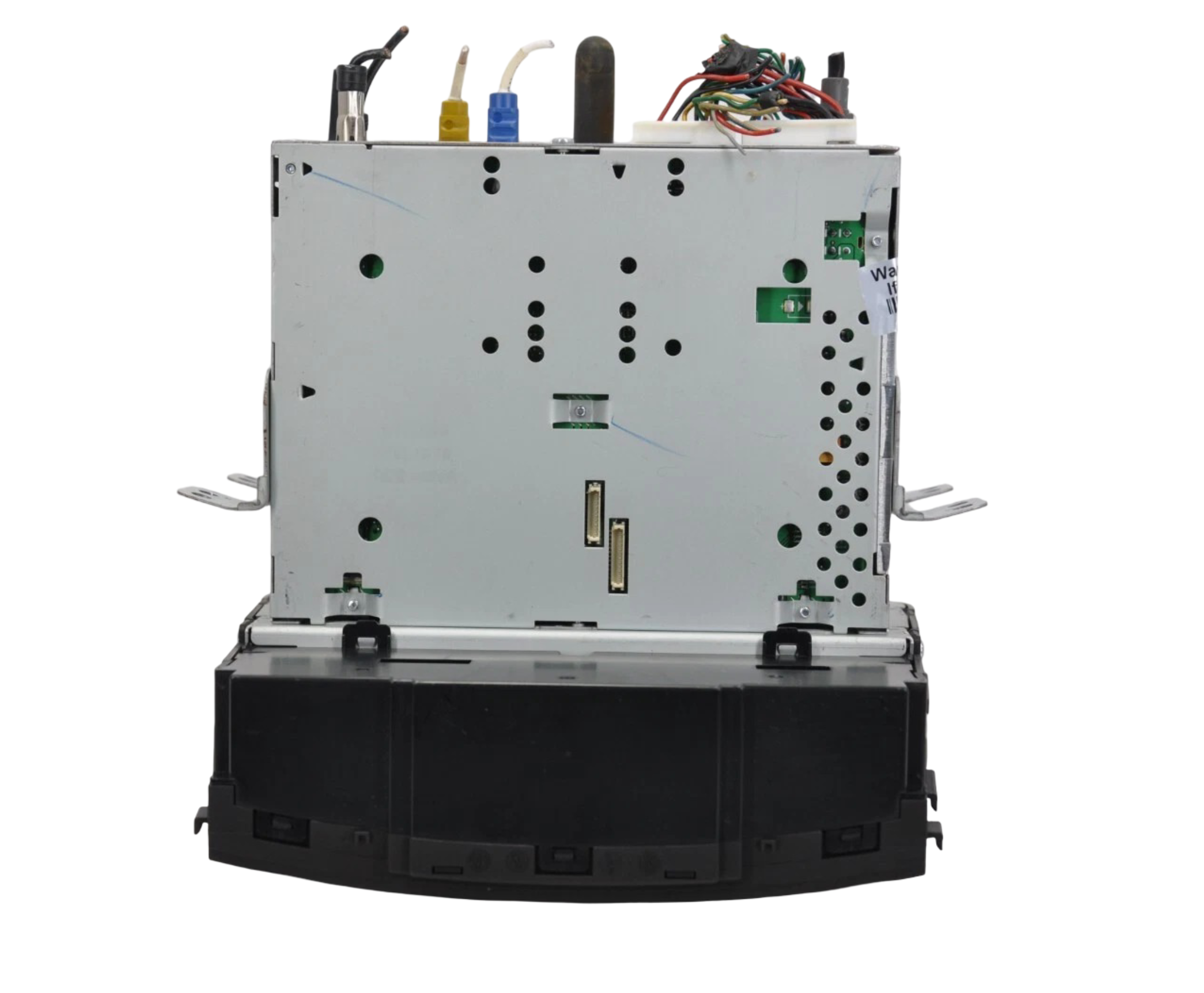

2011-2015 Hyundai Sonata Hybrid Infinity Navigation Radio OEM 96560-4R7004X

Genuine Hyundai OEM touchscreen navigation radio removed from a Hyundai Sonata Hybrid. This factory head unit combines the audio, CD, Bluetooth, satellite-radio and navigation controls into one original-equipment assembly.

product details

• Genuine Hyundai OEM AVN navigation head unit

• Hyundai part number: 96560-4R700-4X

• Compact part number: 965604R7004X

• Hyundai remanufactured/service number: 00201-F211G-FLT

• Factory 7-inch touchscreen display

• AM/FM radio

• CD and MP3 playback

• Bluetooth hands-free capability

• XM satellite-radio capability

• HD Radio capability

• Designed for the factory premium amplified audio system

• Black factory finish

• Direct replacement—not an aftermarket radio

compatibility

Cataloged for:

• 2011 Hyundai Sonata Hybrid

• 2012 Hyundai Sonata Hybrid

• 2012 Hyundai Sonata Hybrid Premium

• 2013 Hyundai Sonata Hybrid

• 2013 Hyundai Sonata Hybrid Limited

• 2014 Hyundai Sonata Hybrid

• 2014 Hyundai Sonata Hybrid Limited

• 2015 Hyundai Sonata Hybrid

• 2015 Hyundai Sonata Hybrid Limited

The vehicle must have the factory touchscreen navigation system and compatible factory premium amplified audio equipment.

Earlier vehicles may identify the premium system as Dimension, while later applications may use Infinity branding. Match the original radio’s part number, connectors and equipment—not the speaker badge alone.

important fitment information

This radio is specifically for the YF-generation Sonata Hybrid. It is not intended for:

• Standard gasoline-only Sonata models

• 2015 LF-generation gasoline Sonata

• Vehicles originally equipped with a basic non-navigation radio

• Vehicles without the compatible factory amplifier

• Aftermarket-radio installations

• Other Hyundai or Kia models based only on connector similarity

This unit should be purchased as a replacement for a radio with matching part number 96560-4R700-4X, 965604R7004X or a verified compatible Hyundai service replacement.

condition

Used genuine OEM component. The seller states that the unit has been tested and is working. Normal cosmetic wear, light scratches, scuffs or dust may be present from previous installation and storage. Please examine all photographs for the actual cosmetic condition.

installation

Professional installation is recommended. Programming, initialization or configuration by a Hyundai dealer or qualified automotive-electronics technician may be required.

This is a replacement component for an existing factory navigation system and should not be treated as a plug-and-play navigation upgrade for a vehicle that was not originally equipped with one.

included

One OEM navigation radio/head unit as pictured.

Amplifier, GPS antenna, wiring harness, vehicle trim, mounting hardware, map media and other components are not included unless specifically shown in the photographs.

buyer verification

Before ordering, compare:

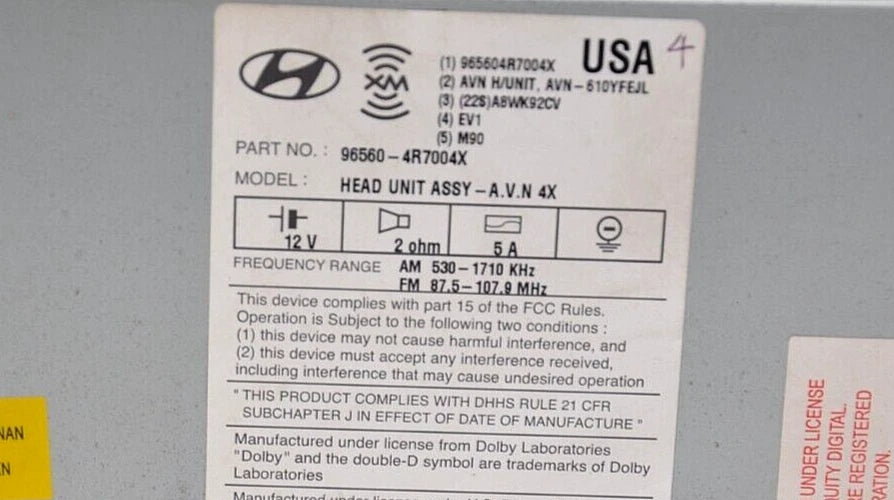

• Complete part number

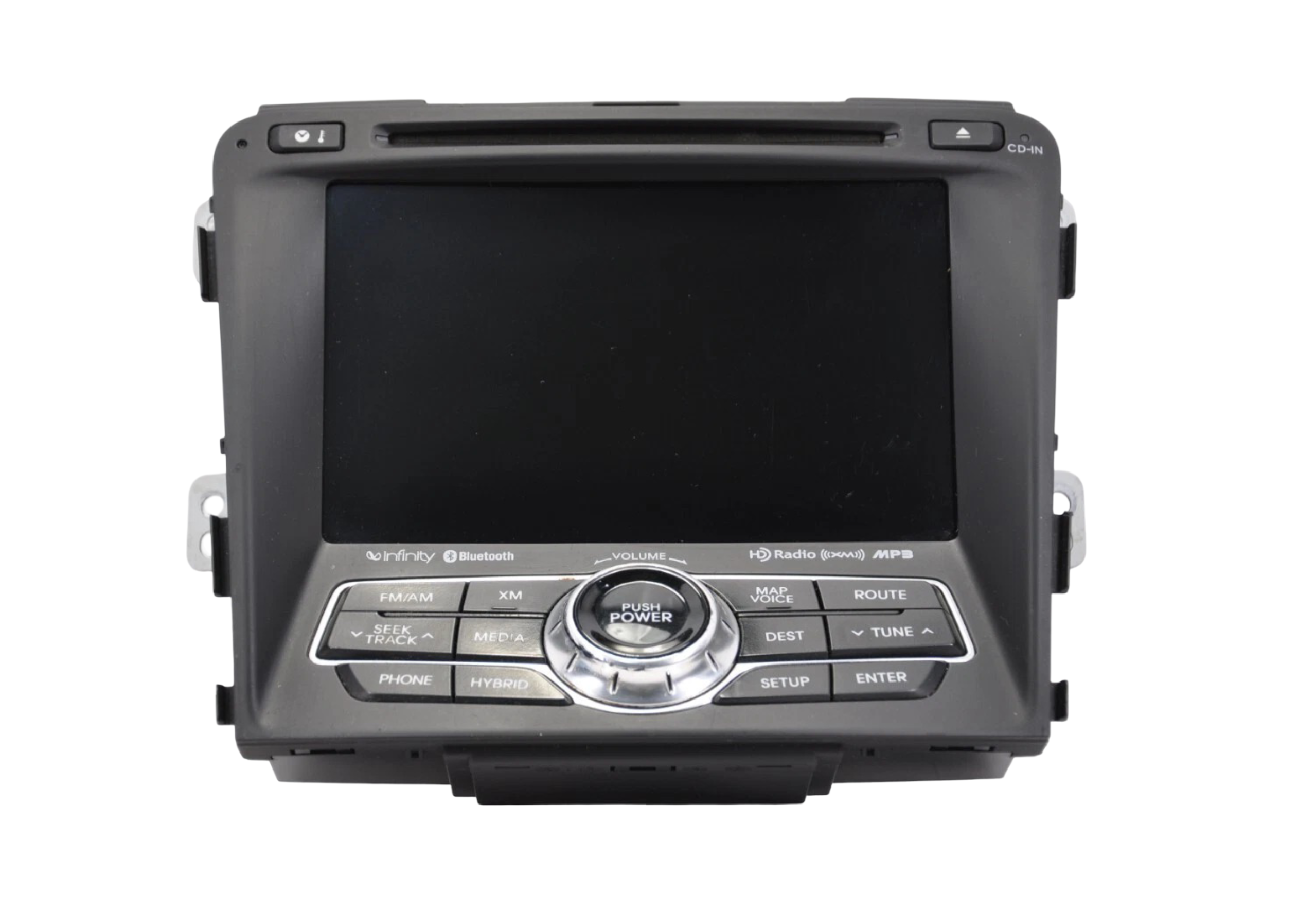

• Front-panel layout

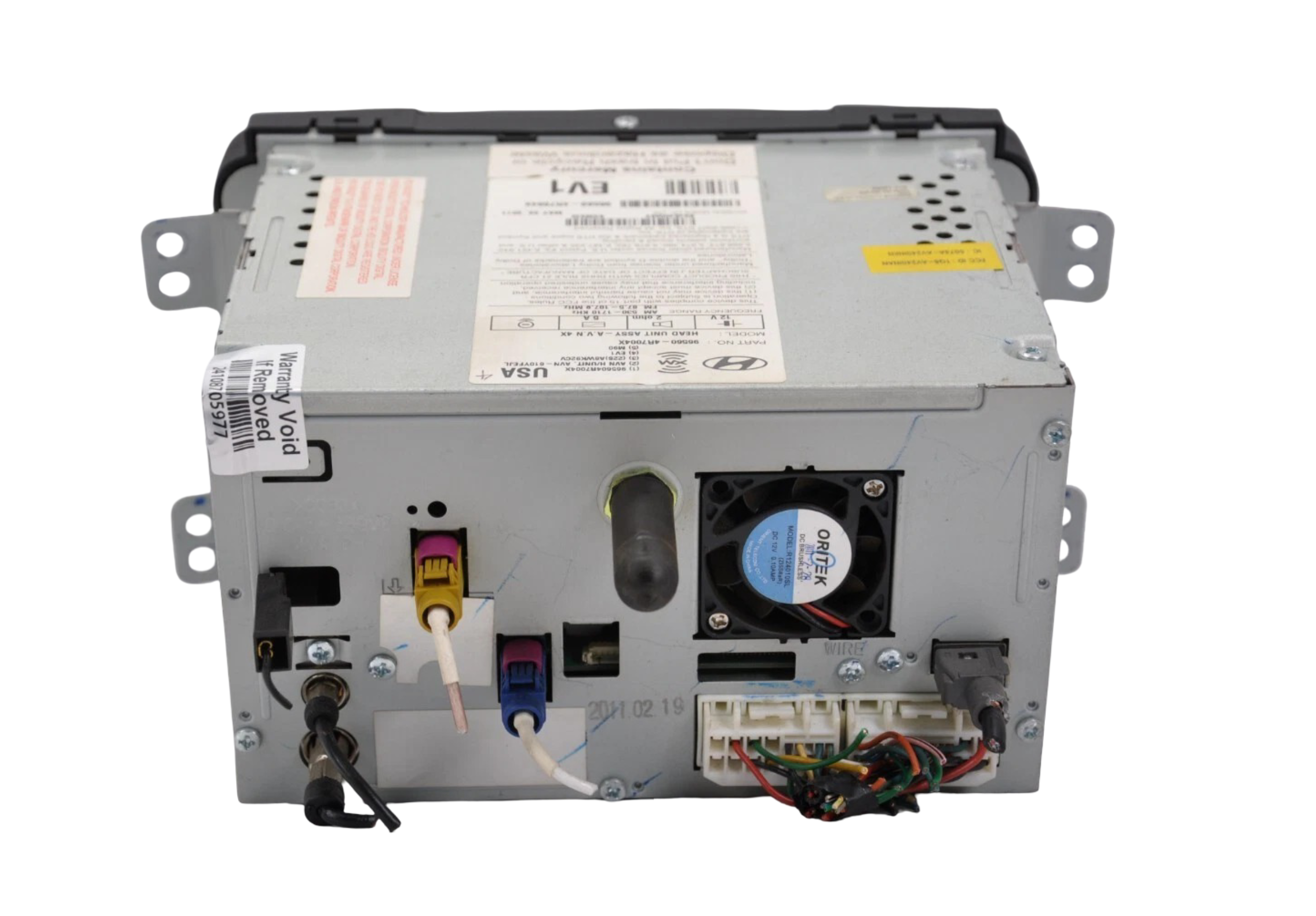

• Rear electrical connectors

• Factory navigation equipment

• Premium-audio amplifier configuration

• Vehicle VIN and production equipment

Matching the year and model alone is not sufficient. Contact a Hyundai parts department with the VIN if confirmation is needed.
