2010-2013 Kia Sportage OEM GPS Navigation Radio 96560-3W101AM5
Product Description

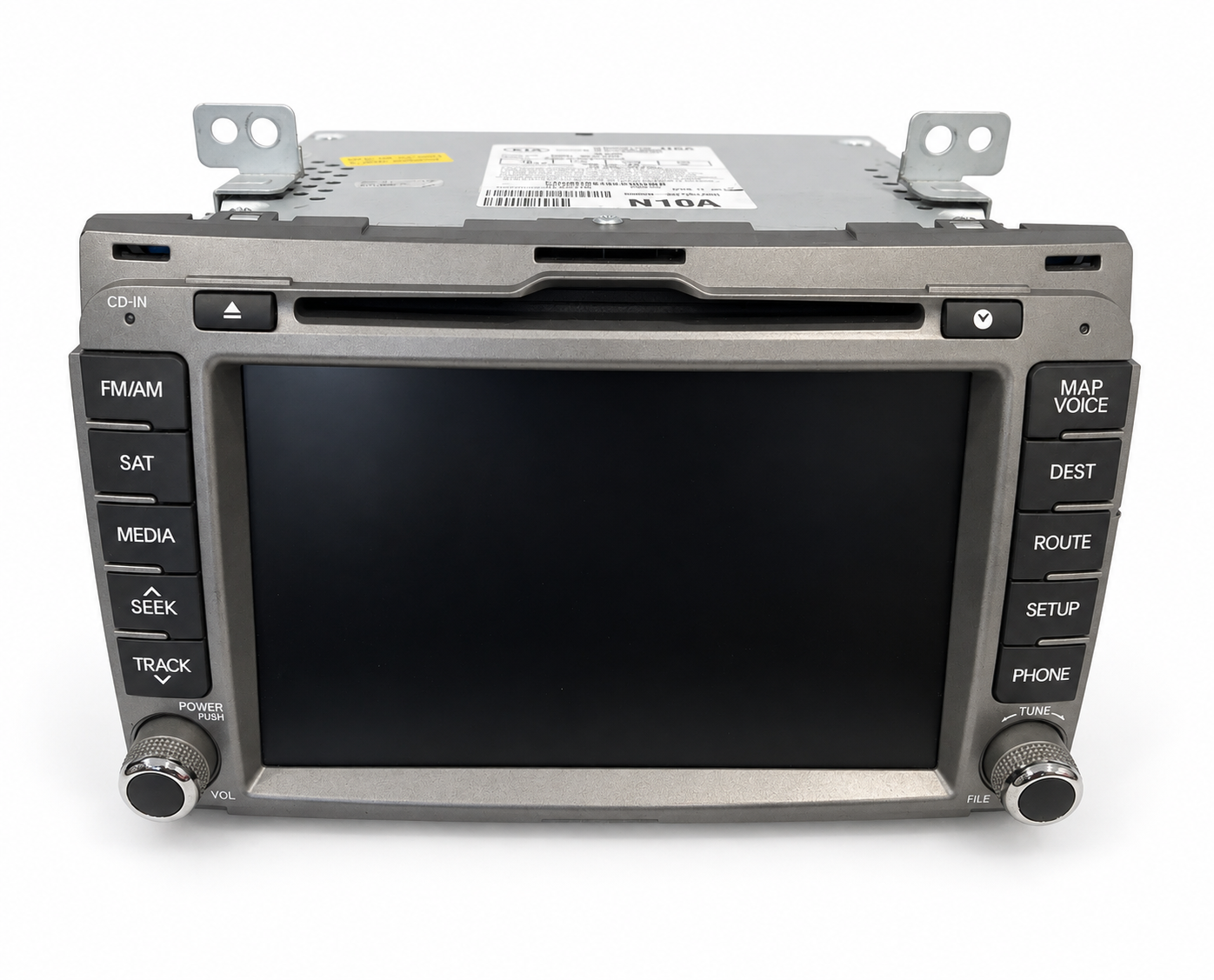

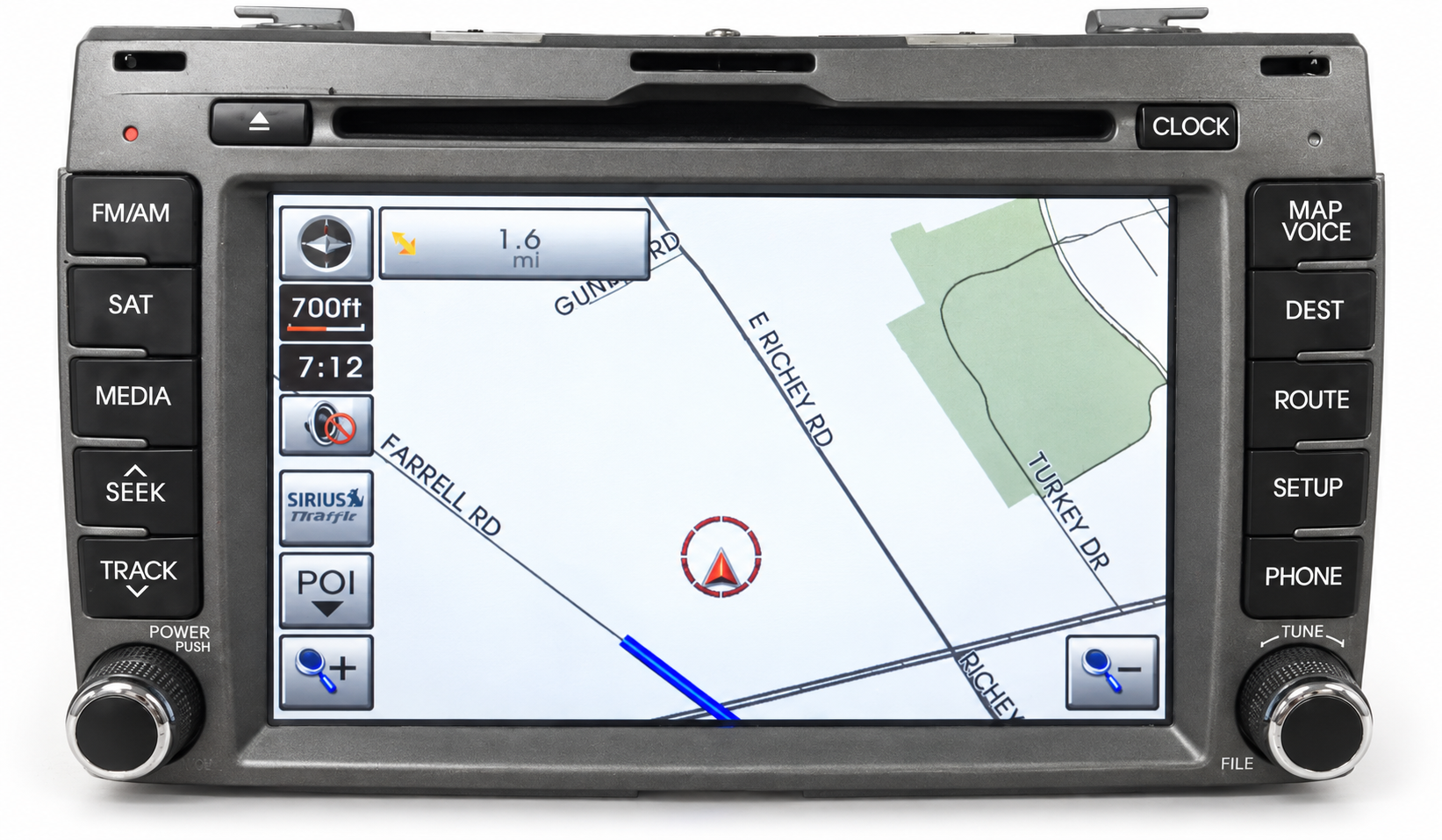

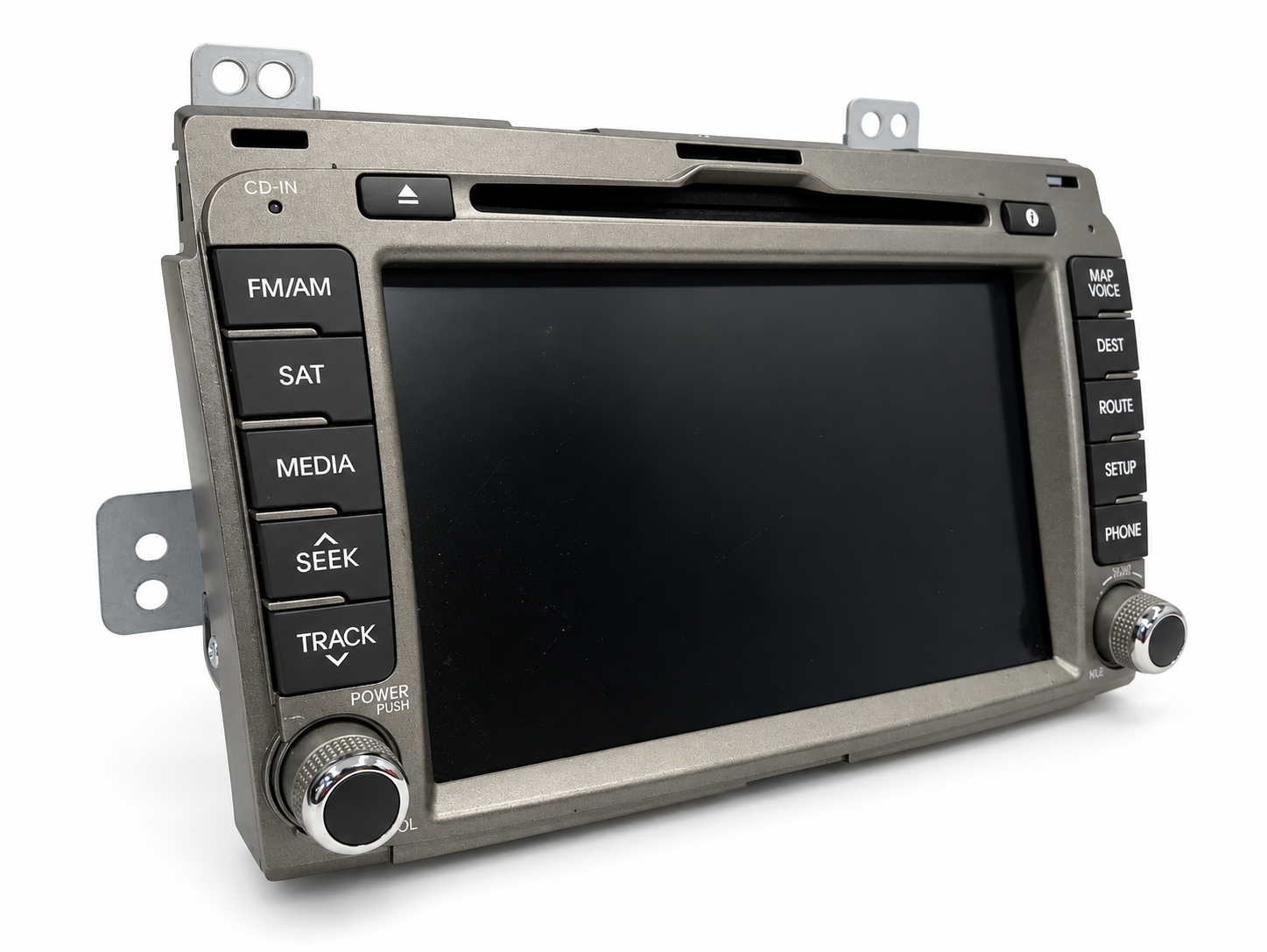

Genuine Kia OEM audio-video-navigation head unit for select 2010–2013 Kia Sportage models originally equipped with the factory navigation system. This dashboard receiver combines a touchscreen display, GPS navigation, AM/FM and satellite-radio capability, Bluetooth support, and CD/MP3 playback in a factory-fit assembly.
It may show normal cosmetic wear consistent with previous installation. Review every listing photo for the exact condition.
Product Details
- Genuine Kia OEM component
- Type: Audio-video-navigation head unit
- OEM part number: 96560-3W101AM5
- Number without hyphens: 965603W101AM5
- Interchange number: 594-50160
- Factory touchscreen display
- GPS navigation
- AM/FM radio
- Single-disc CD player
- MP3 playback
- Bluetooth capability
- Satellite/XM-ready functionality
- Compatible with applicable factory USB and audio connections
- Factory dashboard fit
- Direct replacement—not a universal aftermarket radio
Kia’s catalog identifies 965603W101AM5 as a low-navigation AVN head unit and records a production application from September 2010 through July 2012. Kia information-system catalog
Researched Compatibility
Compatible with select:
- 2010 Kia Sportage – new-body-style models
- 2011 Kia Sportage
- 2012 Kia Sportage
- 2013 Kia Sportage, subject to production date and part-number verification
Applicable engine families include:
- 2.0L Theta II, including turbocharged configurations where properly equipped
- 2.4L Theta II
The OEM catalog associates this head unit with the five-door Sportage platform and confirms that 96560-3W101AM5 was replaced by 96560-3W102AM5. OEM part record
Compatible and Related Numbers
- 96560-3W101AM5
- 965603W101AM5
- 96560-3W102AM5
- 965603W102AM5
- 96560-3W101WK
- 965603W101WK
- 96560-3W102WK
- 965603W102WK
- 96560-3W100AM5
- 965603W100AM5
- 594-50160
- 18-60385ON
Suffix differences may indicate different faceplate colors, production revisions, software, audio systems, or market specifications. Treat these as research references—not guaranteed substitutes—unless confirmed by VIN or an authorized Kia parts catalog.
Important Compatibility Notice
This radio is intended as a replacement for a Sportage that was originally equipped with the compatible factory navigation system. It is not a plug-and-play navigation conversion for a vehicle fitted with a standard radio.
Before ordering, compare:

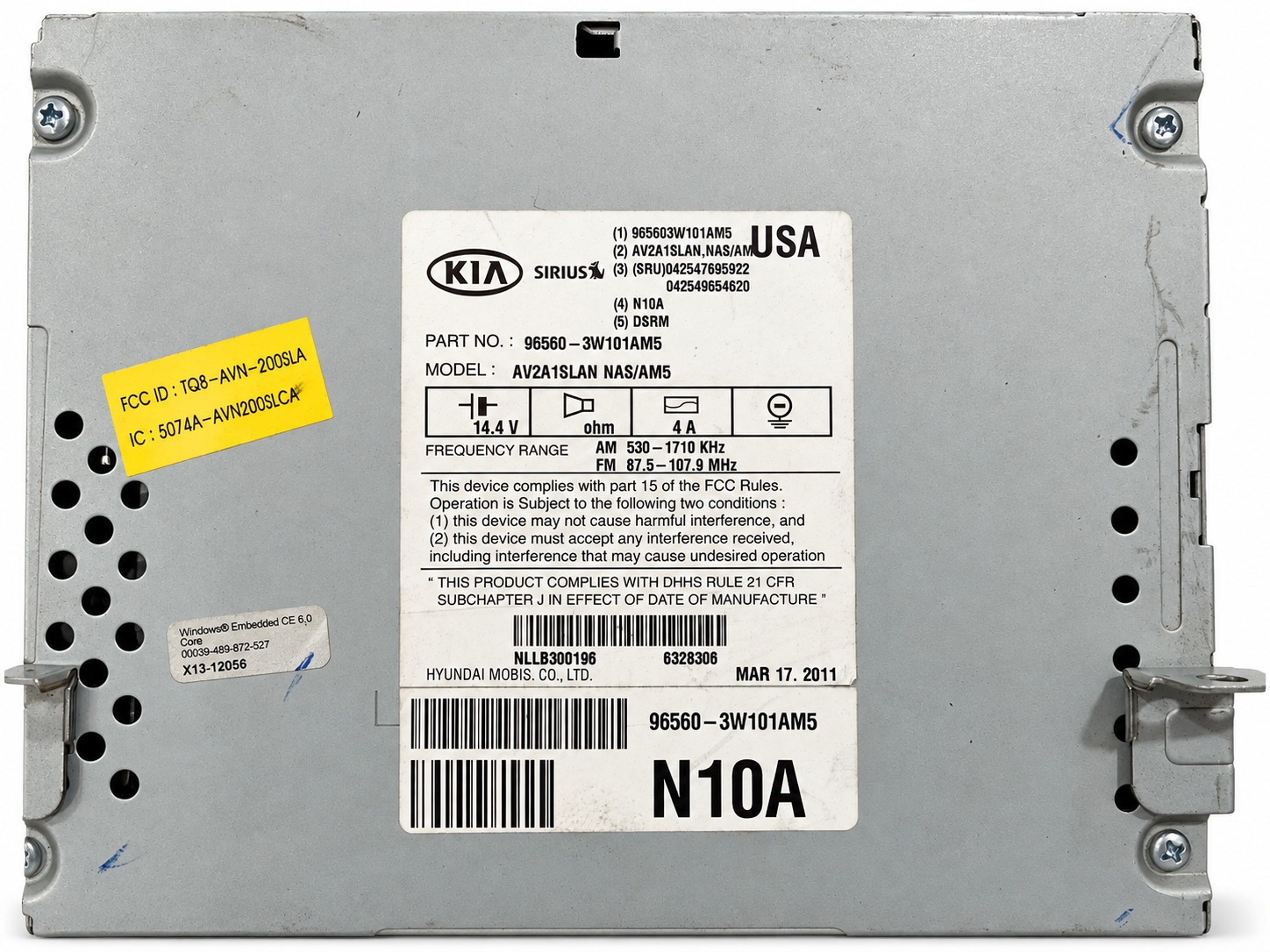

- Complete OEM number on the original receiver
- Production date of the vehicle

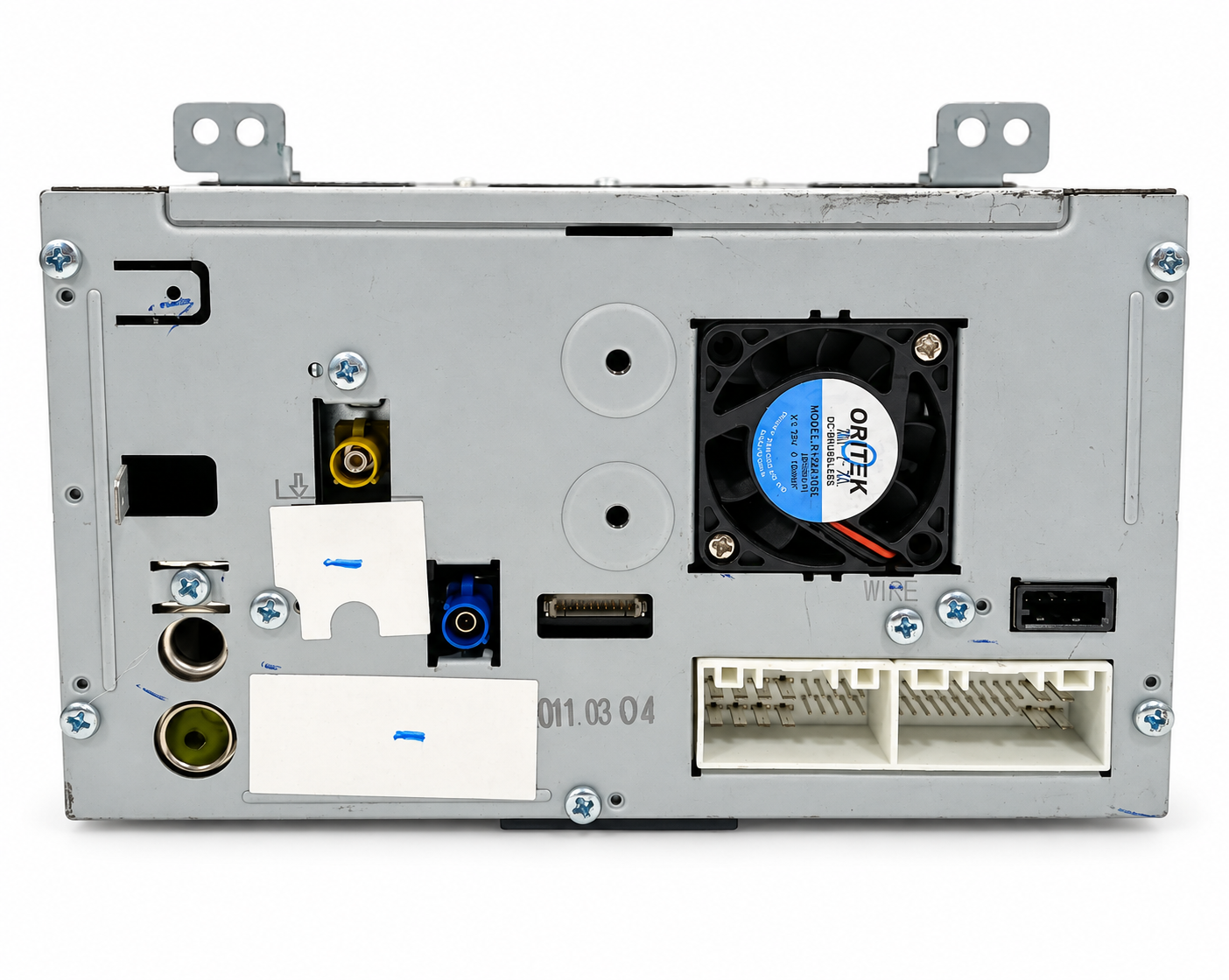

- Rear connectors
- Factory amplifier configuration
- Dashboard and faceplate color
- GPS, antenna and USB connections
- Navigation-map media arrangement
The exact 96560-3W101AM5 unit is most closely associated with September 2010–July 2012 production. Later vehicles may use 96560-3W102AM5, even though replacement specialists sometimes list both numbers across the 2010–2013 model range. Exact-number or VIN confirmation is strongly recommended.
Installation Information
Professional installation is recommended. Vehicle-specific initialization or audio-system configuration may be required. Navigation map data may be outdated. Satellite-radio service requires a compatible antenna and paid subscription.
Package Includes
- One used Kia OEM navigation radio/head unit
