2007-16 MINI R55 R56 R57 R58 R59 R60 R61 40-Pin Radio Wire Harness Plug Pigtail Connector

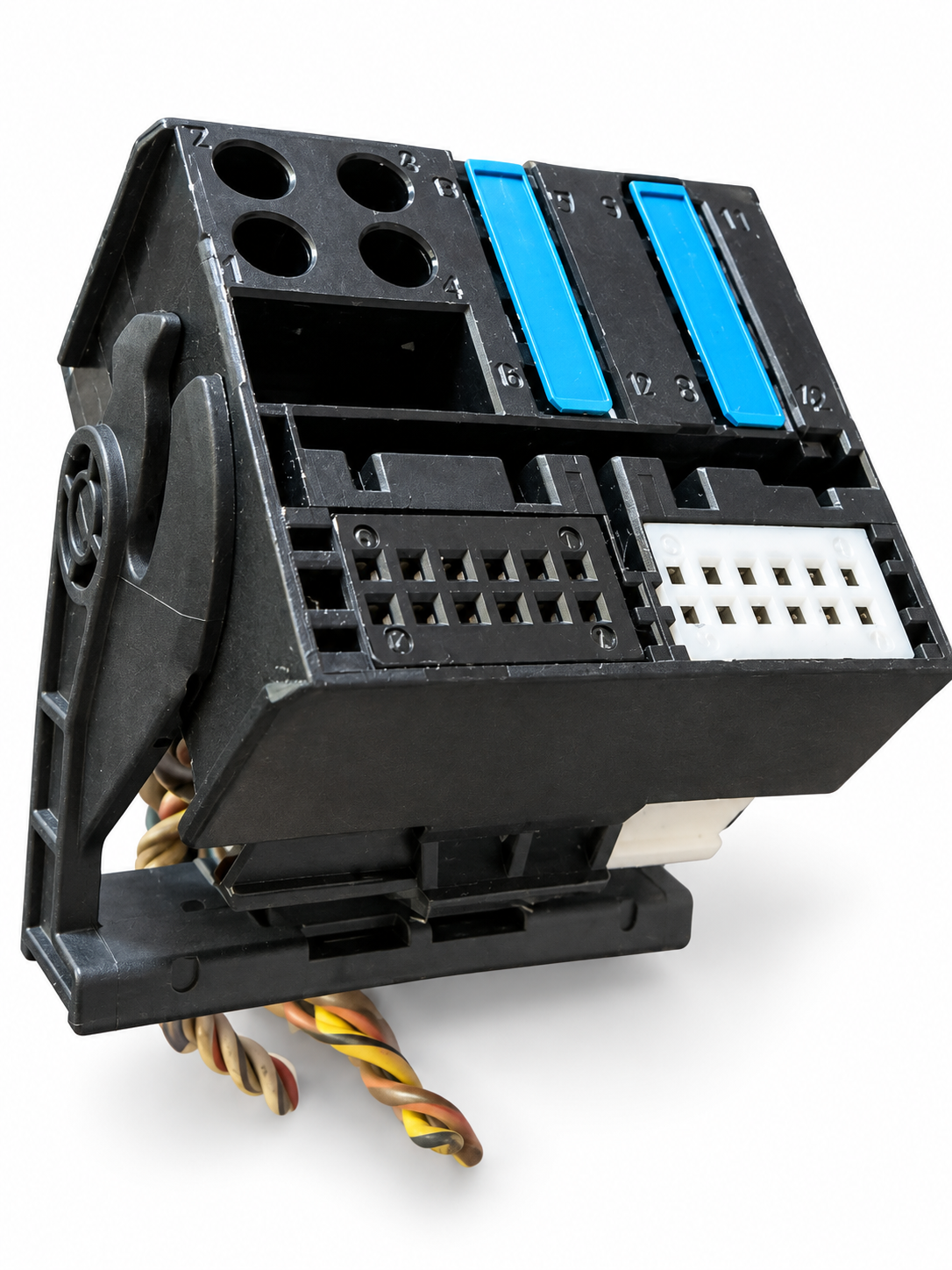

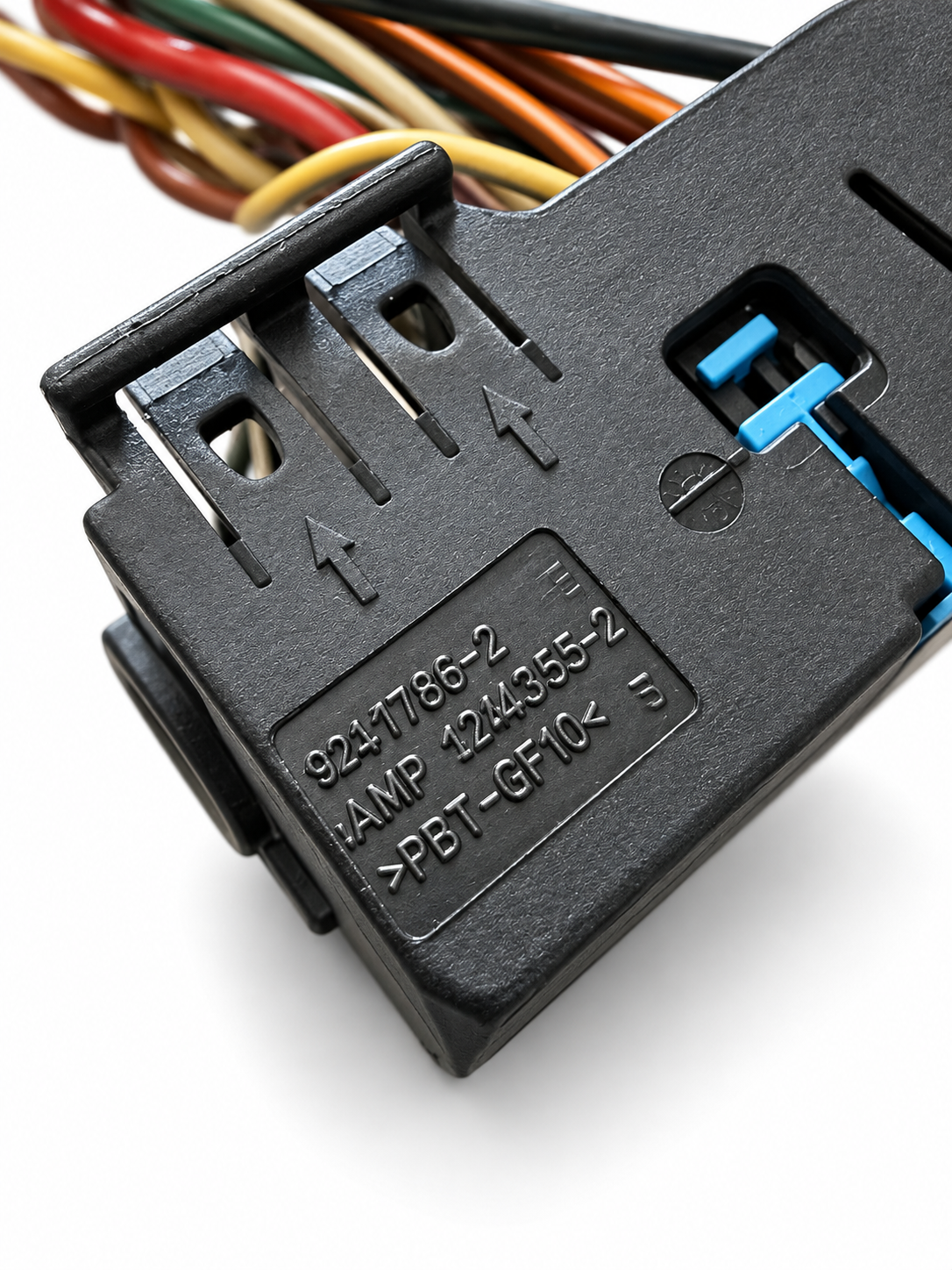

GENUINE MINI/BMW 40-PIN QUADLOCK-STYLE RADIO CONNECTOR PIGTAIL
Used factory radio wiring connector removed from a second-generation MINI. This is a repair pigtail with cut wire leads, intended for replacing a damaged, melted, corroded or previously modified radio connector.
The actual connector and wiring shown in the photographs will be supplied.
DIRECT MINI APPLICATIONS
This connector style is used with selected factory radio and navigation configurations in the following second-generation MINI models:
• 2008–2014 MINI Clubman — R55
• 2007–2013 MINI Hardtop/Hatchback — R56
• 2009–2015 MINI Convertible — R57
• 2012–2015 MINI Coupe — R58
• 2012–2015 MINI Roadster — R59
• 2011–2016 MINI Countryman — R60
• 2013–2016 MINI Paceman — R61
Applicable trim levels may include One, Cooper, Cooper S, Cooper SD and John Cooper Works. Compatibility depends on the installed factory audio system—not the engine or trim level alone.
COMPATIBLE MINI RADIO FAMILIES
The same general Quadlock connector housing was used with various second-generation MINI systems, including:
• MINI Wave radio
• MINI Wave CD
• MINI Boost CD
• MINI Visual Boost
• Selected factory Navigation Business systems
• Selected CCC/CIC-based factory navigation systems
The terminal population can differ between the basic stereo, Hi-Fi, Harman Kardon, Bluetooth, USB, satellite-radio and navigation configurations.
BMW AND MINI MODELS USING THIS CONNECTOR STYLE
The following vehicles may use the same physical 40-pin BMW/MINI Quadlock connector family. This does not mean the supplied pigtail has the correct wiring for every vehicle or radio listed.
MINI — FIRST GENERATION, SELECTED LATE RADIOS
• R50 MINI Hardtop
• R52 MINI Convertible
• R53 MINI Cooper S Hardtop
Some first-generation cars use the earlier BMW 17-pin round-pin connector. These applications must be checked physically.
MINI — SECOND GENERATION
• R55 Clubman
• R56 Hardtop/Hatchback
• R57 Convertible
• R58 Coupe
• R59 Roadster
• R60 Countryman
• R61 Paceman
MINI — THIRD GENERATION, SAME CONNECTOR FAMILY ONLY
• F54 Clubman
• F55 Hardtop 4-Door
• F56 Hardtop 2-Door
• F57 Convertible
• F60 Countryman
Third-generation MINI vehicles can use different keying, pin assignments and head-unit architecture. This particular pigtail should not be advertised as a direct replacement for F-series MINIs without comparing both connectors.
BMW — LATE EARLY-GENERATION APPLICATIONS
Selected vehicles equipped with the later flat-pin radio connector:
• E39 5 Series
• E46 3 Series and M3
• E53 X5
• E65/E66/E67/E68 7 Series
• E83 X3
• E85/E86 Z4
Production date and factory radio must be checked because some vehicles use the earlier 17-pin round-pin connector or a remotely mounted radio module.
BMW — MAIN E-SERIES QUADLOCK APPLICATIONS
• E81/E82/E87/E88 1 Series and 1 Series M Coupe
• E90/E91/E92/E93 3 Series and M3
• E60/E61 5 Series and M5
• E63/E64 6 Series and M6
• E70 X5 and X5 M
• E71/E72 X6 and X6 M/ActiveHybrid
• E84 X1
• E89 Z4
BMW — EARLY F-SERIES AND BMW i APPLICATIONS
The Quadlock connector family continued on many early F-series head units, including:
• F20/F21 1 Series
• F22/F23/F87 2 Series and M2
• F30/F31/F34/F35/F80 3 Series and M3
• F32/F33/F36/F82/F83 4 Series and M4
• F07/F10/F11/F18 5 Series
• F06/F12/F13 6 Series
• F01/F02/F03/F04 7 Series
• F25 X3
• F26 X4
• F15 X5
• F16 X6
• I01 BMW i3
• I12 BMW i8
These later vehicles use different head-unit generations and wiring. Physical connector similarity does not establish direct compatibility.
BMW RADIO/HEAD-UNIT FAMILIES USING QUADLOCK-STYLE CONNECTIONS
Depending on model and production date, this connector family can be found on:
• BMW Audio and Business radios
• BMW Business CD
• BMW Professional and Professional CD
• MINI Wave, Wave CD and Boost CD
• M-ASK and M-ASK II
• CHAMP and CHAMP2
• CCC Navigation Business/Professional
• CIC Navigation Business/Professional
• Selected Radio Professional, Entry, EntryNav and early NBT units
FITMENT INFORMATION
This is not a universal plug-and-play radio adapter.
Although many BMW and MINI radios use a similar 40-pin housing, the following can differ:
• Connector keying
• Number and location of installed terminals
• Speaker-level versus amplified audio wiring
• CAN-bus connections
• AUX, USB, Bluetooth and microphone wiring
• Harman Kardon or Logic 7 amplifier connections
• MOST fiber-optic insert
• Navigation and display connections
• Antenna and satellite-radio connections

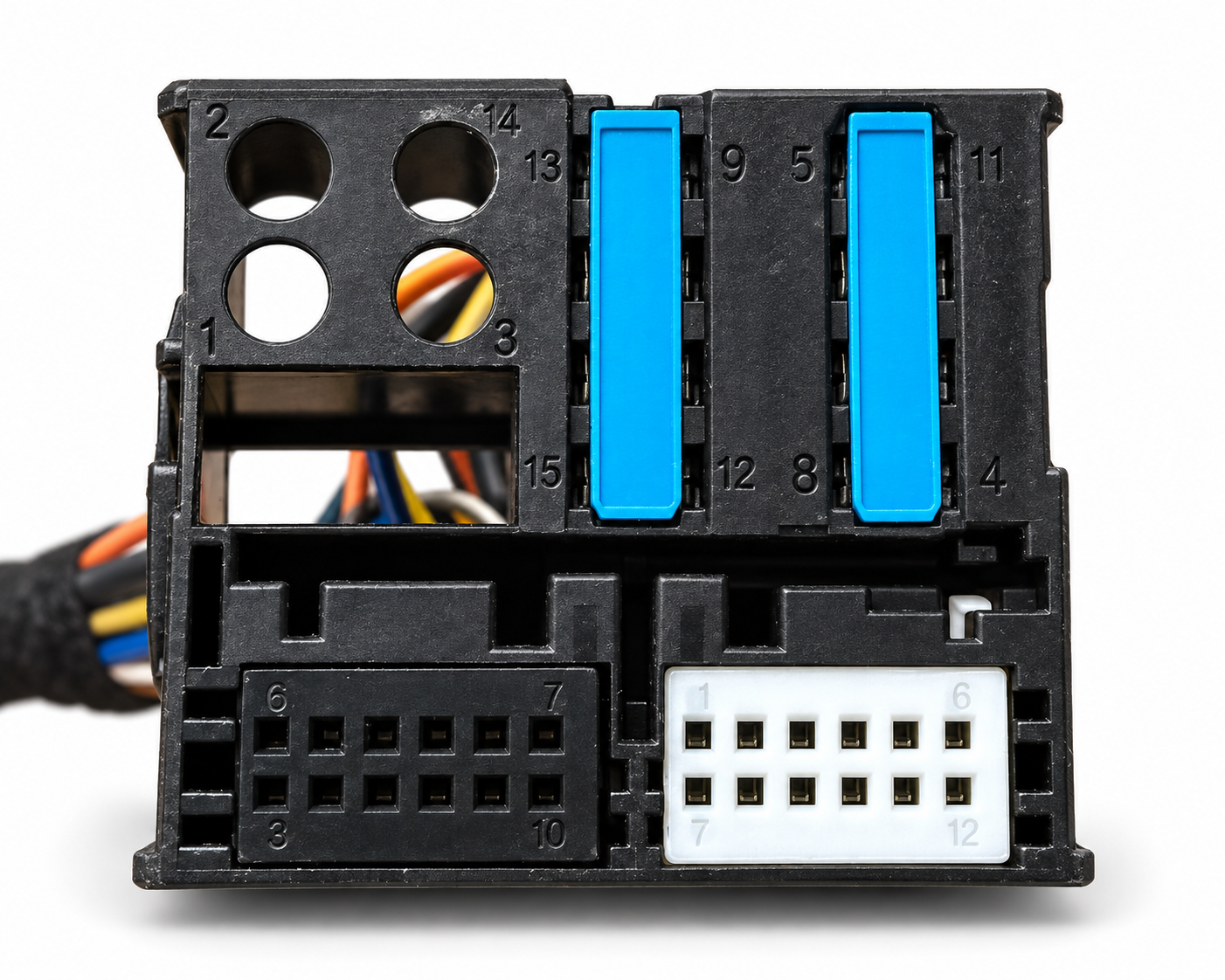

Before purchasing, compare the connector face, locating tabs, internal colored inserts, terminal population and wire colors with the original vehicle harness.
HARMAN KARDON / MOST WARNING
Vehicles equipped with Harman Kardon, Logic 7, factory navigation or other amplified systems may contain a MOST fiber-optic connection inside the Quadlock housing. The fiber-optic insert must be transferred or retained correctly for the audio system to function.
PACKAGE INCLUDES
• One used 40-pin Quadlock-style radio connector

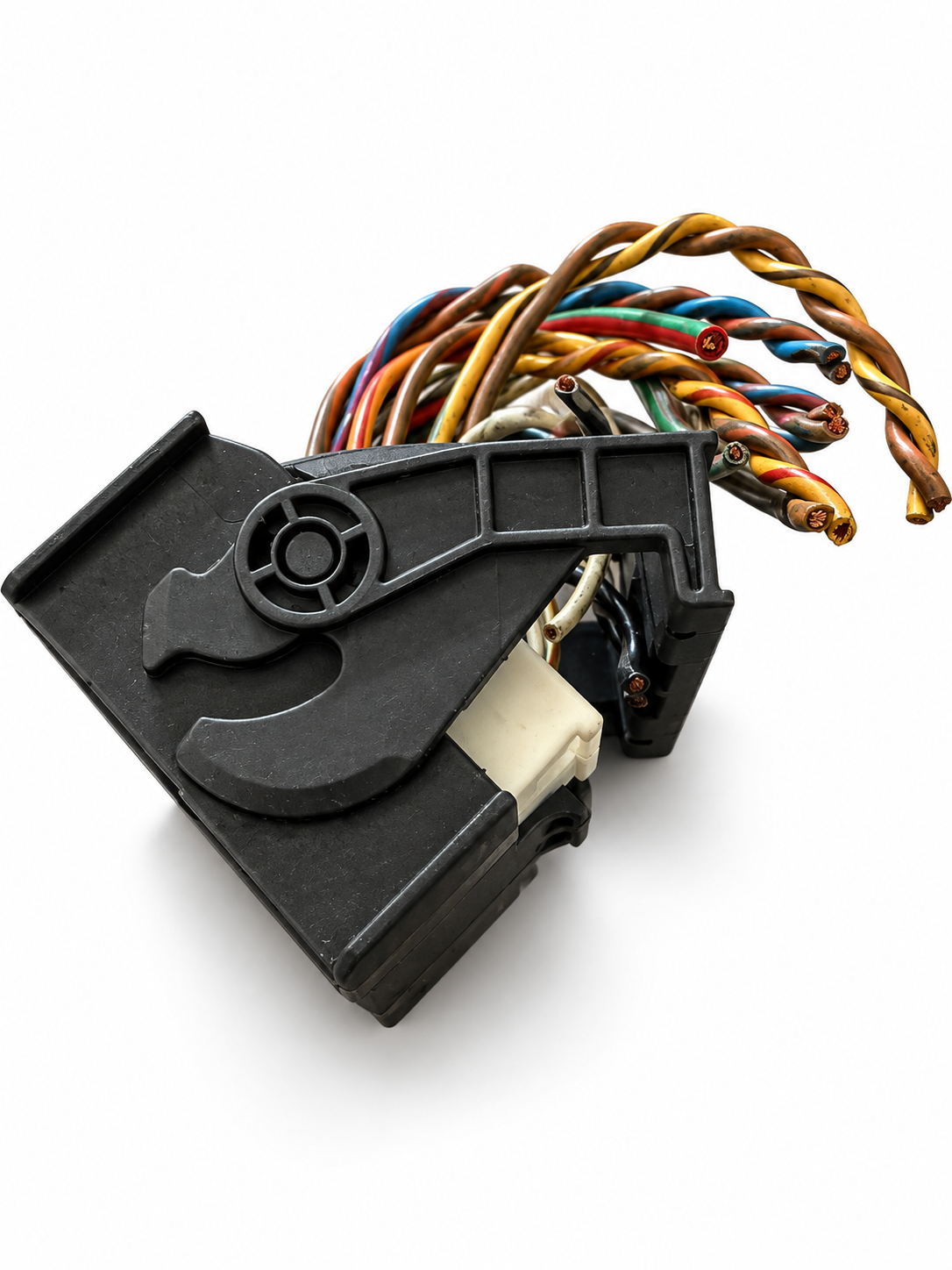

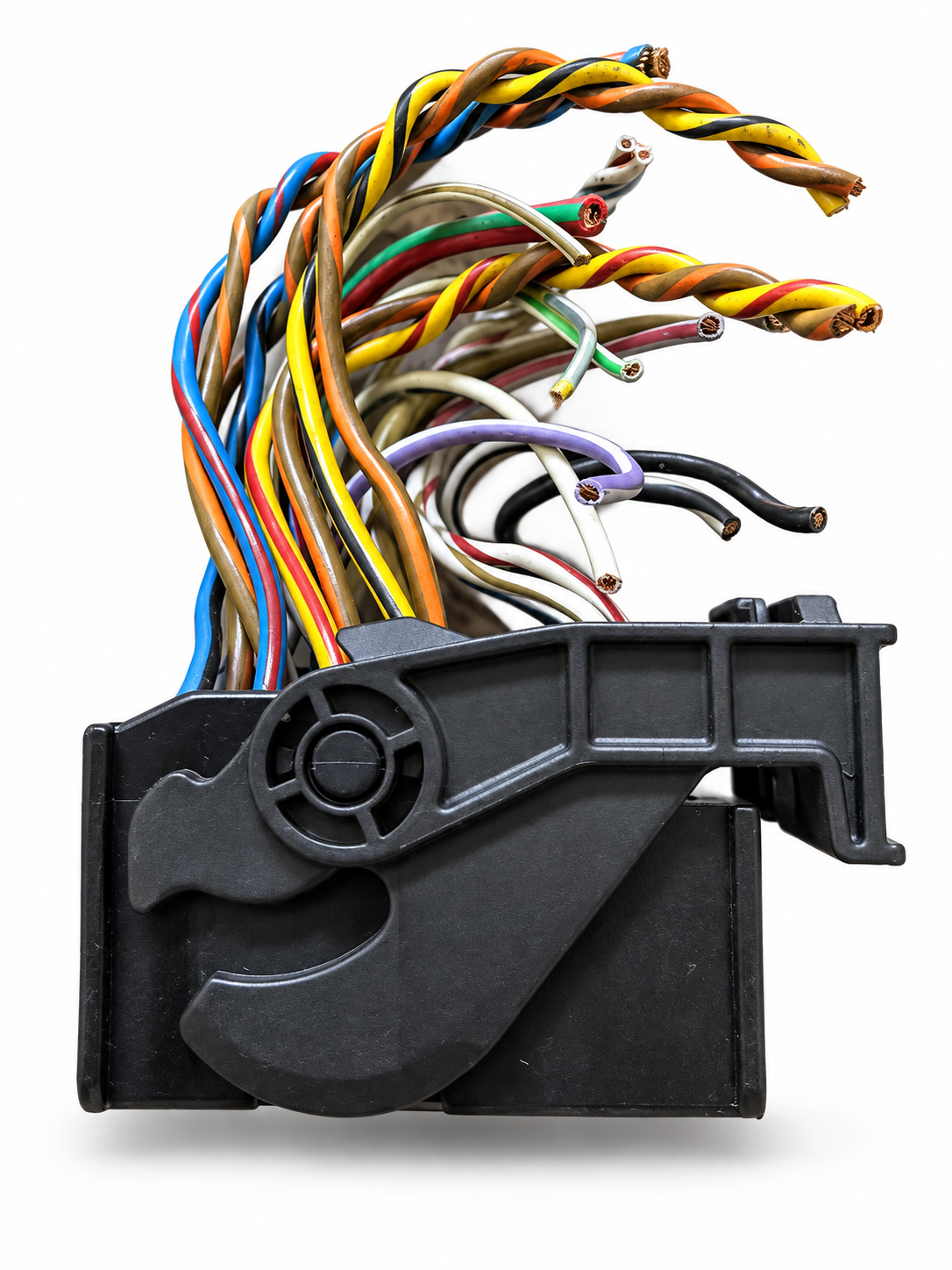

• Attached cut wire leads as pictured
A radio, amplifier, antenna connector, MOST fiber-optic cable, installation adapter and wiring instructions are not included unless physically shown.
INSTALLATION
This repair pigtail must be spliced into the vehicle wiring. Match every circuit using the wiring diagram for the exact vehicle, production date and audio option.
Do not connect wires solely by color because BMW and MINI wire assignments can vary between models and equipment packages. Professional installation is recommended.
