2006-2009 Lexus GX470 Mark Levinson Radio Cassette P1760 86120-60820 OEM

Genuine OEM Lexus AM/FM cassette radio receiver and audio-control unit for selected GX470 models equipped with the factory navigation display and Mark Levinson 12-speaker audio system.

This is the factory Pioneer P1760 receiver, Lexus part number 86120-60820. It installs below the navigation screen and works with the vehicle’s original navigation display, external Mark Levinson amplifier, speakers, and optional external disc changer.

Product details

• Product type: AM/FM cassette radio receiver and control unit

• Brand: Genuine Lexus

• Manufacturer: Pioneer

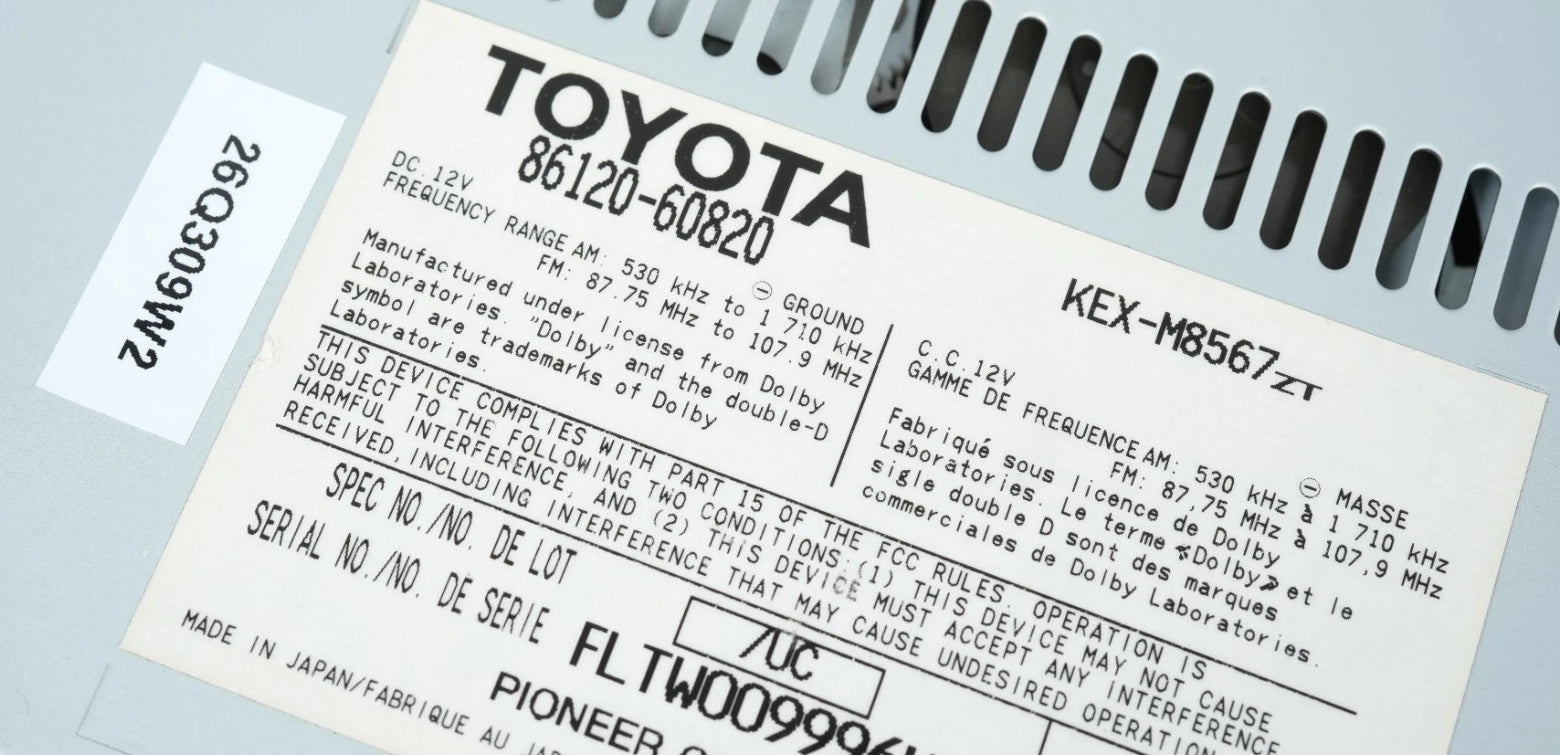

• Lexus part number: 86120-60820

• Face identification: P1760

• Pioneer model: KEX-M8567

• Factory audio system: Mark Levinson

• Speaker configuration: 12-speaker system

• Vehicle platform: UZJ120

• Engine: 4.7-liter 2UZ-FE V8

• Installation position: Below the factory navigation display

• Color: Black

• Country of manufacture: Japan

• Condition: Used OEM component

• Seller warranty: Three months

Part numbers

• 86120-60820

• 8612060820

• 86120 60820

• P1760

• KEX-M8567

Match the complete Lexus part number and the P1760 face identification before purchasing.

Compatibility

Fits selected:

• 2006 Lexus GX470 with the applicable late-production audio system

• 2007 Lexus GX470

• 2008 Lexus GX470

• 2009 Lexus GX470

The strongest catalog application is for GX470 vehicles produced from approximately August 2006 through the end of UZJ120 production. Earlier or differently equipped 2006 vehicles may use another receiver.

Required factory equipment

The vehicle must have the matching factory configuration:

• Factory color navigation / electro multi-vision display

• Mark Levinson premium audio system

• 12-speaker configuration

• External Mark Levinson amplifier

• Factory mini-jack auxiliary input

• Matching Type D receiver connections

• P1760 radio face identification

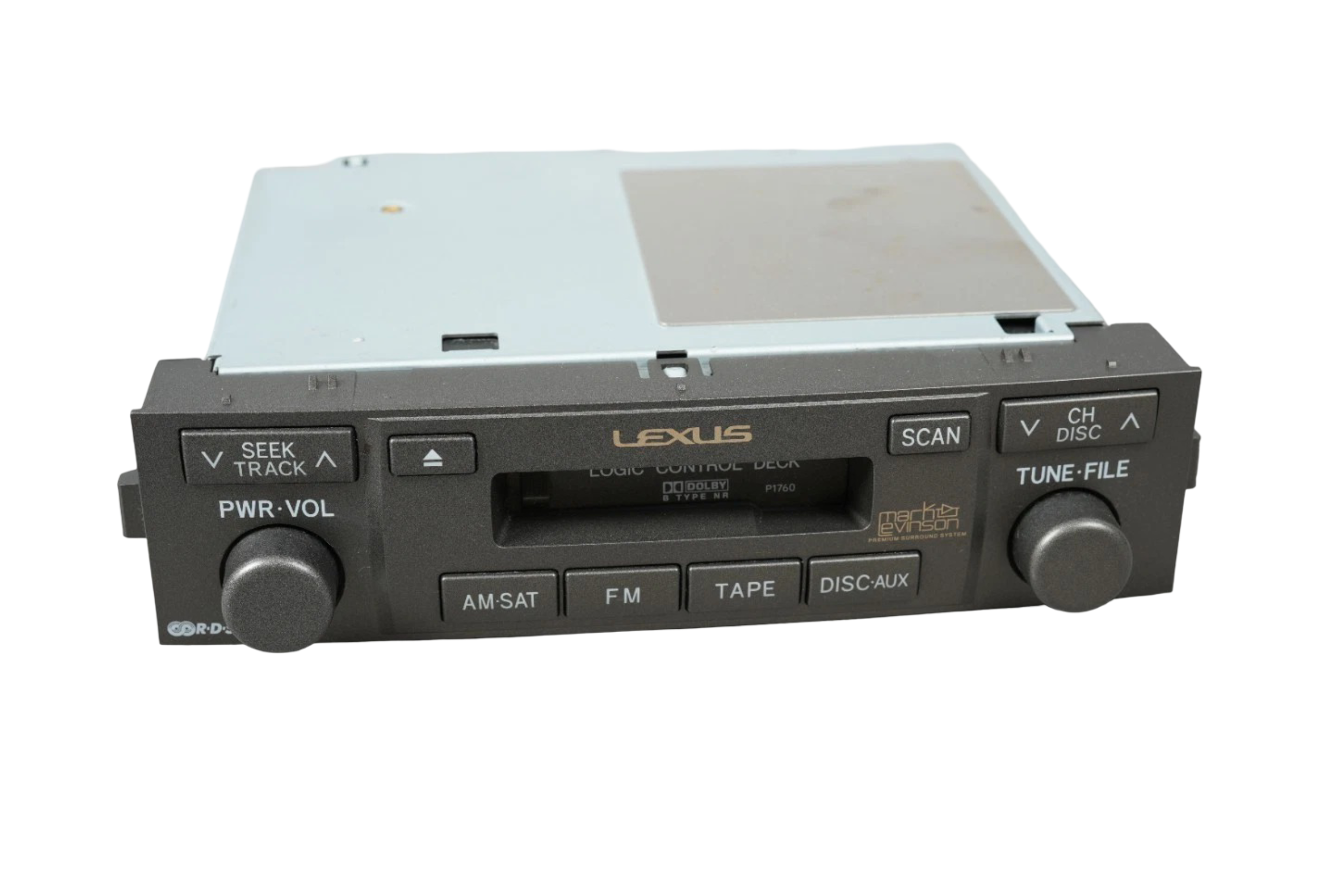

The Mark Levinson name should appear on the front of the receiver.

Not compatible with

This unit is not interchangeable with every 2003–2009 GX470 radio. It is not intended to replace:

• 2003–2005 GX470 receivers with earlier part numbers

• Standard non-navigation radios

• Non-Mark Levinson audio systems

• Nine-speaker Pioneer systems

• P1814 receiver, part number 86120-60800

• P1812 receiver, part number 86120-60810

• P1754 receiver, part number 86120-60442

• P1755 receiver, part number 86120-60472

• P6853 receiver, part number 86120-60482

• Lexus LX470 radios

• Toyota Land Cruiser or 4Runner radios

• Aftermarket audio systems

Similar-looking Lexus radios can use different connectors, amplifiers, navigation communication, speaker configurations, and internal programming.

Functions

Depending on the vehicle’s installed equipment, this unit provides controls for:

• AM radio

• FM radio

• Satellite-radio source selection

• Cassette playback

• External disc changer

• Auxiliary audio input

• Volume and power

• Tuning and audio settings

• Scan, seek, track, text, and preset functions

The DISC button controls a separate factory disc changer. A CD or DVD changer is not built into this receiver and is not included.

Important diagnostic information

This receiver is only one component of the GX470 audio system. Replacing it may not correct problems caused by:

• Failed Mark Levinson amplifier

• Defective navigation display

• Damaged external CD/DVD changer

• Failed speakers

• Deteriorated speaker surrounds

• Blown fuses

• Damaged wiring or connectors

• Rear-seat entertainment system faults

• Water intrusion

If every source appears to operate normally but no sound is produced from any speaker, the external Mark Levinson amplifier should also be tested.

Condition

Used genuine Lexus component in good working condition. Normal cosmetic wear, light marks, or minor surface imperfections may be present from previous use and removal.

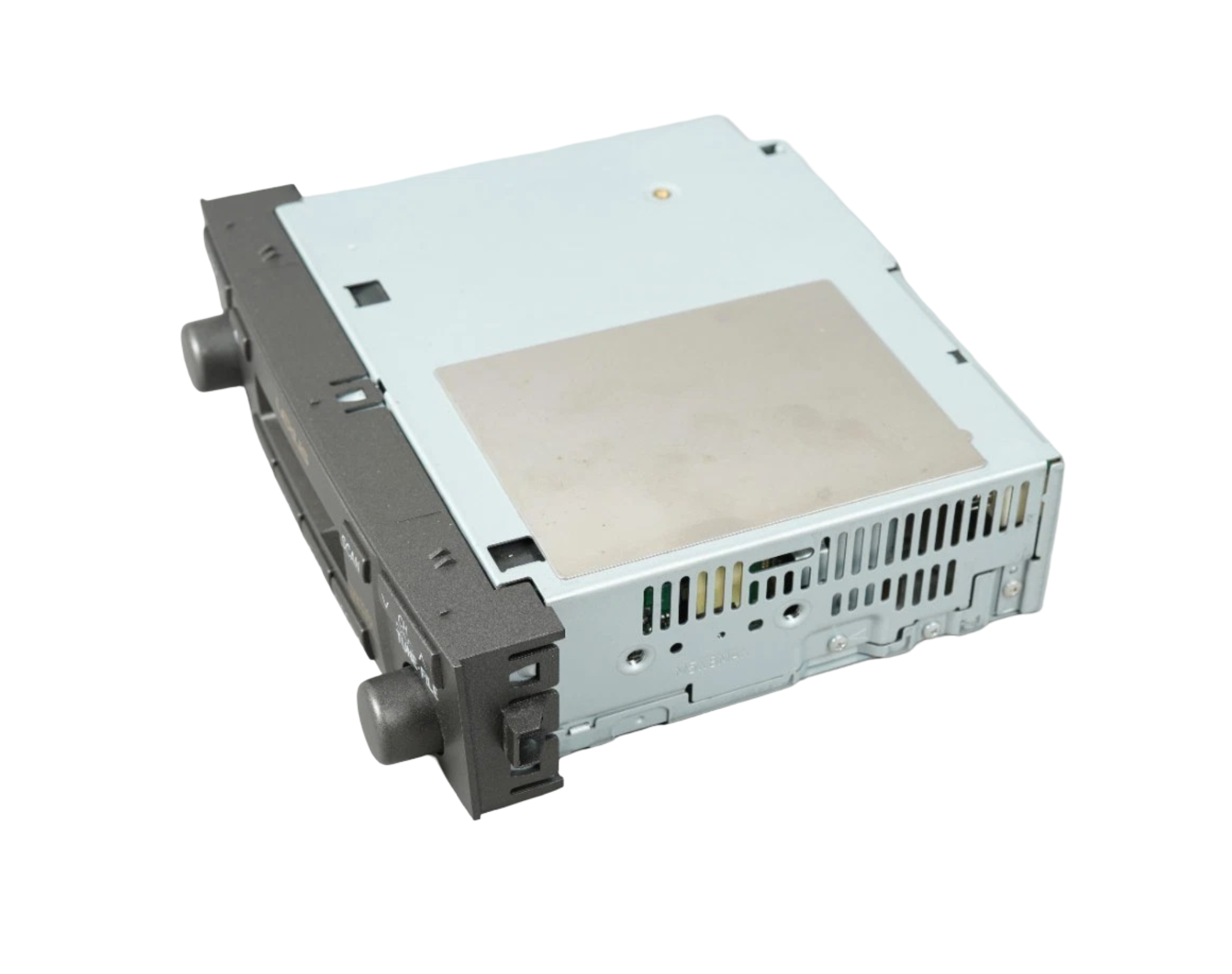

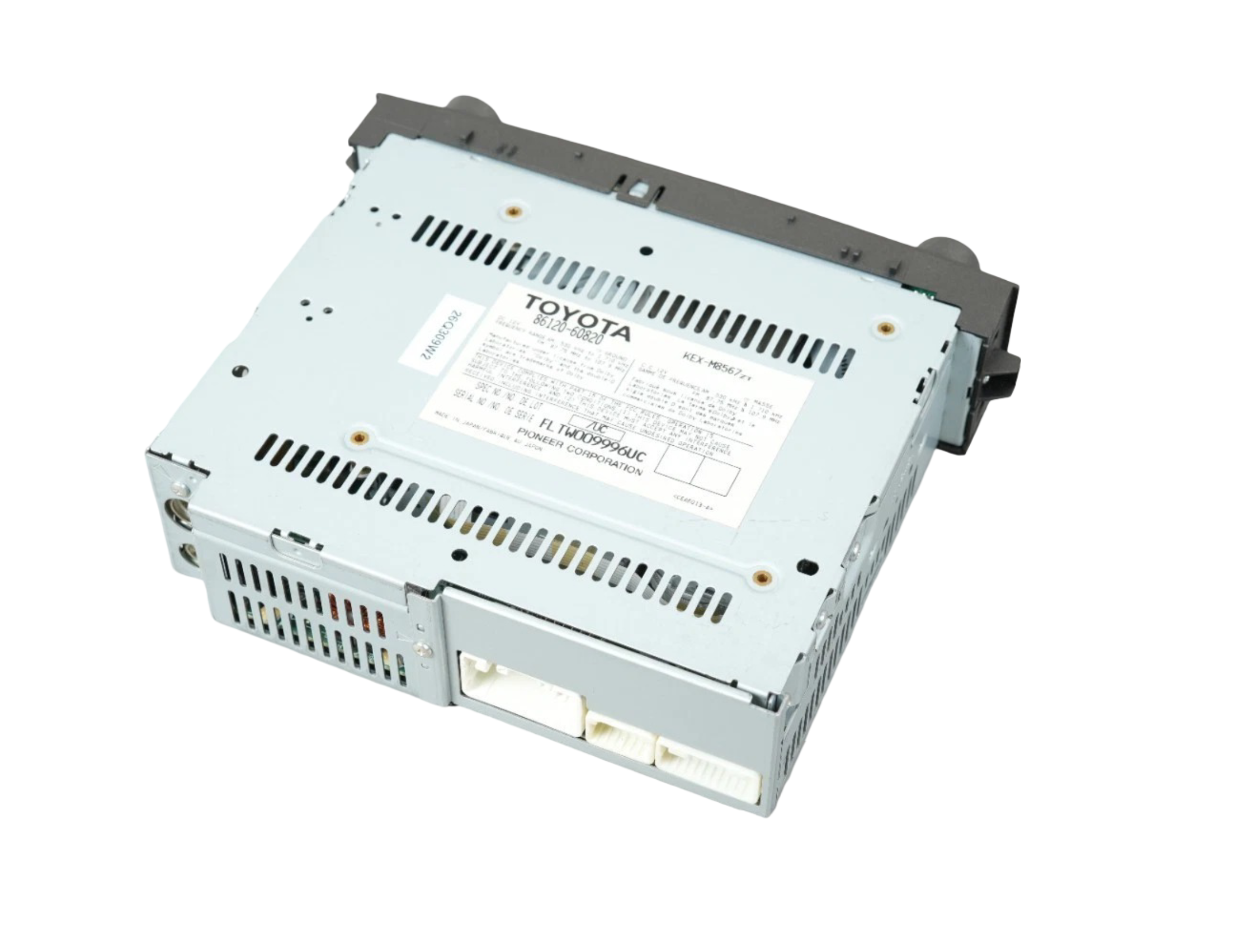

Review all photographs carefully because they show the actual item and its cosmetic condition.

Package contents

• One genuine Lexus/Pioneer P1760 radio cassette receiver

• Part number 86120-60820

Navigation screen, Mark Levinson amplifier, speakers, external disc changer, wiring harnesses, antenna, mounting hardware, trim panels, and installation tools are not included unless specifically pictured.

Installation

Disconnect the vehicle battery before removing or installing electronic audio components. Compare the original receiver’s part number, P-number, electrical connectors, face controls, and factory audio options before installation.

This unit is intended as a direct replacement for an existing 86120-60820 receiver. Converting a vehicle from another radio or audio-system configuration may require additional components, wiring changes, or custom installation.

Professional installation and system diagnosis are recommended.
