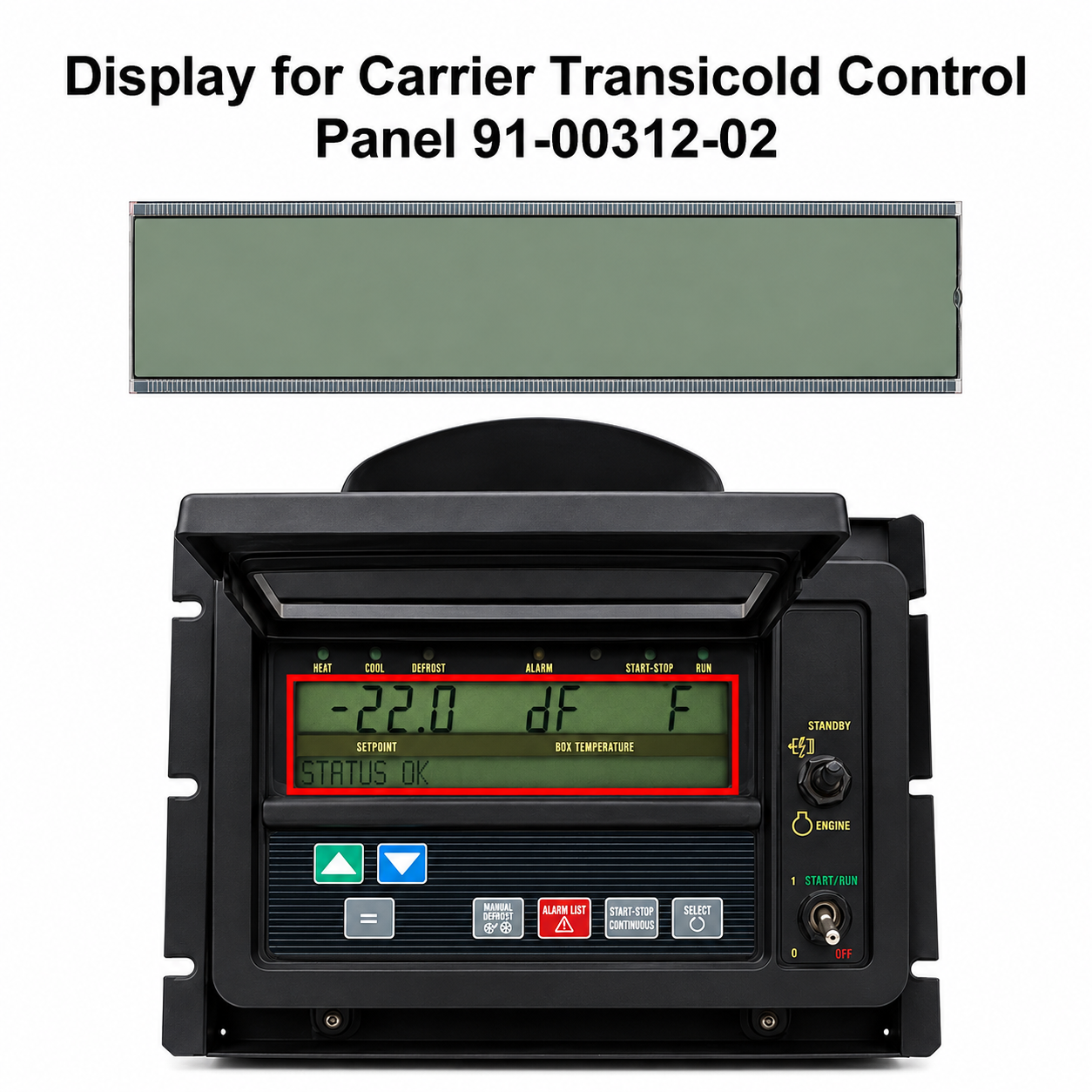

LCD Display Screen for Carrier Transicold Vector 1800 X2 2100 2500 91-00312-02
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

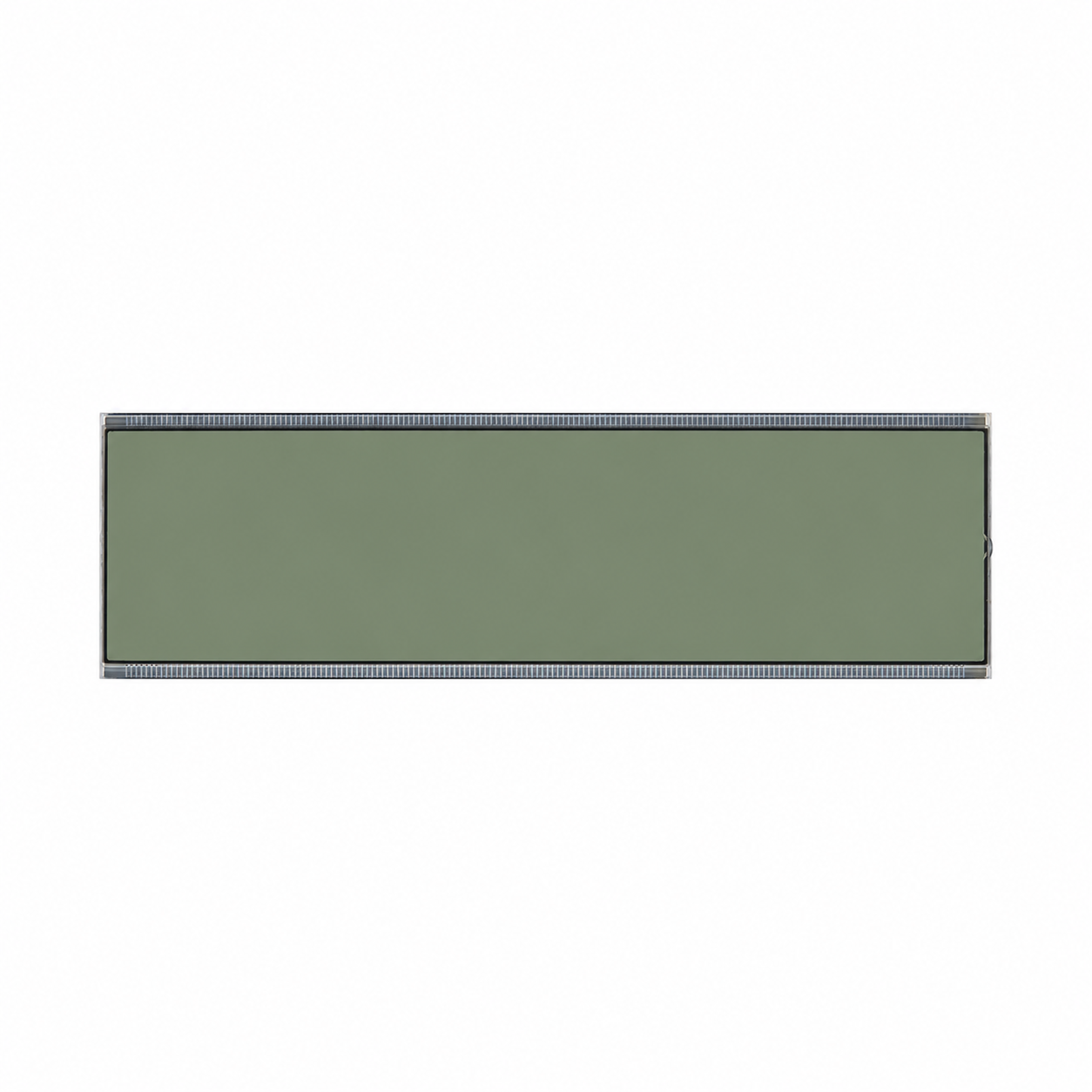

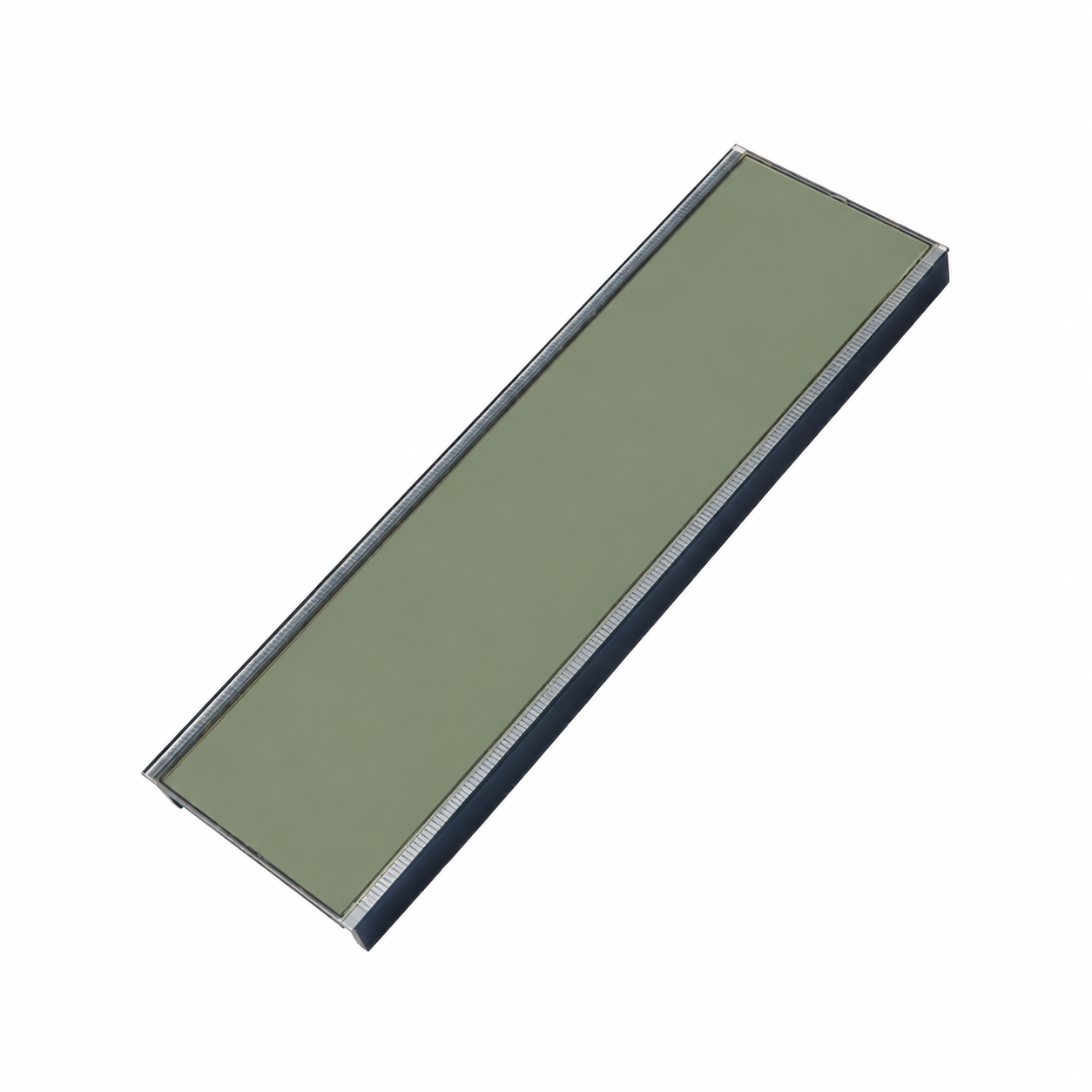

New aftermarket internal LCD screen for select Carrier Transicold refrigeration-unit control panels. This replacement is designed to restore readable temperature, operating-mode, status, and diagnostic information when the original LCD is faded, damaged, or missing segments.
This listing is for the internal LCD and conductive contact strips only. The complete control panel, circuit board, keypad, housing, wiring, and refrigeration unit are not included.
𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
• Product type: Segmented monochrome LCD screen
• Application: Carrier Transicold refrigeration control panel

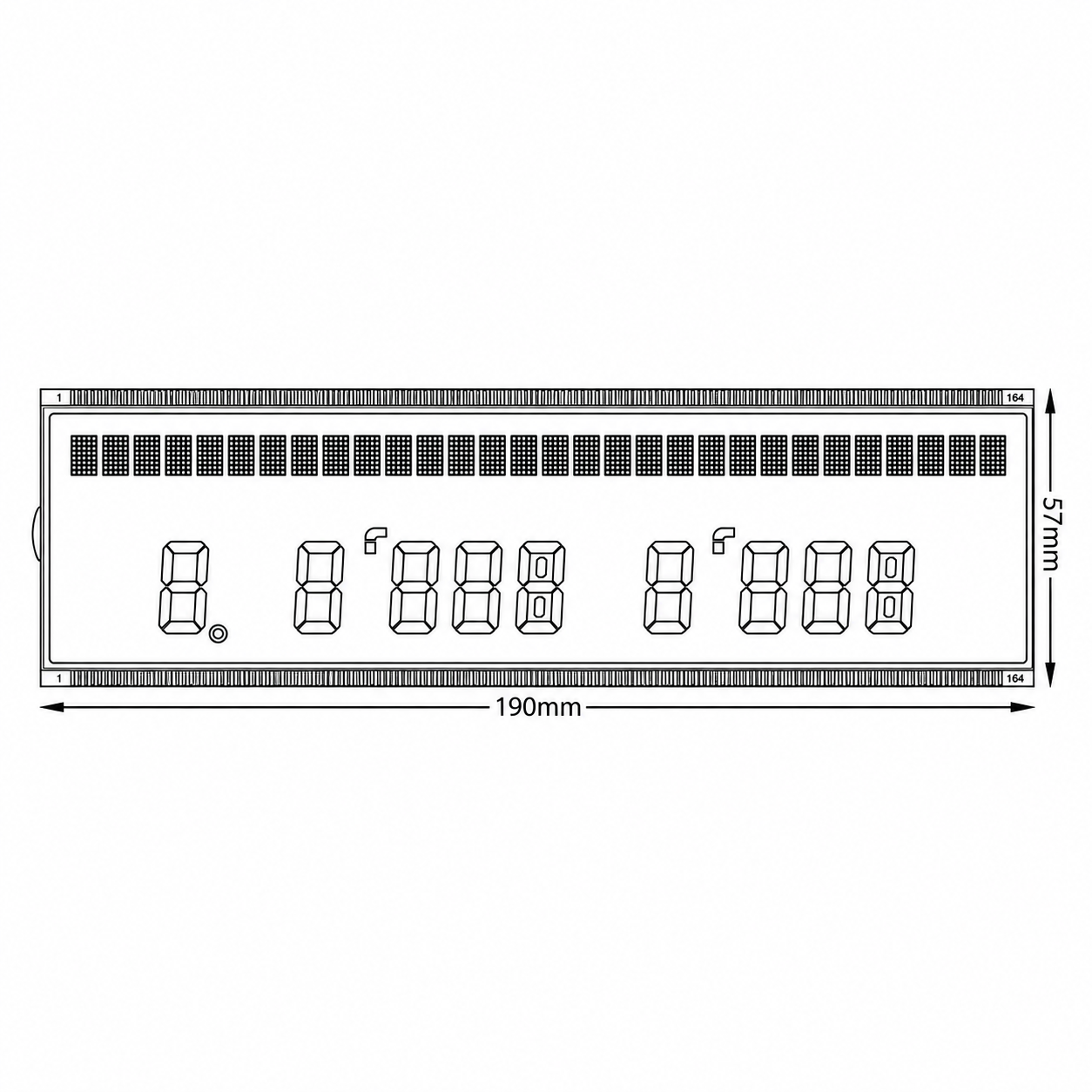

• Screen dimensions: Approximately 190 × 57 mm
• Installation type: Internal control-panel component
• Electrical connection: Conductive elastomer contact strips
• Condition: New aftermarket replacement
• Quantity: One LCD screen
𝗖𝗼𝗻𝘁𝗿𝗼𝗹 𝗣𝗮𝗻𝗲𝗹 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗡𝘂𝗺𝗯𝗲𝗿𝘀
Designed for control panels or display assemblies identified by the following numbers:
• 91-00312-00
• 91-00312-01
• 91-00312-02
• 910031200
• 910031201
• 910031202
These numbers normally identify the complete Carrier display assembly or control panel. Confirm the number on your existing assembly before ordering.
𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
Depending on the installed controller configuration:
• Carrier Transicold Vector 1800
• Carrier Transicold Vector 1800 MT
• Carrier Transicold Vector 6500
• Carrier Transicold X2 2100
• Carrier Transicold X2 2500
𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗥𝗲𝗽𝗼𝗿𝘁𝗲𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
The same 91-00312-series display assembly is also reported in certain configurations of:
• Carrier Vector 1550
• Carrier Vector 1850 and 1850 MT
• Carrier Vector 1950 and 1950 MT
• Carrier Ultra XTC
• Carrier Ultra XL
• Carrier XTC-series units
Carrier used different controllers within some model families. Model name alone is not sufficient to guarantee compatibility.
𝗛𝗼𝘄 𝗧𝗼 𝗩𝗲𝗿𝗶𝗳𝘆 𝗙𝗶𝘁𝗺𝗲𝗻𝘁
Before purchasing, confirm all of the following:
• The existing control panel carries reference 91-00312-00, 91-00312-01, or 91-00312-02
• The original LCD measures approximately 190 × 57 mm
• The segment layout matches the listing photographs
• The contact locations and conductive-strip arrangement match your original display
Do not order solely by refrigeration-unit model. Please compare the original screen and controller number carefully.
𝗖𝗼𝗺𝗺𝗼𝗻 𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁
• Faded or difficult-to-read display
• Missing numbers, letters, or segments
• Intermittent characters caused by deteriorated contact strips
• Cracked or physically damaged LCD glass
• Dark spots, bleeding, or poor contrast within the LCD
𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿
• A control panel that does not power on
• Damaged circuit-board components
• Faulty keypad buttons or switches
• Wiring, connector, communication, or power-supply problems
• Refrigeration-system faults, sensor failures, or stored alarm conditions
• Defective backlighting or illumination components not integrated into the LCD
Proper diagnosis is recommended before replacement.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Installation requires opening the control panel and carefully positioning the LCD and conductive strips against the circuit board. Electronic repair experience is strongly recommended.
Disconnect power before disassembly. Keep the LCD contacts clean, use appropriate electrostatic-discharge precautions, and avoid touching or contaminating the conductive surfaces. Inspect and preserve the panel seals to prevent moisture intrusion.

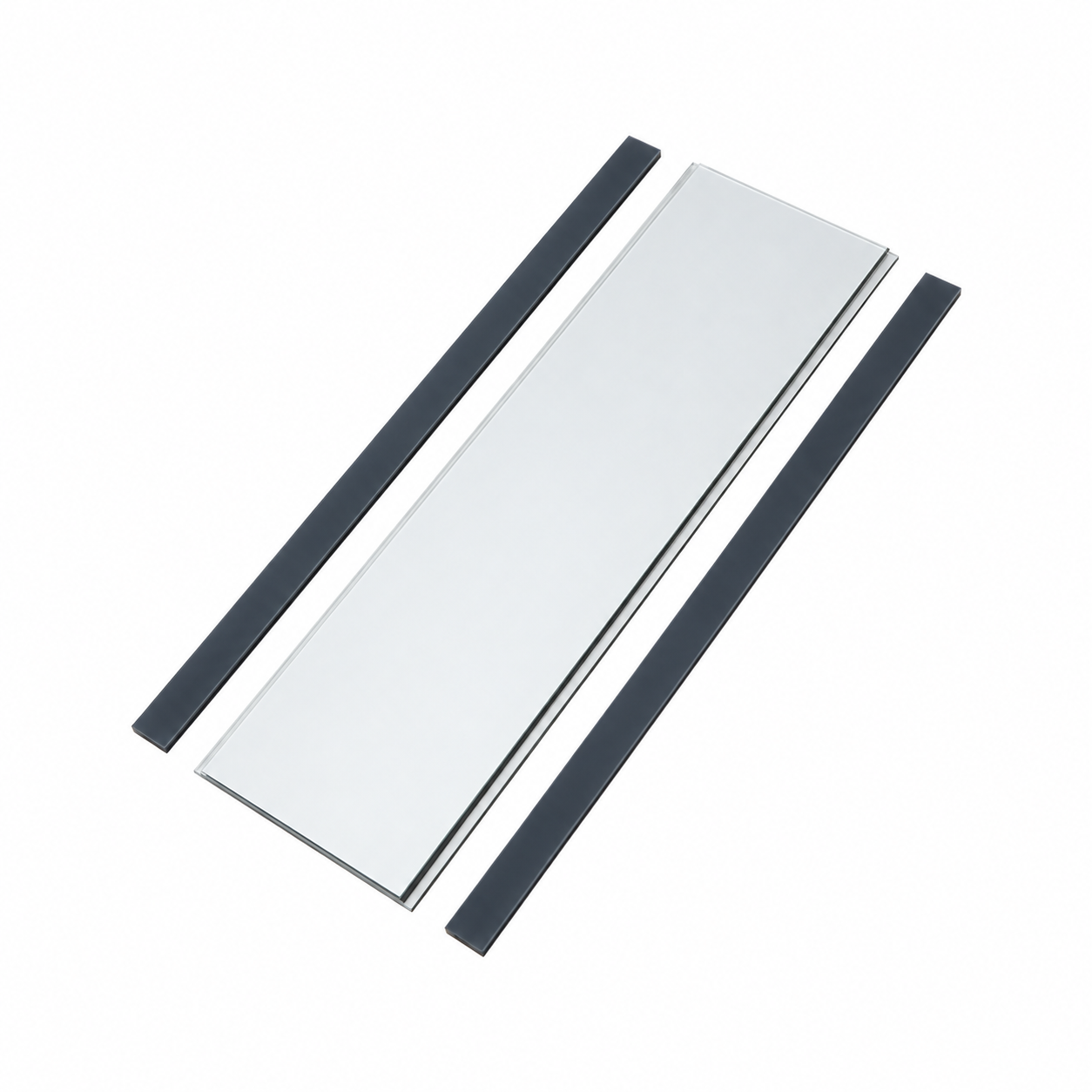

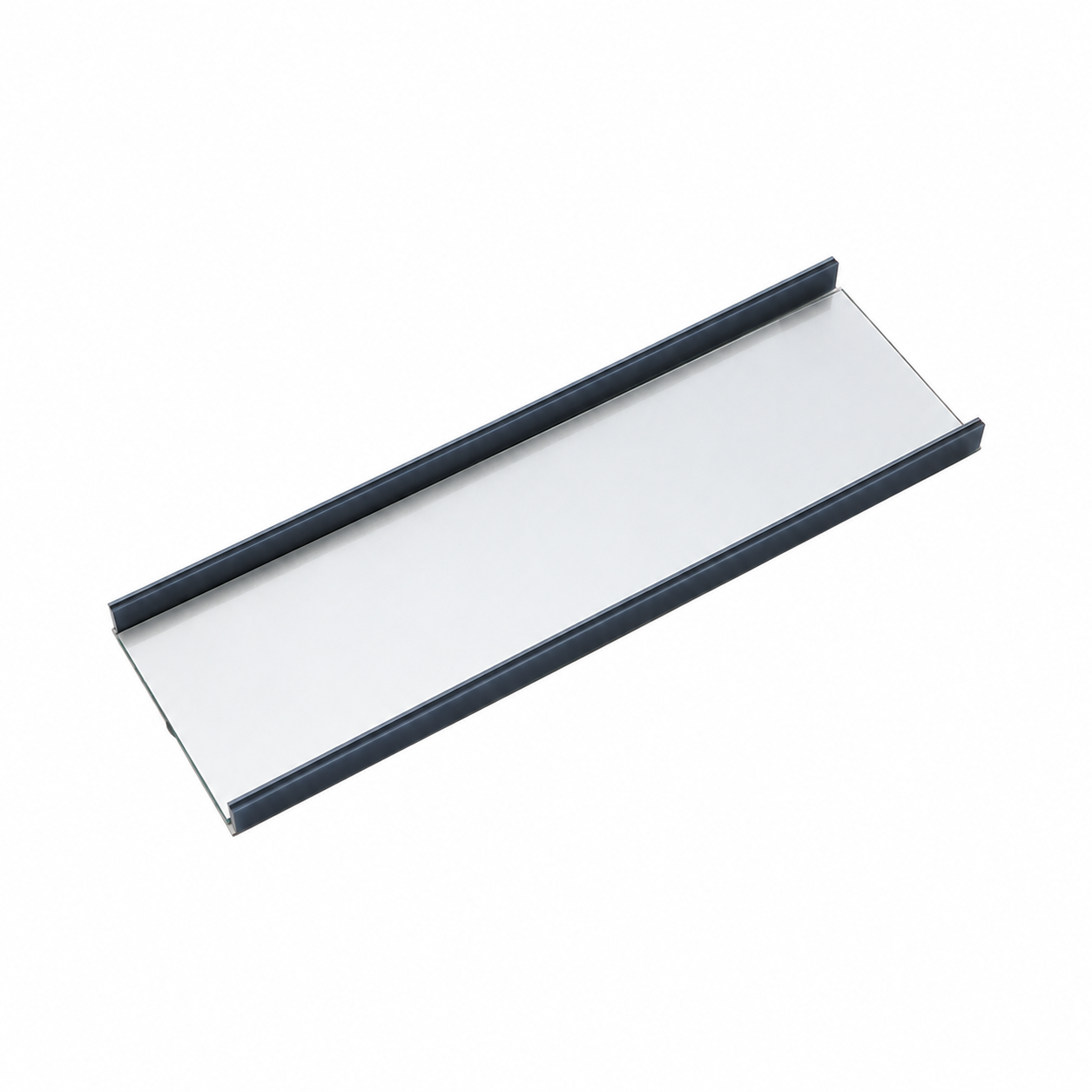

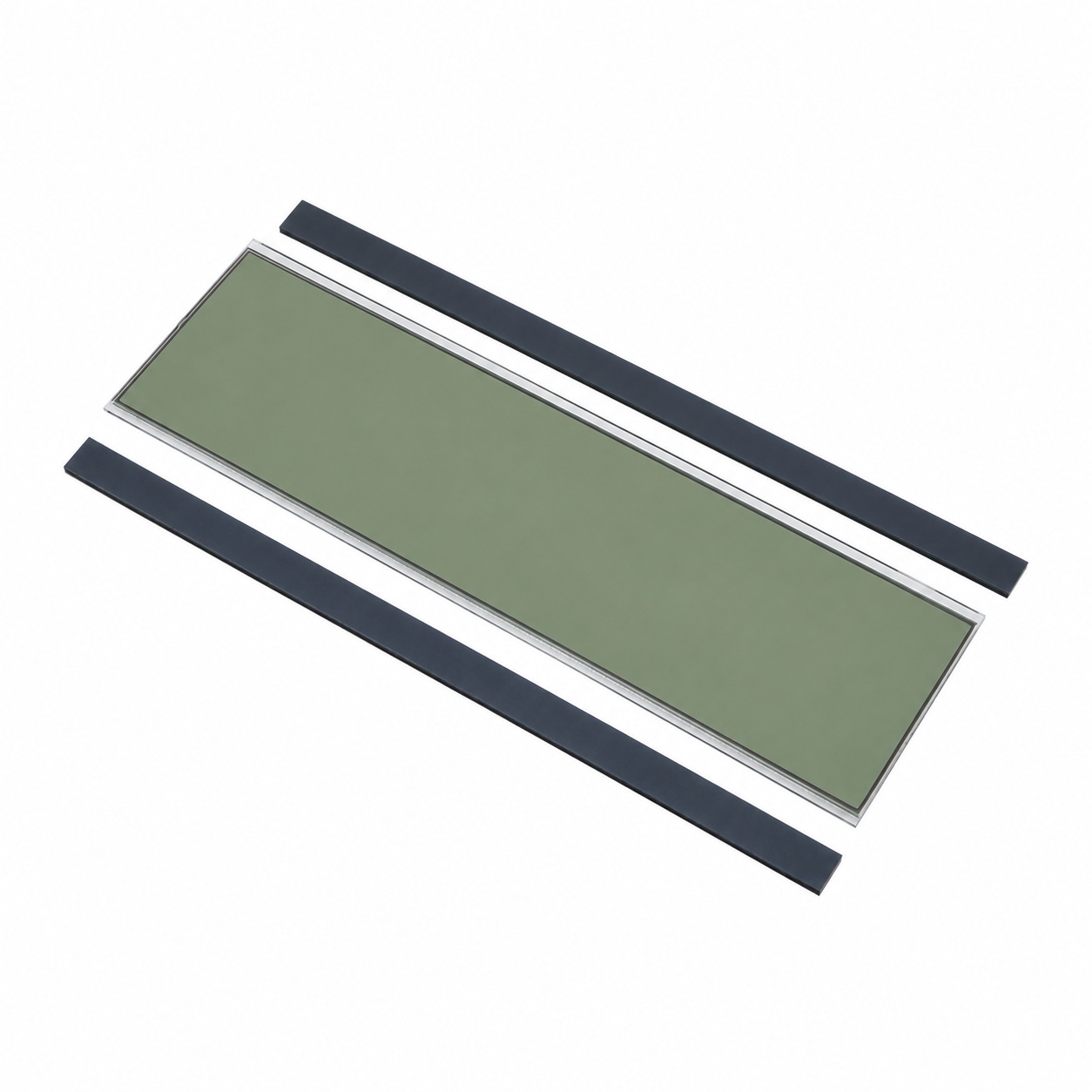

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀
• One replacement LCD screen
• Two conductive contact strips
𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱
• Complete Carrier control panel
• Circuit board or microprocessor
• Keypad or switches
• Housing, bezel, window, or mounting hardware
• Wiring harnesses or connectors
• Installation service
Please compare the measurements, display layout, and control-panel reference number with your original component before ordering.
