16-Pin Backup Reverse Camera Harness for 2012-2015 Toyota Scion Subaru 6.1"

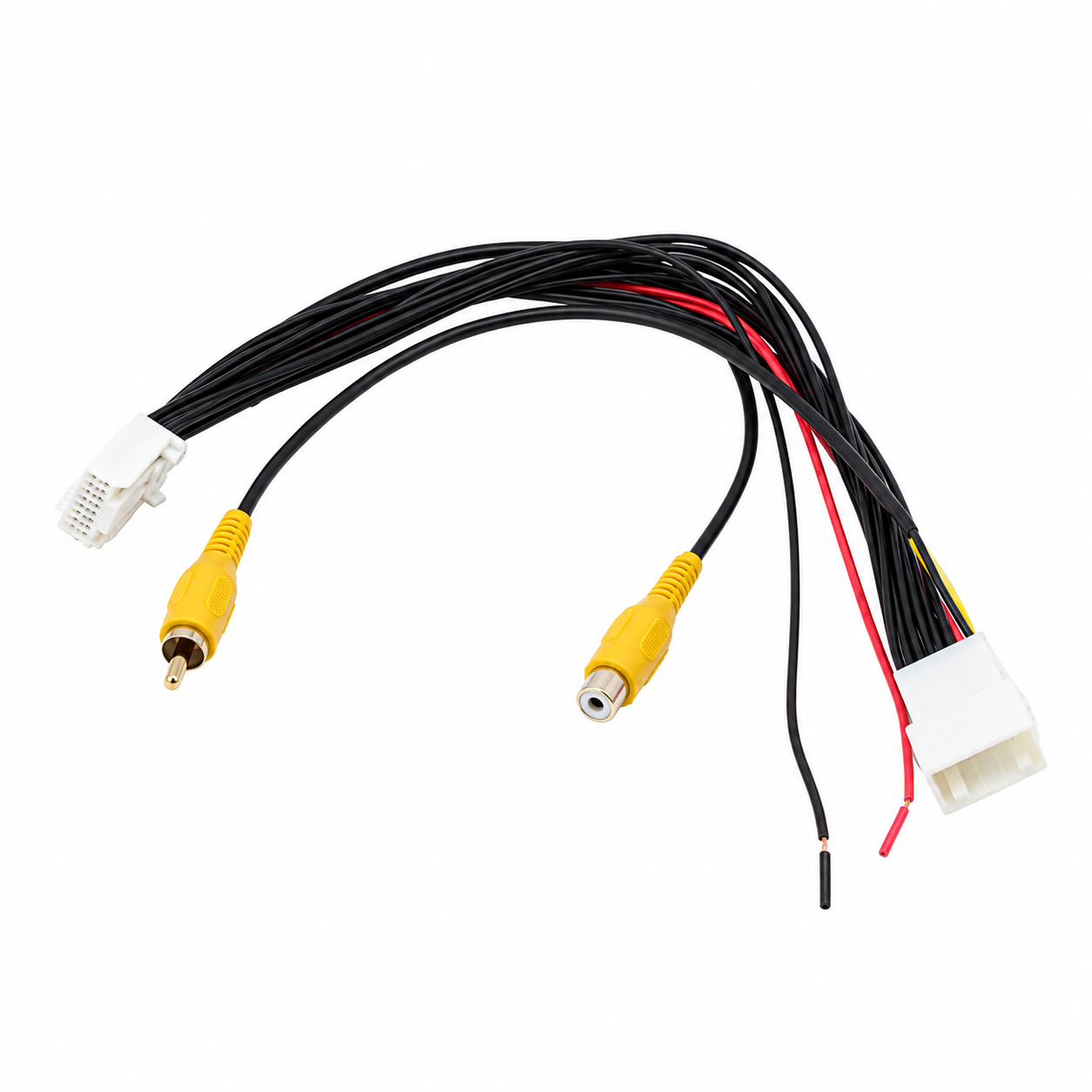

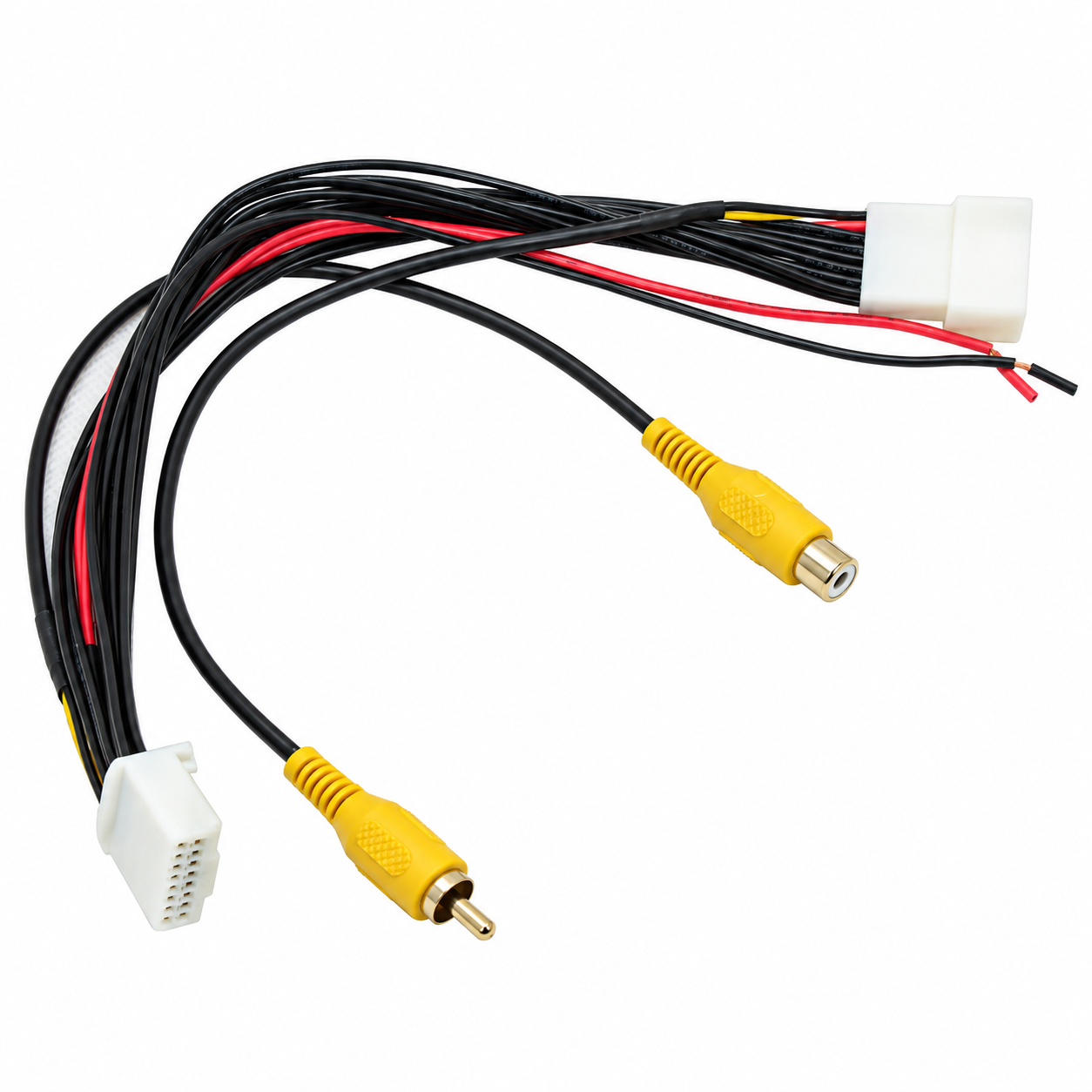

This dual-purpose 16-pin camera T-harness allows you to retain an original factory backup camera when installing an aftermarket radio or connect an aftermarket camera to a compatible factory 6.1-inch touchscreen radio.

Designed for select Toyota, Scion, and Subaru vehicles equipped with the matching 16-pin camera connector.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Backup-camera retention and add-on T-harness
• Connector type: Toyota-style 16-pin camera connector
• Radio compatibility: Select factory 6.1-inch touchscreen and navigation radios
• Video connection: Male and female composite RCA connectors
• Functions: Factory-camera retention or aftermarket-camera addition
• Installation location: Behind the radio
• Condition: New
• Quantity: One harness

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻𝘀

Configuration 1 — Retain the factory camera:

• Keeps the original factory backup camera when replacing the factory radio
• Connects the factory camera signal to an aftermarket radio’s RCA camera input
• Aftermarket radio must have a compatible rear-camera video input
• Factory camera requires the correct power voltage and ground connection

Configuration 2 — Add an aftermarket camera:

• Connects an aftermarket backup camera to a compatible factory 6.1-inch display radio
• Installs between the factory radio and its original 16-pin connector
• Factory radio must support the backup-camera function
• A reverse trigger or additional wiring may be required

𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

Toyota:

• 4Runner: 2012–2014
• Avalon: 2012–2014
• Camry: 2012–2014
• Corolla: 2013
• Highlander: 2013–2014
• Prius: 2012–2015
• Prius V: 2012–2014
• RAV4: 2012–2014
• Sequoia: 2013
• Tacoma: 2012–2013
• Venza: 2012–2014

Scion:

• FR-S: 2013–2015
• iQ: 2013–2015
• tC: 2014–2015
• xB: 2013–2015
• xD: 2013–2014

Subaru:

• BRZ: 2013–2015

𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻 𝗡𝗼𝘁𝗲𝘀

• Vehicle must have the matching 16-pin camera connector
• Factory-radio applications require the compatible 6.1-inch touchscreen or navigation radio
• Toyota Tacoma applications require factory navigation
• Certain factory-amplified 4Runner systems may not be compatible
• RAV4 applications should have a production date before November 23, 2013
• Some model-year applications overlap with later 24-pin camera systems
• Inspect the radio connector before ordering

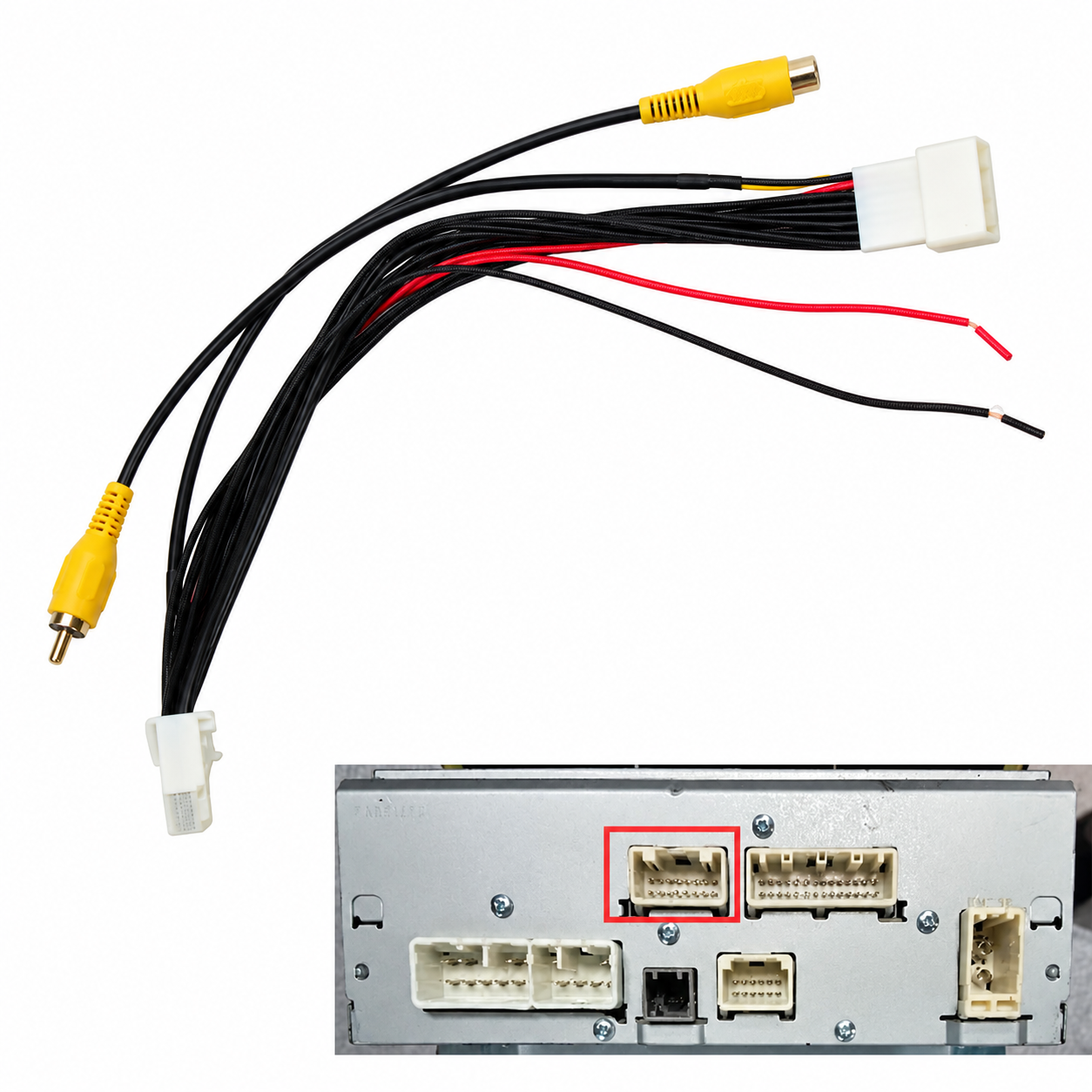

Fitment cannot be confirmed using the vehicle’s year and model alone. Compare the radio, connector shape, pin count, and factory equipment with the product photographs.

𝗖𝗼𝗿𝗿𝗲𝗰𝘁𝗲𝗱 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻

The original listing identifies 2012–2013 Corolla compatibility. Published application information for this 16-pin harness configuration identifies the Toyota Corolla application as 2013.

The listing’s item specifics also mention Toyota Tundra. Tundra compatibility could not be confirmed for this particular 16-pin, 6.1-inch radio harness and should not be advertised without first verifying the vehicle’s factory connector and radio.

𝗖𝗮𝗺𝗲𝗿𝗮 𝗩𝗼𝗹𝘁𝗮𝗴𝗲 𝗪𝗮𝗿𝗻𝗶𝗻𝗴

Many Toyota, Scion, and Subaru factory cameras operate on approximately 6 volts—not 12 volts.

When retaining the factory camera:

• Confirm the original camera operating voltage before connecting power
• Never apply 12 volts directly to a 6-volt factory camera
• A regulated 12-to-6-volt converter or compatible radio interface may be required
• Incorrect voltage can permanently damage the factory camera

When adding an aftermarket camera:

• Confirm whether the camera requires 6 or 12 volts
• Most aftermarket cameras require a switched 12-volt power source
• Do not assume the factory radio’s camera-power output can operate a 12-volt camera

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗙𝗼𝗿 𝗙𝗮𝗰𝘁𝗼𝗿𝘆-𝗖𝗮𝗺𝗲𝗿𝗮 𝗥𝗲𝘁𝗲𝗻𝘁𝗶𝗼𝗻

1. Disconnect the vehicle battery according to the manufacturer’s procedure.

2. Remove the factory radio and locate the 16-pin camera connector.

3. Connect the vehicle’s factory camera plug to this harness.

4. Connect the male yellow RCA plug to the aftermarket radio’s rear-camera input.

5. Connect camera power through an appropriate regulated 6-volt supply or compatible interface.

6. Connect the ground lead to a clean chassis ground.

7. Connect the aftermarket radio’s reverse trigger according to the radio manufacturer’s instructions.

8. Test the camera before reinstalling the radio and trim panels.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗙𝗼𝗿 𝗔𝗱𝗱𝗶𝗻𝗴 𝗔 𝗖𝗮𝗺𝗲𝗿𝗮

1. Connect the harness between the factory radio and original 16-pin connector.

2. Connect the aftermarket camera’s RCA video plug to the female RCA connector.

3. Supply the camera with its specified operating voltage.

4. Connect the required reverse signal if the factory radio does not switch automatically.

5. Power and test the camera before completing installation.

For some factory radios, the camera must be powered before reverse is selected. Using only the reverse lamp as the camera’s power source may prevent the factory radio from recognizing the camera quickly enough.

𝗣𝗮𝗿𝘁 𝗡𝘂𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻

• Manufacturer part number: Not provided
• Listing UPC/EAN: 6971410643054
• Comparable harness reference: PAC CAM-TY11
• Comparable Axxess reference: AXBUCH-T16V

CAM-TY11 and AXBUCH-T16V are provided only as functional and connector-style references. This listing is for an unbranded aftermarket harness and should not be represented as a genuine PAC or Axxess product.

𝗧𝗵𝗶𝘀 𝗛𝗮𝗿𝗻𝗲𝘀𝘀 𝗗𝗼𝗲𝘀 𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲

• Backup camera
• Aftermarket radio
• Complete radio installation harness
• 12-to-6-volt converter
• Radio-replacement interface
• Steering-wheel-control interface
• Dash installation kit
• Antenna adapter

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One 16-pin backup-camera retention/add-on T-harness
