10A 120VAC Coil Relay 60Hz SPDT 1/2HP 240Vac 30Vdc 5 Pin Bracket Mount

  • $ 24.95

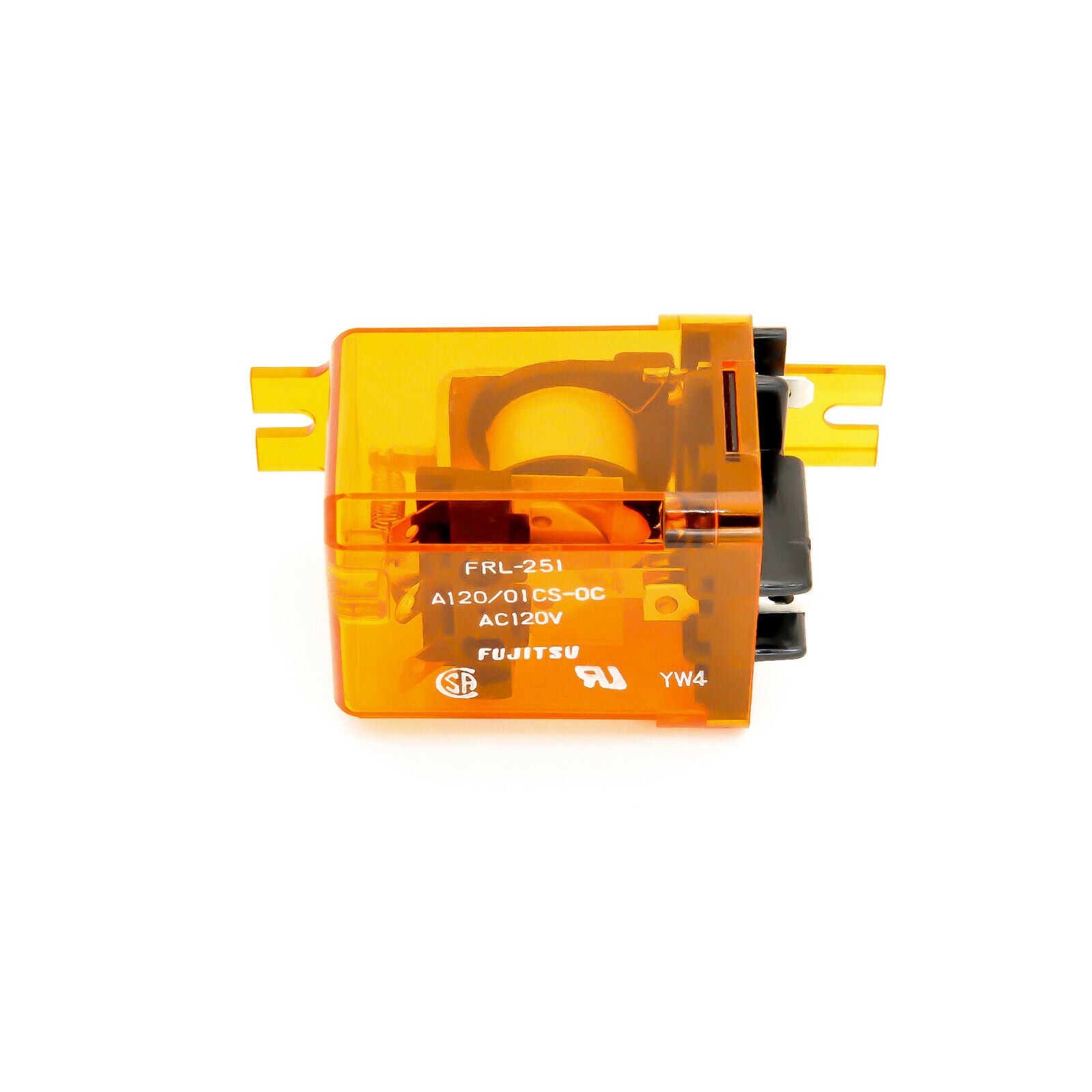

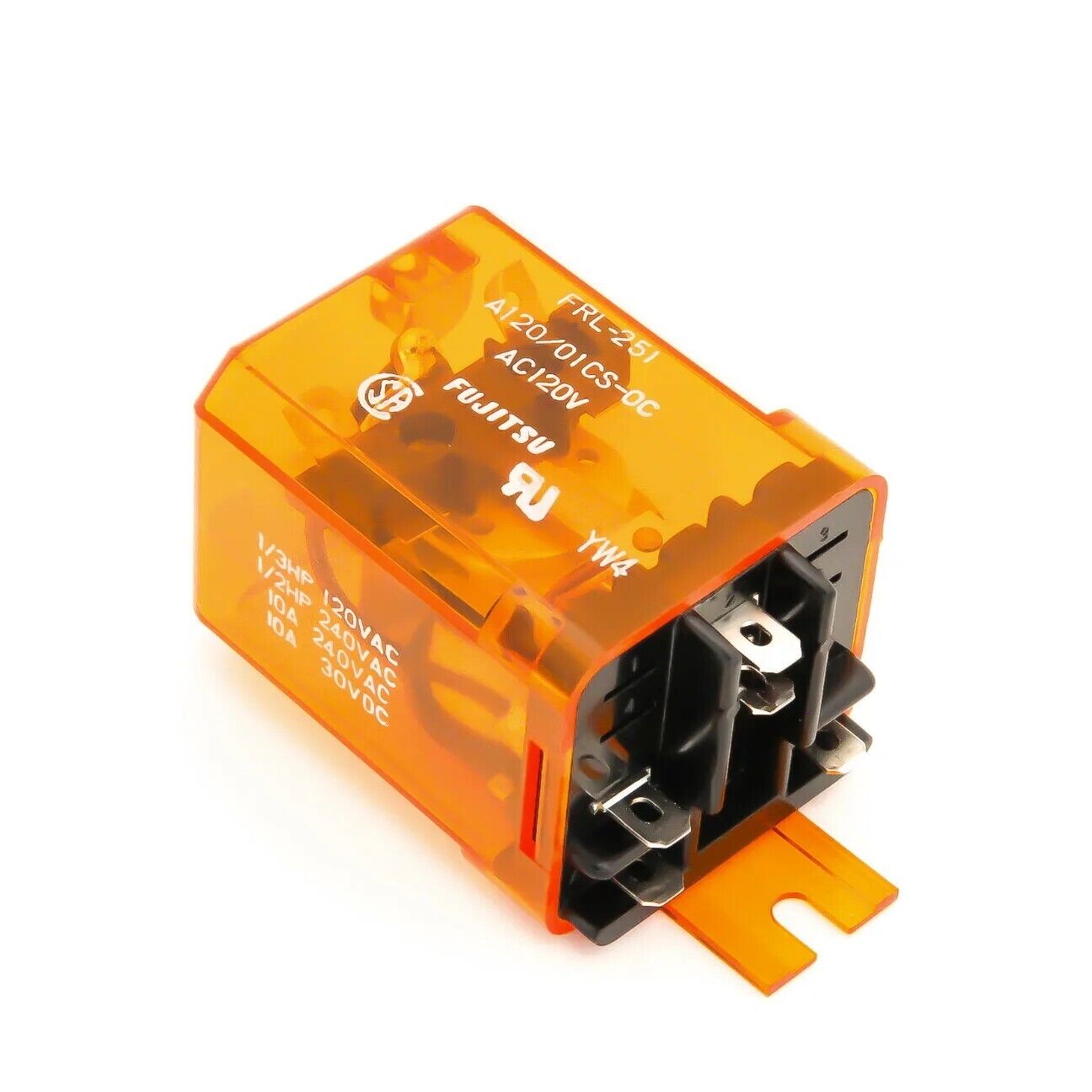

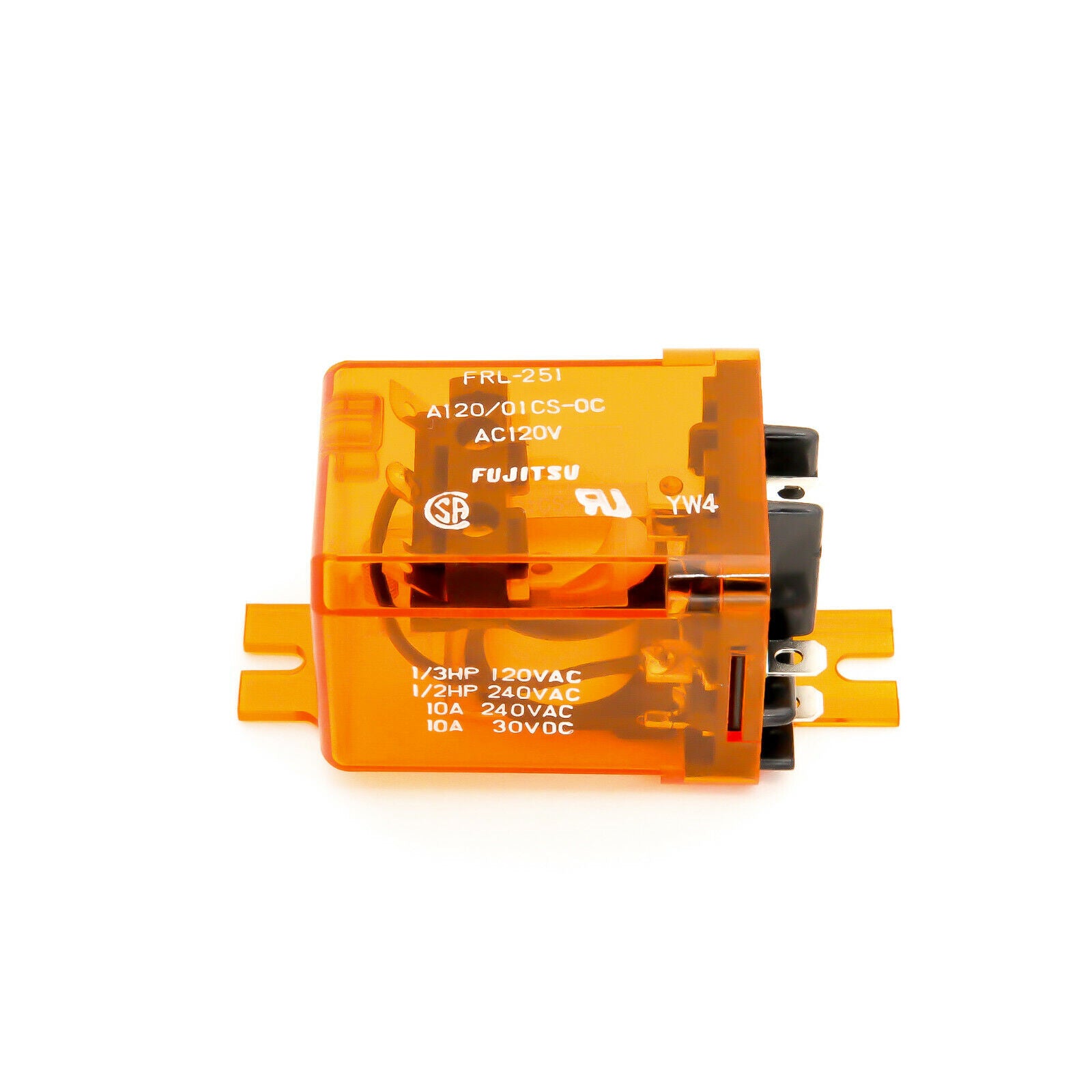

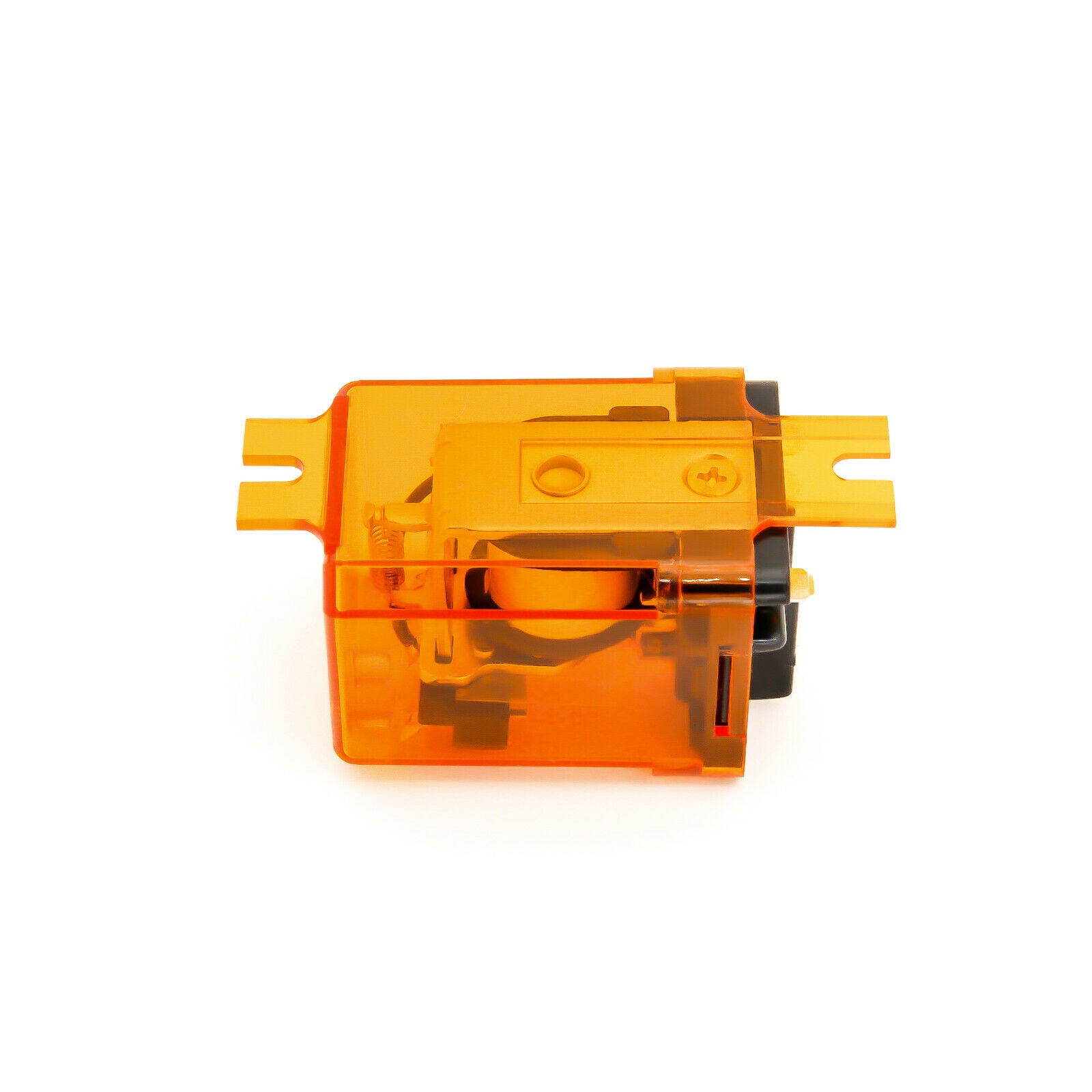

120VAC 10 Amp SPDT (1 Form C) Relay Bracket Mount with 5 Quick Connect Tabs

Capable of handling loads up to 10 Amps at 30VDC, or 10A at 240Vac.
Horsepower (HP) Rating: 1/3 @ 120 Vac; 1/2 @ 240.
Contact material: AgCdO.

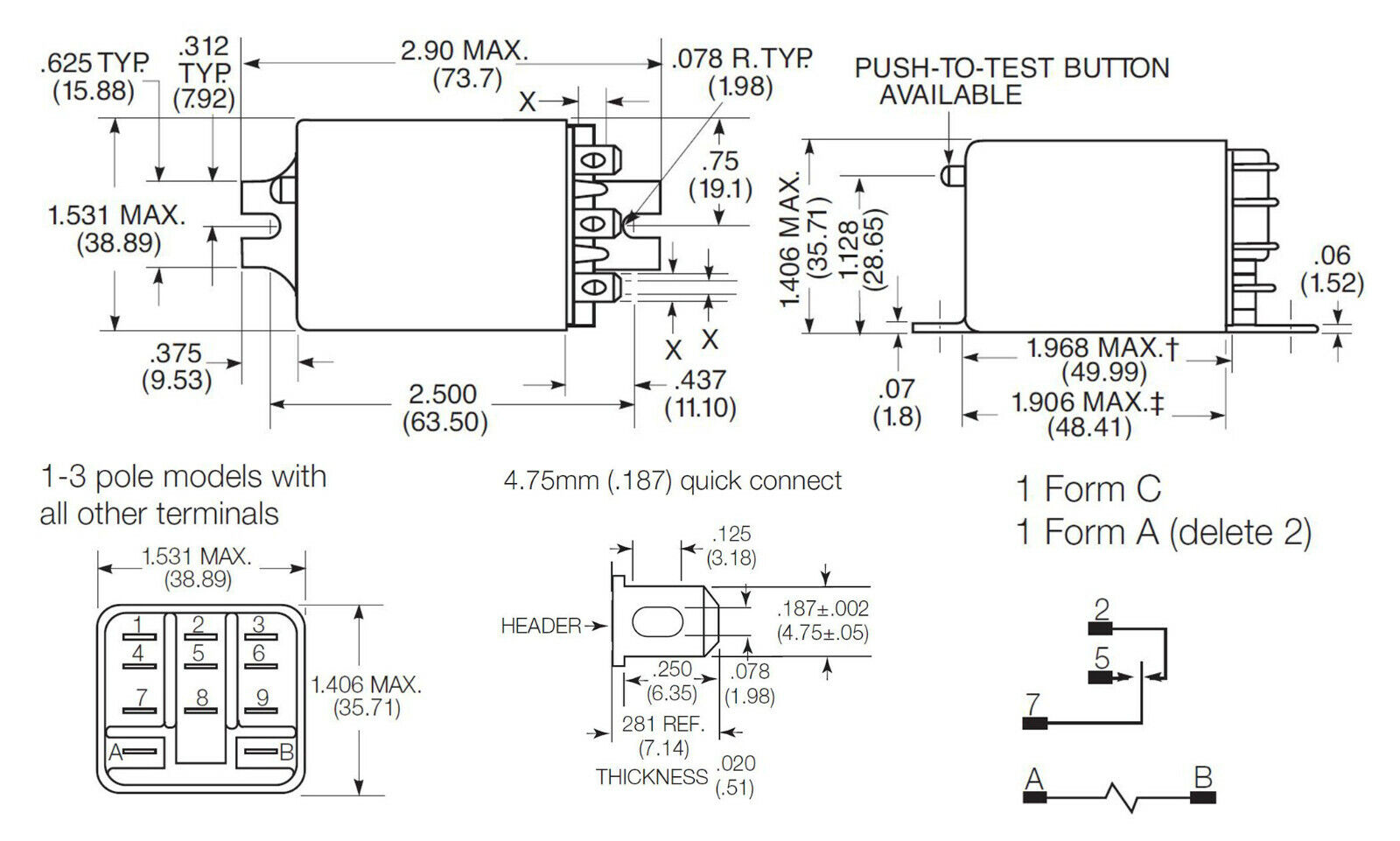

Dimensions: 55.4 x 38.9 x 35.7mm (2.18 x 1.53 x 1.41 inches).
Non-latching, Enclosed see-through type.

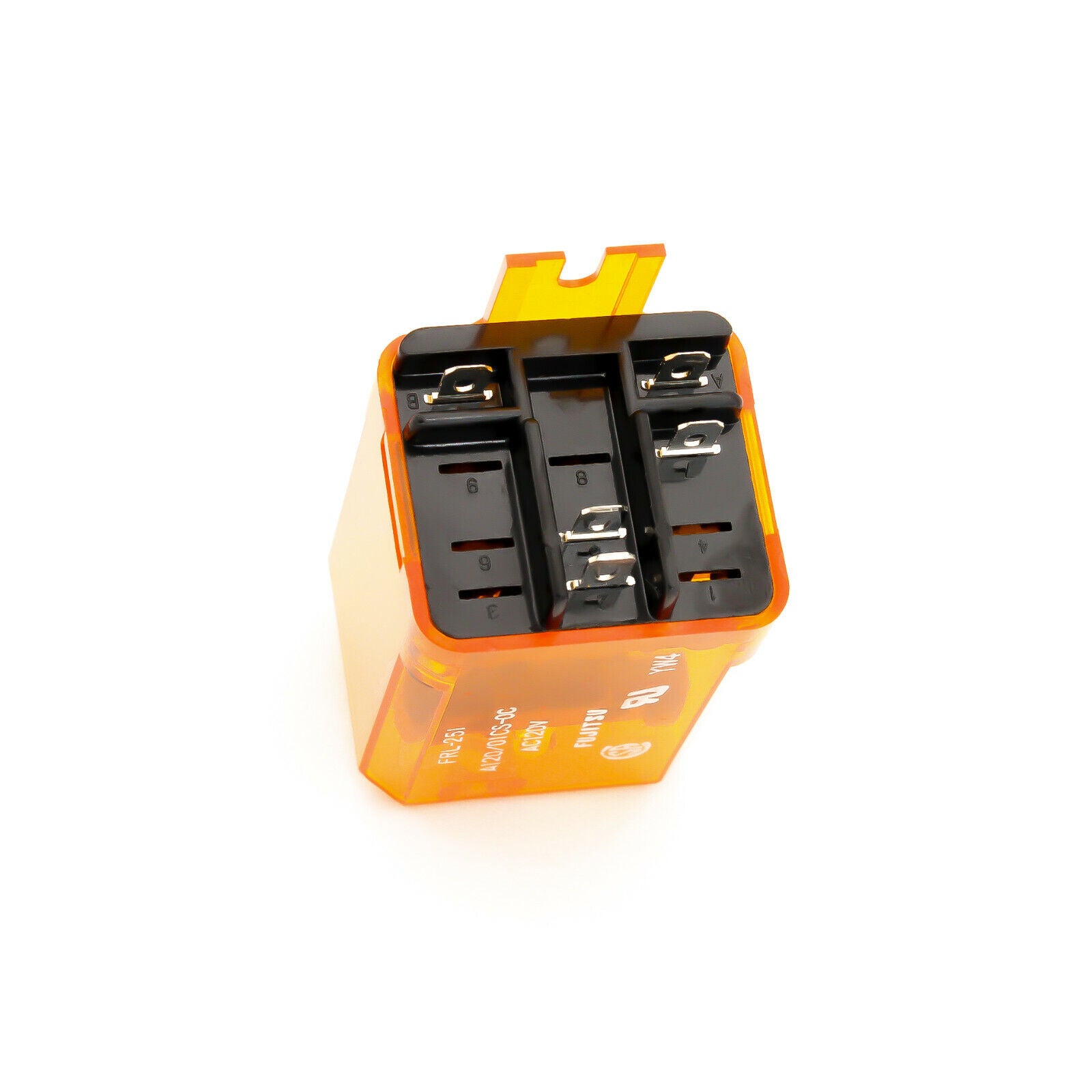

4.75mm (0.187" inch) quick-connect terminals.
Bracket mount case without push-to-test button indicator.

Numerous applications include: HVAC systems, industrial control equipment, vending machines, commercial sewing, tool/die equipment, robotics, timers, welding, medical, and power generators.

Package of 1 Relay per order.
