102mm Intake Manifold with Throttle Body and Fuel Rail for LS1 LS2 LS6 Cathedral Port IM102

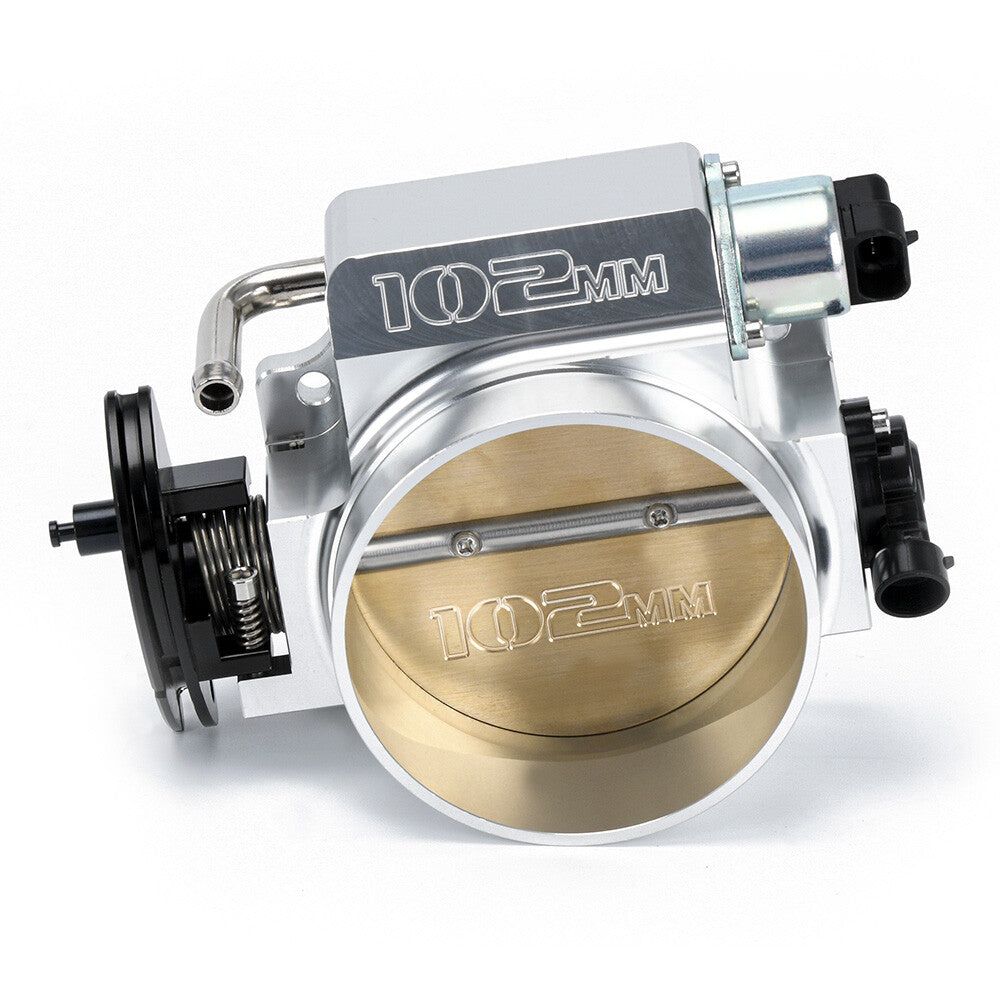

TIG-welded 3 mm T6061 aluminum intake manifold with tapered runners, supplied with a 102 mm throttle body and fuel rails, for GM cathedral-port LS V8 engines.
CNC-machined head flanges and MAP sensor port; rated for up to 30 psi of boost. Accepts EV1-style injectors.
Product details
- Product: Fabricated 102 mm intake manifold with throttle body and fuel rails (cathedral port)
- Condition: New aftermarket replacement
- Manufacturer part number: IM102
- Country of origin: China
Specifications
- Type: Intake Manifold
- Material: Aluminum
Fitment and compatibility
| Years | Make | Model | Engine |
|---|---|---|---|
| 2004-2005 | Cadillac | CTS | 5.7L V8 |
| 2006-2007 | Cadillac | CTS | 6.0L V8 |
| 1997-2004 | Chevrolet | Corvette | 5.7L V8 |
| 2006-2007 | Chevrolet | Corvette | 6.0L V8 |
| 2005-2006 | Chevrolet | SSR | 6.0L V8 |
| 2006-2008 | Chevrolet | Trailblazer | 5.3L V8 |
| 2006-2009 | Chevrolet | Trailblazer | 6.0L V8 |
| 1998-2002 | Pontiac | Firebird | 5.7L V8 |
| 2005-2006 | Pontiac | GTO | 6.0L V8 |
| 2008-2009 | Saab | 9-7x | 5.3L V8 |
| 2008-2009 | Saab | 9-7x | 6.0L V8 |
Application notes
- For cathedral-port LS engines; not for rectangle-port (LS3 / L92) heads.
- Trial-fit the manifold before final installation and confirm hood clearance, throttle linkage and vacuum connections.
Package contents

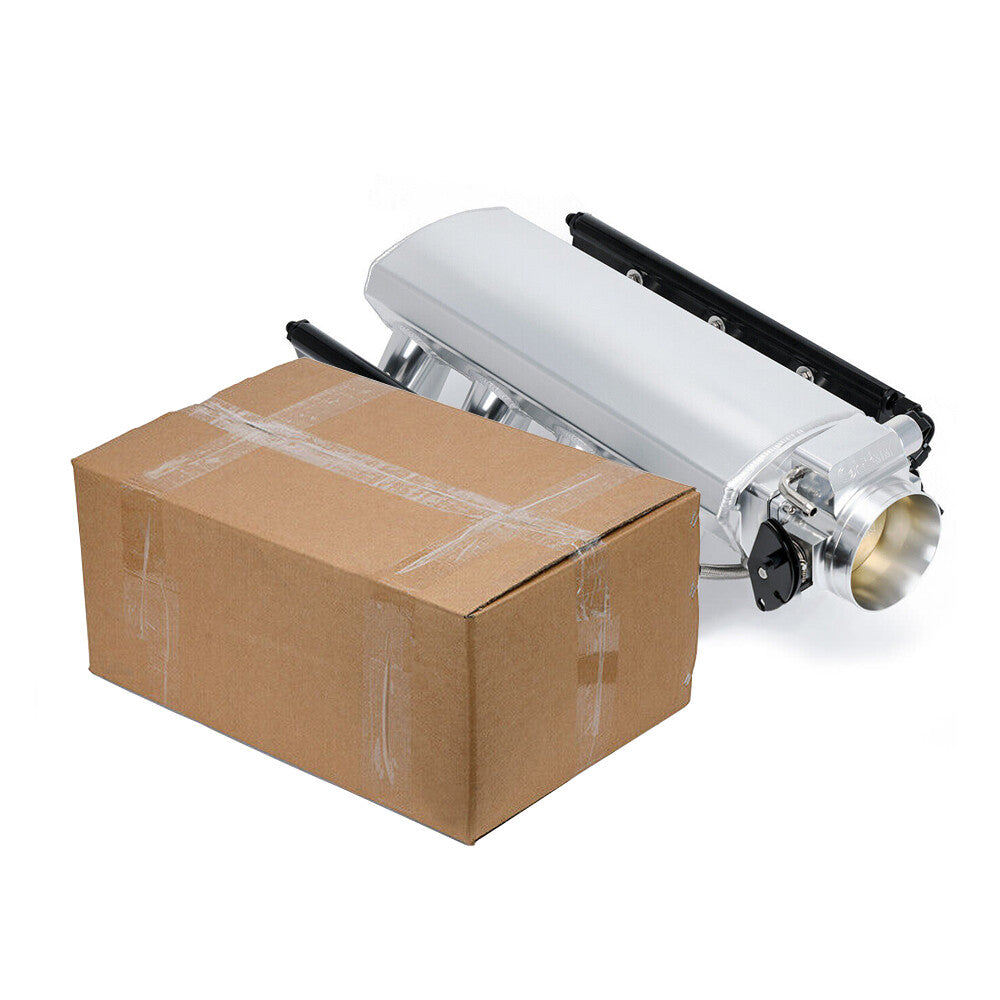

- Intake manifold, 102 mm throttle body, fuel rails, fittings, gaskets and hardware as pictured
Professional installation is recommended.
