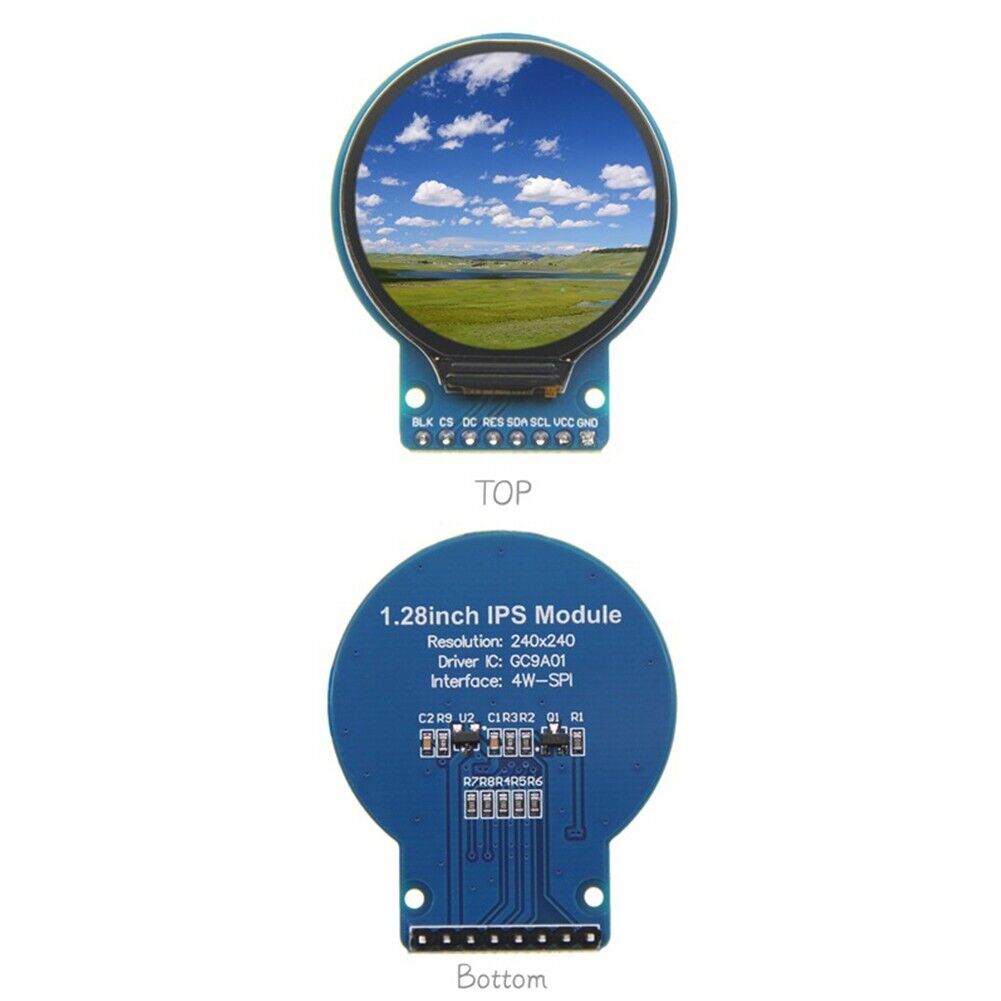

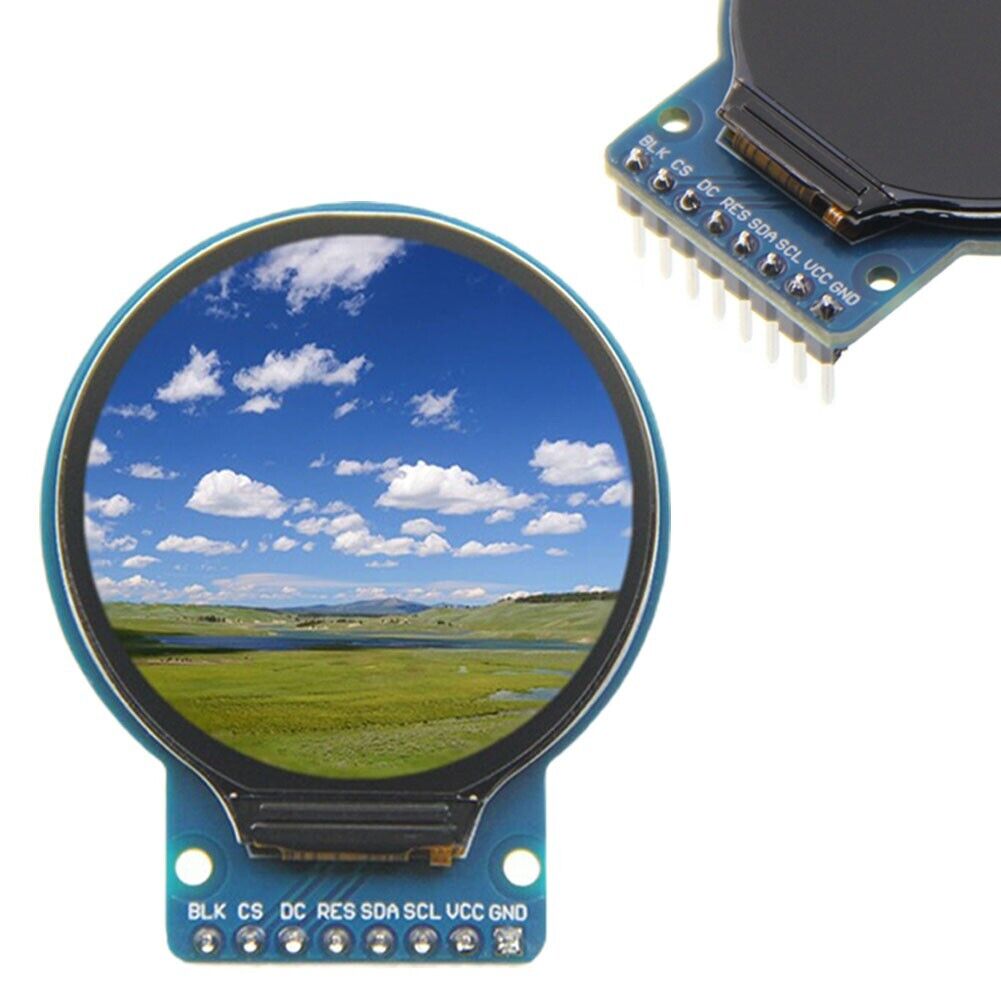

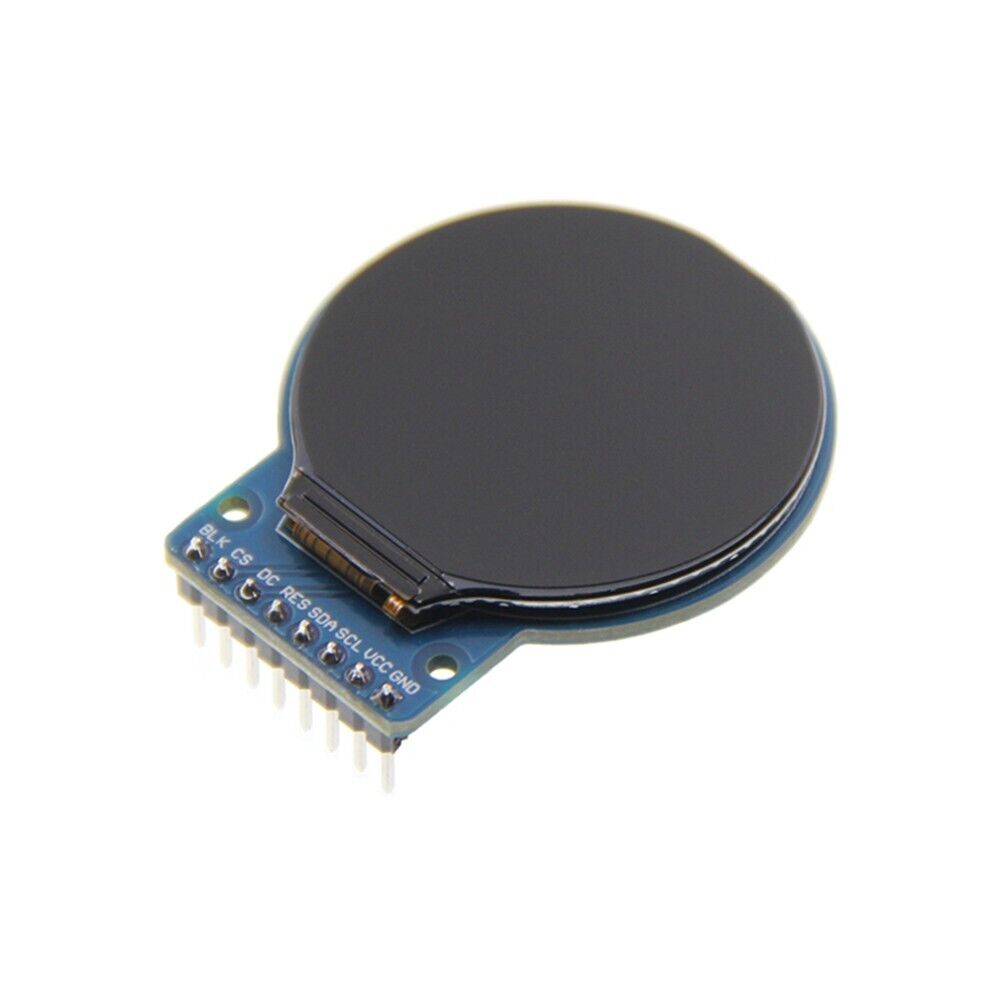

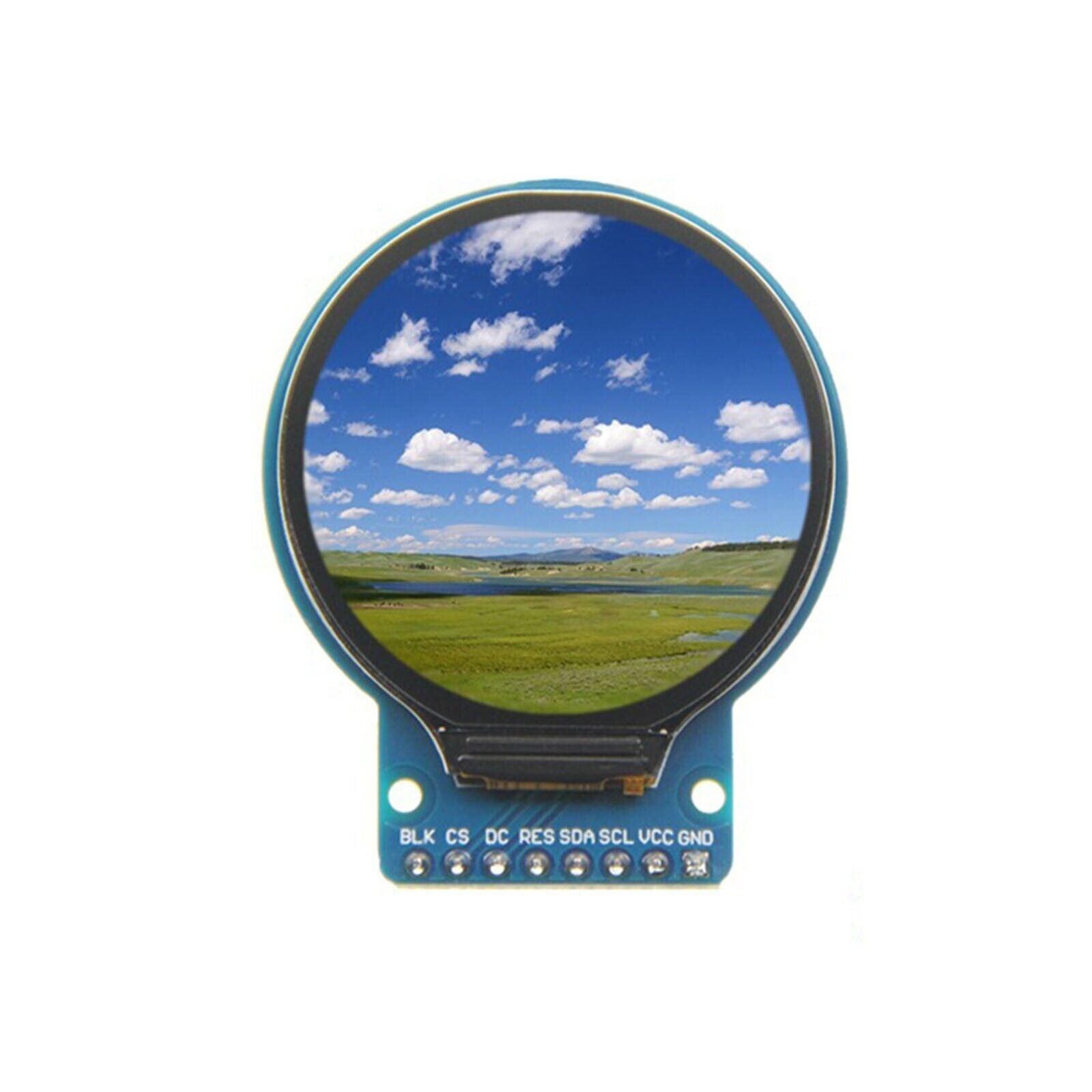

1.28 inch IPS full view TFT display LCD screen color screen module 240x240

  • $ 79.95


*1.28 -inch round screen, 240x240 resolution, give that high experience.

*IPS full -angle panel, 178 ° visual range.

*Using the 4 -line SPI serial line, it can be lit in just a few IO.

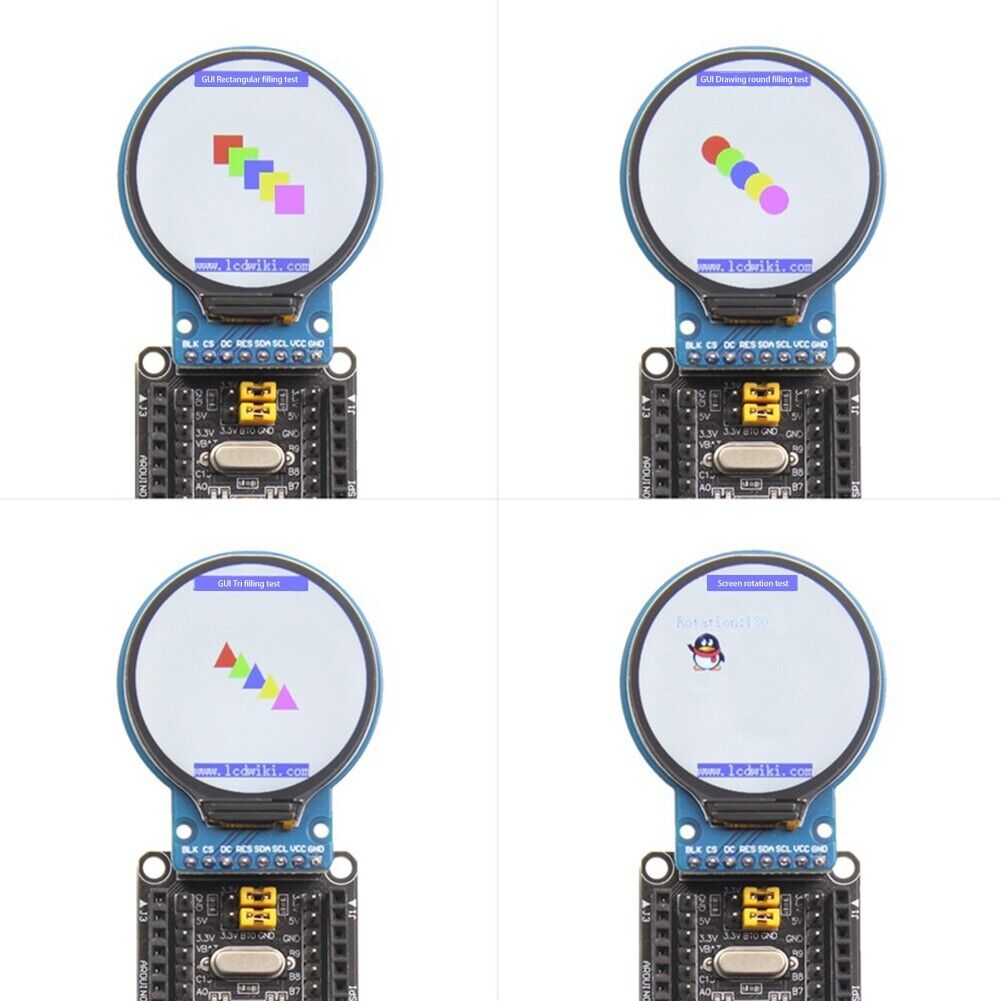

*Provide a rich STM32, MSP430, and C51 example programs.

*Military industry -level process standards, long -term stable work.


Show color: RGB 65K color

Size: 1.28 (Inch)

Panel material: TFT

Driving chip: GC9A01

Resolution: 240*240 (Pixel)

Display interface: 4-line spi interface

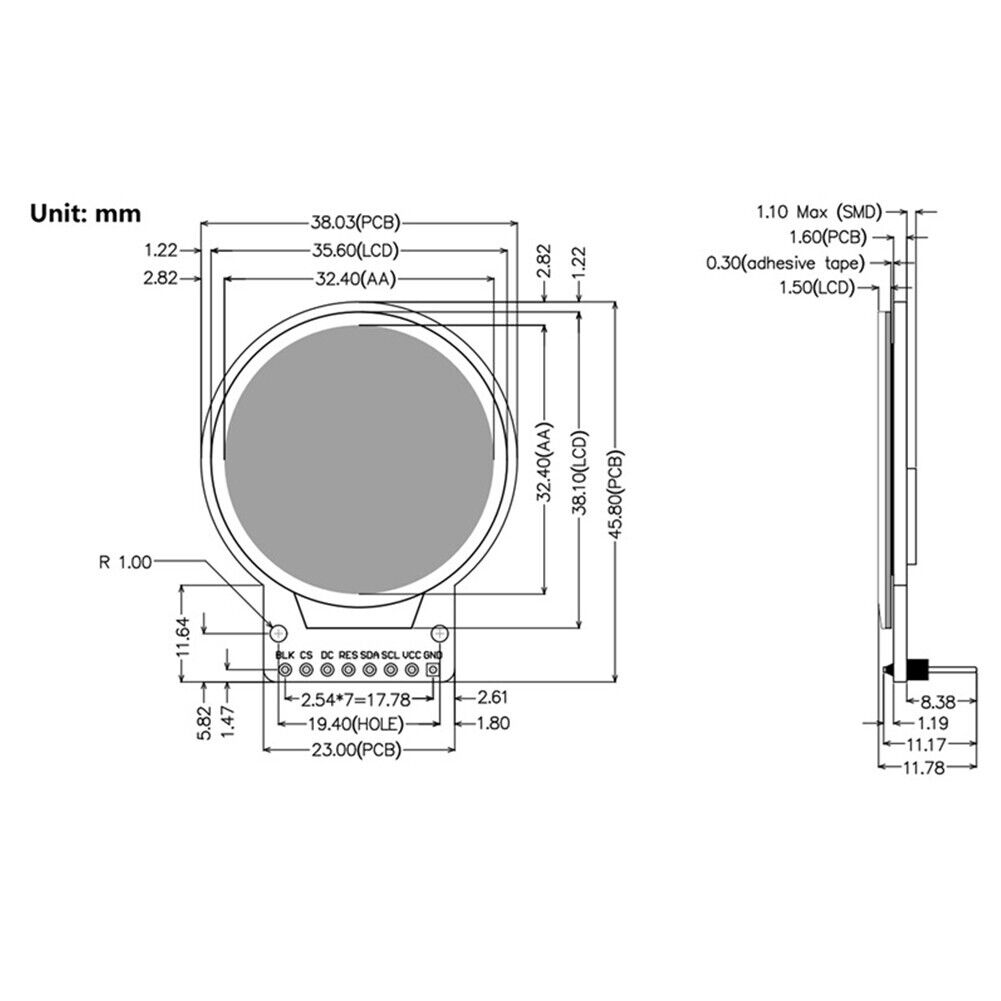

Effective display area (AA area): diameter: 32.40 (mm)

Touch screen type: no touch screen

Touch IC: no touch IC

Module PCB bottom plate size: 38.03x45.80 (mm)

Perspective: full angle

Work temperature: -10 ℃ ~ 60 ℃

Storage temperature: -20 ℃ ~ 70 ℃

Working voltage: 3.3V

Product weight (including packaging): 11g

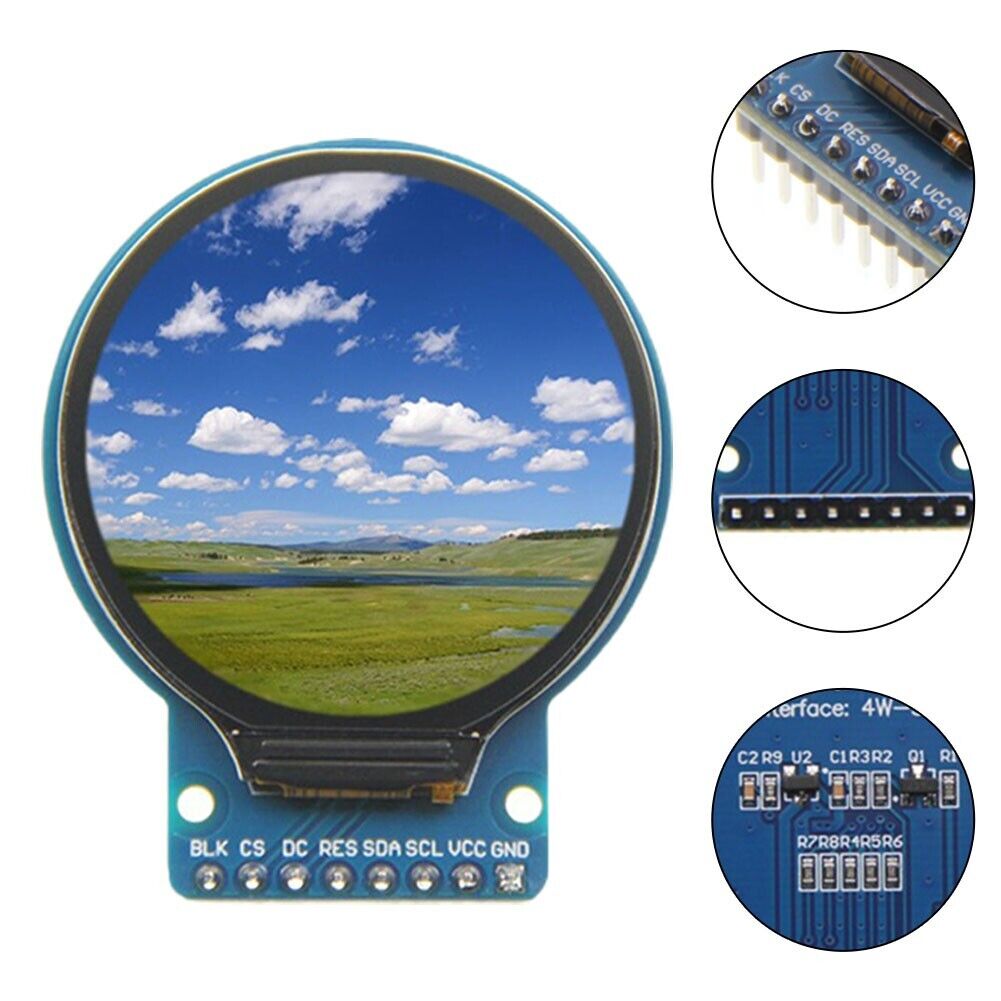

Point instructions:

1 GND LCD screen power supply

2 VCC LCD screen power supply is positive (3.3V/5V)

3 SCL LCD screen SPI bus clock signal

4 SDA LCD screen SPI bus writing data signal

5 Res Reactive signal of LCD screen (low level reset, the module has a reset circuit, the pin does not connect)

6 DC LCD screen register/data select control signal (low level: register, high level: data)

7 CS LCD screen chip control signal (low -level enable)

8 BLK LCD screen backlit control signal (high -electricity is lit, if no control is required, please connect 3.3V)


Package included

1*1.28 "Inch TFT LCD Round Display
