Analog Clock Adapter Harness for 1984-1993 BMW E30 E24 E28 1376903

Aftermarket plug-in wiring adapter for installing a compatible European analog clock in a BMW dashboard originally wired for a 6-button or 13-button On-Board Computer. Select the correct harness variant for the vehicle's existing OBC connector.

Product Details

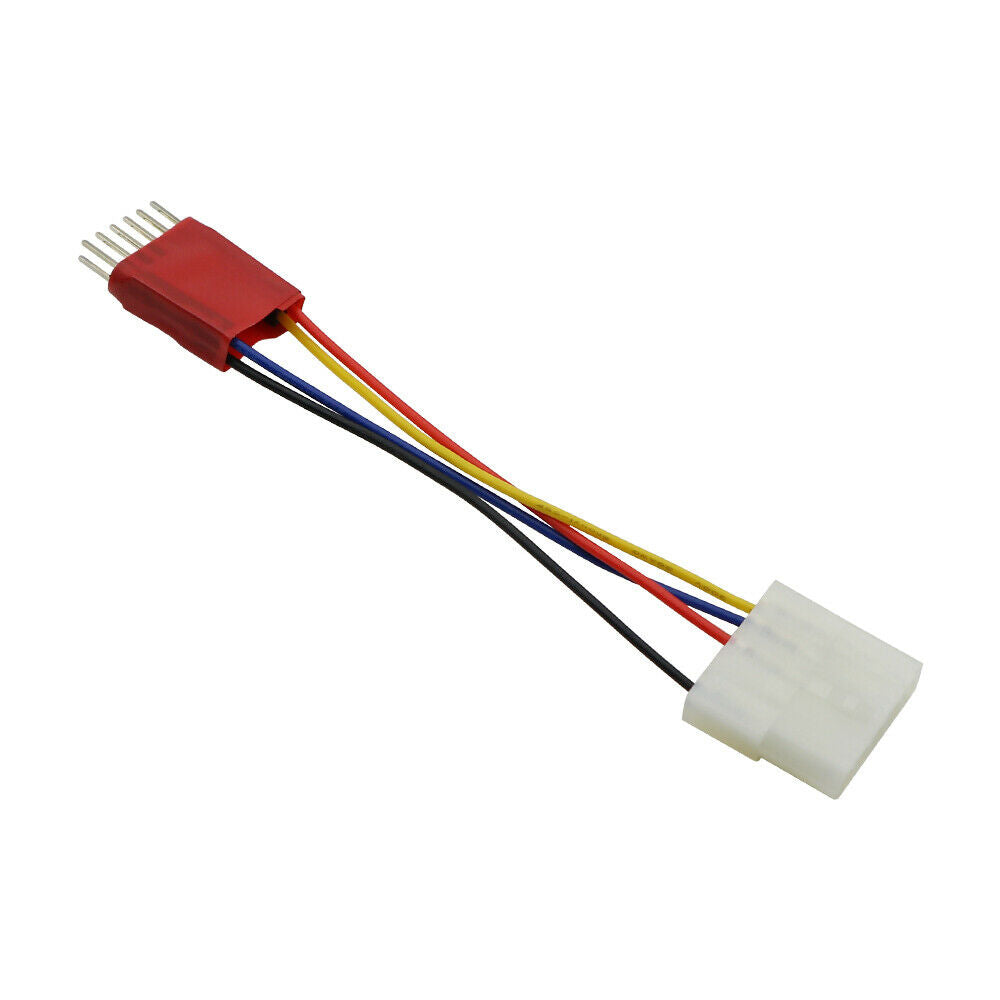

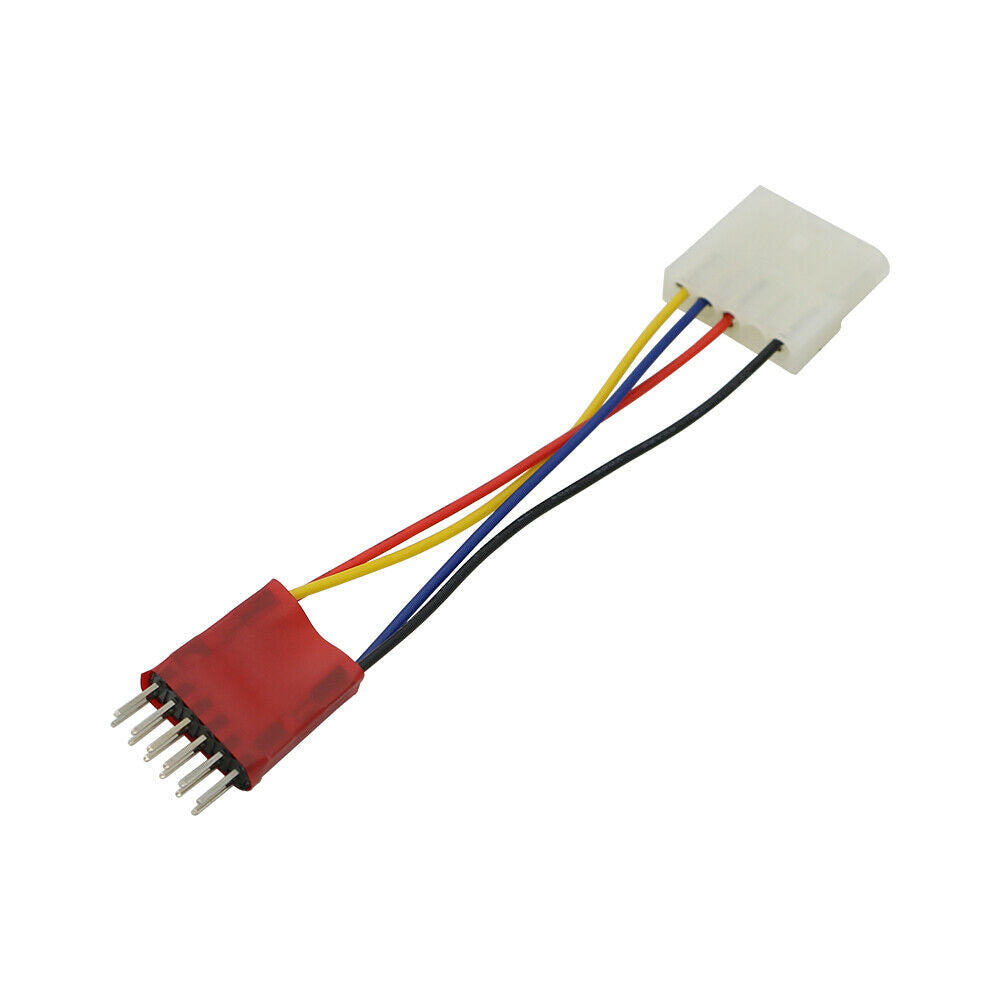

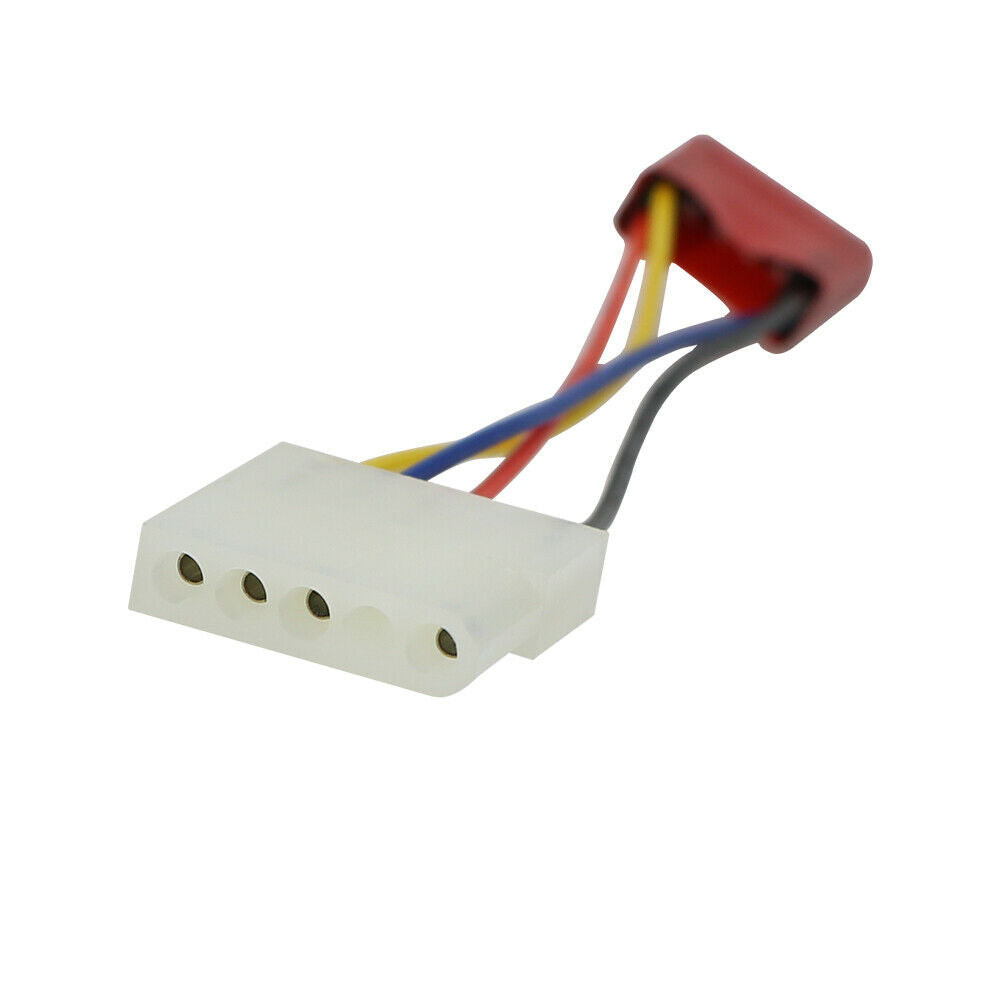

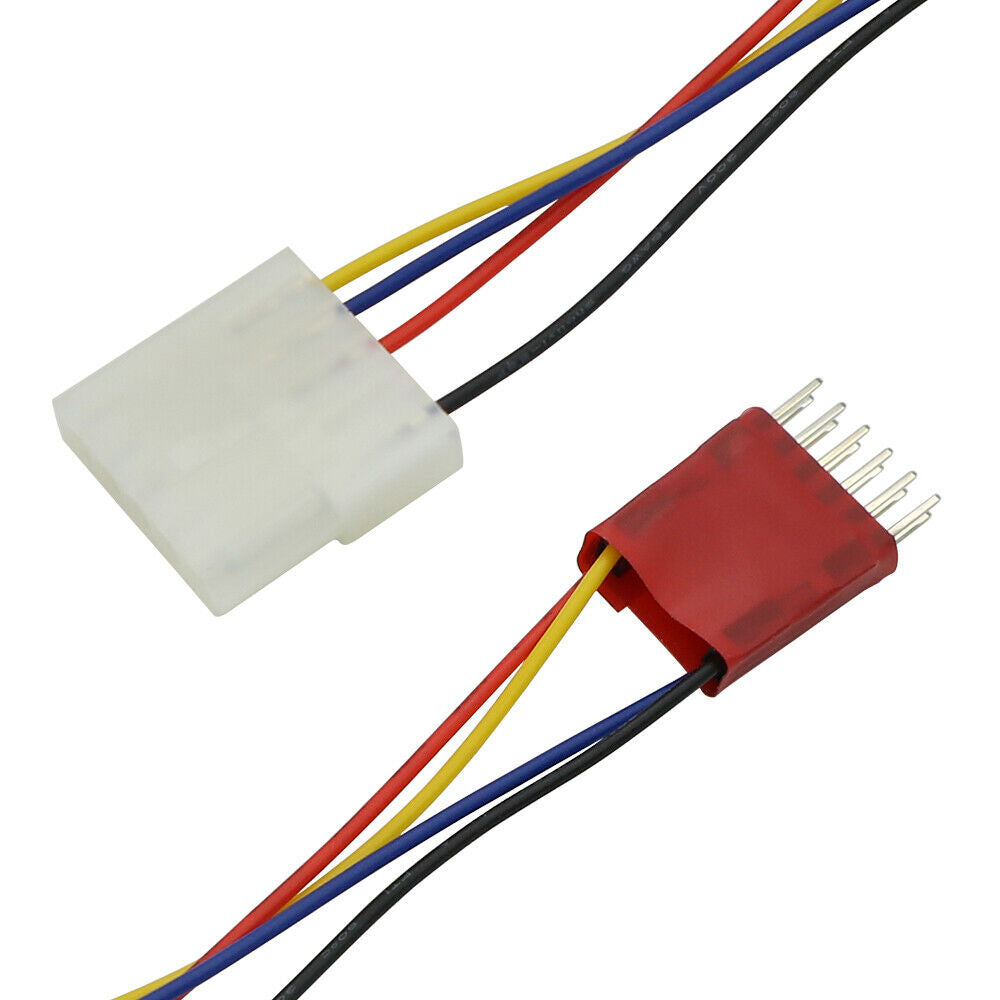

• Plug-in analog-clock conversion harness
• No cutting or splicing of the original dashboard loom

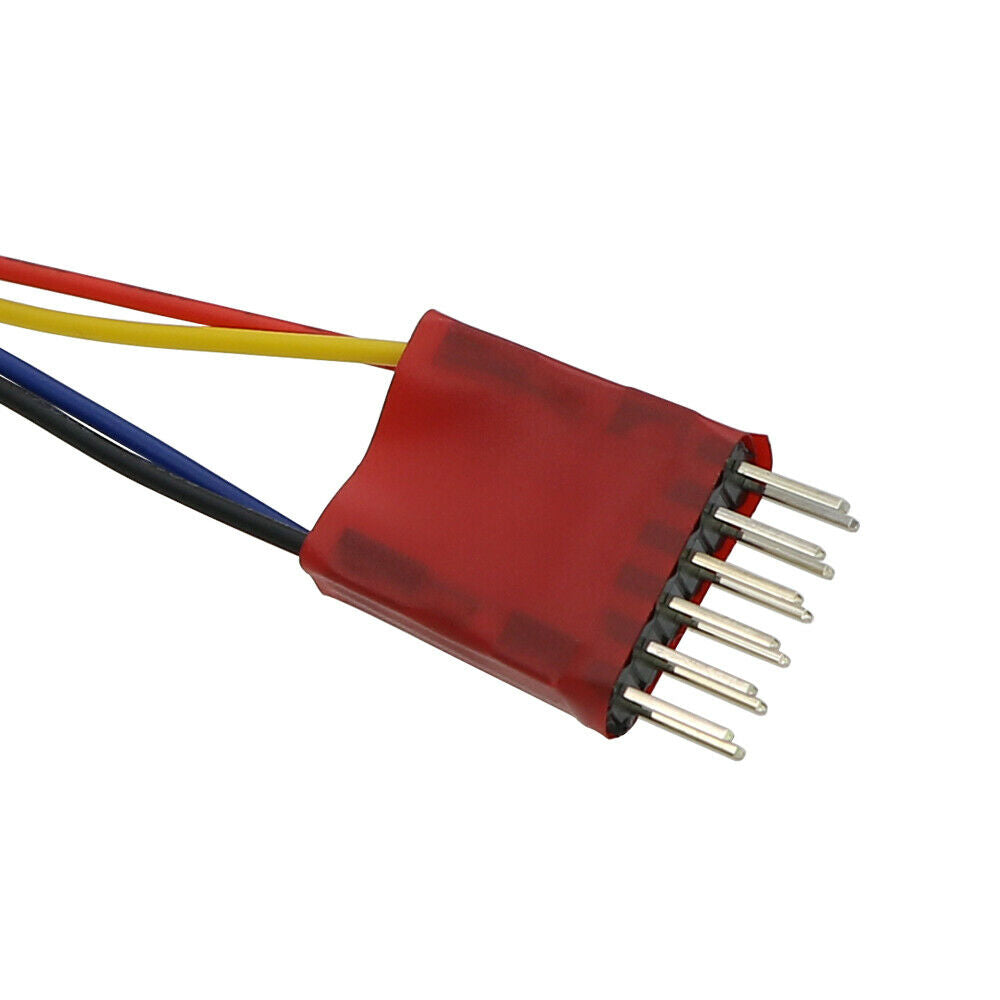

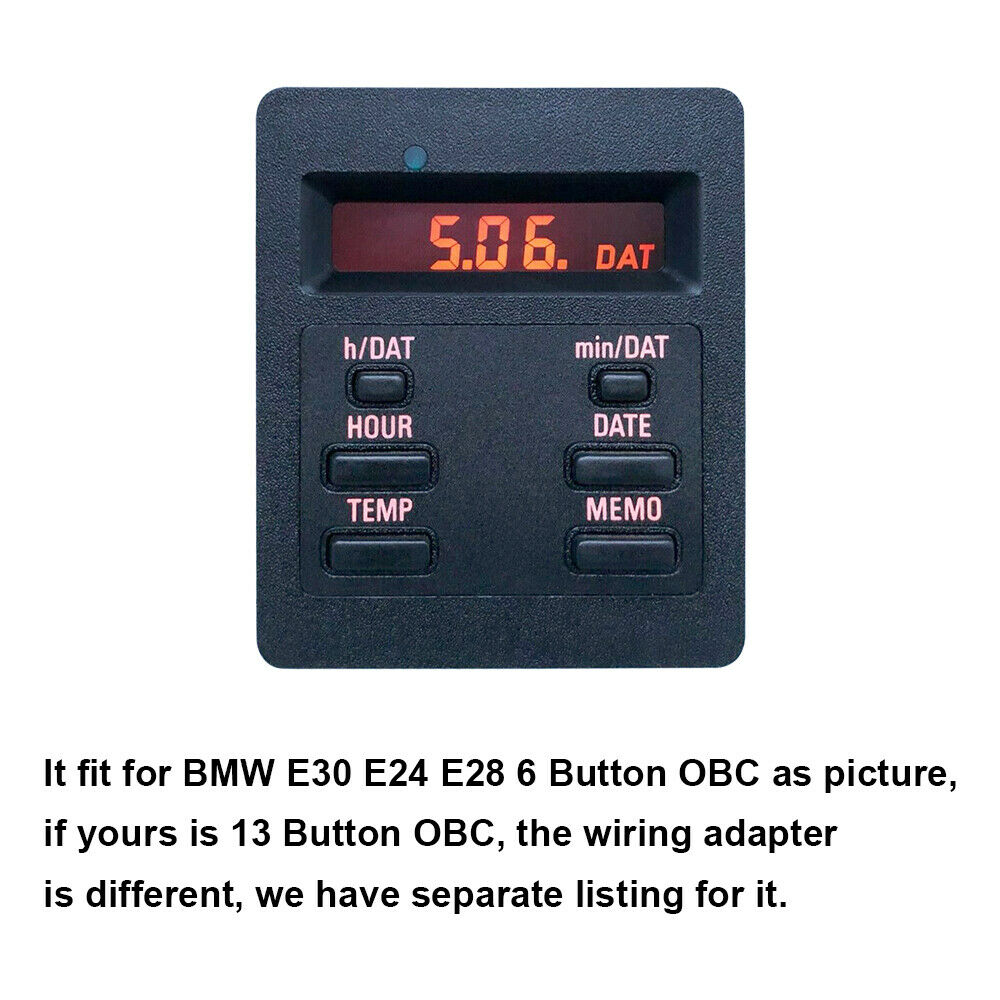

• Available for 6-button or 13-button OBC connector configurations
• Clock and dashboard panel are not included

Fitment and Compatibility

For select BMW E30, E24 and E28 vehicles using a compatible 6-button BC1 or 13-button OBC harness and the matching European analog clock. Detailed E30 applications include 1984-1992 318i/318is/325e/325es/325i/325is/325iX and 1988-1991 M3, with convertible production extending into 1993 where applicable. Confirm the existing OBC connector and select the corresponding variant.

Part Number Information

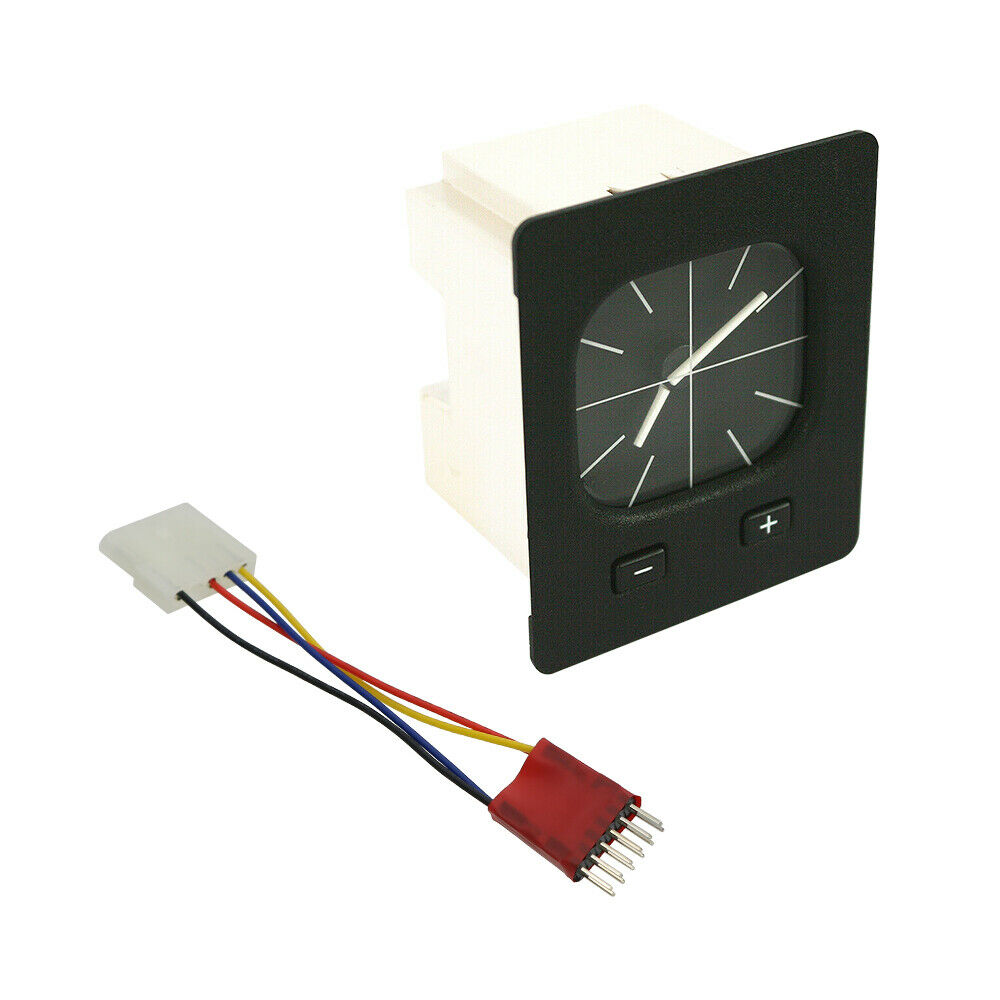

Compatible analog clock reference: 1 376 903 / 1376903 (Borg). This number identifies the related clock; the aftermarket adapter harness does not have a separate BMW OE number.

Package Contents

One wiring adapter harness in the selected 6-button or 13-button configuration. Analog clock and dash panel are not included.

Installation Notes

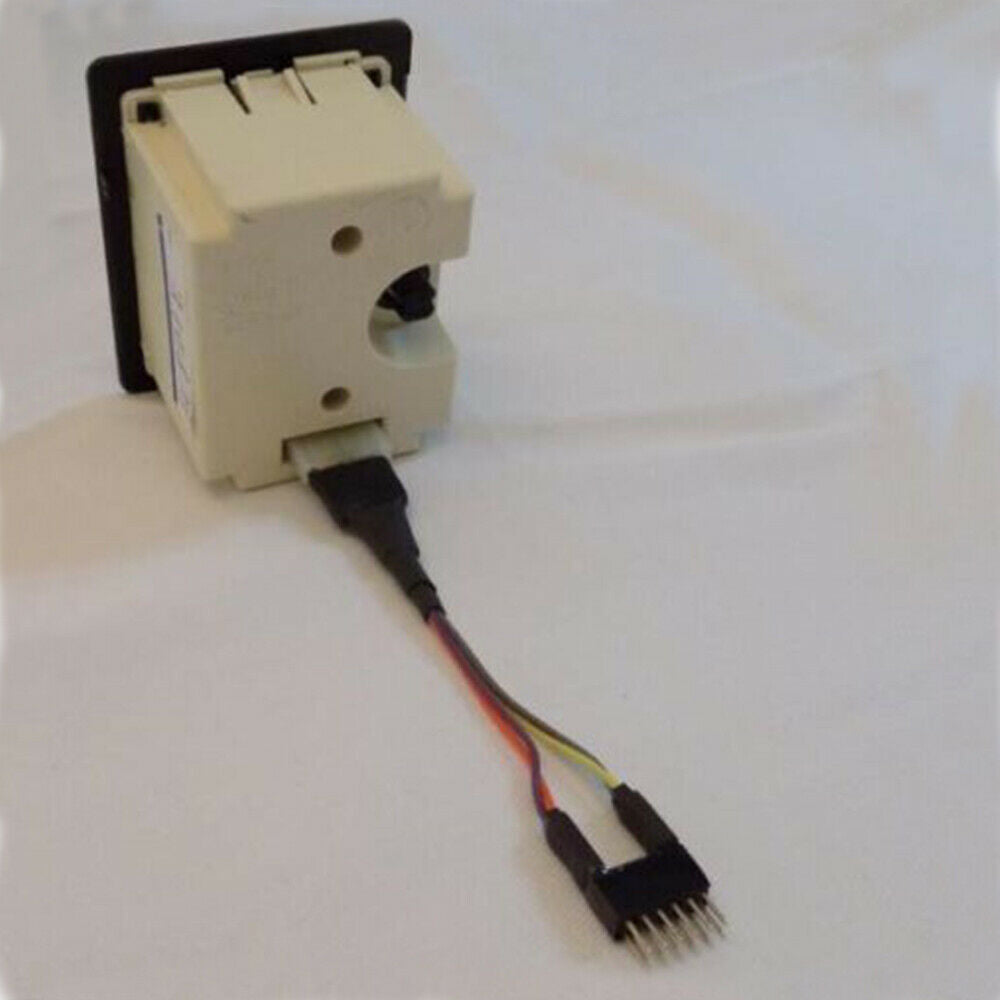

Disconnect the battery, remove the existing OBC and connect the adapter between the original dashboard harness and compatible analog clock. Select the correct variant before purchase; the 6-button and 13-button vehicle connectors differ.
