Throttle Actuator Gear Kit for 2006-2013 BMW M3 M5 M6 13627834494

Repair worn internal gears in two compatible BMW throttle actuators with this upgraded two-actuator gear-and-shaft kit for S65 and S85 engines.

Product Details

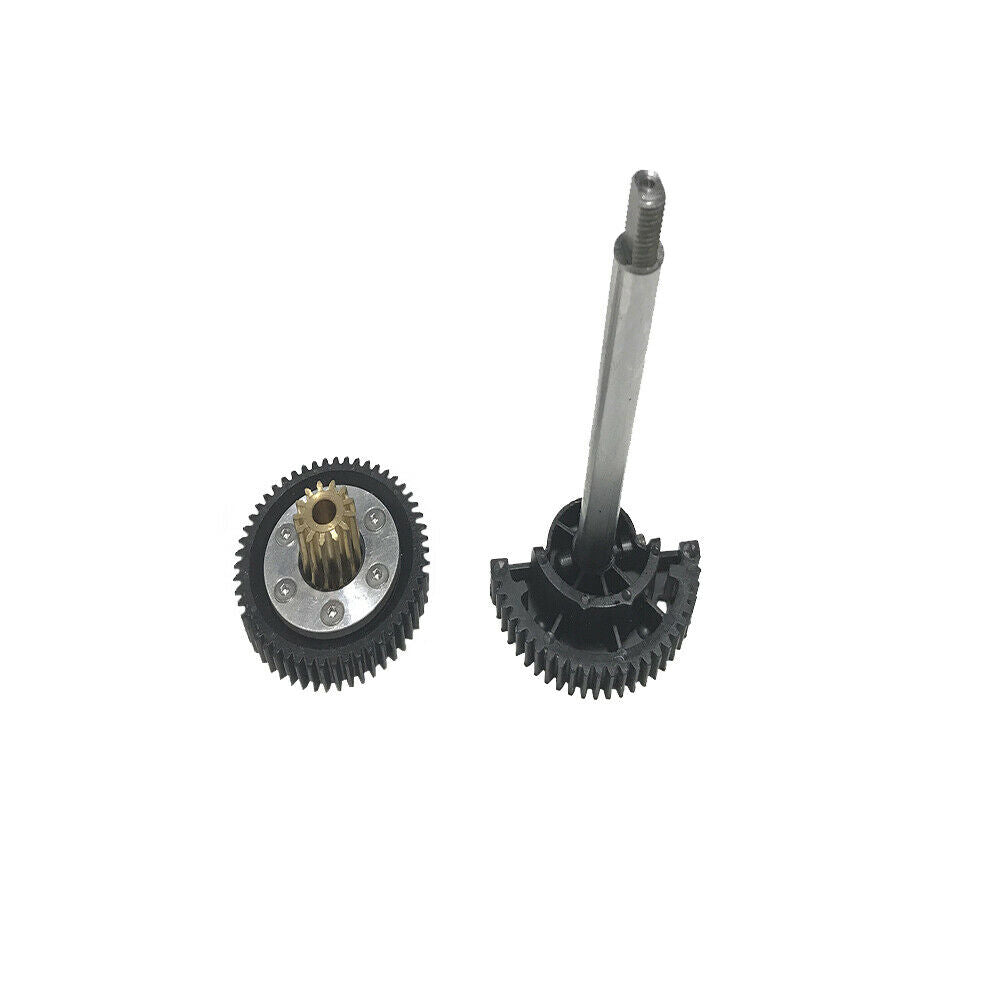

• Two-actuator repair kit with two gears and two pre-fitted shafts
• Brass-on-plastic gear design replaces the original plastic-on-plastic wear interface
• For original gears with 23 teeth only; not for 25-tooth versions
• Can address actuator faults caused specifically by worn gears
• Complete throttle actuators and electronics are not included

Fitment and Compatibility

For compatible BMW S65 and S85 applications, including 2008-2013 M3 E90/E92/E93, 2006-2010 M5 E60/E61 and 2006-2010 M6 E63/E64, subject to the installed actuator version. Confirm a 23-tooth original gear and match the actuator reference before ordering. Diagnose the vehicle first; this kit will not repair failed electronics or motors.

Part Number Information

Throttle-actuator application references: 13 62 7 834 494 (13627834494), 13627838085, 13627899999, A2C53032056 and A2C53046176.

These numbers identify compatible actuator assemblies; the internal repair gears and shafts may not carry separate BMW OE numbers.

Package Contents

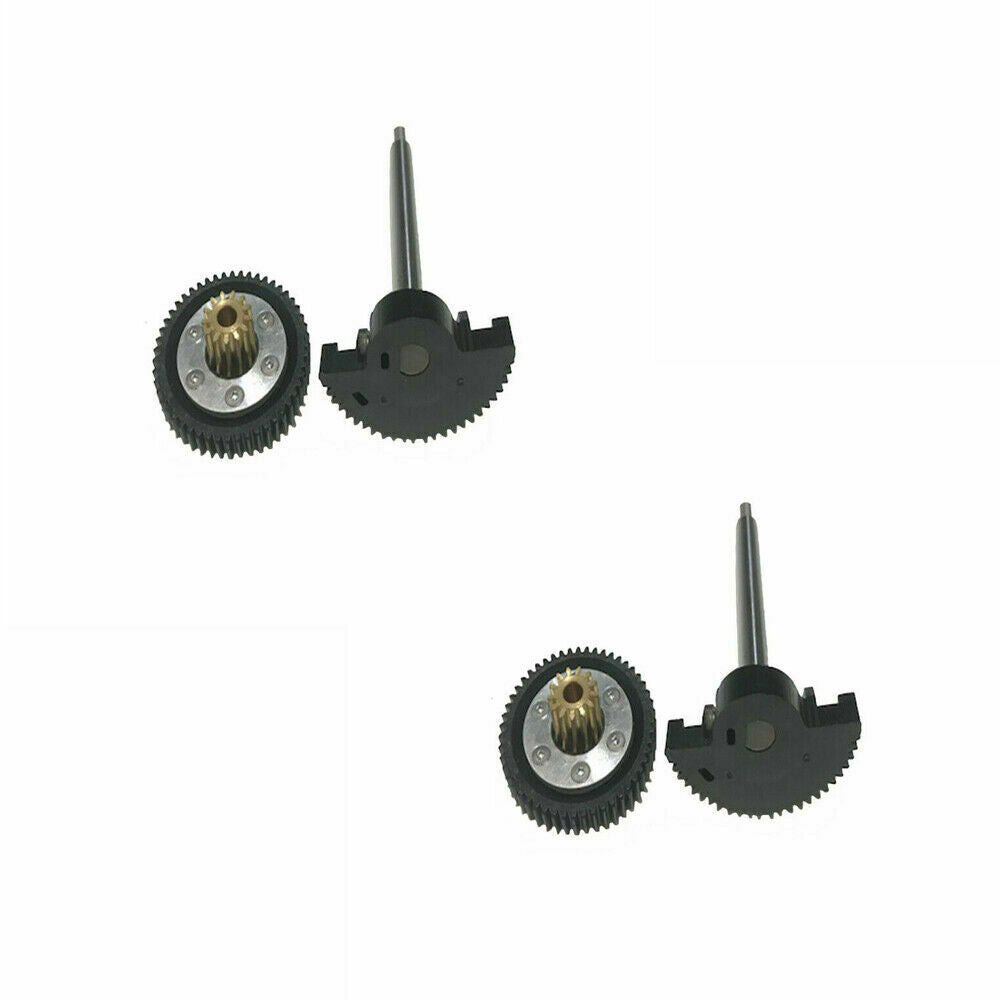

• 2 upgraded actuator gears
• 2 pre-fitted replacement shafts

Installation Notes

Actuator disassembly, gear alignment and functional testing are required. Replace both worn gear sets together when appropriate and verify smooth movement before reassembly. Clear faults and test the throttle system with suitable diagnostic equipment. Professional installation is strongly recommended.
