Instrument Cluster Printed Circuit Board for 1969-1970 Ford Mustang

Restore gauge and warning-lamp connections in a 1969-1970 Ford Mustang instrument cluster with this improved flexible printed circuit board. Select the version that matches a tachometer or non-tachometer panel.

Product Details

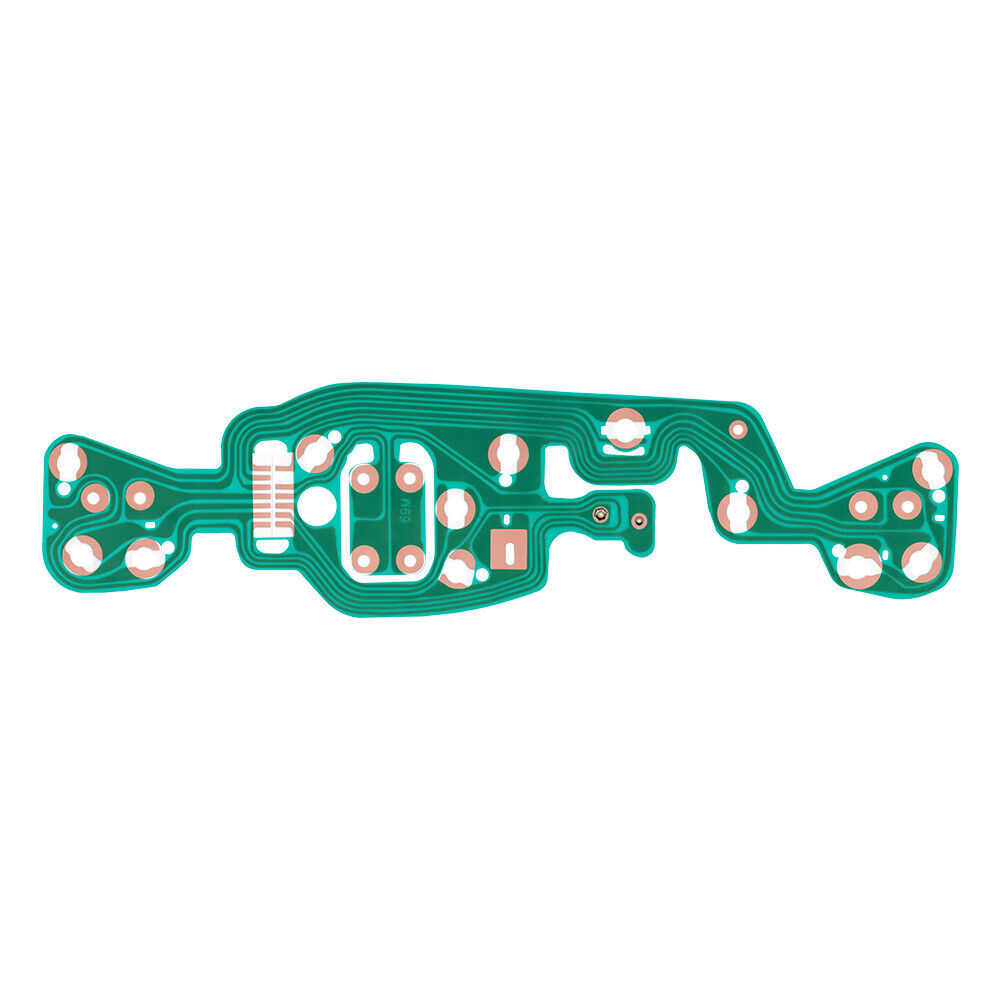

• New replacement instrument-panel printed circuit
• Available for clusters with or without factory tachometer

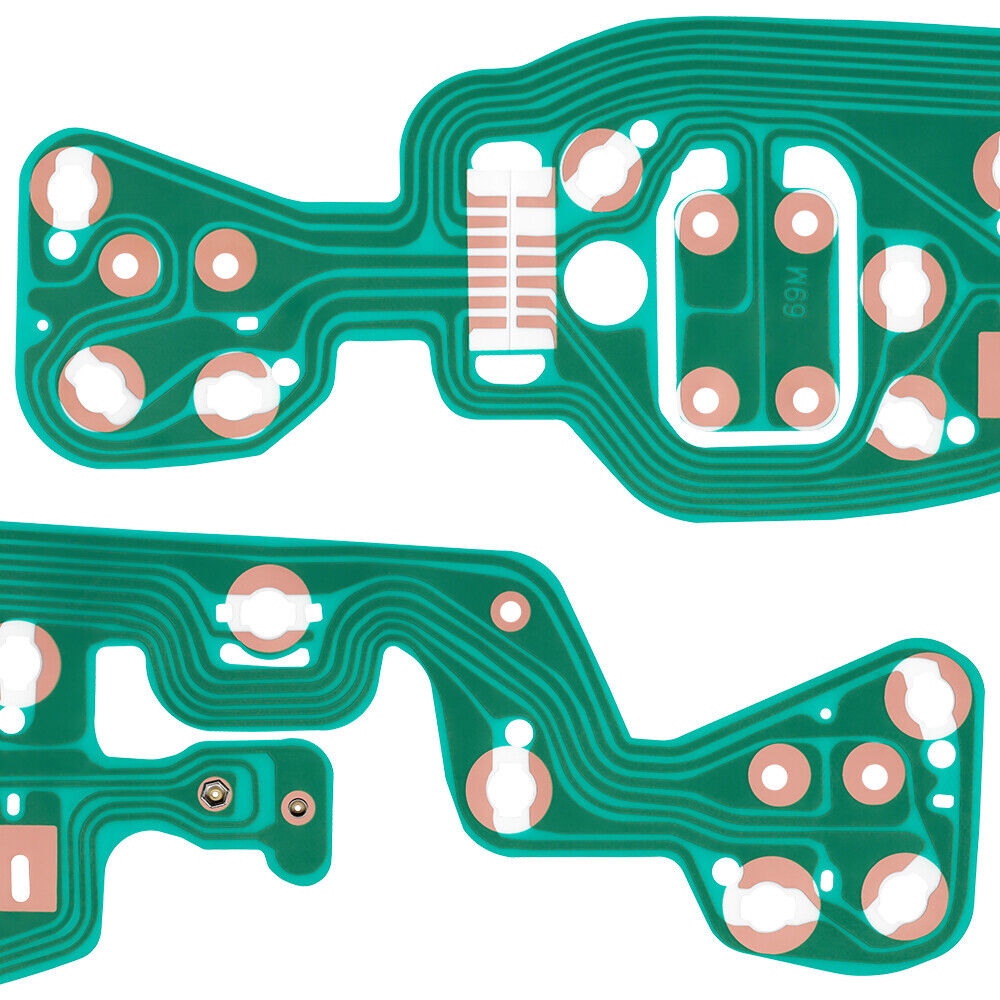

• Thicker copper circuit paths and bulb contact areas than the original-style design
• Plug-in-style installation
• Source listing states a lifetime supplier warranty

Fitment and Compatibility

• 1969-1970 Ford Mustang instrument panel
• Choose the WITH Tachometer variant only for the matching factory tach cluster
• Choose the WITHOUT Tachometer variant for the standard cluster
• Compare connector, lamp contacts and complete circuit shape before ordering

Part Number Information

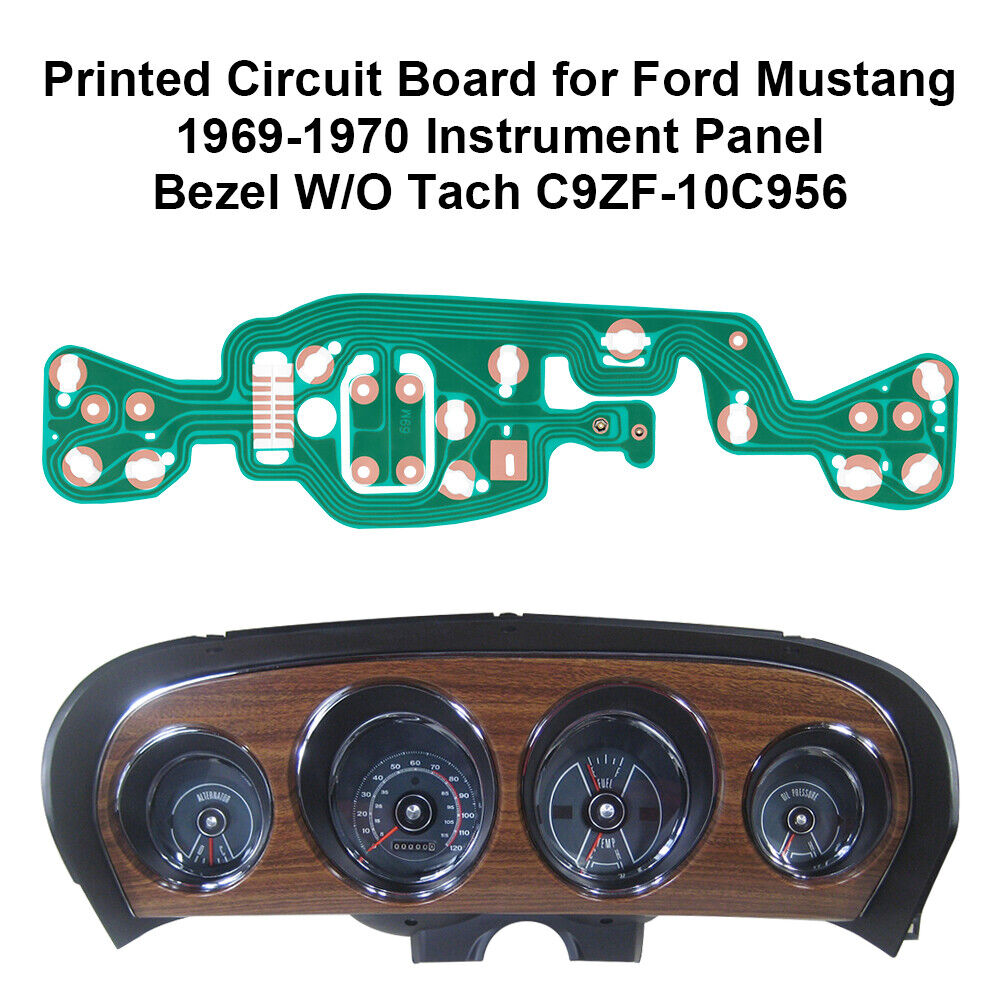

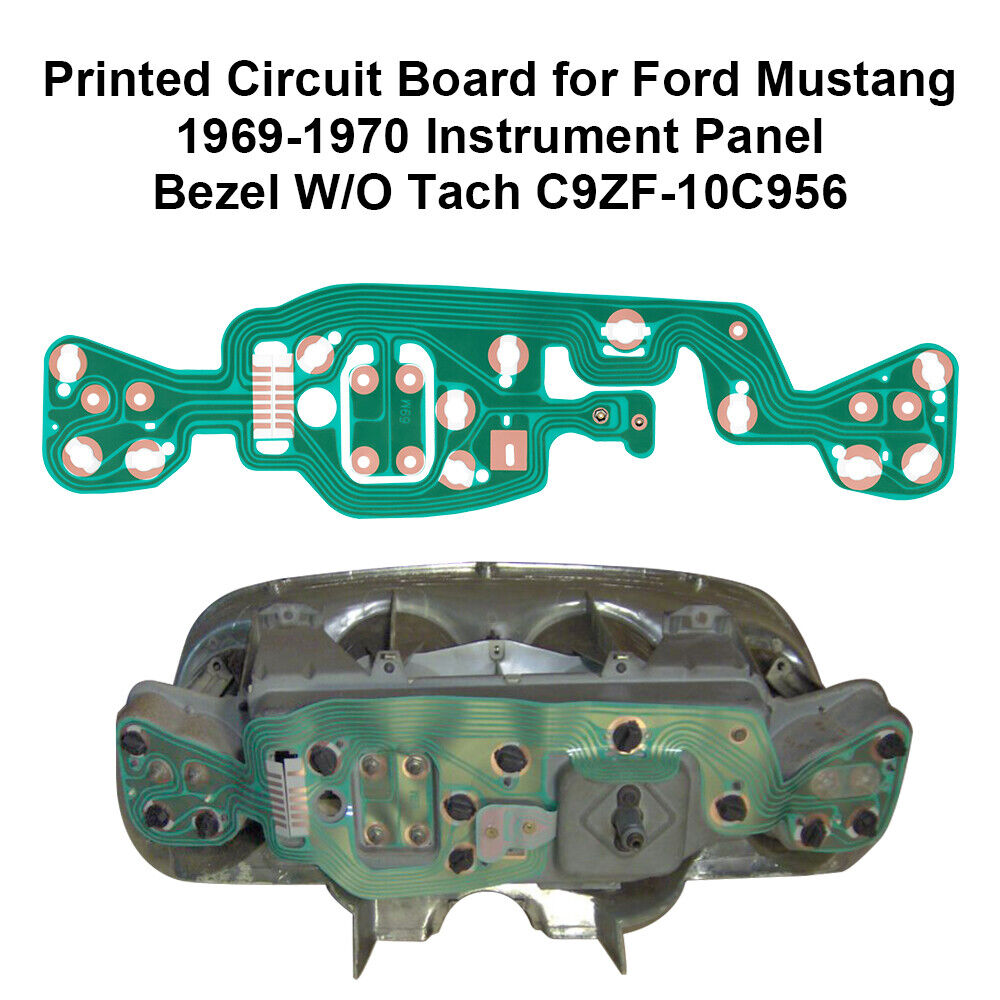

• Reference numbers for the non-tach application include C9ZF-10C956 and C9ZZ-10K843-A
• No reference is supplied for the tach variant; verify by physical layout

Package Contents

• One printed circuit board in the selected tach/non-tach version
• Instrument panel, bulbs, gauges, voltage regulator, fasteners and tools are not included

Installation Notes

• Disconnect the battery before cluster removal
• Professional installation is recommended
• Inspect grounds, bulbs, sockets and gauge regulator before attributing all faults to the circuit board
