12V Fuel Pump Relay for Ford R303 F8VF-BA OMRON G8QN
. Product Details

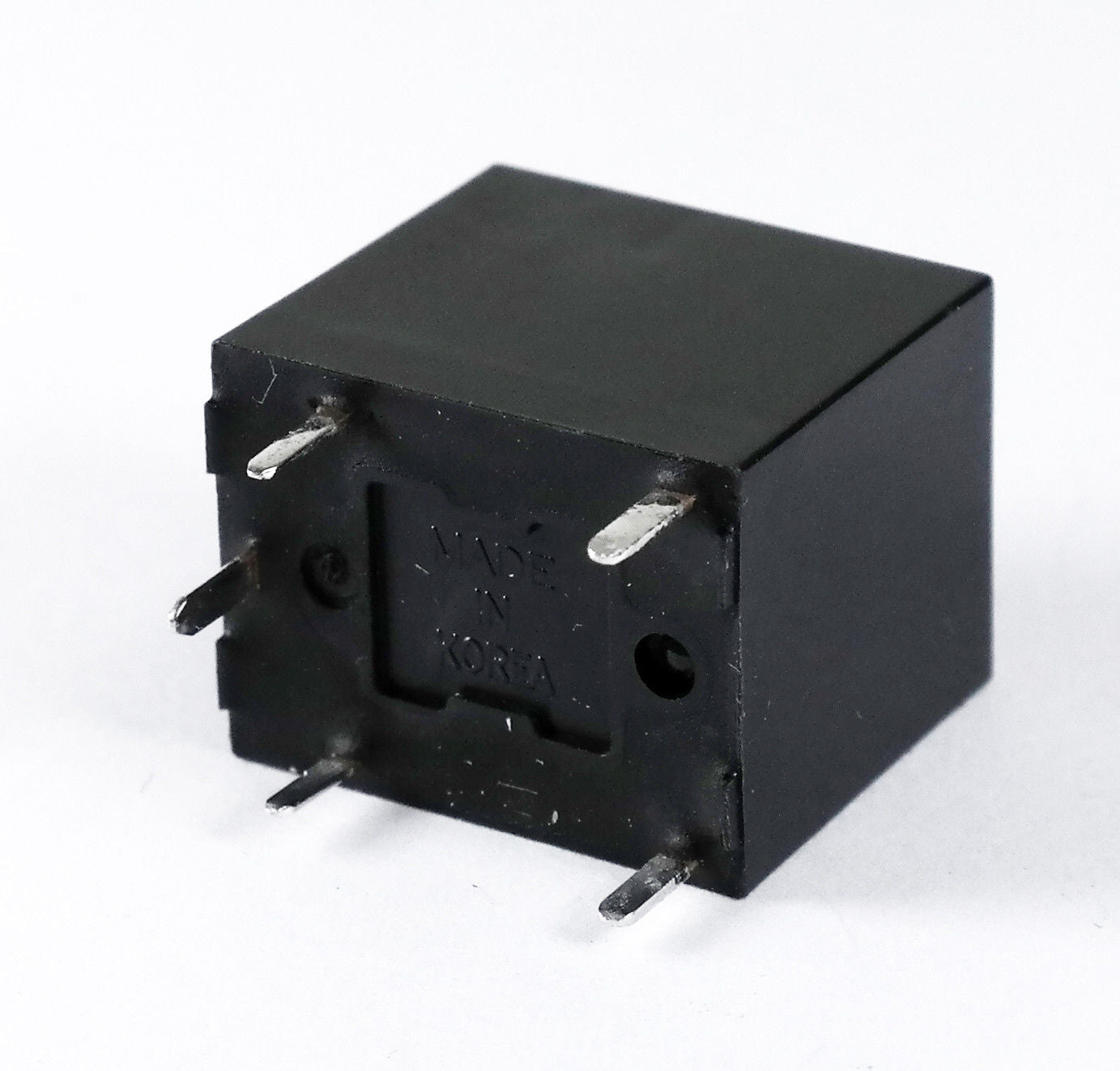

OMRON G8QN 12-volt automotive power relay used as an R303 fuel-pump relay replacement in compatible Ford applications. The fully sealed, through-hole relay has a five-pin SPDT contact arrangement.
- 12 VDC coil
- 30-amp current rating
- SPDT / 1 Form C contact
- Silver tin oxide contacts
- Approximately 685 mW coil power
Fitment and Compatibility
For compatible Ford circuit boards and modules originally using R303/F8VF-BA or a confirmed G8QN-equivalent relay. Vehicle model alone is not sufficient; match the original relay marking, pin layout, coil voltage, contact form and board footprint.
Part Number Information
Relay references: OMRON G8QN, R303 and F8VF-BA.
Package Contents
One OMRON automotive relay. Module, circuit board, solder and tools are not included.
Installation Notes
Component-level soldering is required. Confirm the fuel-pump circuit and relay are actually faulty before replacement. Disconnect power, observe electrostatic precautions and ensure solder joints do not bridge adjacent pads.
