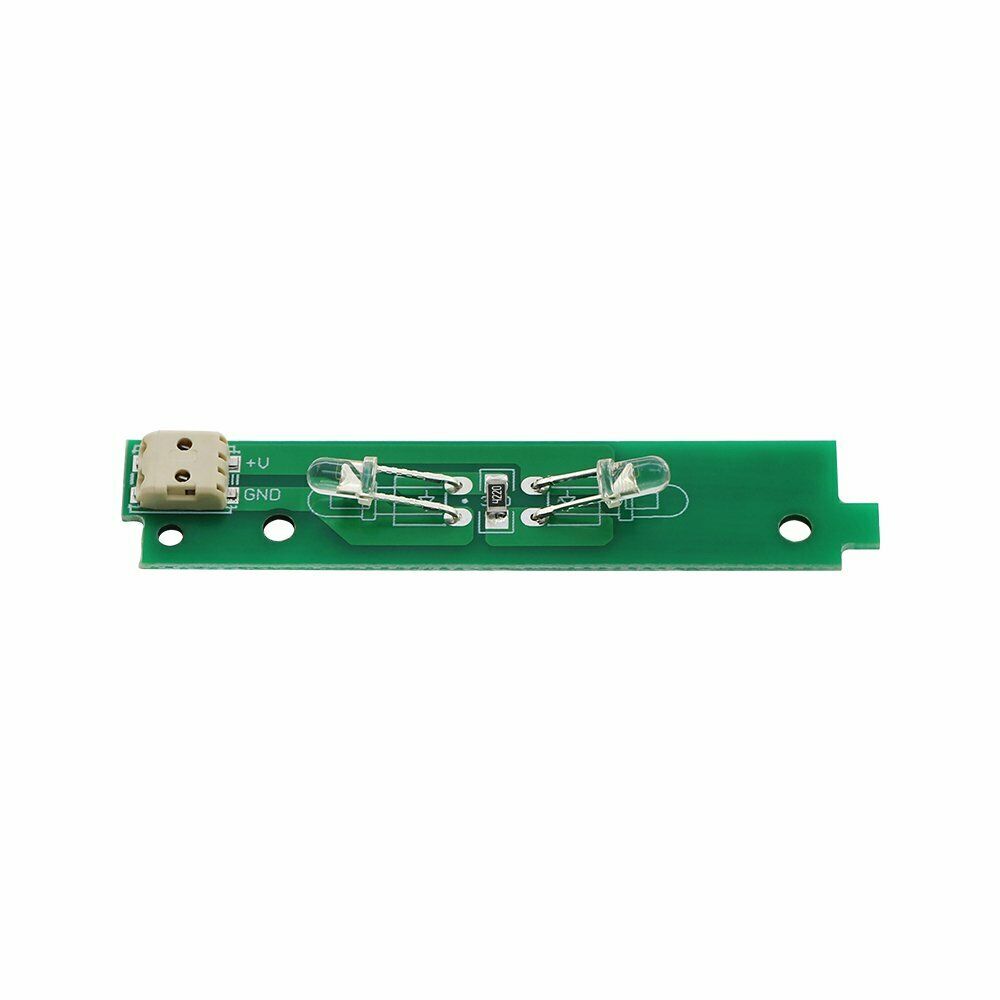

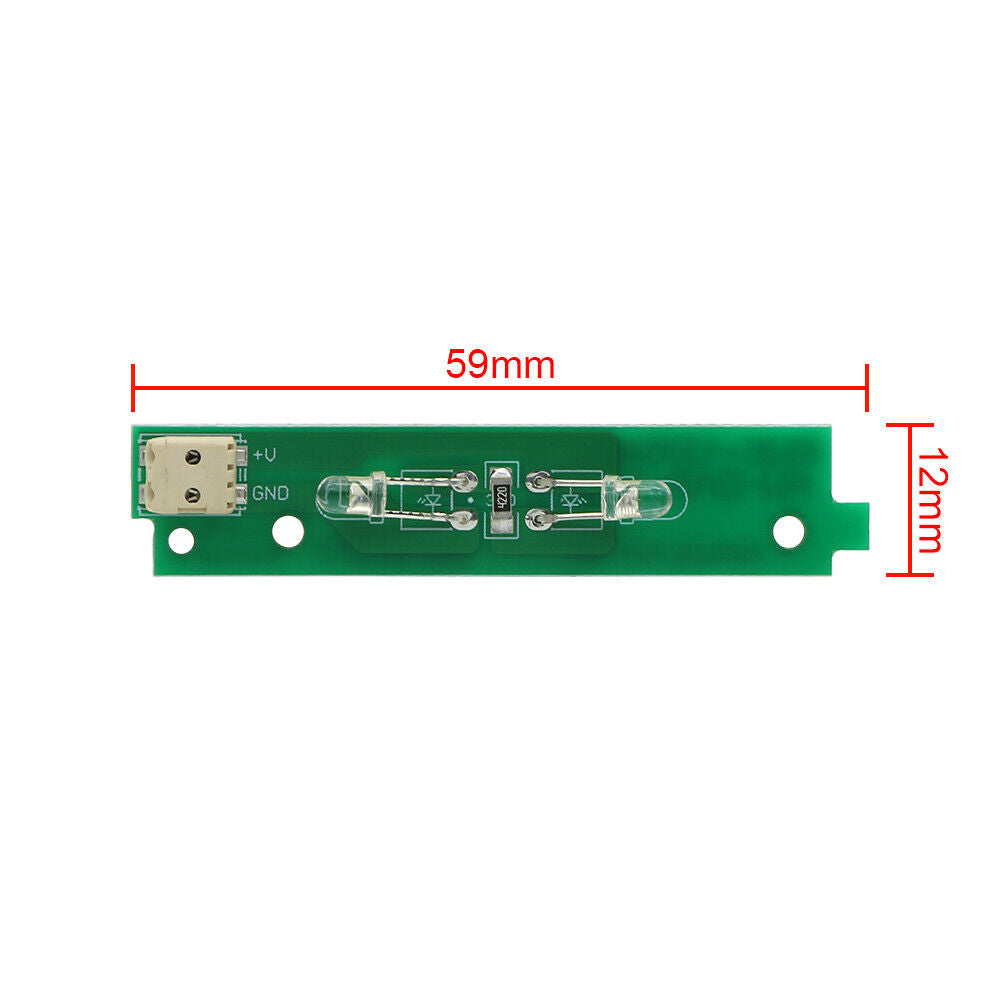

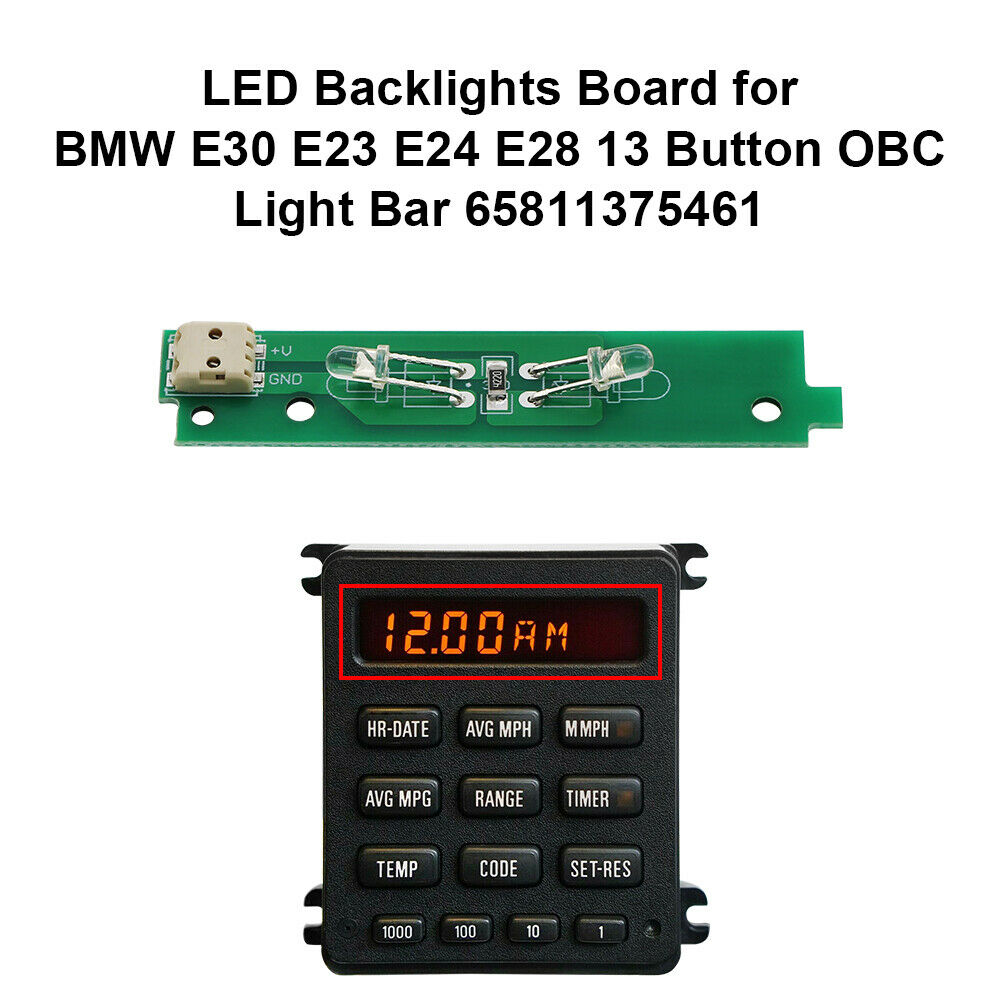

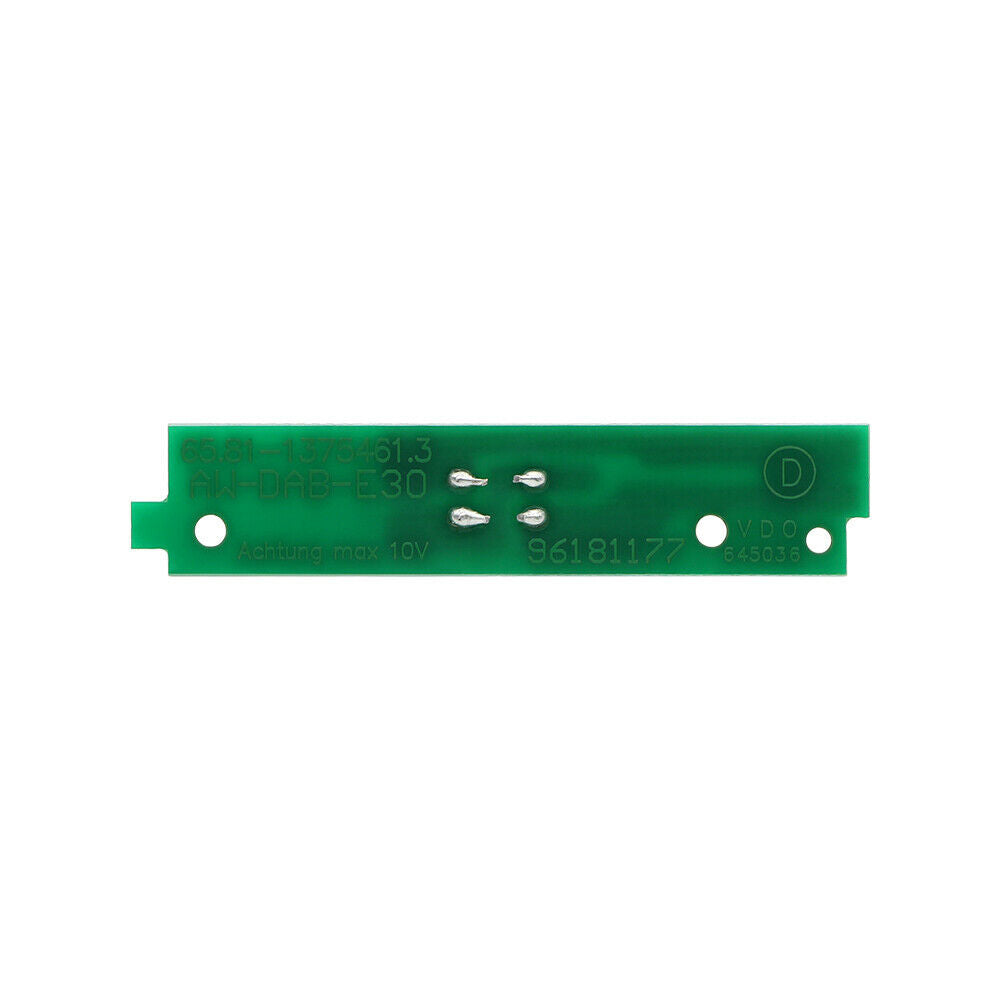

LED OBC Backlight Board for 1982-1991 BMW E23 E24 E28 E30 65811375461

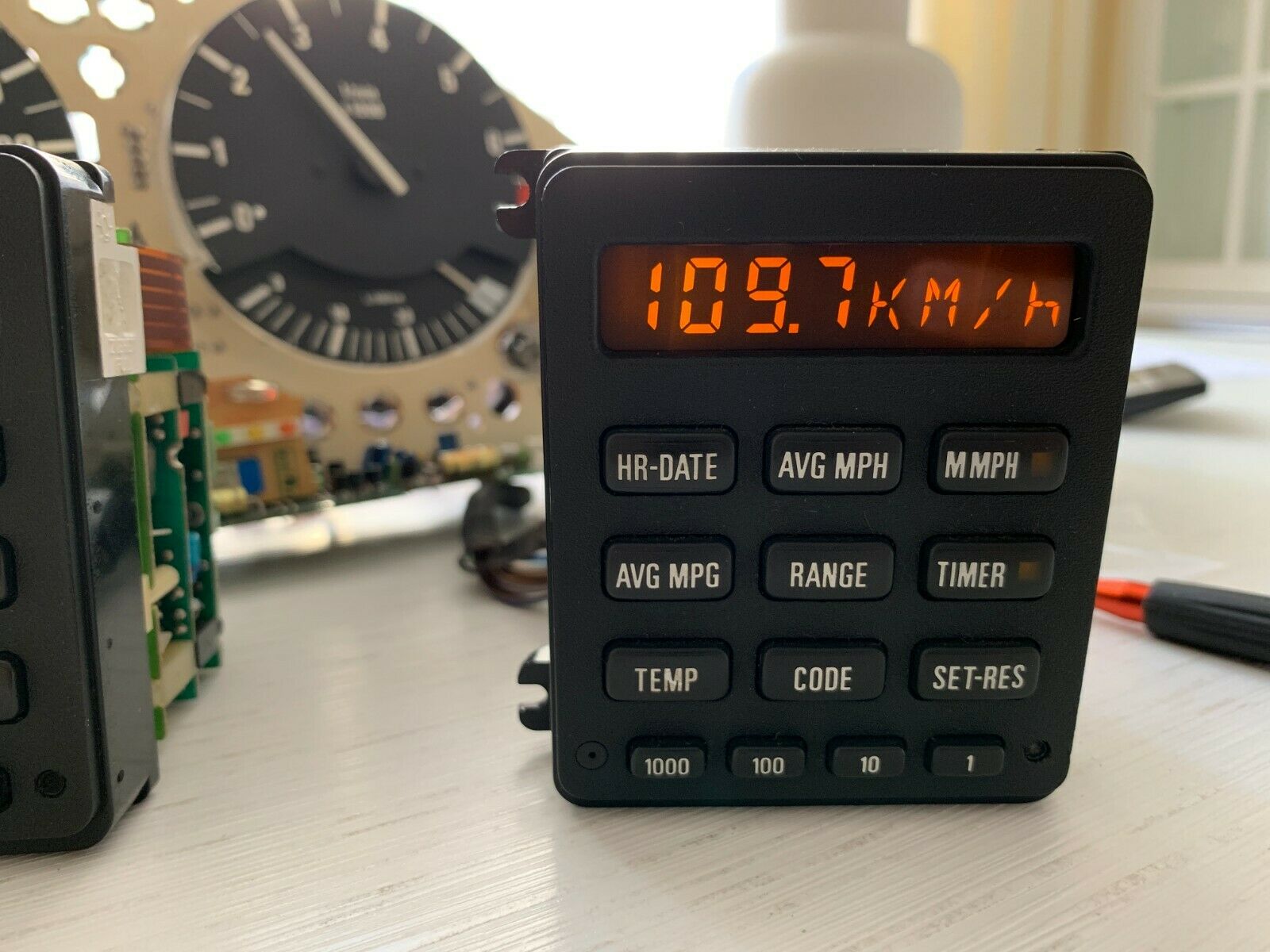

Restore the deep orange illumination of a compatible 13-button BMW on-board computer with a plug-in LED backlight board.

Product Details

• Replacement LED backlight board for 13-button OBC assemblies
• Orange illumination designed to match the factory dashboard color
• Visible in daylight and at night
• Retains moderate dimming through the vehicle dimmer in compatible applications
• White plastic housing, LCD, and complete OBC are not included

Fitment and Compatibility

Applications include 1982-1984 BMW E23 733i/735i; 1982-1984 E24 633CSi/635CSi/M6; 1982-1987 E28 528e/535i/535is/M5; and 1984-1991 E30 316/318i/325/325e/325i/325is/325ix/M3 vehicles using the matching 13-button OBC. Verify the original OBC number and board/housing configuration.

Part Number Information

Primary replacement reference: 65 81 1 375 461 / 65811375461. Compatible OBC assembly references supplied by the source include 65 81 1 373 702, 65 81 1 374 917, 65 81 1 386 393, and 65 81 1 386 400. Those assembly numbers identify OBC units rather than the LED board itself.

Package Contents

• 1 LED OBC backlight board

Installation Notes

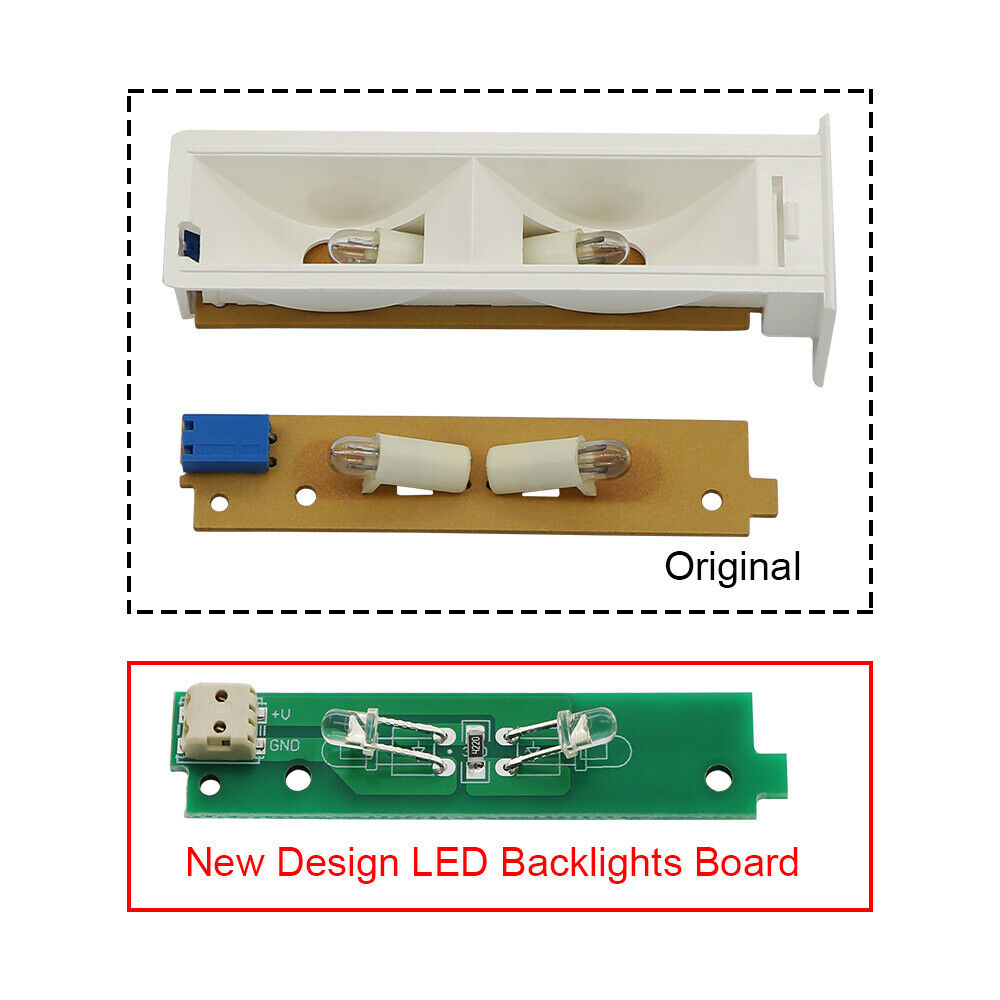

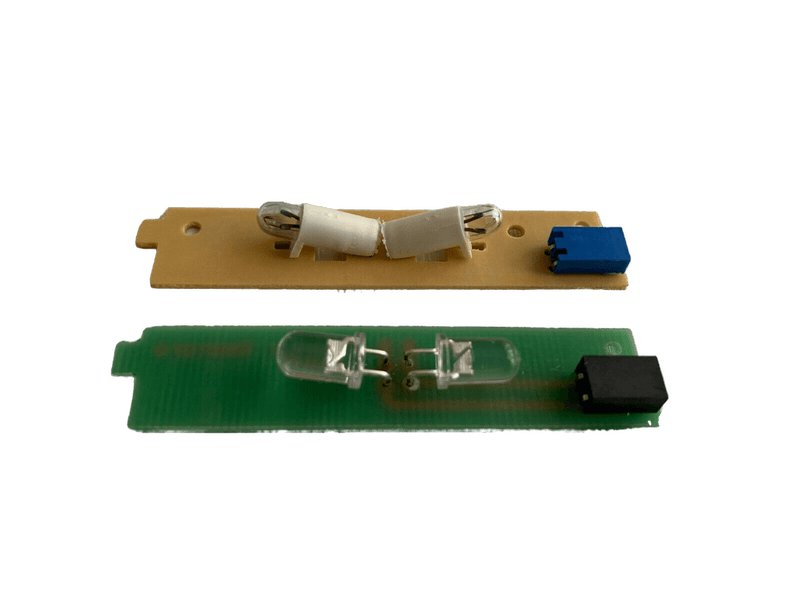

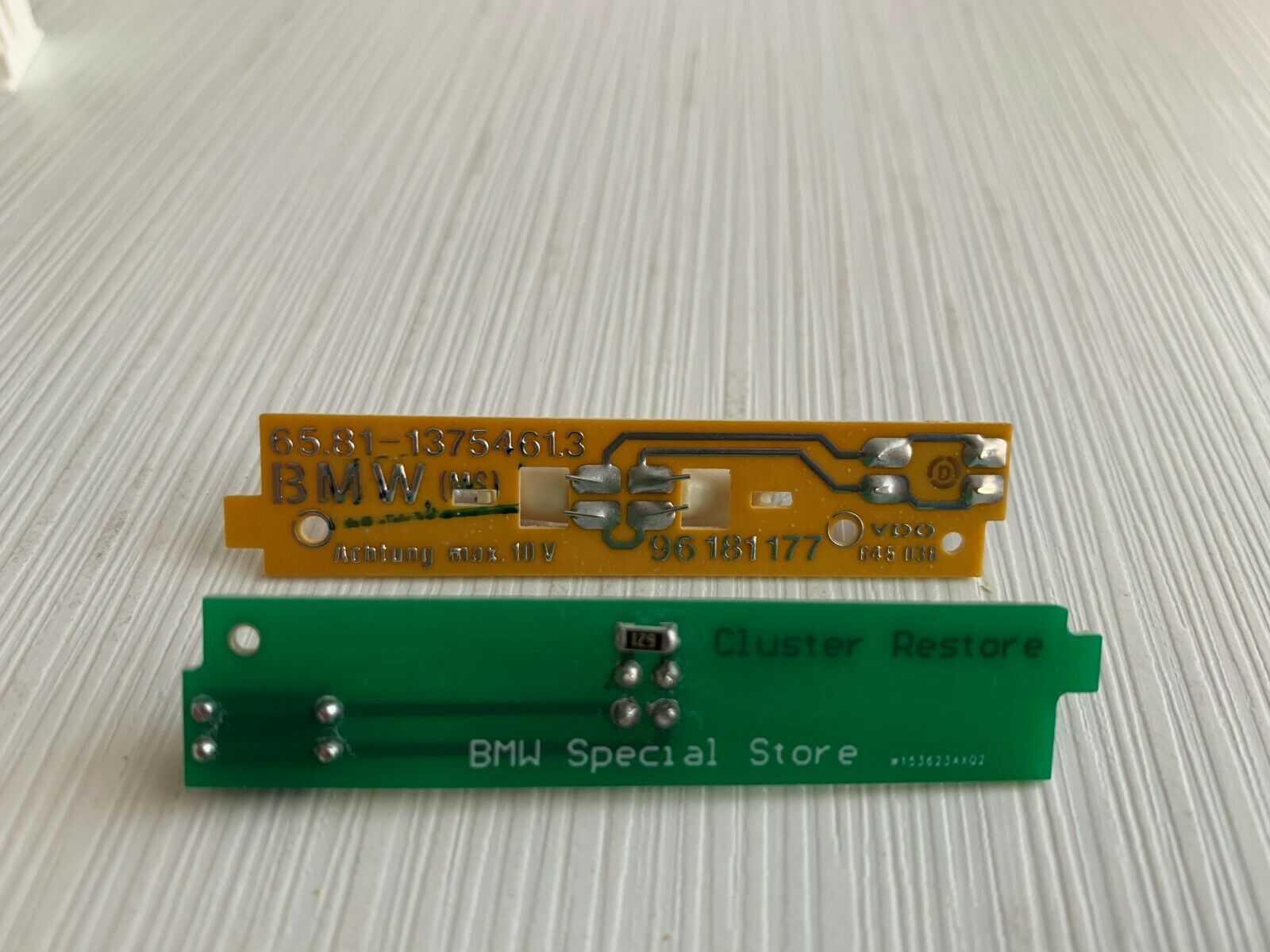

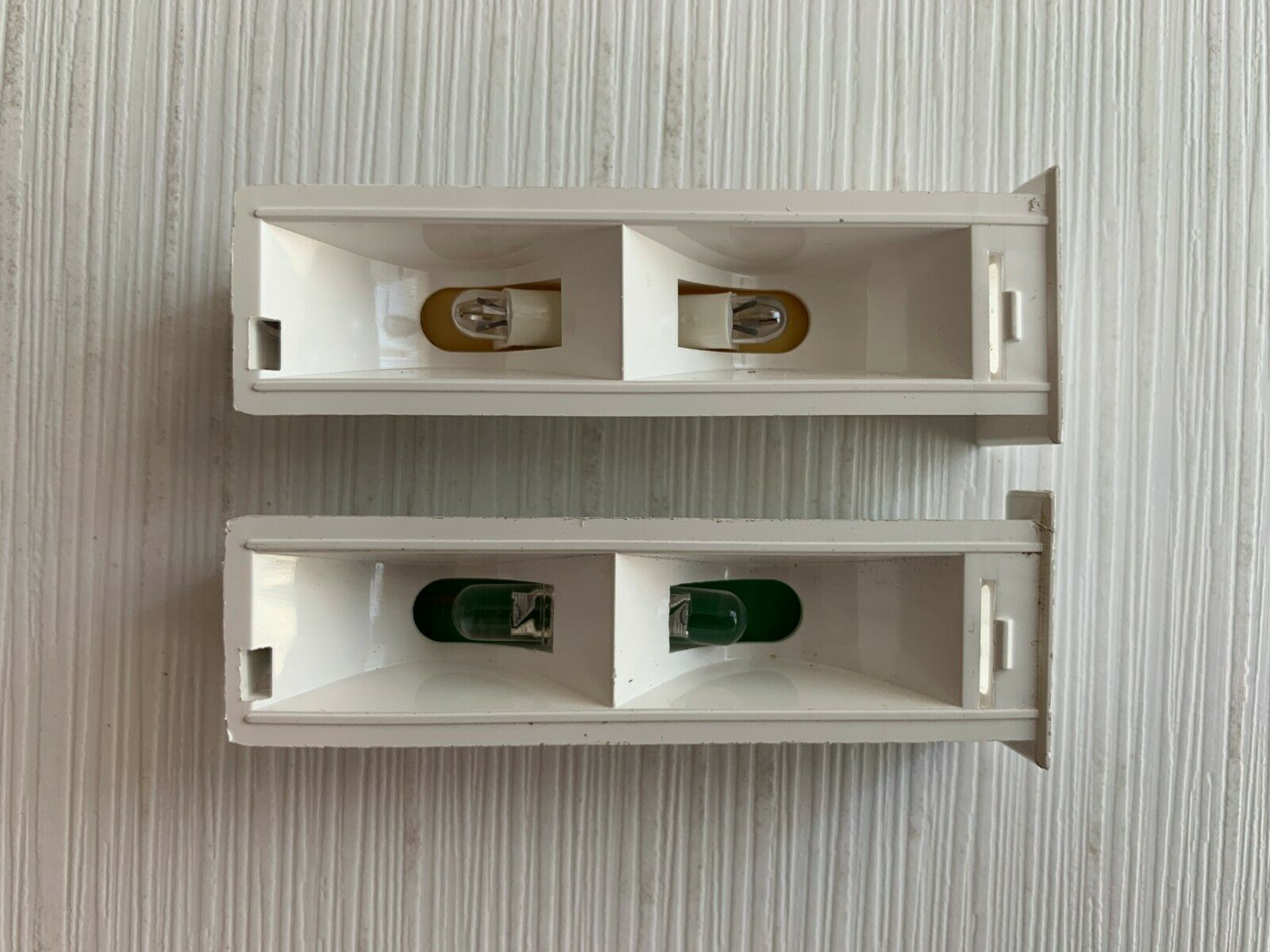

Remove the original board from the reusable white housing and install the replacement without forcing the contacts. If the LCD itself has missing pixels or physical damage, the backlight board will not repair that separate fault.
