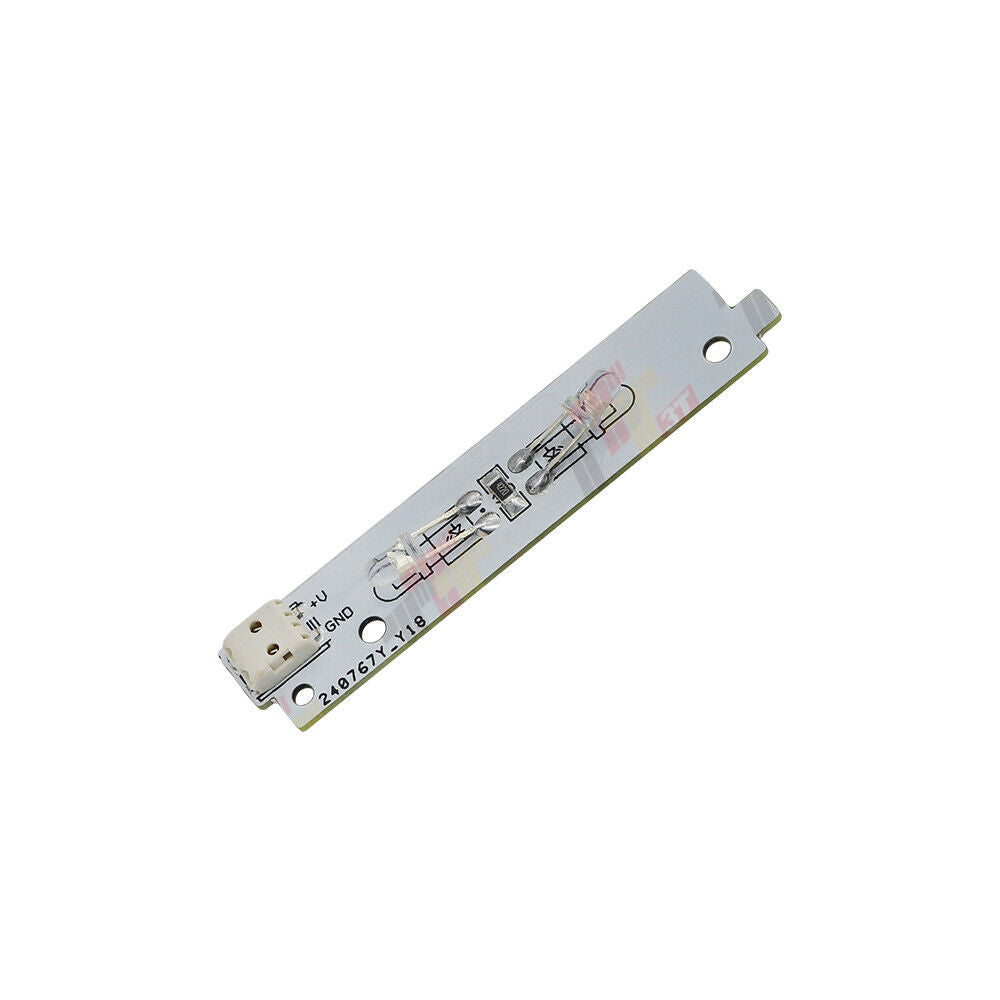

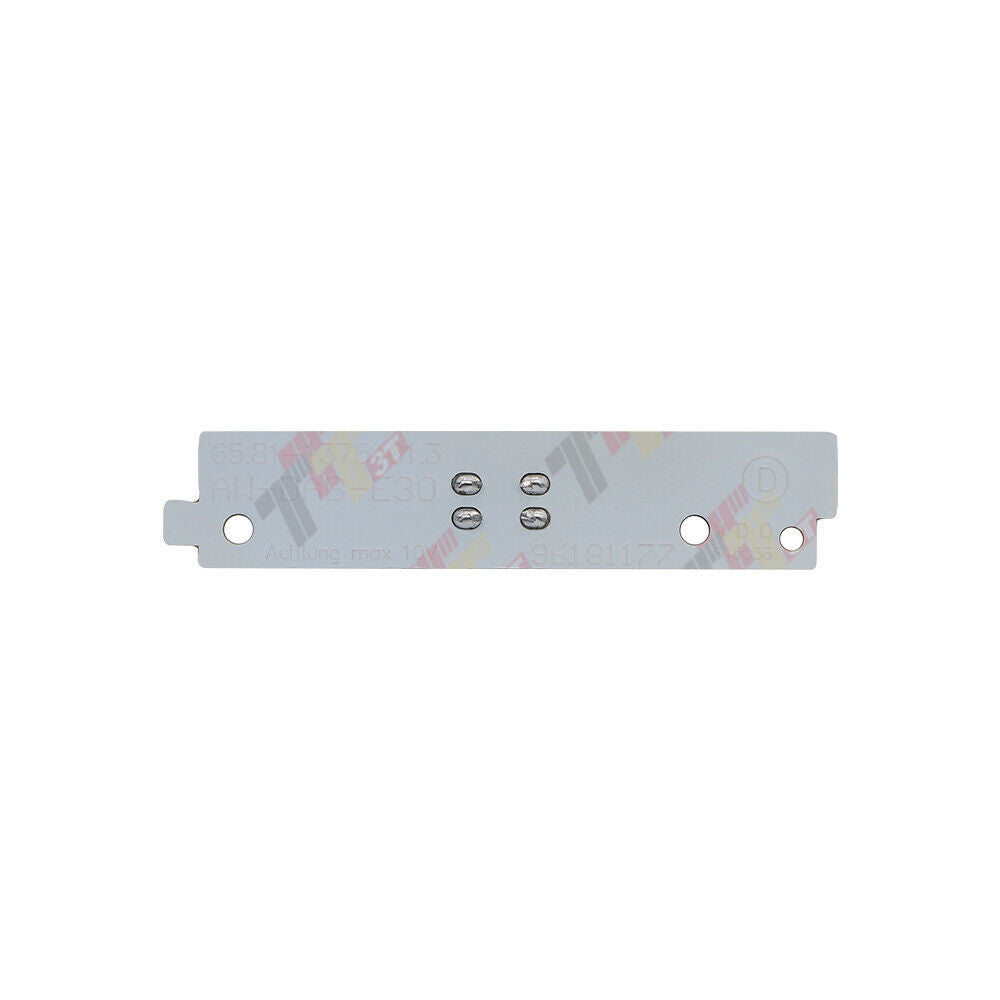

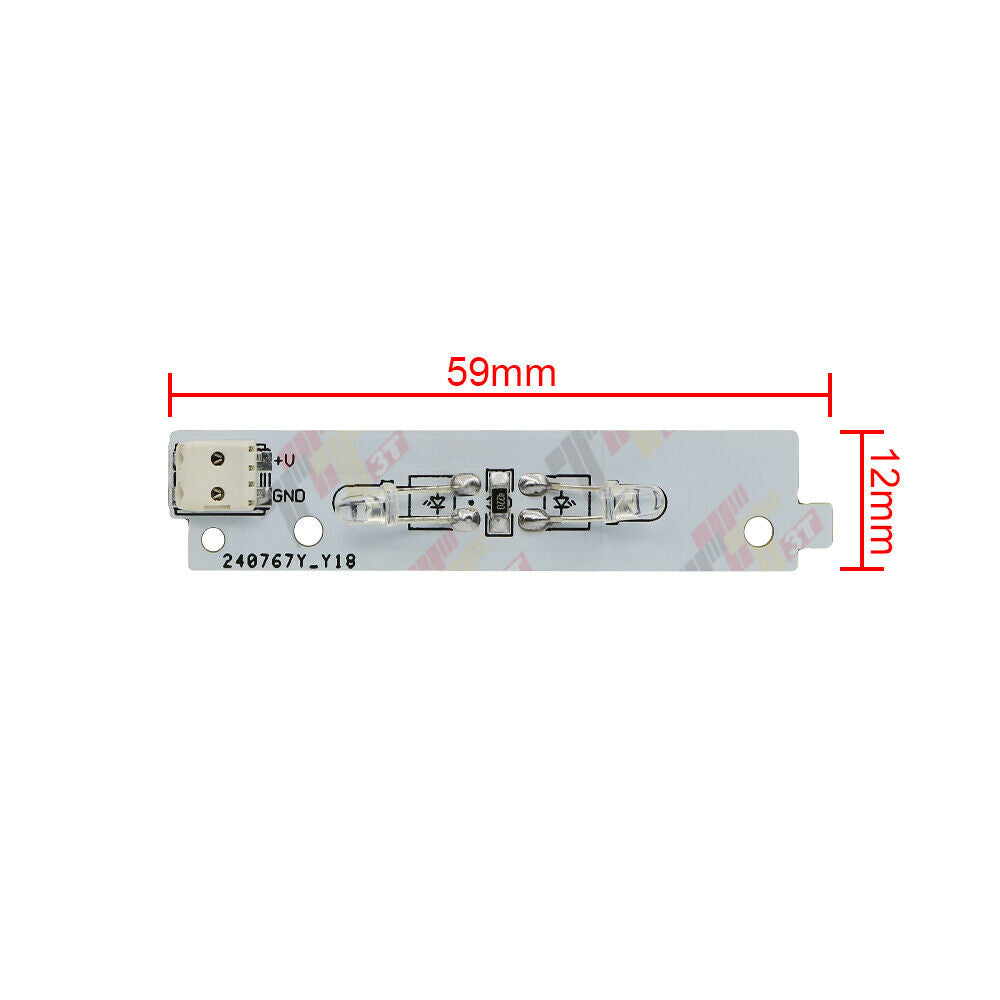

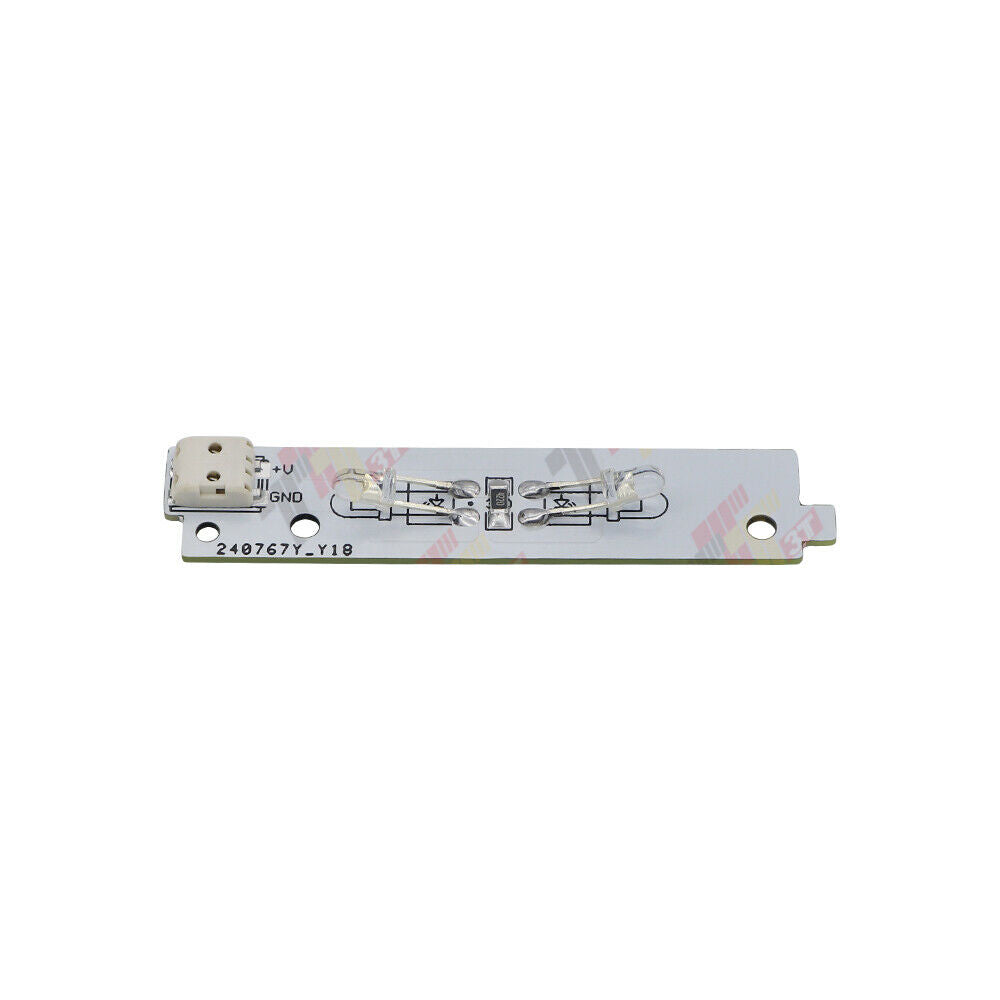

LED OBC Backlight Board for 1982-1991 BMW E23 E24 E28 E30 65811375461

Plug-in LED backlight board for restoring illumination in a compatible BMW 13-button On-Board Computer. The warm LED output is designed to match the factory dashboard appearance, remain visible in daylight and dim with the vehicle dimmer.

Product Details

• LED replacement for the original 13-button OBC light bar
• Warm factory-style illumination
• Compatible with dashboard dimming
• Plug-in board reuses the original white housing
• OBC and white housing are not included

Fitment and Compatibility

For compatible 13-button OBC units in 1982-1984 BMW E23 733i/735i; 1982-1984 E24 633CSi/635CSi/M6; 1982-1987 E28 528e/535i/535is/M5; and 1984-1991 E30 316/318i/325/325e/325i/325is/325ix/M3 applications. Match the original light-bar shape, connector and OBC type before ordering.

Part Number Information

Compatible light-bar references include 65 81 1 373 702 / 65811373702, 65 81 1 374 917 / 65811374917, 65 81 1 375 461 / 65811375461, 65811386393 and 65811386400. The source catalog displays some references with an extra trailing digit; verify the number on the original housing.

Package Contents

One LED backlight board. The 13-button OBC, original white housing and removal tools are not included.

Installation Notes

Remove the original light bar, transfer the replacement board into the existing white casing and plug it into the OBC. Disconnect vehicle power before removal and test illumination and dimming before reinstalling dashboard trim.
