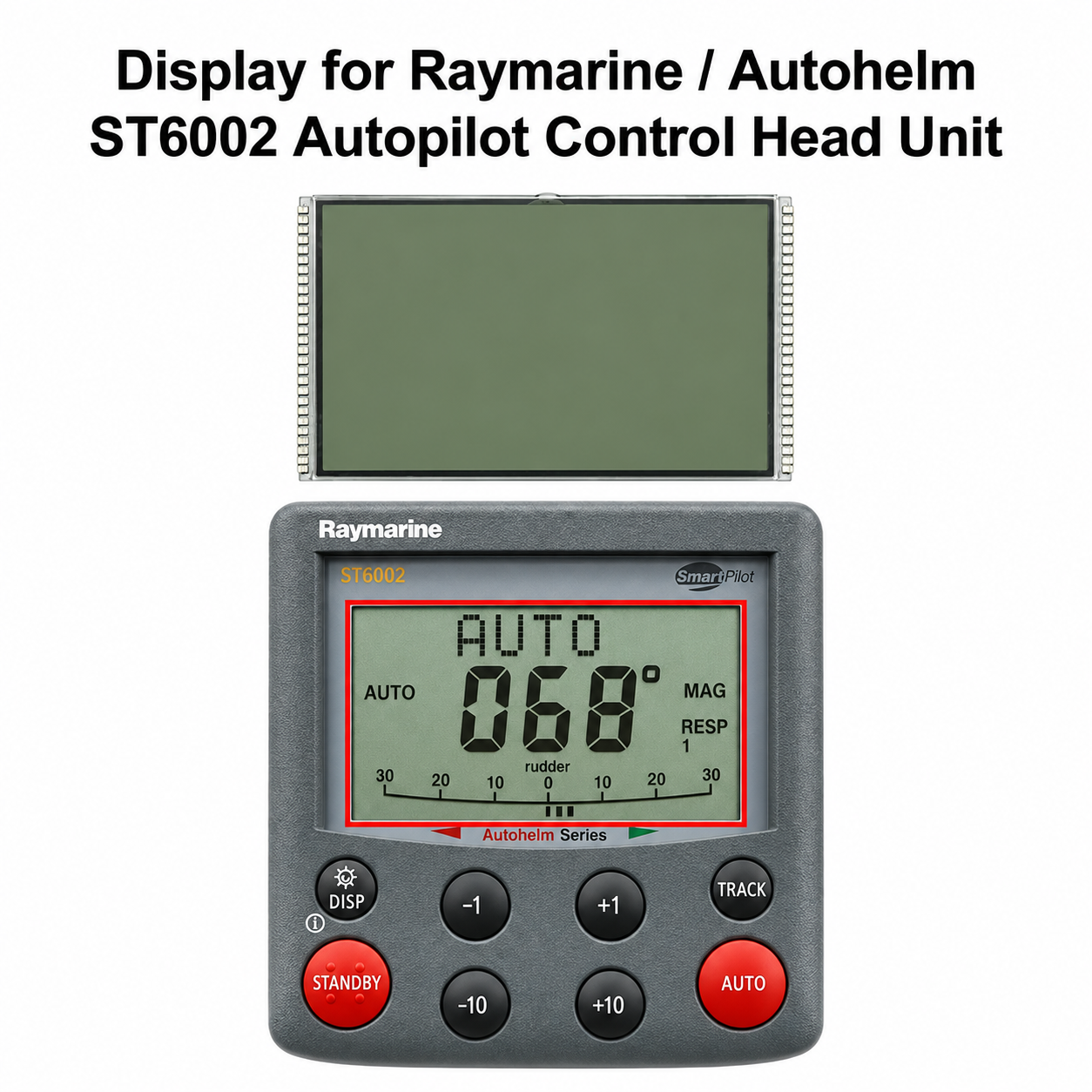

LCD Screen for Raymarine Autohelm ST6002 Autopilot Control Head E12098-P
Restore the display in your Raymarine ST6002 SmartPilot autopilot controller with this replacement LCD screen. It is designed for professional repair of a control head with a faded, damaged, discolored, or unreadable original display.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

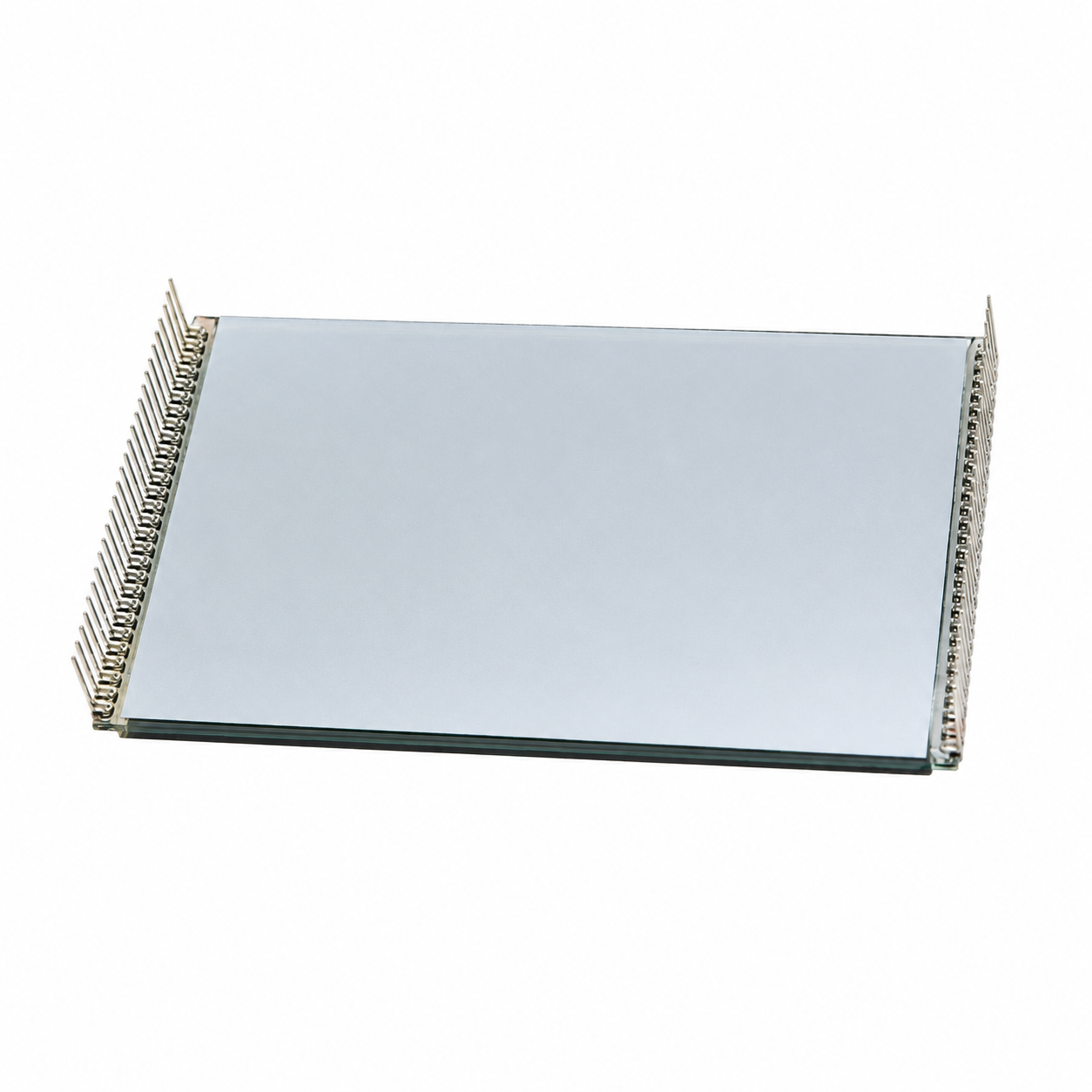

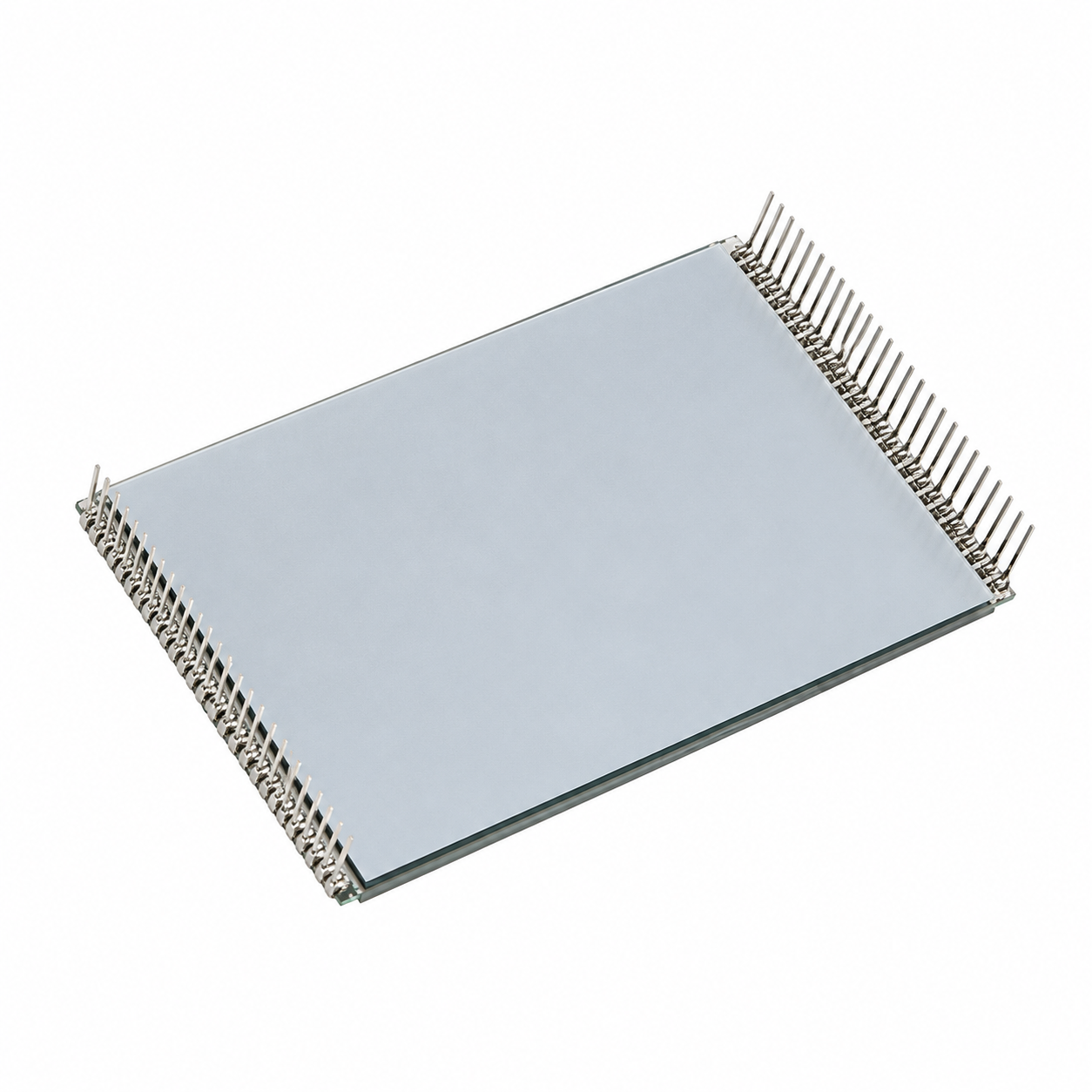

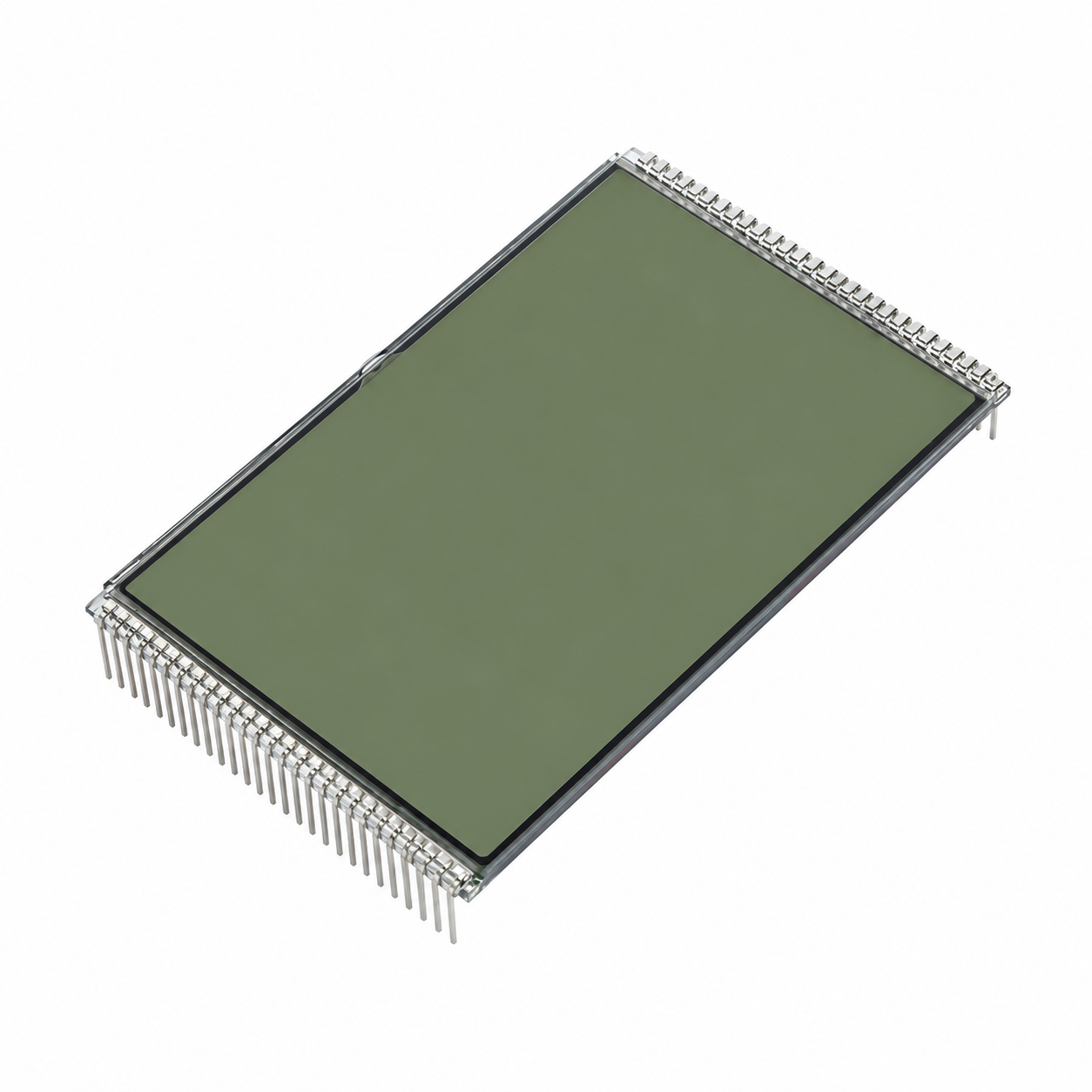

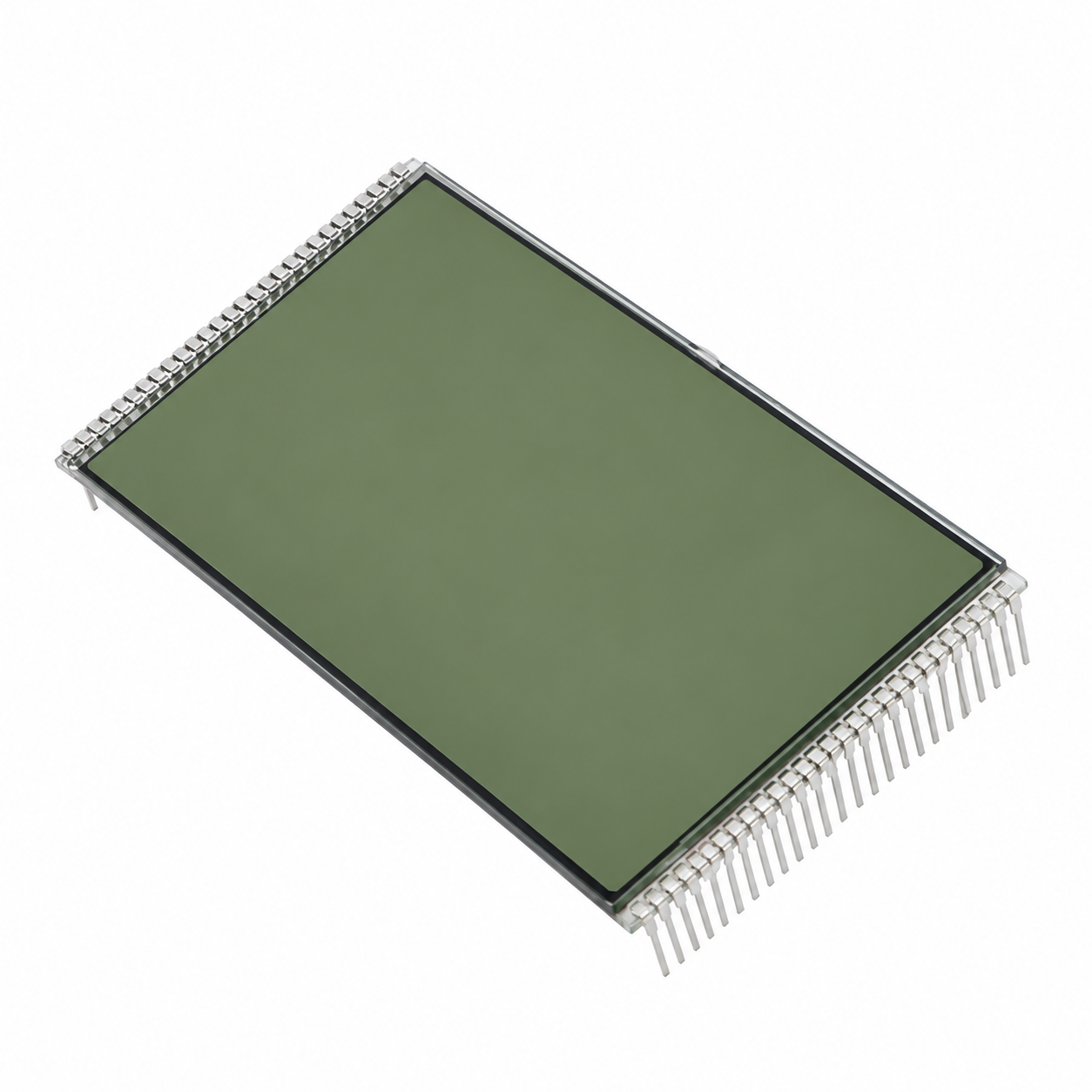

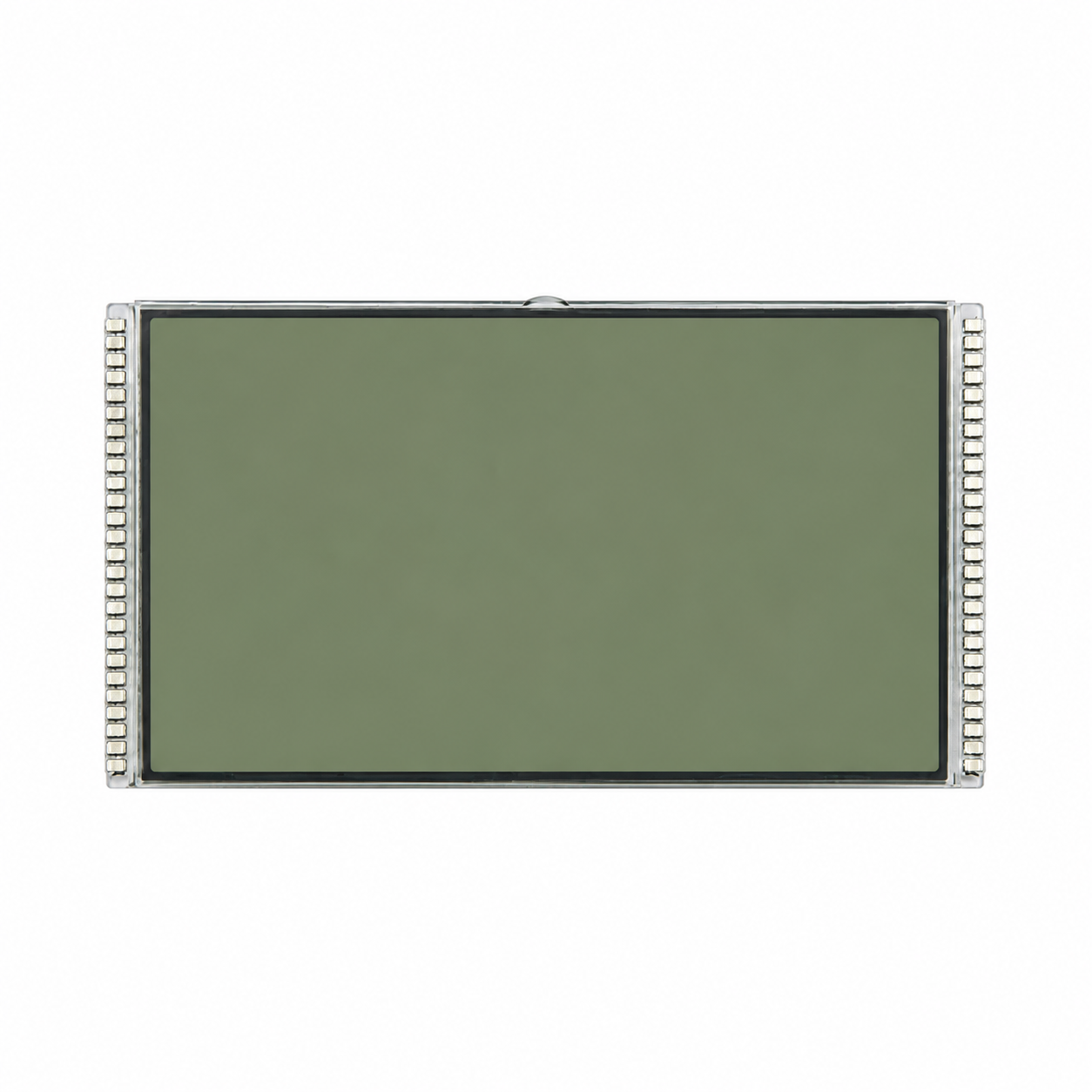

• Product type: Replacement LCD screen
• Application: Marine autopilot control-head repair
• Compatible brand: Raymarine / Autohelm
• Compatible model: ST6002 SmartPilot Controller
• Control-head reference number: E12098-P

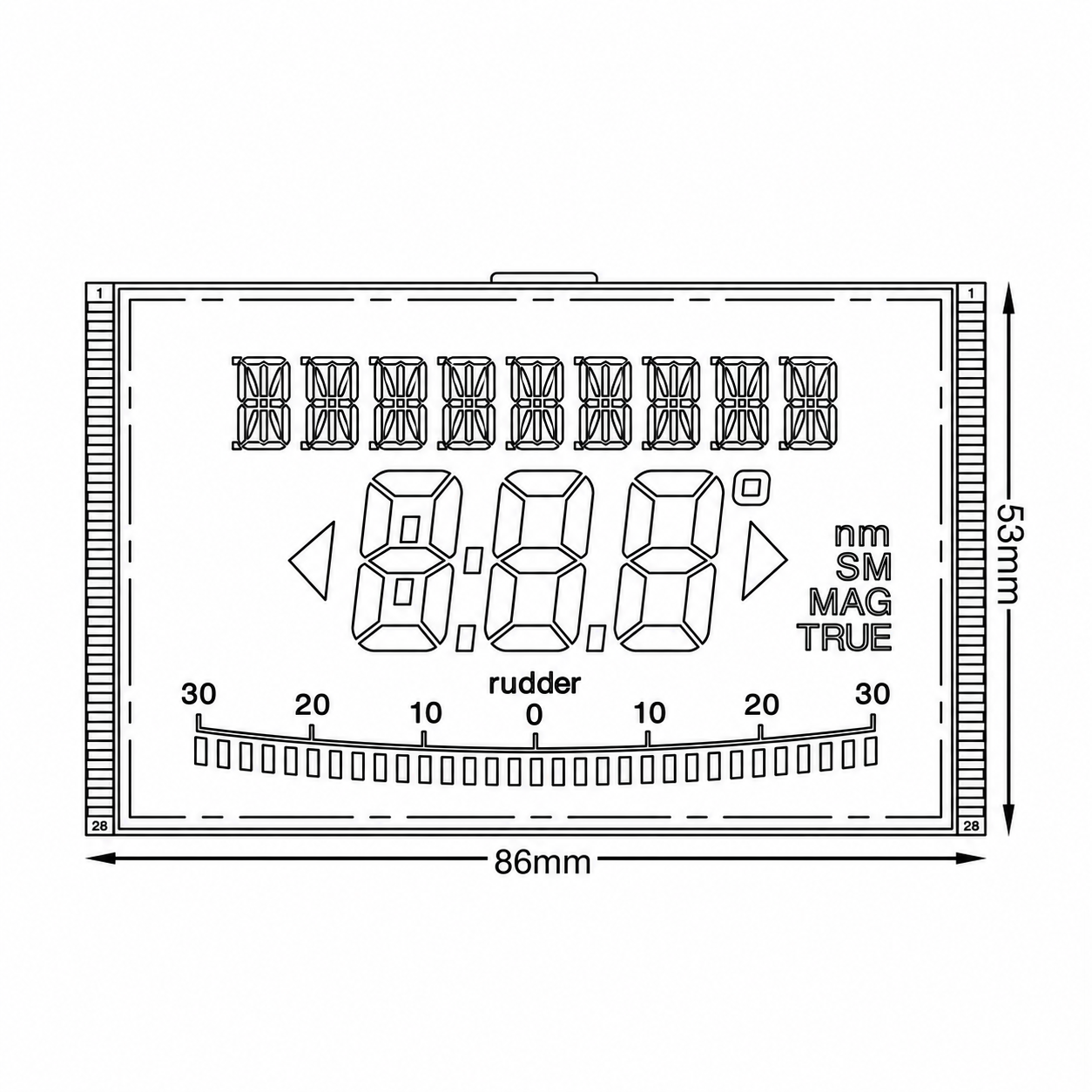

• Screen dimensions: Approximately 86 × 53 mm
• Condition: New
• Quantity: One LCD screen
• Installation method: Internal soldered installation
• Complete controller included: No
𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻
E12098-P is a reference number for the complete Raymarine ST6002 control head. It is provided to help identify the intended application; it is not a confirmed standalone Raymarine part number for the replacement LCD panel.
Raymarine documentation also associates E12100-P with an ST6002 controller variant. Because internal screen configurations may vary, compatibility with E12100-P should be confirmed by comparing the original screen dimensions, connections, and layout before ordering.
𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
Designed for:
• Raymarine ST6002 SmartPilot autopilot control head
• Autohelm-branded ST6002 applications with the matching 86 × 53 mm display
• Reference control-head number E12098-P
This LCD is not automatically interchangeable with the following units:
• ST6000 or ST6000+
• ST6001 or ST6001+
• ST7001, ST7002, ST8001, or ST8002
• p70, p70R, p70s, or p70Rs
• Complete SmartPilot course computers
Some of these control heads can operate on similar SeaTalk autopilot systems, but that does not mean their internal LCD panels are interchangeable.
𝗕𝗲𝗳𝗼𝗿𝗲 𝗢𝗿𝗱𝗲𝗿𝗶𝗻𝗴
Remove and inspect the original display whenever possible. Compare:
• Control-head model number
• Screen dimensions
• Electrical contact and connection arrangement
• Polarizer orientation
• Mounting position
• PCB and housing layout
Model and control-head compatibility alone cannot confirm the internal LCD configuration.
𝗖𝗼𝗺𝗺𝗼𝗻 𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿
• Faded or weak display image
• Missing or incomplete LCD segments
• Dark spots, bleeding, or discoloration
• Cracked display glass
• Display damage caused by age, heat, sunlight, or moisture
𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿
• A failed backlight or illumination circuit
• No power to the control head
• Damaged buttons or keypad contacts
• Circuit-board corrosion or water damage
• SeaTalk communication faults
• Faults in the autopilot computer, compass, rudder sensor, or drive system
Proper diagnosis is recommended before replacing the screen.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Installation requires opening the control head and performing precision desoldering and soldering. The display is a delicate electronic component that can be damaged by excessive heat, static electricity, contamination, incorrect alignment, or uneven pressure.
Professional installation by an experienced marine-electronics or instrument-cluster technician is strongly recommended. Disconnect vessel power before removing or servicing the controller.
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀
• One replacement LCD screen
The Raymarine control head, front housing, buttons, circuit board, backlight, wiring, and other components shown for installation reference are not included.
