Transfer Case Actuator Repair Kit for 2003-2014 BMW X3 X5 X6 27102413711

New internal repair kit for compatible BMW transfer-case actuator assemblies used in select X3, X5 and X6 xDrive applications.

Product Details

• Repairs common internal actuator wear without replacing the complete motor assembly
• Includes the drive gear and related service components
• For compatible transfer-case actuator versions only
• Complete actuator motor and transfer case are not included

Fitment and Compatibility

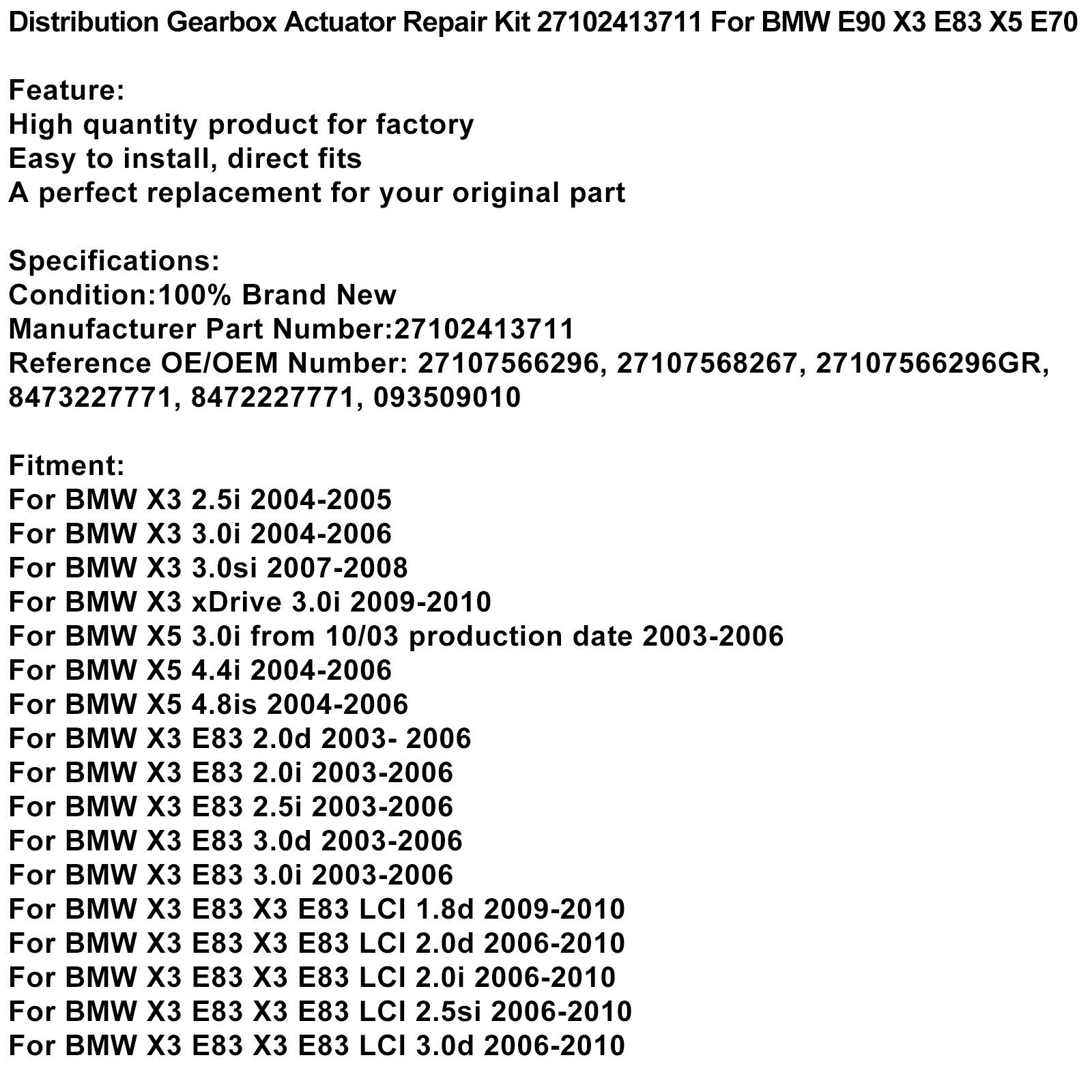

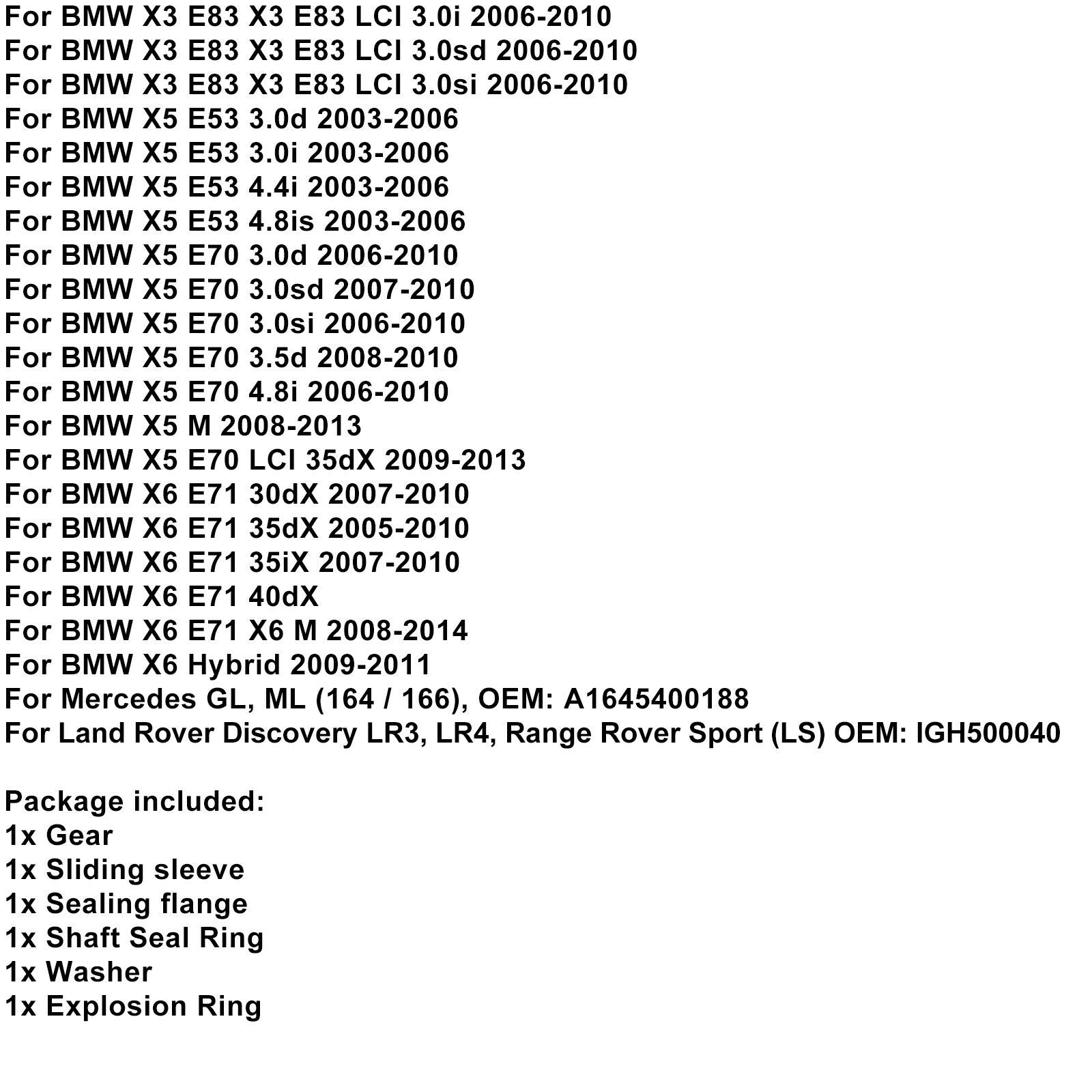

For select 2003-2014 BMW X3 E83, X5 E53/E70 and X6 E71 applications equipped with a matching xDrive transfer-case actuator. Common applications include E83 X3 2.0i/2.0d/2.5i/3.0i/3.0d/3.0si, E53 X5 3.0i/3.0d/4.4i/4.8is, E70 X5 and E71 X6 variants. Production date, transfer-case model and actuator design must be verified before ordering.

Part Number Information

Repair-kit reference: 27 10 2 413 711 / 27102413711

Compatible actuator/application references include: 27107566296, 27107568267, 8473227771, 8472227771 and 093509010.

Reference numbers may identify complete actuator assemblies or application families; match the original hardware and internal gear design.

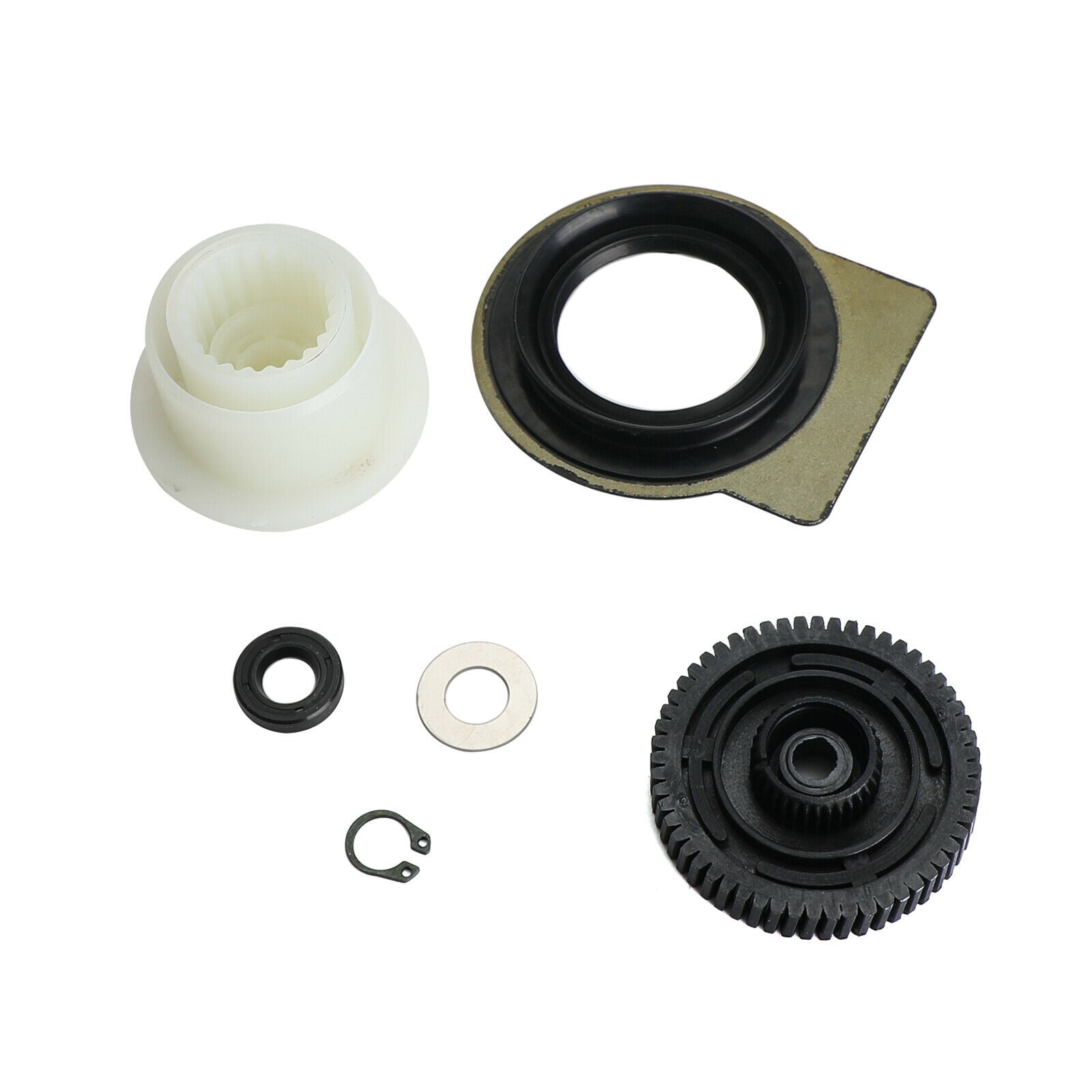

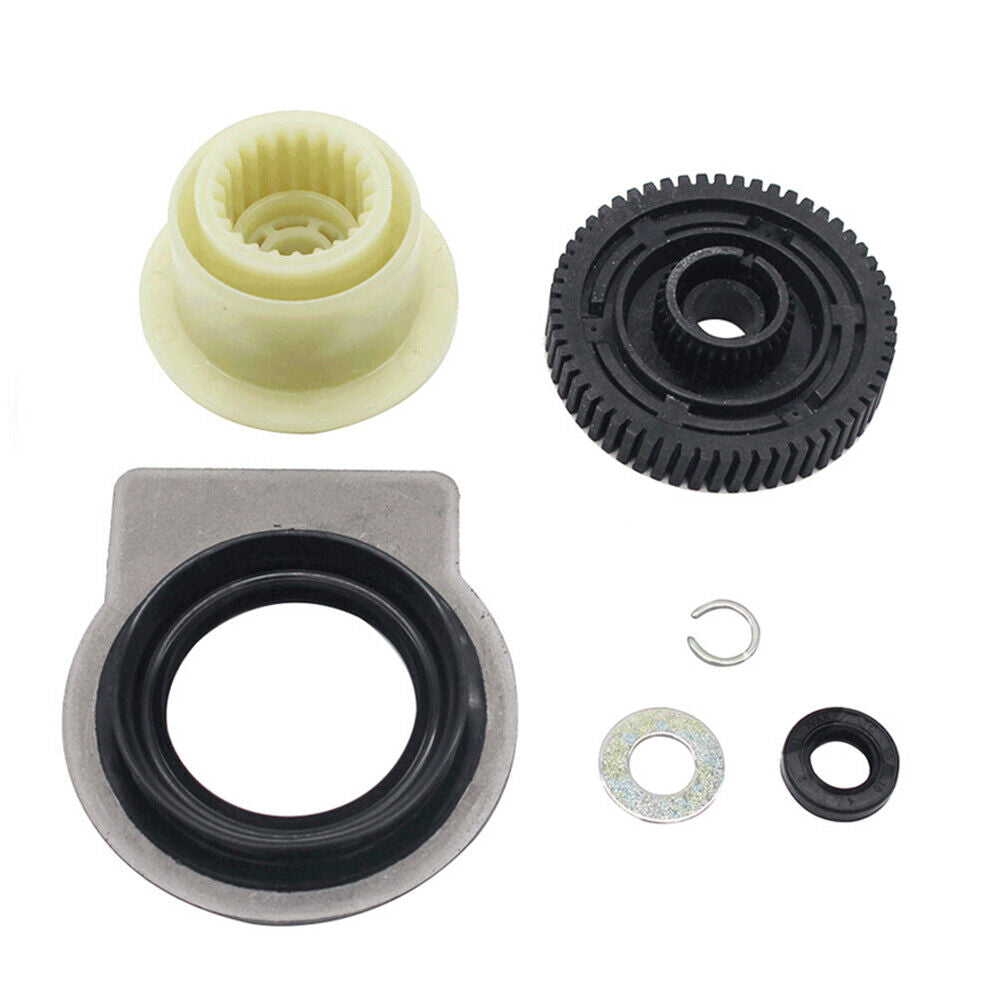

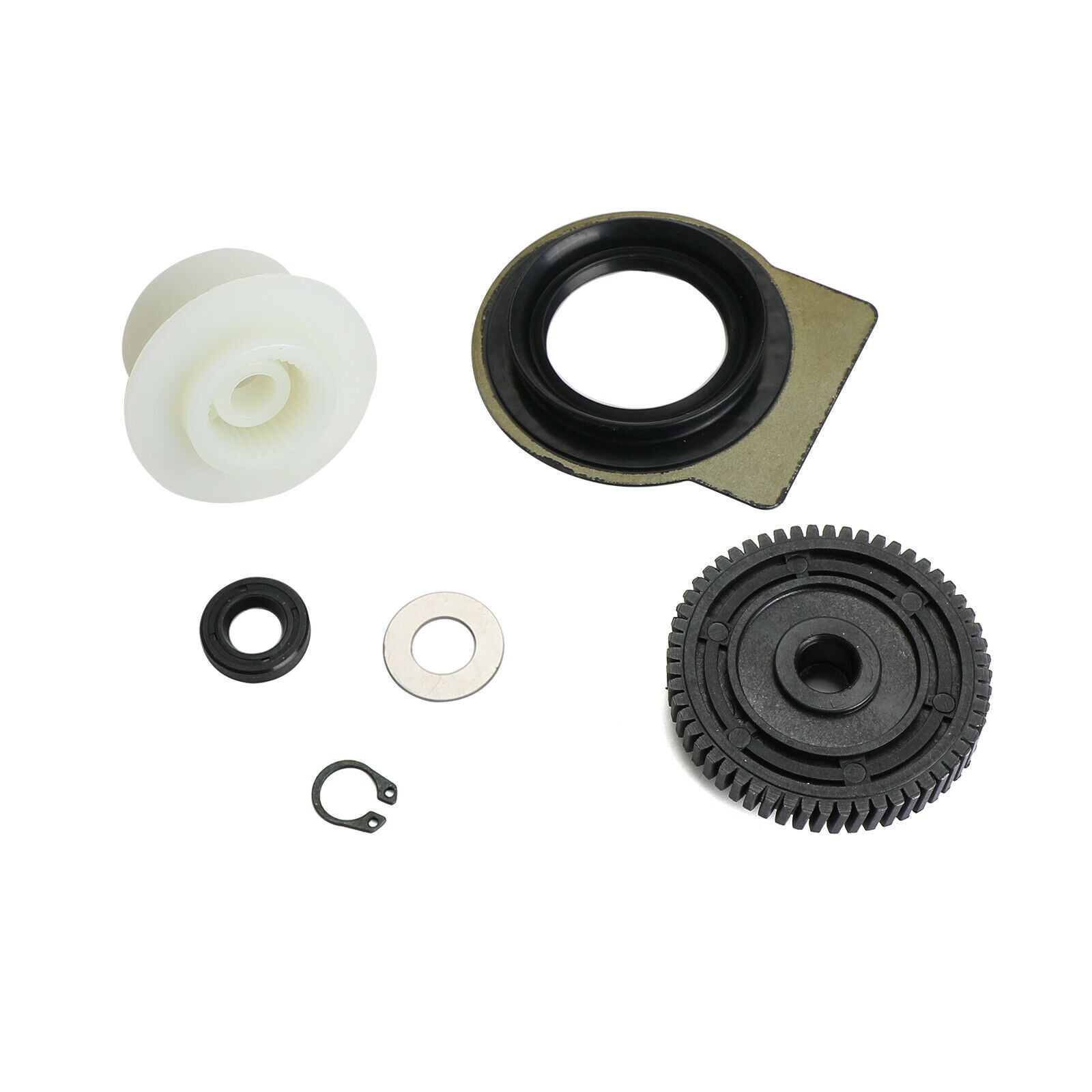

Package Contents

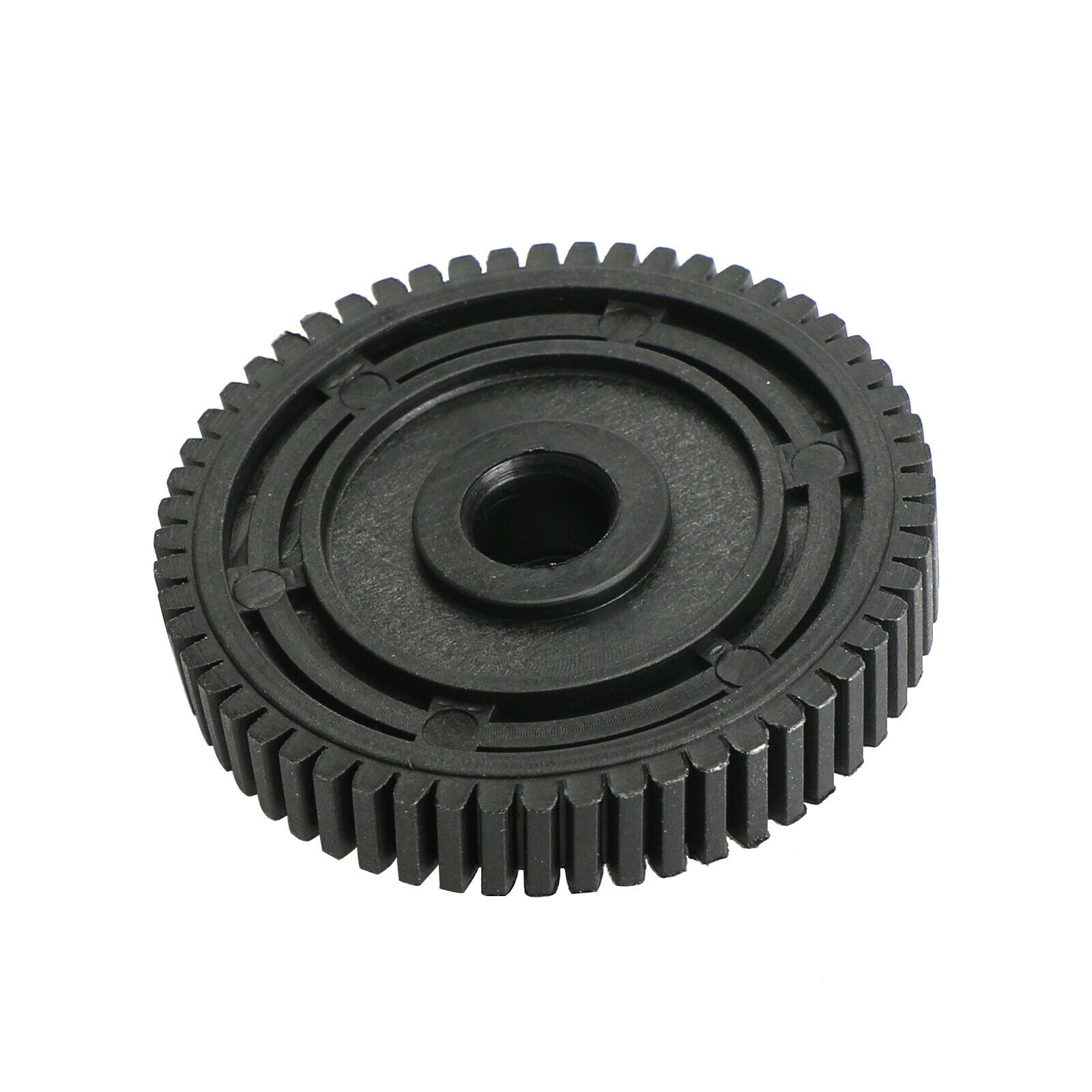

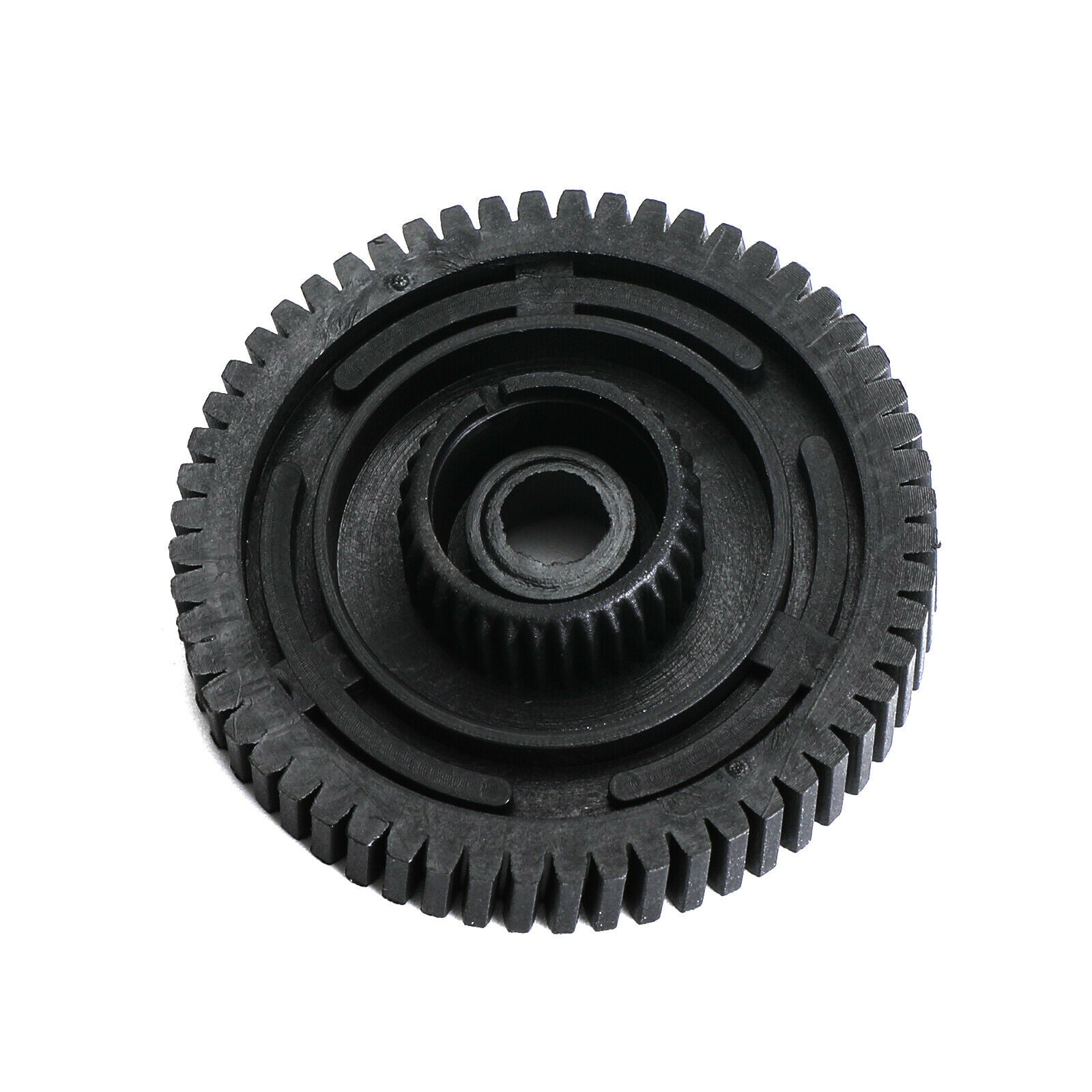

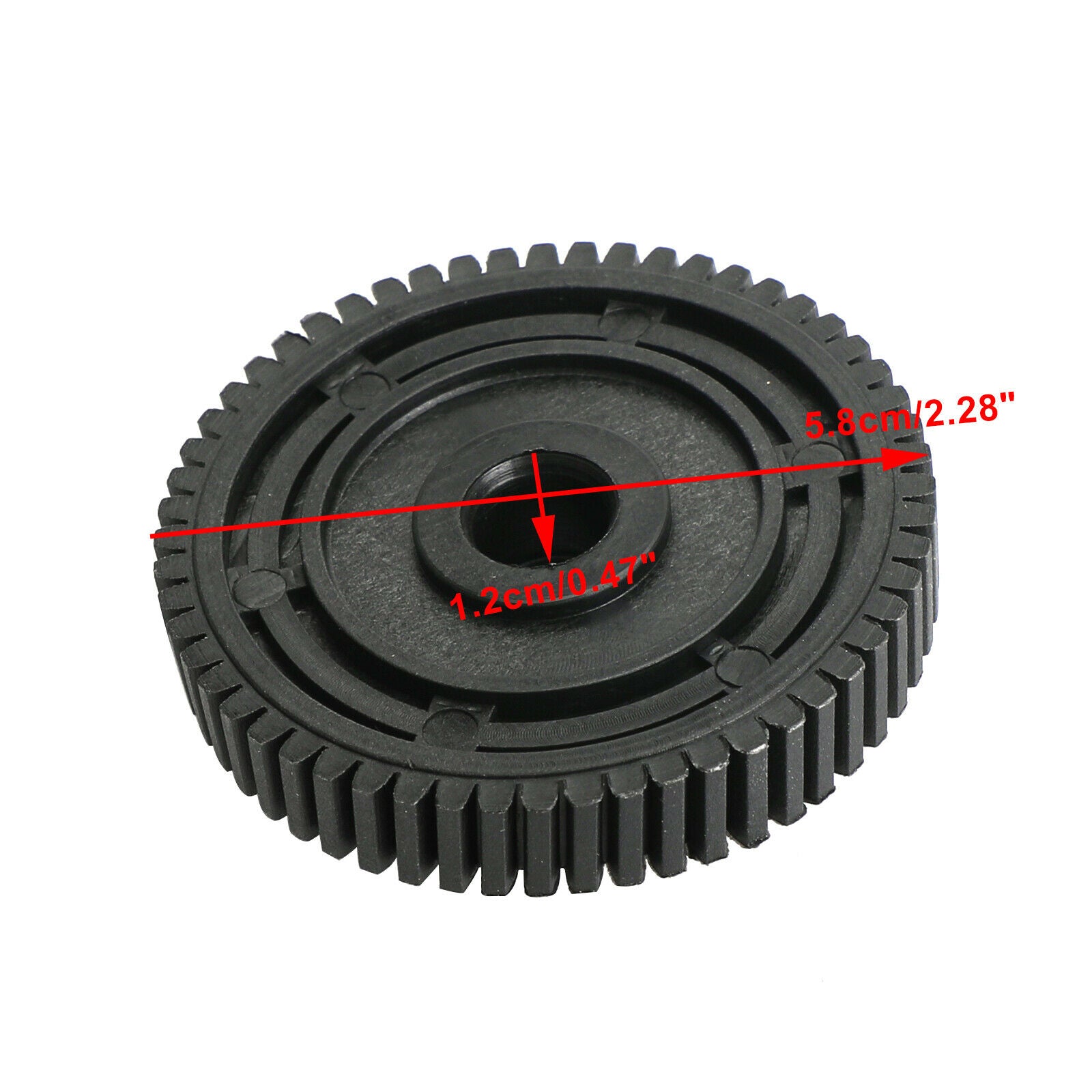

• 1 actuator gear

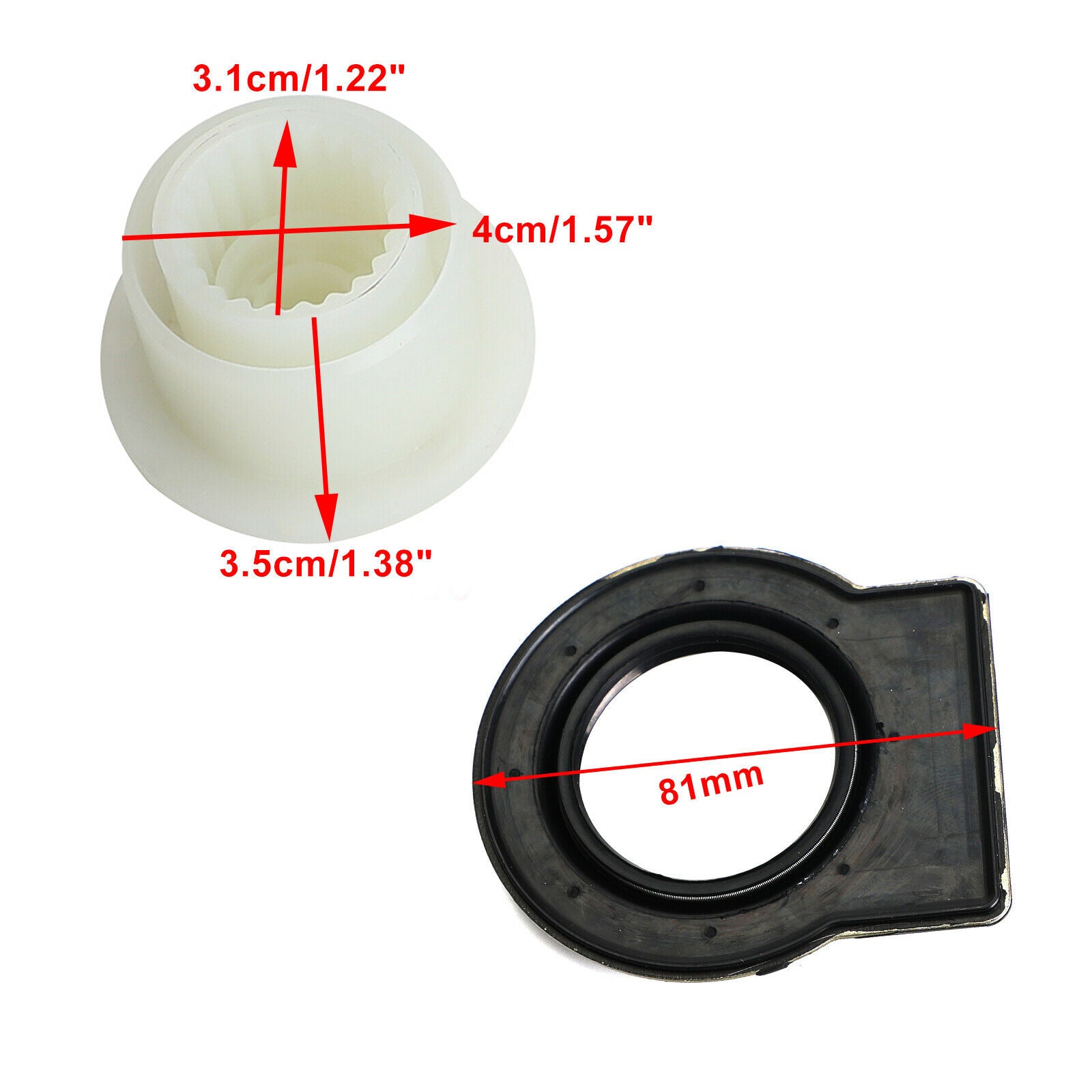

• 1 sliding sleeve

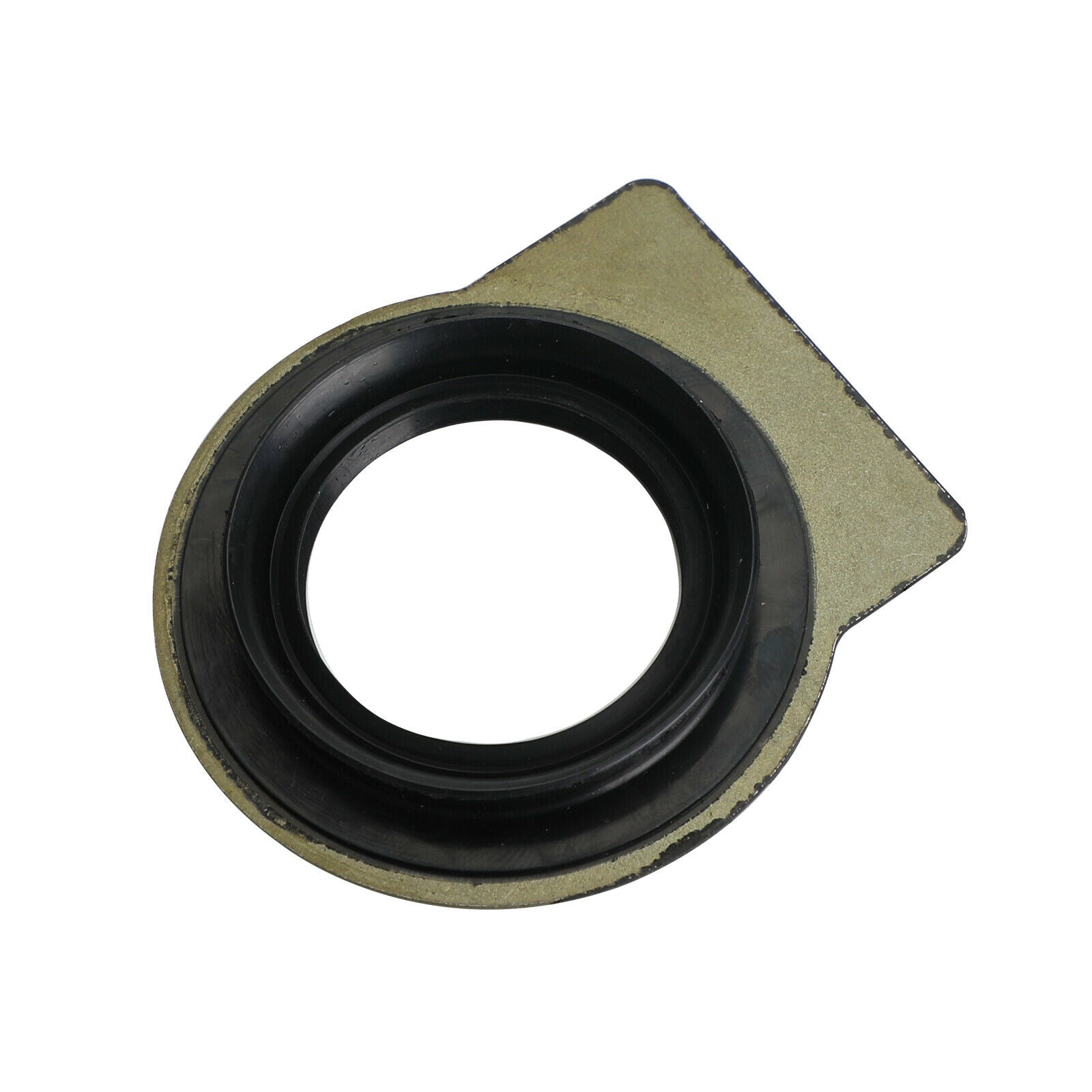

• 1 sealing flange
• 1 shaft seal ring
• 1 washer
• 1 retaining ring

Installation Notes

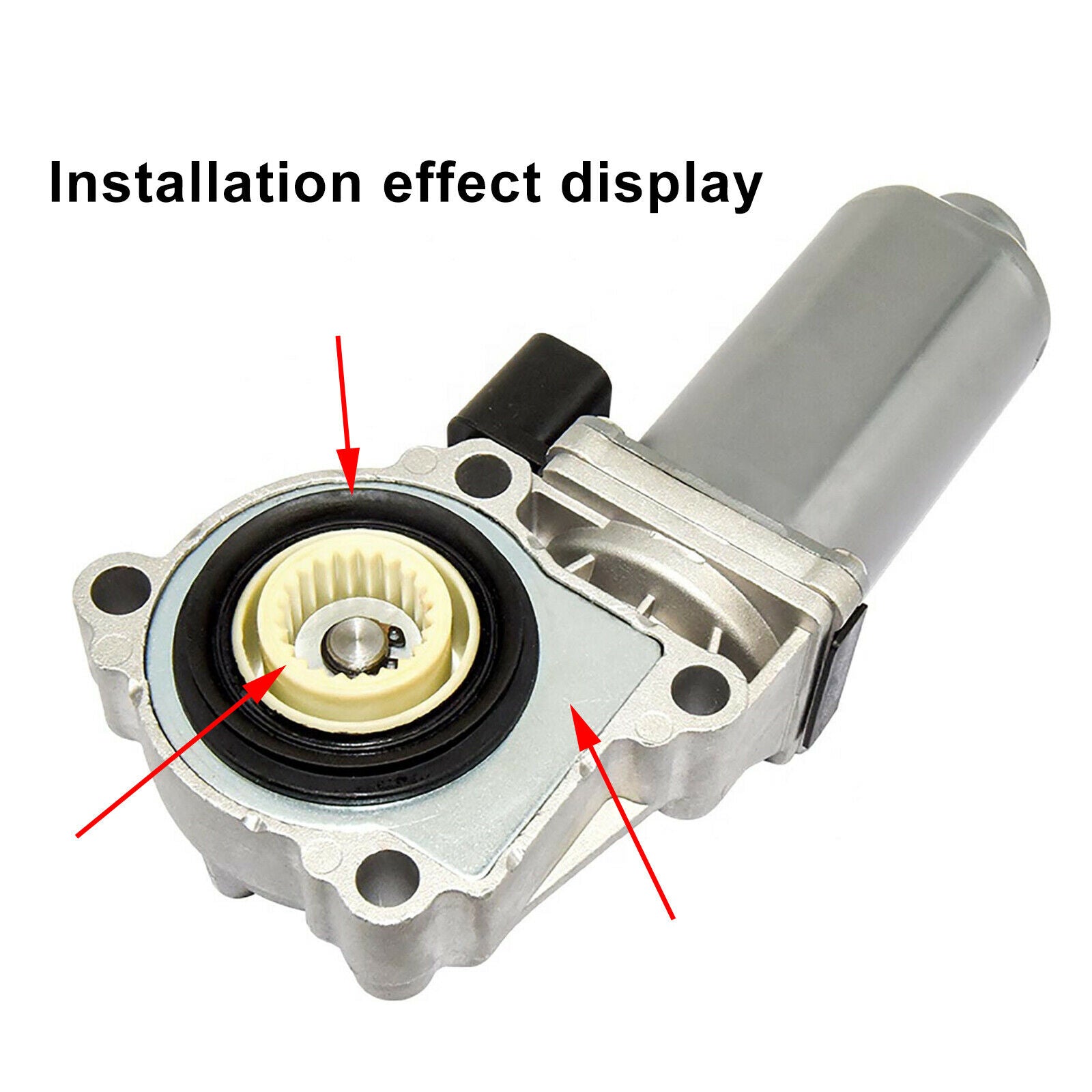

Remove and open the actuator carefully, mark gear positions and inspect the motor and position sensor before reassembly. Replace seals as supplied and verify transfer-case operation with suitable BMW diagnostic equipment. Professional drivetrain service is recommended.
