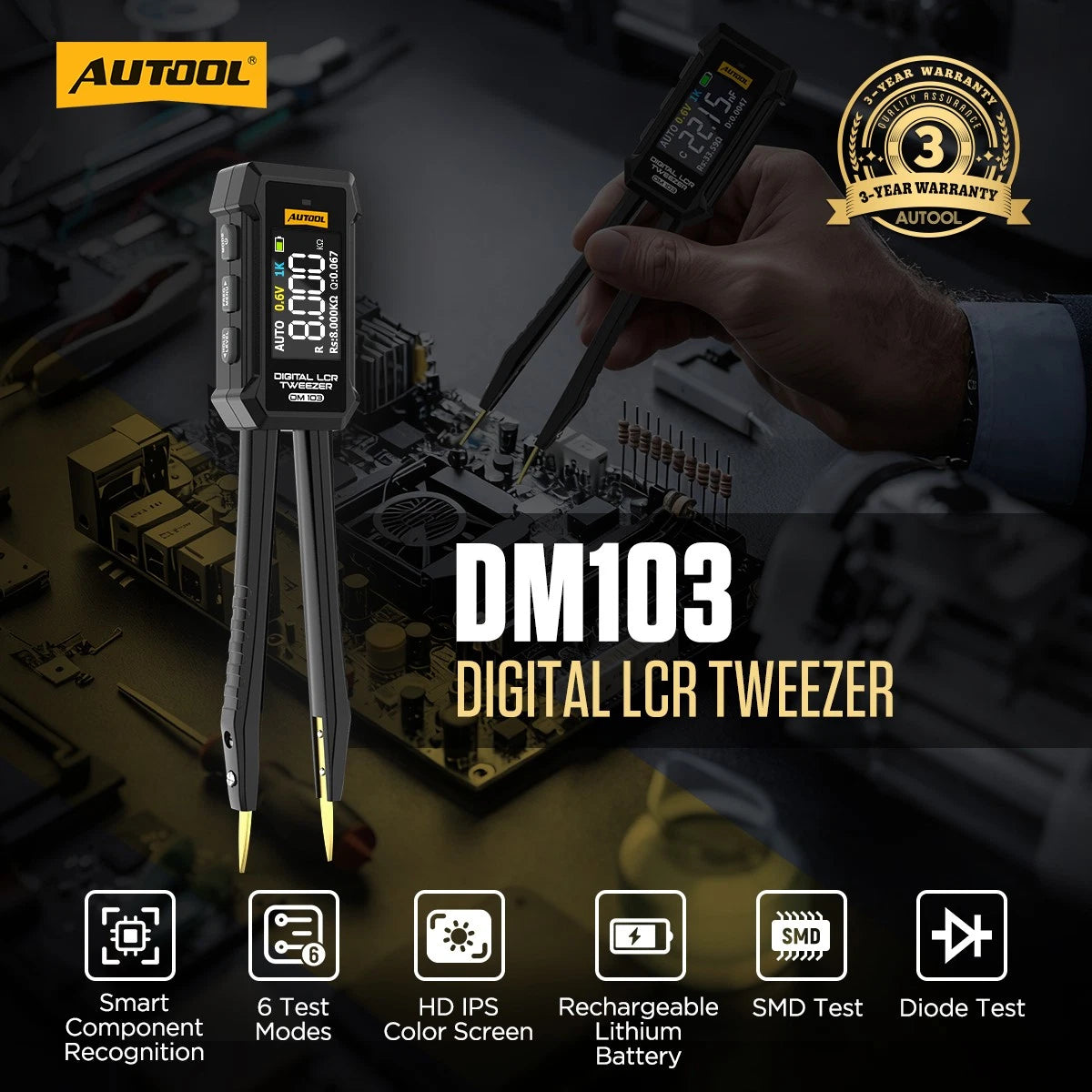

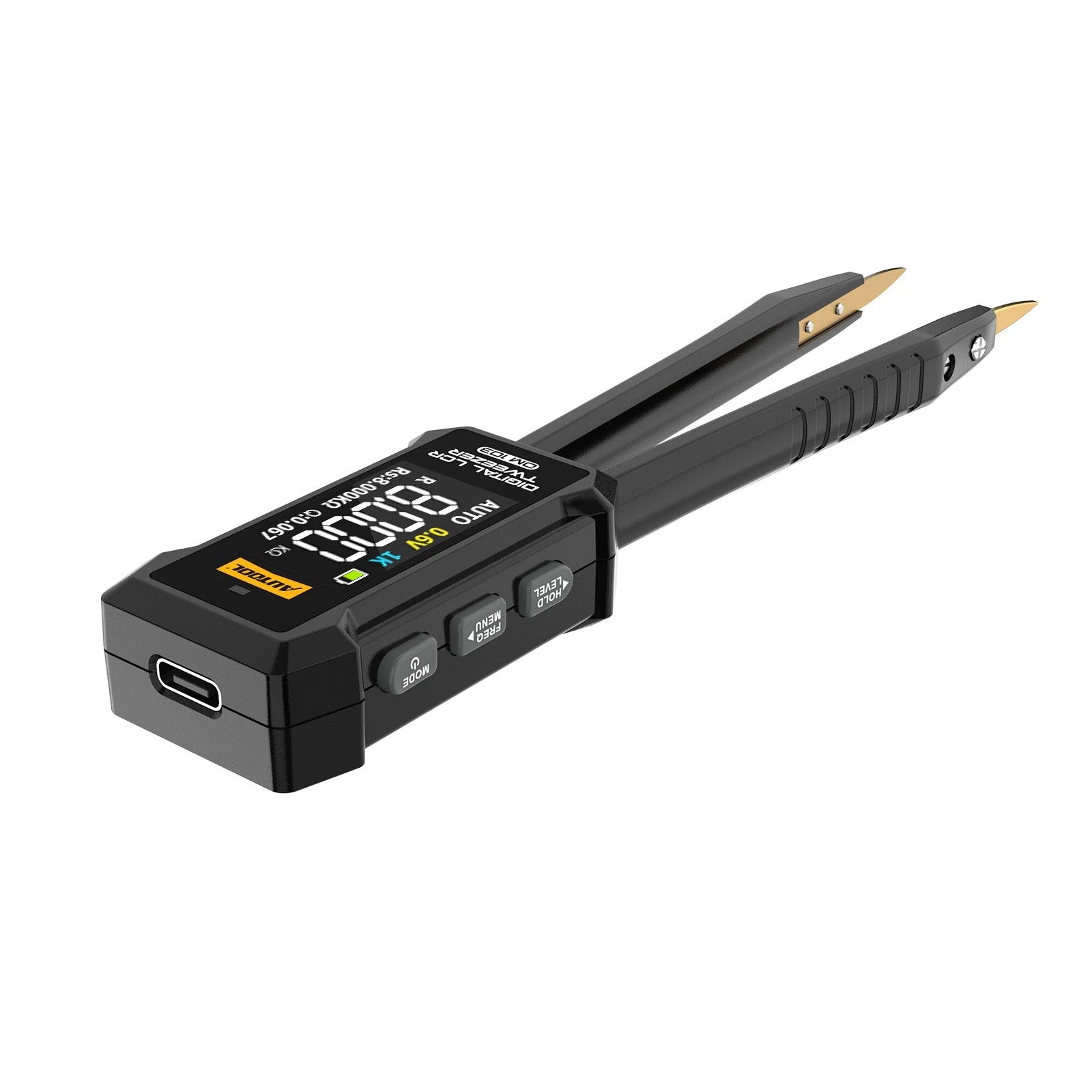

Digital Smart Tweezer Mini LCR Meter ESR SMD Diode Tester Capacitance Resistance
|

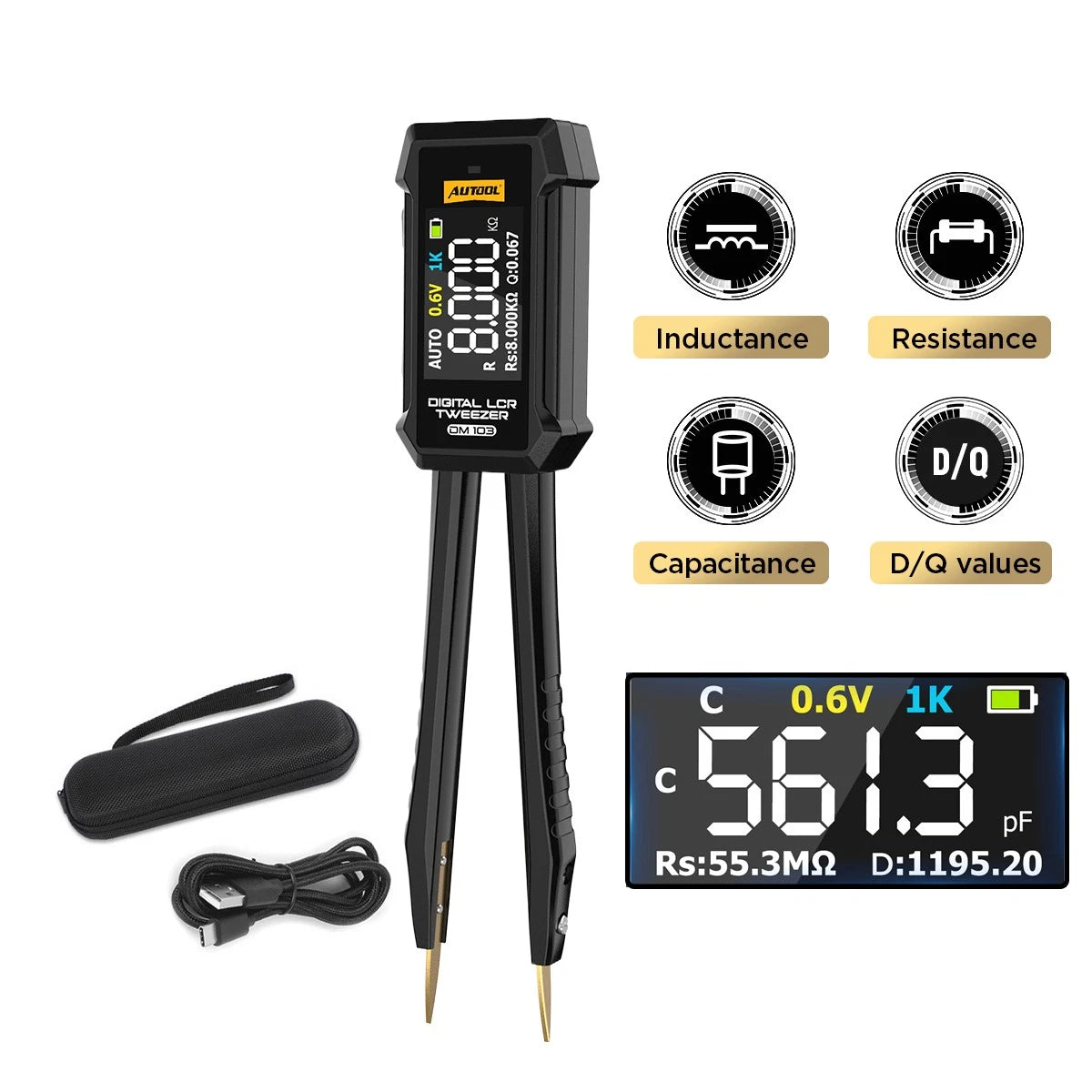

This LCR smart digital tweezer is a multifunctional and portable testing instrument with a measurement accuracy of ±0.5%. It features a HD OLED color display and easy to operation. This LCR meter supports precise measurement of resistance, capacitance, inductance, diodes and continuity of electronic components.
Equipped with a variety of testing functions, it enables seamless, on-the-go testing, freeing you from the constraints of traditional LCR. Ideal for electronics diagnostics and component verification.
|
 |
|
 |
 |
|
Automatic Recognition Designed meticulously to auto-detect and measure electronic component parameters, it offers unparalleled precision, streamlining your workflow. |

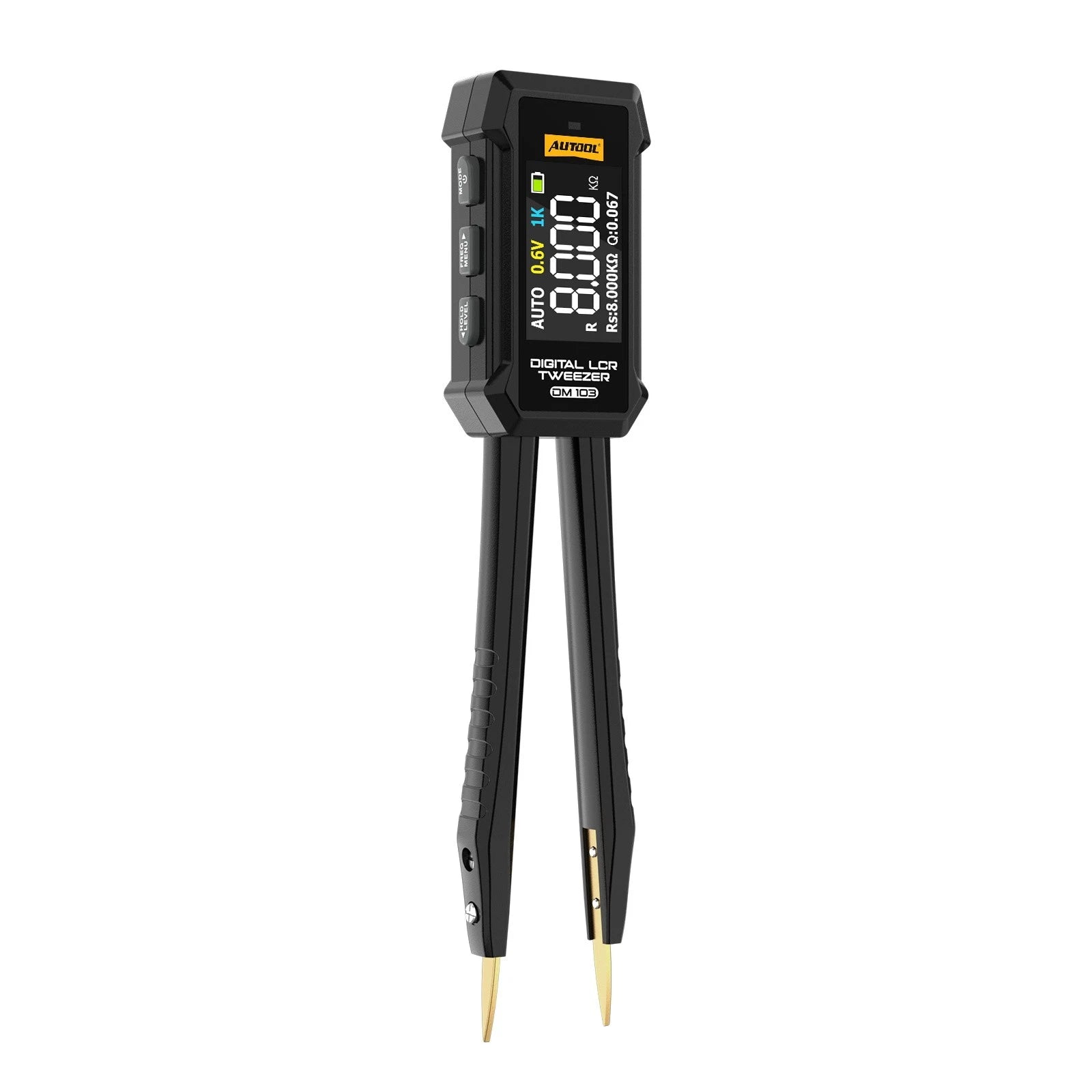

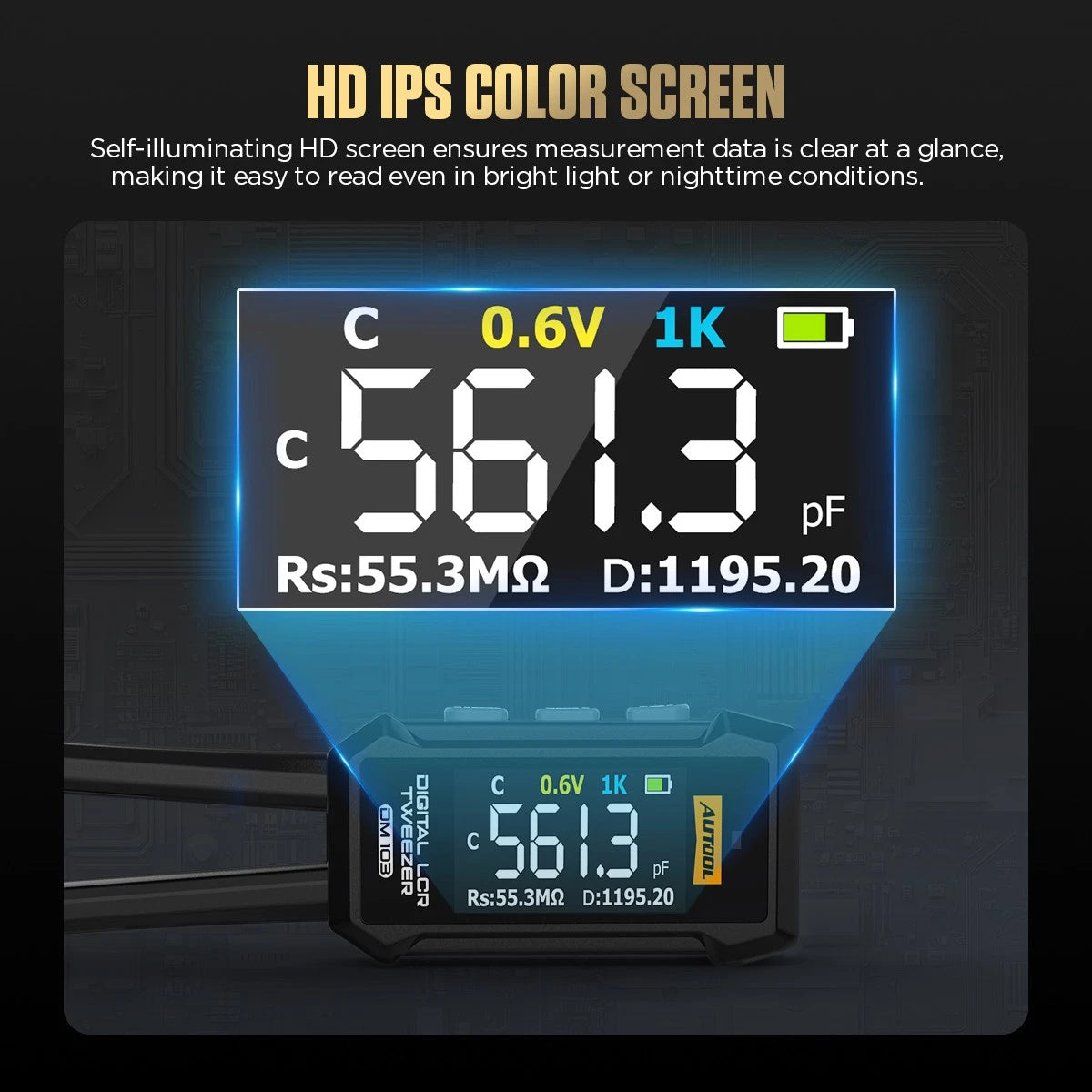

Easy to Read Self-illuminating HD screen ensures measurement data is clear at a glance, making it easy to read even in bright light or nighttime conditions. |
 |
 |
|
Well-Built Built-in 400 mAh rechargeable battery with Type-C charging support, providing up to 12 hours of continuous operation on a full charge. |
Precision Gold-Plated Contacts Designed with fine-tipped gold-plated tweezers, easily grips various tiny SMD components for instant testing, offering flexible and convenient operation. |
 |
 |
|
Software Online Upgrade Easily upgrade and update the software by connecting directly to a computer via a type-c cable, saving time and effort. |

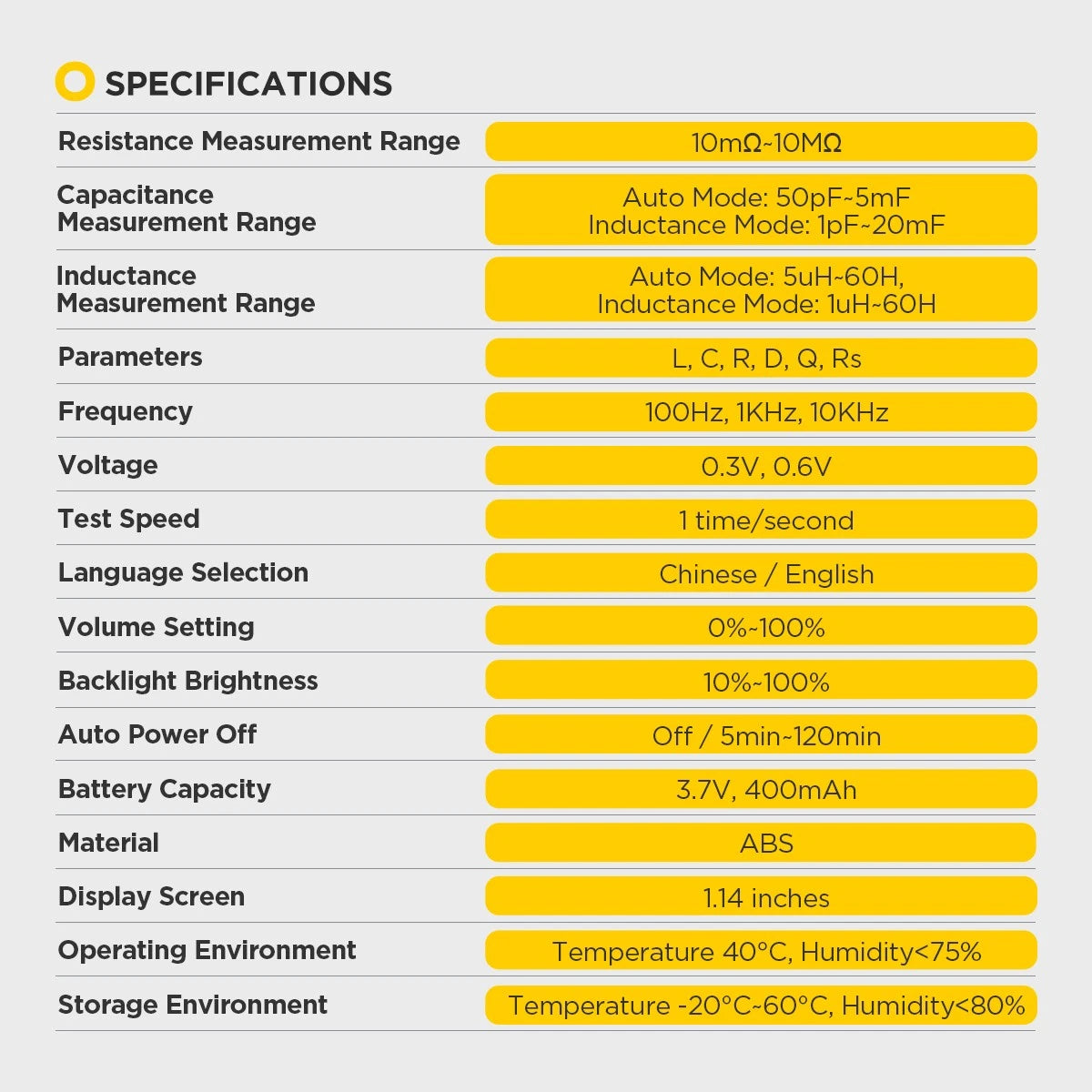

Specification:
Resistance Measurement Range:10mΩ~10MΩ
Capacitance Measurement Range:Auto Mode: 50pF~5mF Inductance Mode: 1pF~20mF Inductance Measurement Range: Auto Mode: 5uH~60H Inductance Mode: 1uH~60H Parameters: L, C, R, D, Q, Rs Frequency: 100Hz, 1KHz, 10KHz Voltage: 0.3V, 0.6V Test Speed: 1 time/second Volume Setting: 0%~100% Backlight Brightness: 10%~100%
Auto Power Off:Off / 5min~120min
Battery Capacity: 3.7V, 400mAh Operation Environment:Temperature 40°C, Humidity<75% |
 |
 |
