Dashboard Navigation GPS Radio LCD Display for 2006-2013 Honda Gold Wing GL1800
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐

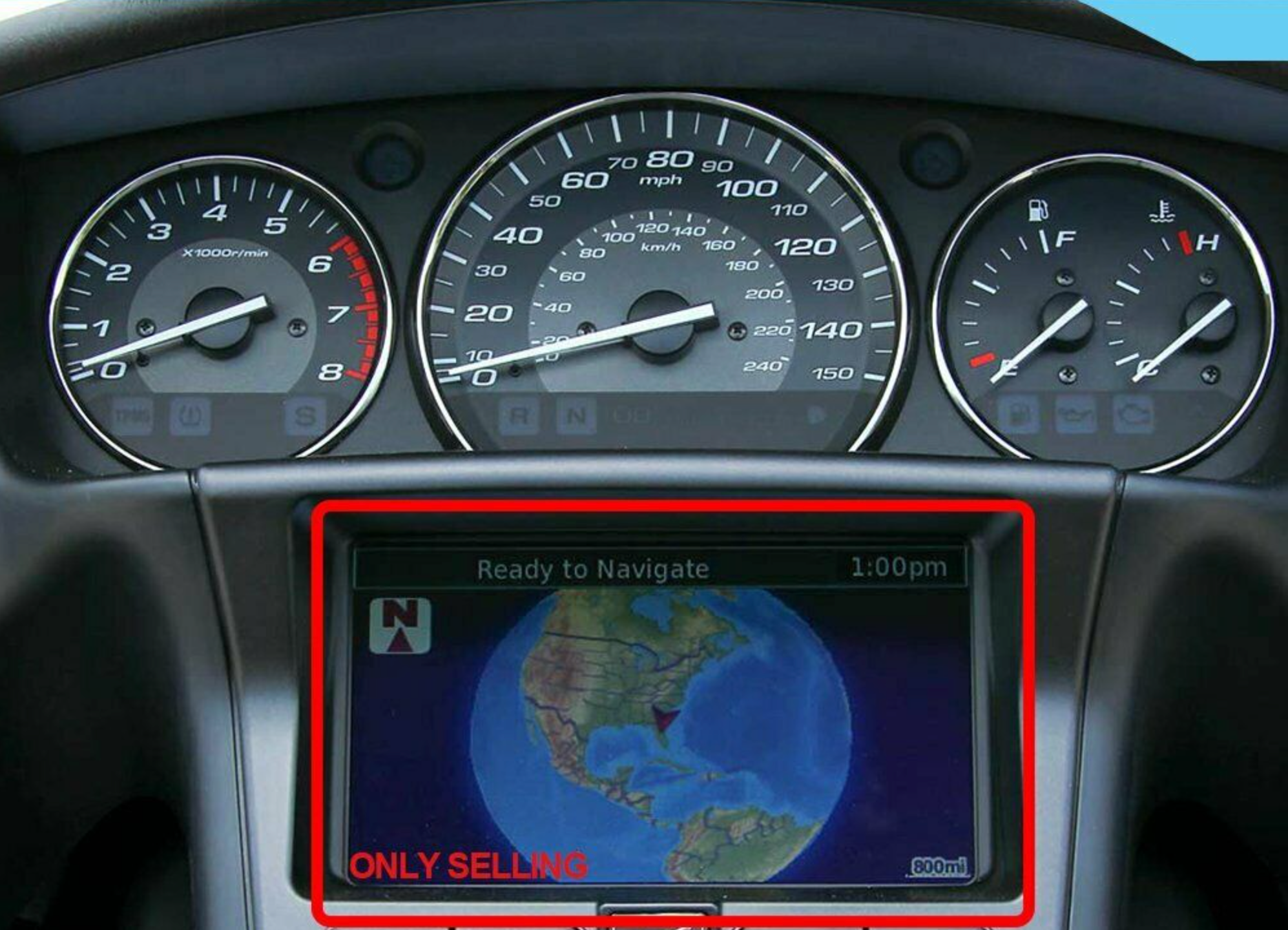

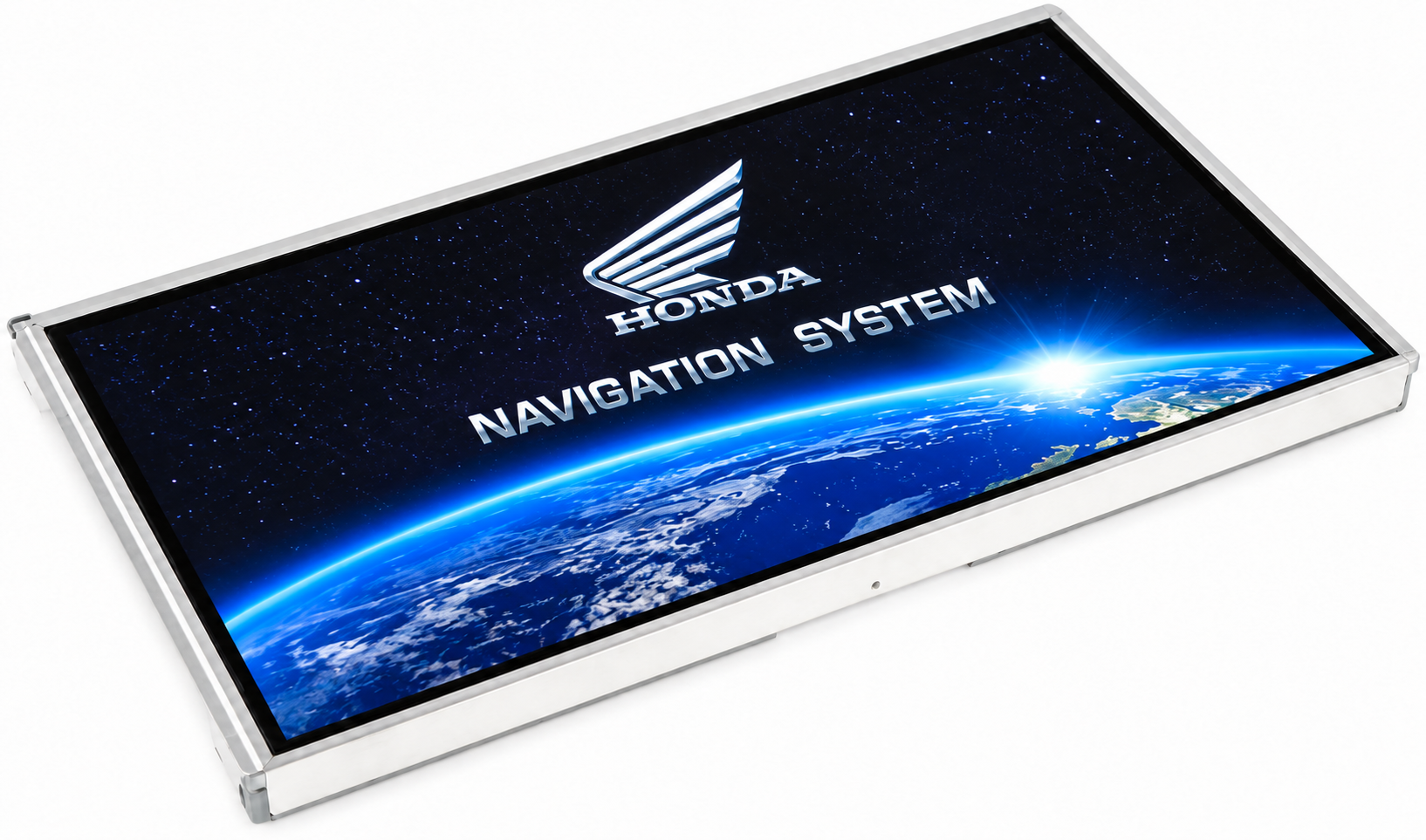

Brand-new replacement color TFT LCD display for navigation-equipped Honda Gold Wing GL1800 motorcycles. This internal screen replaces a damaged, dim, discolored, blank or otherwise malfunctioning LCD inside the factory dashboard navigation display assembly.

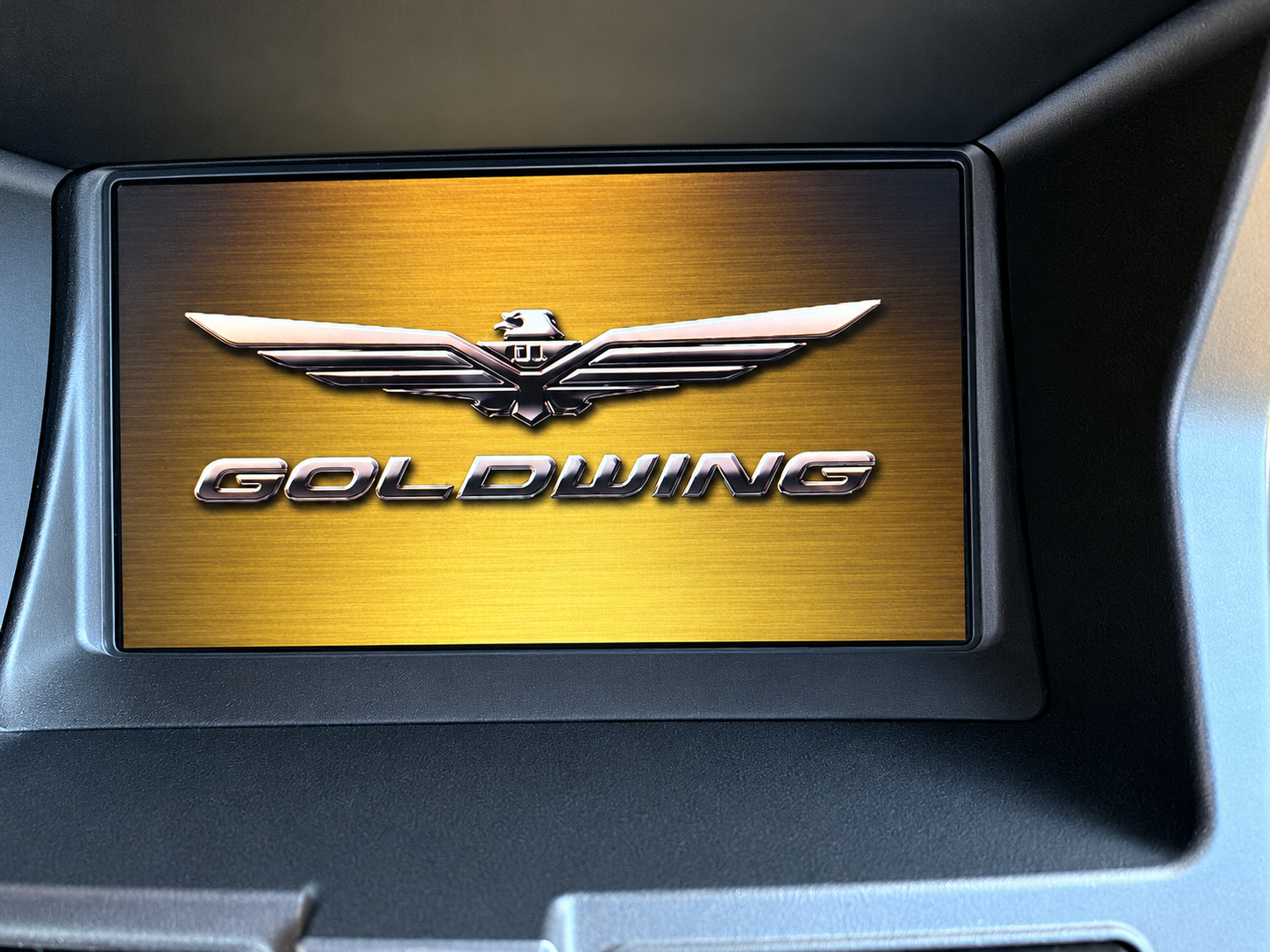

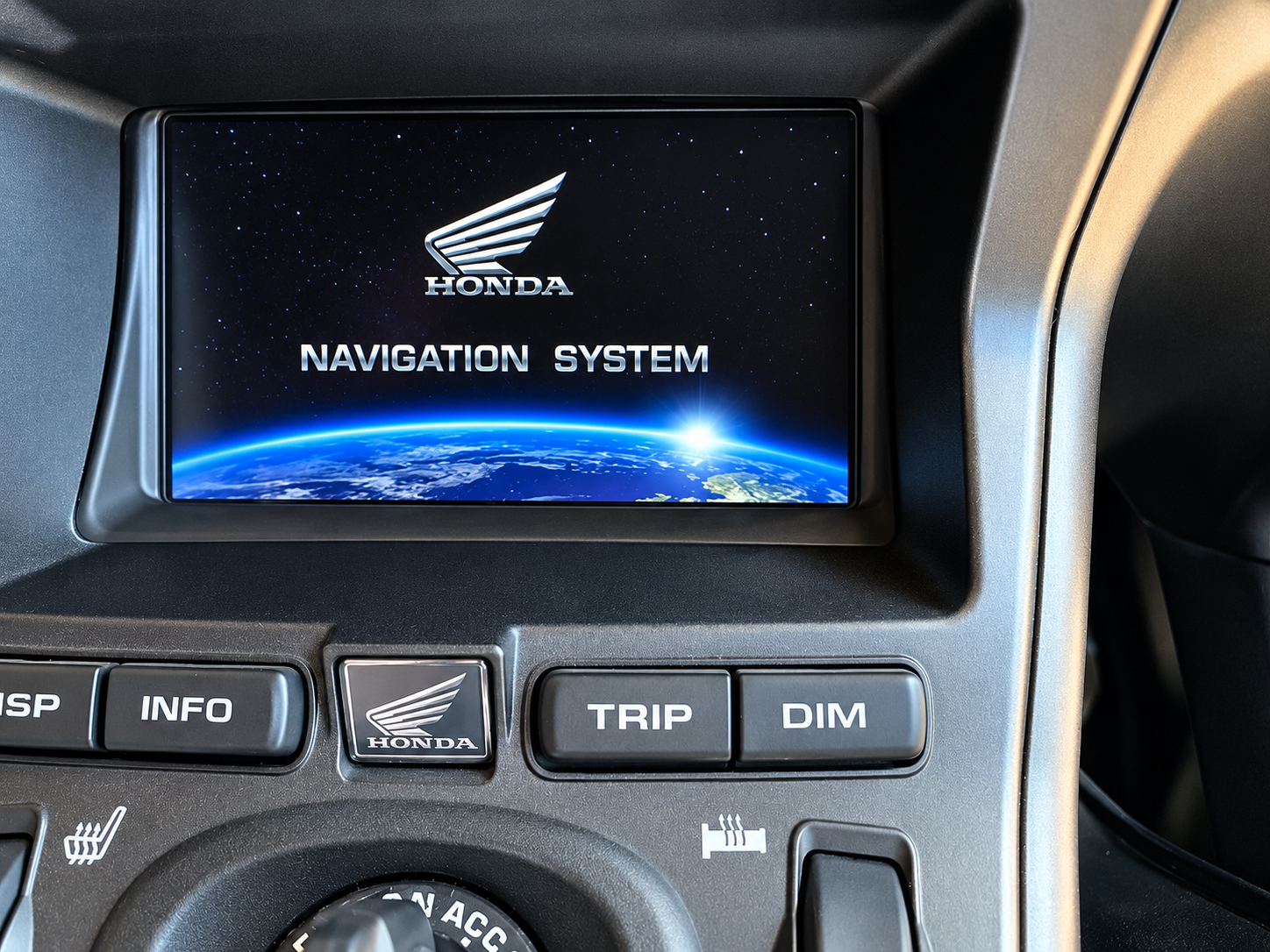

The replacement screen restores the original dashboard display while retaining the motorcycleโs factory navigation, radio and vehicle-information system.
This is the internal LCD module only. It is not a complete gauge cluster, navigation computer, radio, touchscreen or instrument-panel assembly.
๐๐ถ๐๐ฝ๐น๐ฎ๐ ๐ฆ๐ฝ๐ฒ๐ฐ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป๐
โข Display type: Color automotive TFT LCD ย
โข Screen size: Approximately 6.5 inches diagonal ย
โข Aspect ratio: 16:9 ย
โข Native image resolution: 400 ร 240 pixels ย
โข RGB subpixel resolution: 1200 ร 240 dots ย
โข Approximate bare-panel dimensions: 155 ร 89.2 mm ย
โข Orientation: Landscape ย
โข Surface: Antiglare ย
โข Backlight type: CCFL ย
โข Touchscreen: No ย

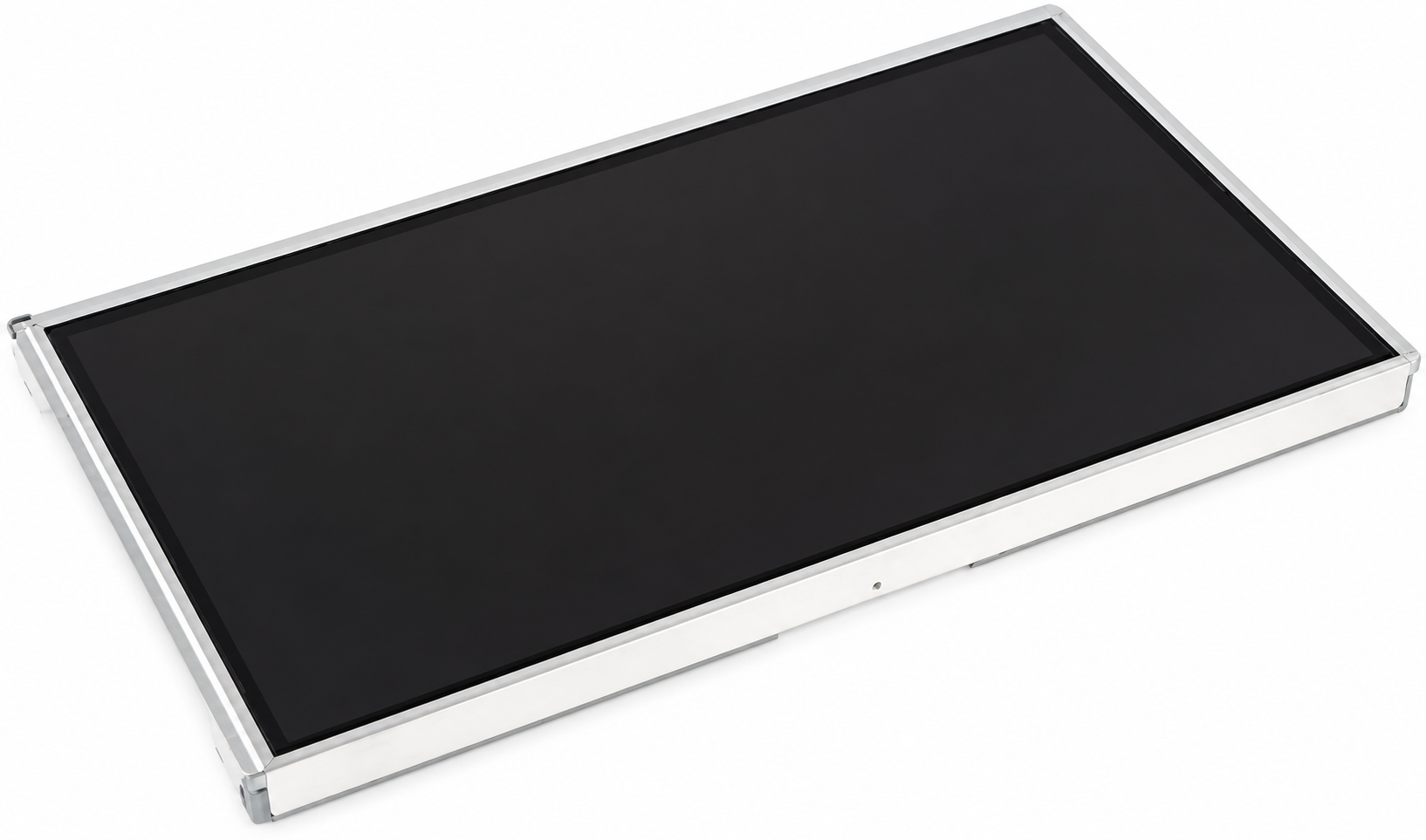

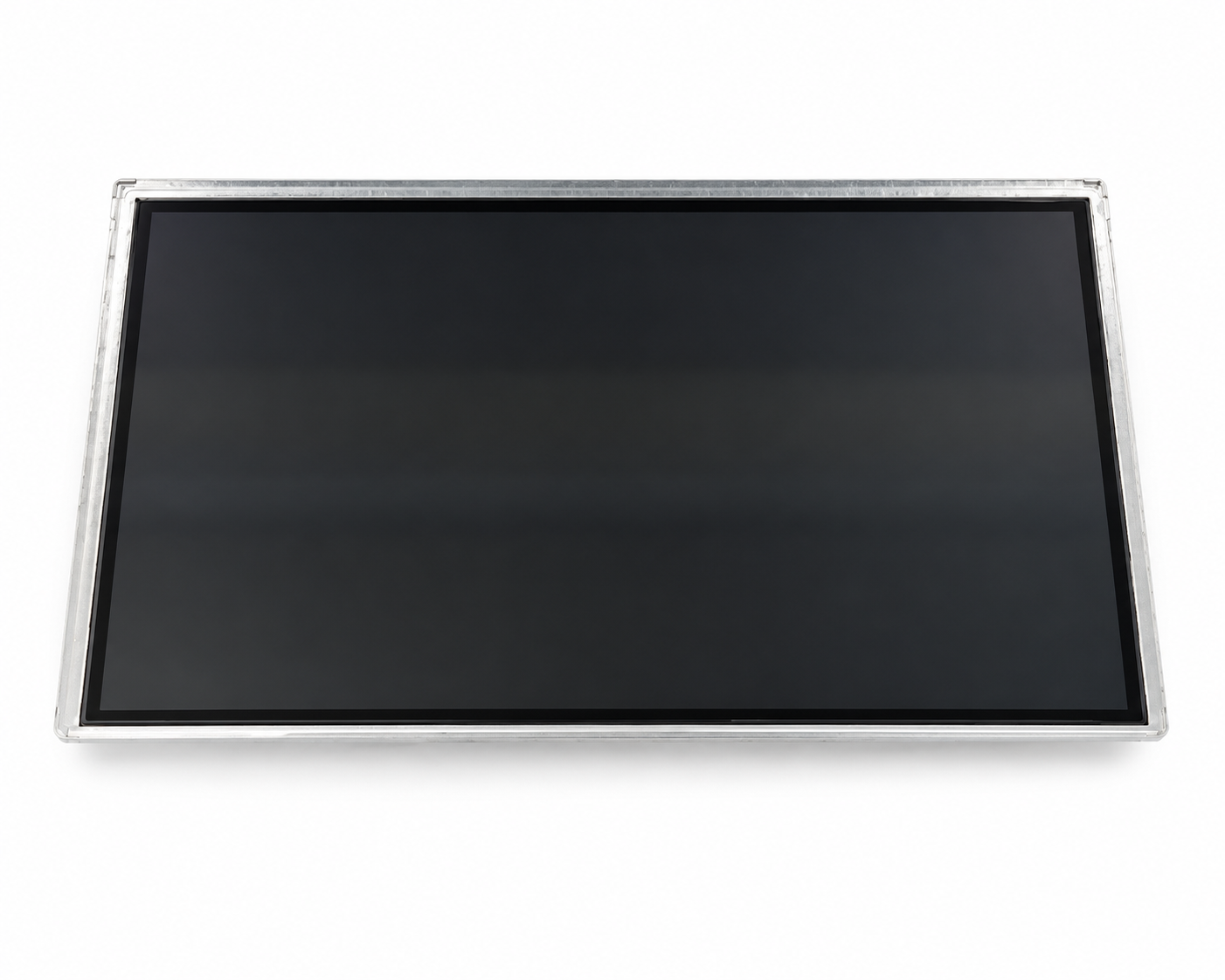

โข Metal mounting frame included as pictured
๐ฅ๐ฒ๐ฝ๐น๐ฎ๐ฐ๐ฒ๐บ๐ฒ๐ป๐ ๐๐ถ๐๐ฝ๐น๐ฎ๐ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ๐
Designed to replace compatible versions marked:
โข LQ065T9BR51 ย
โข LQ065T9BR52 ย
โข LQ065T9BR53 ย
โข LQ065T9BR54 ย
โข LQ065T9BR55 ย
โข LQ065T9BR51U ย
โข LQ065T9BR52U ย
โข LQ065T9BR53U ย

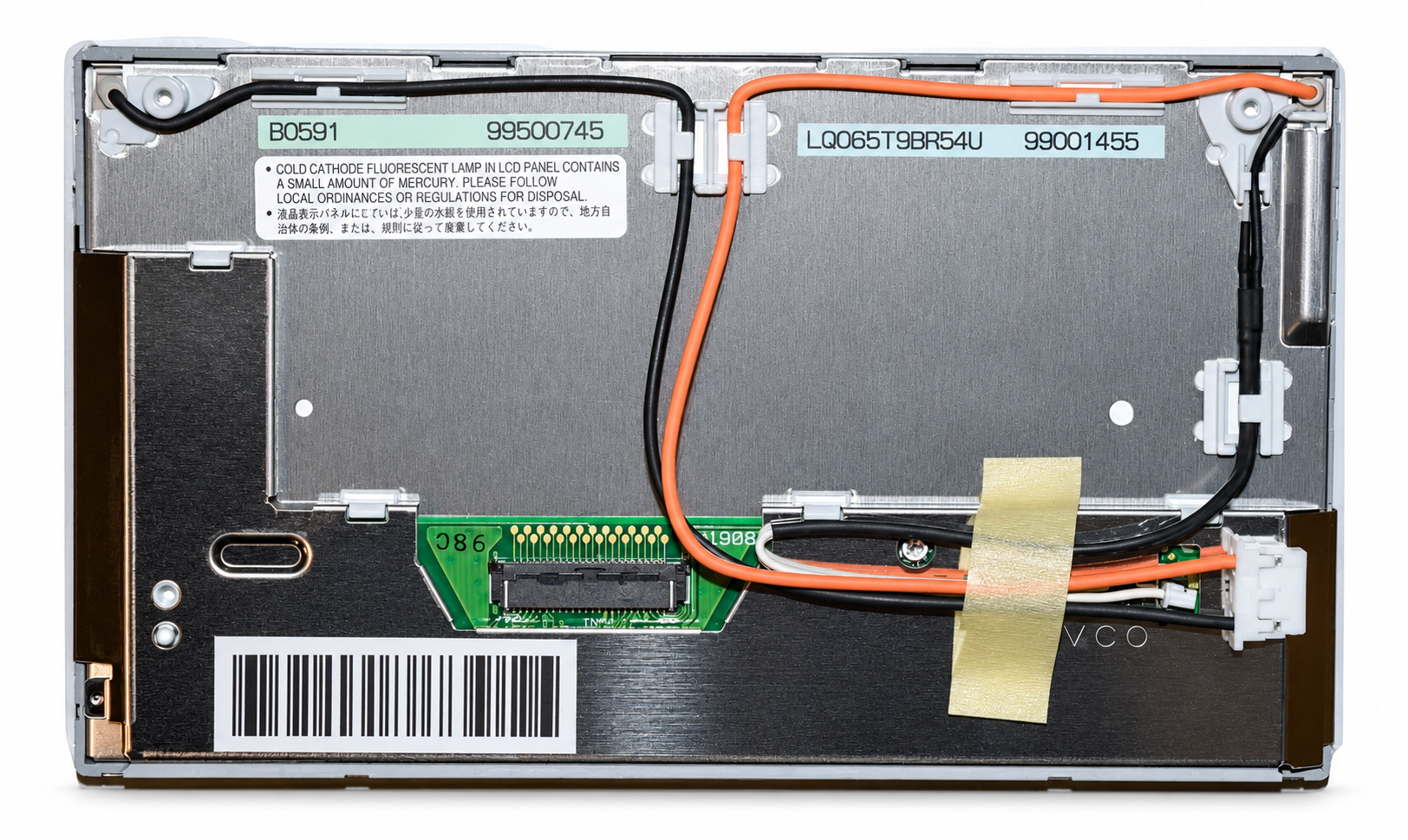

โข LQ065T9BR54U ย
โข LQ065T9BR55U
Always compare the complete number, connector, mounting frame and dimensions printed on the original screen before ordering.
๐๐ผ๐ป๐ฑ๐ฎ ๐๐๐๐ฒ๐บ๐ฏ๐น๐ ๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ๐
The replacement panel may be found inside Honda navigation-display assemblies associated with numbers such as:
โข 37230-MCA-H31 ย
โข 37230-MCA-306 ย
โข 37230-MCA-S82
These are Honda numbers for the complete color LCD assembly and are provided only as identification references. They are not the manufacturer number of the bare replacement screen.
๐ฉ๐ฒ๐ต๐ถ๐ฐ๐น๐ฒ ๐๐ถ๐๐บ๐ฒ๐ป๐
For navigation-equipped Honda Gold Wing GL1800 motorcycles with a matching original LCD:
โข 2007 Honda Gold Wing GL1800 ย
โข 2008 Honda Gold Wing GL1800 ย
โข 2009 Honda Gold Wing GL1800 ย
โข 2010 Honda Gold Wing GL1800 ย
โข 2011 Honda Gold Wing GL1800, market-dependent ย
โข 2012 Honda Gold Wing GL1800 ย
โข 2013 Honda Gold Wing GL1800
Applicable versions may include GL1800 Audio, Comfort, Navigation, ABS and Airbag packages when equipped with the corresponding factory color navigation display.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ถ๐๐บ๐ฒ๐ป๐ ๐ก๐ผ๐๐ถ๐ฐ๐ฒ
Fitment is determined by the original screen number and dashboard configurationโnot by model year alone.
This display is intended for motorcycles equipped with the factory color GPS navigation screen. It will not fit non-navigation instrument clusters or motorcycles with a different monochrome information display.
The 2011 model year was not offered in every market. Owners of motorcycles registered as 2011 should confirm the production date and original display number before ordering.
Not intended for:
โข Honda Gold Wing F6B models without the matching navigation display ย
โข 2018 and newer redesigned GL1800 systems ย
โข Non-navigation gauge clusters ย
โข Aftermarket radio or navigation displays ย
โข Applications with a different connector or mounting frame
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Installation requires removal and internal disassembly of the factory dashboard display or meter assembly. Proper antistatic precautions and careful handling of the screen, ribbon connections and CCFL backlight components are required.
Professional installation by an experienced electronics or instrument-cluster technician is strongly recommended. Damage caused by incorrect installation, excessive pressure, improper cable alignment or electrostatic discharge is not considered a display defect.
Follow the supplied installation instructions before connecting or powering the replacement LCD. No navigation software, maps or programming are included.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
Brand-new replacement LCD module. Protective film, minor handling marks on the film or manufacturing-test residue may be present. Remove protective film only after installation and successful testing.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐๐

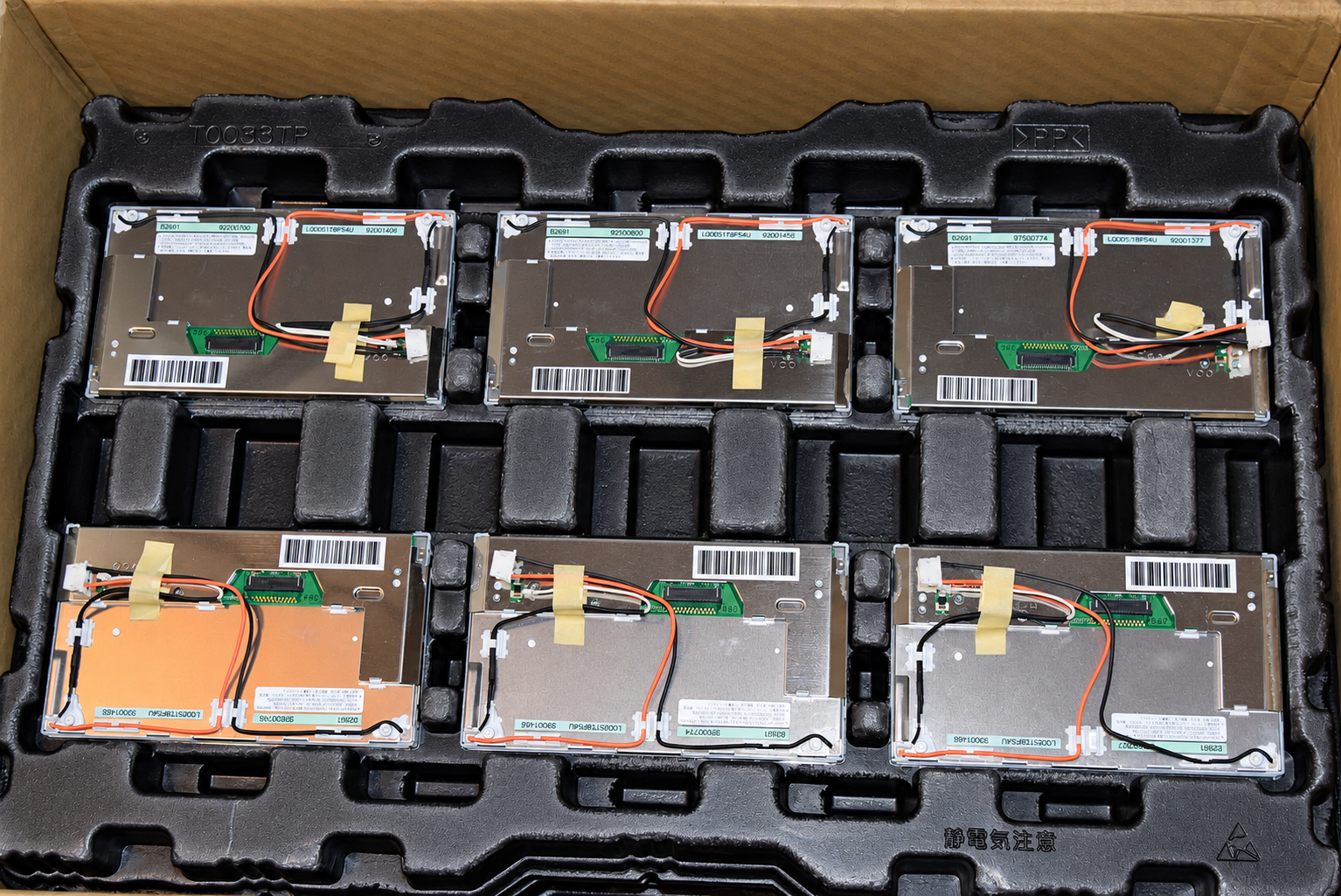

โข (1qty) new replacement 6.5-inch TFT LCD display ย
โข Installation instructions supplied separately
Gauge-cluster housing, navigation computer, radio, control boards, touchscreen, wiring harnesses and installation tools are not included.
