Charging Rectifier Assembly for 1969-1974 Honda CT90 31700-102-701

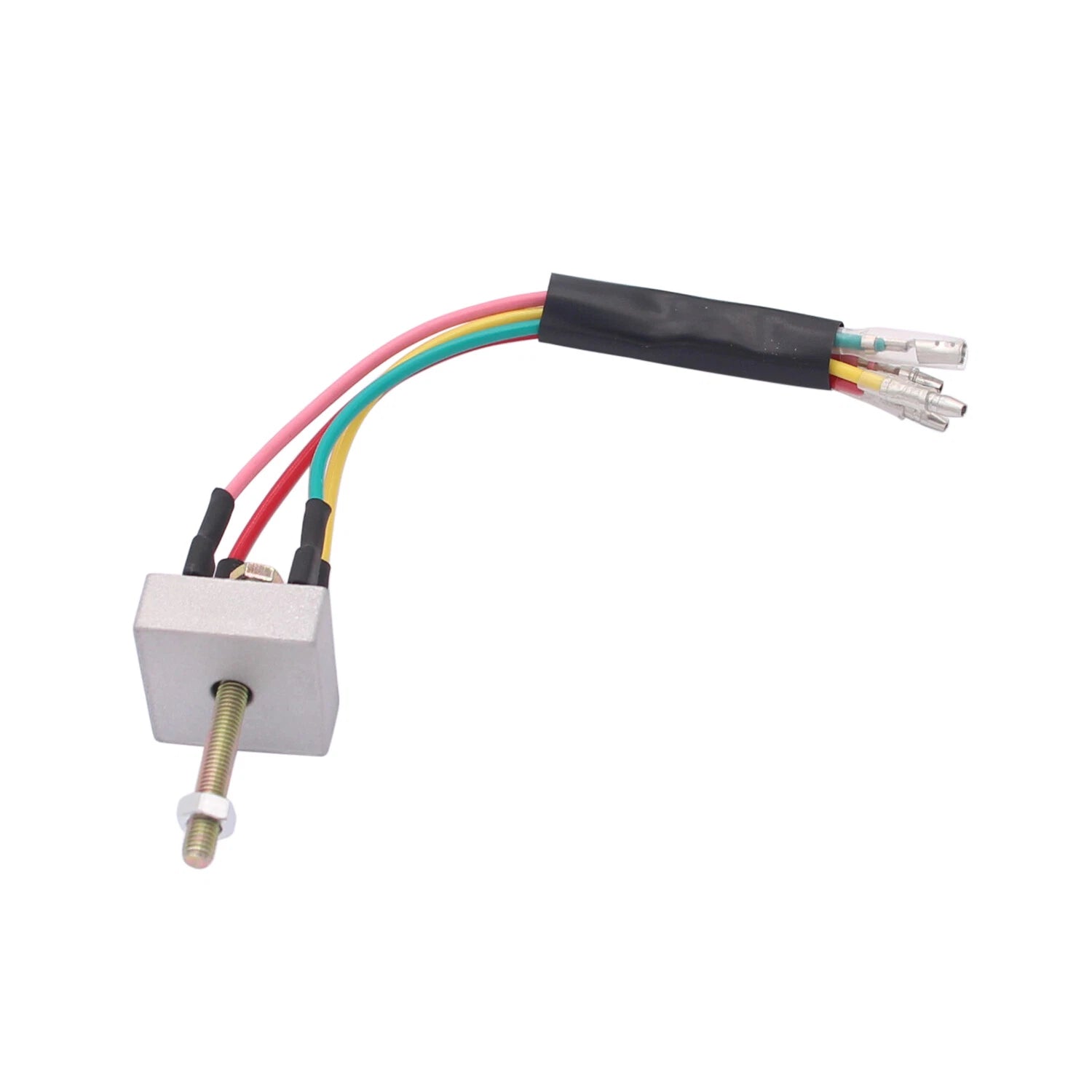

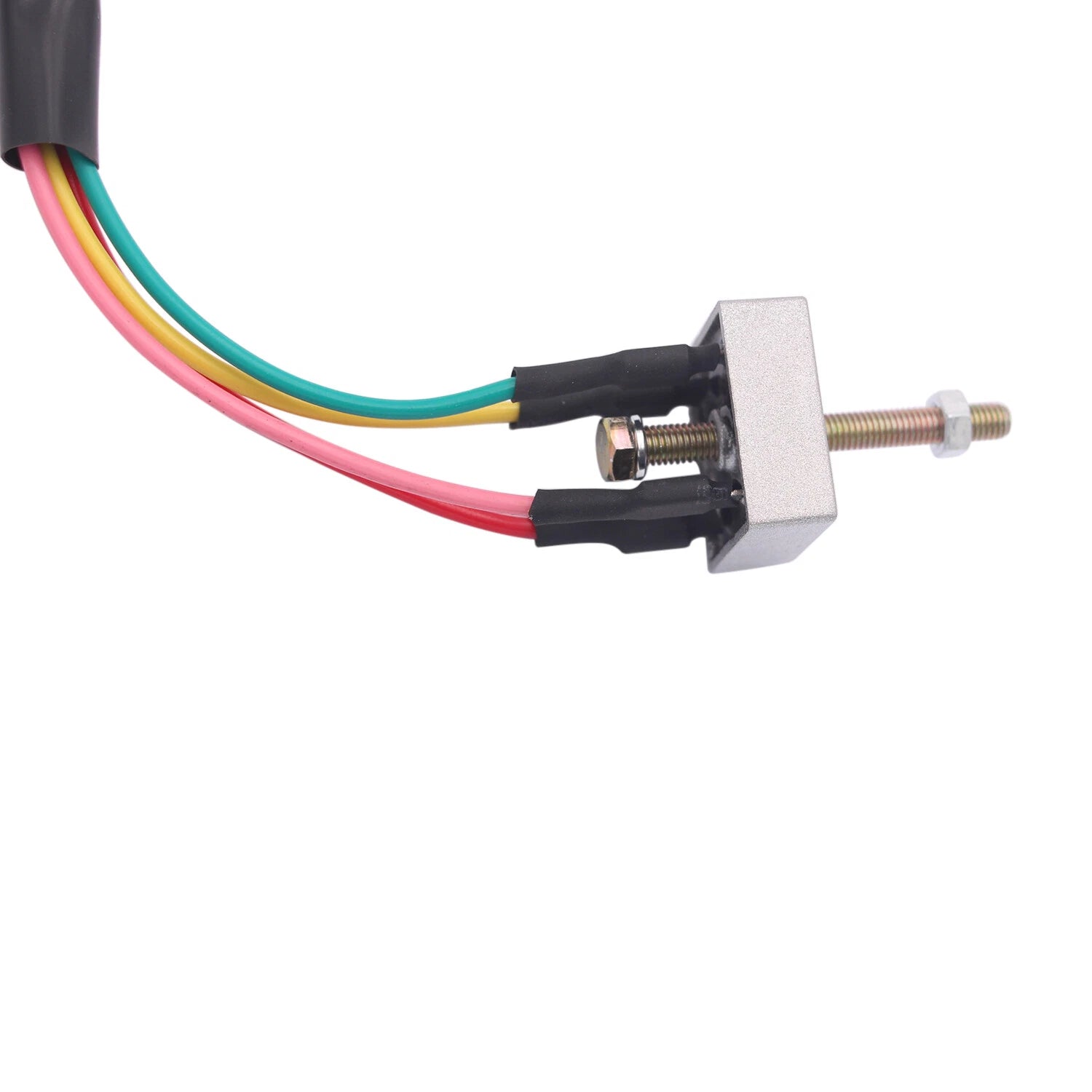

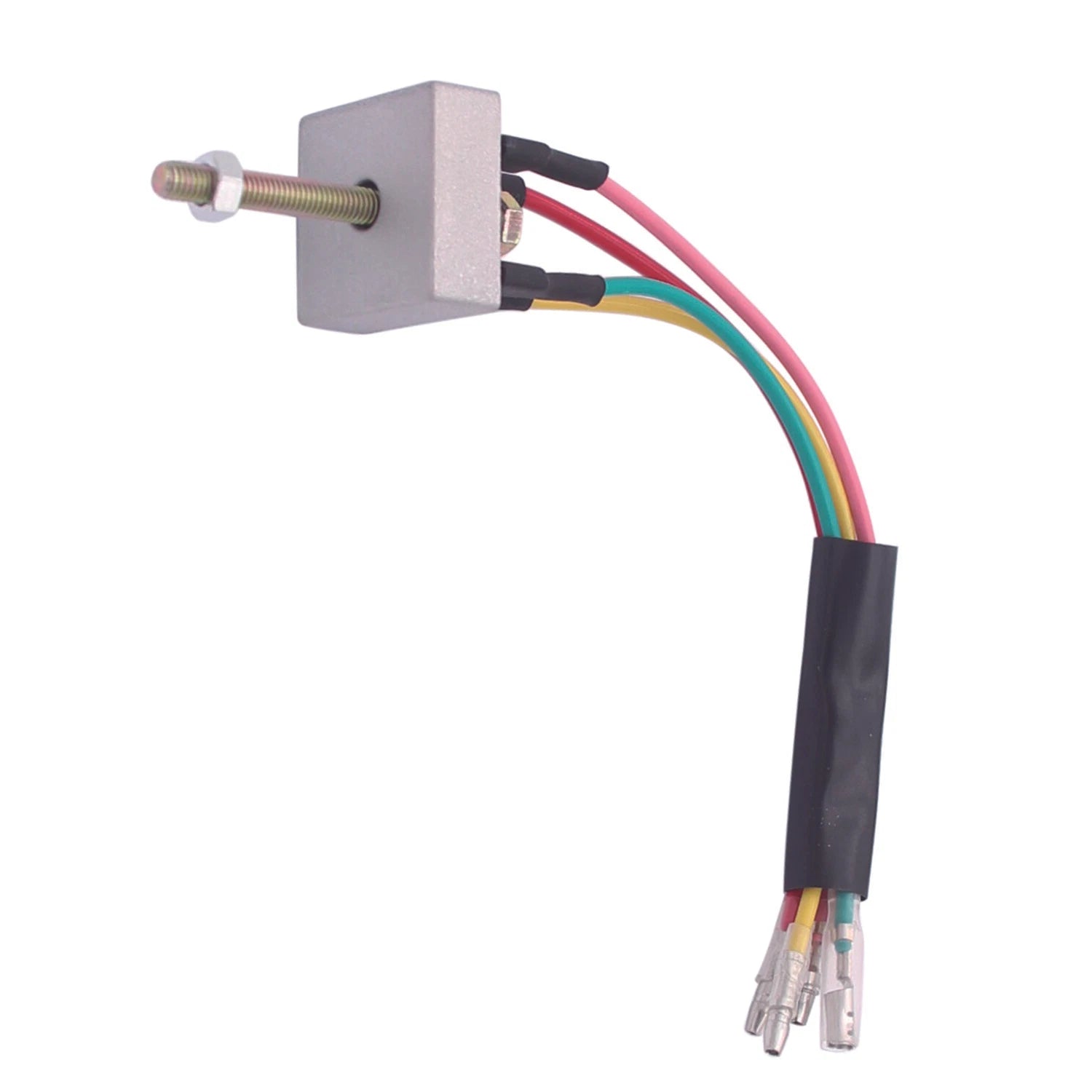

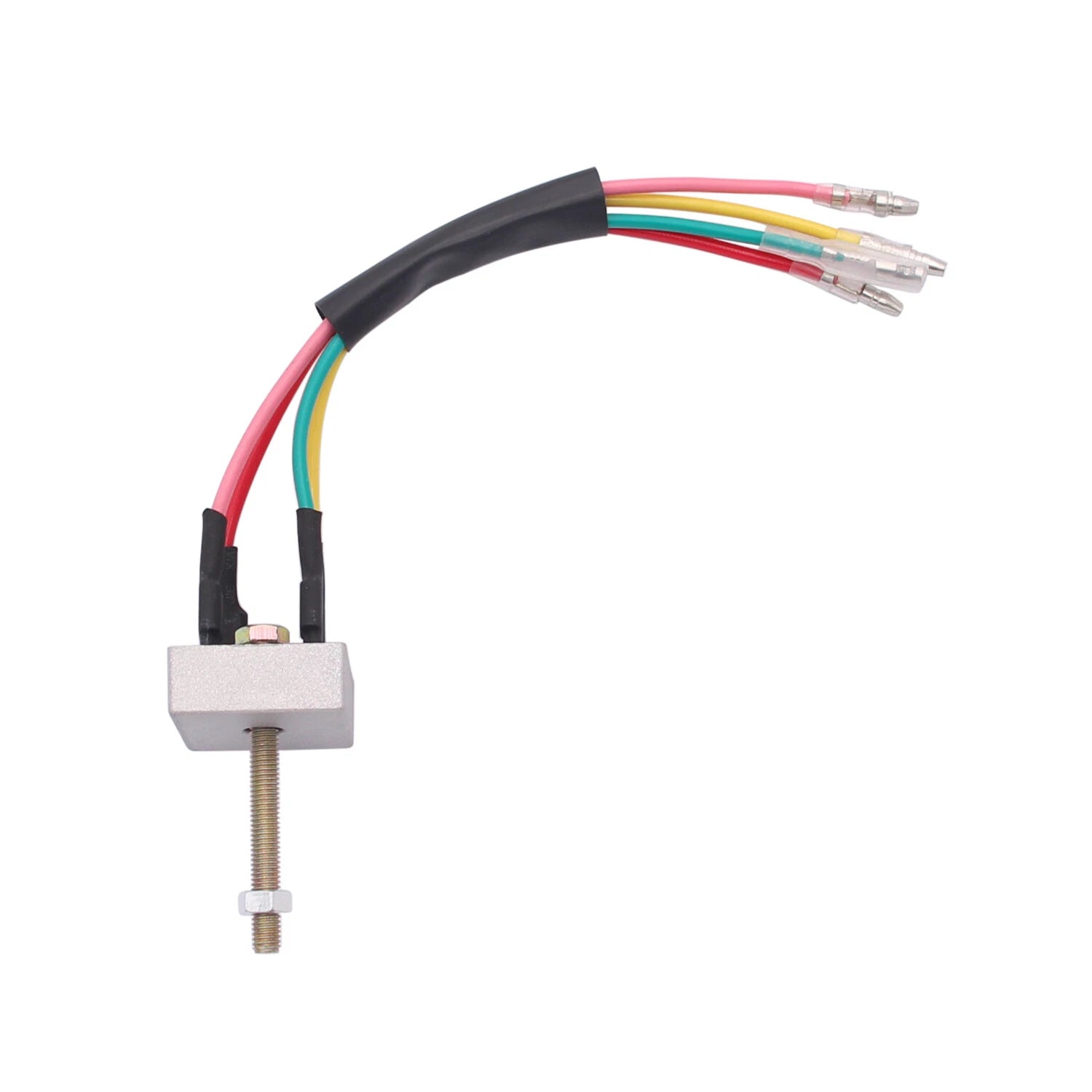

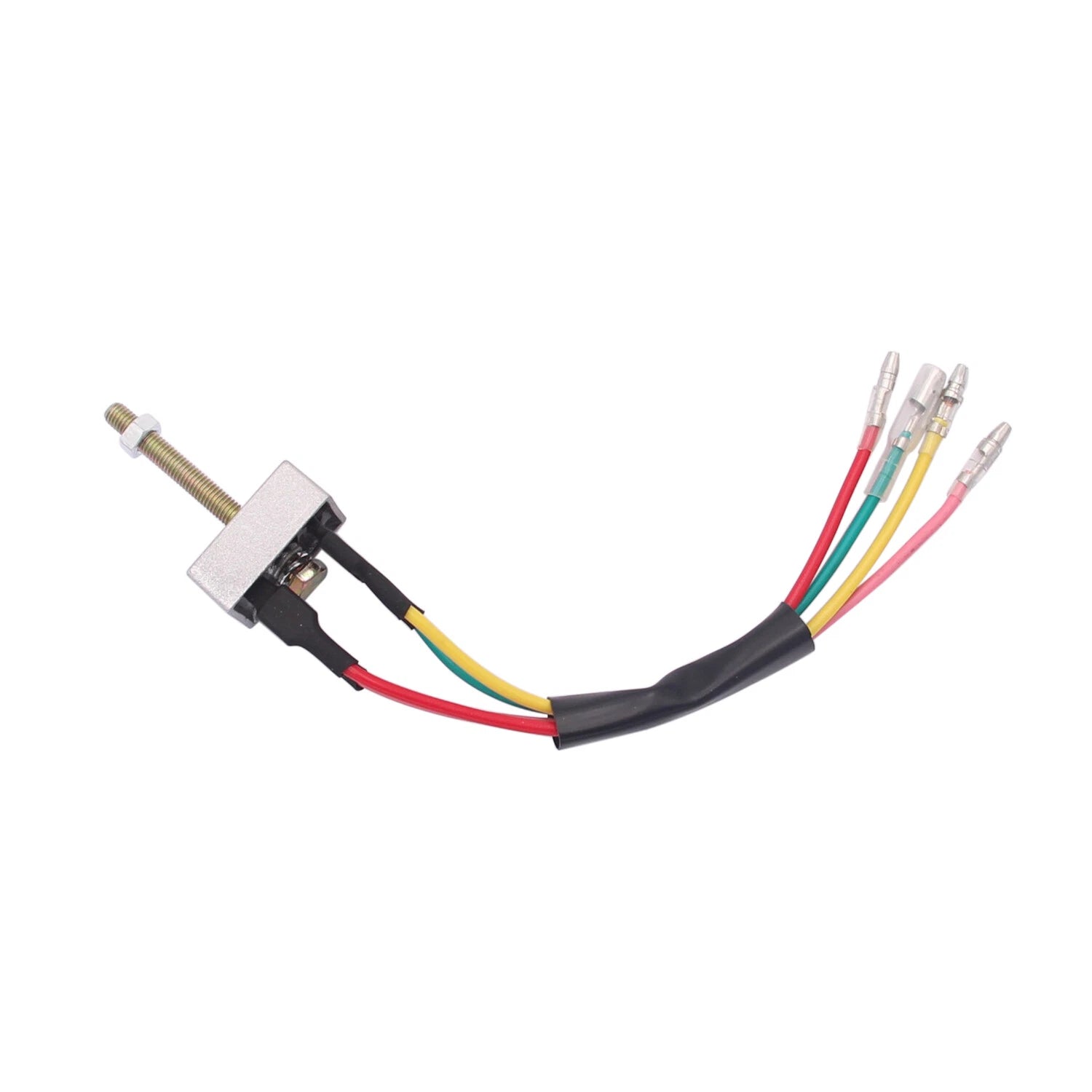

. Replace the original four-wire charging rectifier with this compact assembly for compatible Honda CT90 motorcycles. The unit has a metal mounting plate and stud, sleeved wire leads, three male bullet connectors and one female ground connector, as pictured.
Product details
- Includes one charging rectifier assembly with attached wiring
- Replacement reference: 31700-102-701 (31700102701)
- Approximately 5-inch wire leads

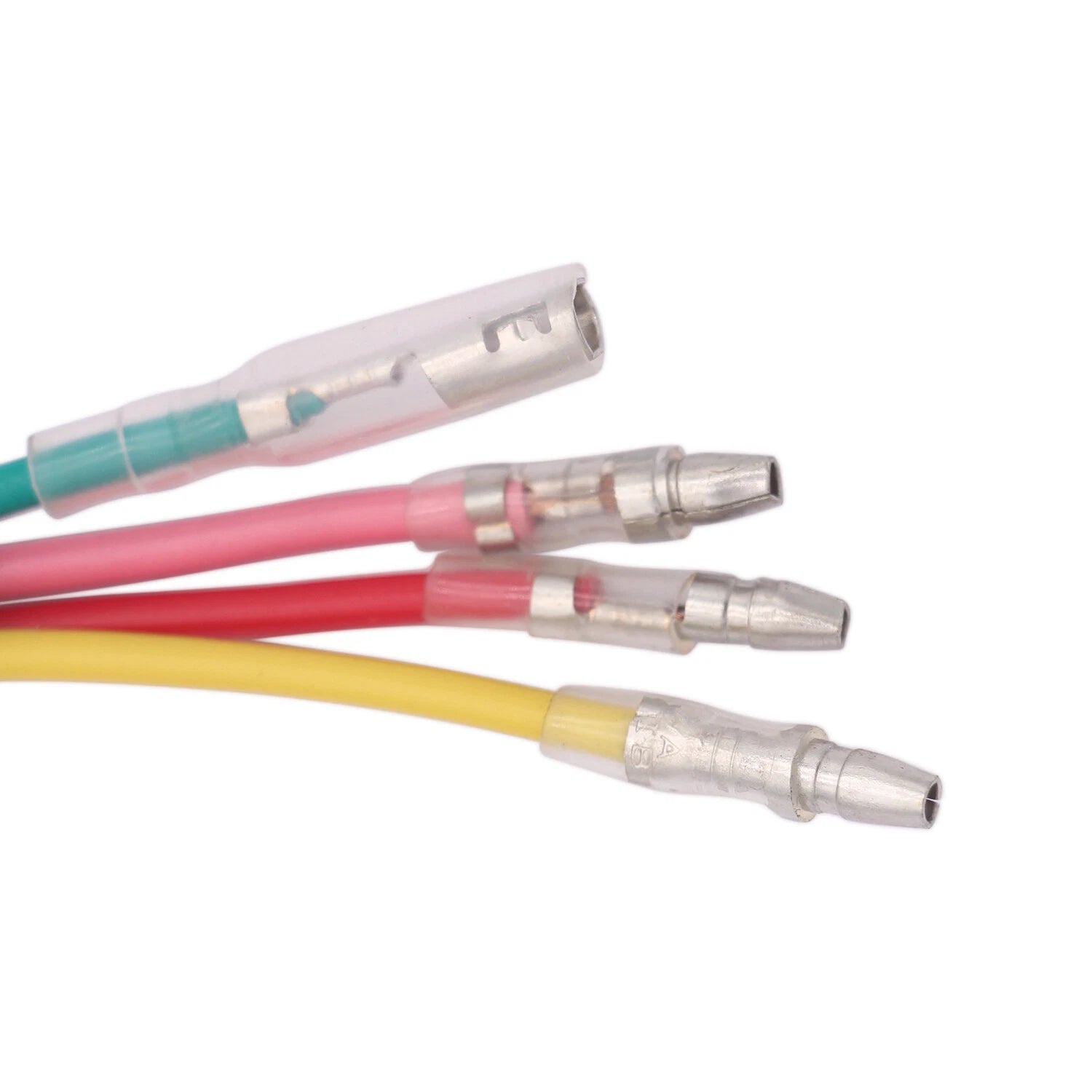

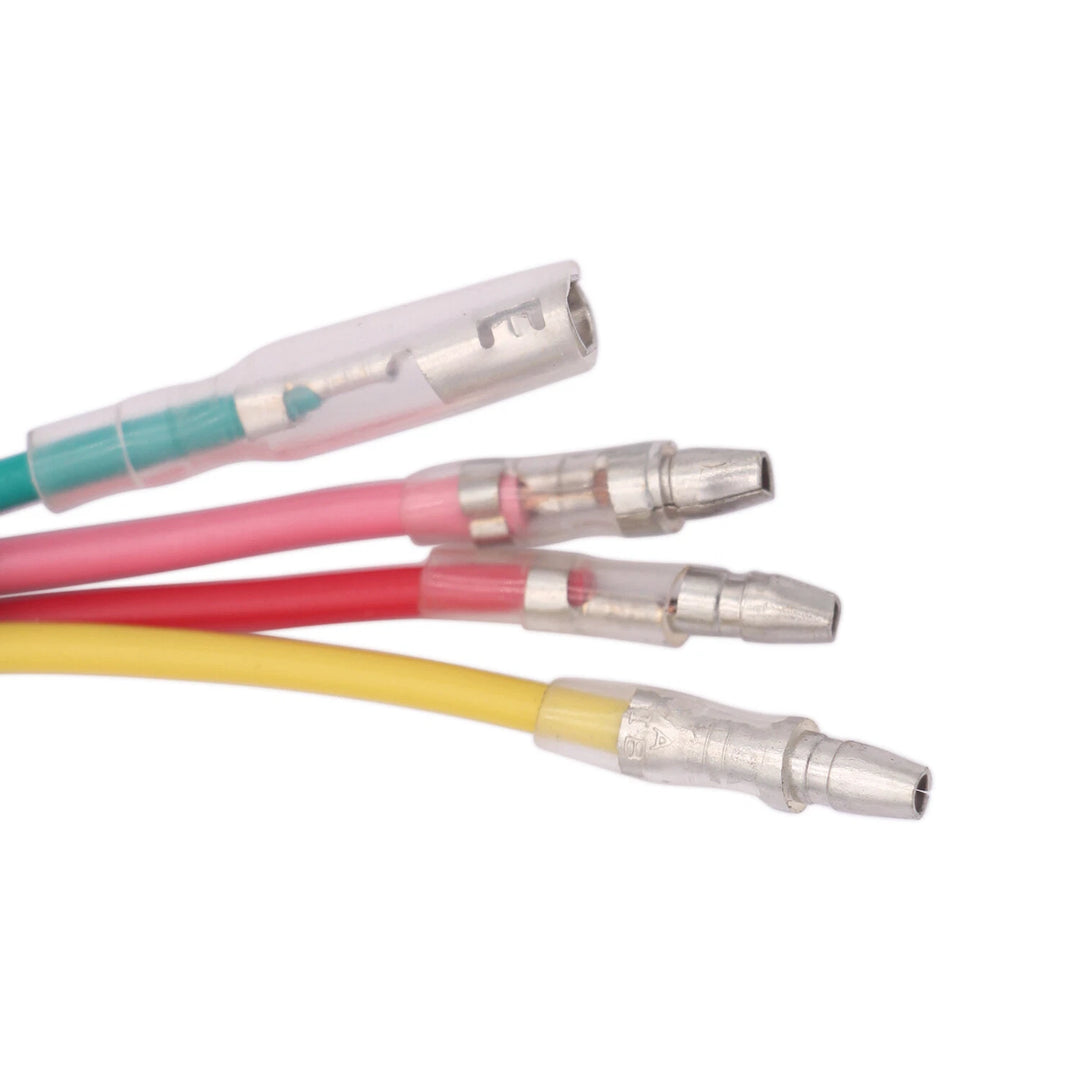

- Four-wire connection with bullet terminals
- Battery, stator and motorcycle wiring harness are not included
Fitment and compatibility
Honda CT90, 1969-1974, retaining the matching original four-wire rectifier arrangement. Confirm reference 31700-102-701, electrical-system configuration, connectors and mounting space before ordering.
The additional reference 31700-033-000 relates to earlier applications that require a different ground connection; those earlier models are not included in this listing's direct-fit claim. This is a rectifier, not a complete charging-system conversion or a guarantee of voltage regulation. Follow the correct wiring diagram and verify battery polarity and grounding. Professional installation is recommended.
