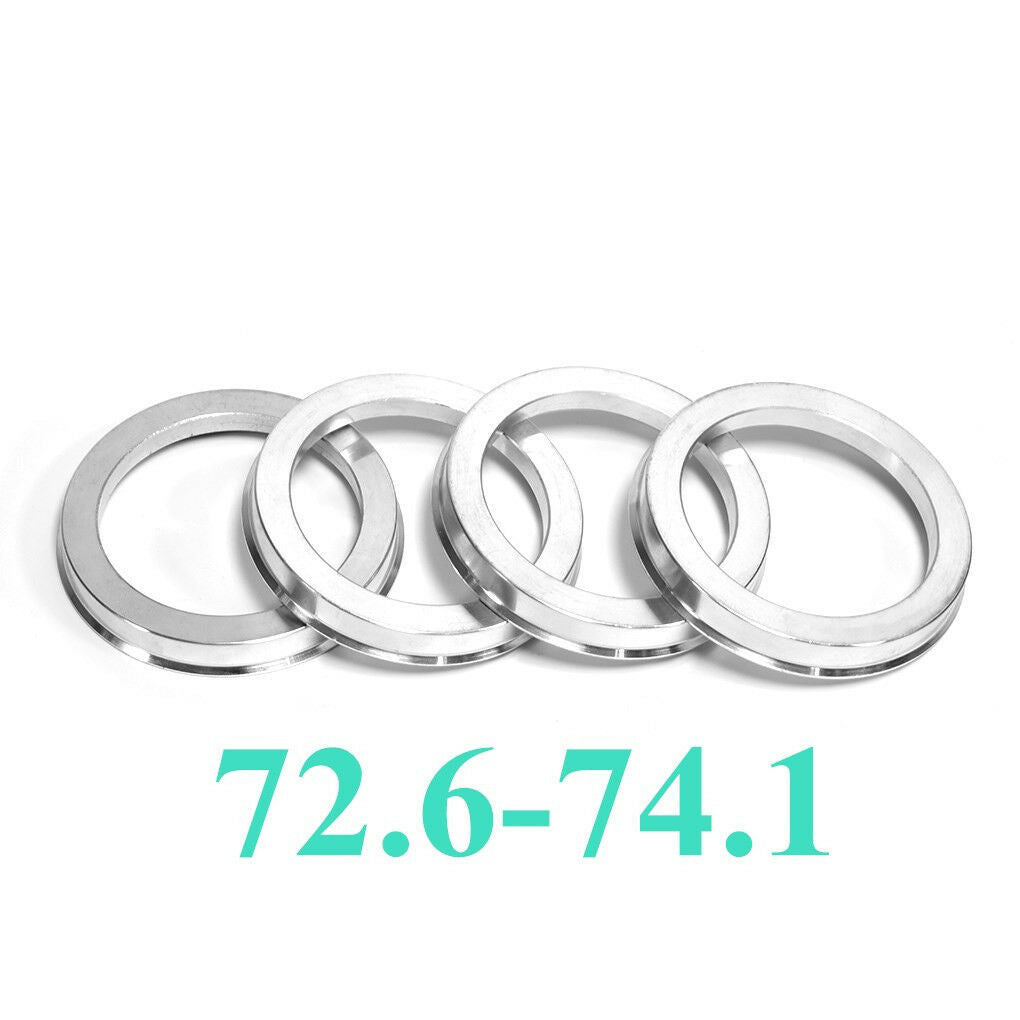

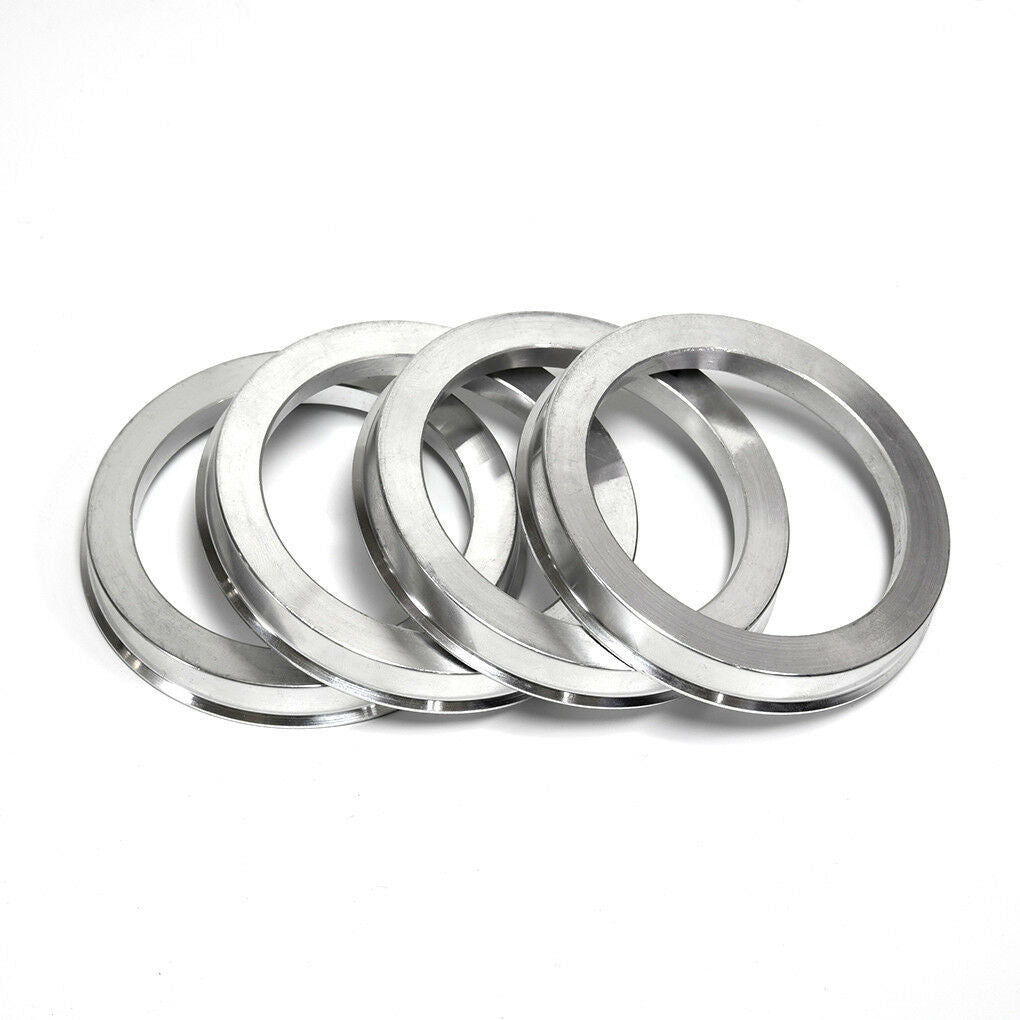

Hub-Centric Ring Set for BMW Wheels 74.1 mm to 72.56 mm 4-Piece

Four-piece hub-centric ring set for mounting wheels with a 74.1 mm center bore onto compatible BMW hubs measuring approximately 72.56 mm.

Product Details

• Four hub-centric adapter rings
• Outside diameter: 74.1 mm
• Inside diameter: 72.56 mm

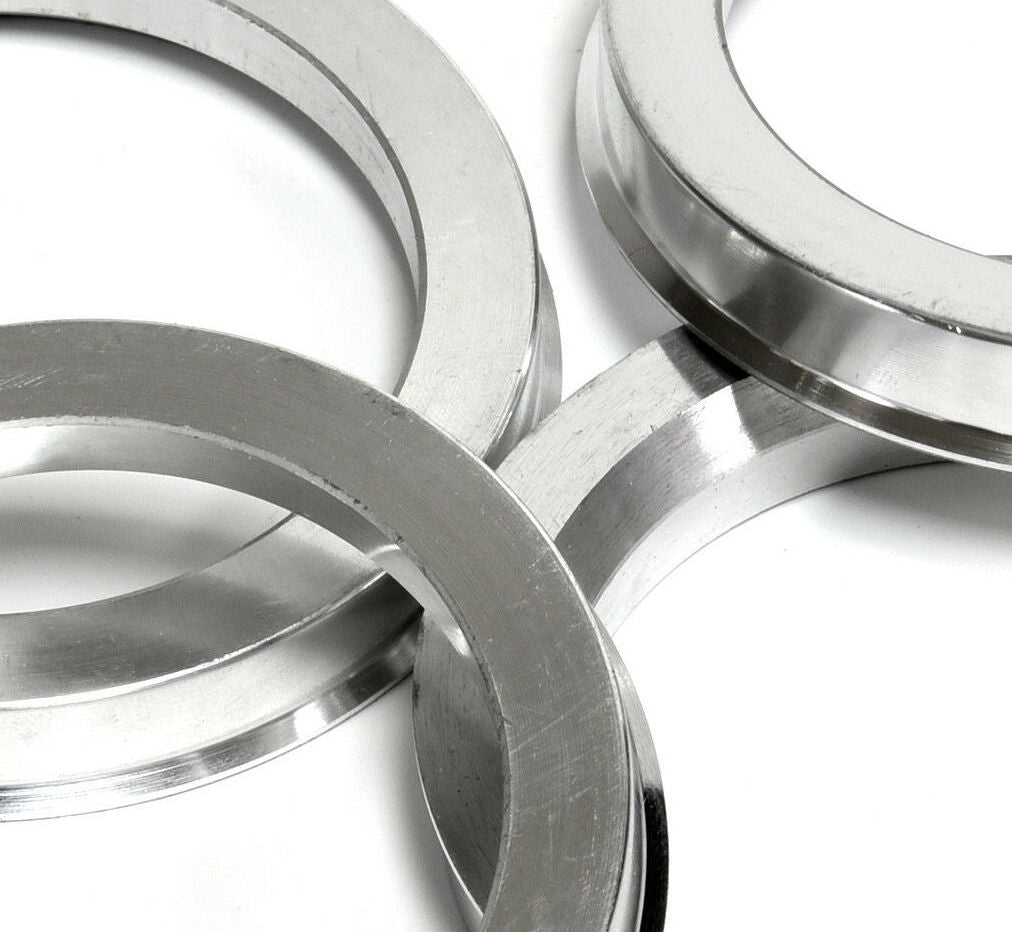

• Tapered leading edge for installation
• Useful for fitting compatible E39-bore wheels to many non-E39 BMW hubs

Fitment and Compatibility

For wheels with an exact 74.1 mm center bore and vehicle hubs measuring 72.56-72.6 mm. Common applications can include compatible BMW E24, E28, E30, E34, E36, E46 and E90 vehicles, but wheel and hub measurements must be verified directly. These rings do not change bolt pattern, offset, load rating or lug-seat compatibility.

Part Number Information

Part number: No separate BMW OE part number is provided for this aftermarket ring set.

Required dimensions: 74.1 mm wheel bore to 72.56 mm vehicle hub.

Package Contents

• 4 hub-centric rings

Installation Notes

Clean rust and debris from the hub and wheel bore before installation. Rings should seat fully without force or looseness. Torque wheel fasteners to vehicle specifications and recheck after initial driving. Do not use if either measured diameter differs.
