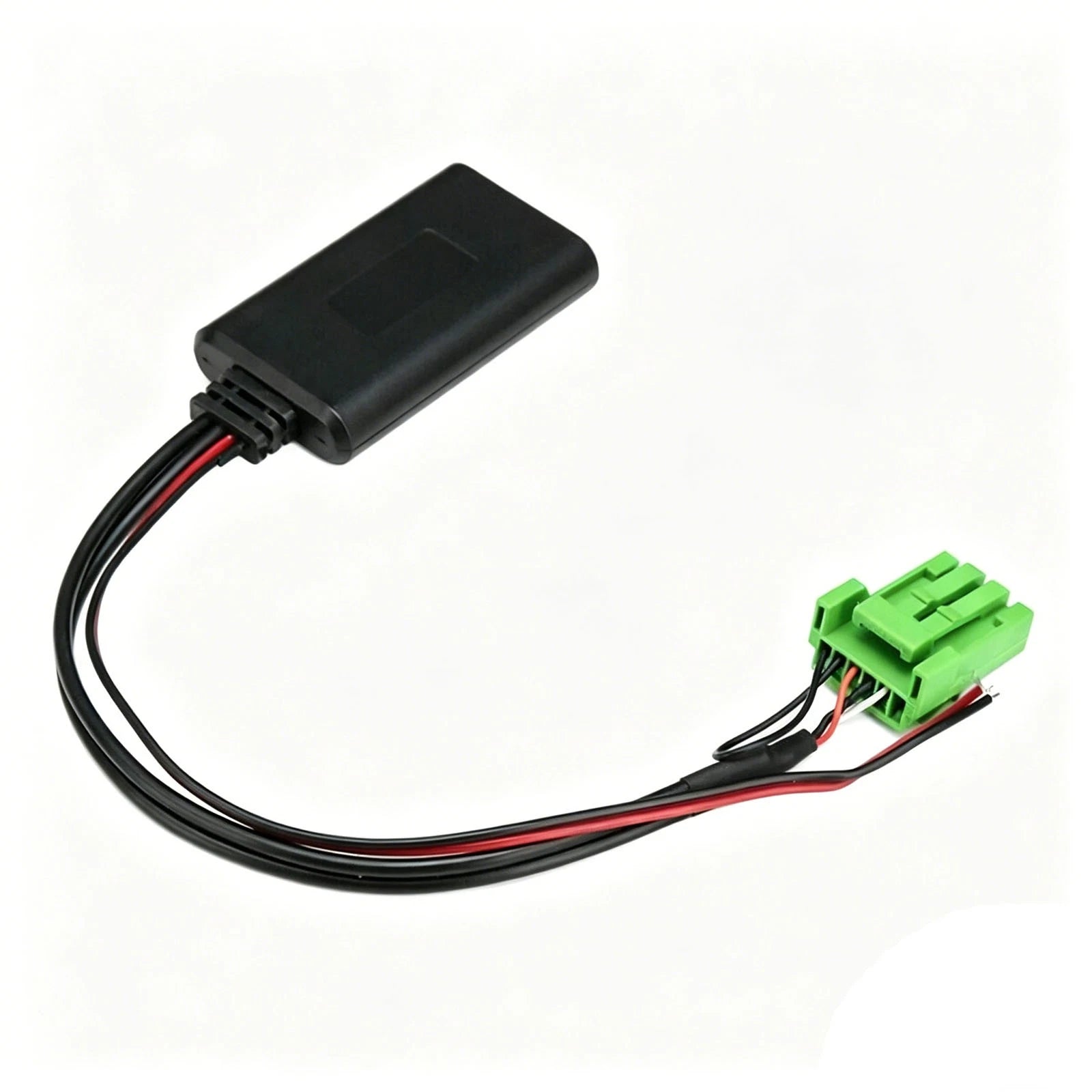

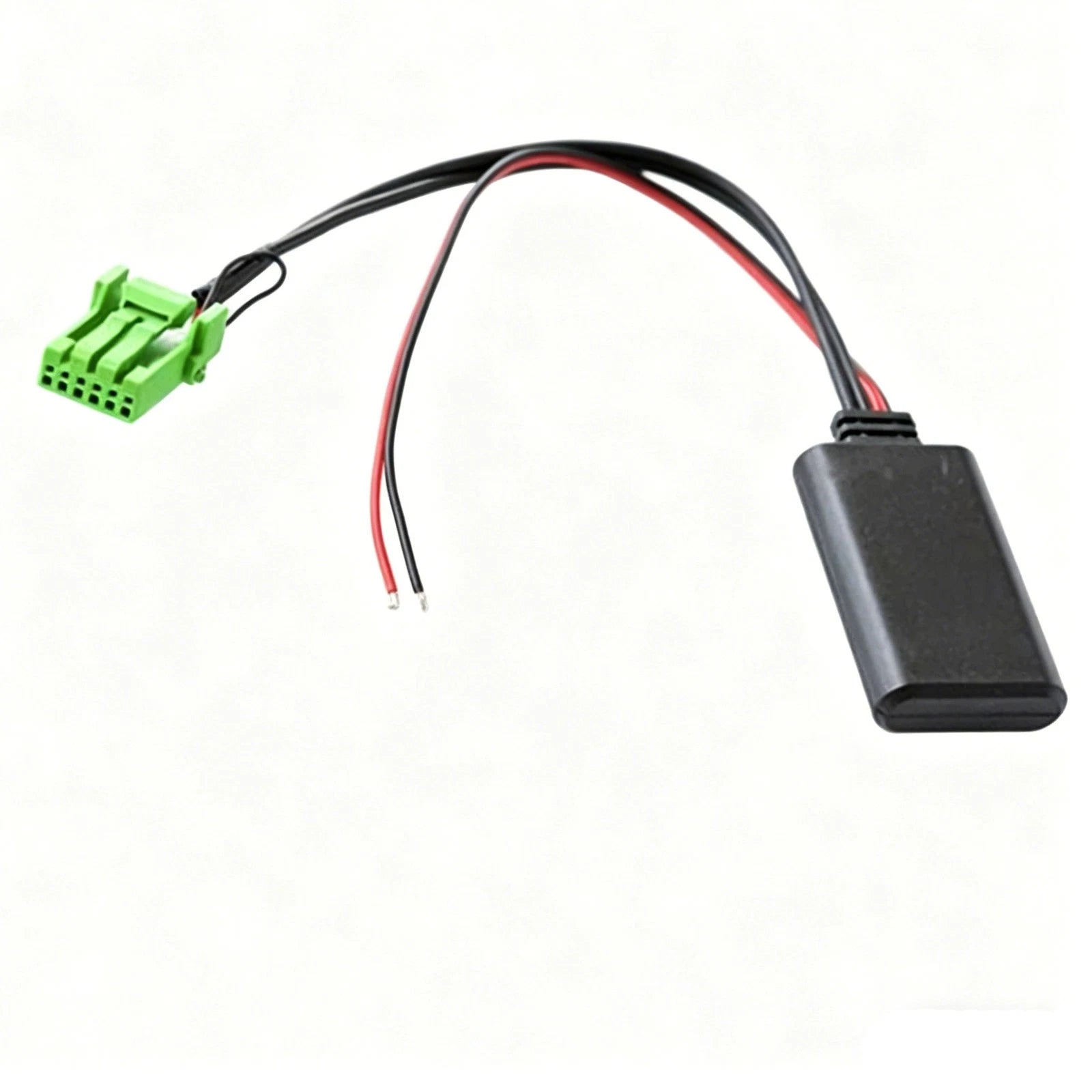

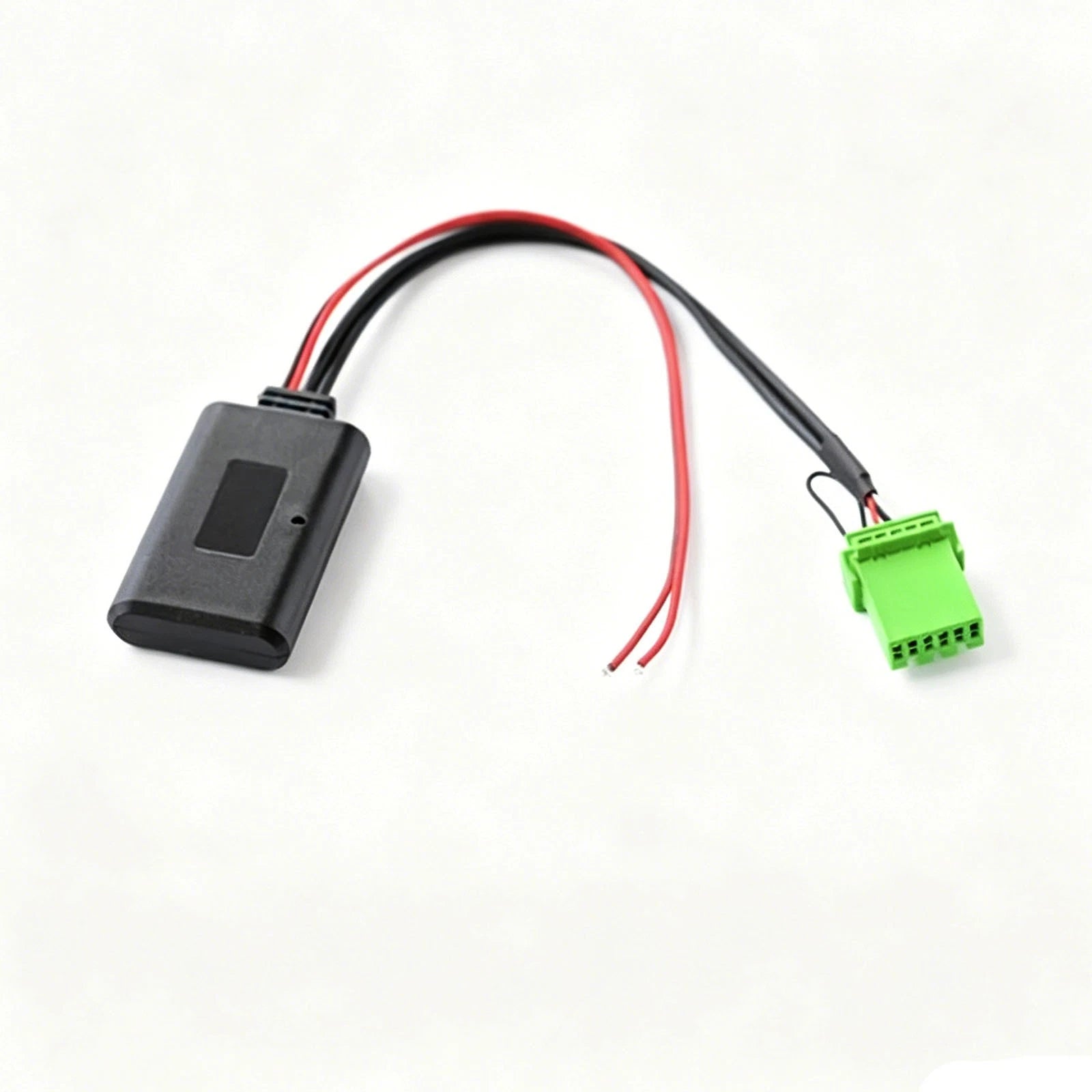

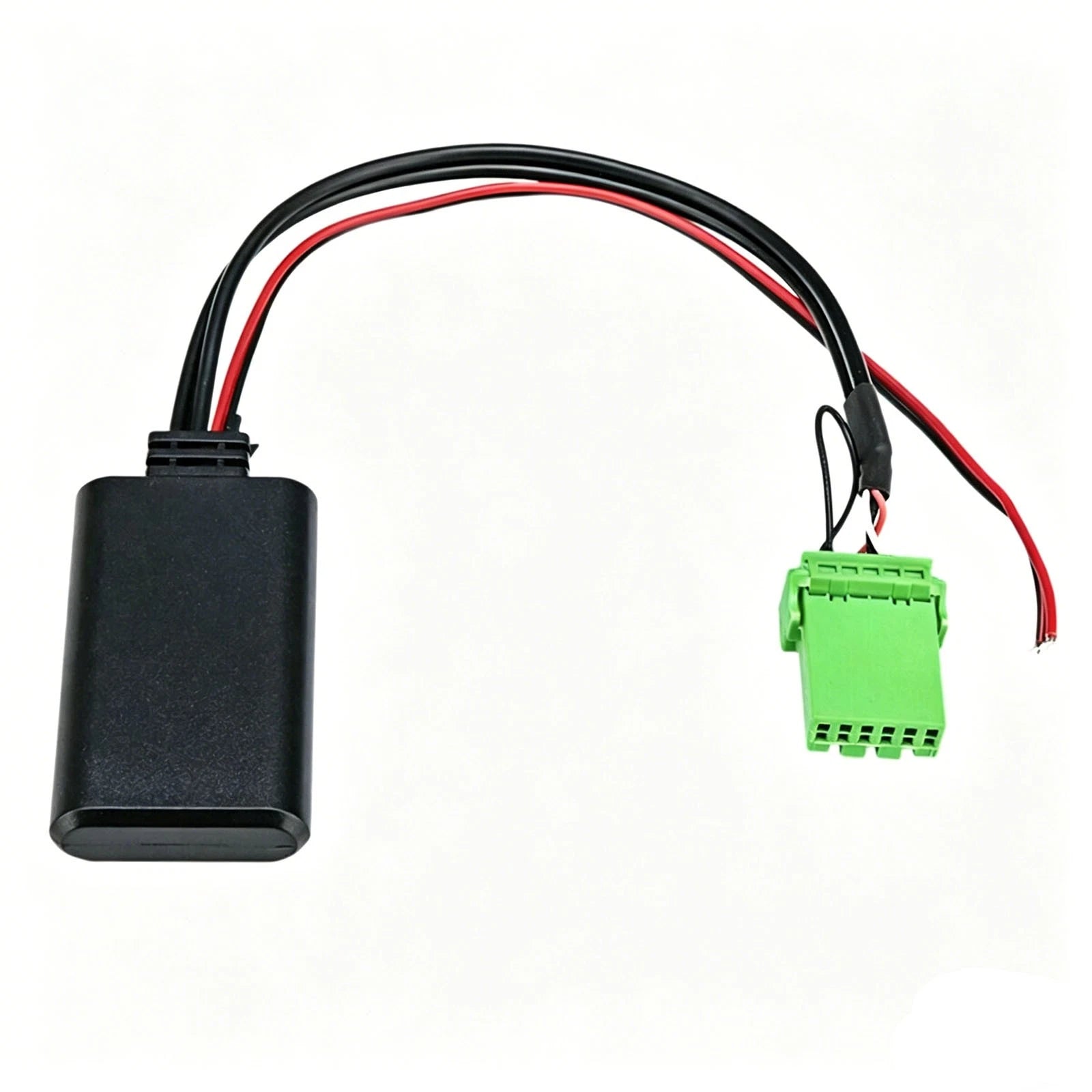

6-Pin Bluetooth AUX Adapter for Honda Acura Civic Accord CR-V Pilot RDX TSX

$ 74.95

Product description

Add wireless Bluetooth audio to a compatible factory Honda or Acura radio while retaining the original dashboard appearance.

This adapter connects to the green 6-pin CD-changer/AUX socket located on the rear of certain factory radios. Once installed, a compatible phone or other Bluetooth device can stream audio through the vehicle’s existing speakers. The module is also advertised as supporting hands-free calling.

Product details

Product type: Bluetooth audio/AUX input adapter
Connector: Green 6-pin factory-radio connector
Compatible brands: Honda and Acura
Material: ABS plastic
Color: Black
Installation location: Behind the factory radio
Condition: New
Aftermarket product; not manufactured by Honda or Acura
Not a universal-fit adapter

Features

Wireless music streaming through the original radio
Direct audio connection without an FM transmitter
Hands-free calling capability
Retains the factory radio and dashboard appearance
Compact module installs out of sight
Compatible with smartphones and other Bluetooth audio devices
No radio programming normally required

This product does not add a touchscreen, navigation, song-title display or factory-style phonebook integration. Steering-wheel track controls and radio text display are not guaranteed.

Potential applications

This style of adapter is commonly advertised for selected factory radios in the following vehicles:

Acura

2006–2011 CSX
2005–2006 MDX
2007–2011 RDX
2004–2011 TSX

Honda

2003–2011 Accord
2006–2011 Civic
2004–2011 CR-V
2003–2011 Element
2006–2011 Fit
2005–2010 Odyssey
2005–2011 Pilot
2006–2011 Ridgeline
2005–2010 S2000

These ranges are only a preliminary guide. Honda and Acura used several different radios and connector arrangements within the same model year. Comparable integration-interface manufacturers specifically warn that compatibility depends on the connector installed on the individual factory radio—not merely the vehicle model and year. PAC Honda/Acura interface application guide, Honda/Acura radio connector reference

Compatibility requirements

Before ordering, remove or inspect the factory radio and confirm that it has an unused green 6-pin socket matching the connector shown in the listing photographs.

This adapter will not fit simply because the vehicle appears in a compatibility table. It may not work when:

The radio has a white 14-pin CD-changer/SAT connector instead
The required 6-pin port is absent
The port is already occupied by an external CD changer, XM tuner or another accessory
The vehicle has an aftermarket radio
The factory radio cannot select its external AUX or changer source
The connector shape or pin arrangement differs from the photographs

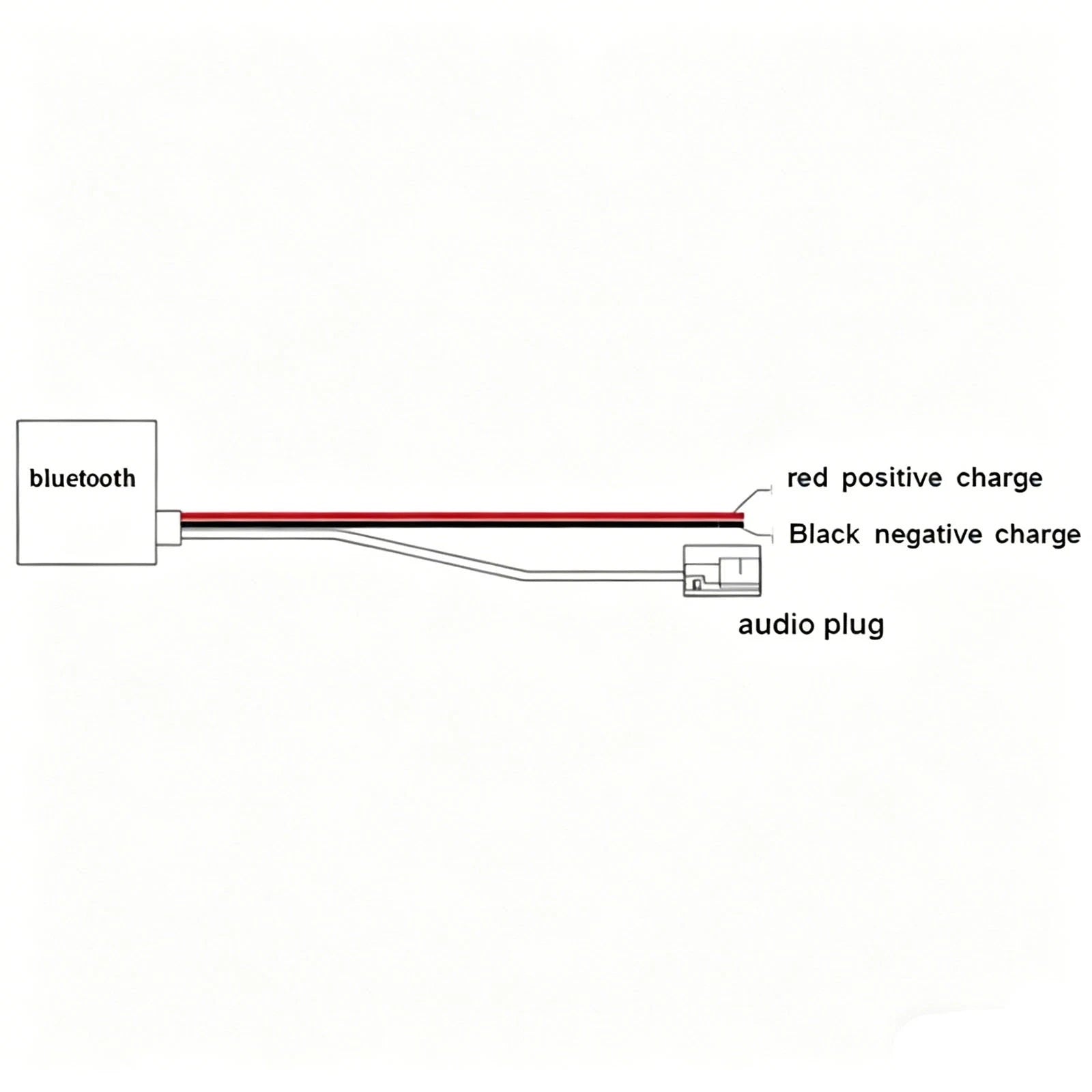

A matching product description confirms that this particular module requires the green six-pin connection and separate positive and negative power connections. Six-pin adapter installation information

Installation overview

Obtain the factory radio security code before disconnecting the battery.
Disconnect the vehicle’s negative battery terminal.
Remove the factory radio using the appropriate trim tools.
Confirm the radio has the matching unused green six-pin port.
Connect the adapter’s six-pin plug.
Connect its power and ground leads according to the supplied polarity markings.
Secure the module away from moving parts and reinstall the radio.
Pair the phone with the Bluetooth receiver.
Select the radio’s AUX or external CD-changer source.

Because the pictured module uses separate power wiring, it should not be described as completely plug-and-play. Professional installation is recommended if the buyer is unfamiliar with automotive electrical wiring.

Package contents

One Bluetooth receiver module
One attached six-pin audio connector
Attached power/ground leads

Only the components pictured or expressly listed are included. Radio-removal tools, wiring taps, fuse holder, installation instructions and vehicle trim tools are not included unless specifically shown.
