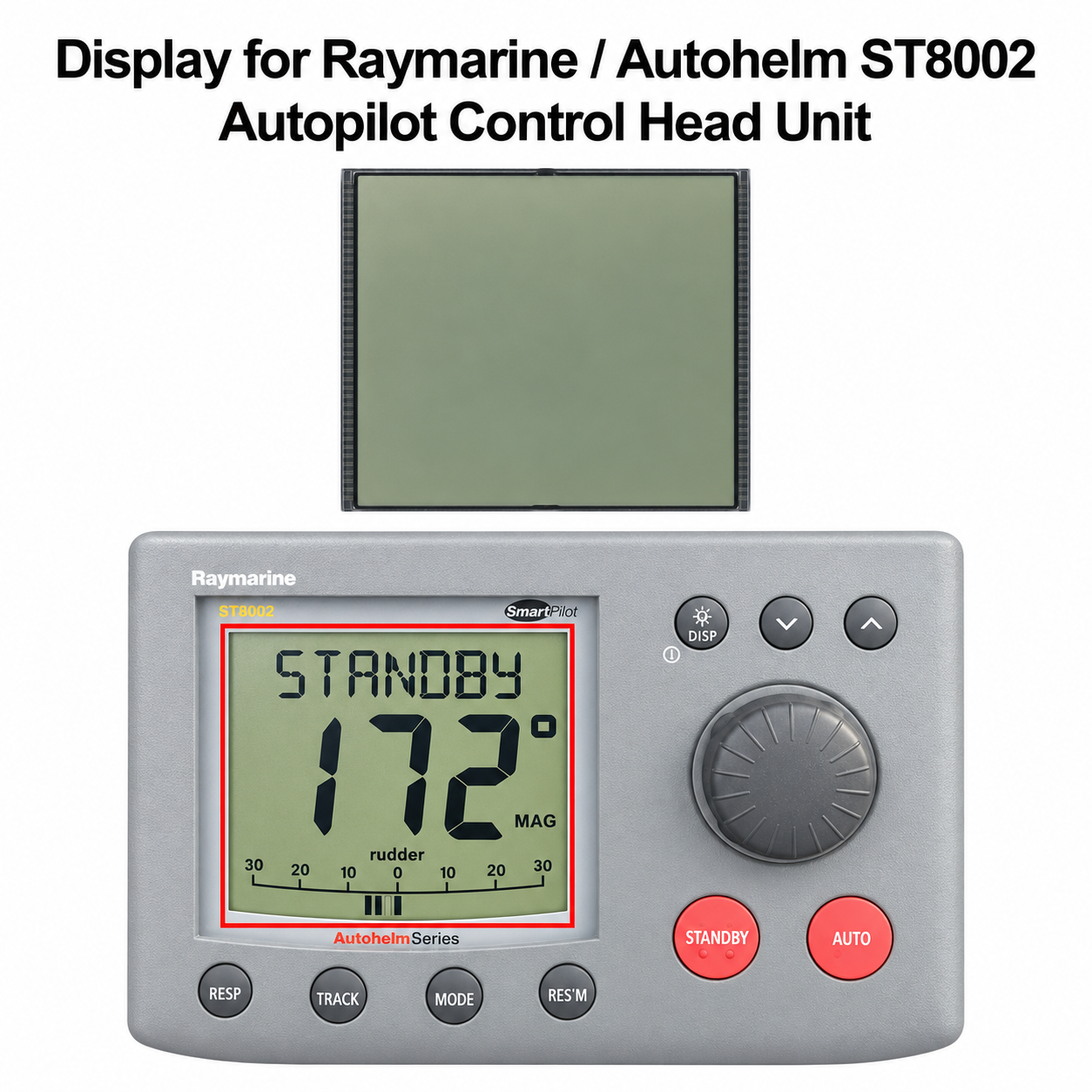

LCD Display Screen for Raymarine Autohelm Smartpilot Control Head ST8001 ST8002
Restore a faded, sun-damaged, cracked, or unreadable autopilot display with this replacement LCD screen for compatible Raymarine, Raytheon, and Autohelm ST8001 and ST8002 rotary control heads.
This listing is for the internal LCD and two conductive strips only. It is not a complete autopilot control head.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀
• Product type: Replacement autopilot LCD screen
• Application: Marine autopilot control-head repair

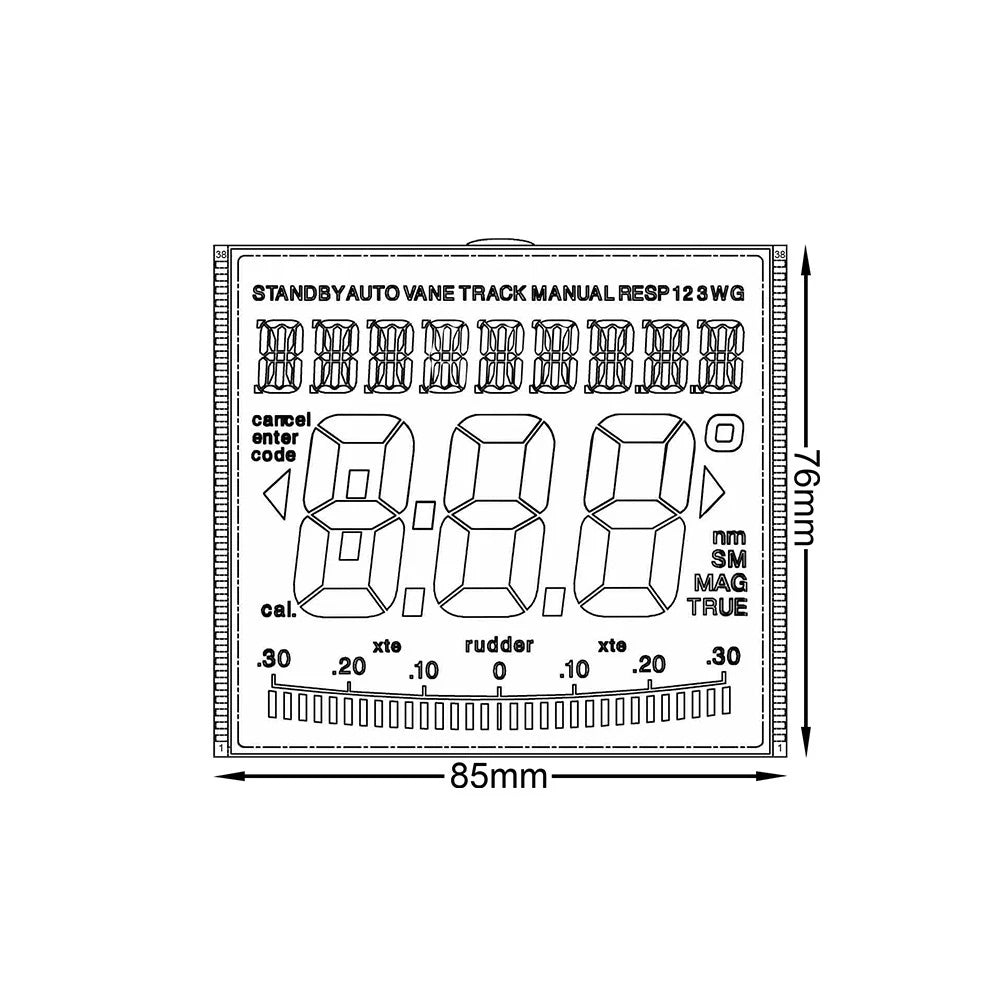

• Screen dimensions: Approximately 85 × 76 mm
• Display type: Monochrome segmented LCD
• Connection method: Conductive elastomer strips
• Condition: New
• Installation location: Inside the autopilot control head
• Brand: Aftermarket replacement component
• Soldering: Normally not required for the LCD connection
𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
Designed for compatible versions of:
• Raymarine ST8001 SmartPilot rotary control head
• Raytheon ST8001 autopilot control head
• Autohelm ST8001 autopilot control head
• Raymarine ST8002 rotary autopilot control head
• Raytheon ST8002 autopilot control head
• Autohelm ST8002 autopilot control head
𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗡𝘂𝗺𝗯𝗲𝗿𝘀
• E12119 – ST8001 surface-mount rotary control head
• E12119-P – ST8002 surface-mount rotary control head
• E12183 – ST8002 flush-mount rotary control head
• E12121 – Complete S1G autopilot system package that included an ST8001 control head
E12121 identifies an autopilot system package rather than the LCD or individual control head. These reference numbers are supplied only to help identify the original equipment.
𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗖𝗵𝗲𝗰𝗸
Raymarine produced several similar-looking autopilot control heads. Before ordering, disassemble the original unit and compare:
• LCD dimensions
• Display-segment and icon arrangement
• Contact locations
• Conductive-strip positions
• Internal reflector and housing design
• Model and product number on the rear label
Do not order from the front-panel appearance alone. ST8000-series control heads without the plus designation and other rotary Raymarine controllers may use different internal displays.
𝗖𝗼𝗺𝗺𝗼𝗻 𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿
• Yellowed or darkened LCD
• Sun and heat damage
• Delaminated display layers
• Bubbles, wrinkles, or blotches
• Cracked LCD glass
• Faded or unreadable characters
• Missing display segments caused by a defective LCD
• Poor contrast that remains after adjustment
• Intermittent segments caused by deteriorated conductive strips
𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿
• A control head that does not power on
• Failed circuit board or power-supply components
• Defective keypad or rotary control
• Failed backlighting or illumination components
• SeaTalk or NMEA communication faults
• Course-computer or software problems
• Defective compass, rudder-reference sensor, or drive unit
• Water-damaged or corroded electronics
• Damaged wiring or external connectors
Missing or intermittent segments can also be caused by dirty contacts, improper conductive-strip alignment, insufficient assembly pressure, or PCB damage. Diagnose the original control head before ordering.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Installation requires disassembling the autopilot control head and carefully transferring the internal display components.
• Disconnect vessel power before servicing
• Use electrostatic-discharge protection
• Photograph all original component positions
• Avoid touching the LCD contact surfaces
• Clean the contact areas using an electronics-safe method
• Align both conductive strips evenly
• Confirm correct placement of the reflector and display surround
• Tighten the housing evenly without overtightening
• Inspect the housing seal and mounting gasket
• Test all display segments and control functions before final installation
A damaged or incorrectly seated housing seal can allow moisture into the control head. Replacement of aged sealing components is recommended whenever the unit is opened.
Professional marine-electronics installation is recommended if you are not experienced with instrument-panel repairs.
𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

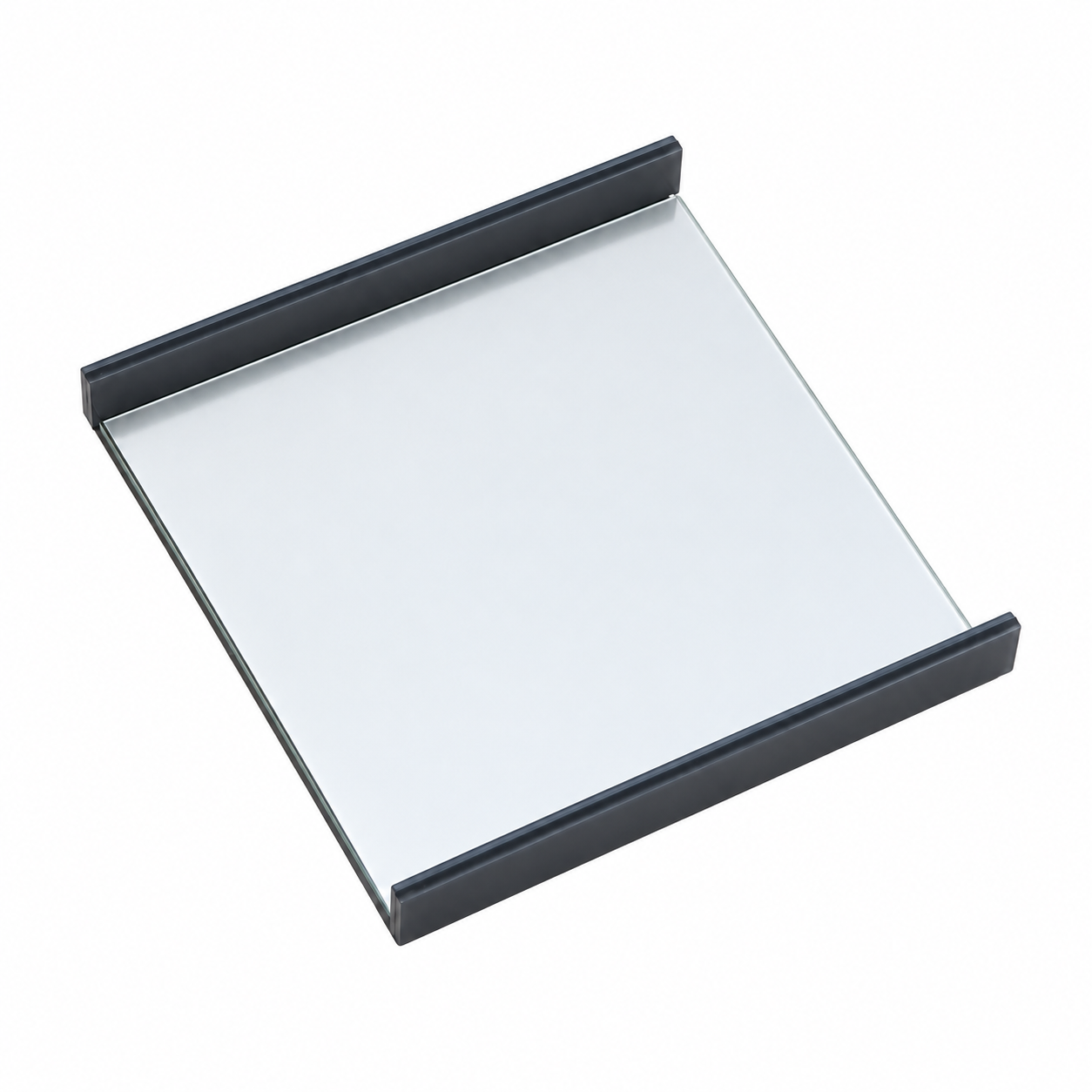

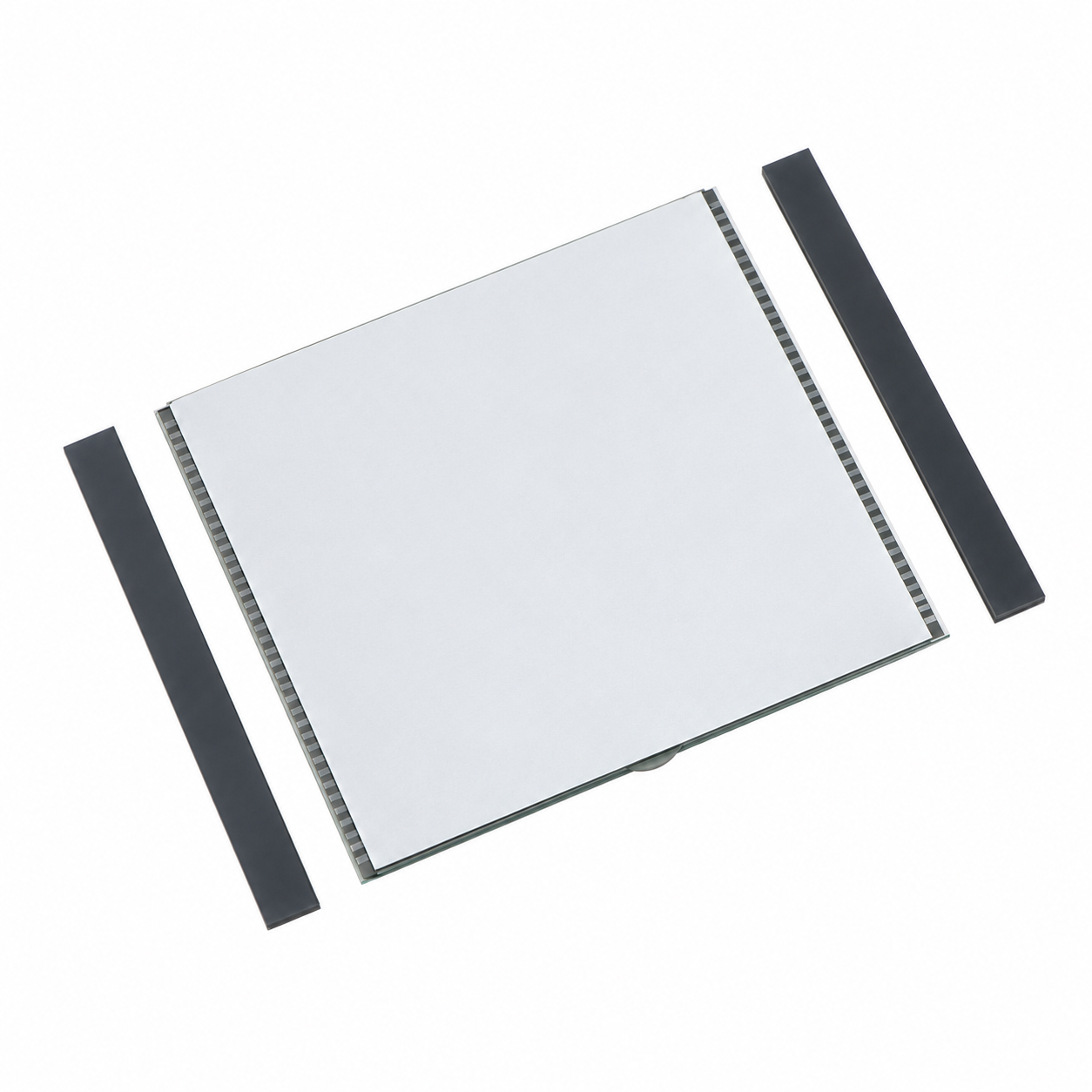

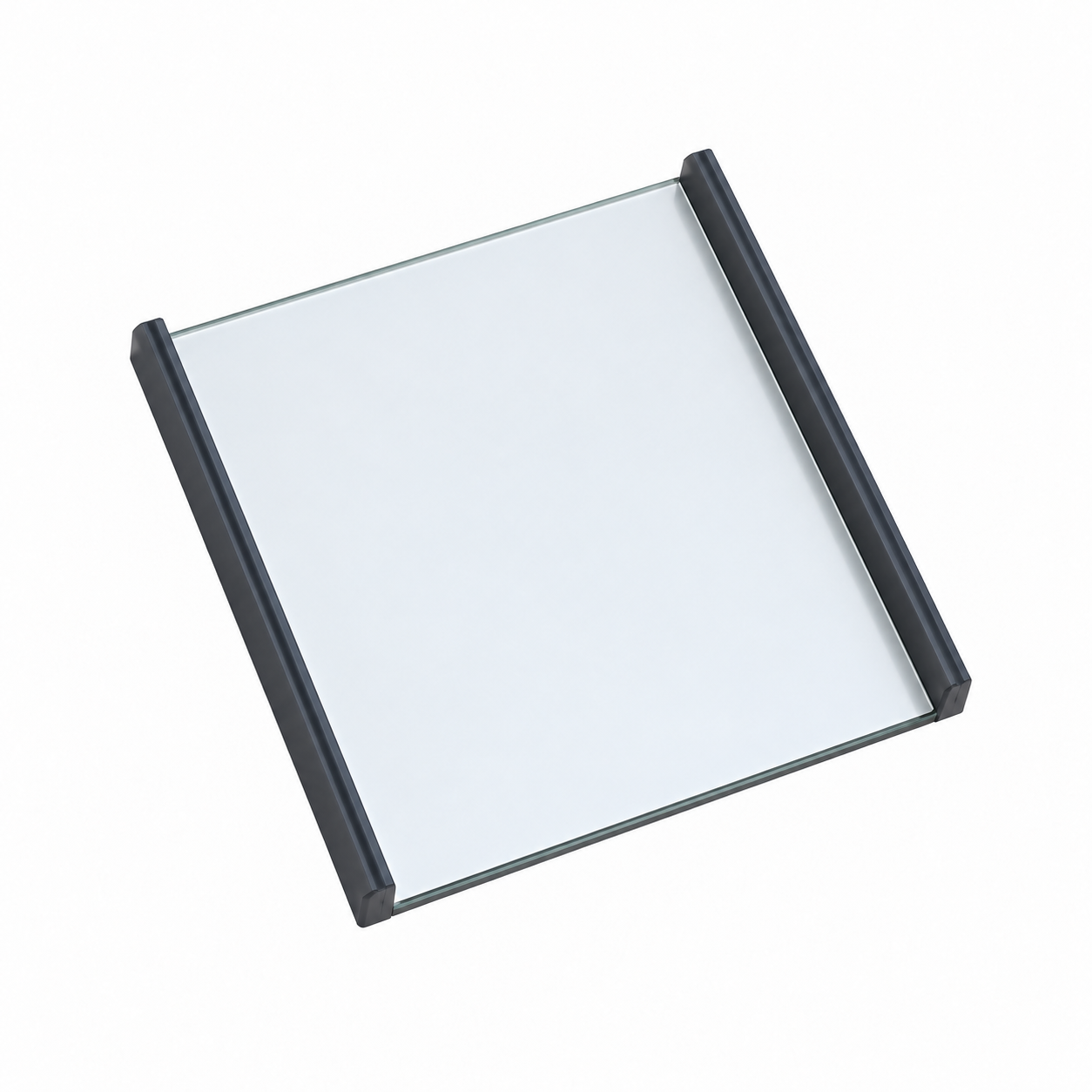

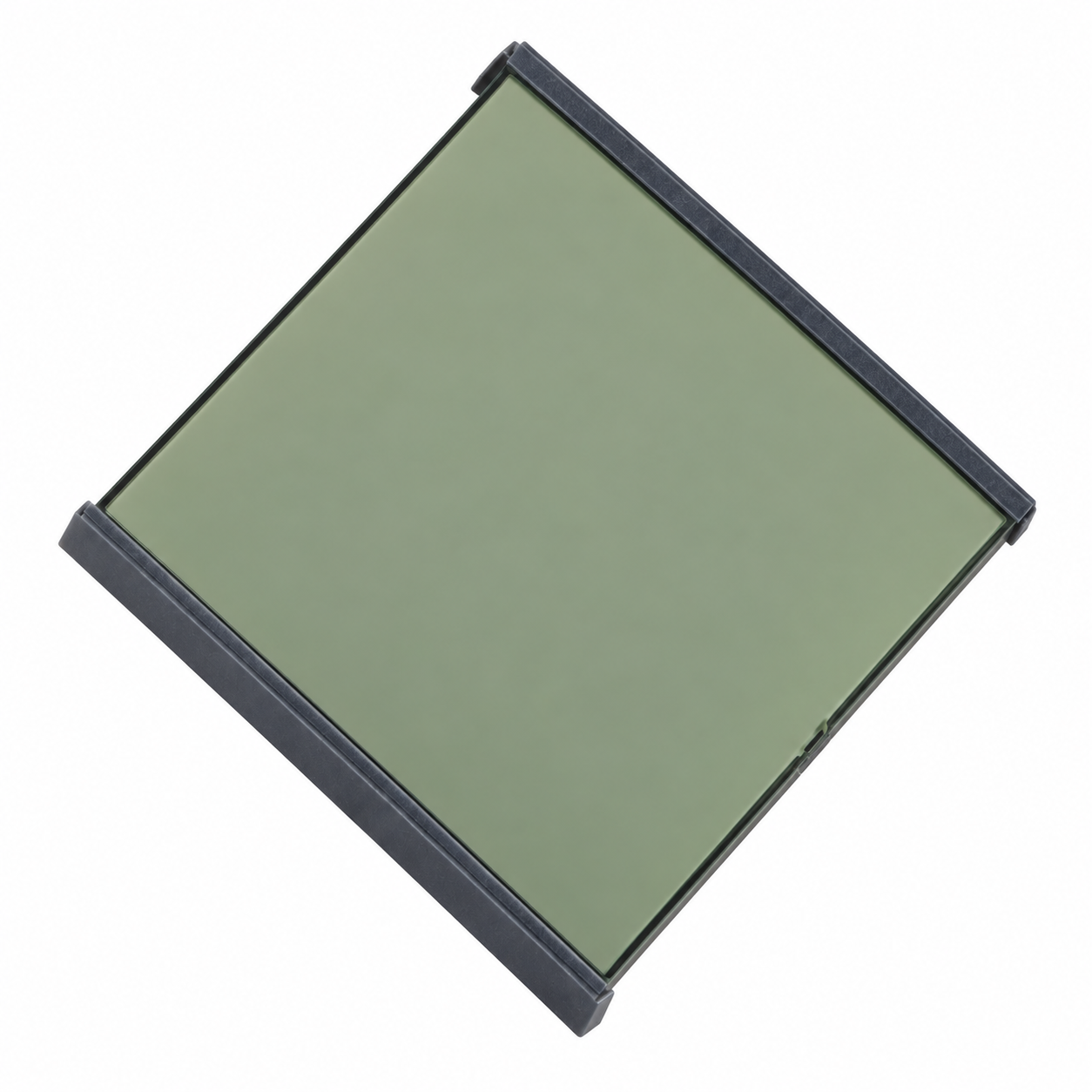

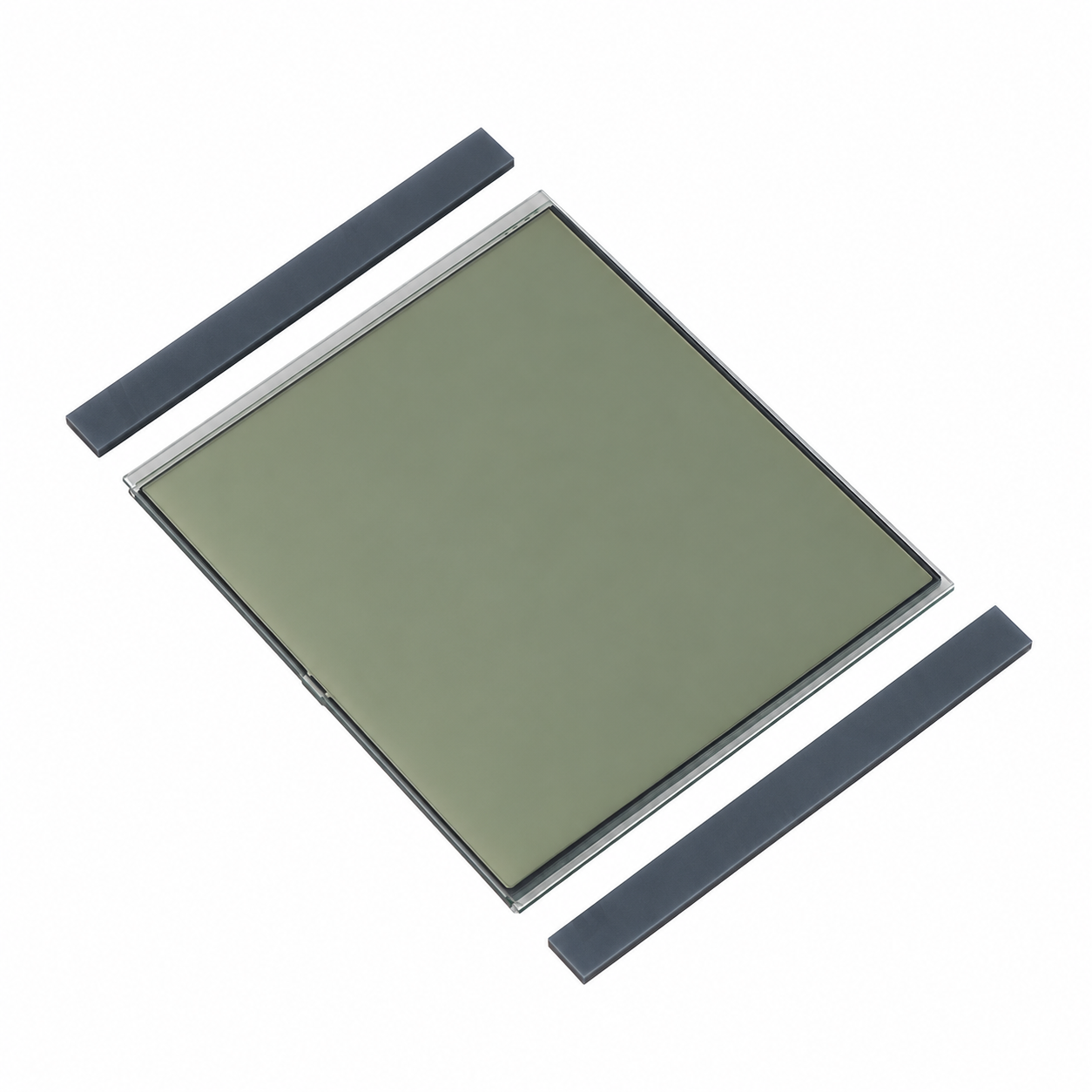

• One replacement LCD screen
• Two conductive elastomer strips
𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱
• Complete ST8001 or ST8002 control head
• Front fascia, keypad, or rotary knob
• Reflector, diffuser, or LCD surround
• Main circuit board or rear housing
• Backlight components
• Case seal or mounting gasket
• Course computer, compass, rudder sensor, or drive unit
• SeaTalk cables, mounting hardware, tools, or instructions
𝗦𝗮𝗳𝗲𝘁𝘆 𝗡𝗼𝘁𝗶𝗰𝗲
An autopilot is a navigation aid and must never replace attentive supervision at the helm. After repair, thoroughly test the display, rotary control, keypad, alarms, standby function, steering response, and autopilot operation before returning the system to normal service.
