7" LCD Display LA070WV7-SL02 for 2016-18 Honda Civic 39710-TBA-A11

$ 199.95

Pay in 4 interest-free payments of $ 49.99 with

Product Description

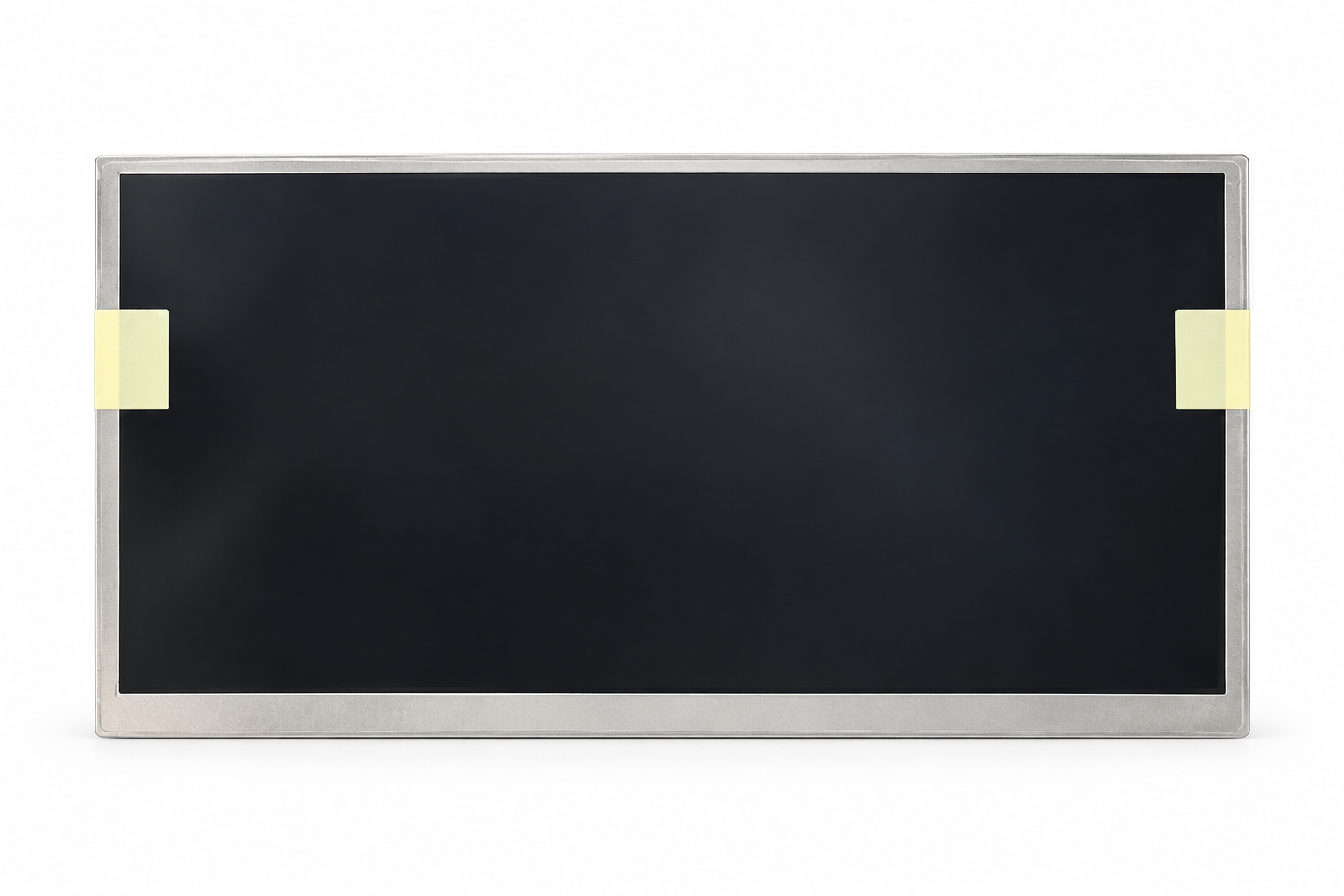

Used 7-inch replacement LCD panel for select 2016–2018 Honda Civic factory center infotainment displays. This panel has been tested and is reported to be in proper working condition.

This listing is for the internal LCD panel only. It is not a complete radio, navigation system, center display assembly or touch-screen digitizer.

Product Details

Display model: LA070WV7-SL02
Alternate format: LA070WV7(SL)(02)
Screen size: 7 inches
Resolution: 800 × 480 WVGA
Display technology: IPS a-Si TFT LCD
Backlight: White LED
Brightness: Approximately 1,000 cd/m²
Contrast ratio: Approximately 1100:1
Signal interface: Single-channel, 8-bit LVDS
Connector: 50-pin FPC
Surface: Anti-glare/matte
Touchscreen: Not integrated
Condition: Used
Seller condition note: Fully tested and working
Warranty: 90 days

Compatibility

This LCD is reported for select:

2016 Honda Civic
2017 Honda Civic
2018 Honda Civic

Applicable body styles and trims depend upon the original factory display assembly. Compatibility has been documented with Honda center-display assembly:

39710-TBA-A11
Superseded by 39710-TBA-305

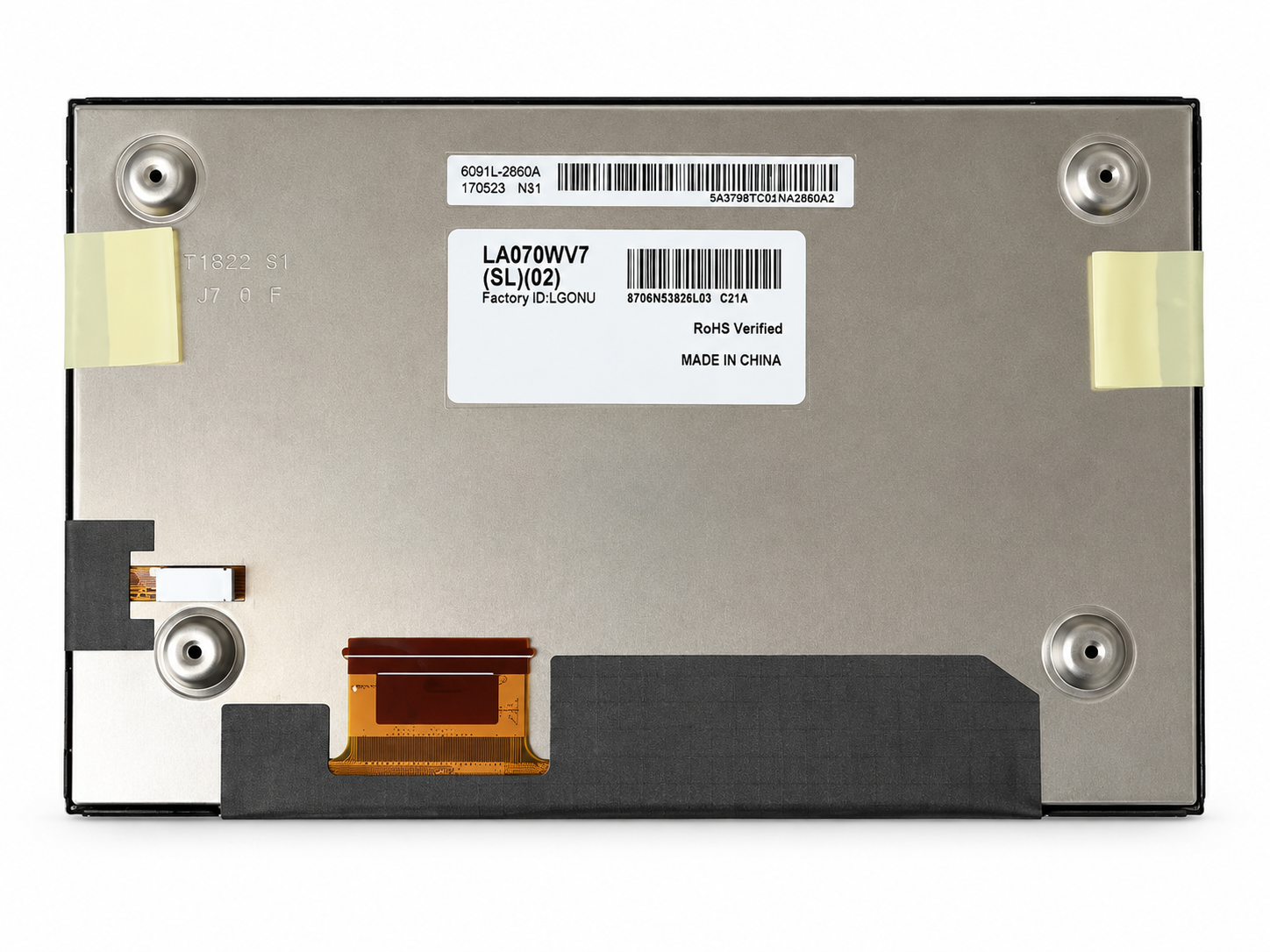

Additional markings associated with this application may include:

6091L-2660A
190502 N81
LA070WV7-SL02
LA070WV7(SL)(02)

Honda’s parts catalog associates the superseding 39710-TBA-305 display assembly with select 2016–2018 Civic coupe, sedan and hatchback models, including certain EX, EX-T, EX-L, Touring, Si, Sport and Type R applications. Exact coverage varies by year, body style, transmission and market.

Important Fitment Notice

Vehicle year and model alone are not sufficient to confirm compatibility. Before ordering, disassemble or inspect the original display and verify:

The LCD itself is marked LA070WV7-SL02
The original display assembly is compatible with 39710-TBA-A11
Resolution is 800 × 480
Ribbon-cable type, contact count and location match
Mounting dimensions and backlight connection match
The separate touch digitizer is operational or will be replaced separately

Honda used multiple display assemblies and revisions. Numbers such as 39710-TBA-A21 or other similar-looking assemblies should not be assumed interchangeable without comparing the internal LCD and connector configuration.

Dimensions

Active display area: Approximately 152.4 × 91.44 mm
Overall panel dimensions: Approximately 166.4 × 106.2 × 10.7 mm

Measurements are manufacturer specifications and should still be compared with the original panel.

Installation

Professional installation is strongly recommended. Replacing the panel requires opening the infotainment display assembly and handling delicate ribbon cables and electronic components.

Use proper anti-static precautions and disconnect vehicle power before removing the factory unit. No installation instructions are included.

Package Includes

One used LA070WV7-SL02-compatible 7-inch LCD panel

The radio, center-display housing, control board, touch digitizer, bezel, cables and installation tools are not included unless specifically pictured and stated.

Fitment and compatibility

Application reference: 7" LCD Display LA070WV7-SL02 for 2016-18 Honda Civic 39710-TBA-A11

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

Part number / catalog reference: LA070WV7-SL02, 39710-TBA-A11

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
