2007-2009 Lexus GX470 Navigation Touchscreen Radio Dash OEM 86111-60200

Genuine OEM Lexus navigation touchscreen and Mark Levinson radio-receiver assembly for selected 2007–2009 GX470 models.

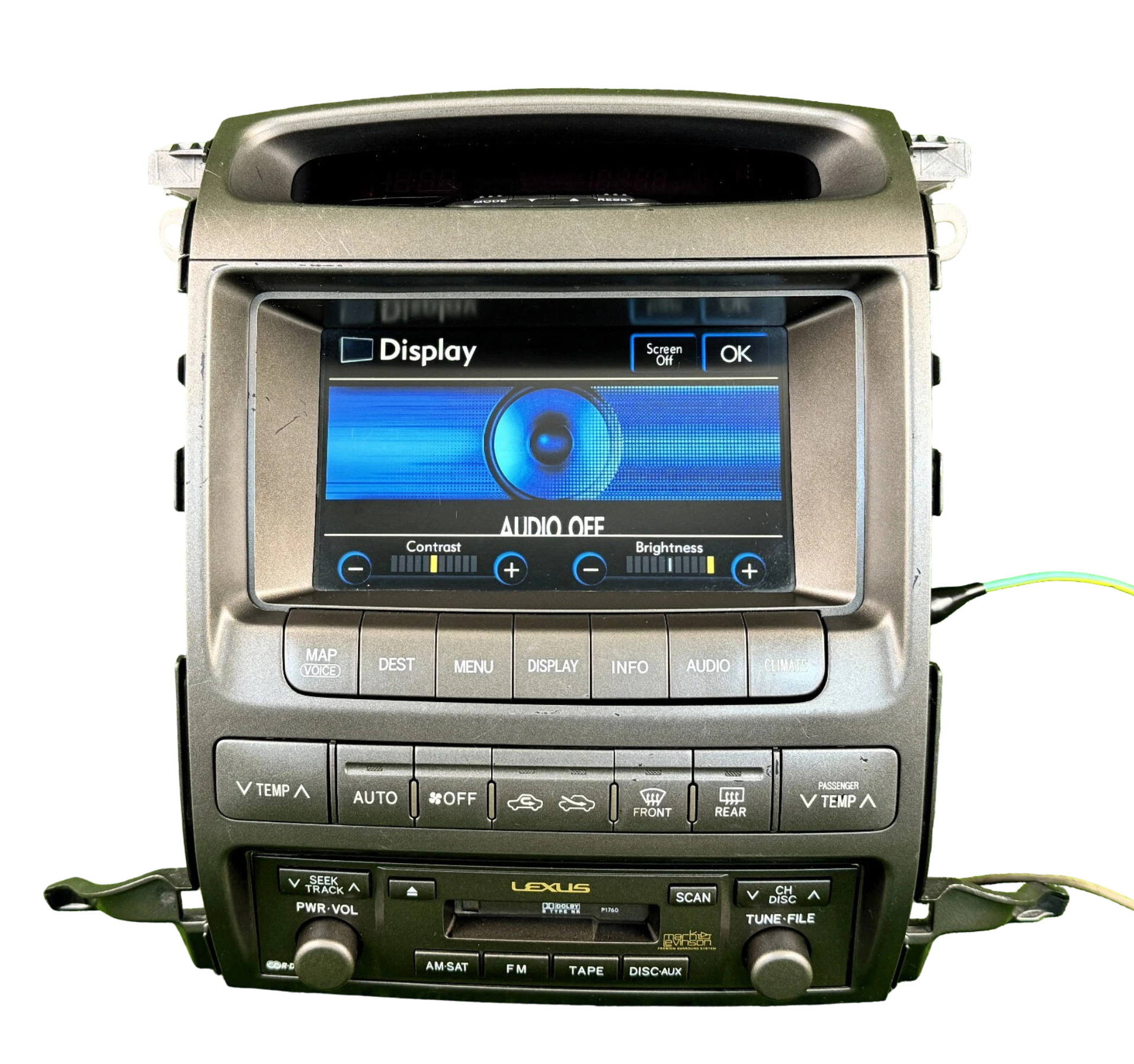

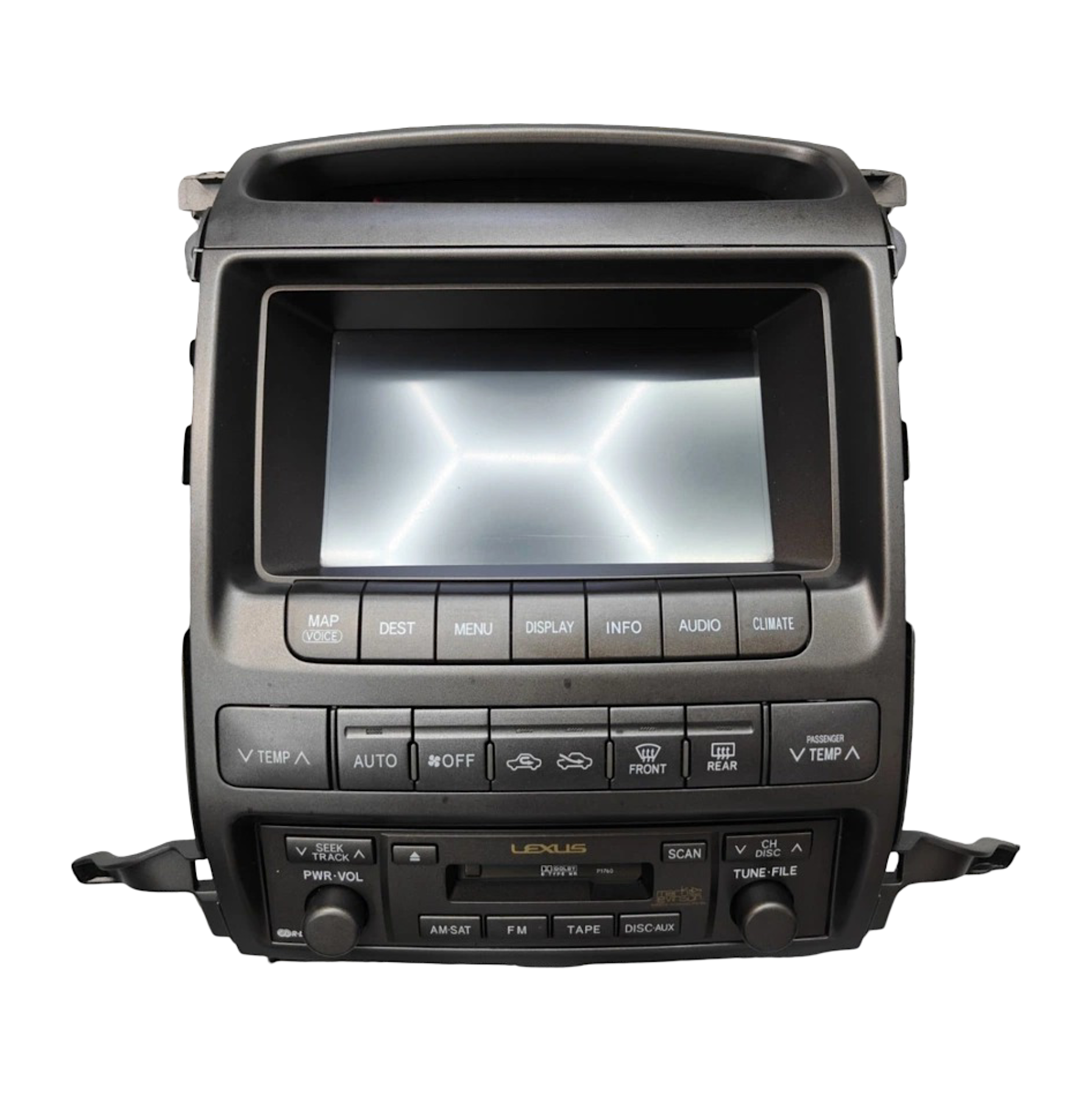

This assembly combines the upper Denso multi-display, part number 86111-60200, with the lower Pioneer P1760 AM/FM cassette receiver, part number 86120-60820. It is designed for GX470 vehicles equipped with the matching factory navigation, Mark Levinson 12-speaker audio system, external amplifier, and auxiliary mini-jack input.

Product details

• Product type: Navigation multi-display and radio-receiver assembly

• Brand: Genuine Lexus / Toyota

• Display manufacturer: Denso

• Radio manufacturer: Pioneer

• Display part number: 86111-60200

• Radio part number: 86120-60820

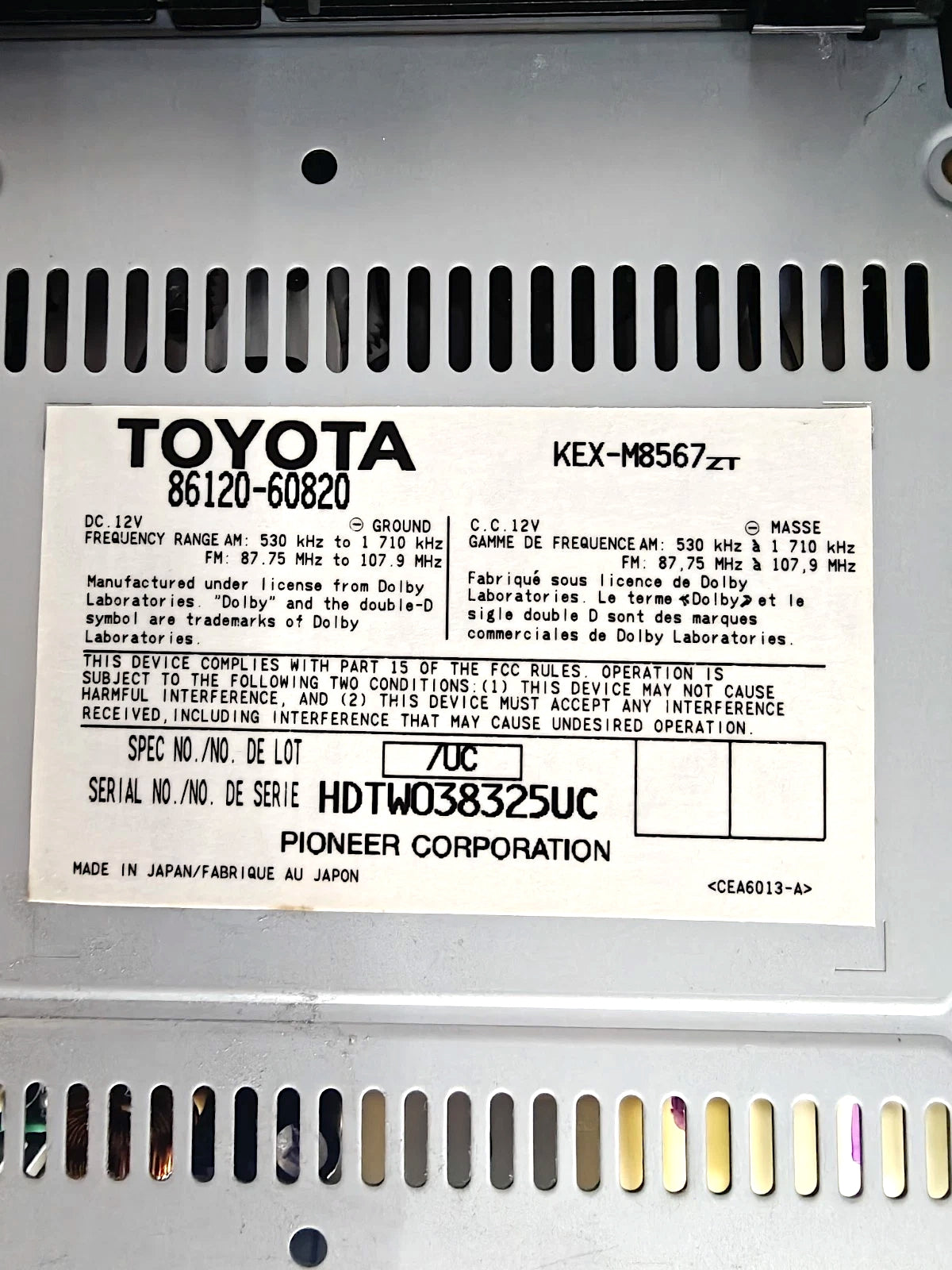

• Radio face identification: P1760

• Pioneer radio model: KEX-M8567

• Factory audio system: Mark Levinson

• Speaker configuration: 12 speakers

• Vehicle platform: UZJ120

• Engine: 4.7-liter 2UZ-FE V8

• Condition: Used OEM components

• Country of manufacture: Japan

Part numbers

Navigation multi-display:

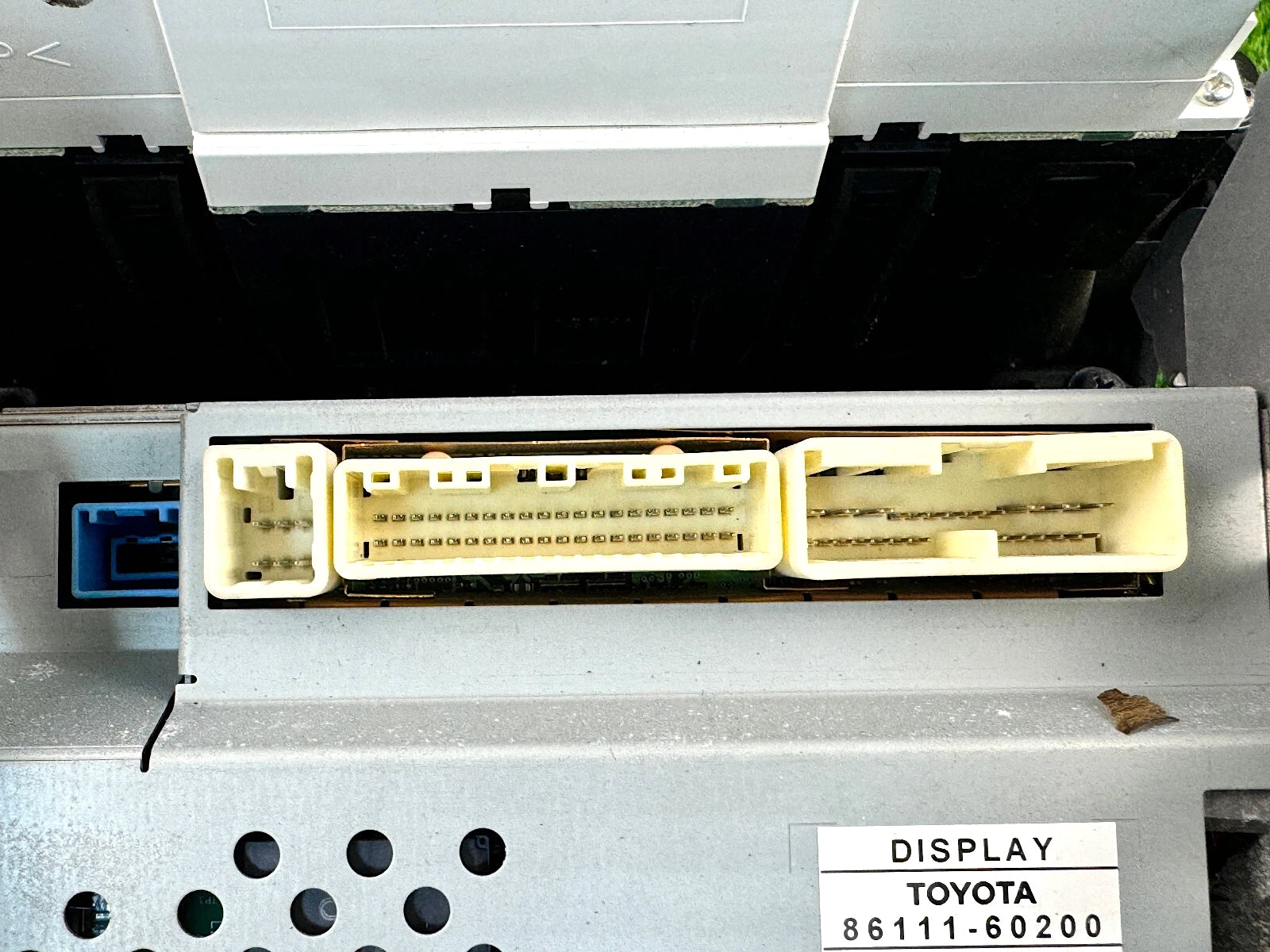

• 86111-60200

• 8611160200

• Hollander interchange 594-00890

Radio receiver:

• 86120-60820

• 8612060820

• P1760

• KEX-M8567

Match both primary part numbers whenever replacing the complete assembly.

Compatibility

Fits selected:

• 2007 Lexus GX470

• 2008 Lexus GX470

• 2009 Lexus GX470

The vehicle must be equipped with the corresponding factory navigation and Mark Levinson audio configuration.

Toyota catalog information places display 86111-60200 in vehicles produced approximately from July 2007 through August 2009. Because production dates and model years overlap, some 2007 GX470 vehicles use a different display.

Required factory equipment

Compatibility requires:

• Factory Lexus color navigation system

• Denso electro multi-vision display

• Mark Levinson premium audio system

• 12-speaker configuration

• External Mark Levinson amplifier

• Factory auxiliary mini-jack input

• Pioneer P1760 lower radio receiver

• Matching electrical connectors and mounting points

The Mark Levinson name and P1760 identification should be present on the original lower receiver.

Earlier GX470 display versions

This assembly should not be purchased solely by vehicle year. Earlier GX470 vehicles may use:

• 86111-60120 — approximately November 2002 through November 2004

• 86111-60121 — approximately November 2004 through August 2006

• 86111-60270 — approximately August 2006 through July 2007

• 86111-60200 — approximately July 2007 through August 2009

These display versions may look similar but can differ in connectors, software, vehicle communication, audio configuration, auxiliary-input support, and face controls.

Not compatible with

• Non-navigation GX470 models

• Nine-speaker Pioneer audio systems

• GX470 models without Mark Levinson audio

• Vehicles using display 86111-60120

• Vehicles using display 86111-60121

• Vehicles using display 86111-60270

• Radios using part number 86120-60800

• Radios using part number 86120-60810

• Lexus LX470

• Lexus GX460

• Toyota Land Cruiser

• Toyota 4Runner

• Aftermarket audio or navigation conversions

Display functions

Depending on the vehicle’s original equipment, the multi-display provides the interface for:

• Factory navigation

• Audio-source selection

• Radio and disc controls

• Climate-control settings

• Vehicle and trip information

• Display settings

• Bluetooth and telephone menus

• Backup-camera display

The screen is a display and control interface. The separate navigation computer, map media, camera, amplifier, and external disc changer are not built into the screen.

Radio functions

The lower P1760 receiver provides controls for:

• AM radio

• FM radio

• Satellite-radio source selection

• Cassette playback

• Auxiliary audio input

• External disc changer

• Volume, tuning, seek, scan, track, text, and presets

The DISC button controls a separate factory changer. This receiver does not contain the vehicle’s navigation computer.

Important diagnostic information

This assembly is only part of the GX470 navigation and audio system. Replacing it may not correct problems caused by:

• Failed Mark Levinson amplifier

• Defective navigation computer

• Missing or damaged map media

• Damaged external CD/DVD changer

• Failed speakers or deteriorated speaker surrounds

• Faulty rear-seat entertainment equipment

• Damaged wiring or connectors

• Blown fuses

• Defective backup camera

• Water or corrosion damage

If the display and radio appear to operate but there is no sound from any source, test the external Mark Levinson amplifier before replacing the receiver.

If the climate controls operate but navigation does not load, inspect the separate navigation computer and map media.

Condition

Used genuine OEM assembly. Cosmetic wear, scratches, marks, or discoloration may be present from normal use, storage, and removal.

Please review every photograph carefully because the photographs show the actual components and their cosmetic condition. Match the part numbers and connections before purchasing.

Package contents

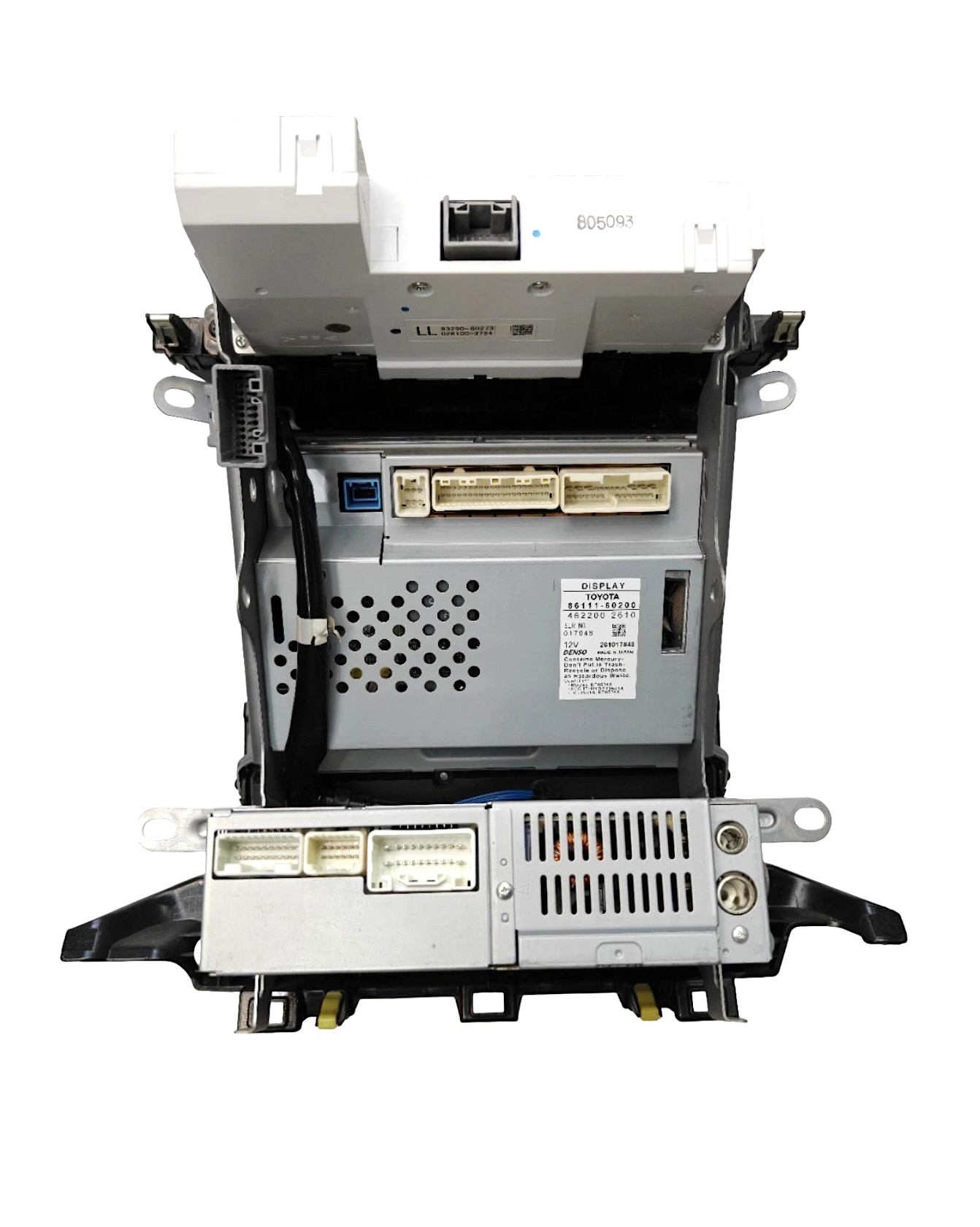

• One Denso navigation multi-display, part number 86111-60200

• One Pioneer P1760 radio receiver, part number 86120-60820

• Assembly of components and brackets shown in the photographs

Mark Levinson amplifier, navigation computer, map DVD, external disc changer, rear camera, speakers, wiring harnesses, antenna, dashboard trim, mounting hardware, and installation tools are not included unless specifically pictured.

Installation

Disconnect the vehicle battery before removing or installing electronic components. Compare both original part numbers, connectors, mounting locations, audio-system branding, and vehicle production date.

This assembly is intended as a replacement for a vehicle already equipped with the same factory configuration. Installing it in a non-navigation or non-Mark Levinson vehicle is not a direct plug-and-play conversion.

Some system functions may require initialization, calibration, or diagnostic fault clearing after installation. Professional installation is recommended.
