Replacement Display LCD for Autohelm Raymarine ST6000+ ST6001+ Control Head E12098

$ 149.95

Restore the display in your Raymarine, Raytheon or Autohelm ST6000+ or ST6001+ autopilot control head with this new aftermarket replacement LCD kit. Designed to replace a faded, darkened, damaged or partially unreadable original screen while retaining your existing controller.

This listing includes the replacement LCD and conductive connector strips only. It is not a complete autopilot control head, course computer or autopilot system.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Replacement LCD screen kit
• Application: Marine autopilot control-head repair
• Compatible brand names: Raymarine, Raytheon and Autohelm
• Primary applications: ST6000+ and ST6001+ control heads
• Advertised control-head reference: E12098
• Condition: New aftermarket replacement component
• Installation time: Approximately 15–30 minutes for an experienced installer
• No soldering is normally required for the LCD connection

𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻

• E12098 identifies the complete surface-mount ST6001+ control head; it is not the individual LCD part number.
• E12100 identifies the related flush-mount ST6001+ control head.
• Q220 is an earlier Raymarine display-kit reference used with several Plus-series pilot controllers.
• A18012 and A18012-P identify the later Raymarine Universal Pilot Display Kit.
• The original Raymarine display kits contained additional components such as labels, window inserts and an LCD surround.
• This aftermarket listing supplies only the LCD and two conductive strips and should not be represented as a complete genuine Q220 or A18012 kit.

𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

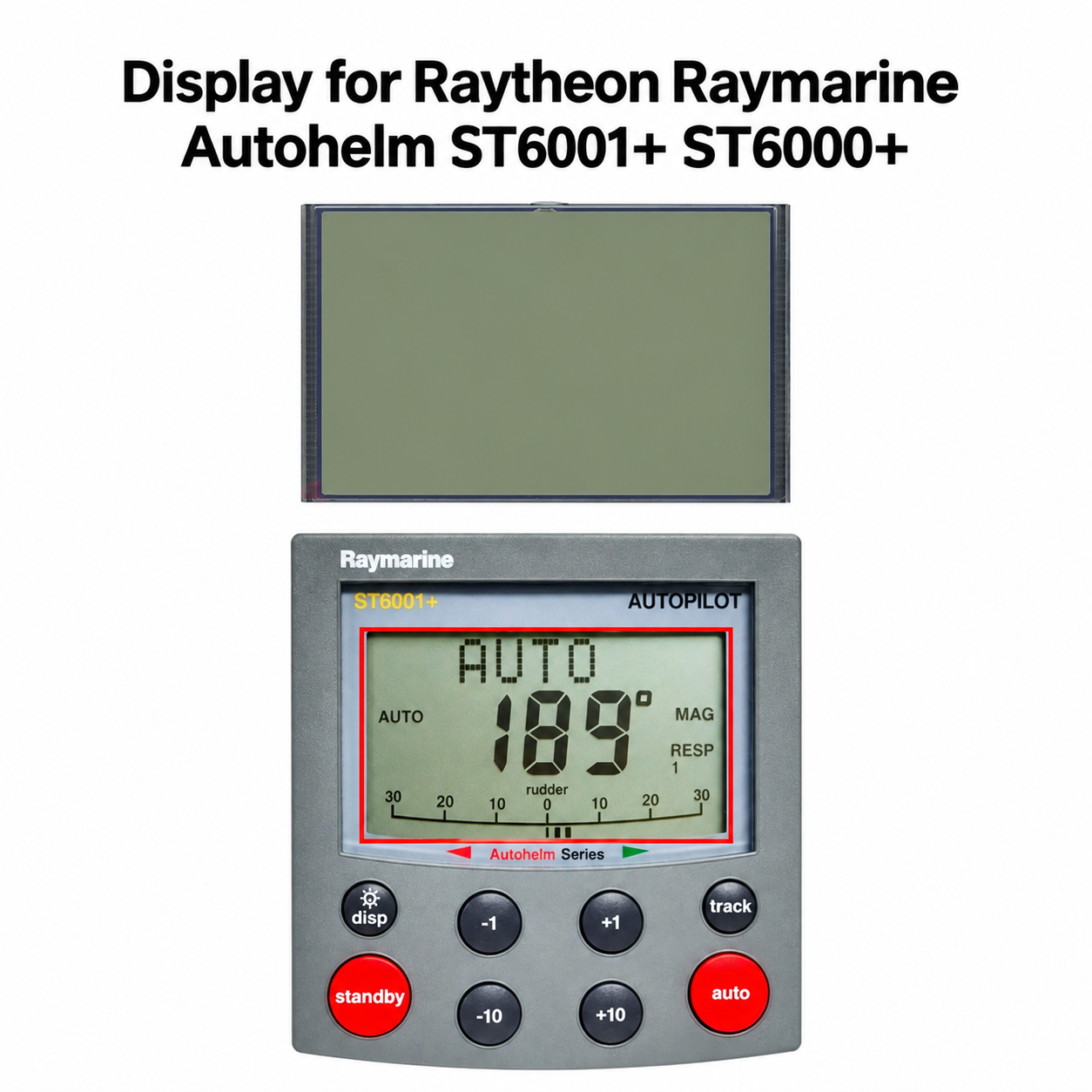

• Autohelm ST6000+ autopilot control head
• Raytheon ST6000+ autopilot control head
• Raymarine ST6000+ autopilot control head
• Autohelm ST6001+ autopilot control head
• Raytheon ST6001+ autopilot control head
• Raymarine ST6001+ surface-mount control head E12098

𝗥𝗲𝗹𝗮𝘁𝗲𝗱 𝗖𝗼𝗻𝘁𝗿𝗼𝗹-𝗛𝗲𝗮𝗱 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

The following references appear within the related ST6000 Plus and ST6001 Plus control-head family:

• Z299 – ST6000+ dark-gray surface-mount control head
• A12022 – ST6000+ light-gray surface-mount control head
• E12025 – ST6000+ light-gray flush-mount control head
• E12098 – ST6001+ surface-mount control head
• E12100 – ST6001+ flush-mount control head

Housing styles, labels and production revisions can vary. Compare the original LCD segment pattern, dimensions, surround and contact locations before ordering for any reference other than the pictured E12098 configuration.

𝗣𝗼𝘁𝗲𝗻𝘁𝗶𝗮𝗹 𝗦𝗲𝗿𝘃𝗶𝗰𝗲-𝗙𝗮𝗺𝗶𝗹𝘆 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Later Raymarine documentation also used E12098-P and E12100-P for ST6002 surface- and flush-mount controllers, and lists A18012-P as the Universal Pilot Display Kit.

This service-family relationship does not guarantee that every aftermarket LCD will fit every ST6002 production revision. ST6002 compatibility should be confirmed by comparing the removed screen with the listing photographs before purchase.

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀

Select this replacement by the control-head model and original screen configuration—not by the vessel’s manufacturer, model, year or installed course computer.

Confirm all of the following:

• Controller is marked ST6000+ or ST6001+

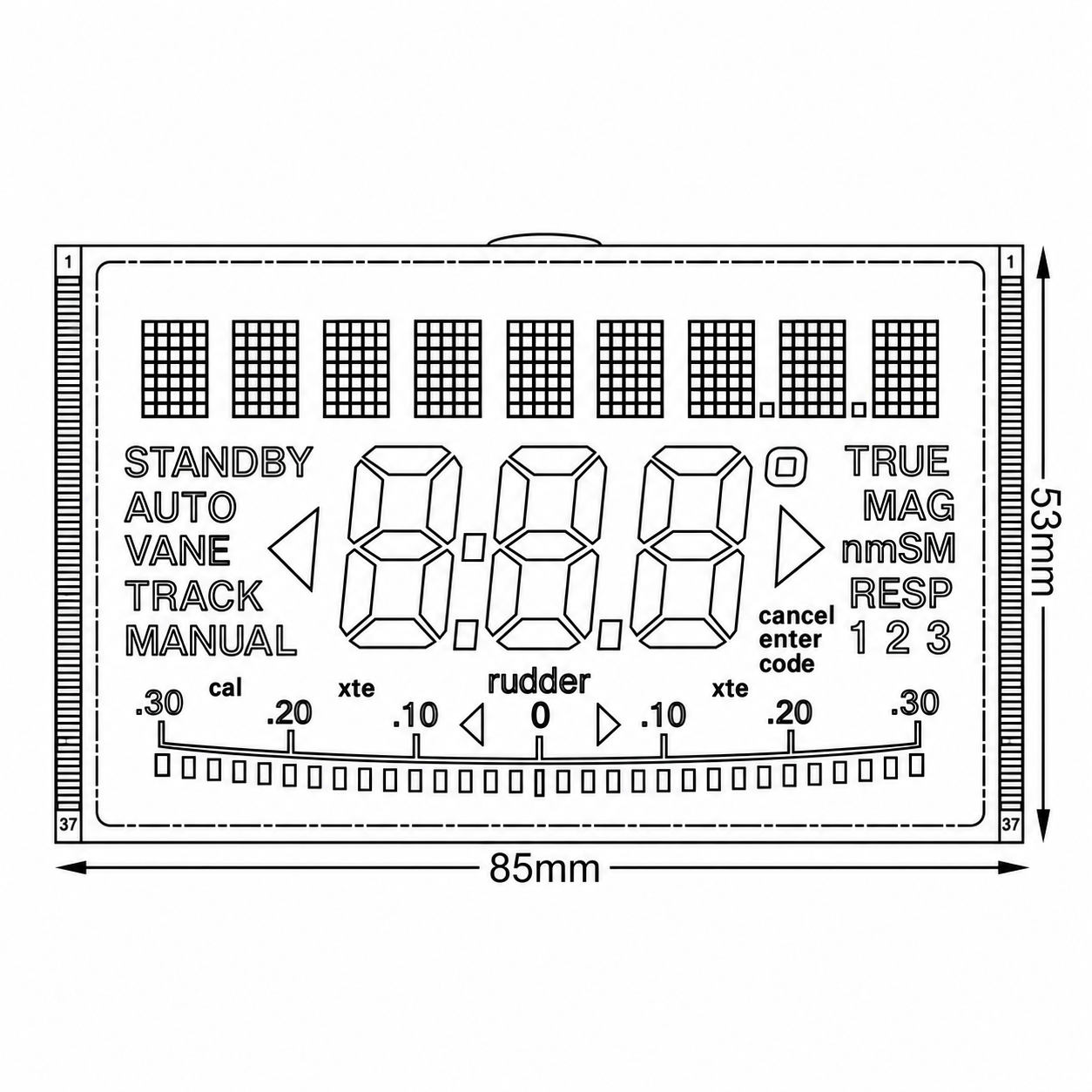

• Original screen has the same segment arrangement
• LCD dimensions match
• Conductive-strip positions match
• Internal surround and circuit-board contacts match
• Control-head housing matches the listing photographs

𝗡𝗼𝘁 𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗙𝗼𝗿

• ST6000 controllers without the plus symbol
• ST4000 or ST4000+ control heads
• ST5000 or ST5000+ control heads
• ST7000, ST7001, ST8000 or ST8001 controllers
• ST1000+ or ST2000+ tiller pilots
• p70, p70s, p70R or p70Rs controllers
• ST60 or ST60+ instrument displays
• Multifunction chartplotters

Do not assume compatibility based only on the similar exterior appearance of another Raymarine display.

𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗞𝗶𝘁 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

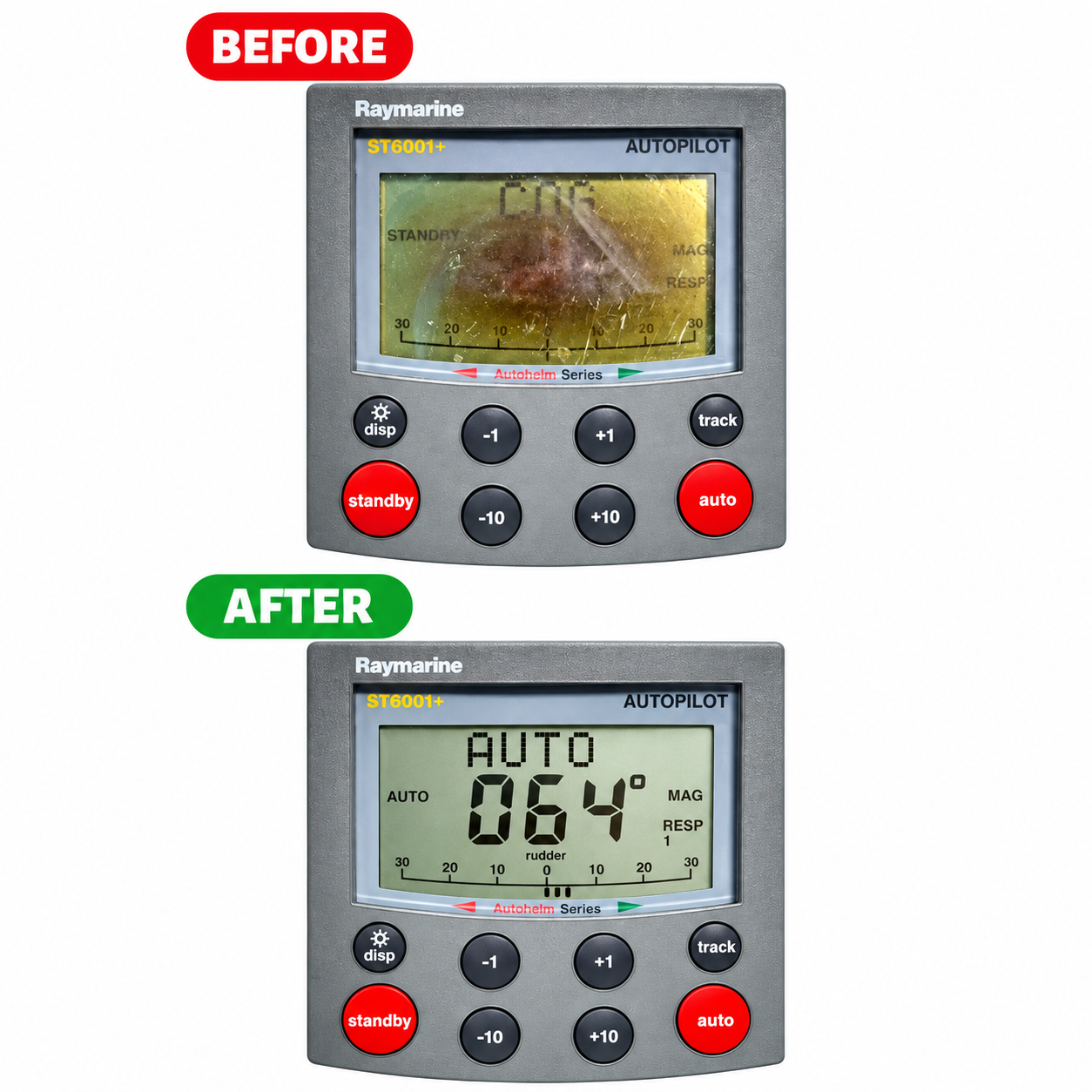

• Missing or incomplete LCD segments
• Faded or low-contrast information
• Darkened or sun-damaged display
• Blotched, leaking or physically damaged LCD
• Intermittent segments caused by deteriorated conductive strips
• Information visible only from certain viewing angles

𝗧𝗵𝗶𝘀 𝗞𝗶𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• A control head that does not power on
• Failed backlighting
• Damaged diffuser or reflector components
• Circuit-board, processor or power-supply faults
• Internal corrosion or water damage
• Faulty keypad buttons
• SeaTalk or NMEA communication problems
• Course-computer, compass or rudder-reference faults
• Hydraulic-pump or steering-drive problems

A completely blank screen may be caused by a power, backlight or circuit-board failure rather than the LCD. Diagnose the control head before ordering.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗡𝗼𝘁𝗲𝘀

Disconnect vessel power before removing or opening the control head. Carefully record the position and orientation of the original LCD, conductive strips, surround, diffuser and reflector during disassembly.

Clean the circuit-board contact pads using a suitable electronics-safe method without scratching them. Position both conductive strips evenly and tighten the housing gradually so pressure is distributed uniformly across the screen.

Inspect the case seal and bulkhead gasket before reinstalling the controller. Replace damaged sealing components to help prevent moisture intrusion.

The LCD is fragile. Professional installation is recommended if you are unfamiliar with marine electronic repairs.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

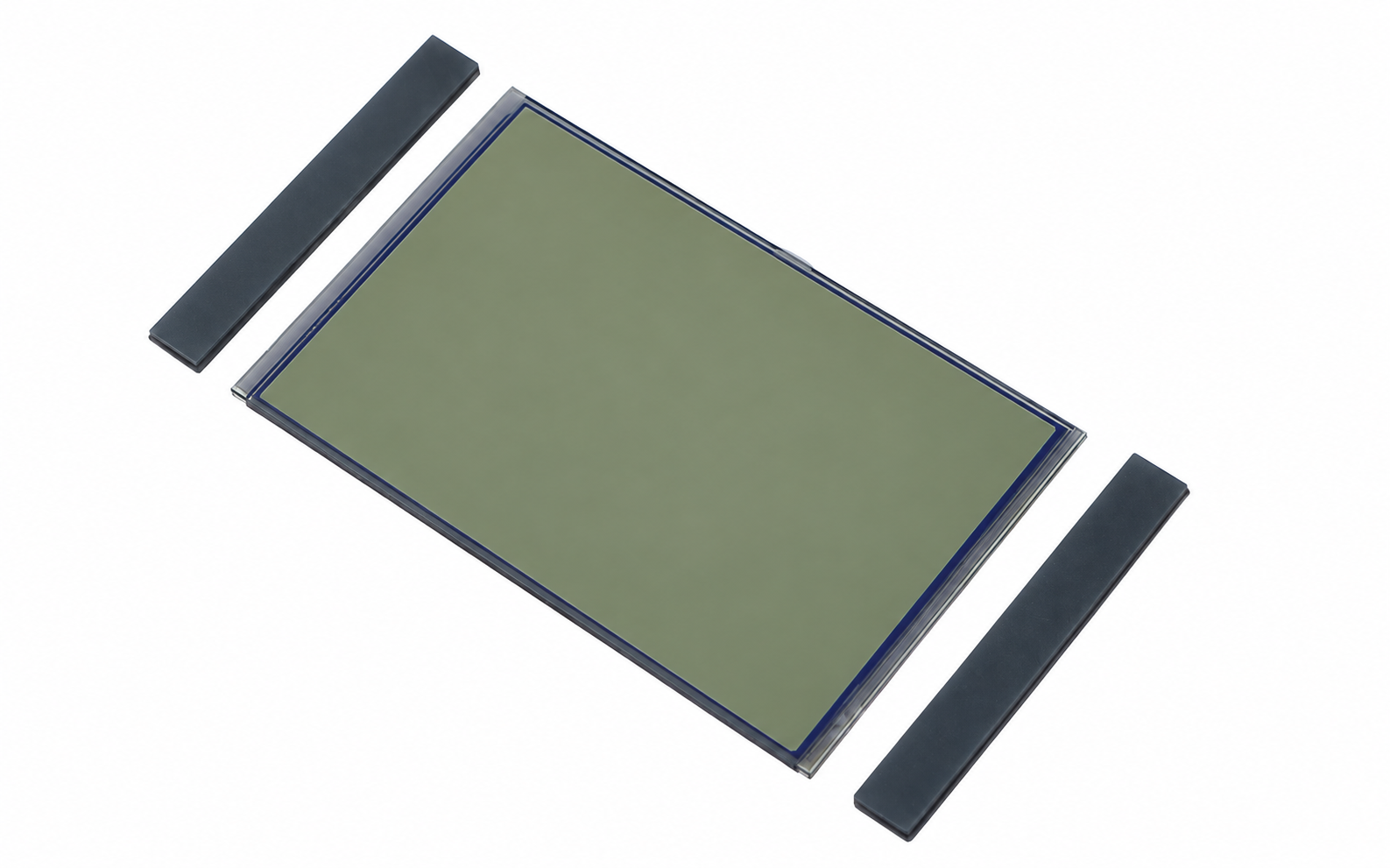

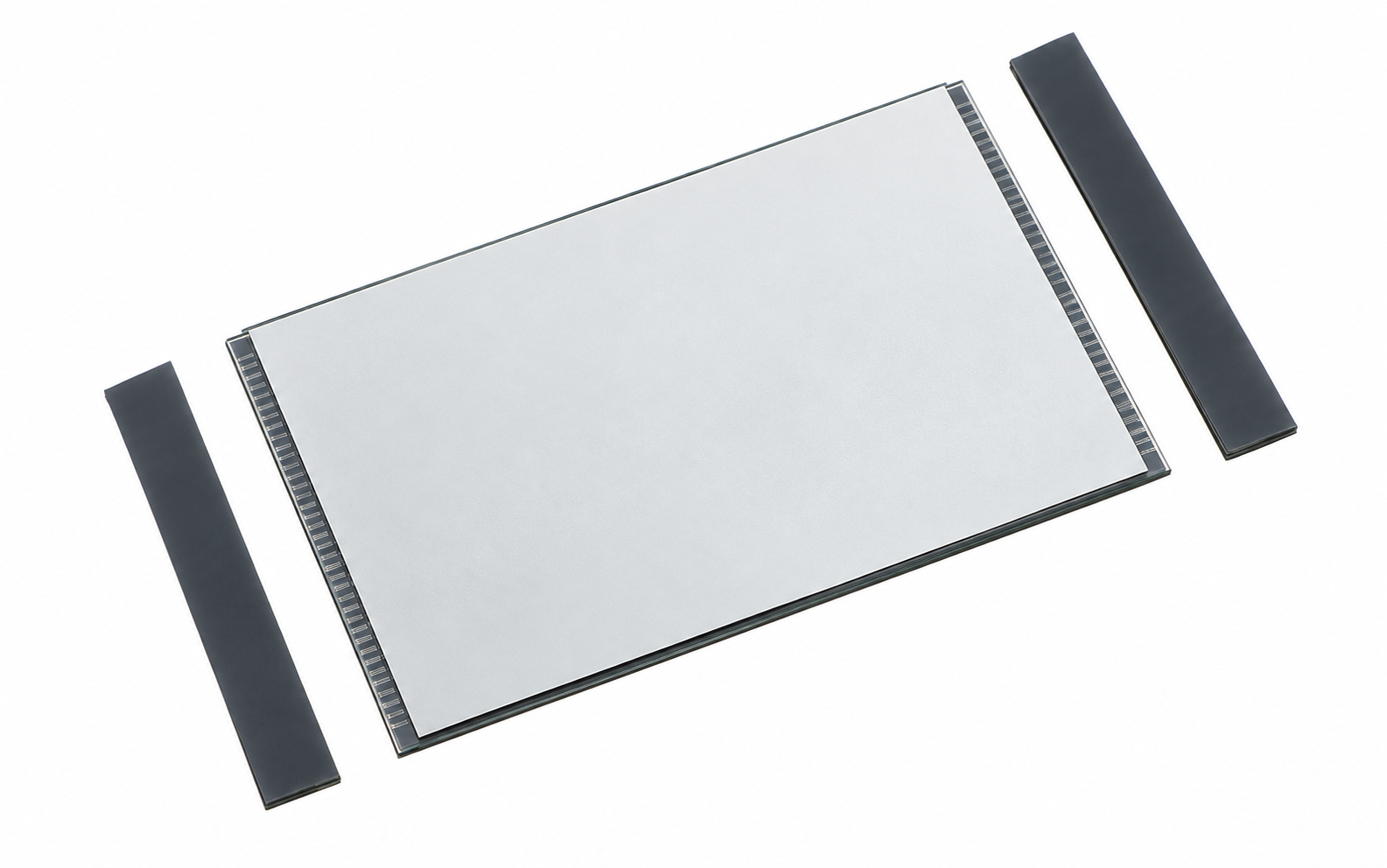

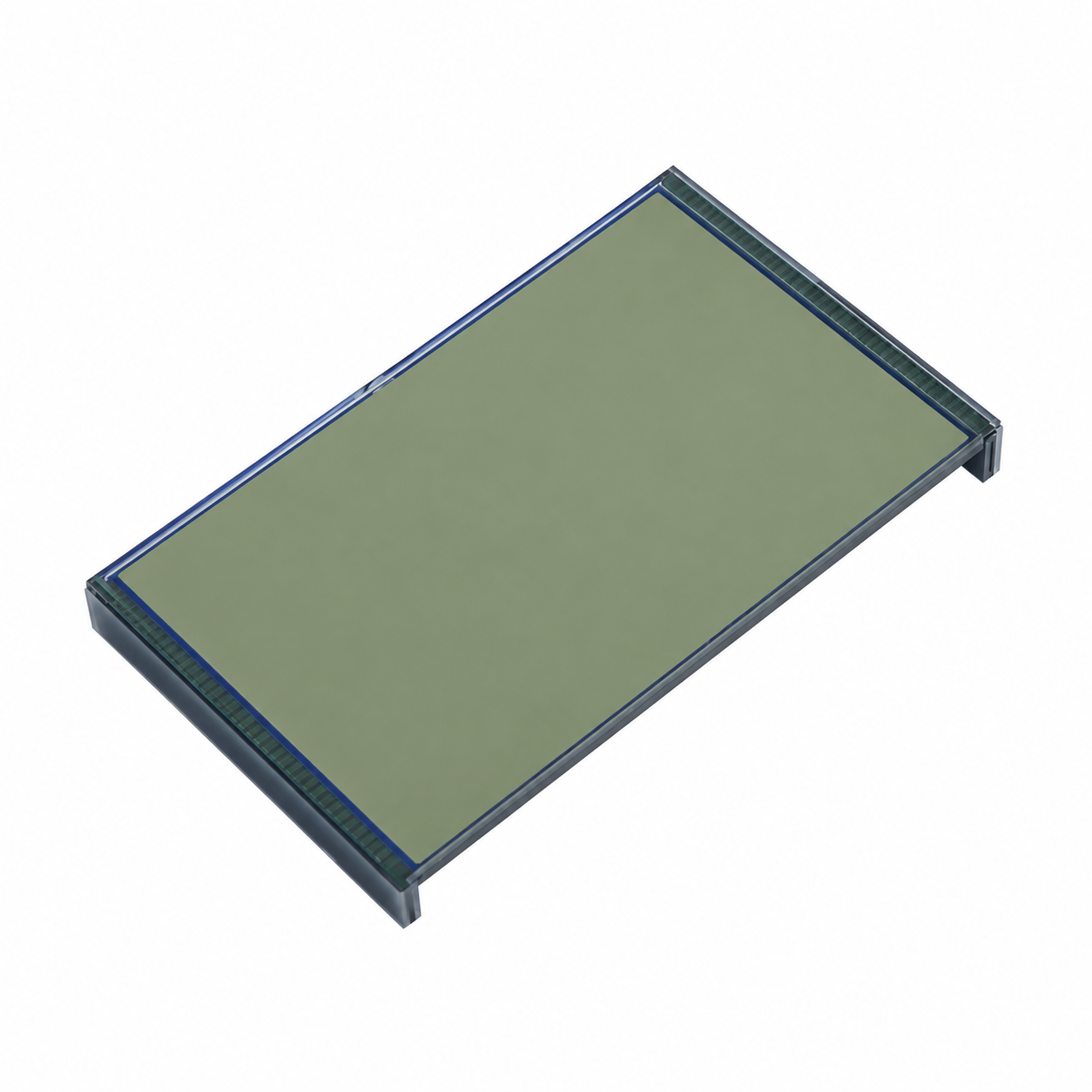

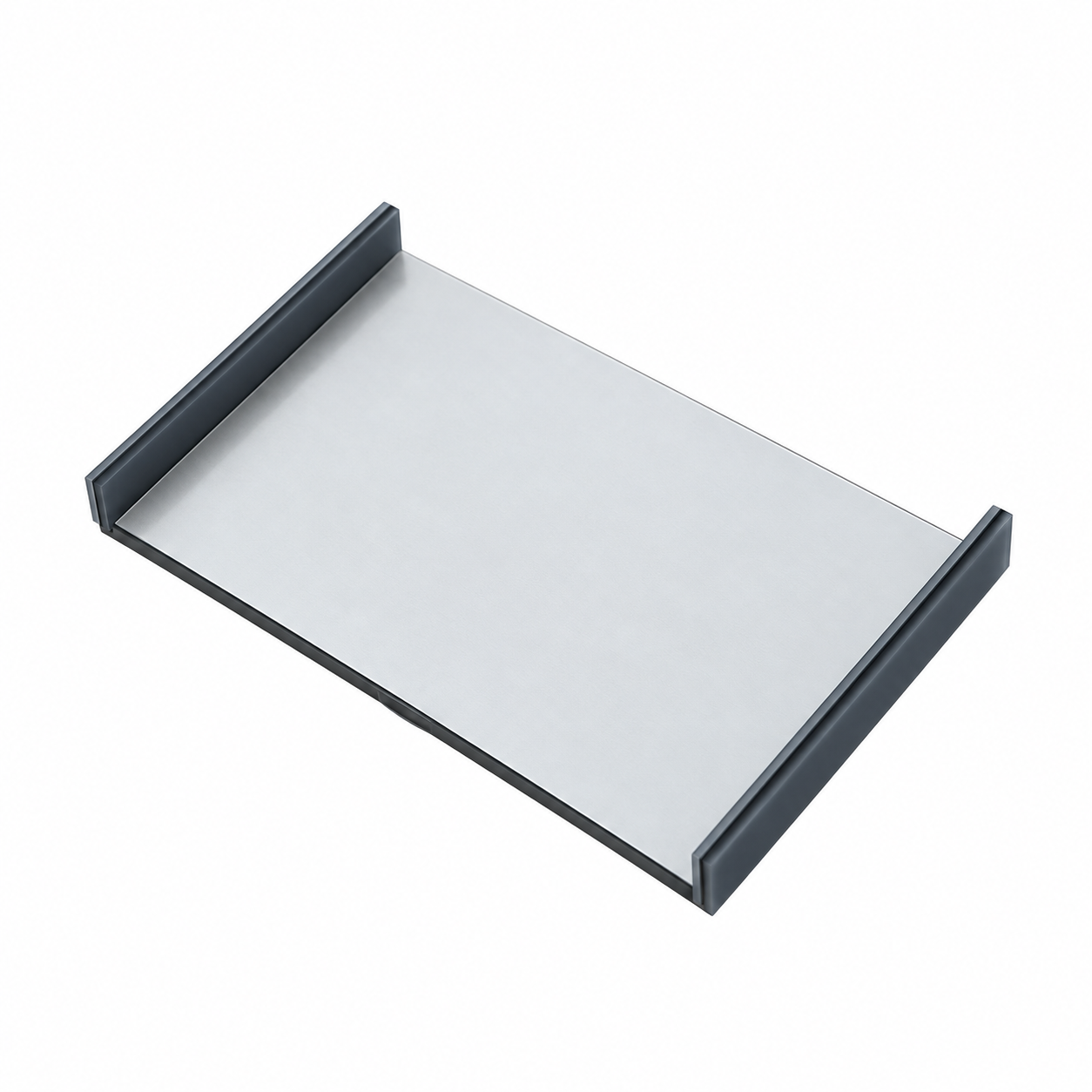

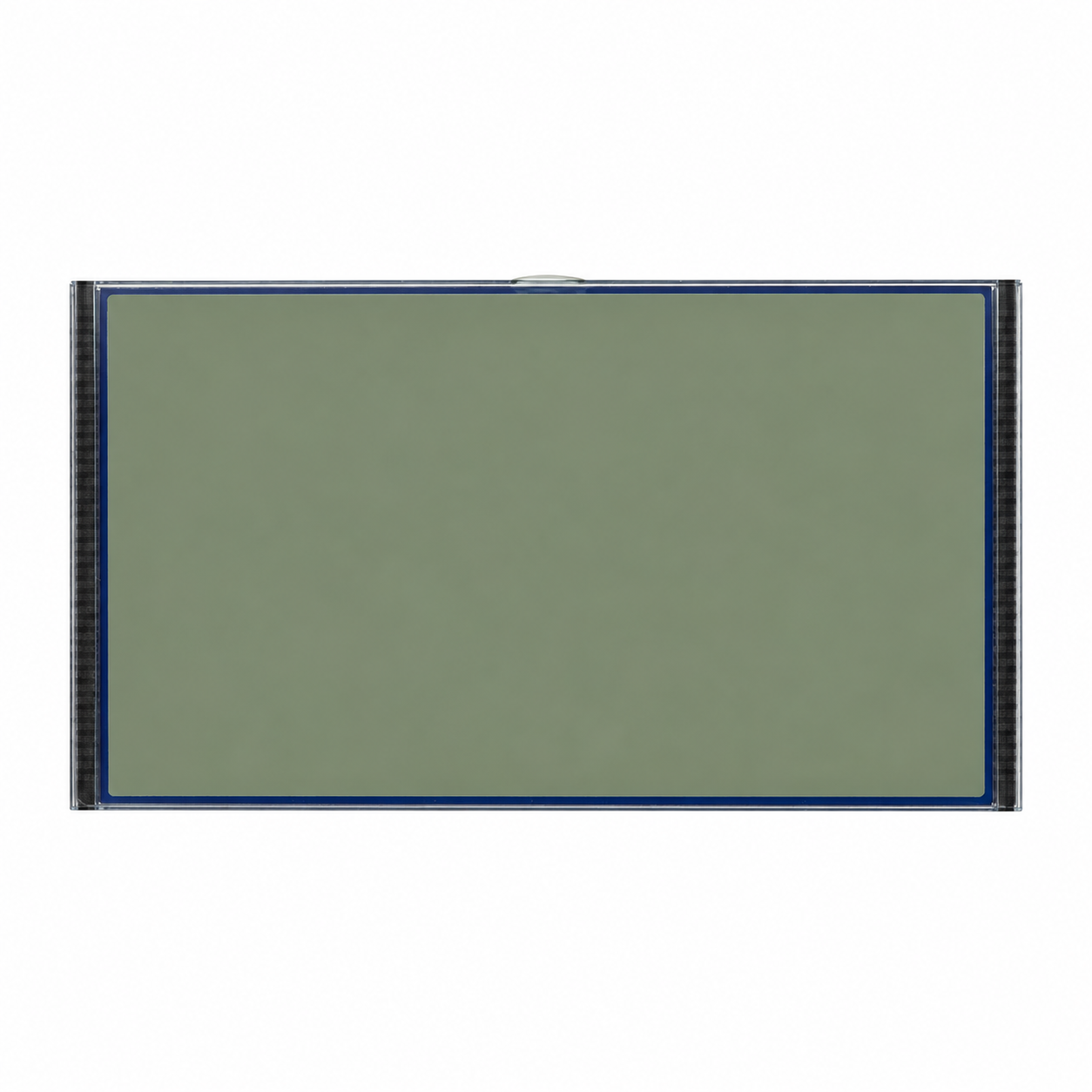

• 1 replacement LCD screen
• 2 conductive elastomer connector strips

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• Complete ST6000+ or ST6001+ control head
• Autopilot course computer
• Keypad, fascia or sun cover
• LCD window, surround, diffuser or reflector
• Case seal or bulkhead gasket
• Wiring, compass or rudder-reference sensor
• Hydraulic pump, steering drive or mounting hardware

𝗕𝗲𝗳𝗼𝗿𝗲 𝗢𝗿𝗱𝗲𝗿𝗶𝗻𝗴

Compare your original LCD, controller markings and internal configuration carefully with the listing photographs. Do not rely on E12098 alone, because that number identifies a complete surface-mount control head rather than the bare LCD.
