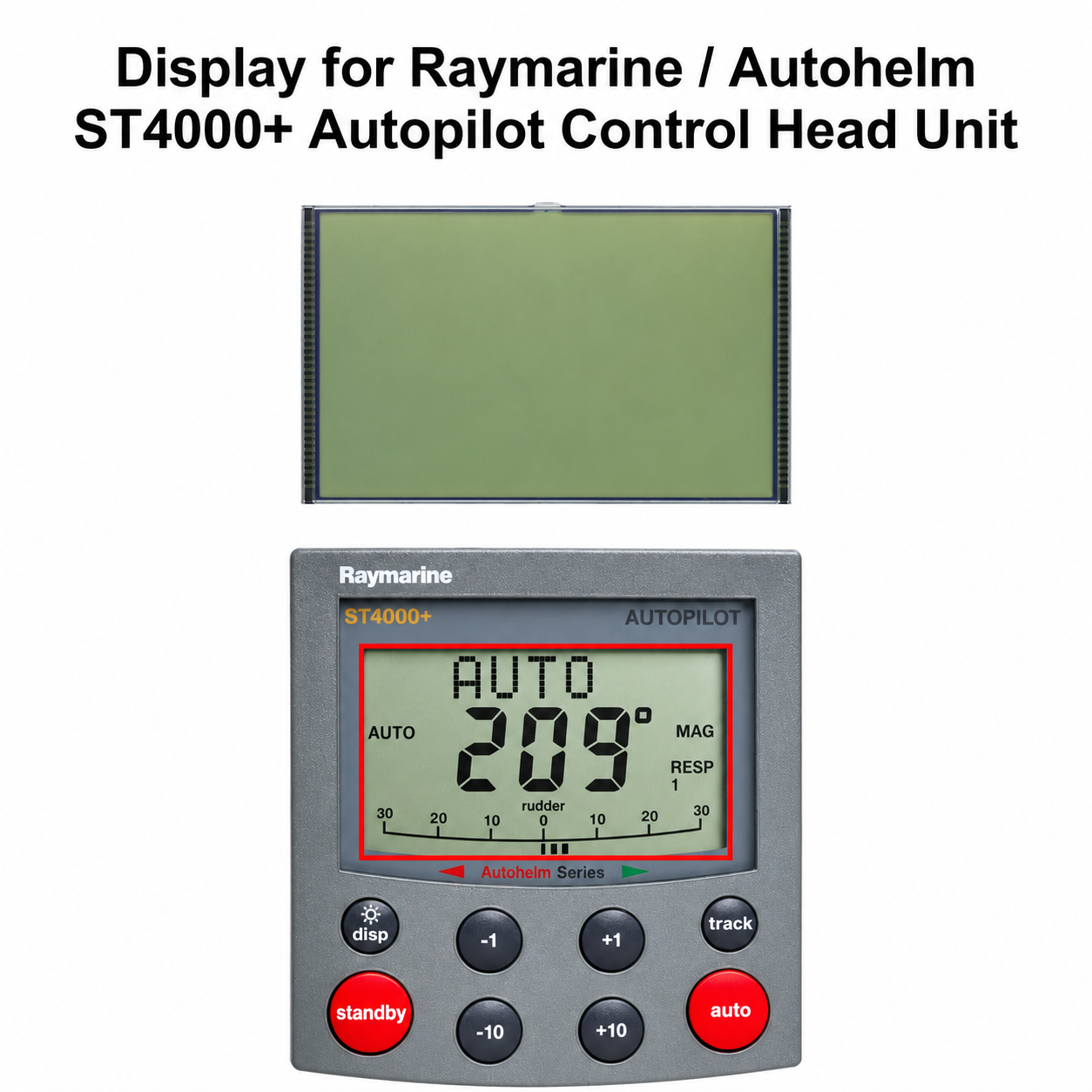

Replacement LCD Kit for Autohelm Raymarine ST4000+ Control Head A12008

Restore the display in your Raymarine, Raytheon, or Autohelm ST4000+ autopilot control head with this new aftermarket replacement LCD kit. Designed for controllers with a faded, darkened, damaged, or partially unreadable display.

This listing is for the replacement LCD and conductive connector strips only. It is not a complete autopilot control head or autopilot system.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Replacement LCD screen kit
• Application: Marine autopilot control-head repair
• Compatible brand names: Raymarine, Raytheon and Autohelm
• Primary application: ST4000+ / ST5000+ autopilot control head
• Advertised system reference: A12008
• Original display-kit reference: Q220
• Condition: New aftermarket replacement component
• Installation time: Approximately 15–30 minutes for an experienced installer
• No soldering is normally required for the LCD connection

𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻

• A12008 identifies the complete ST4000+ wheel-autopilot system equipped with a light-gray control head; it is not the individual LCD part number.
• Q220 is the Raymarine service reference for the original ST4000+ display kit. The factory Q220 assembly included the LCD, two elastomer connectors, LCD surround, window insert and selected label.
• This aftermarket repair kit contains only the components listed under Package Contents and should not be represented as a complete genuine Q220 assembly.

𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻

• Autohelm ST4000+ autopilot control head
• Raytheon ST4000+ autopilot control head
• Raymarine ST4000+ autopilot control head
• ST4000+ light-gray wheel-autopilot system A12008

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗦𝗧𝟰𝟬𝟬𝟬+ 𝗦𝘆𝘀𝘁𝗲𝗺 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

Raymarine service literature lists the following systems within the ST4000+ family:

• A12006 – Light-gray tiller autopilot
• A12007 – Light-gray tiller GP autopilot
• A12008 – Light-gray wheel autopilot
• A12009 – Light-gray retrofit kit
• Z326 – Dark-gray wheel autopilot
• Z327 – Dark-gray tiller autopilot
• Z332 – Dark-gray tiller GP autopilot
• Z341 – Dark-gray retrofit kit
• E12042 – Flush-mount tiller autopilot
• E12043 – Flush-mount tiller GP autopilot
• E12044 – Flush-mount wheel autopilot

These references belong to the ST4000+ service family, but controller revisions can vary. Before ordering for any system other than A12008, compare the original LCD segment arrangement, dimensions, contact locations and control-head markings with the listing photographs.

𝗡𝗼𝘁 𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗙𝗼𝗿

• Original ST4000 units that do not display the plus symbol
• ST4000 Z140 control heads
• ST4000 Mk1 or Mk2 drive components by themselves
• ST5000+, ST6000, ST6001, ST6002, ST7000 or ST8000-series controllers unless the original LCD has been positively matched
• Modern Evolution-series control heads
• Multifunction chartplotters or standalone instrument displays

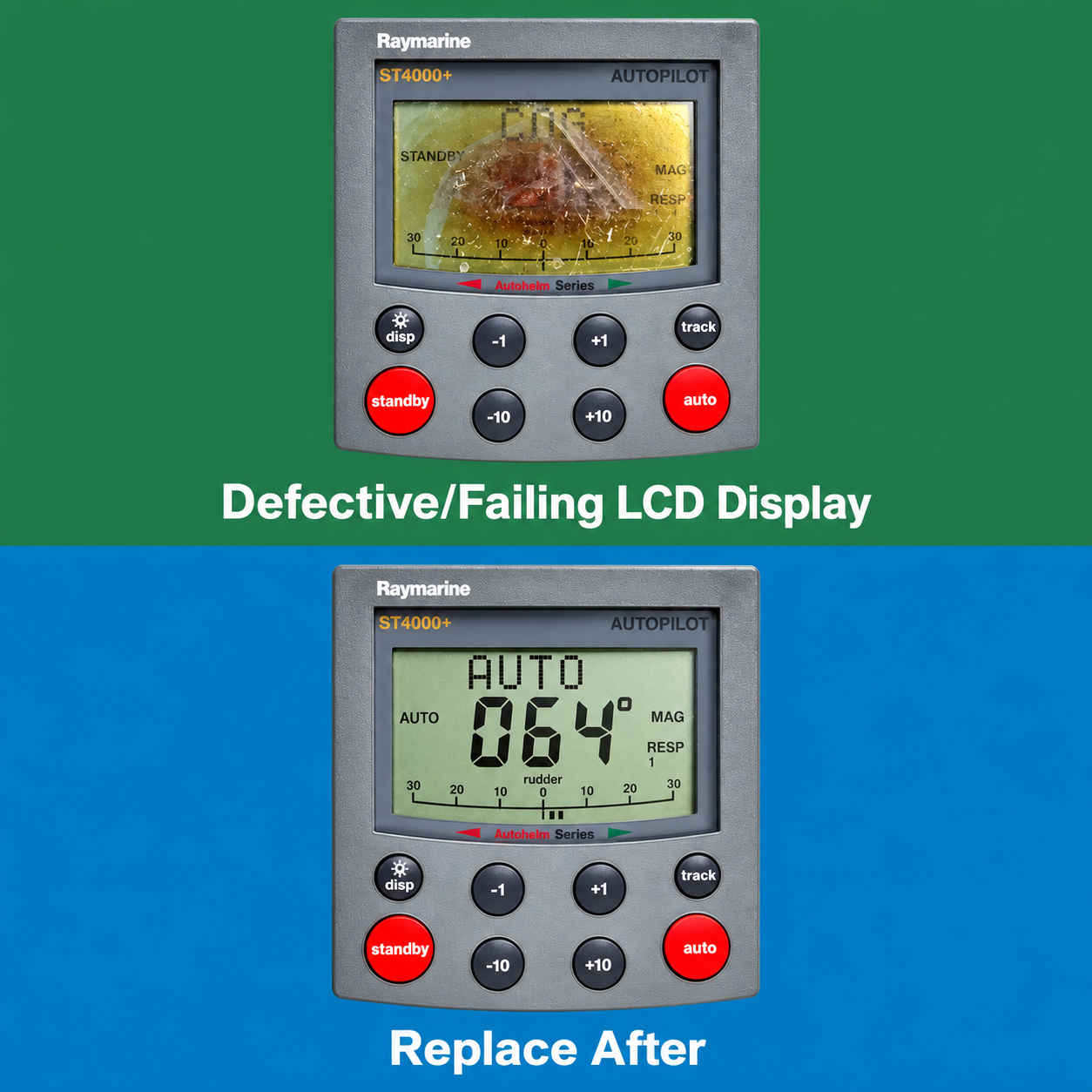

𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗞𝗶𝘁 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Missing or incomplete LCD segments
• Faded or low-contrast display
• Darkened or sun-damaged LCD
• Leaking, blotched or physically damaged screen
• Intermittent segments caused by deteriorated conductive strips

𝗧𝗵𝗶𝘀 𝗞𝗶𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• A control head that does not power on
• Failed backlighting, diffuser or reflector components
• Circuit-board, processor or power-supply faults
• Corrosion or water damage inside the controller
• Faulty keypad buttons
• SeaTalk or NMEA communication problems
• Compass, course-computer or steering-drive faults

Please diagnose the controller before ordering. A completely blank display may be caused by something other than the LCD.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗡𝗼𝘁𝗲𝘀

Disconnect vessel power before opening the control head. Carefully note the orientation and order of the original LCD, surround, diffuser and conductive strips during disassembly.

Clean the circuit-board contact pads without scratching them, position both conductive strips evenly and tighten the housing gradually so pressure is distributed across the LCD. Inspect the case seal and bulkhead gasket before reinstalling the controller in a marine environment.

The LCD is fragile. Professional installation is recommended if you are unfamiliar with electronic instrument repair.

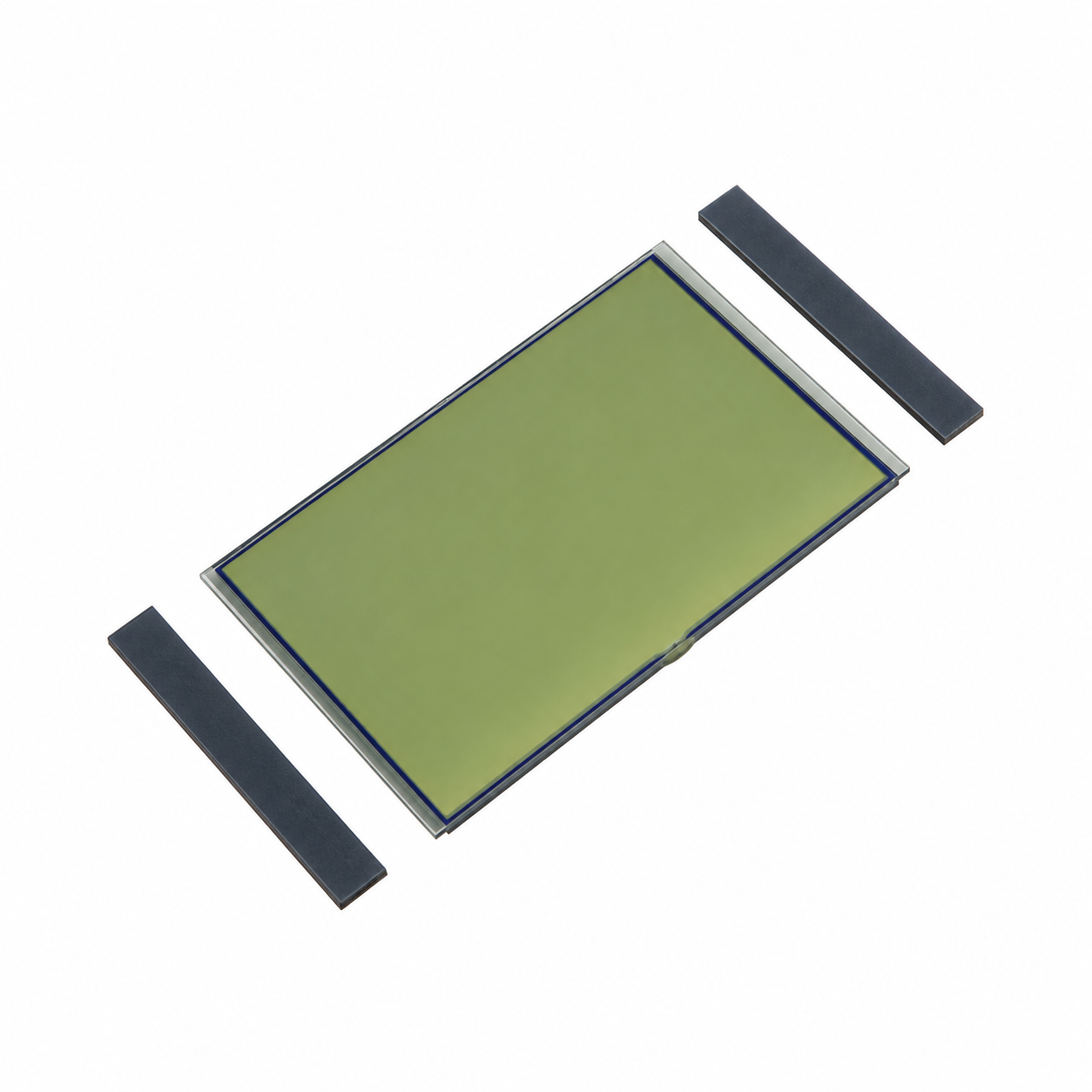

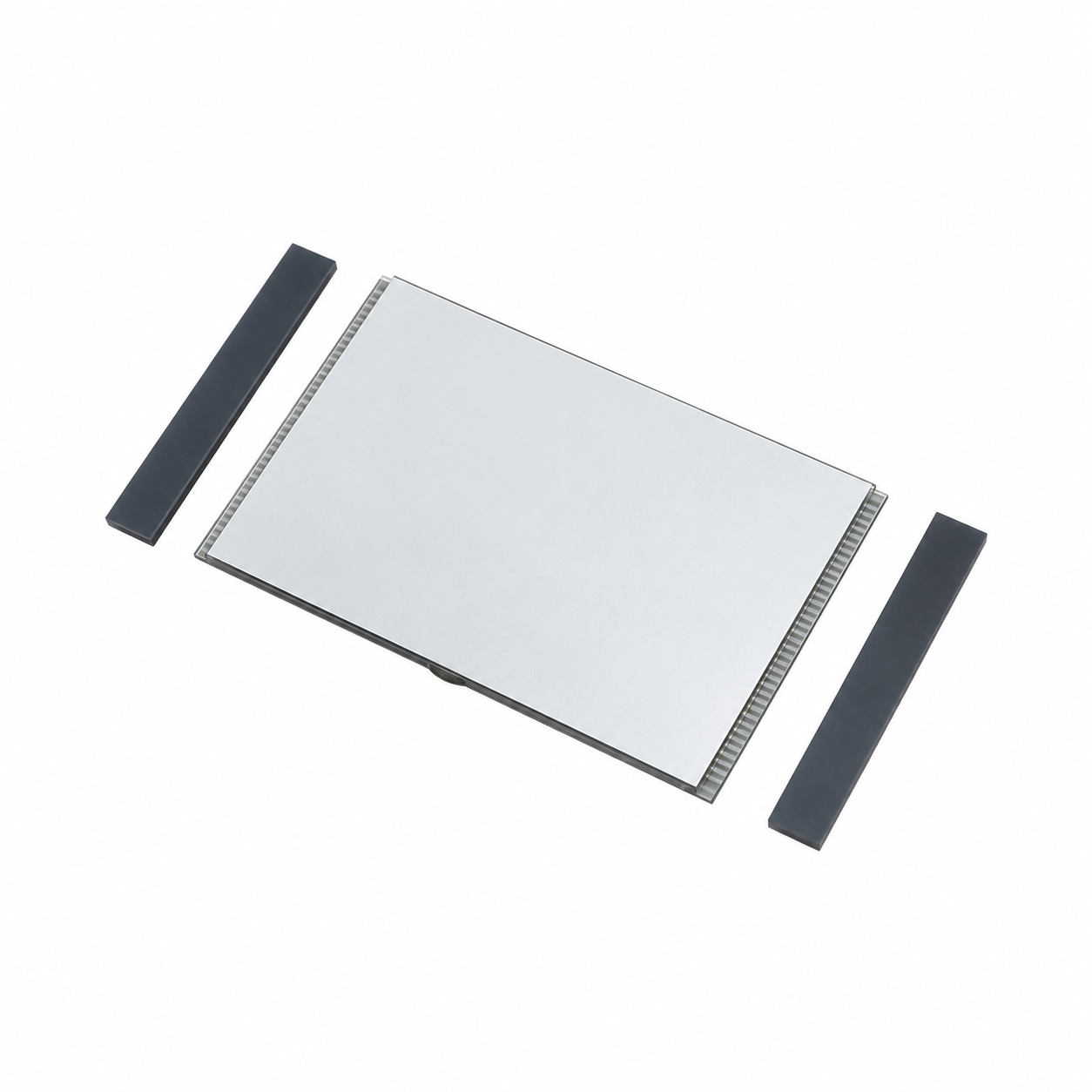

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

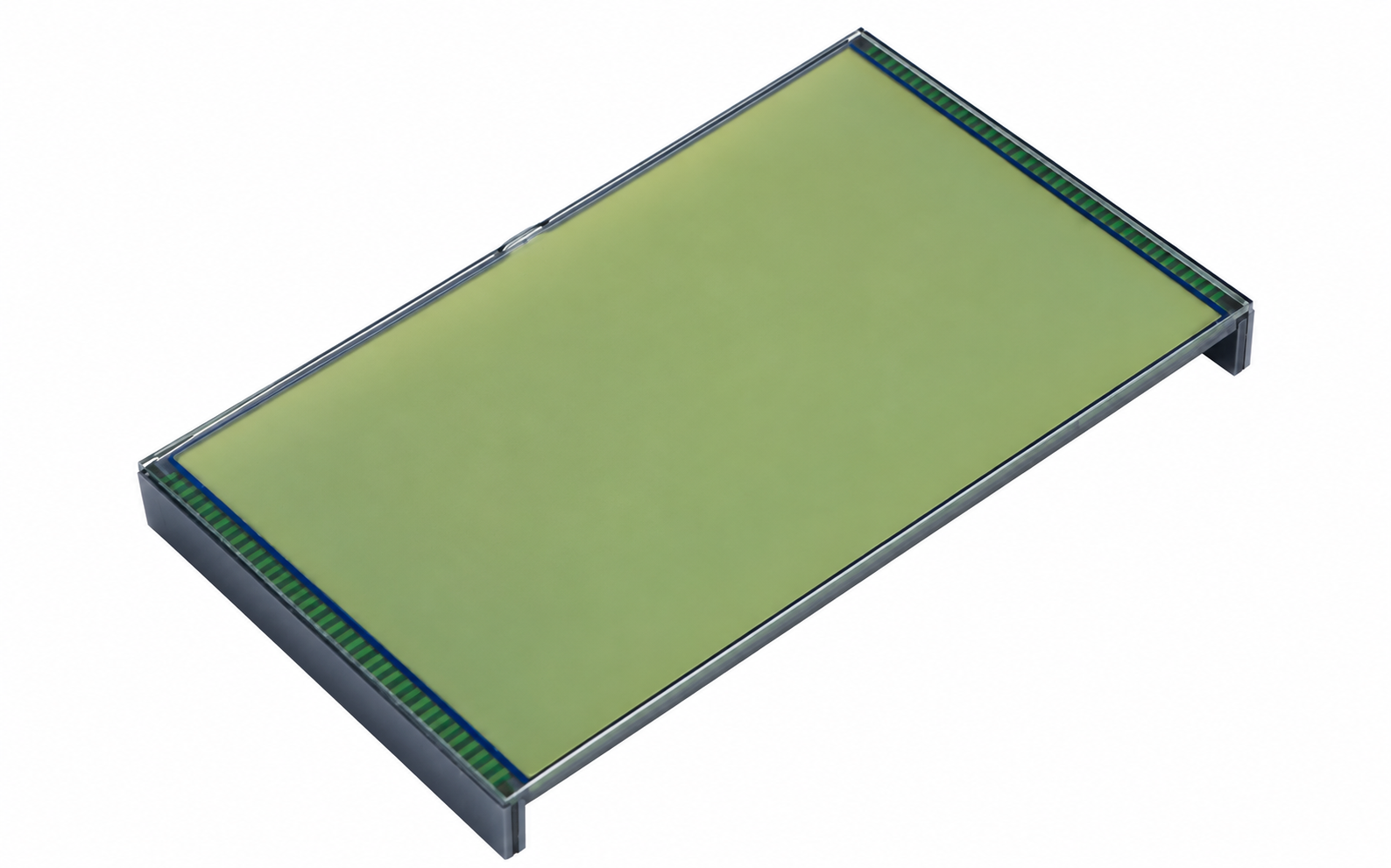

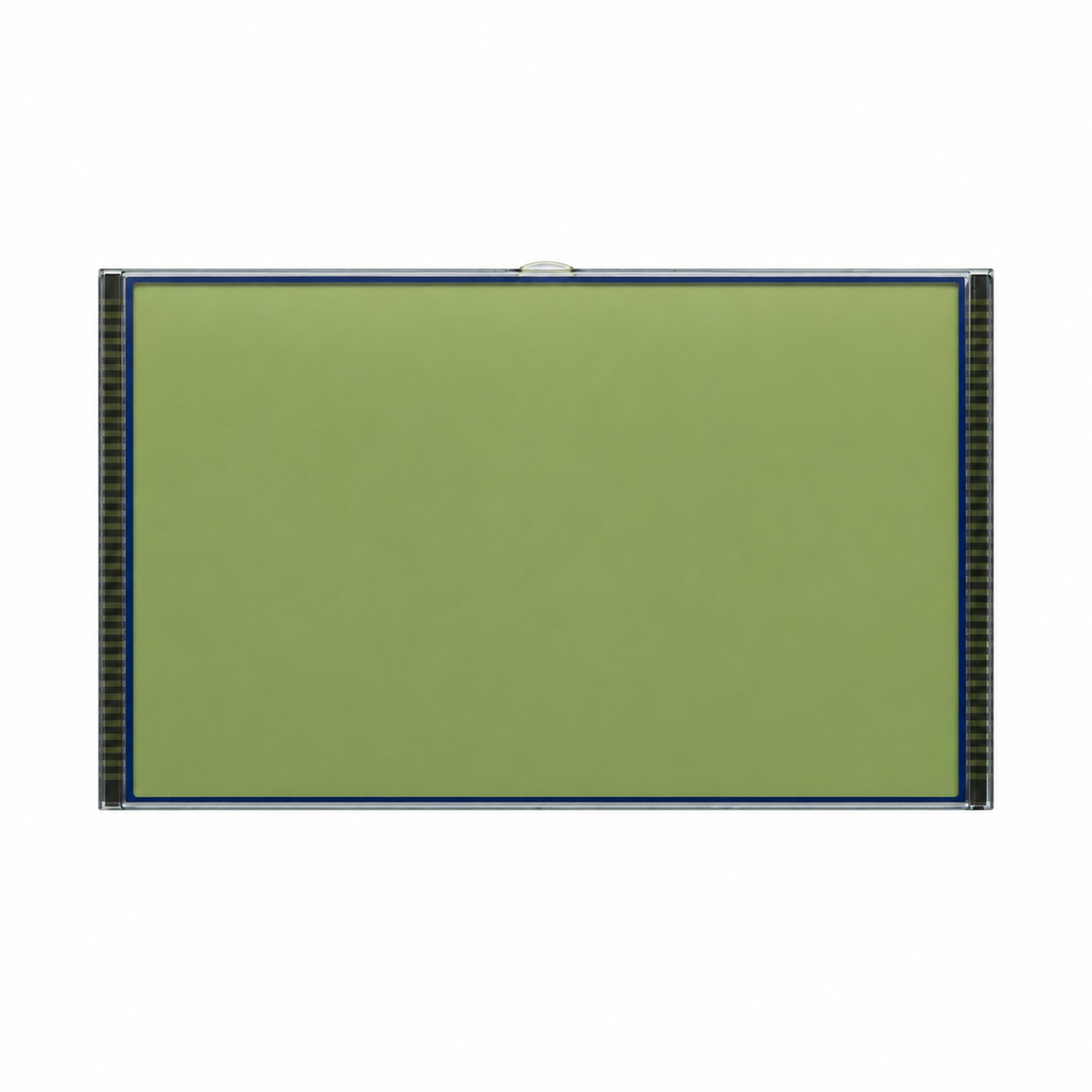

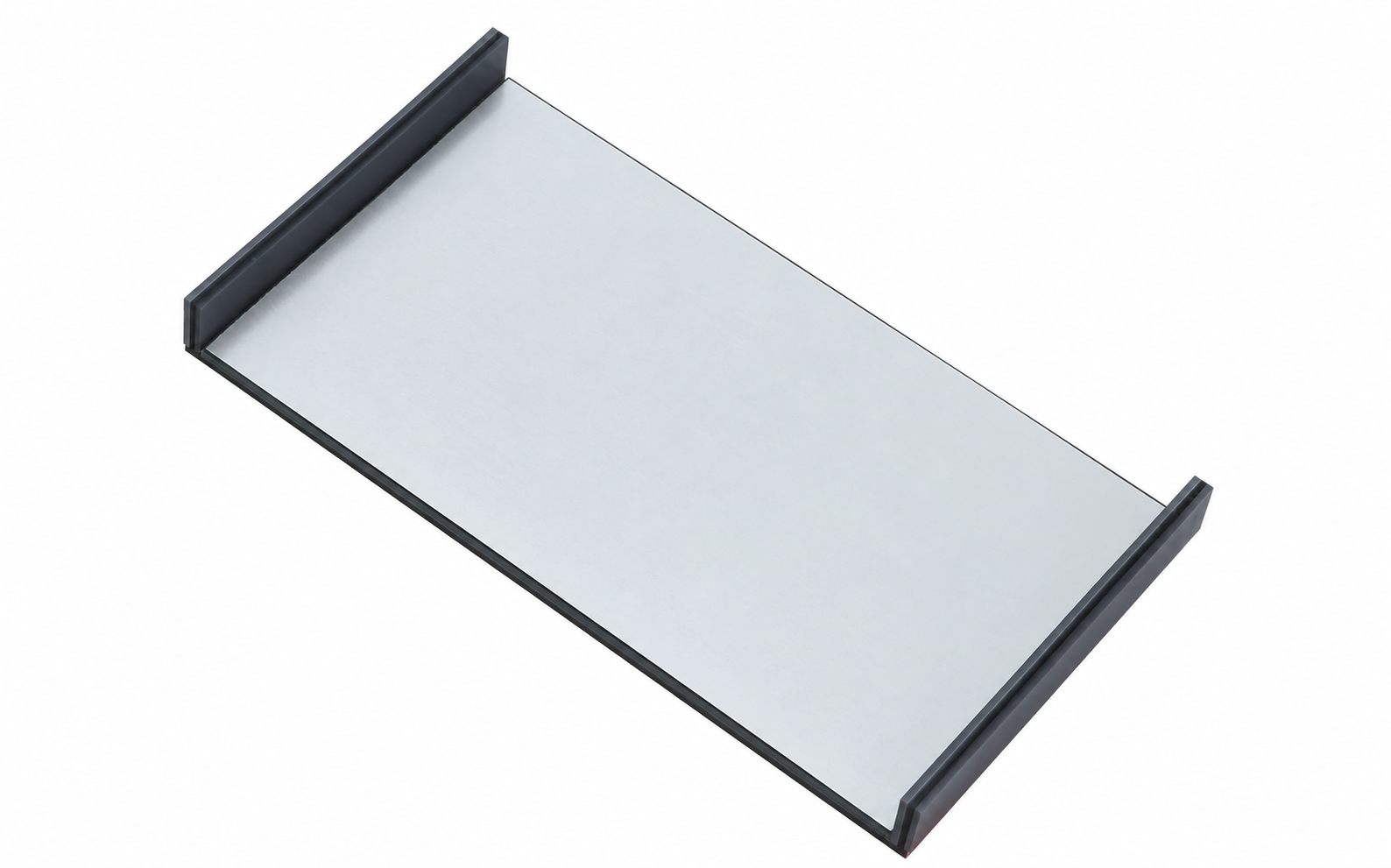

• 1 replacement LCD screen
• 2 conductive elastomer connector strips

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• Complete control head
• Autopilot course computer
• Wheel or tiller drive
• Keypad, fascia or sun cover
• LCD surround, window insert or diffuser
• Wiring, compass or mounting hardware

𝗕𝗲𝗳𝗼𝗿𝗲 𝗢𝗿𝗱𝗲𝗿𝗶𝗻𝗴

Confirm that your controller is marked ST4000+ and compare the original screen, segment layout, connector positions and dimensions with the listing photographs. Do not purchase using the vessel’s year or model alone.
