Universal LCD Digital Backlight Motorcycle Odometer Speedometer Tachometer Gauge

Features:

• Brand new and high quality

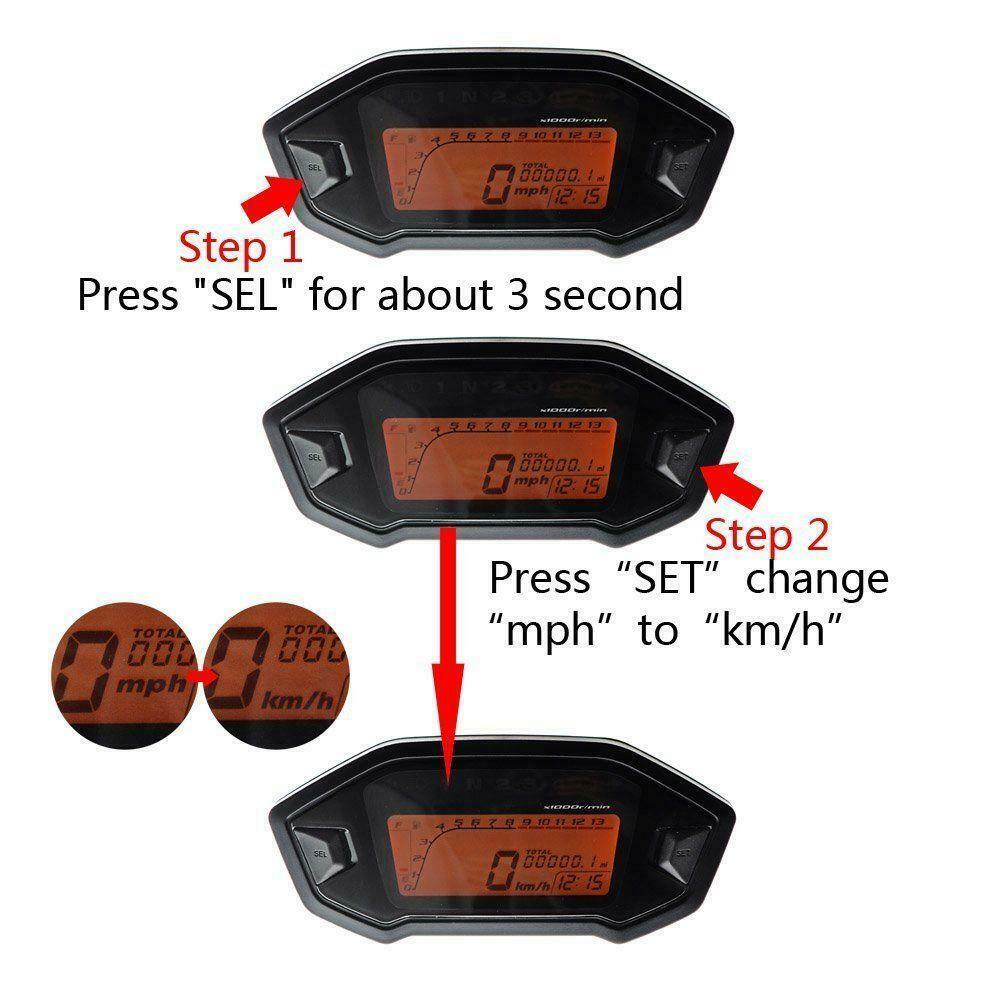

• Km and miles are adjustable
• The clear backlight shows that it can be viewed easily in every Angle of the dark
• The engine has a hazard warning
• Show time
• Full stroke distance
• Waterproof, sunscreen, durable
• Easy to install and easy to operate
• Specification: power supply voltage: 10V-15V
• Speed display: km/h
• Gear: 1/2/3/4 gear
• Equipment: for most DC12V motorcycles.

Specifications:

• Working voltage:10V-15V
• Speed calibration:42.5Hz corresponds to 60KM / H
• Speed calibration:166Hz corresponds to 10 * 1000r / min
• Fuel calibration:E point 98Ω, F point 8Ω
• Voltage:Below 11.3V Undervoltage symbol flashes, above 11.7V Undervoltage symbol is not displayed

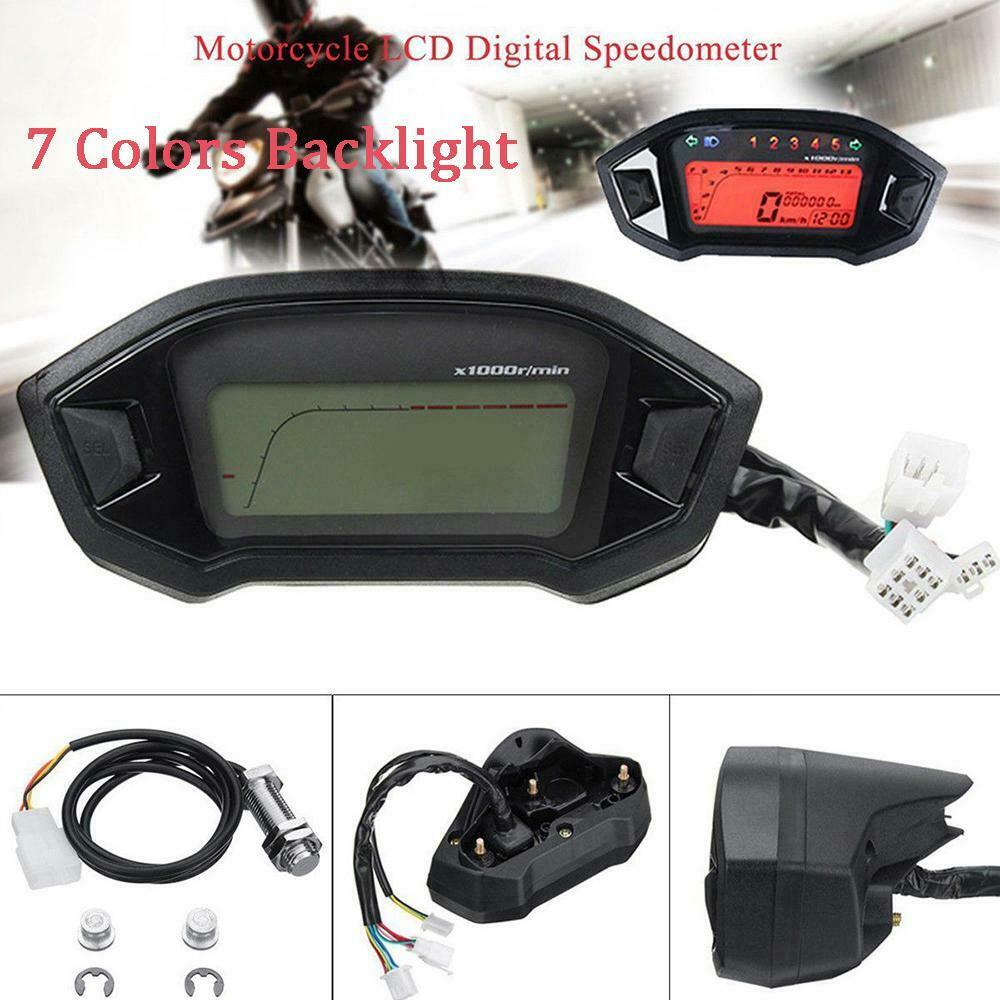

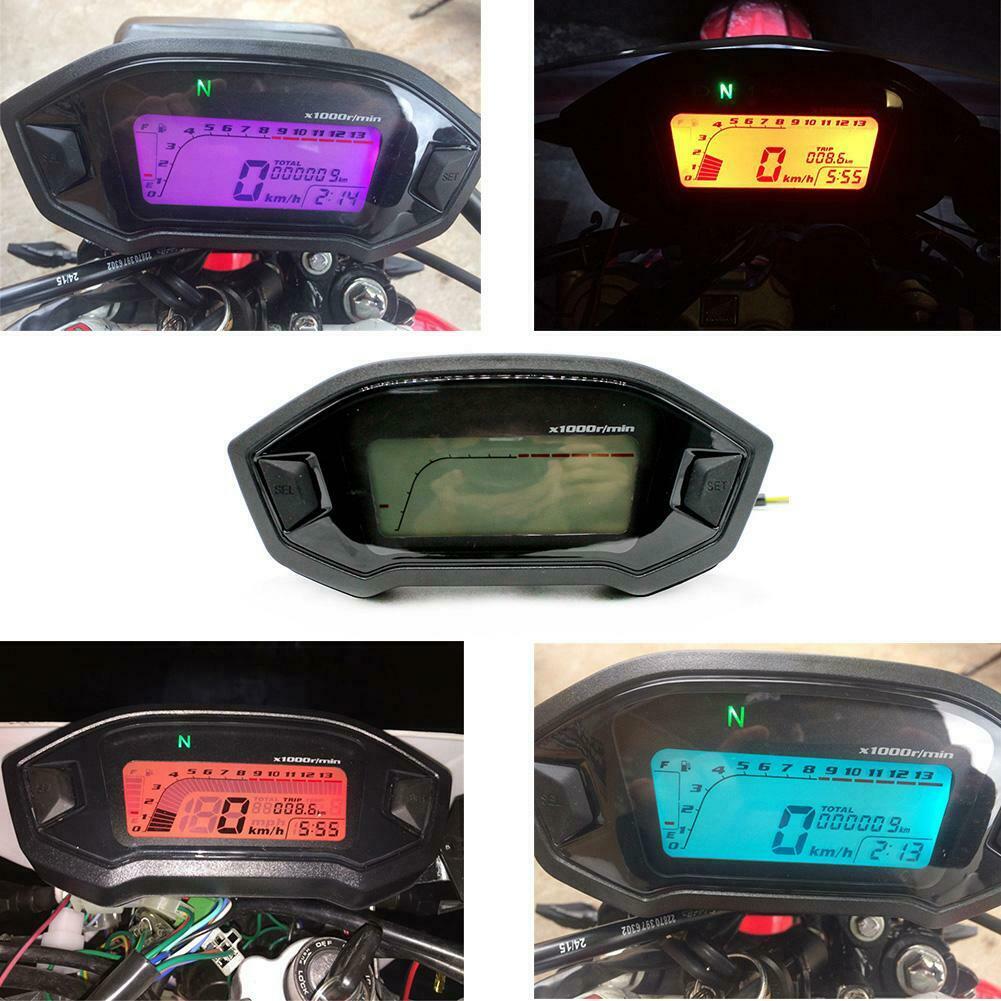

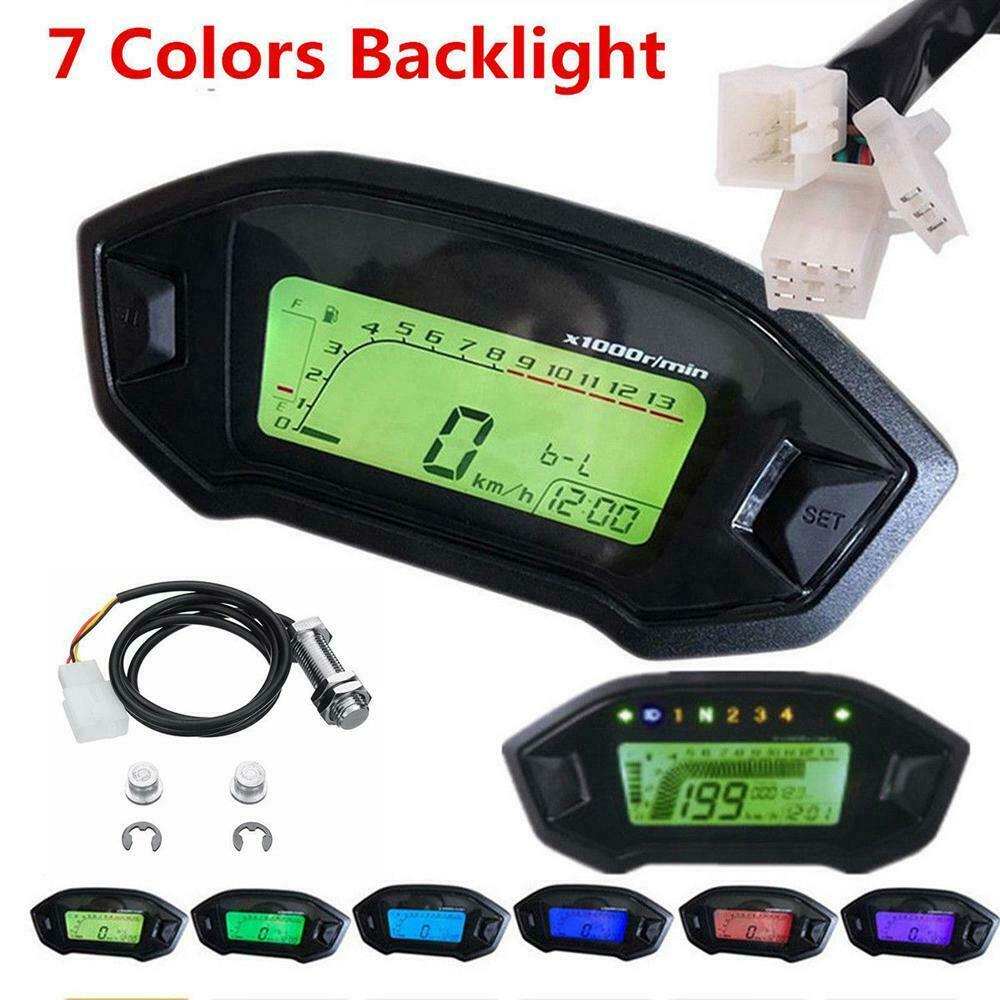

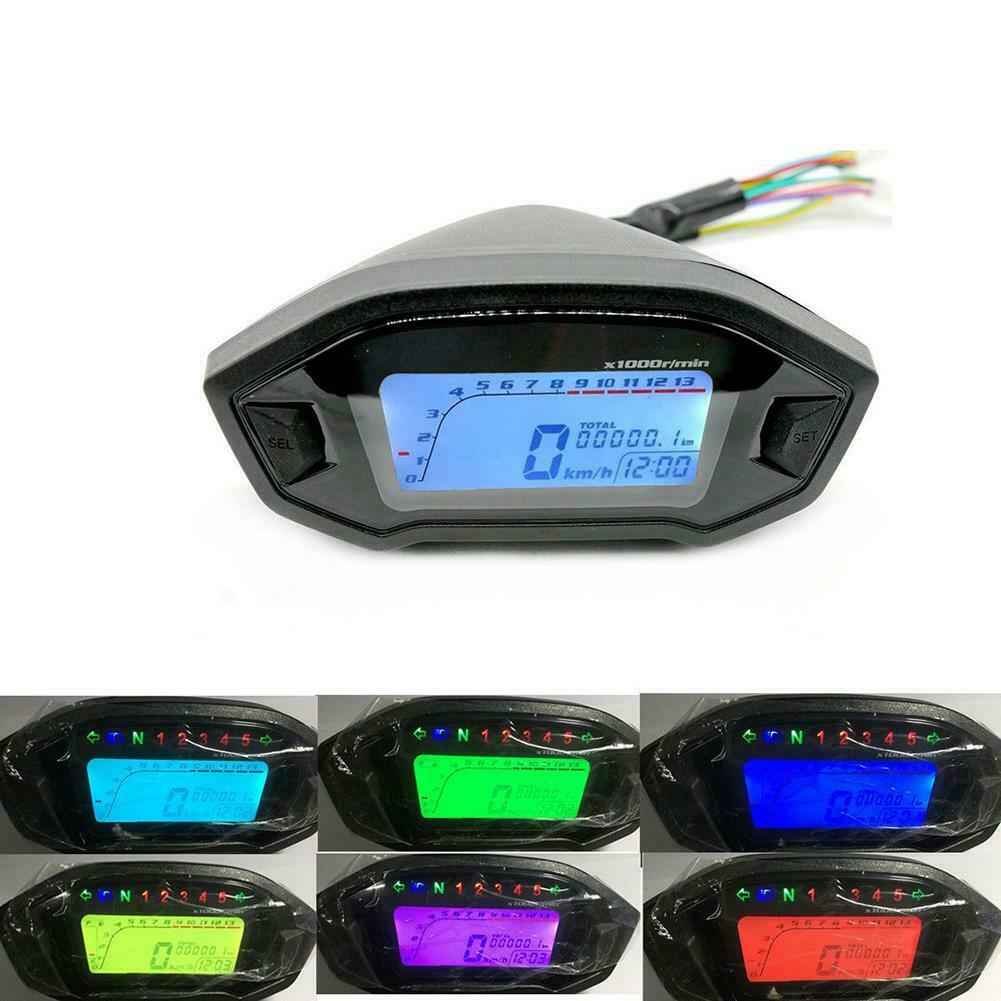

• LCD:7-color backlight Short press the right button to switch (order: red, purple, pink green, white, blue, green, sky blue.) The default is red
• Applicable models: 12V motorcycle modified under 400CC under 4 cylinders

Instructions:

• Light blue: Turn right, 12V positive control Green / red: N file
• Blue / Yellow: Speed signal Line Pink: 1 file
• Red: Battery positive Blue / red: 2 files
• Blue: High beam, 12V positive control Green / black: 3 files
• Green: Negative Yellow / Red: 4 files
• Orange: left turn, 12V positive Yellow / white: 5 files
• Blue and white: fuel signal line
• Black: Positive
• Yellow: Sensor positive
• Green: Sensor negative
• Black / white: sensor signal

Notes:

• Support Android phone has OTG and UVC function.
• Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
• Please allow slight dimension difference due to different manual measurement.

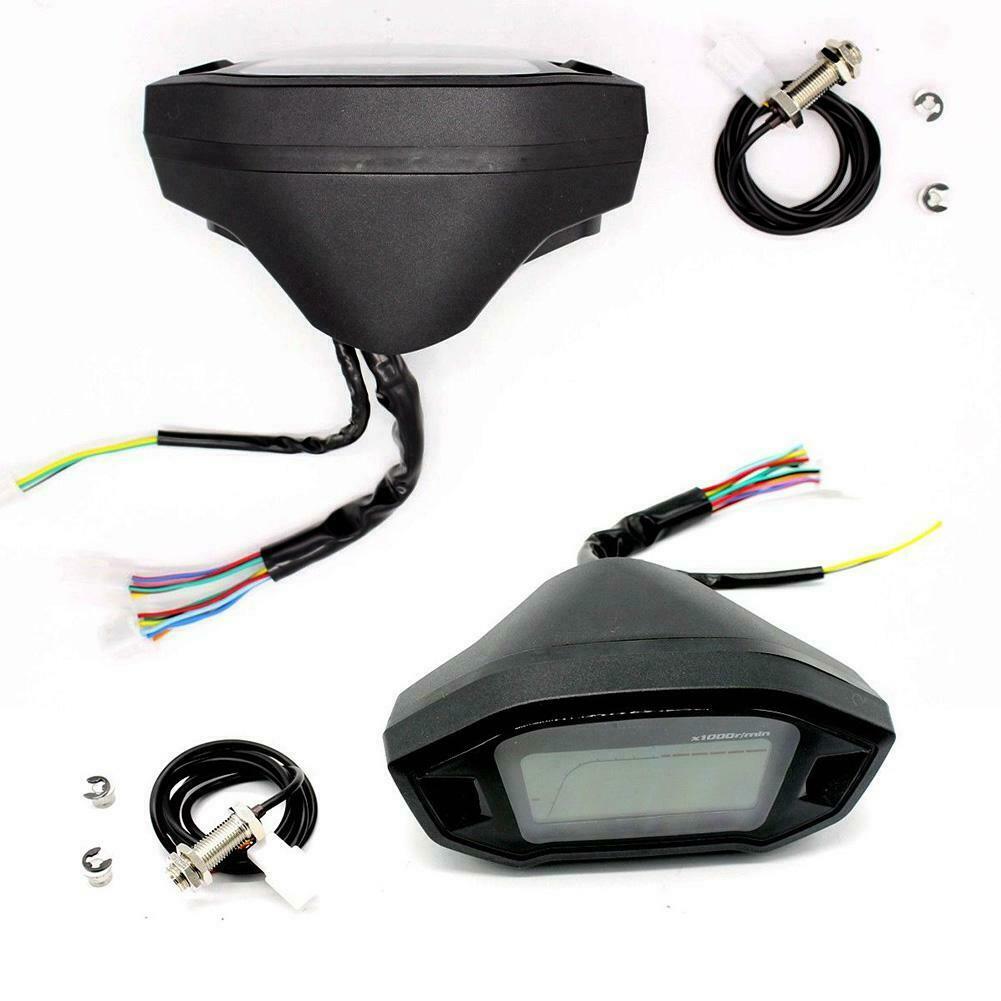

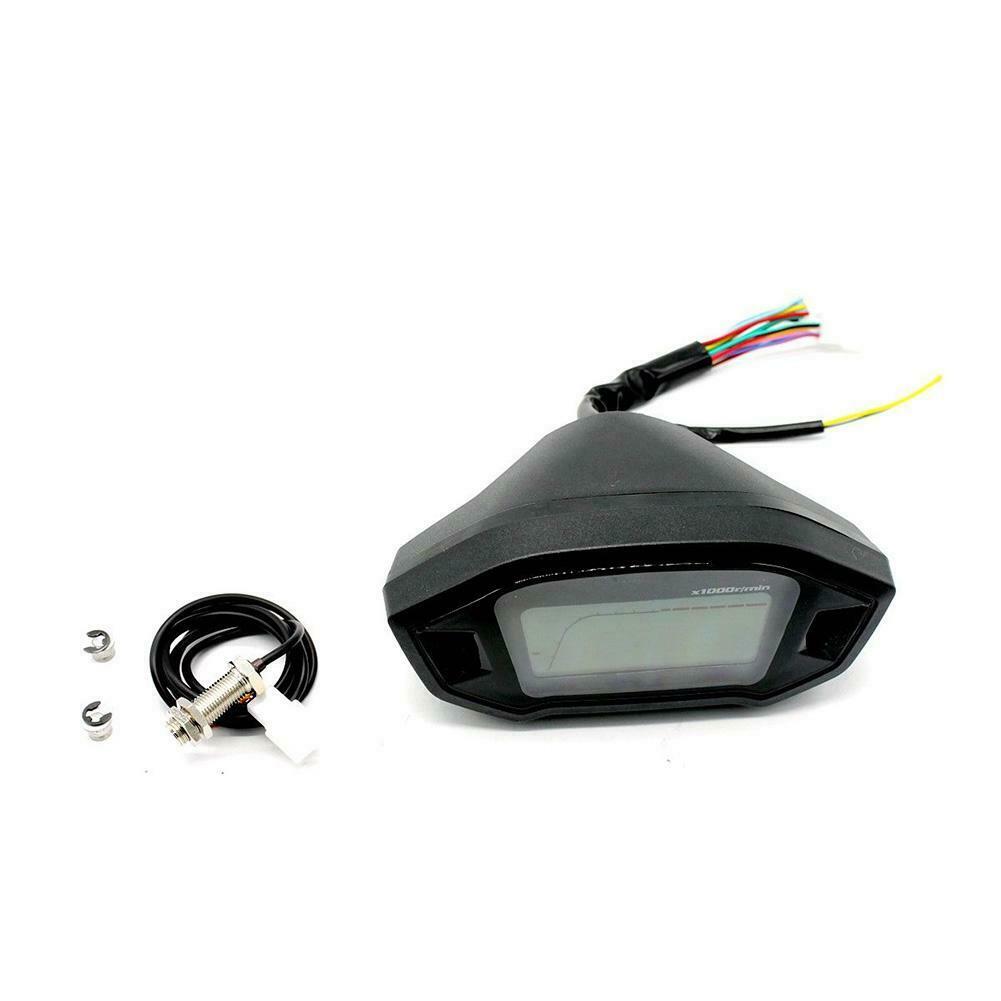

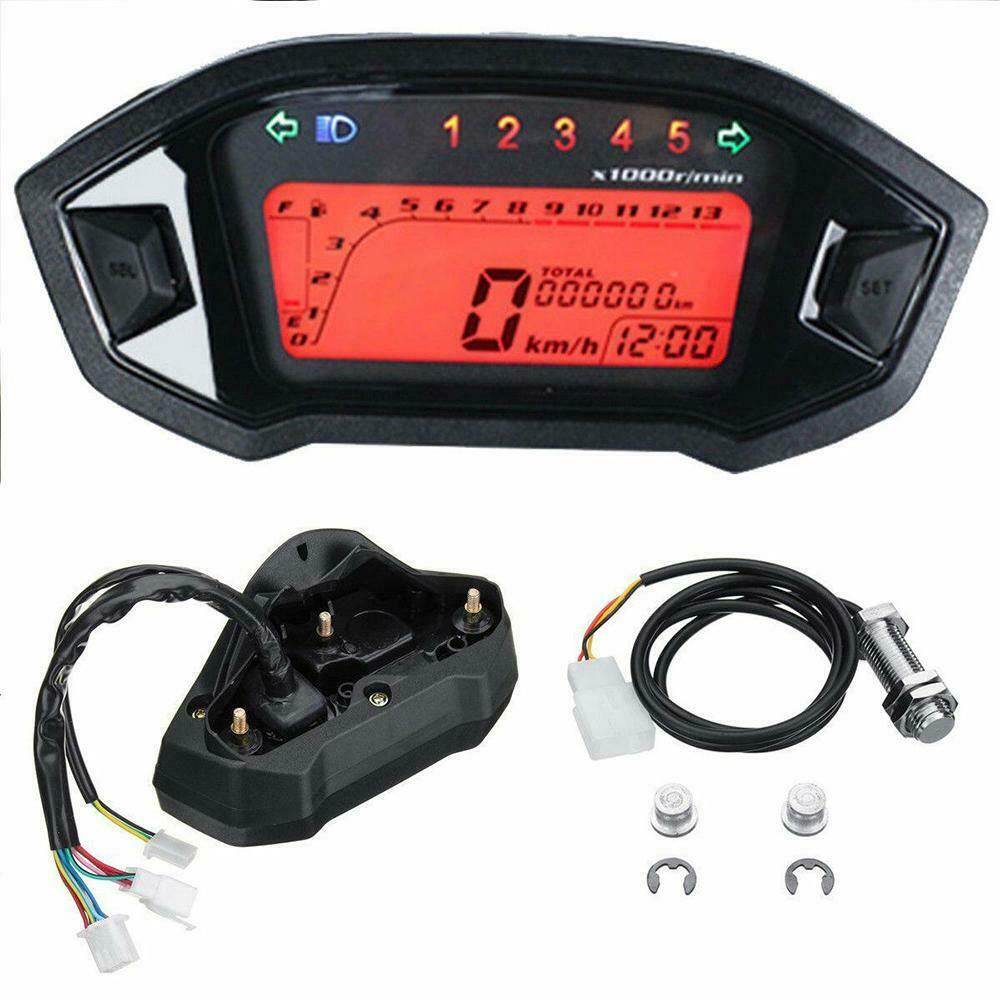

Package Includes:

• 1 X LCDS

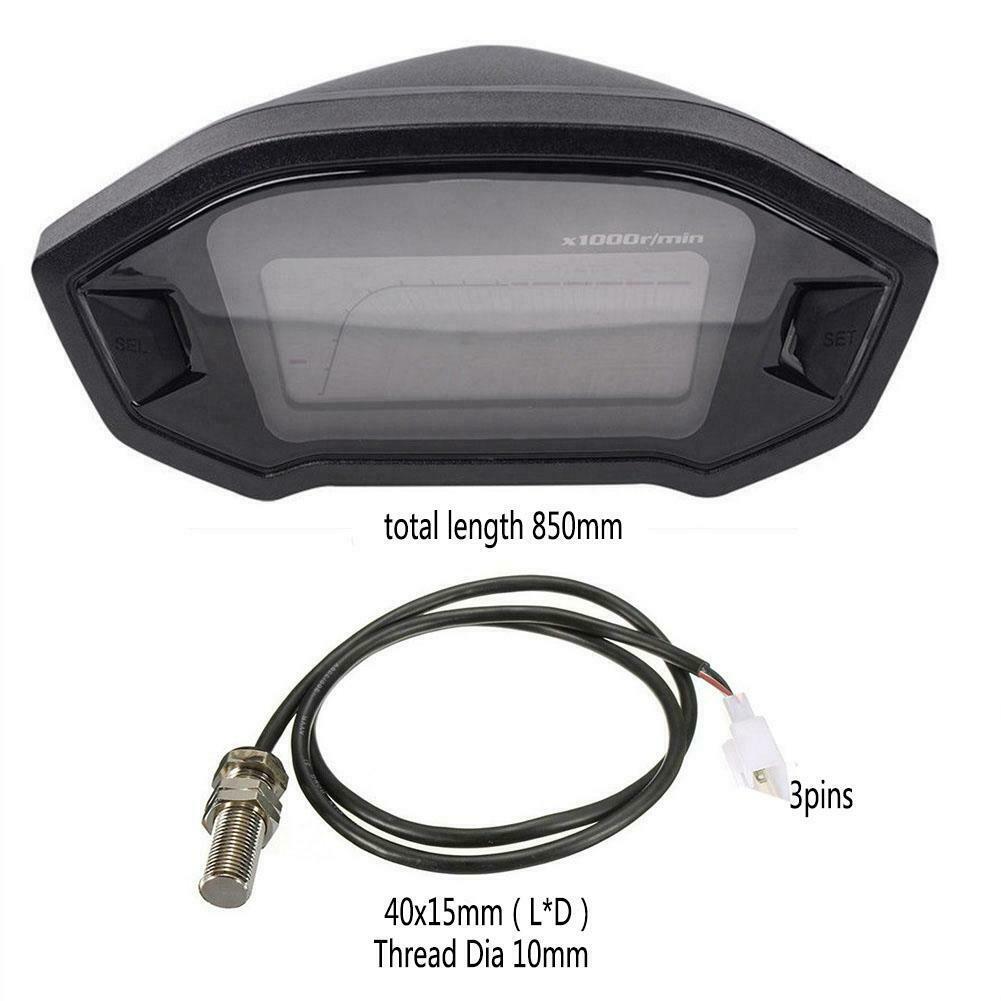

• 1 X sensor

NO Retail Box. Packed Safely in Bubble Bag.
