Y3/8n3 Output Speed Sensor for Mercedes 7G-Tronic 722.9 TCU TCM

New replacement Y3/8n3 output-speed sensor for board-level repair of compatible Mercedes-Benz 7G-Tronic 722.9 transmission control units. This is the individual sensor component, not a complete conductor plate, valve body or programmed TCM.

Product Details

• Replacement component designation: Y3/8n3
• Designed for compatible 722.9 / 7G-Tronic transmission electronics
• May address diagnostic trouble codes P0722 and P0723 when the Y3/8n3 sensor has been correctly diagnosed
• New aftermarket electronic component

Fitment and Compatibility

Used in select Mercedes-Benz A-Class, C-Class, CL, CLC, CLK, CLS, E-Class, G-Class, GL, GLK, M/ML-Class, R-Class, S-Class, SL and SLK applications, plus select 2008-2011 SsangYong vehicles equipped with a compatible 722.9 control unit. Coverage varies by transmission version and control-unit number. Confirm the original TCU/conductor-plate number and sensor configuration before purchase.

Part Number Information

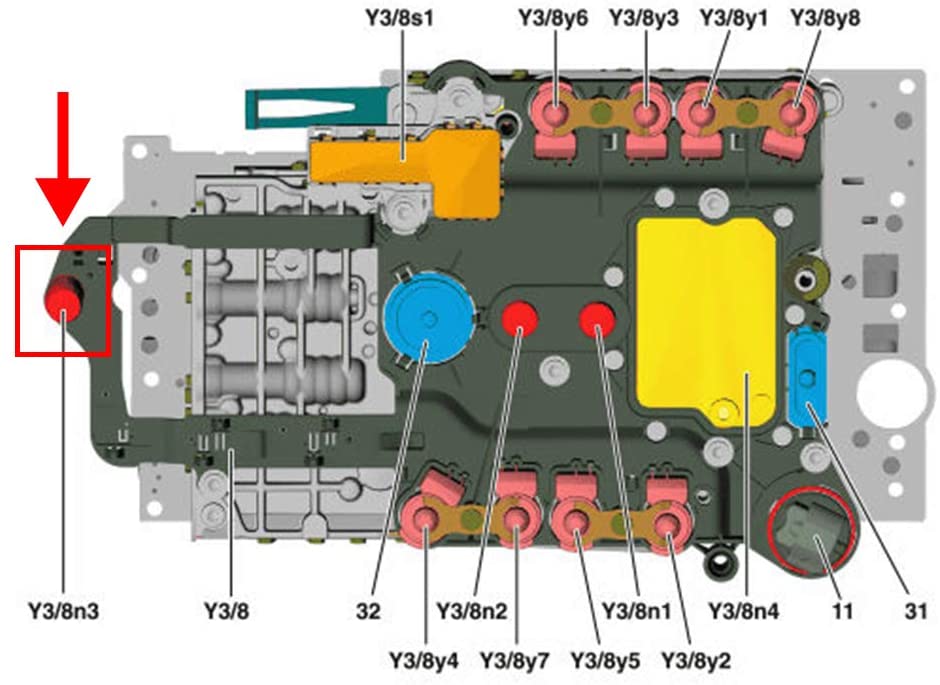

Component designation: Y3/8n3. Common compatible control-unit or conductor-plate references include A0002701700, A000270170080, A0335457332, A0335456732, A0034460310, A2202702906, A2202702706, A2202703106, A2202703206, A2202701206, A2202702106, A2202701806, A9062700006, A2202701306, A2202701506, A2202702806, A2202701906, A2202702206, A2202702406, A2202700026, A2702702306, A2202700160, A2122700006, A2122700106 and A2202701406. These numbers identify possible parent assemblies; match the original unit before ordering.

Package Contents

One Y3/8n3 output-speed sensor.

Installation Notes

Board-level electronic repair and transmission-control diagnosis are required. Installation may involve opening the TCU, precision soldering, resealing, fluid-safe handling and subsequent diagnostic procedures. Confirm the fault before replacement; P0722 or P0723 can have causes beyond this sensor. Professional installation is strongly recommended.
