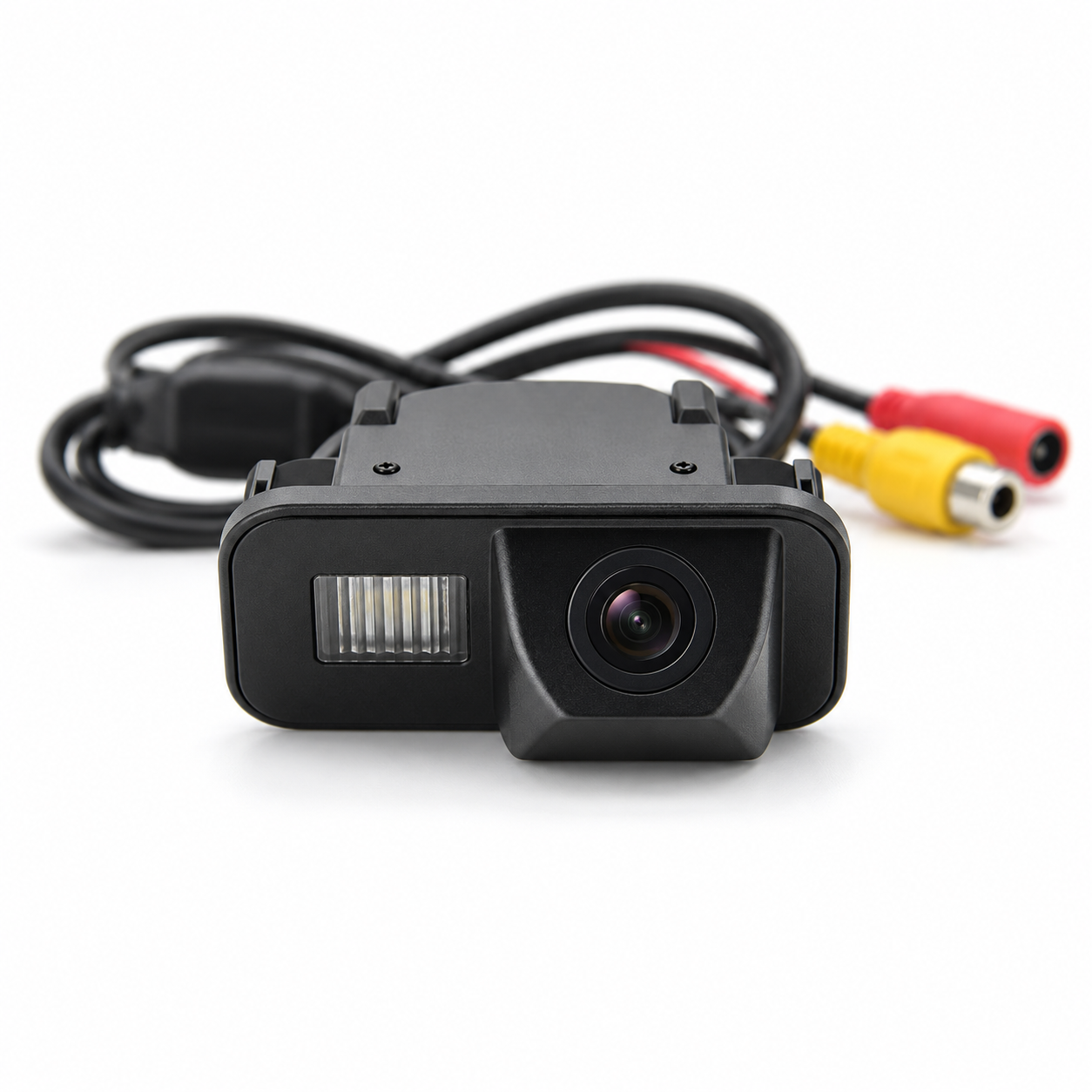

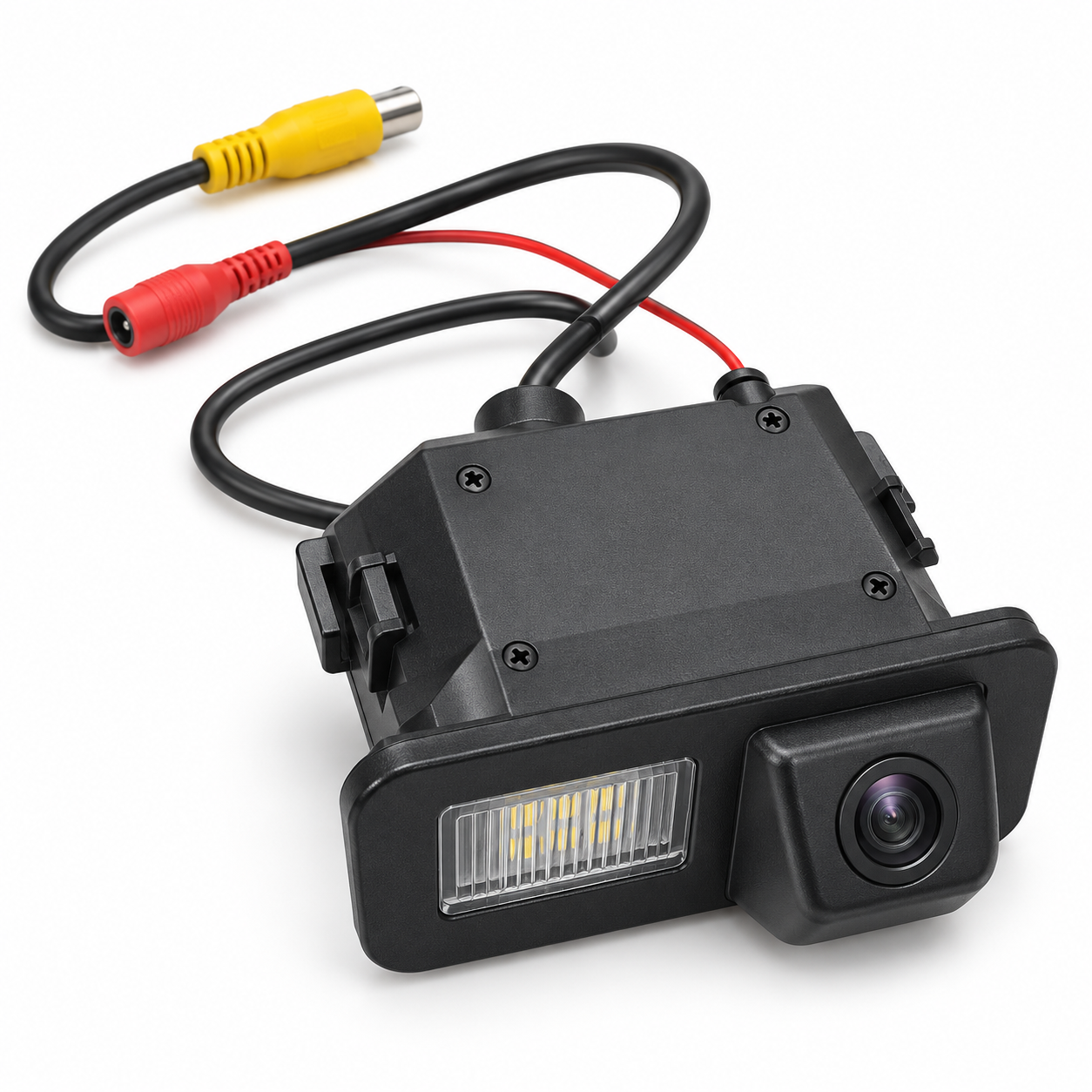

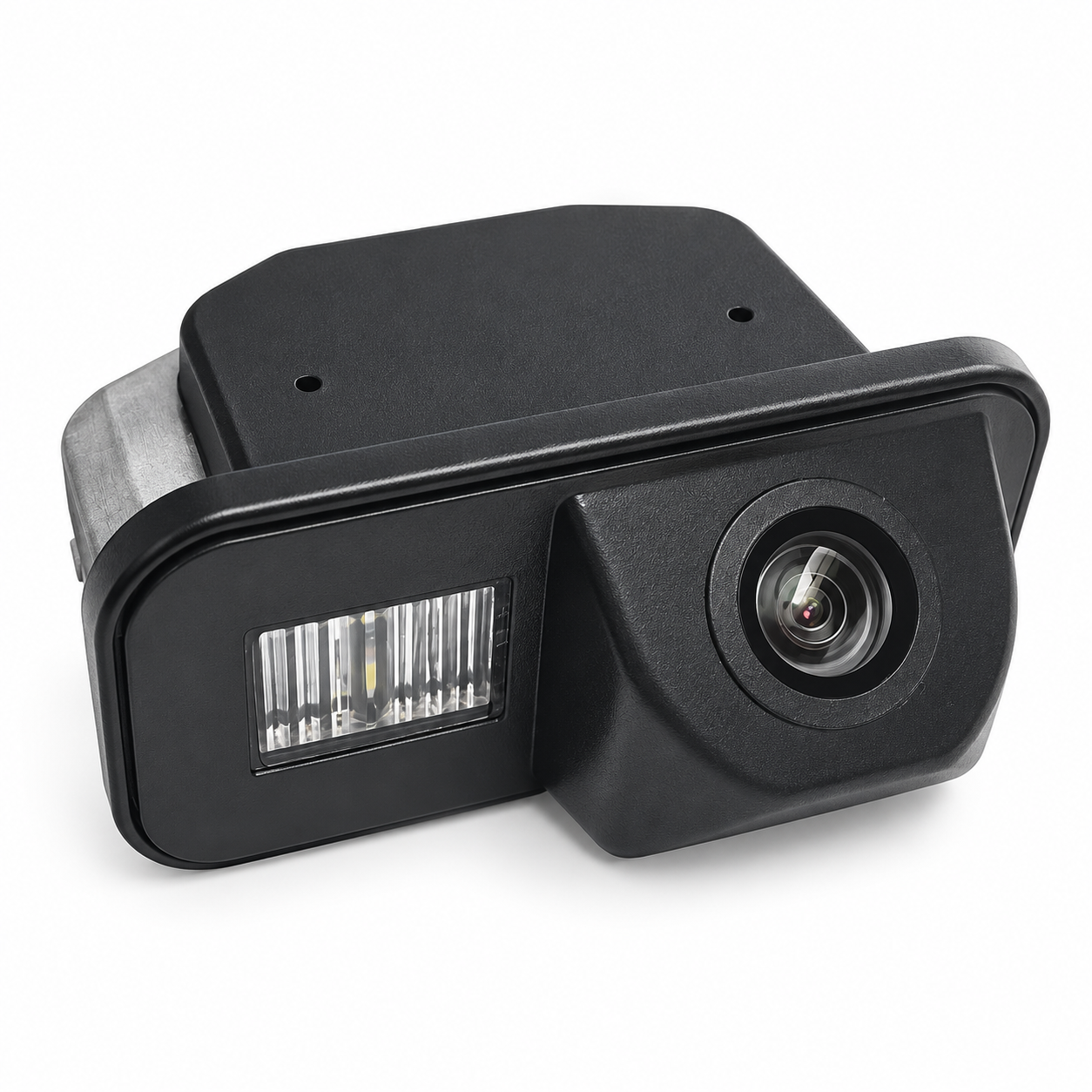

Backup Reverse Camera RCA for Toyota Auris Corolla Sienna Urban Cruiser Scion xB xD

Add rear visibility to a compatible Toyota or Scion with this vehicle-specific license-plate-light backup camera. The molded housing installs in place of the matching license-plate lamp housing, providing a cleaner, more factory-style appearance than a universal surface-mounted camera.

The camera supplies a standard analog composite-video signal through a yellow RCA connector. It is suitable for compatible aftermarket radios, navigation receivers and standalone monitors with an RCA camera input.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Rearview backup camera
• Mounting style: License-plate-light replacement housing

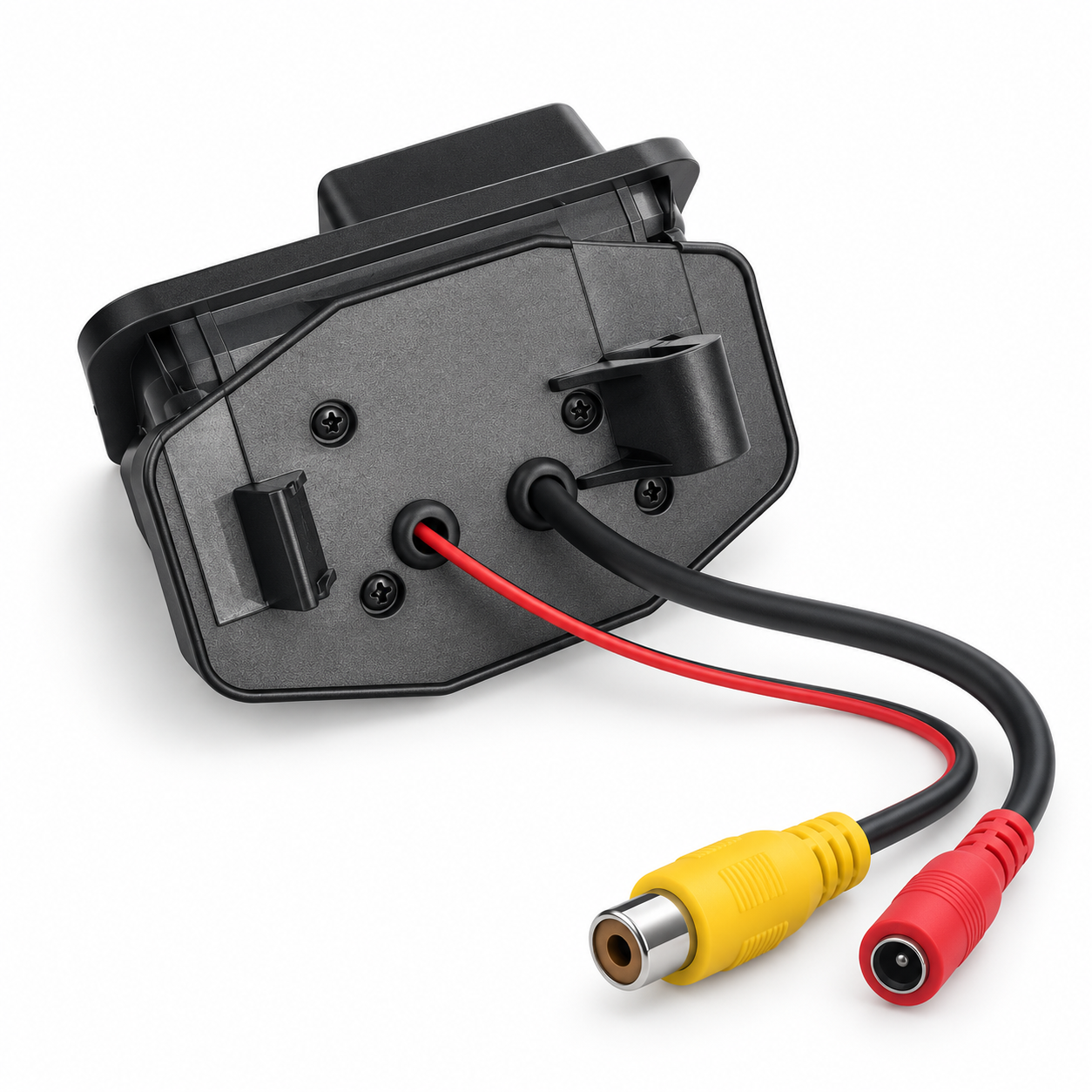

• Video connection: Yellow RCA composite-video connector
• Operating voltage: 12 volts DC
• Power consumption: Approximately 0.2 watt
• Image orientation: Rearview mirror image
• Parking guidelines: Included in the camera image
• Viewing angle: Up to approximately 170 degrees as advertised
• Automatic white balance: Yes
• Automatic gain control: Yes
• Housing material: Molded plastic
• Weather-resistant construction
• Placement: Rear of vehicle
• Condition: New
• Brand: Virtue
• Country of manufacture: China

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

Potential applications include the following vehicles with the matching license-plate-lamp opening:

• 2006–2012 Toyota Auris, E150 generation
• 2007–2013 Toyota Corolla, E140/E150 generation, depending on market and body style
• 2011–2012 Toyota Sienna, XL30 generation
• 2009–2012 Toyota Urban Cruiser
• 2008–2012 Scion xB, second generation
• 2008–2012 Scion xD

Additional international applications may include certain Toyota Corolla Altis, Corolla Rumion, Rukus, Previa, Estima and Tarago models using the same style of license-plate lamp. Physical comparison is required for these applications.

Model years vary by country and production date. The seller’s dates may represent production years rather than North American model years.

𝗟𝗶𝗰𝗲𝗻𝘀𝗲-𝗣𝗹𝗮𝘁𝗲 𝗟𝗮𝗺𝗽 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

The following Toyota numbers are associated with the corresponding license-plate lamp design and can help identify the correct mounting opening:

• 81270-12520 — License-plate lamp assembly
• 81271-12521 — License-plate lamp lens
• 81275-12520 — License-plate lamp socket and wire

These are Toyota lamp-component reference numbers, not part numbers for the aftermarket camera. A matching reference does not replace the need to compare the original lamp housing with the listing photographs.

𝗦𝘆𝘀𝘁𝗲𝗺 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀

• Radio, navigation receiver or monitor with an analog RCA camera input
• Display compatible with the camera’s video standard
• 12-volt camera power and ground connection
• Reverse-trigger input when required by the receiving radio
• Access for routing the video cable from the rear of the vehicle to the dashboard

This is not a USB, digital, AHD or factory LVDS camera. Confirm that the receiving display accepts standard composite video before ordering.

𝗛𝗼𝘄 𝗜𝘁 𝗪𝗼𝗿𝗸𝘀

The camera normally receives power from the vehicle’s reverse-light circuit. When reverse gear is selected, the camera powers on and sends video through the RCA cable to the connected display.

Some aftermarket radios require a separate reverse-trigger wire before automatically changing to the camera screen.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗢𝘃𝗲𝗿𝘃𝗶𝗲𝘄

1. Compare the camera housing with the vehicle’s original license-plate lamp.

2. Remove the matching lamp housing or lens.

3. Install the camera housing in the original opening.

4. Connect camera power to a suitable 12-volt reverse signal and ground.

5. Route the RCA video cable safely to the radio or monitor.

6. Connect the reverse-trigger wire when required.

7. Test camera orientation, guidelines and image quality before reinstalling trim.

Professional installation is recommended if the vehicle’s wiring or radio-camera settings are unfamiliar.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One license-plate-light-style rearview camera
• One approximately 5-meter RCA video and power cable set

Only the components shown in the listing photographs are included.

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• Radio, navigation receiver or monitor
• Factory-camera interface
• RCA-to-factory-radio converter
• Additional extension cable
• Installation tools
• Professional installation
• Vehicle-specific programming

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗶𝗰𝗲

This camera is designed to replace a particular style of license-plate lamp housing. Fitment cannot be confirmed by vehicle year and model alone.

Before ordering, compare:

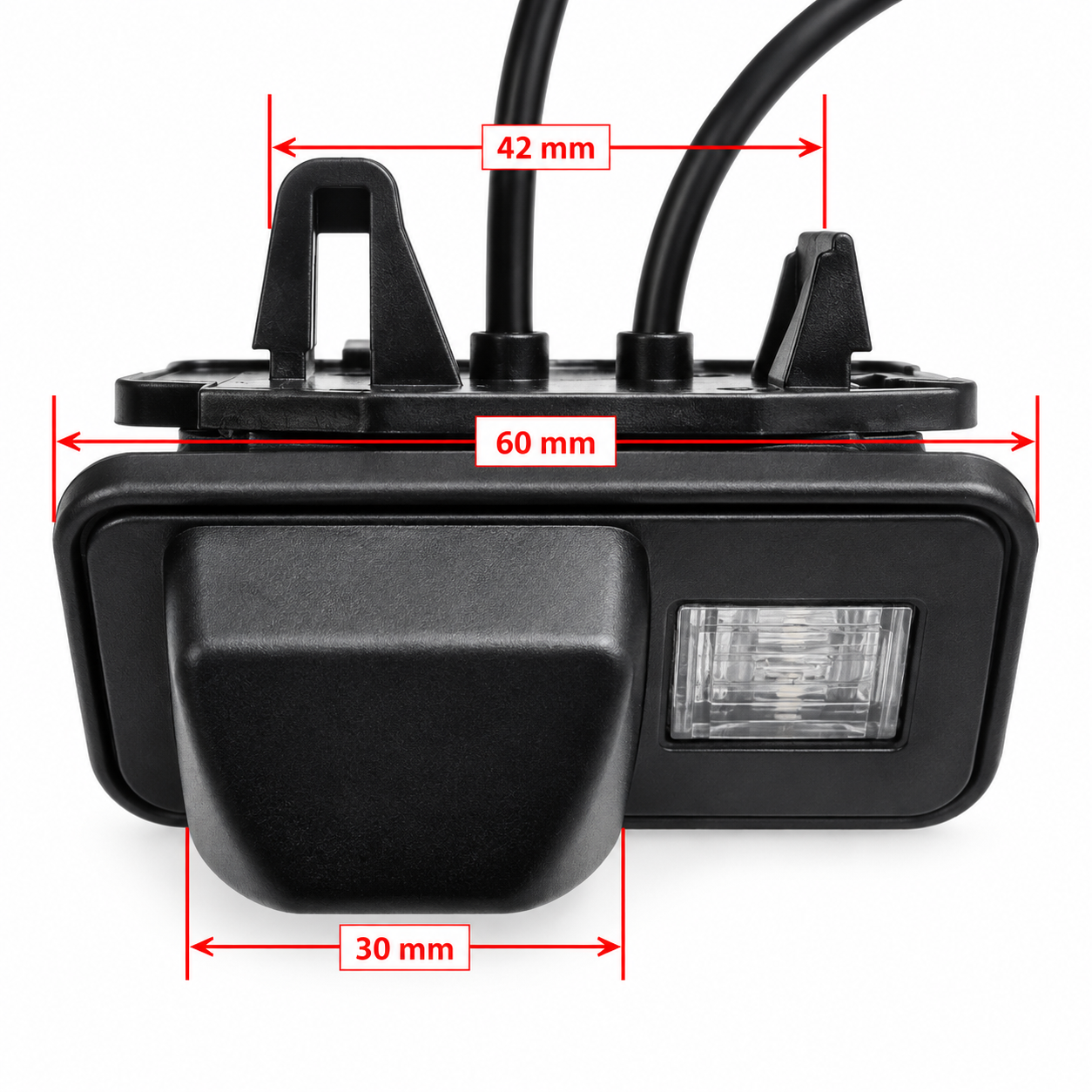

• Shape and dimensions of the original lamp opening
• Retaining clips and mounting tabs
• Lamp-lens orientation
• Available installation depth
• Camera power requirements
• Video-input type used by the radio or monitor

This is not a direct replacement for an original Toyota factory backup camera. Vehicles retaining a factory radio will normally require a separate video interface unless that radio already accepts an analog RCA camera signal.
