Steering Wheel Lock ELV ESL Repair for 2002-12 Land Rover Range Rover

Product Description

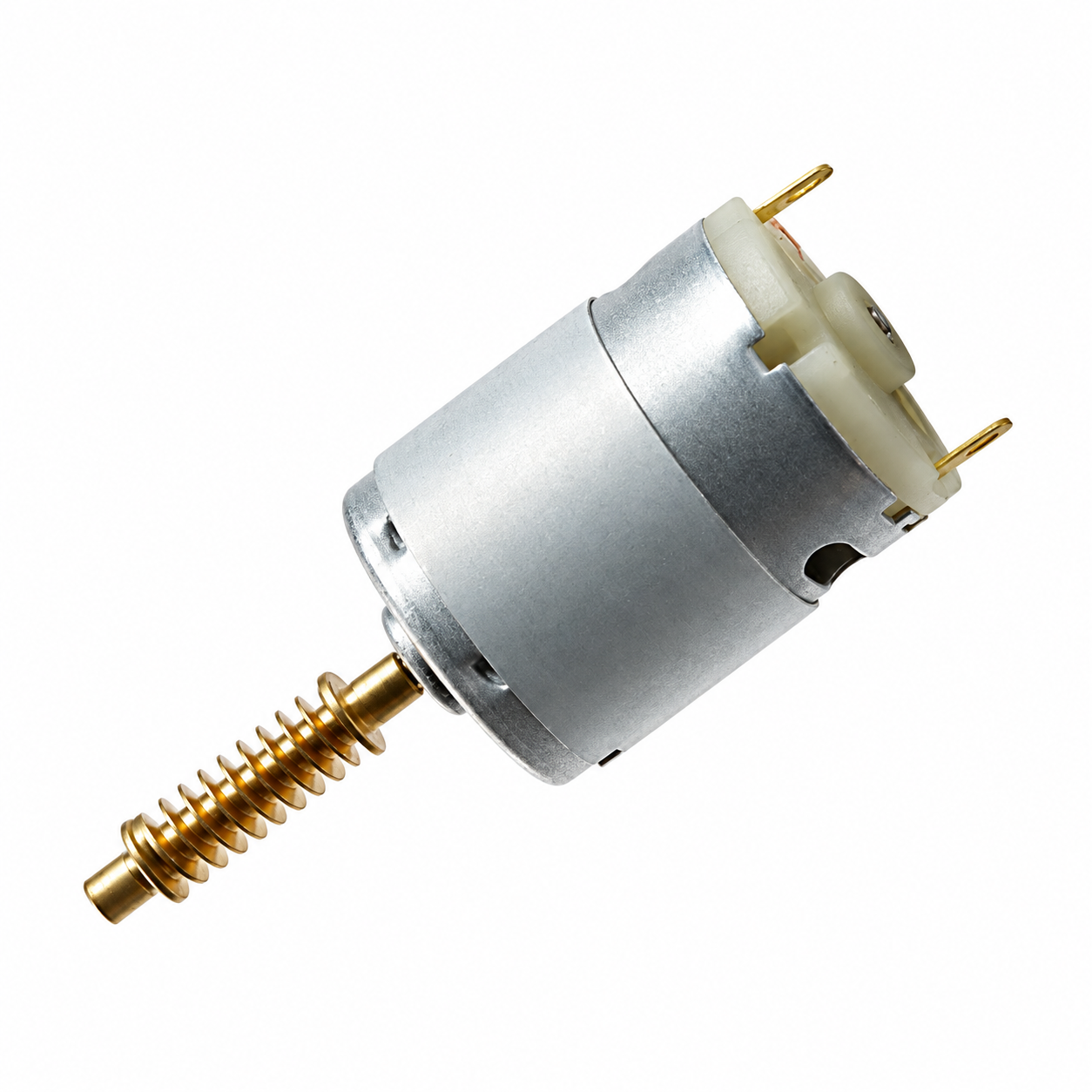

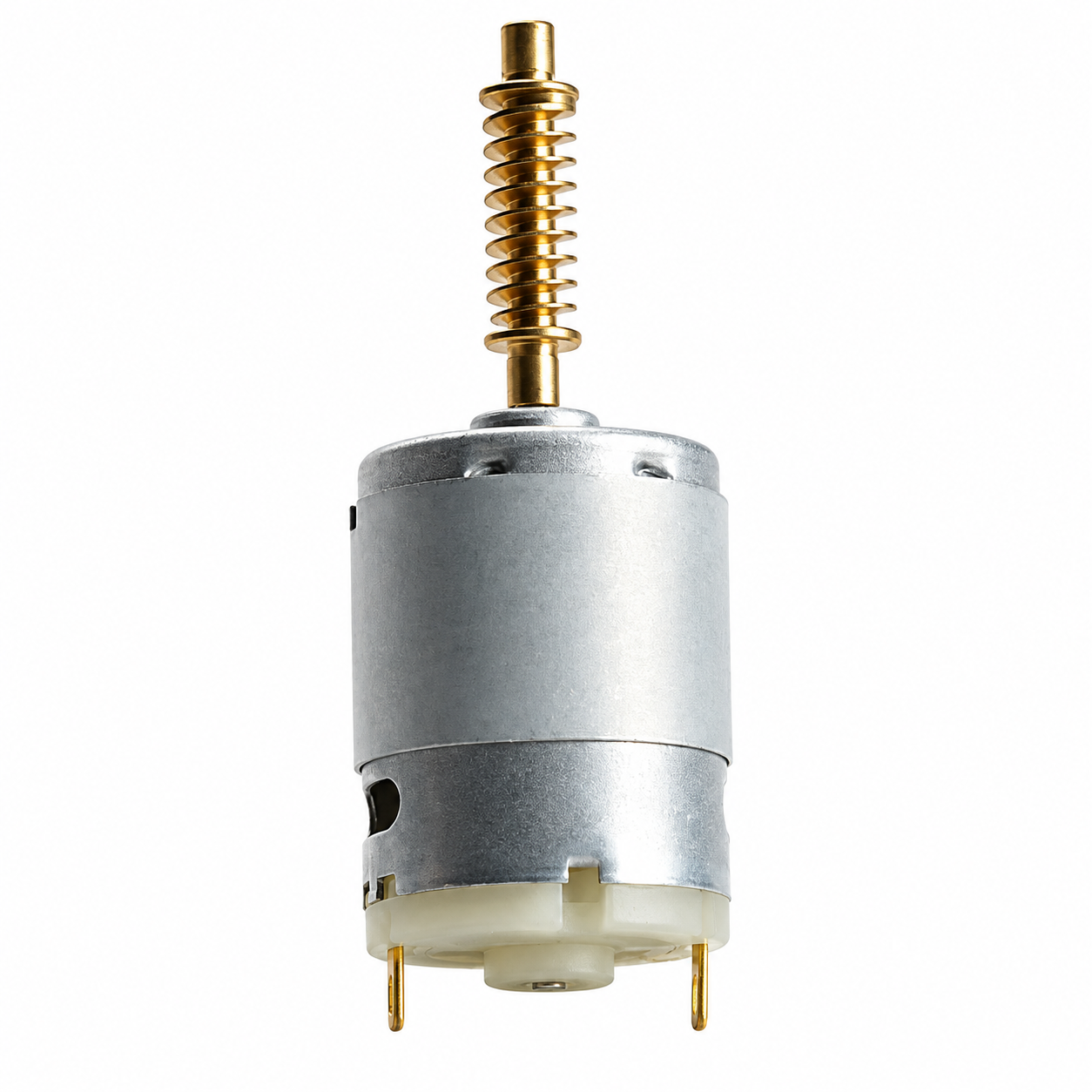

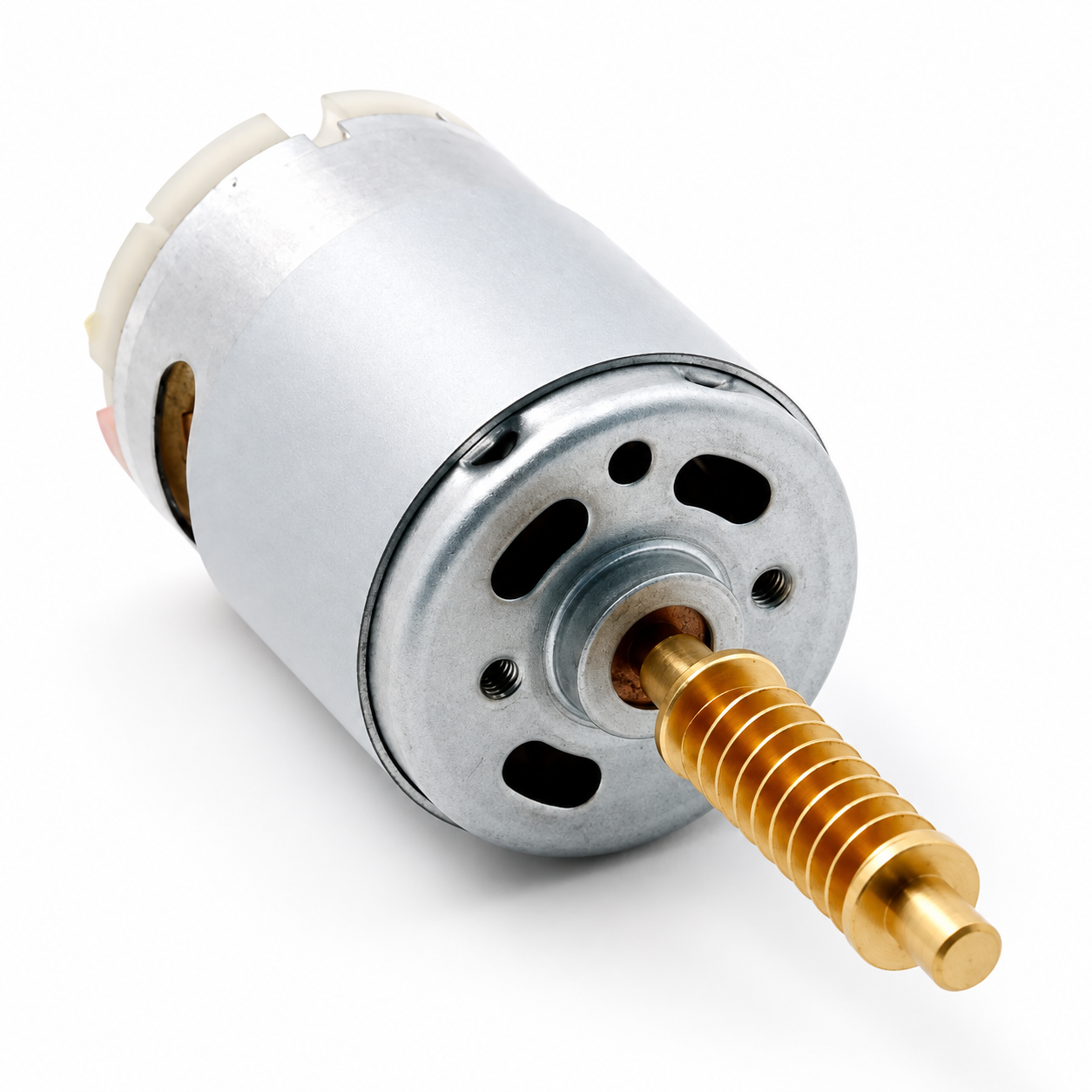

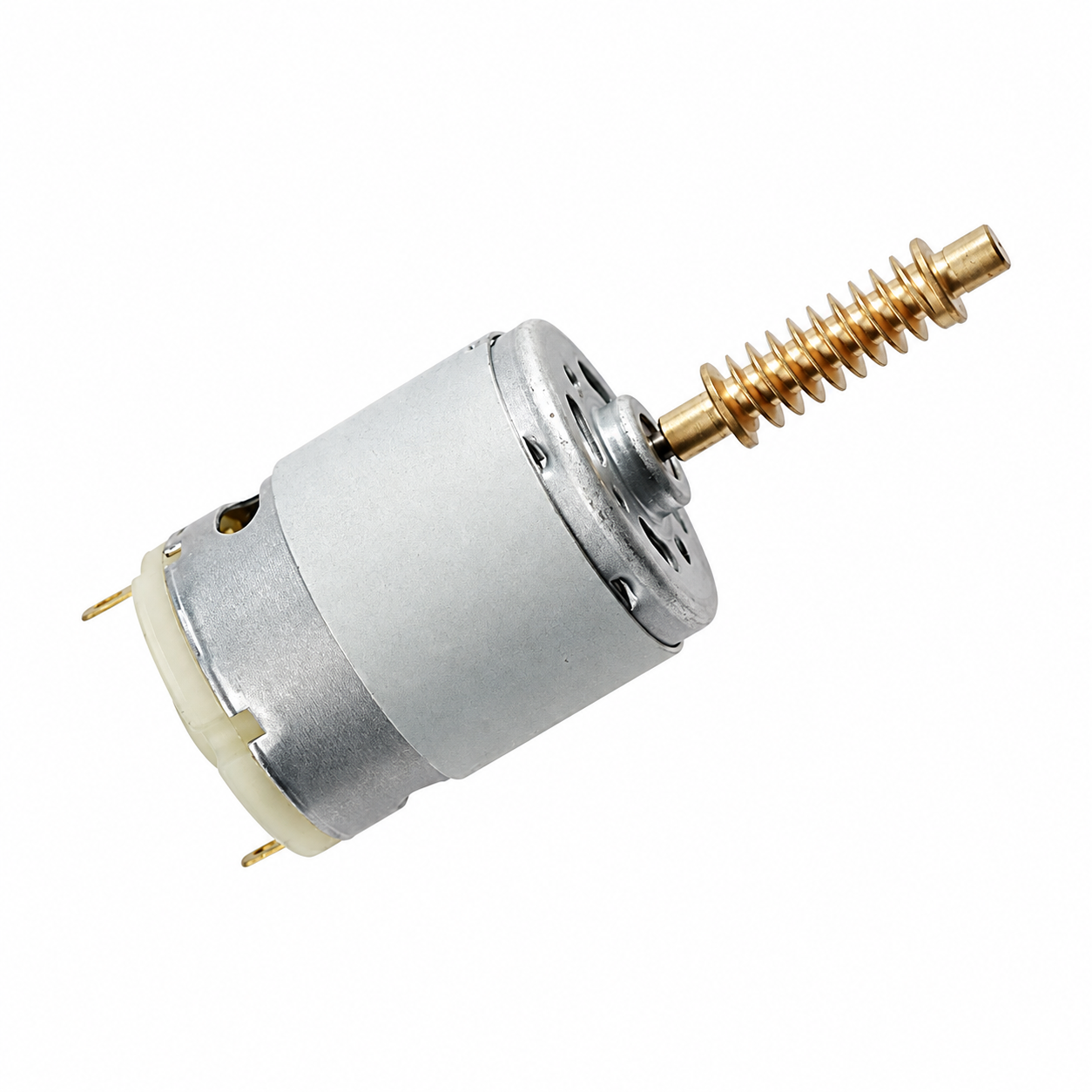

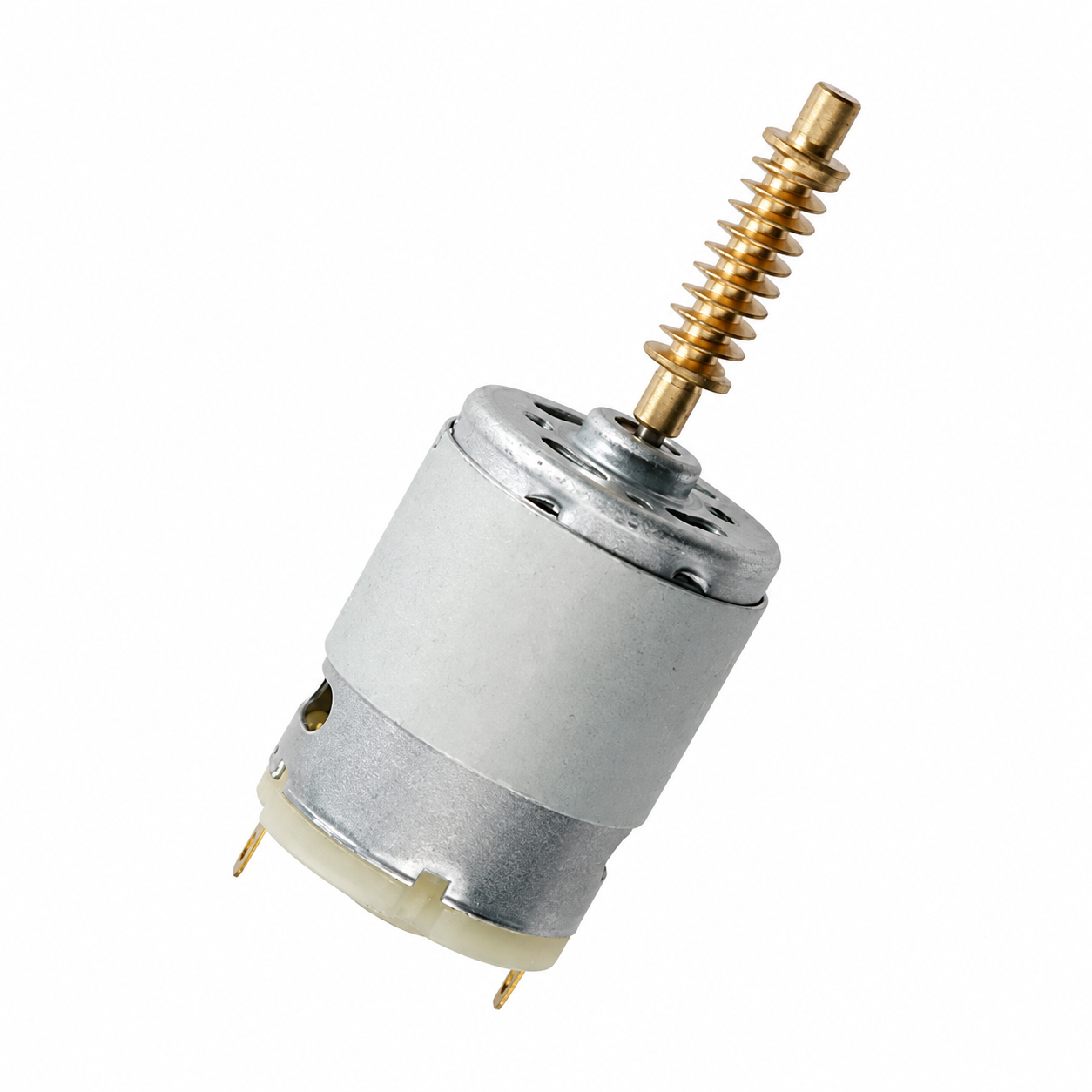

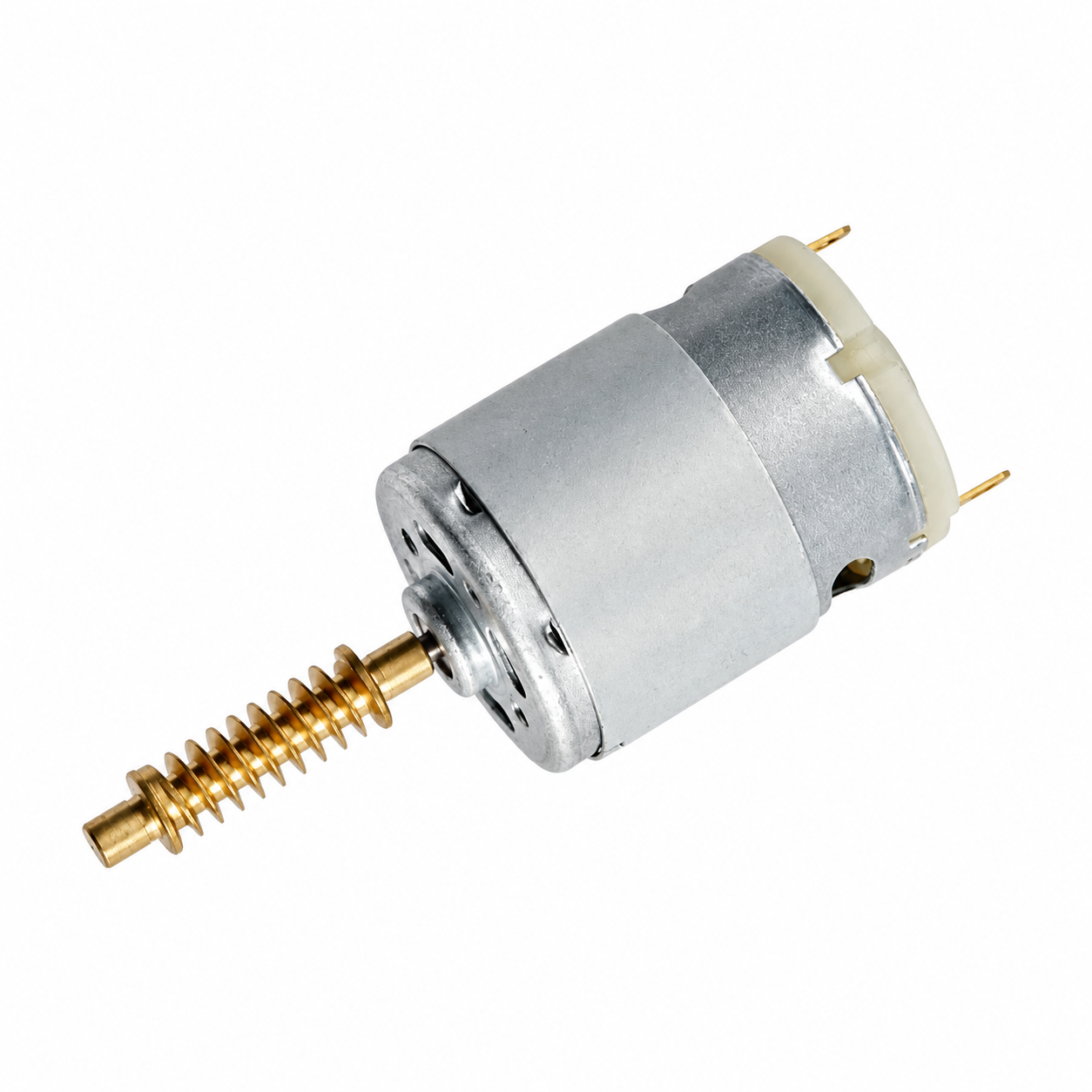

New aftermarket replacement motor for the electronic steering-column lock (ESL/ELV) used in select 2002–2012 Land Rover Range Rover L322 vehicles. This internal motor may help repair a steering-lock assembly affected by worn motor brushes or motor failure.

This listing is for the replacement motor only. It is not a complete steering column, steering-lock assembly, control module, key, or programming service.

Product Details

• Application: Electronic steering-column lock repair
• Vehicle: Land Rover Range Rover L322
• Model years: 2002–2012, subject to exact steering-column version
• Part type: Internal ESL/ELV actuator motor
• Condition: New
• Brand: Azgiant
• Construction: Metal
• Color: Silver
• Quantity: One motor
• Warranty: Three years, according to the original listing
• Manufacturer’s country of origin: China
• Certification claimed by seller: CE
• Type: Aftermarket replacement component—not a genuine Land Rover part

Reference Numbers

• QMB000164
• QMB000160
• 85937.0
• PA04012610017

Reference numbers are supplied for identification only. Your original motor and steering-column lock must match before purchase.

Compatibility

Designed for select:

• 2002–2012 Land Rover Range Rover L322
• Range Rover HSE L322 models equipped with a matching electronic steering-column lock

Land Rover documentation identifies QMB000164 as a steering-column assembly reference, while the L322 steering column incorporates a motor-operated lock and integrated lock electronics. Exact application can vary by VIN, production date, and installed steering-column version. Land Rover/NHTSA technical bulletin, L322 workshop information

This part should not be assumed to fit Range Rover Sport L320, Evoque, LR2, LR3, LR4, or Range Rover L405 models.

Possible Failure Symptoms

A defective steering-lock motor may cause:

• Steering wheel failing to unlock
• Instrument panel failing to illuminate
• Engine not starting
• Intermittent ignition response
• Other electrical systems failing to respond when the ignition is switched on

These symptoms can also be caused by low battery voltage, damaged wiring, ignition or immobilizer faults, lock-module failure, or a mechanically jammed steering lock. Diagnosis is recommended before ordering.

Critical Fitment Information

Before purchase, compare the original component with the listing photographs and verify:

• OE/reference numbers

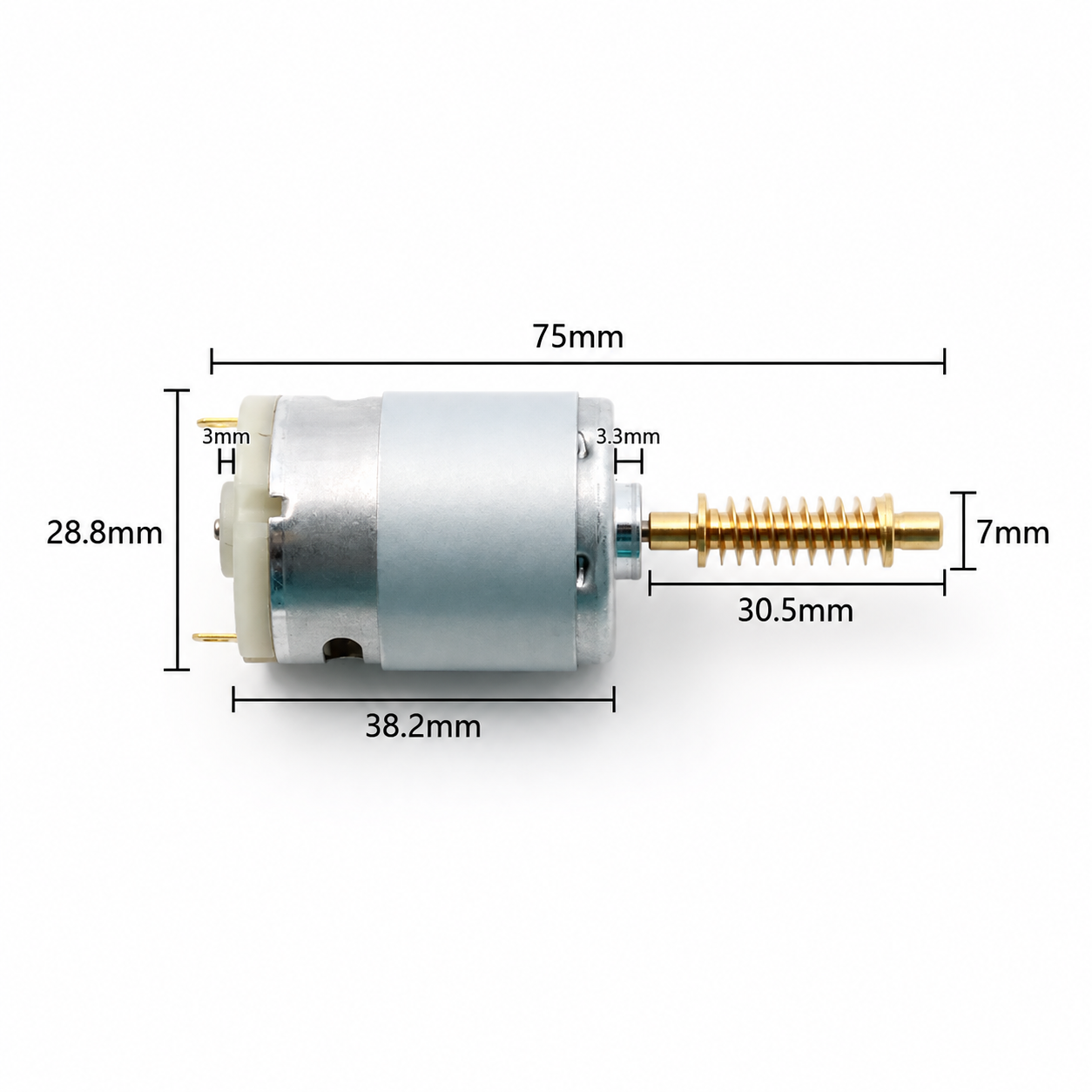

• Motor dimensions and body shape
• Shaft design
• Electrical terminals
• Operating voltage and rotation direction
• Steering-column and lock-module version
• Vehicle VIN and production date

The eBay “universal fitment” designation should not be relied upon—this is an application-specific repair component.

Installation Notes

Installation requires removal and disassembly of the electronic steering-column lock. Professional installation by a qualified automotive-electronics technician or locksmith is strongly recommended.

Replacing the motor will not correct a damaged lock mechanism, faulty lock ECU, wiring problem, immobilizer fault, or other steering-column failure. Steering-angle calibration, fault-code clearing, or diagnostic procedures may be required after steering-column work.

Package Includes

• One ESL/ELV steering-column lock motor
