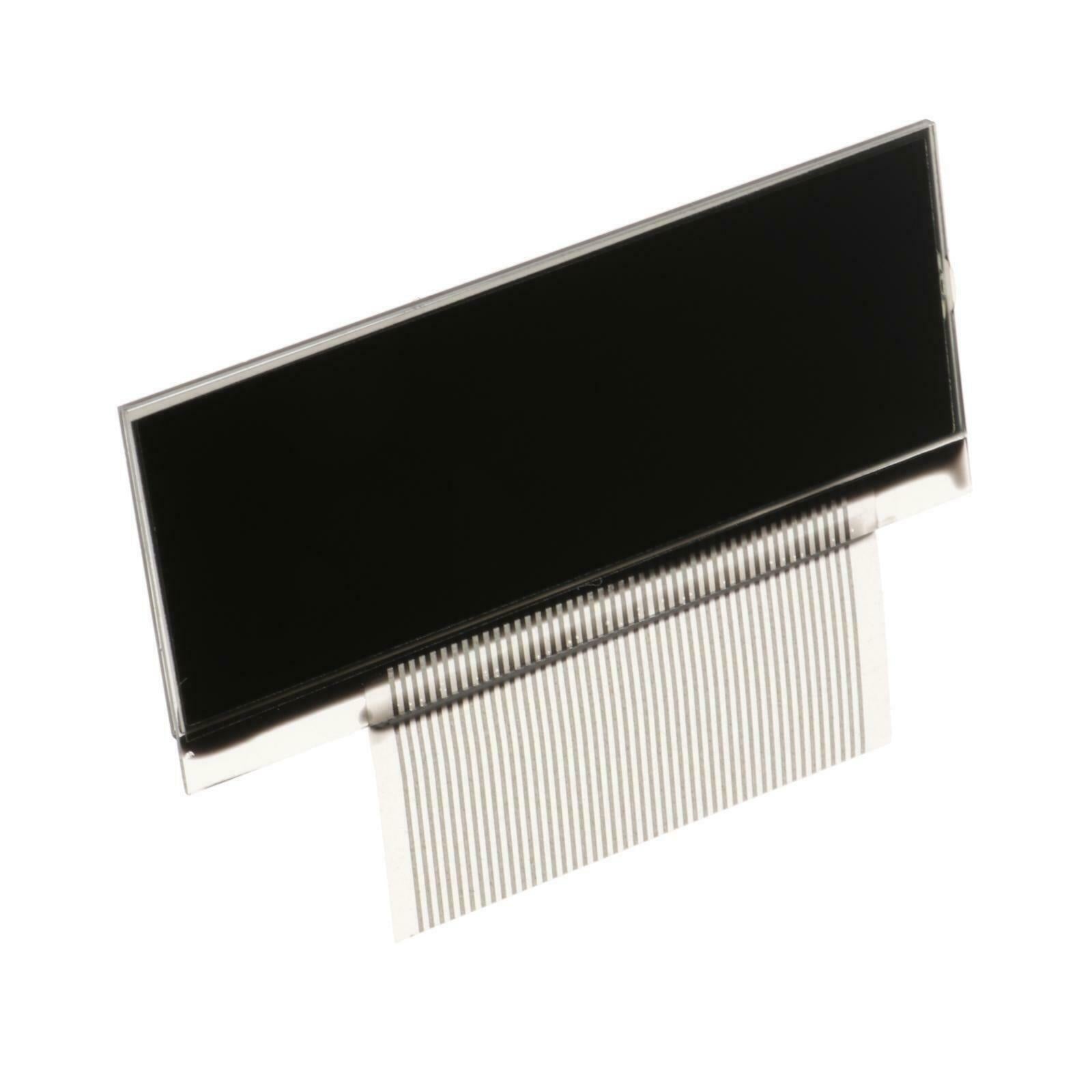

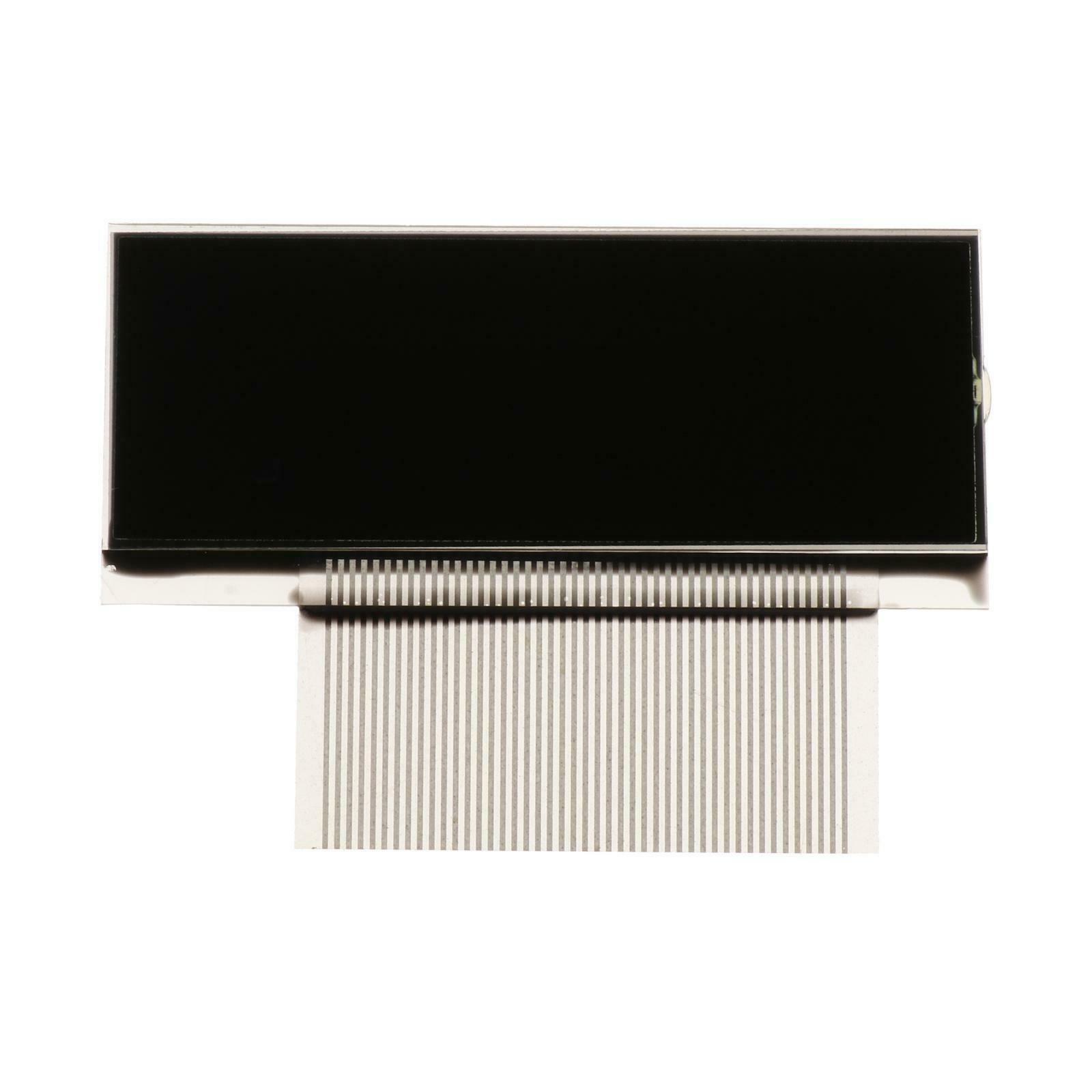

Instrument Cluster LCD Display for BMW E34 525i 530i 540i M5
. Replacement bonded LCD and cable assembly for repairing pixel loss or a damaged display in a compatible BMW E34 instrument cluster. The approximately 75 x 55 mm screen has a matte protective film and widened cable connection.
Product Details
- Replacement cluster LCD with bonded repair cable
- Approximate size: 75 x 55 mm
- Matte protective surface film
- Designed to improve display contrast when the LCD/cable is the confirmed fault
- Internal repair component only
Fitment and Compatibility
For select BMW E34 5 Series instrument clusters used in 525i, 530i, 540i and M5 models with the matching display and cable layout. BMW used multiple cluster suppliers and revisions. Compare screen dimensions, cable position, connector pattern and cluster manufacturer before ordering.
Part Number Information
No separate BMW OE part number is assigned to this aftermarket bonded LCD repair assembly.
Package Contents
One replacement instrument-cluster LCD display with attached repair cable. Complete cluster, housing, needles, tools and installation service are not included.
Installation Notes
Cluster disassembly and precision bonding/electronic work are required. Do not remove the protective film until final assembly. Record needle positions if removal is necessary and use ESD protection. Professional cluster repair is recommended.
