Single to Double Fakra Antenna Adapter for Volkswagen Skoda Audi Radio RNS RDS RCD 510 310 315 RCD330
- One Radio Antenna Adaptor Double Fakra
- Suit for VW, Skoda, Seat Upgrade from RCD210 RCD310 RCD510 RNS315 RNS 510 to RCD330
- Easy to install, direct plug and play
- Please double check with your user manual before buying
| Impedance | 50 Ω |
| connectors |
One end: Fakra Male double "B" straight

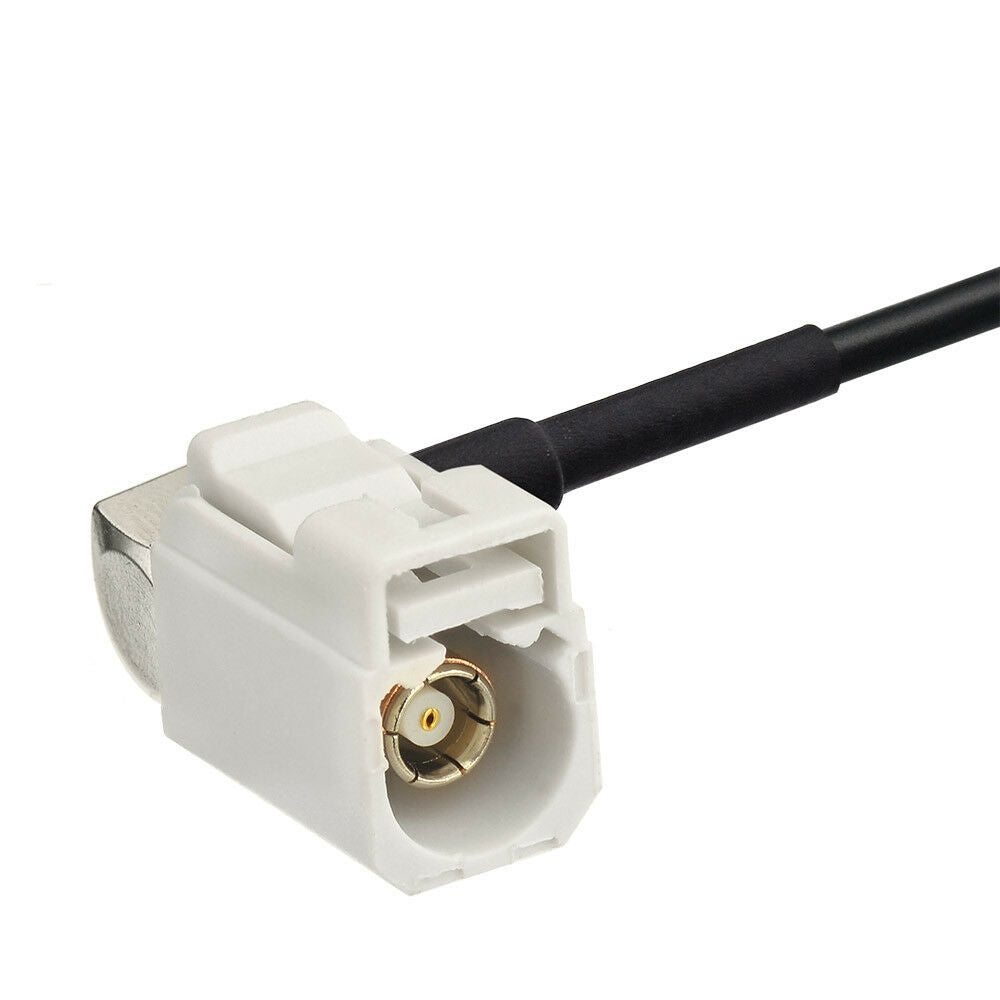

Other end: Fakra Female "B" right angle |
| cable |
RG174 default |
| Length |
4" (10cm) |
Apply To:
GPS: Telematics or navigation
Skoda Outwit Fox New Volkswagen
Applications:
- GPS antenna
- car audio
- GSM antenna
- IEEE 802.11 a/b/g/n
- Wi-Fi
- WLAN
- Wireless Ethernet
- RFID
- UWB
- WiMAX
- iBurst
- Zigbee®
- Bluetooth Wireless®
- MIMO
- 3G/4G Wireless
FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly
FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered
The antenna with this Fakra Connector is compatible with:
-
VW RNS510 (MFD3);
-
VW MFD2 (RNS2);
-
SKODA COLUMBUS;
-
MERCEDES COMMAND SYSTEMS W211 (E-CLASS);
-
MERCEDES APS 50;
-
AUDI RNS-E (DVD NAVIGATION);
-
AUDI MMI (A6 4F, A8 4E);
Package includes:

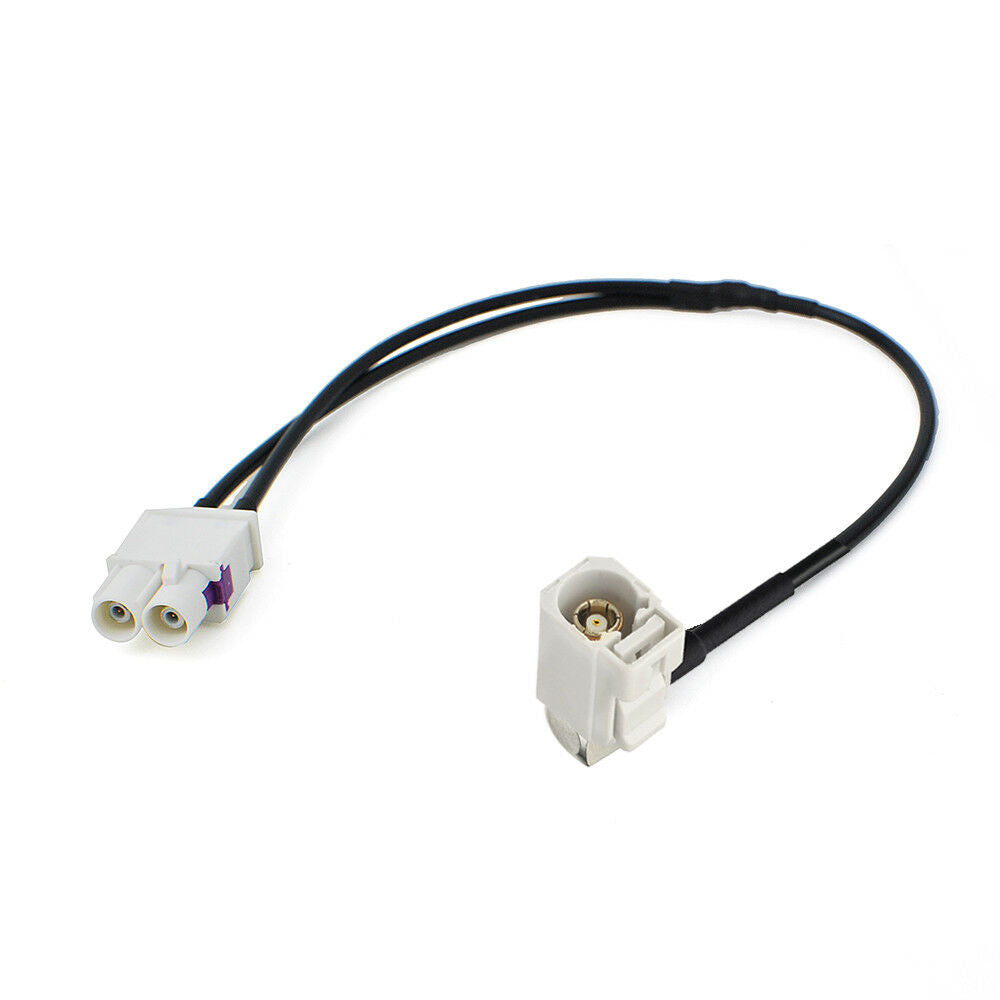

(1pcs) Fakra male plug double "B" straight to Fakra "B" female jack right angle pigtail cable RG174 20cm for Radio
