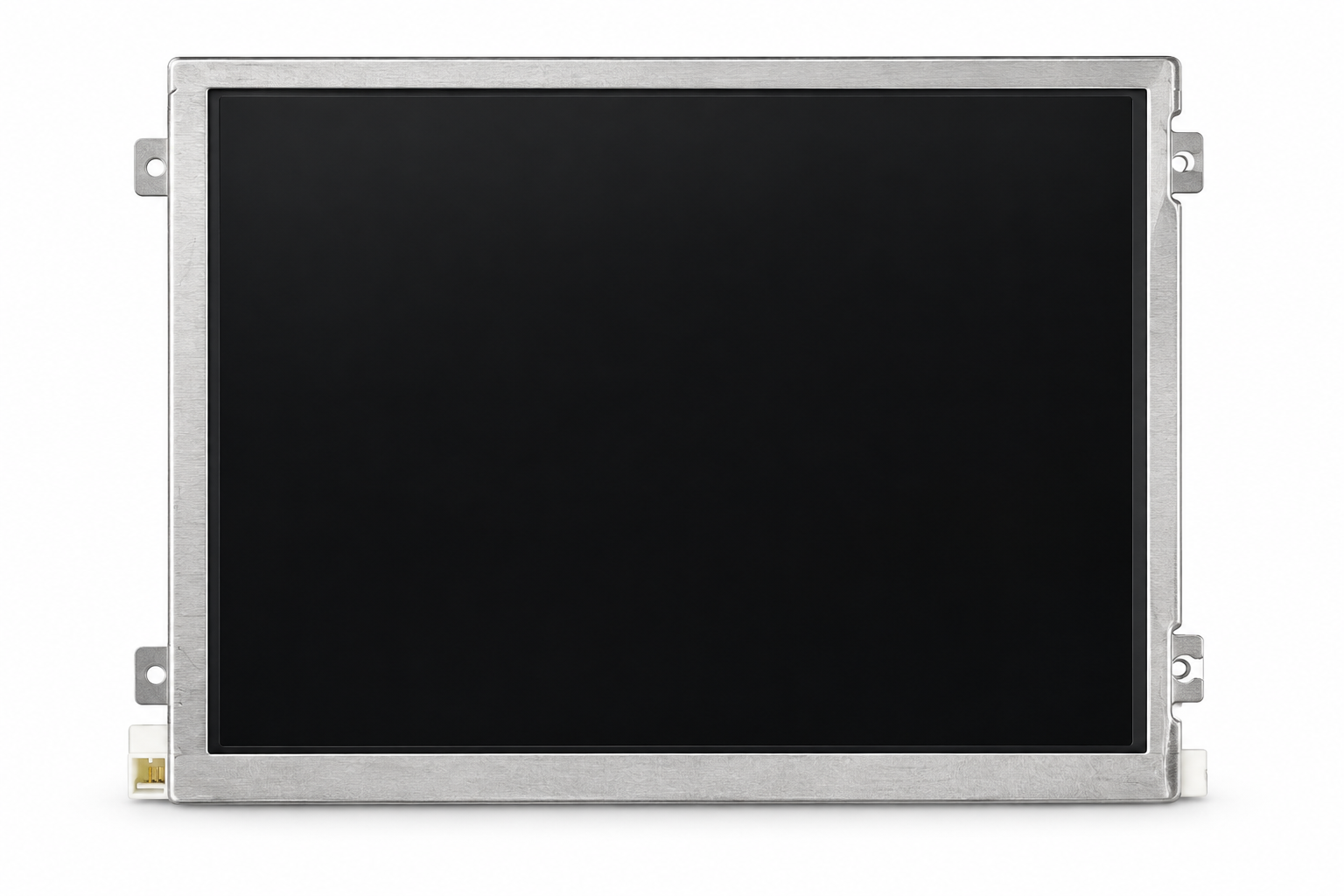

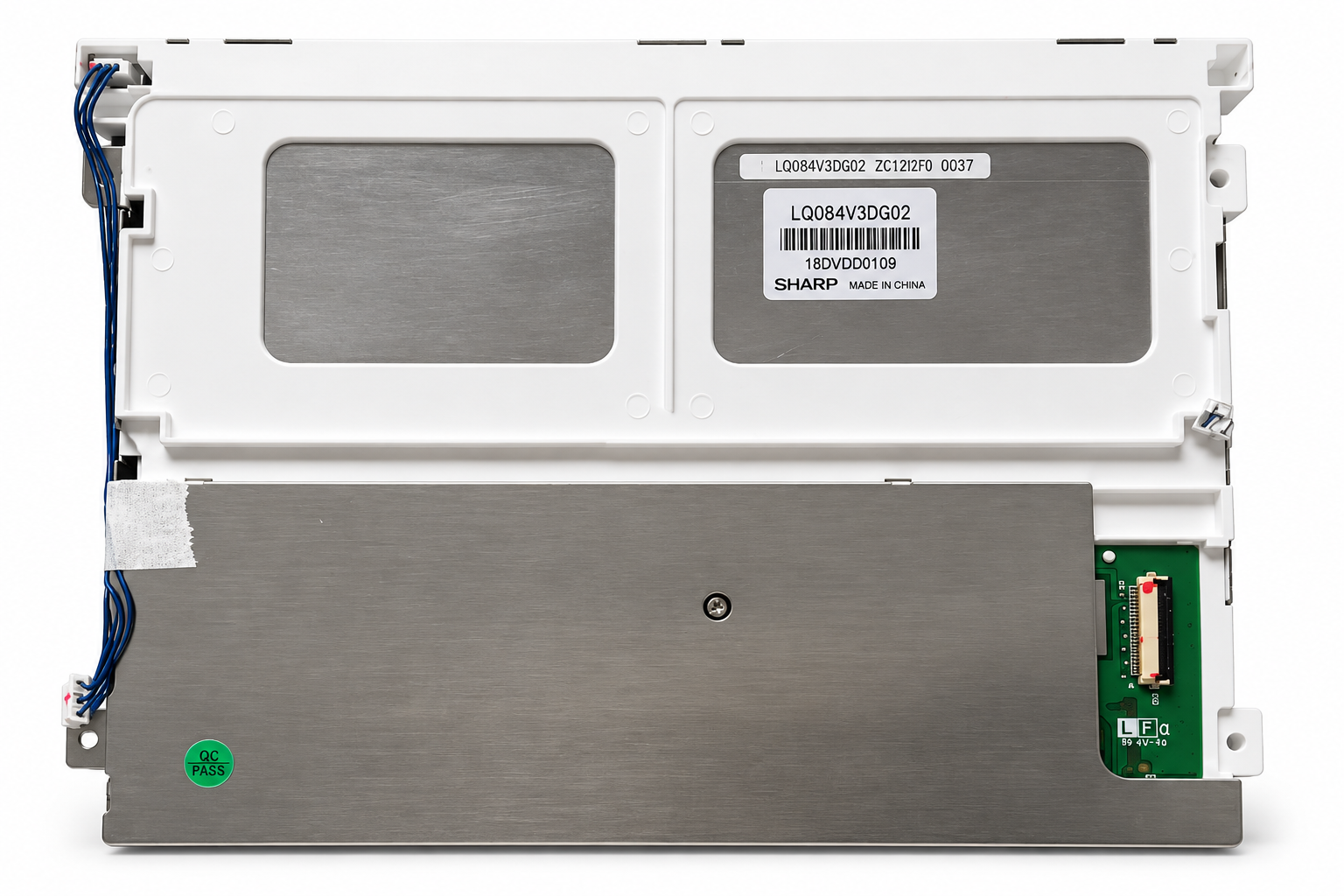

Sharp LQ084V3DG02 8.4" VGA 640x480 TFT LCD Panel LED Backlight

$ 399.95

Pay in 4 interest-free payments of $ 99.99 with

product description

New Sharp LQ084V3DG02 industrial TFT LCD display module. This 8.4-inch color panel features VGA resolution, a white LED backlight, and an 18-bit parallel RGB interface.

Suitable as a replacement display or for integration into compatible industrial controls, test equipment, medical systems, automation equipment, and embedded electronics. Compatibility is determined by the complete model number and technical specifications—not screen size or resolution alone.

Product details

Manufacturer: Sharp Microelectronics
Model/MPN: LQ084V3DG02
Display type: Color TFT LCD
Screen size: 8.4 inches
Resolution: 640 × 480 pixels—VGA
Display mode: Transmissive
Pixel arrangement: RGB vertical stripe
Interface: 18-bit parallel RGB/TTL
Backlight: White LED
Brightness: Approximately 400 cd/m²
Contrast ratio: Approximately 600:1
Active display area: 170.88 × 128.16 mm
Pixel pitch: Approximately 0.267 × 0.267 mm
Orientation: Landscape
Touchscreen: No
Approximate panel dimensions: 199.5 × 149.5 × 11.6 mm
Part status: Discontinued/obsolete manufacturer model

The published specifications identify the LQ084V3DG02 as an 8.4-inch, 640 × 480, 18-bit RGB color TFT module with a white LED backlight. Sharp technical datasheet hosted by Mouser, DigiKey product specifications

Package includes

One Sharp LQ084V3DG02 LCD display panel

Controller board, touchscreen, video cable, mounting hardware, power supply, and installation accessories are not included unless expressly pictured and stated.

Compatibility

This is an industrial component and does not have a reliable year/make/model vehicle-style compatibility list. Purchase it only when replacing a panel marked:

LQ084V3DG02

Before ordering, compare the original display’s:

Complete manufacturer part number
Connector type, pin count, and position
18-bit RGB/TTL signaling
Supply and backlight requirements
Mounting points
Panel dimensions and thickness
Viewing orientation

Models with similar numbers—including LQ084V3DG01, LQ084V1DG21, and LQ084V1DG41—should not be assumed interchangeable. Differences may include the interface, connector pinout, backlight system, enclosure dimensions, and electrical requirements.

Installation notice

Installation should be completed by a qualified electronics technician. This is a bare LCD module, not a plug-and-play monitor. Incorrect voltage, pin assignment, grounding, or backlight control can permanently damage the display.

Use proper electrostatic-discharge precautions and confirm all connections against the equipment’s service documentation and the Sharp datasheet before applying power.

Fitment and compatibility

Application reference: Sharp LQ084V3DG02 8.4" VGA 640x480 TFT LCD Panel LED Backlight

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

Part number / catalog reference: LQ084V3DG02, CONNECTOR

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
