Sharp LQ084S3LG01 8.4" SVGA 800x600 TFT LCD Panel LVDS CCFL

product description

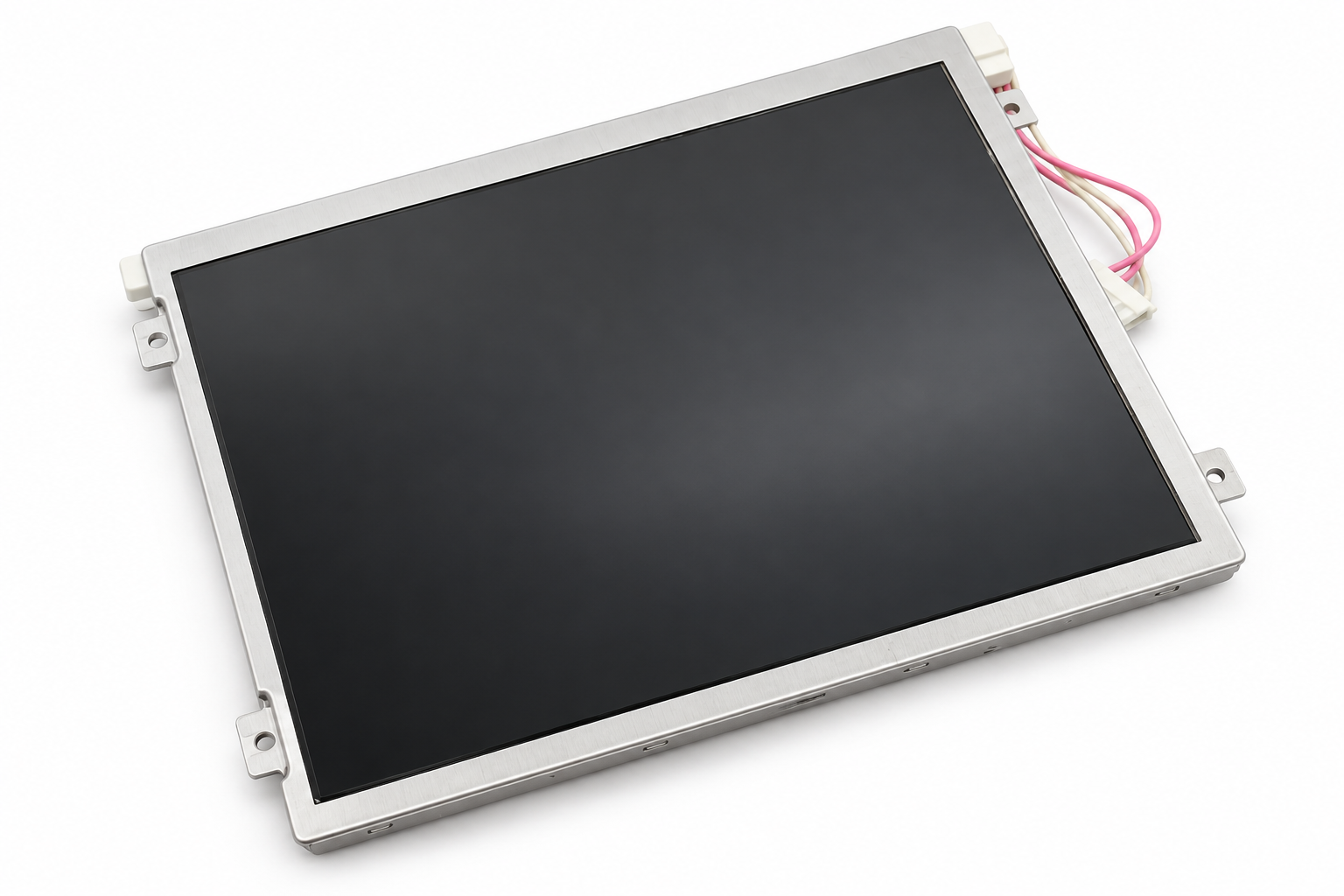

New Sharp LQ084S3LG01 industrial color TFT LCD display module. This 8.4-inch panel features SVGA resolution, an LVDS signal interface, high-brightness CCFL backlighting, and an anti-glare viewing surface.

It is suitable for repairing compatible industrial computers, operator interfaces, test equipment, medical equipment, control systems, and other embedded electronics originally equipped with the exact same display.

Product specifications

• Manufacturer: Sharp Corporation
• Model/MPN: LQ084S3LG01
• Display technology: Active-matrix color TFT LCD
• Screen size: 8.4 inches
• Resolution: 800 × 600 pixels—SVGA
• Aspect ratio: 4:3
• Display colors: Up to approximately 16.19 million
• Interface: Single-channel LVDS
• Interface connector: 20-pin
• Panel supply voltage: 3.3V DC
• Backlight: Dual CCFL
• Backlight inverter: Not integrated
• Typical brightness: 400 cd/m²
• Typical contrast ratio: 600:1
• Active display area: 170.4 × 127.8 mm
• Pixel pitch: 0.213 × 0.213 mm
• Approximate dimensions: 199.5 × 149.5 × 11.6 mm
• Maximum weight: 405 g
• Display mode: Normally white, transmissive
• Surface treatment: Anti-glare with hard coating
• Touchscreen: Not included
• Orientation: Landscape

Sharp’s technical specification identifies this model as an 8.4-inch, 800 × 600 color TFT module using LVDS input, a 3.3V panel supply, and an external backlight inverter. Sharp LQ084S3LG01 specification

Package includes

• One Sharp LQ084S3LG01 LCD display panel

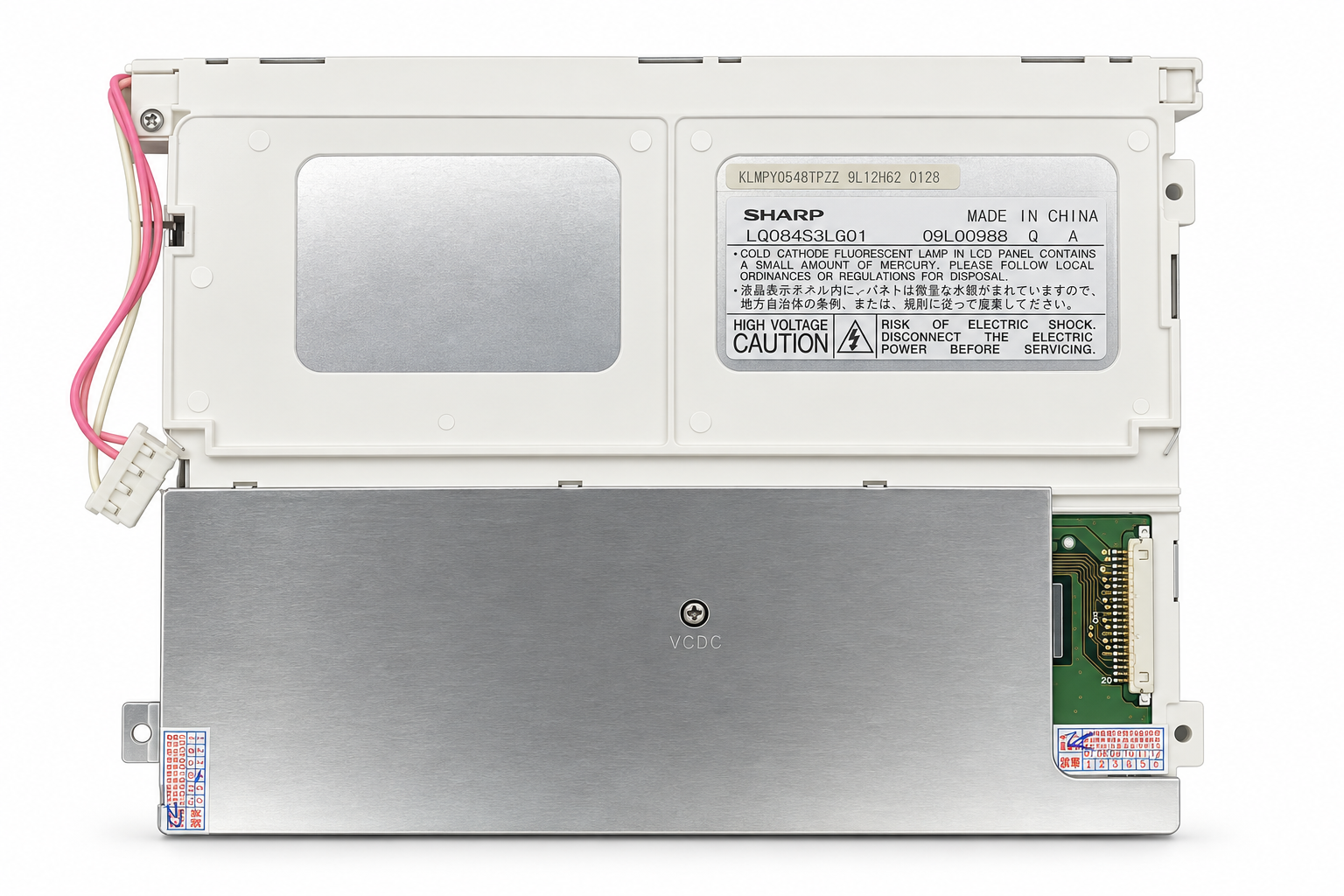

Any factory-attached backlight leads shown in the photographs are included. Controller board, touchscreen, LVDS cable, CCFL inverter, mounting hardware, power supply, and installation tools are not included unless expressly shown and stated.

Compatibility

This industrial LCD does not have a dependable vehicle-style or consumer-model compatibility chart. Confirm compatibility using the complete panel number:

LQ084S3LG01

A Digital View cable identified as 426496510-3 was specifically designed for the LQ084S3LG01 and associated Digital View SVH-1920, ALR-1400, and SP-1600 controller applications. This does not mean the panel will connect directly to those controllers without the correct cable, configuration, inverter, and power supply. Digital View cable documentation

Before purchasing, compare:

• Full model number
• 20-pin LVDS connector and pin assignment
• 800 × 600 native resolution
• 3.3V panel supply
• Dual-CCFL backlight connections
• External inverter requirements
• Panel dimensions and thickness
• Mounting-tab locations
• Viewing orientation

Do not assume that another 8.4-inch Sharp display is interchangeable. Similar models such as LQ084S3LG03, LQ084S3DG01, LQ084V3DG01, and LQ084V3DG02 may use different resolutions, signaling, connectors, backlight systems, or mechanical configurations.

Installation notice

This is a component-level LCD panel, not a complete plug-and-play monitor. Installation should be completed by a technician familiar with LVDS displays and CCFL backlight systems.

The CCFL backlight requires a compatible high-voltage inverter that is not built into the panel. Applying an incorrect voltage or using the wrong pinout can permanently damage the display. Disconnect equipment from power and observe electrostatic-discharge precautions during installation.
