Sharp LQ070T5CRQ1 7in TFT LCD 480x234 28-Pin CCFL Analog Display

Sharp LQ070T5CRQ1 7-inch TFT-LCD display module

Replacement Sharp TFT-LCD panel for compatible industrial, laboratory, medical, test and control equipment originally equipped with the LQ070T5CRQ1 display.

This is a component-level replacement LCD panel. It is not a complete standalone monitor and does not accept HDMI, VGA or USB video directly.

Product details

• Manufacturer: Sharp

• Manufacturer part number: LQ070T5CRQ1

• Display type: a-Si TFT-LCD module

• Screen size: 7 inches

• Resolution: 480 × 234 pixels

• Color arrangement: RGB vertical stripe

• Display mode: TN, normally white, transmissive

• Brightness: 350 cd/m² typical

• Contrast ratio: 60:1 minimum

• Video interface: Analog RGB and composite video

• Composite-video standards: NTSC/PAL

• Connector: 28-pin

• Input voltage: 8.0V ±1.0V

• Backlight: Single CCFL lamp with inverter

• Touchscreen: No

• Active display area: Approximately 154.08 × 87.05 mm

• Overall panel dimensions: Approximately 170 × 103.5 mm

• Viewing angle: 65° left, 65° right, 50° up and 65° down

• Screen surface: Matte, anti-reflective

Compatibility

This display is compatible as a direct replacement only for equipment originally fitted with a Sharp LQ070T5CRQ1 LCD panel.

It may be found in certain industrial HMI/OIT control panels, machinery, test equipment, laboratory equipment, medical equipment and legacy monitor assemblies. No dependable vehicle-specific application has been identified for this panel.

Before ordering, remove the original display and confirm:

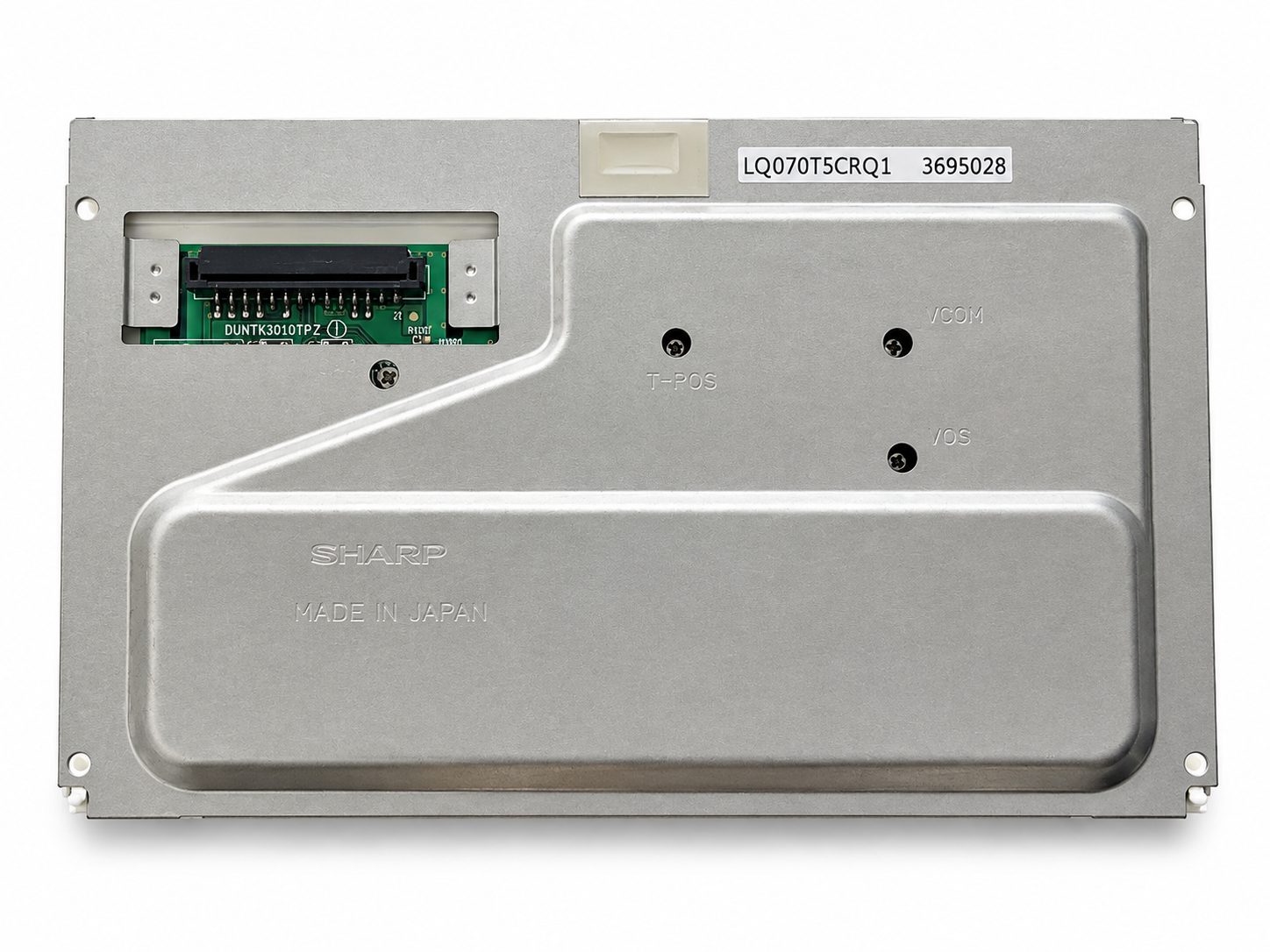

• The original label shows the exact part number LQ070T5CRQ1

• The display uses the same 28-pin connector

• The equipment supports the same analog RGB or composite-video interface

• The original display uses an 8V input

• The original panel uses a CCFL backlight and compatible inverter

• The dimensions, mounting points and connector position match

• The original application does not require an integrated touchscreen

A 7-inch screen measurement alone does not confirm compatibility. Similar-looking Sharp panels, including other LQ070T5 versions, may have different pinouts, voltages, video timing, mounting arrangements or backlight requirements.

Condition

New open-box or surplus replacement display. Each panel is tested before shipment. Minor cosmetic marks from storage, inspection or handling may be present.

Please review all photographs and verify the part number before purchasing.

Package contents

• One Sharp LQ070T5CRQ1 TFT-LCD display module

• Attached circuit-board or inverter hardware only when shown in the listing photographs

External video controllers, wiring harnesses, touch panels, mounting brackets and installation instructions are not included unless expressly stated.

Installation

Professional installation is recommended. Disconnect the equipment from power and follow suitable anti-static precautions before handling the panel.

Incorrect voltage, connector orientation, video signals or wiring can permanently damage the display. Please compare the original panel carefully before installation.

Important purchasing information

Please order by the complete part number printed on the original screen. If your panel does not show LQ070T5CRQ1, contact us with photographs of its front, rear label and connector before purchasing.
