Center Gauge Cluster Circuit Board for 1977-1982 Chevrolet Corvette C3 602505

Restore intermittent or inoperative gauges, warning lamps and clock circuits in the center gauge cluster of a 1977-1982 Corvette C3. This replacement printed circuit uses reinforced copper paths and bulb-contact areas for dependable electrical contact.

Product Details

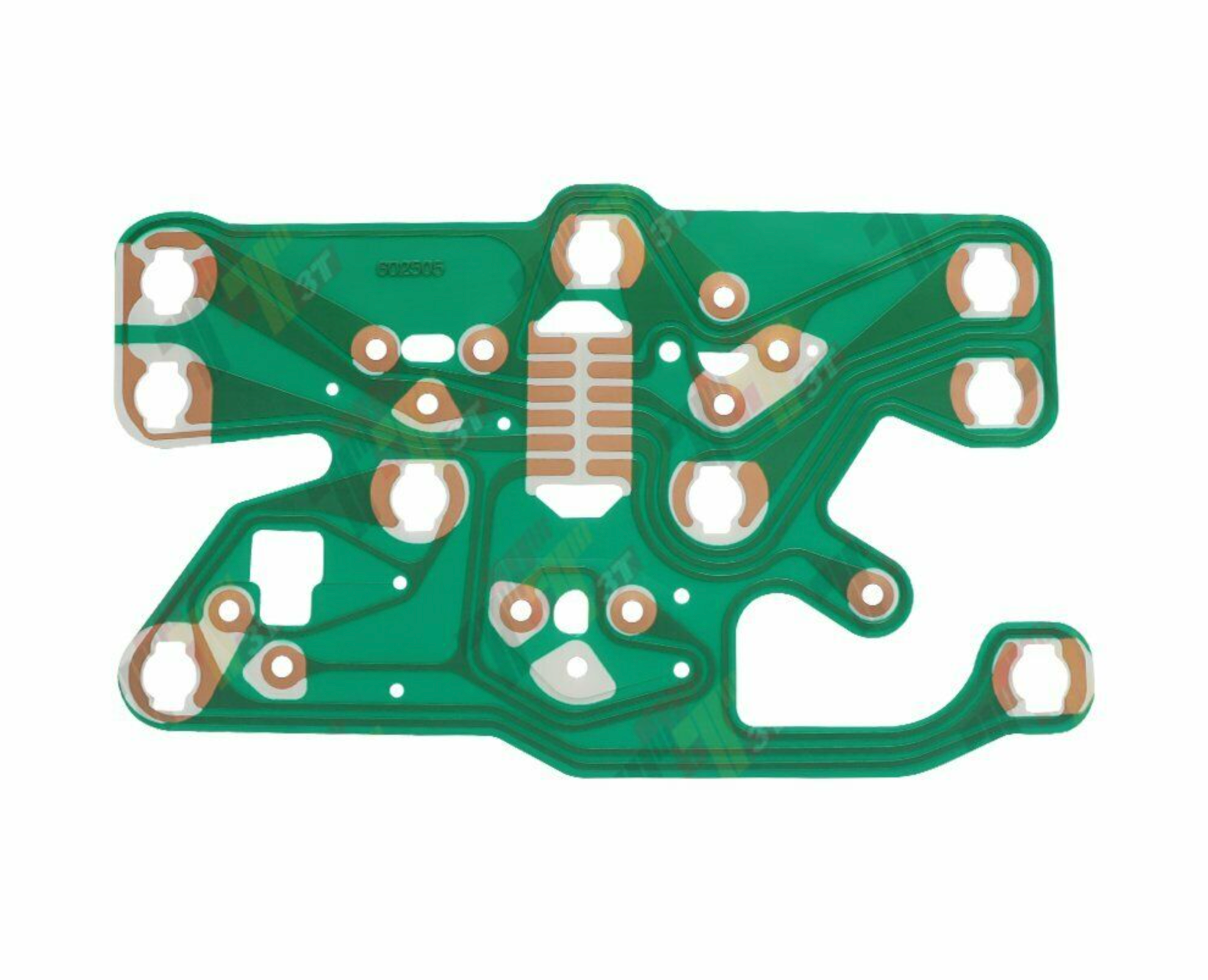

• Replacement flexible printed circuit for the center gauge cluster
• Thicker copper circuit paths and bulb-contact points than many thin reproductions
• Direct plug-in style replacement for the original circuit
• May correct faults caused by cracked, burned or deteriorated original traces

Fitment and Compatibility

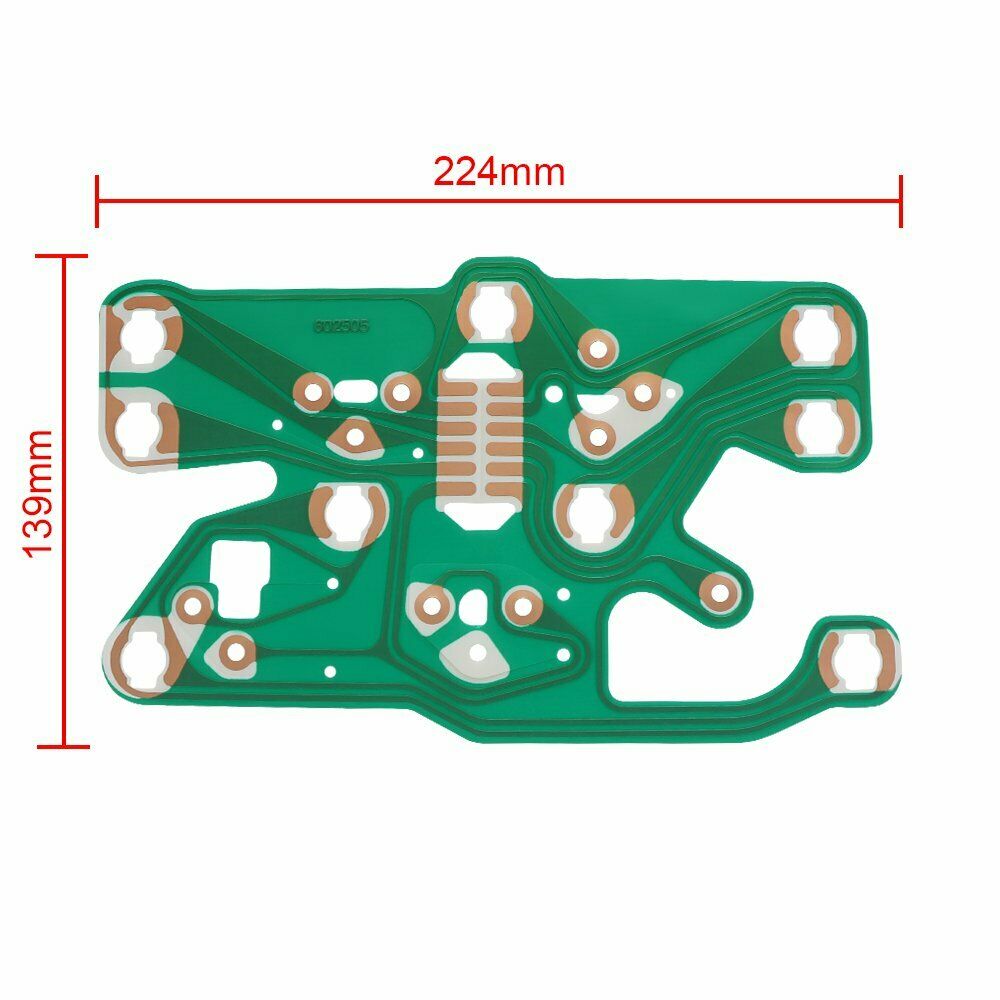

Fits 1977-1982 Chevrolet Corvette C3 center gauge clusters using the matching circuit layout. Verify the connector positions, bulb-contact pattern and cluster configuration against the original before ordering.

Part Number Information

Reference part number: 602505.

Package Contents

One replacement center gauge-cluster printed circuit board. Gauges, bulbs, clock and cluster housing are not included.

Installation Notes

Disconnect the battery and remove the center cluster according to the factory service manual. Transfer components carefully, clean contact surfaces and avoid folding or creasing the circuit. Diagnose gauges, bulbs, grounds and wiring separately because a new circuit will not correct unrelated faults.
