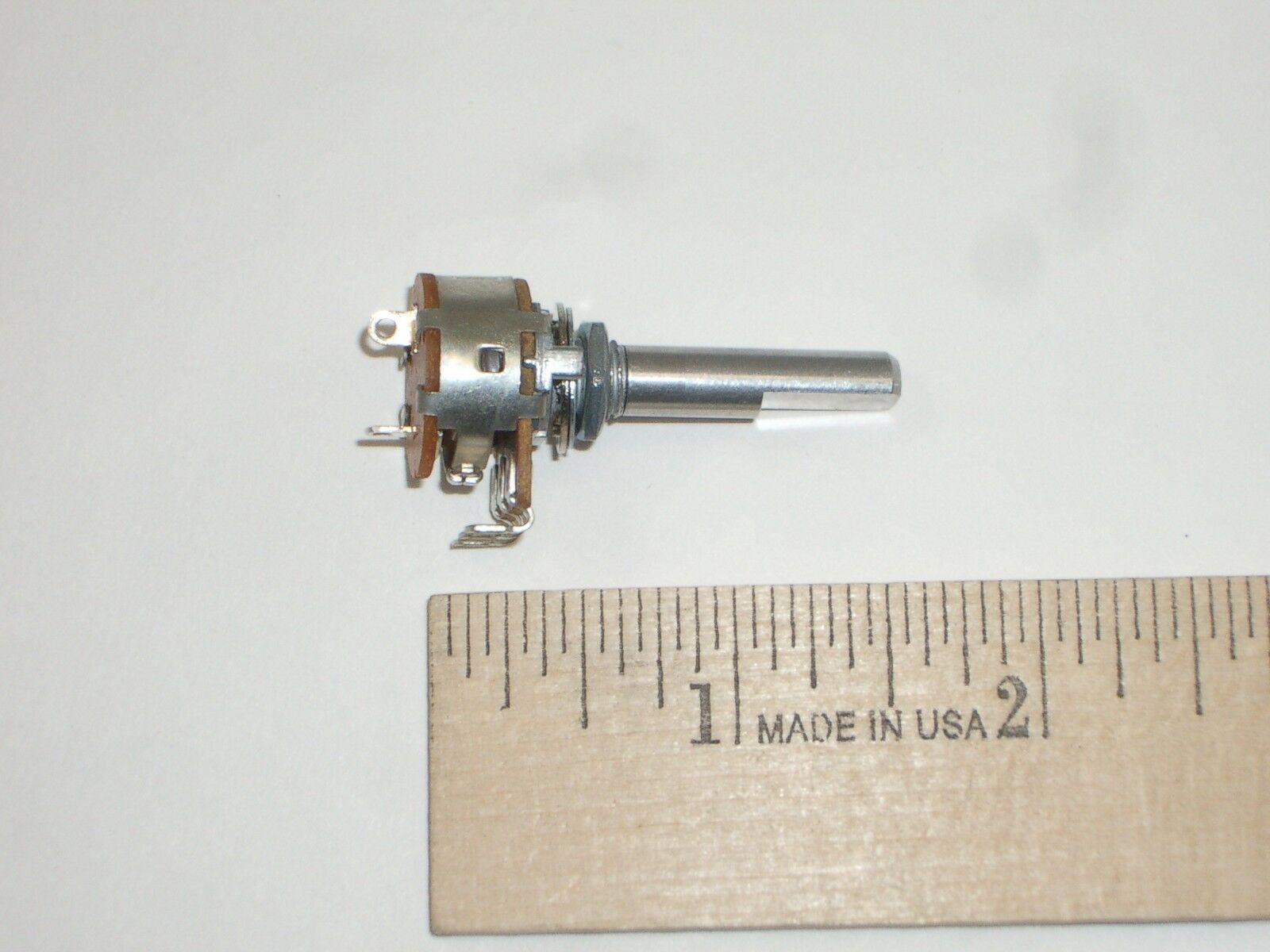

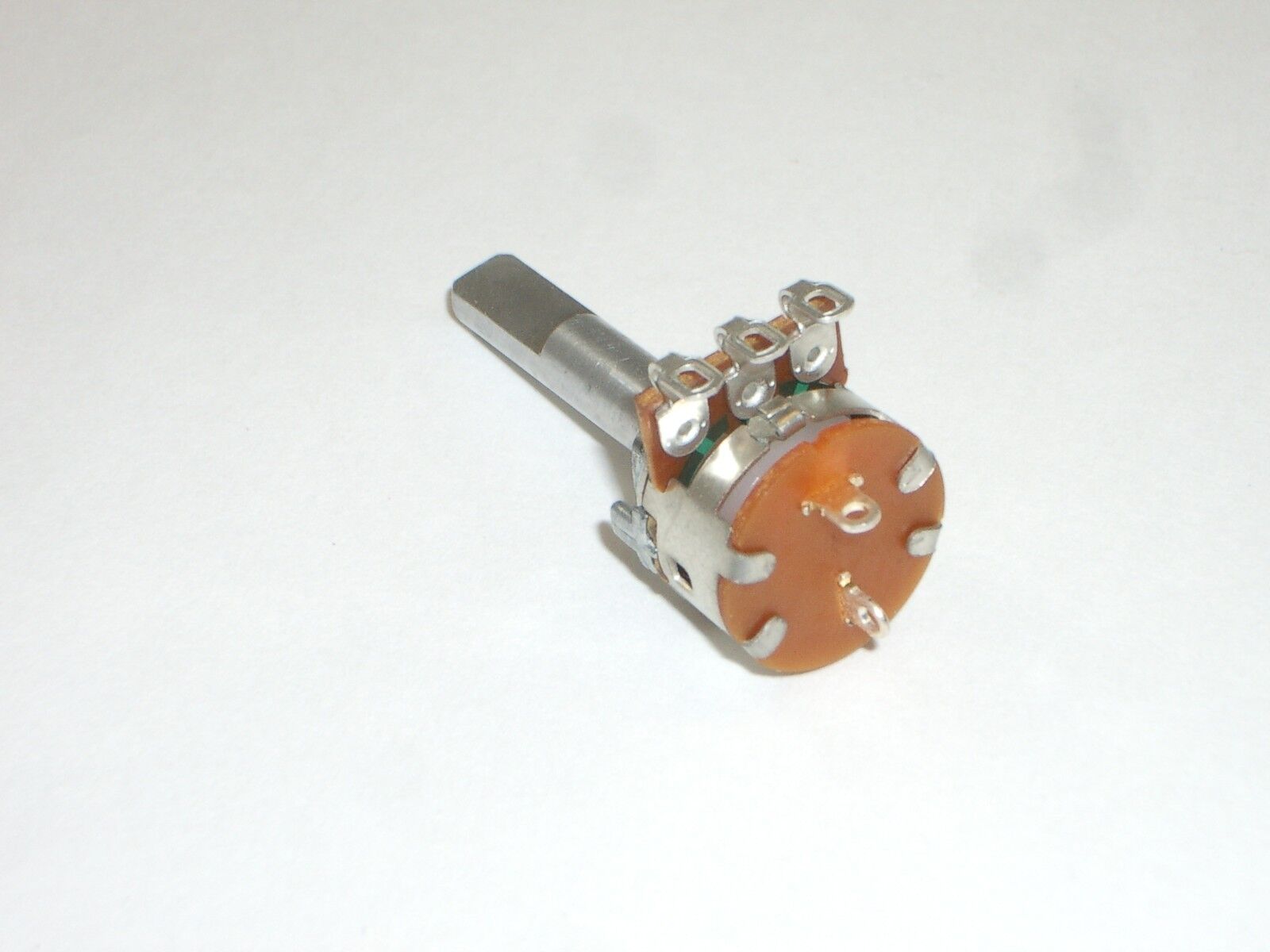

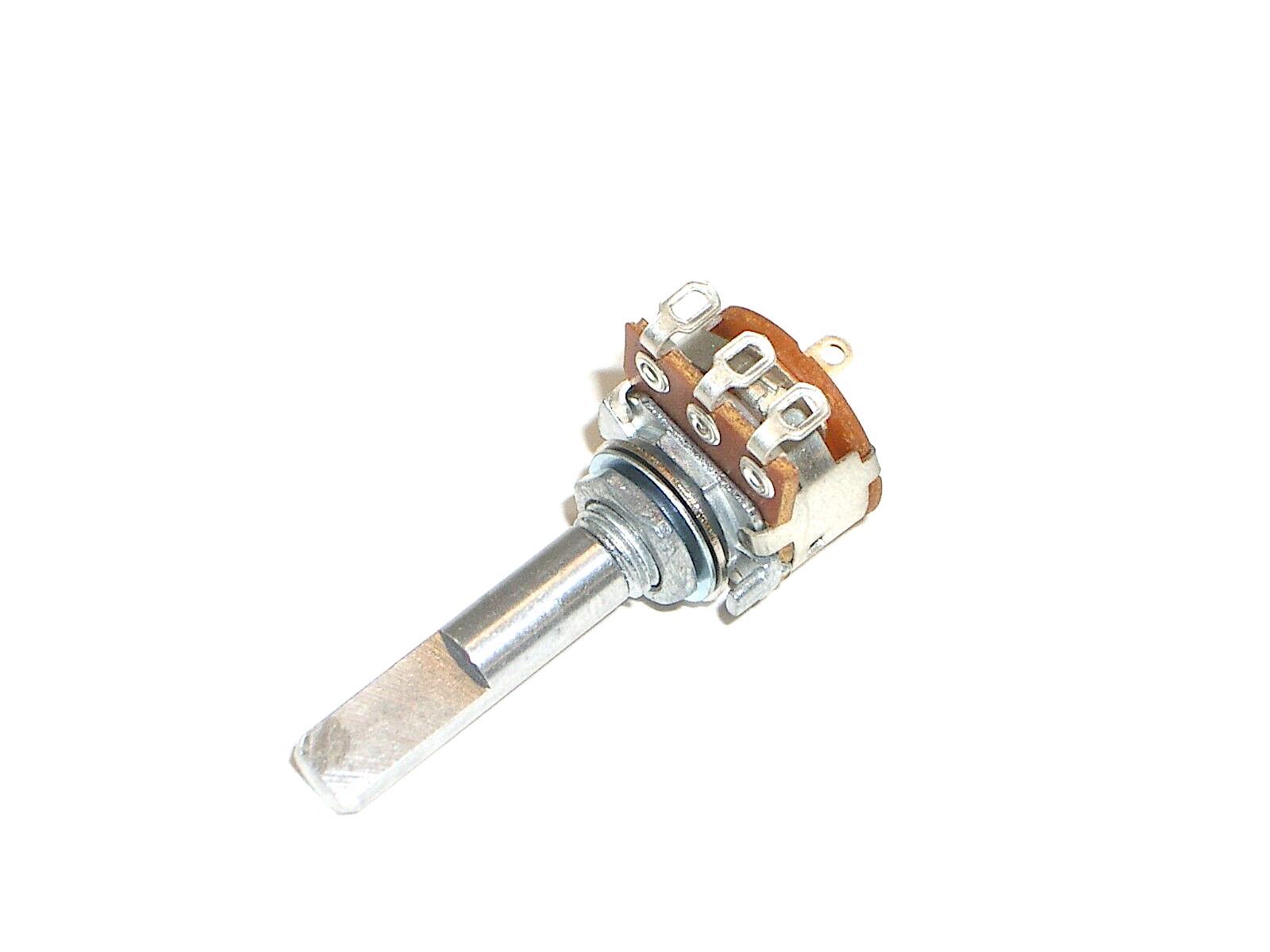

500K Audio-Taper Volume Control with On/Off Switch Philmore PC875
. New Philmore PC875 miniature audio-taper potentiometer with an integrated SPST on/off switch. Designed for compatible vintage radios, stereos, amplifiers and other audio equipment that uses a 500K-ohm volume control.
Product Details
- Resistance: 500K ohms ±20%
- Taper: Audio/logarithmic
- Maximum voltage: 200VAC
- Potentiometer power rating: 0.10W
- Switch: SPST, rated 1A at 125VAC/DC
- Rotation: 300°
- Expected rotational life: 15,000 cycles
- Body diameter: 16mm
- Bushing diameter: 7mm
- Shaft: 30mm long × 6mm diameter with 12mm flat
- Terminals: Solder lug
- Condition: New
Fitment and Compatibility
Suitable only for equipment requiring the same resistance, taper, switch type, terminal arrangement and physical dimensions. Compare the original control and electrical specifications before purchase; this is not a universal drop-in replacement for every radio or amplifier.
Part Number Information
Manufacturer part number: Philmore PC875.
Package Contents
Includes one Philmore PC875 potentiometer with integrated on/off switch. Knob and wiring are not included.
Installation Notes
Installation requires soldering and may involve line voltage. Disconnect the equipment from power and have a qualified technician perform the repair when appropriate.
