Engine Timing Tool Kit for 2011-2017 Jaguar Land Rover 2.0L GTDi 204PT

Comprehensive timing-service tool kit for setting the camshaft and crankshaft on compatible Jaguar and Land Rover 2.0L GTDi gasoline engines with engine code 204PT.

Product Details

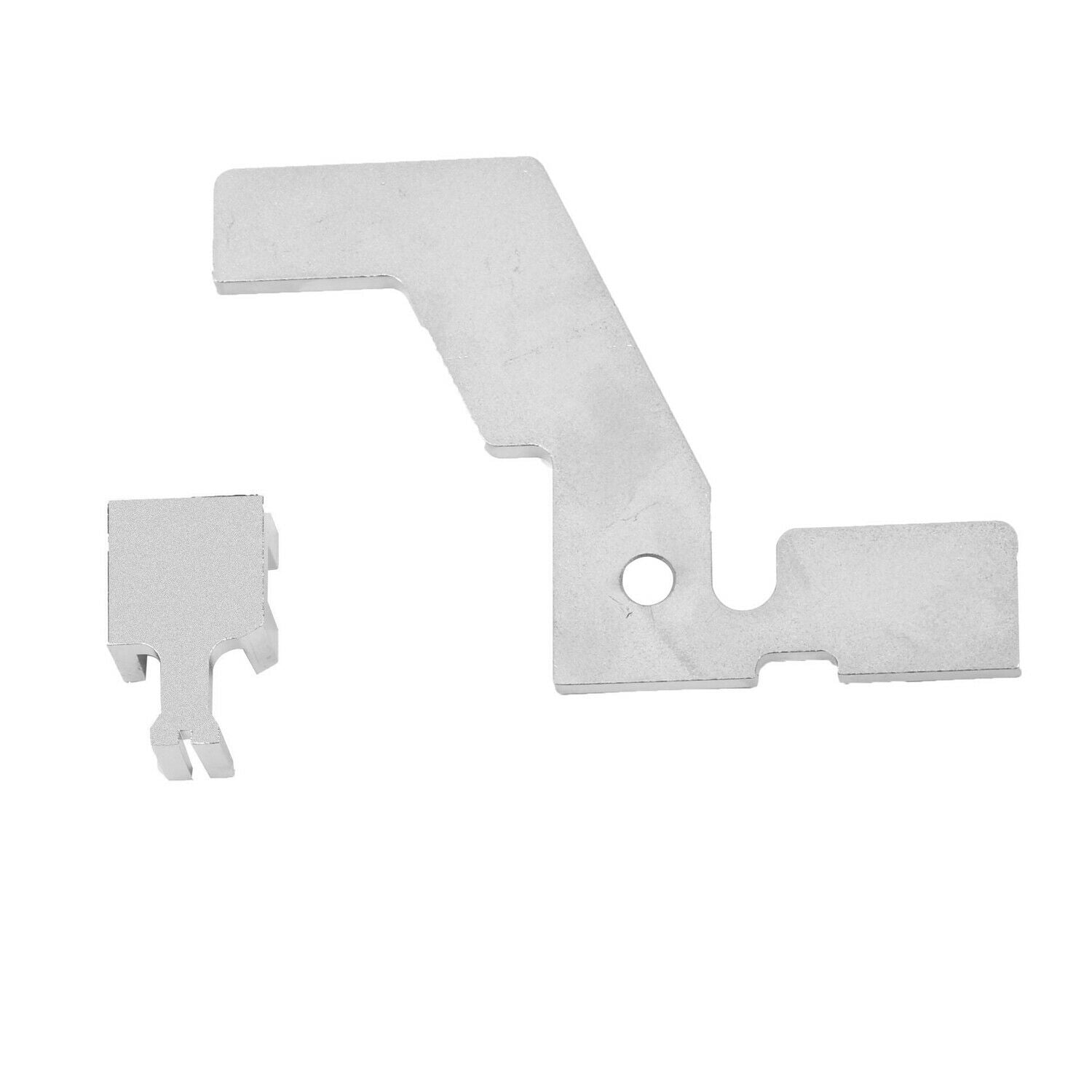

• Camshaft alignment plate

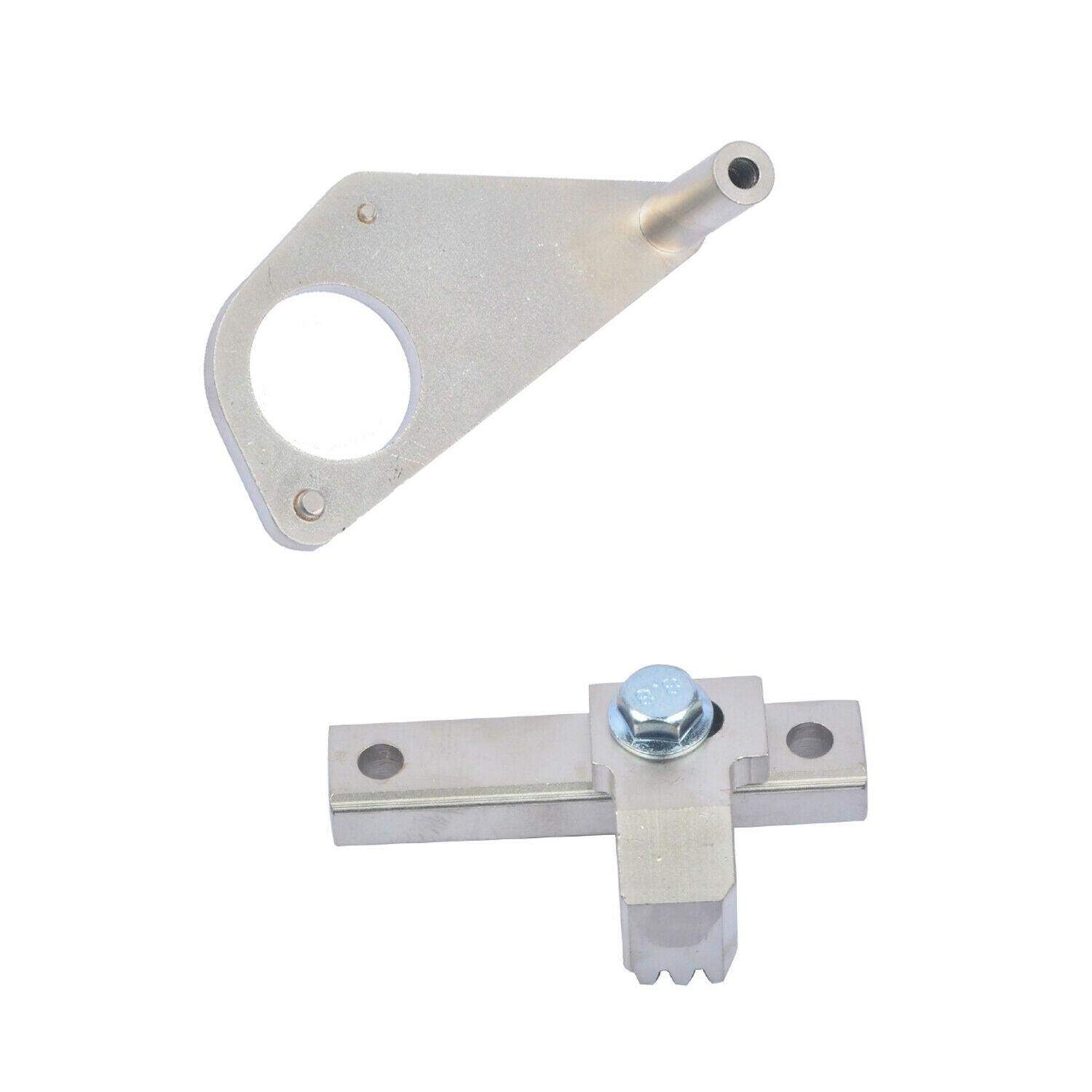

• Crankshaft alignment plate with guide pins
• Crankshaft-position-sensor alignment tool

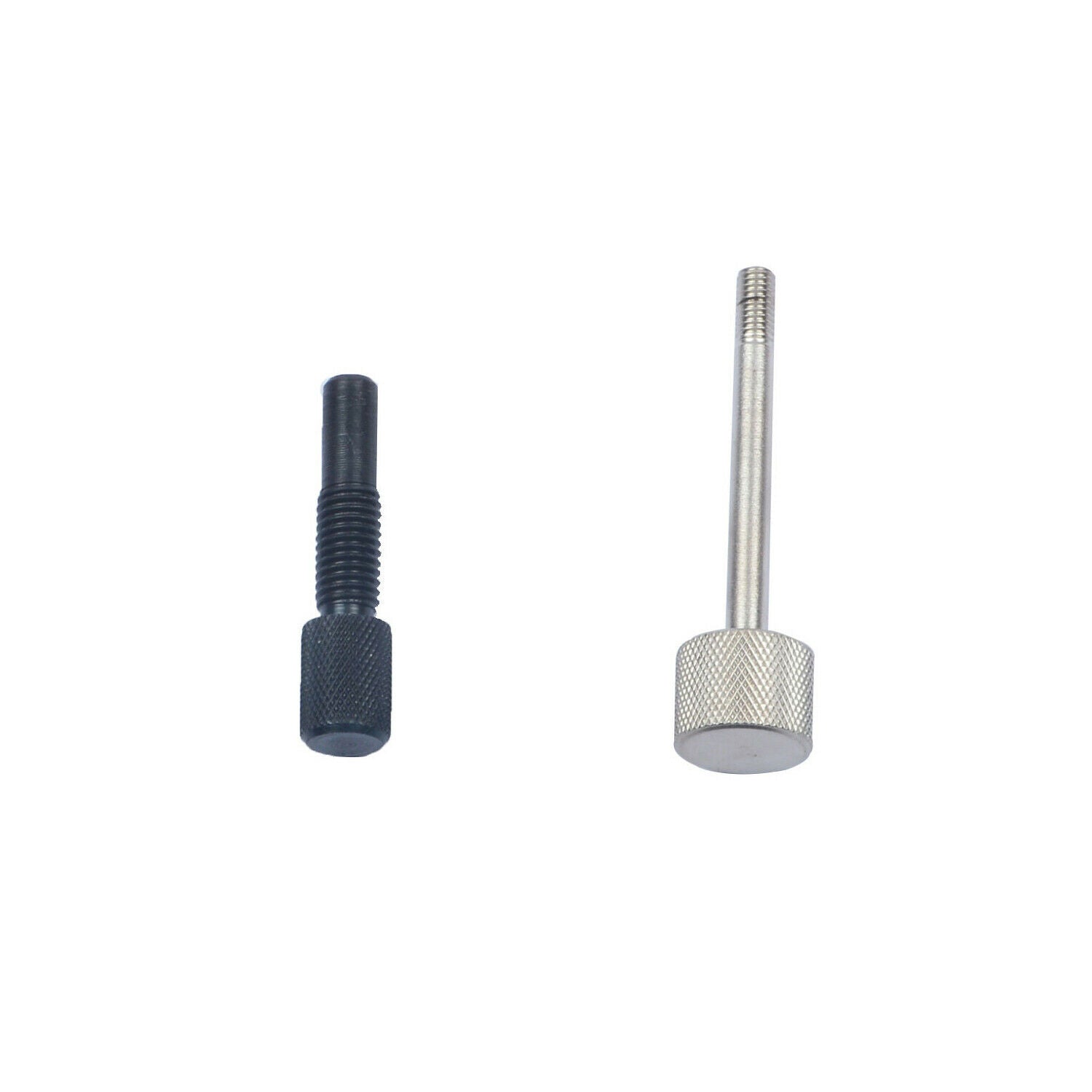

• Flywheel holding tool and crankshaft setting pin

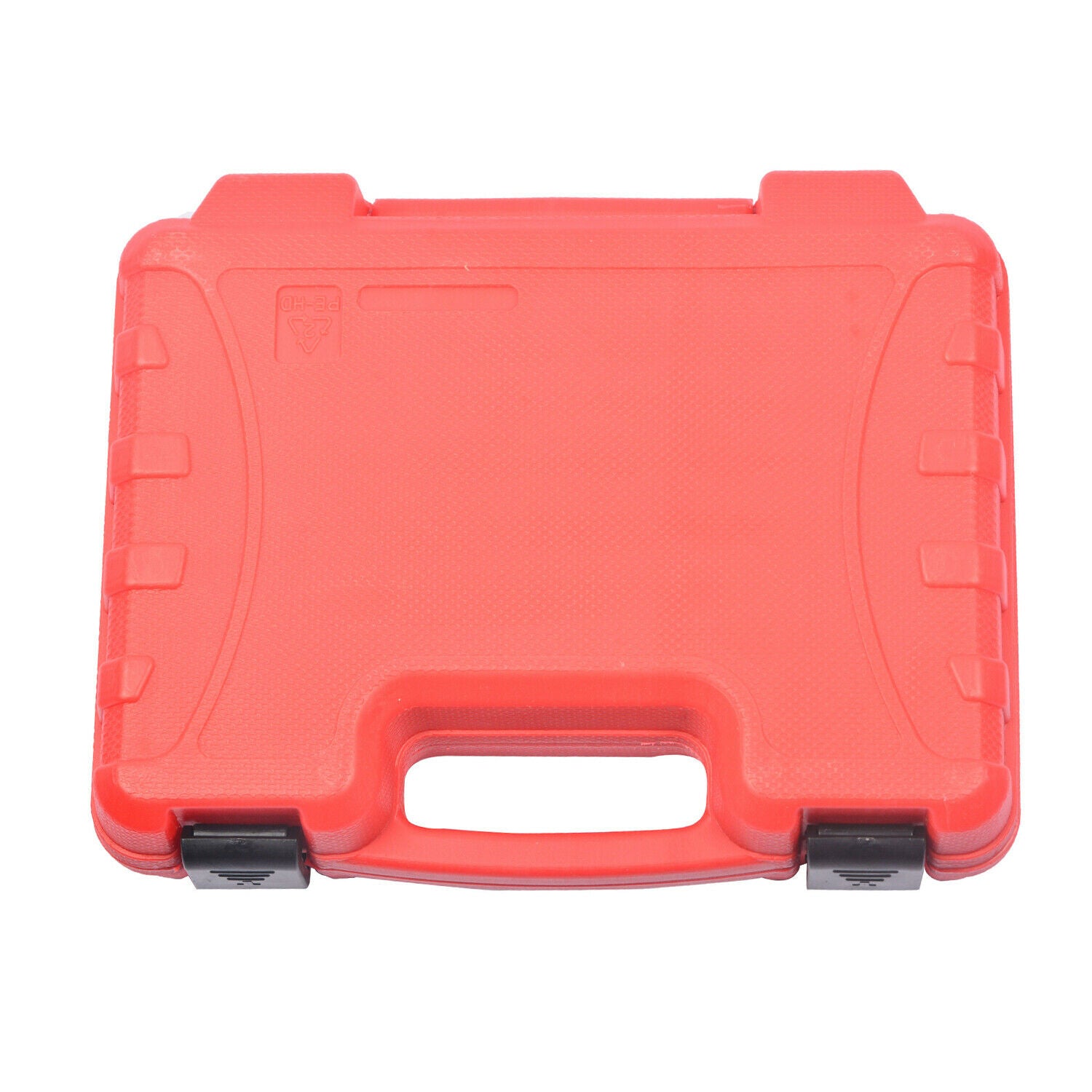

• Steel construction with storage case

Fitment and Compatibility

For selected Jaguar XE 2015-2017, XF 2012-2017 and XJ 2013-2017 GTDi applications, plus Land Rover Discovery Sport 2015-2017, Freelander 2 2012-2015 and Range Rover Evoque 2011-2017 Si4 models using the 2.0L 204PT engine. Confirm engine code and service procedure before use.

Part Number Information

Tool-equivalent references: 303-1600 / 303-1565, 303-1595, 303-1521, 303-1594 and 303-748. These are workshop-tool references, not vehicle part numbers.

Package Contents

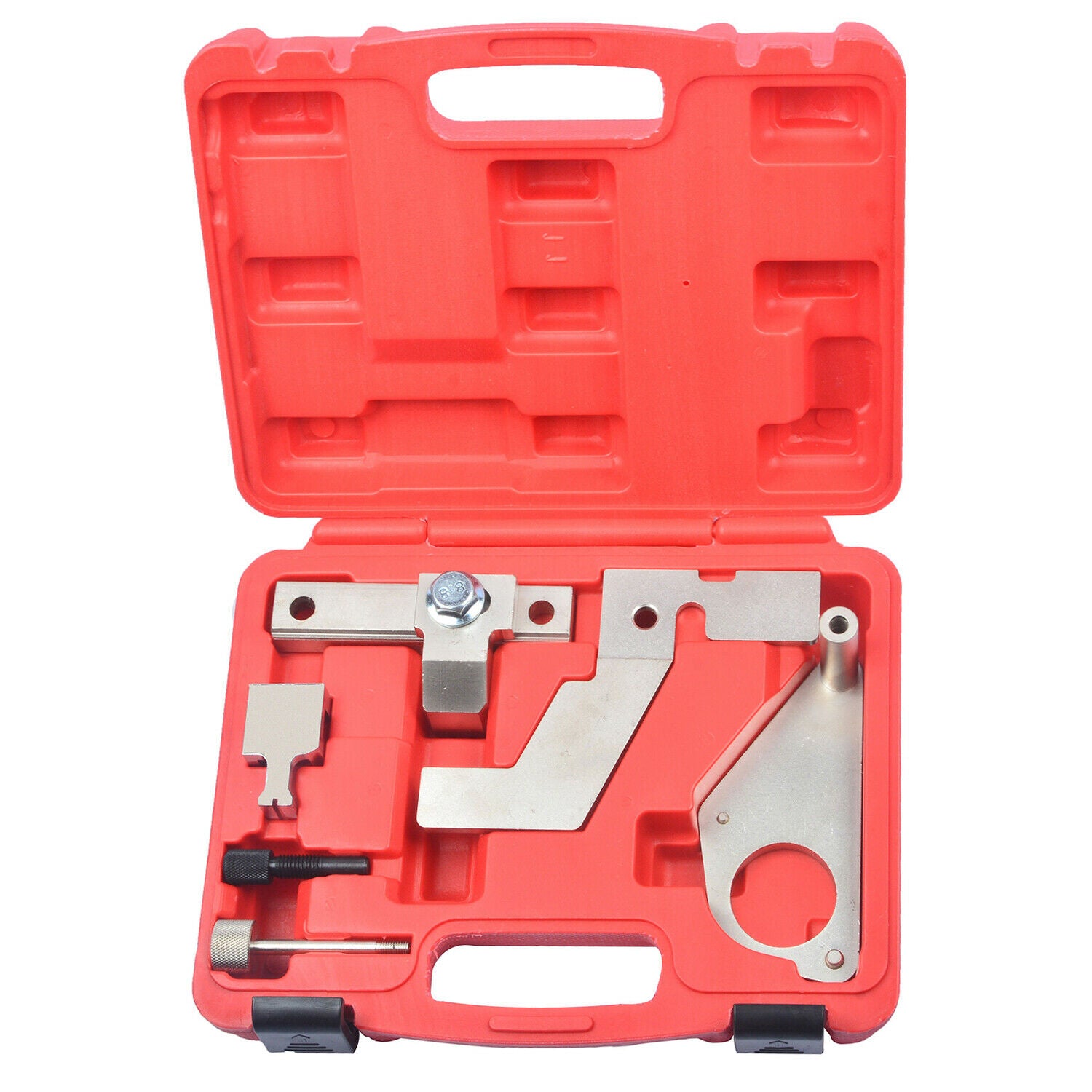

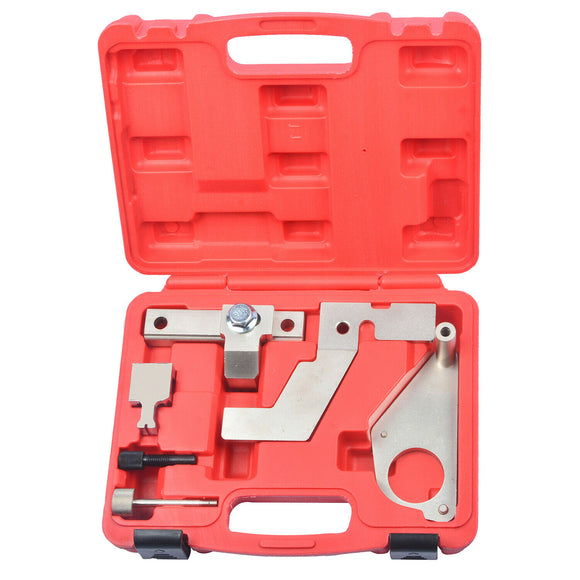

One complete timing-tool kit with components shown and storage case.

Installation Notes

Set the engine to the specified service position before installing the fixtures. Do not rotate the crankshaft or camshafts against locked tools. Use current OEM timing data and torque specifications.
