Original Mitsubishi AA084SB01 8.4" SVGA TFT LCD Screen Display Panel 800x600

$ 199.95

Pay in 4 interest-free payments of $ 49.99 with

Product Description

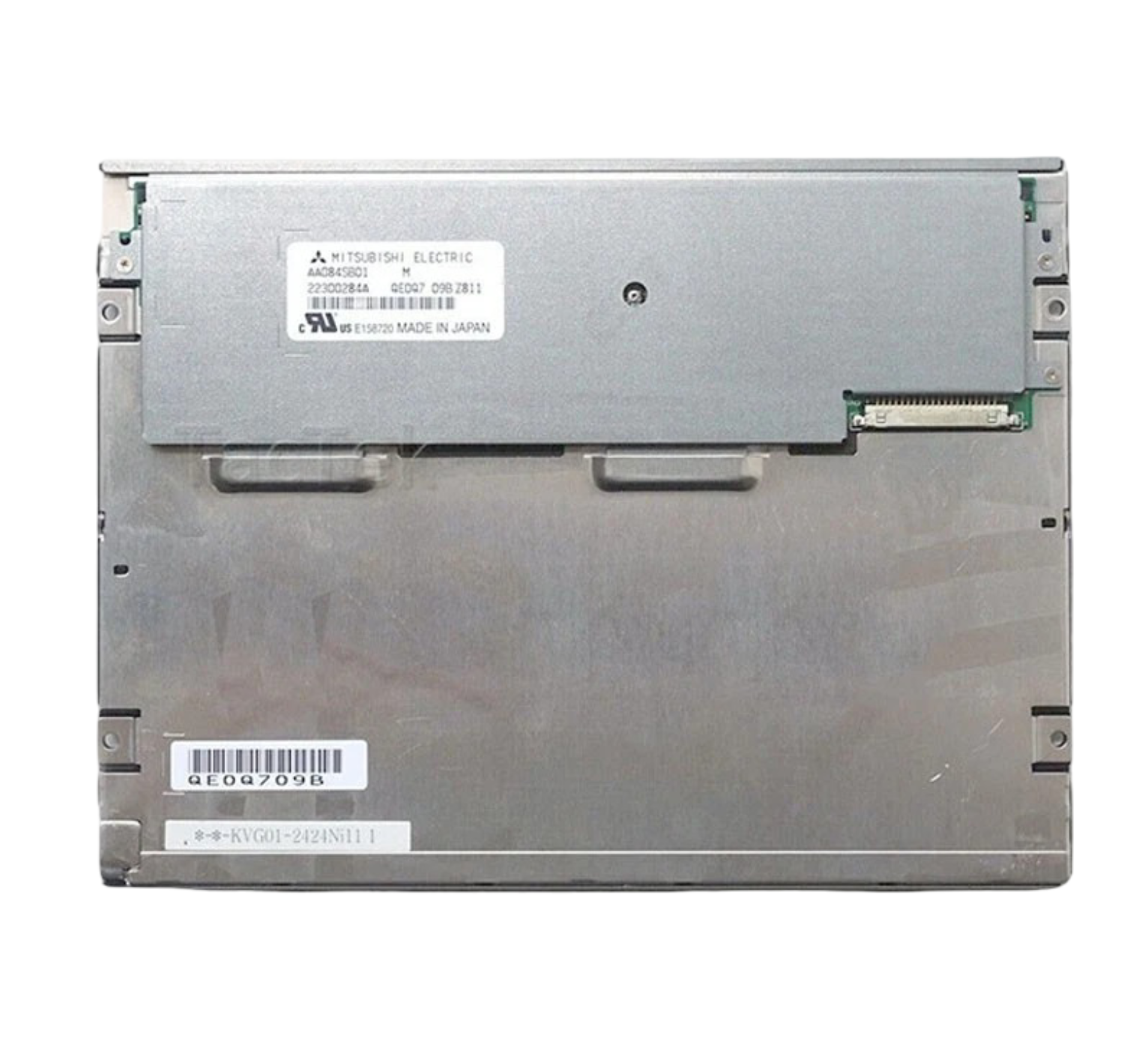

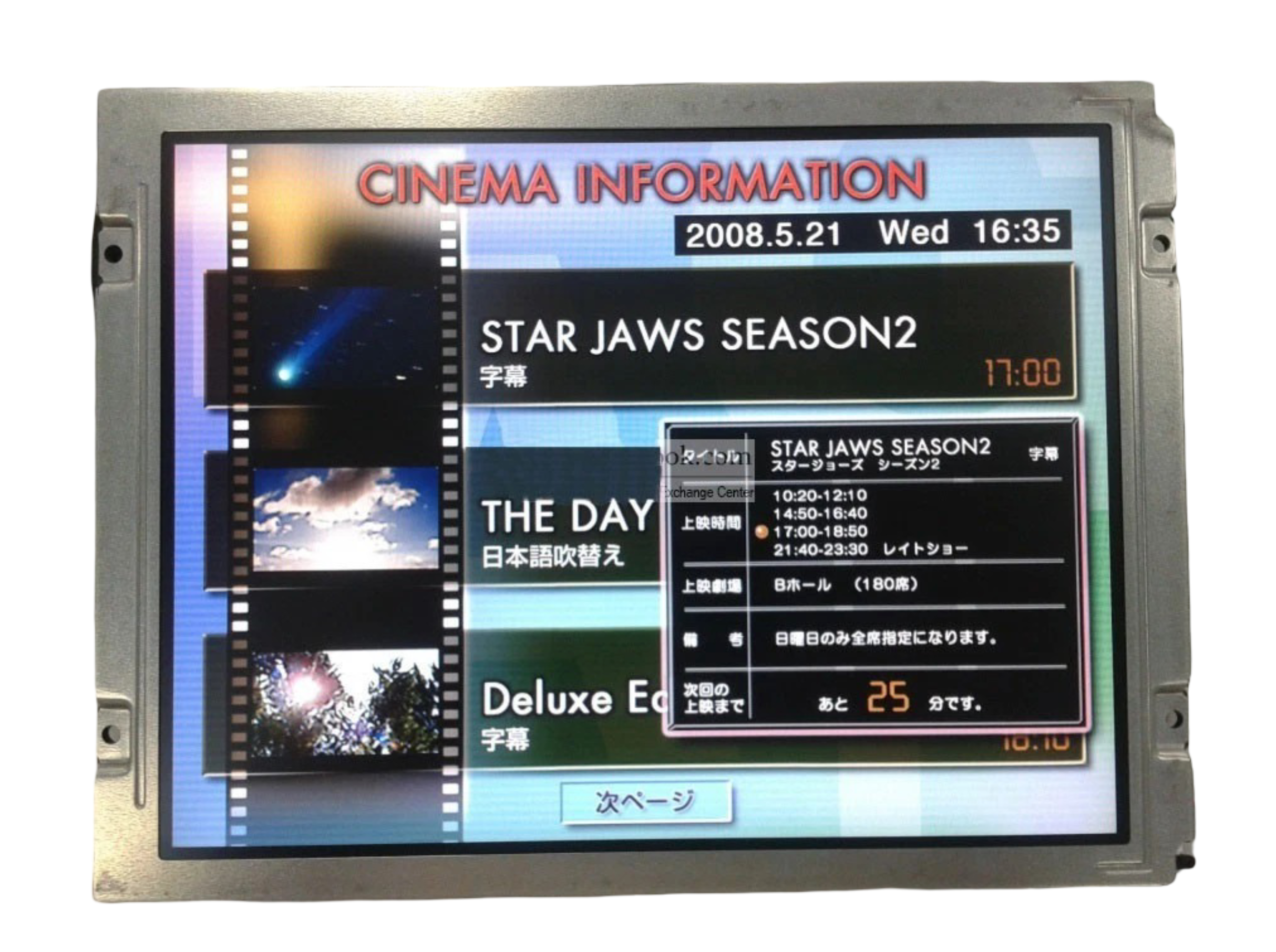

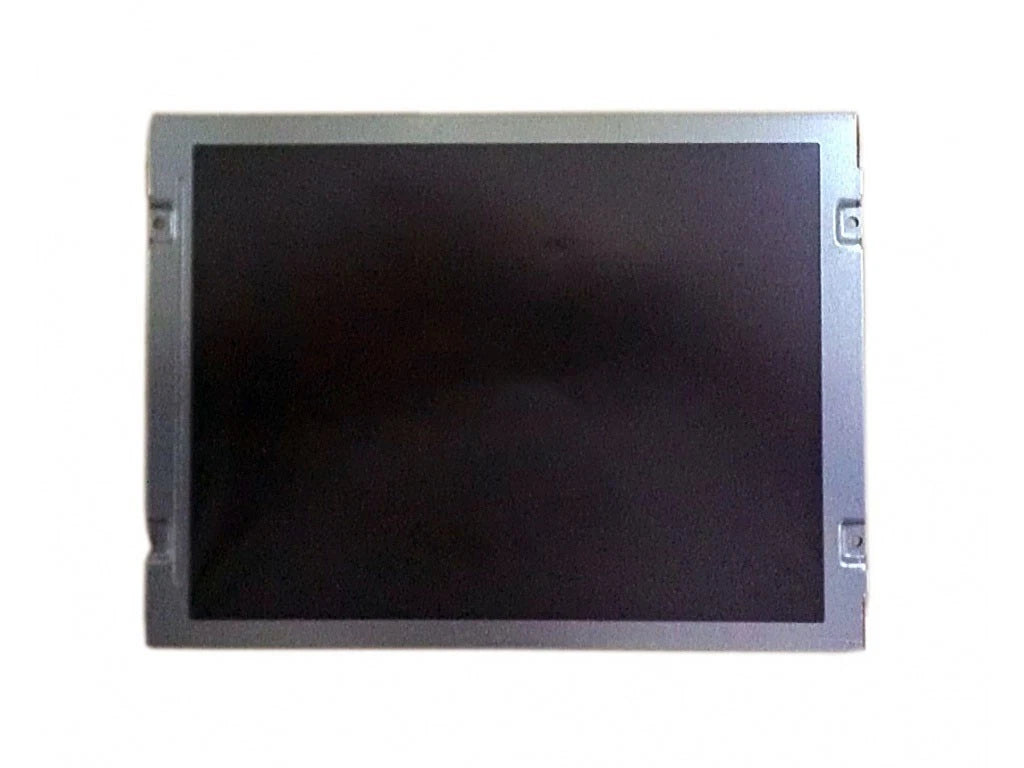

Original Mitsubishi Electric AA084SB01 industrial LCD display panel. This 8.4-inch TFT module features an SVGA 800 × 600 resolution, high-brightness LED backlighting and a 20-pin LVDS interface.

Ideal as a replacement panel for compatible industrial equipment, automation systems, test equipment, control terminals and embedded displays.

Product Specifications

Manufacturer: Mitsubishi Electric
Model: AA084SB01
Alternate model: T-55466D084J-LW-A-AAN
Screen size: 8.4 inches
Display technology: a-Si TFT-LCD
Resolution: 800 × 600 SVGA
Aspect ratio: 4:3
Brightness: 600 cd/m² typical
Contrast ratio: 600:1 typical
Display colors: 262,000 at 6-bit or 16.7 million at 8-bit
Interface: Single-channel 6/8-bit LVDS
Connector: 20-pin
Panel voltage: 3.3V
Backlight: White LED
Active area: 170.4 × 127.8 mm
Module dimensions: Approximately 199.5 × 149 × 11.5 mm
Surface: Anti-glare with 3H hard coating
Orientation: Landscape
Touchscreen: Not included
Backlight driver: Not integrated

Specifications are supported by the Mitsubishi AA084SB01 data sheet and Mouser product listing.

Package Includes

One Mitsubishi Electric AA084SB01 LCD panel only

No controller board, cables, touchscreen, inverter/backlight driver or mounting hardware is included unless specifically pictured.

Important Compatibility Notice

This is a component-level LCD panel, not a complete standalone monitor. Matching screen size alone does not guarantee compatibility. Before purchasing, verify the exact AA084SB01 model number, 800 × 600 resolution, 20-pin LVDS interface, connector position, voltage, dimensions and backlight requirements against the original panel or equipment documentation. Installation should be performed by a qualified technician.

Fitment and compatibility

Application reference: Original Mitsubishi AA084SB01 8.4" SVGA TFT LCD Screen Display Panel 800x600

Fitment can vary by production date, trim, drivetrain, factory options, connector style and installed equipment. Before ordering, compare the original component, mounting points, electrical connections and specifications with the listing photographs and details.

Part number information

Part number / catalog reference: AA084SB01

Part numbers may have supersessions or regional variations. Match at least one reference number and the physical configuration to the original part whenever possible.

Package and installation notes

Quantity is one product unless the title, variant selection or photographs clearly state otherwise. Professional installation is recommended for electrical, safety-related and drivetrain components.
